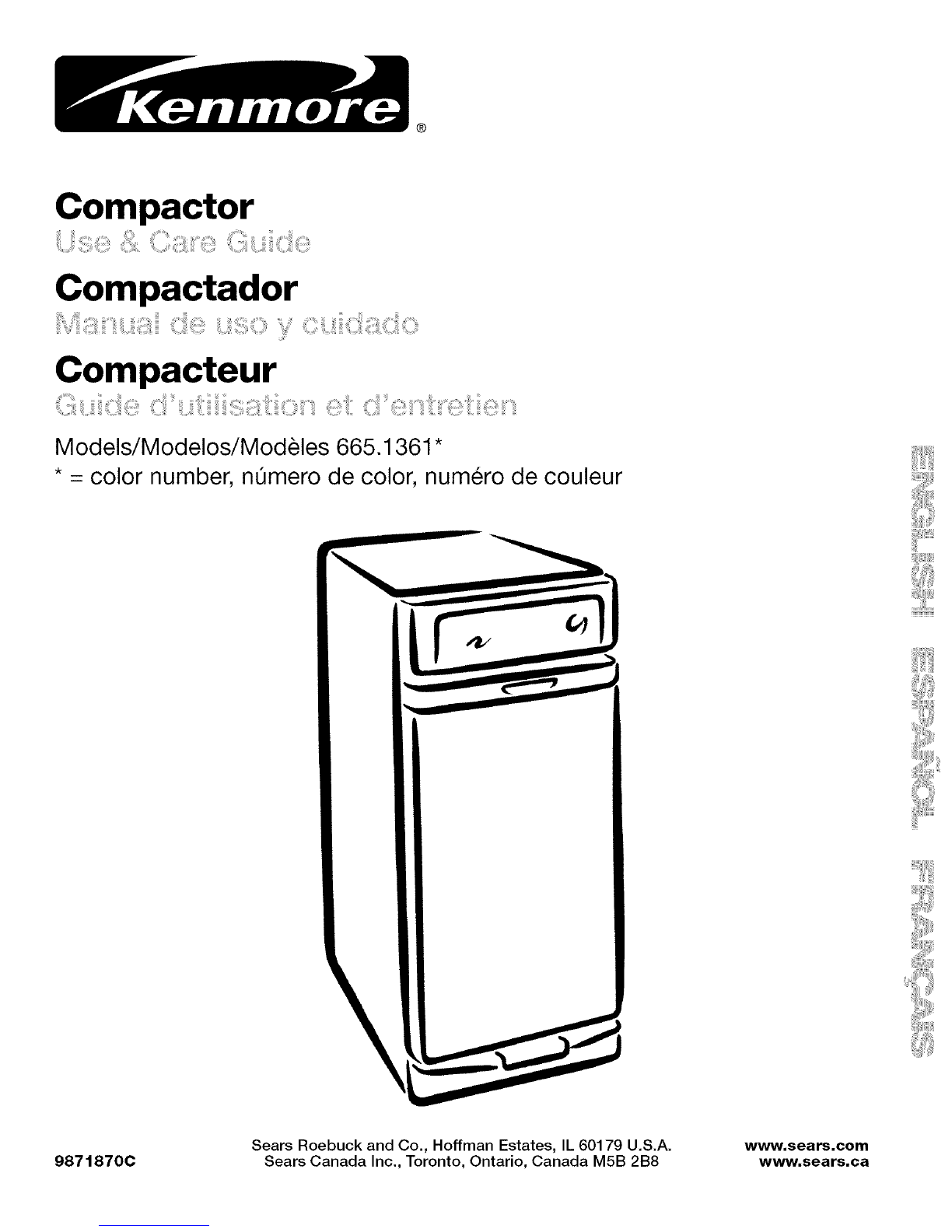

Kenmore 665.1361 Series User manual

®
Compactor
Compactador
ii"_'_,,_,,,,,_'i_i!!i!liiiiiii:'!,lJii_ii,_!i!!!'_ii_iiiii,C:i@ Uii_i!_:!i!ii_,O, iii!!!_,_''¸0L_iiiiiCii_ii!!:!::i!i,C!i0
Compacteur
Models/Modelos/Modeles 665.1361"
*=color number, nQmero de color, numero de couleur
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
9871870C Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

TABLEOF CONTENTS
PROTECTION AGREEMENTS ....................................................... 2
In the U.S.A ................................................................................... 2
In Canada ..................................................................................... 3
Accessories .................................................................................. 3
WARRANTY ..................................................................................... 3
COMPACTOR SAFETY .................................................................. 4
INSTALLATION INSTRUCTIONS .................................................. 5
Unpacking .................................................................................... 5
Location Requirements ................................................................ 5
Electrical Requirements ................................................................ 6
Freestanding and Undercounter Installation ................................ 6
Changing the Decorative Panel .................................................... 8
COMPACTOR USE ...................................................................... 10
How Your Compactor Works .................................................... 10
Loading ...................................................................................... 11
Starting Your Compactor .......................................................... 11
EXTRA PACTM Cycle ................................................................... 11
Air Freshener ............................................................................. 11

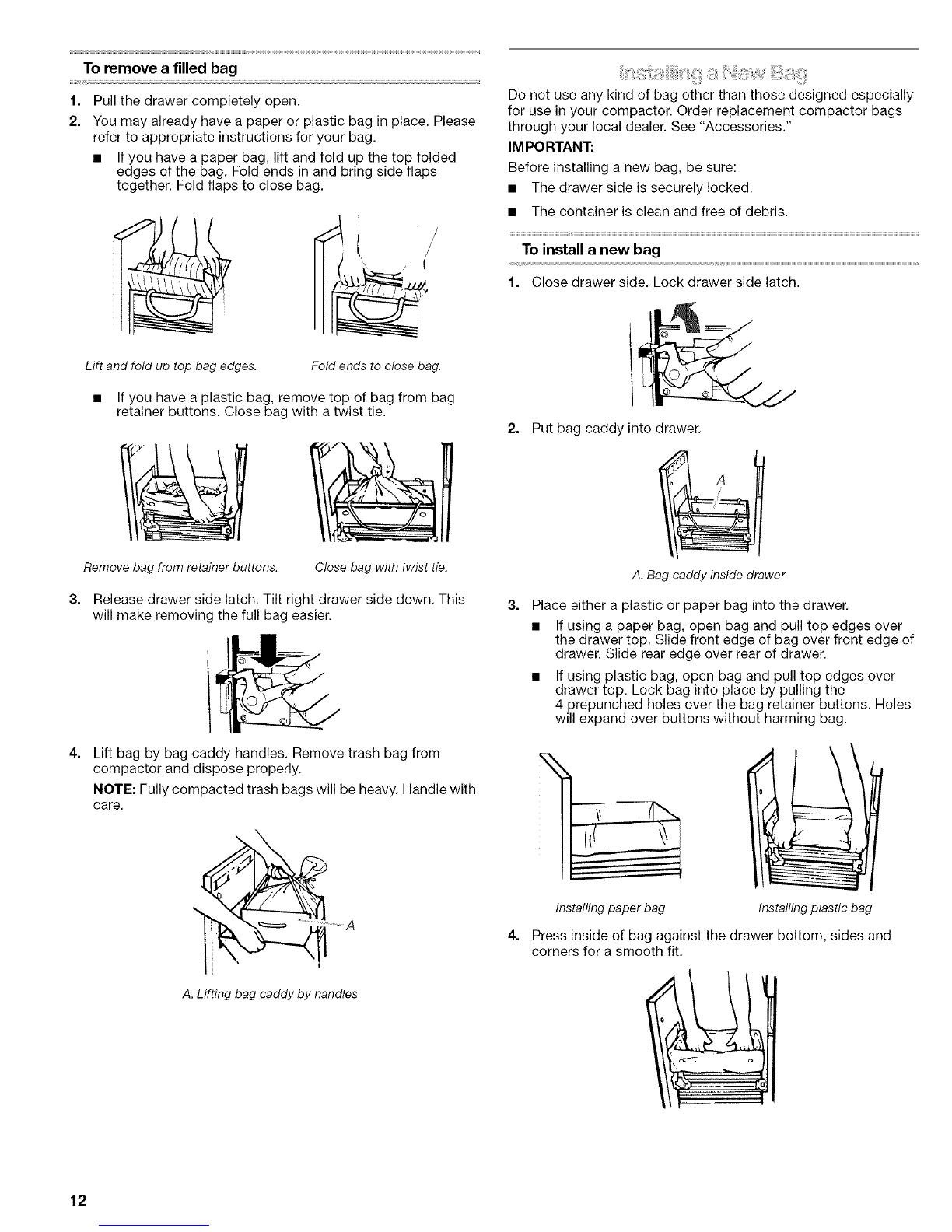

Removing a Filled Bag .............................................................. 11
Installing a New Bag .................................................................. 12
COMPACTOR CARE ................................................................... 13
Cleaning ..................................................................................... 13
TROUBLESHOOTING .................................................................. 14
SERVICE NUMBERS ............................................... BACK COVER
PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ®product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money and
aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life of
your new product. Here's what's included in the Agreement:
v' Expert service by our 12,000 professional repair specialists
v' Unlimited service and no charge for parts and labor on all
covered repairs
v' "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within twelve
months
v' Product replacement if your covered product can't be fixed
v' Annual Preventive Maintenance Check at your request - no
extra charge
v' Fast help by phone - phone support from a Sears technician
on products requiring in-home repair, plus convenient repair
scheduling
v' Power surge protection against electrical damage due to
power fluctuations
v' Rental reimbursement if repair of your covered product takes
longer than promised
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have
access to over 4.5 million quality parts and accessories. That's
the kind of professionalism you can count on to help prolong the
life of your new purchase for years to come. Purchase your
Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information, call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
U.S.A. call 1-800-4-MY-HOME ®.

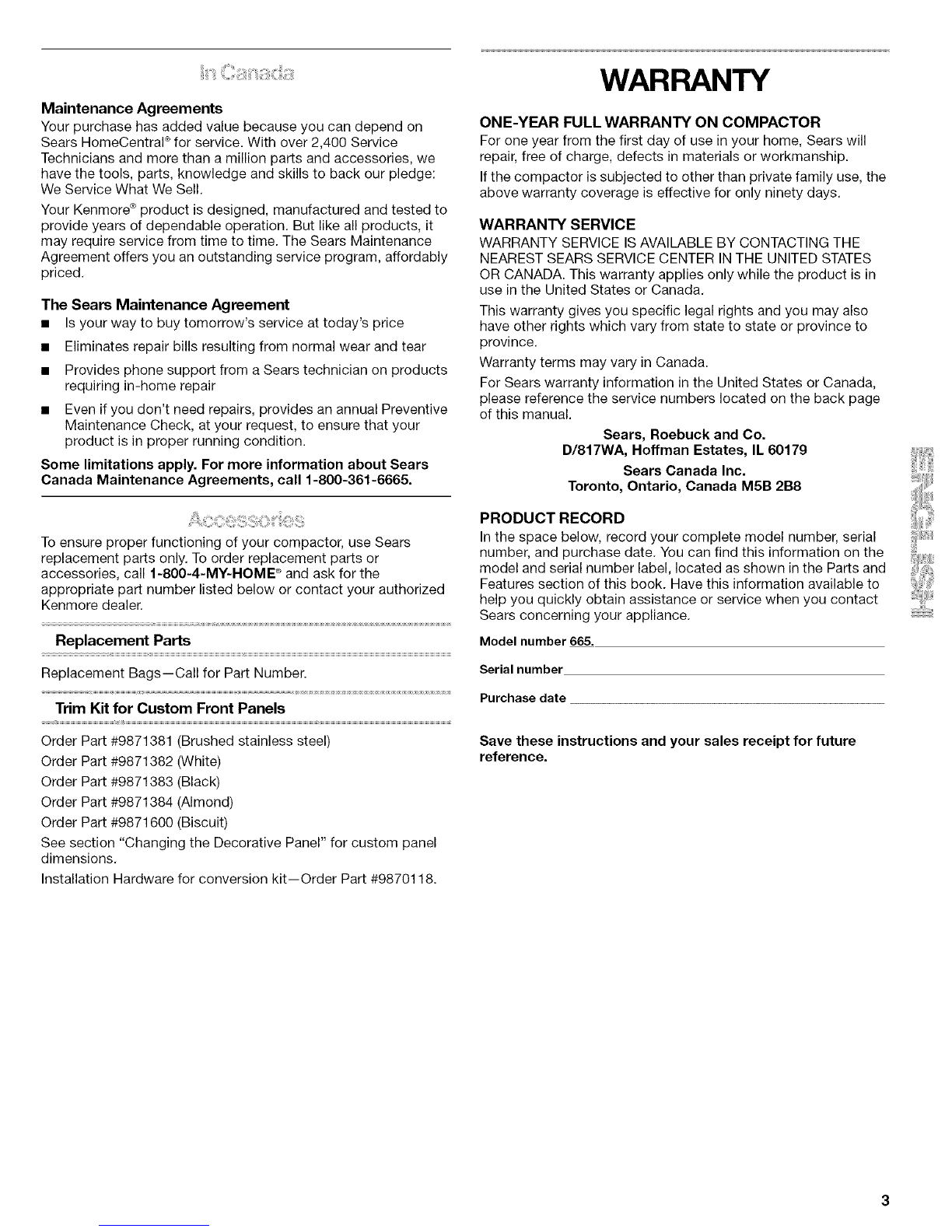

Maintenance Agreements
Your purchase has added value because you can depend on
Sears HomeCentraP for service. With over 2,400 Service
Technicians and more than a million parts and accessories, we
have the tools, parts, knowledge and skills to back our pledge:
We Service What We Sell.
Your Kenmore ®product is designed, manufactured and tested to
provide years of dependable operation. But like all products, it
may require service from time to time. The Sears Maintenance
Agreement offers you an outstanding service program, affordably
priced.
The Sears Maintenance Agreement
• Is your way to buy tomorrow's service at today's price
• Eliminates repair bills resulting from normal wear and tear
• Provides phone support from a Sears technician on products
requiring in-home repair
• Even if you don't need repairs, provides an annual Preventive
Maintenance Check, at your request, to ensure that your
product is in proper running condition.
Some limitations apply. For more information about Sears
Canada Maintenance Agreements, call 1-800-361-6665.
To ensure proper functioning of your compactor, use Sears
replacement parts only. To order replacement parts or
accessories, call 1-800-4-MY-HOME ®and ask for the
appropriate part number listed below or contact your authorized
Kenmore dealer.
Replacement Parts
Replacement Bags--Call for Part Number.
Trim Kit for Custom Front Panels
Order Part #9871381 (Brushed stainless steel)
Order Part #9871382 (White)
Order Part #9871383 (Black)
Order Part #9871384 (Almond)
Order Part #9871600 (Biscuit)
See section "Changing the Decorative Panel" for custom panel
dimensions.
Installation Hardware for conversion kit--Order Part #9870118.
WARRANTY
ONE-YEAR FULL WARRANTY ON COMPACTOR
For one year from the first day of use in your home, Sears will
repair, free of charge, defects in materials or workmanship.
If the compactor is subjected to other than private family use, the
above warranty coverage is effective for only ninety days.
WARRANTY SERVICE
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER IN THE UNITED STATES
OR CANADA. This warranty applies only while the product is in
use in the United States or Canada.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state or province to
province.
Warranty terms may vary in Canada.
For Sears warranty information in the United States or Canada,
please reference the service numbers located on the back page
of this manual.
Sears, Roebuck and Co.
D/817WA, Hoffman Estates, IL 60179
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2B8
PRODUCT RECORD
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label, located as shown in the Parts and lii!
Features section of this book. Have this information available to
help you quickly obtain assistance or service when you contact
Sears concerning your appliance.
Model number 665.
Serial number
Purchase date
Save these instructions and your sales receipt for future
reference.

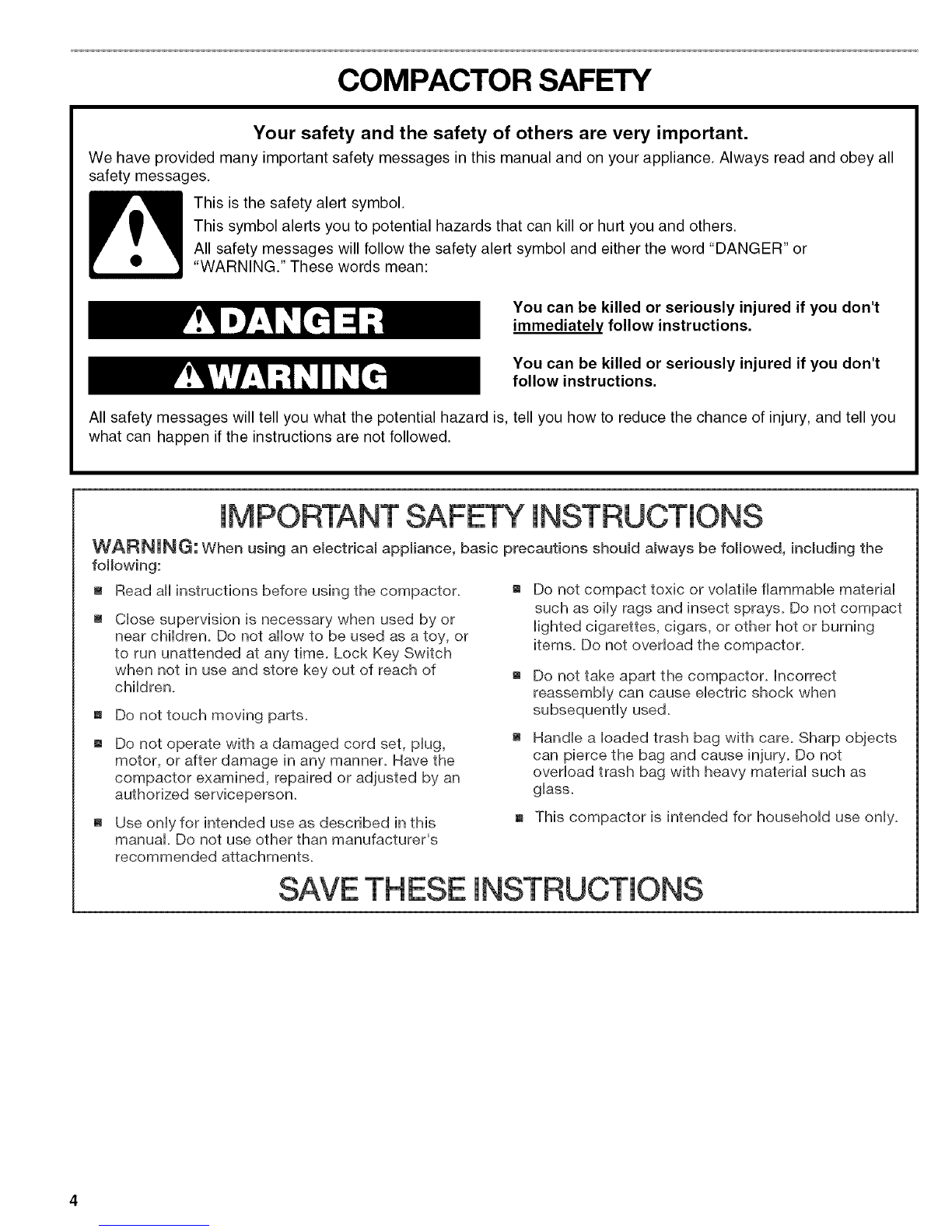

COMPACTOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
iMPORTANT SAFETY iNSTRUCTiONS
WARNUNG: When using an electrical appliance, basic precautions should always be followed, including the
following:
m Read all[ instructions before using the compactor.
CHosesupervision is necessary when used by or
near chiidren. Do not allow to be used as a toy, or
to run unattended at any time. Lock Key Switch
when not in use and store key out of reach of
chiidren.
Do not touch moving parts.
Do not operate with a damaged cord set, piug,
motor, or after damage in any manner. Have the
compactor examined, repaired or adjusted by an
authorized servbeperson.
Use only for intended use as described in this
manual. Do not use other than manufacturer's
recommended attachments.
Do not compact toxic or volatile flammable material
such as oily rags and insect sprays. Do not compact
lighted cigarettes, cigars, or other hot or burning
items. Do not overload the compactor.
Do not take apart the compactor. Incorrect
reassembly can cause electric shock when
subsequently used.
Handle a loaded trash bag with care. Sharp objects
can pierce the bag and cause injury. Do not
overload trash bag with heavy material such as
glass.
This compactor is intended for household use only.
SAVE THESE iNSTRUCTiONS

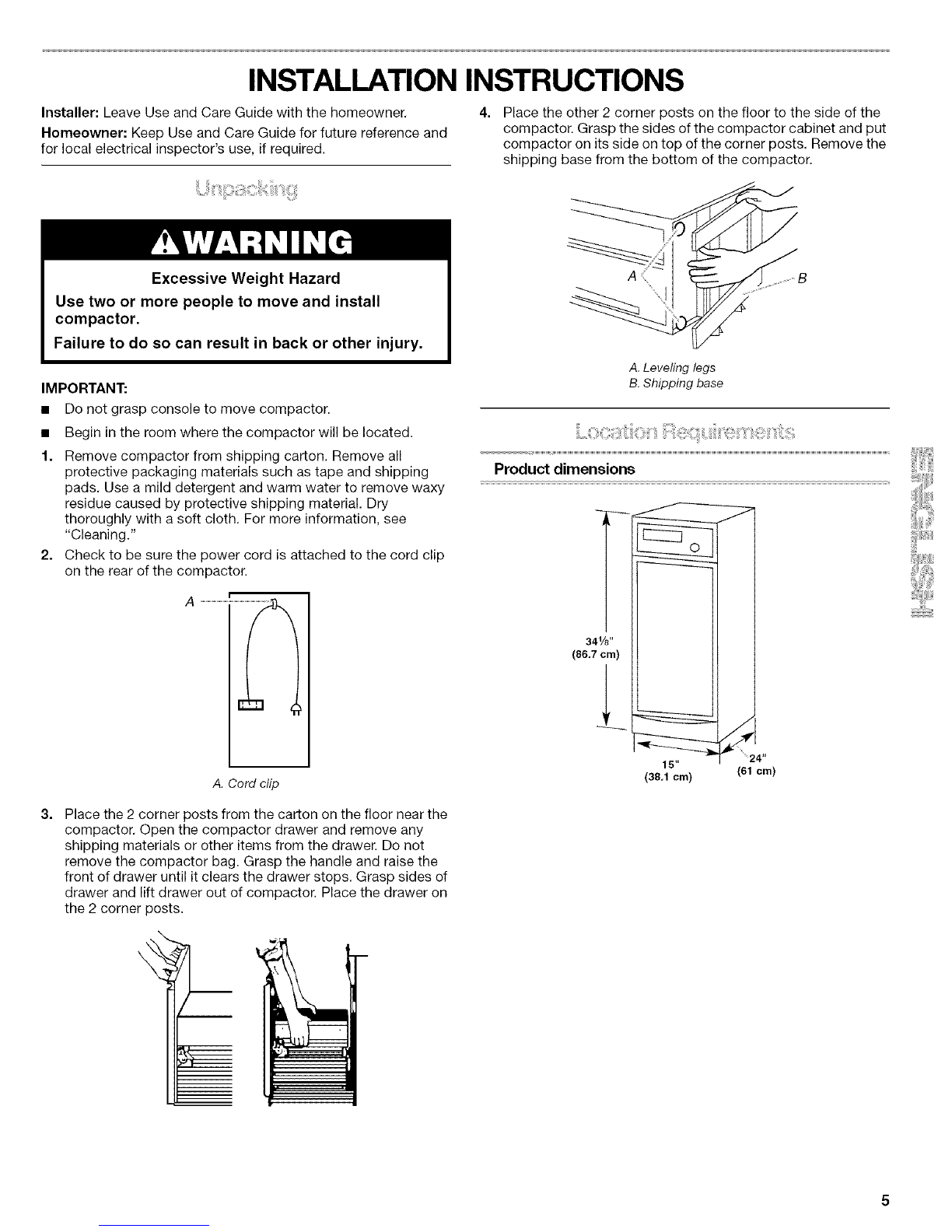

INSTALLATION INSTRUCTIONS
Installer: Leave Use and Care Guide with the homeowner.
Homeowner: Keep Use and Care Guide for future reference and
for local electrical inspector's use, if required.
Excessive Weight Hazard
Use two or more people to move and install
compactor.
Failure to do so can result in back or other injury.
IMPORTANT:
• Do not grasp console to move compactor.
• Begin in the room where the compactor will be located.
1. Remove compactor from shipping carton. Remove all
protective packaging materials such as tape and shipping
pads. Use a mild detergent and warm water to remove waxy
residue caused by protective shipping material. Dry
thoroughly with a soft cloth. For more information, see
"Cleaning."
2. Check to be sure the power cord is attached to the cord clip
on the rear of the compactor.
Place the other 2 corner posts on the floor to the side of the
compactor. Grasp the sides of the compactor cabinet and put
compactor on its side on top of the corner posts. Remove the
shipping base from the bottom of the compactor.
A. Leveling legs
B. Shipping base
Product dimensions
A.............................................................
r_l
A. Cord clip
24"
15"
(38,1 cm) (61 cm)
3. Place the 2 corner posts from the carton on the floor near the
compactor. Open the compactor drawer and remove any
shipping materials or other items from the drawer. Do not
remove the compactor bag. Grasp the handle and raise the
front of drawer until it clears the drawer stops. Grasp sides of
drawer and lift drawer out of compactor. Place the drawer on
the 2 corner posts.

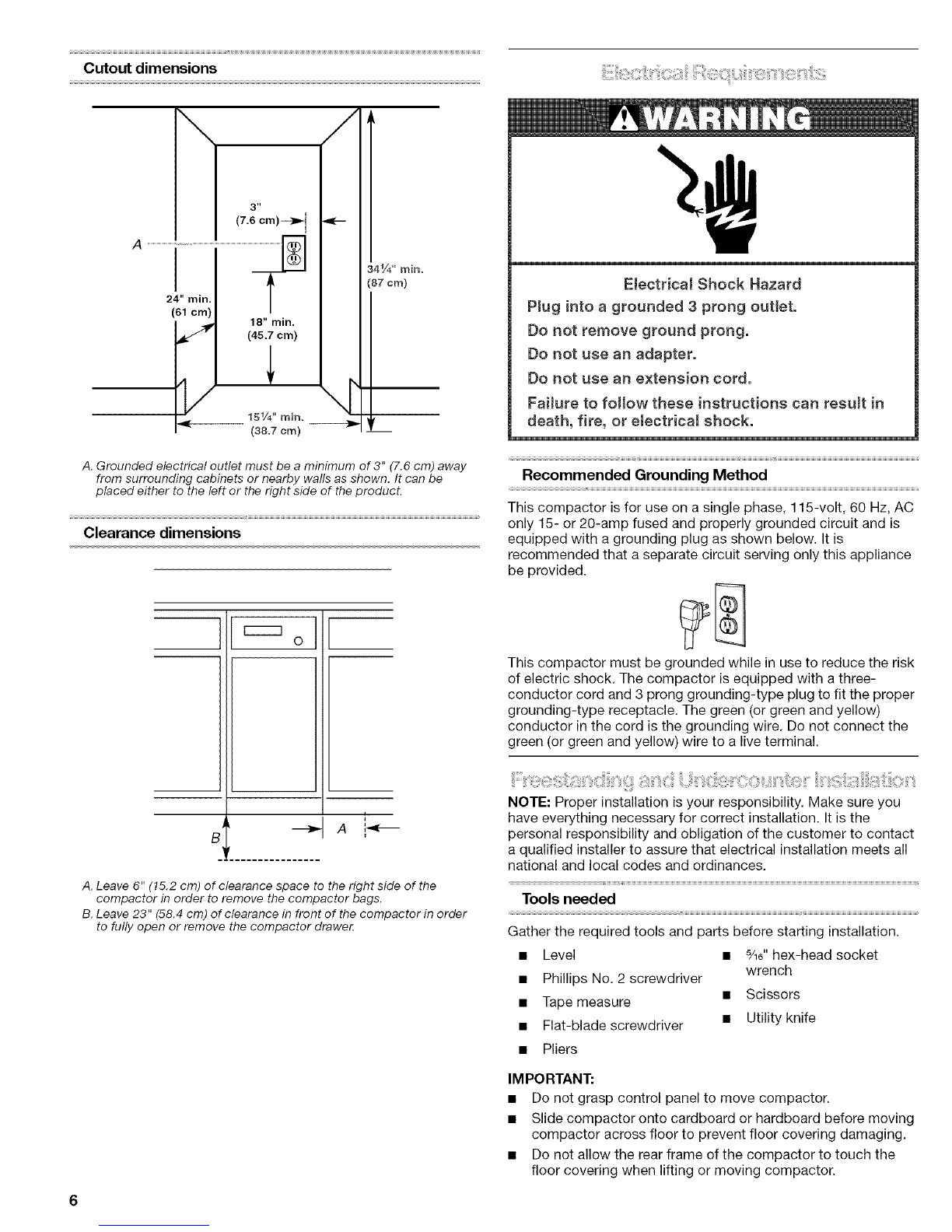

Cutout dimensions :
\
3"
(7
151/4 mm
(38.7 cm)
_1/4" rain.
(87 cm)
A. Grounded electrical outlet must be a minimum of 3" (7.6 cm) away
from surrounding cabinets or nearby walls as shown. It can be
placed either to the left or the right side of the product.
Clearance dimensions
ol
I
A. Leave 6" (15.2 cm) of clearance space to the right side of the
compactor in order to remove the compactor bags.
B. Leave 23" (58.4 cm) of clearance in front of the compactor in order
to fully open or remove the compactor drawer:
Electrical Shock Hazard
Plug into a grounded 3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Recommended Grounding Method
This compactor is for use on a single phase, 115-volt, 60 Hz, AC
only 15- or 20-amp fused and properly grounded circuit and is
equipped with a grounding plug as shown below. It is
recommended that a separate circuit serving only this appliance
be provided.
This compactor must be grounded while in use to reduce the risk
of electric shock. The compactor is equipped with a three-
conductor cord and 3 prong grounding-type plug to fit the proper
grounding-type receptacle. The green (or green and yellow)
conductor inthe cord is the grounding wire. Do not connect the
green (or green and yellow) wire to a live terminal.
iiii::::::t_;::i:!!?ii!!!!:_S:ili_i_i;!ii_iii-_:;iiiii!ii_!iiiiii_:!!_ii'_iil;;:ii_iii,_..ii_ii'_ii:ii:!i!i,_i!i_!!_ii!_OO_i_ij_ii_i_:!_i:!!!,,ii;i__¸¸_1t_!!i:_ii_ii!!!iit!iii_i_!!;_!iii_iiiiO__i
NOTE: Proper installation is your responsibility. Make sure you
have everything necessary for correct installation. It is the
personal responsibility and obligation of the customer to contact
a qualified installer to assure that electrical installation meets all
national and local codes and ordinances.
_olsn_ded
Gather the required tools and parts before starting installation.
•Level •%_" hex-head socket
wrench
• Phillips No. 2 screwdriver • Scissors
• Tape measure
• Flat-blade screwdriver • Utility knife
•Pliers
IMPORTANT:
• DO not grasp control panel to move compactor.
• Slide compactor onto cardboard or hardboard before moving
compactor across floor to prevent floor covering damaging.
• Do not allow the rear frame of the compactor to touch the
floor covering when lifting or moving compactor.

Freestanding Installation
1. Use pliers to lower leveling legs away from cabinet. With the
drawer still removed from the compactor cabinet, place level
inside on the floor of the cabinet. Check that the compactor is
level from front to back and side to side. Adjust the leveling
legs until the compactor is level.
J
J
2. Move the compactor close to its final position.
3. Plug into a grounded 3 prong outlet.
4. Slowly move compactor into its final position. Check that
compactor is still level. Repeat Step 1 if necessary.
5. Grasp sides of compactor drawer and place bottom of
drawer into tracks. Lift at the handle so drawer will go over
drawer stops. Close drawer. Check to see whether drawer
opens freely. If the toe plate rubs against floor, see "Adjusting
the Toe Plate" for further instructions.
Undercounter Installation
NOTE: Installation hardware is not provided. See "Accessories"
for ordering conversion kit.
1. Measure the height of your kitchen cabinet opening. The top
of the compactor should be at least 1/8"(3 mm) from the top
of the kitchen cabinet opening.
The rear wheels are preset for a kitchen cabinet opening
height of 341/4'' (87 cm) (position 1).
To adjust for other kitchen cabinet opening heights:
Loosen self-tapping screw just enough to clear stud from
hole in position 1.
Move the rear wheel and stud to position 2 or 3 as
needed for your kitchen cabinet opening measurement:
Position 2:341/4'' to 347/16'' (87 to 87.5 cm)
Position 3:347_6 '' to 34%" (87.5 to 88 cm)
NOTE: To level the unit in position 3, you may need to
add shims under the front leveling legs.
Tighten screw. Repeat for other rear wheel.
A. Wheel bracket assembly
B. Compactor cabinet
C. Locating stud
D. Self-tapping screw (pivot)
2. Use pliers to lower leveling legs away from compactor
cabinet. Adjust legs so there will be a 1/6,,(3 mm) to 1/4"
(6.4 mm) space between the top of the compactor and the
top of the kitchen cabinet opening. Stand the compactor
upright.
3. Remove the plastic plugs from the compactor cabinet top.
4. Move the compactor close to its final position.
5. Plug into a grounded 3 prong outlet.
6. Determine whether you want the compactor cabinet or
drawer front flush with the kitchen cabinet face.
Using 2 - #8 - 18 x s_e"mounting screws (provided in
conversion kit), attach the retaining brackets (provided in
conversion kit) to the compactor cabinet top as needed. See
"Accessories."
NOTE: Installation hardware is not provided with full cabinet
models. See "Accessories" for ordering conversion kit.
• If the compactor cabinet face is to be flush with the
kitchen cabinet face, place retaining bracket mounting
screws through "1 ."
• If the compactor drawer front is to be flush with the
kitchen cabinet face, place retaining bracket mounting
screws through "3."
• If the compactor is to be midway between "1" and "3,"
place the retaining bracket mounting screws through "2."
J--'" A
_ iBo°-_'° _
A. Countertop
B. Retaining bracket (provided in conversion kit)
7. Slowly lift the front slightly and roll compactor into the kitchen
cabinet opening.
8. Using 2 - #8 - 18 x 1/2"mounting screws (provided in
conversion kit), fasten the retaining brackets (provided in
conversion kit) to the countertop with the mounting screws.

Countertop mounting
C
A. Countertop
B. Retaining bracket (provided in conversion kit)
C. Mounting screw (provided in conversion kit)
NOTE: If retaining brackets cannot be attached to the
underside of countertop, attach mounting clips (provided in
conversion kit) to retaining brackets. Fasten compactor to
kitchen cabinet face with mounting screws through the
mounting clips.
Cabinet-face mounting
A....................._ .................................// ............................................C
A. Mounting clip (provided in conversion kit)
B. Kitchen cabinet
C. Retaining bracket (provided in conversion kit)
D. Mounting screw (provided in conversion kit)
9, Grasp sides of compactor drawer and place bottom of
drawer into tracks. Lift at the handle so drawer will go over
drawer stops. Close drawer. Check to see whether drawer
opens freely. If the toe plate rubs against floor, see "Adjusting
the Toe Plate" for further instructions.
Adjusting the Toe Plate
If the toe plate rubs the floor covering, the toe plate clearance
may be changed as follows:
1. Mark on each side of the toe plate the amount of toe plate
that rubs the floor covering.
2. Remove the drawer from the unit. See Step 3 in the
"Unpacking" section.
3. Use a ruler and a pencil or chalk to draw a line between the
marks on each side of toe plate.
4. Use scissors or utility knife to cut toe plate along line.
5. Replace drawer. Iftoe plate still rubs floor covering, repeat
steps 1-4.
There are three options for changing the decorative panel:
• Order an acrylic panel
• Create a custom panel for use with a trim kit
• Create a custom panel for installation without trim
To order an acrylic panel or a trim kit, see "Accessories."
Trim Kit Panel Dimensions
Use these dimension drawings to create a custom panel for use
with a trim kit. Then, follow the installation instructions provided
with the kit. See "Accessories."
Flat panel: A %2" (5.6 mm) thick panel is required. This is the
same thickness as a standard 1/4"plywood or paneling.
2313/16"
(60.5 sin)
14%" .........................._1
(37.2 sin) I
Raised panel: The outer section of panel must be %2" (5.6 mm)
thick to fit into the trim. Design raised panel sections using
dimensions shown following.
145/,a"
7/32" _ -_-- (37.2 ram) 1-;_1¼"ram}
(5.6 ram) "_ J, t°z
I I]'
m..........................................
B................. 5_/_m)
5/16" f oi,o,,
both sides / (8 ram)
A. Raised panel or decorative trim
B. Outer section of panel

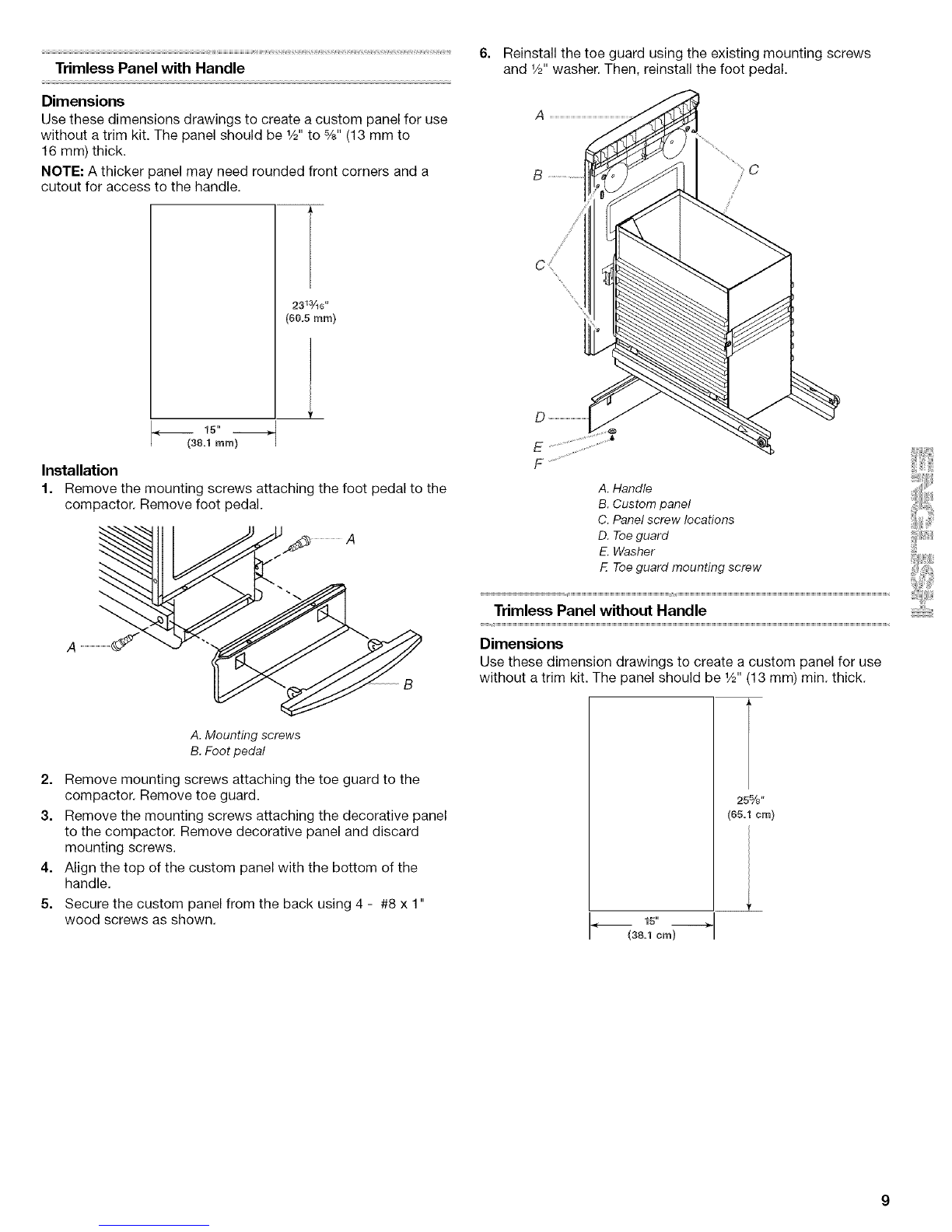

Trimless Panel with Handle
Dimensions
Use these dimensions drawings to create a custom panel for use
without a trim kit. The panel should be 1/2"to %" (13 mm to
16 mm) thick.
NOTE: A thicker panel may need rounded front corners and a
cutout for access to the handle.
2313/16"
(60_5 ram)
15" --_._
_'_ (38.1 ram)
Installation
1. Remove the mounting screws attaching the foot pedal to the
compactor. Remove foot pedal.
6. Reinstall the toe guard using the existing mounting screws
and 1/2"washer. Then, reinstall the foot pedal.
B
D
E
F
A.Handle
B. Custompanel
C. Panelscrew locations
D. Toeguard
E.Washer
E Toeguard mounting screw
Trimless Panel without Handle
Dimensions
Use these dimension drawings to create a custom panel for use
without a trim kit. The panel should be 1/2"(13 mm) min, thick,
A. Mounting screws
B. Foot pedal
2. Remove mounting screws attaching the toe guard to the
compactor. Remove toe guard.
3. Remove the mounting screws attaching the decorative panel
to the compactor. Remove decorative panel and discard
mounting screws.
4. Align the top of the custom panel with the bottom of the
handle.
5. Secure the custom panel from the back using 4 - #8 x 1"
wood screws as shown, 15"
(38.1 cm)
25%"
(65.1 cm)

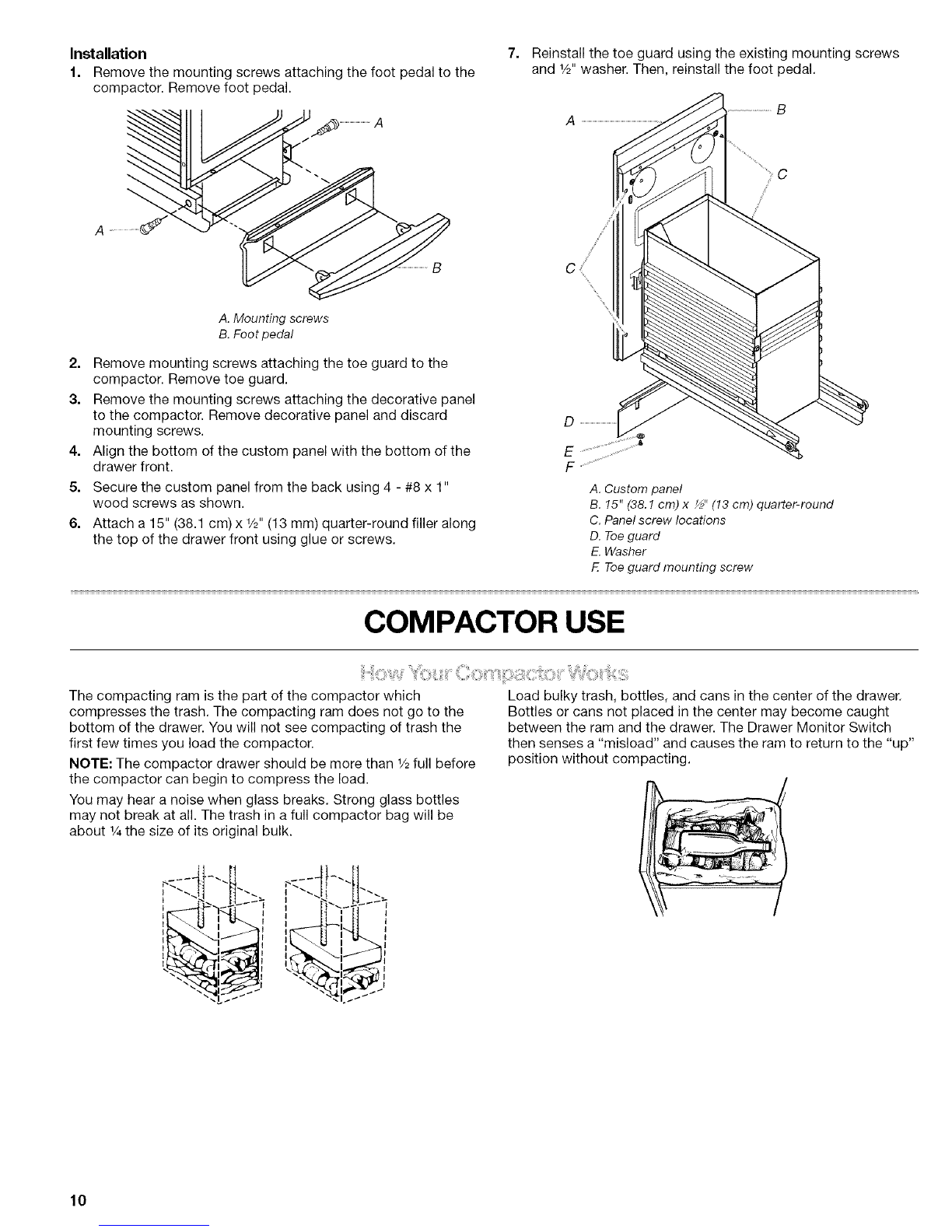

Installation
1. Remove the mounting screws attaching the foot pedal to the
compactor. Remove foot pedal.
7. Reinstall the toe guard using the existing mounting screws
and 1/2"washer. Then, reinstall the foot pedal.
A
/
A. Mounting screws
B. Foot pedal
2. Remove mounting screws attaching the toe guard to the
compactor. Remove toe guard.
3. Remove the mounting screws attaching the decorative panel
to the compactor. Remove decorative panel and discard
mounting screws.
4. Align the bottom of the custom panel with the bottom of the
drawer front.
5. Secure the custom panel from the back using 4 - #8 x 1"
wood screws as shown.
6. Attach a 15" (38.1 cm) x 1/2"(13 mm) quarter-round filler along
the top of the drawer front using glue or screws.
D
E
F
A. Custom panel
B. 15" (38.1 cm) x _" (13 cm) quarter-round
C. Panel screw locations
D. Toe guard
E. Washer
F. Toe guard mounting screw
COMPACTOR USE
The compacting ram is the part of the compactor which
compresses the trash. The compacting ram does not go to the
bottom of the drawer. You will not see compacting of trash the
first few times you load the compactor.
NOTE: The compactor drawer should be more than 1/2full before
the compactor can begin to compress the load.
You may hear a noise when glass breaks. Strong glass bottles
may not break at all. The trash in a full compactor bag will be
about ¼ the size of its original bulk.
', _ I
I I
I I I
I I I
Load bulky trash, bottles, and cans in the center of the drawer.
Bottles or cans not placed in the center may become caught
between the ram and the drawer. The Drawer Monitor Switch
then senses a "mislead" and causes the ram to return to the "up"
position without compacting.
10

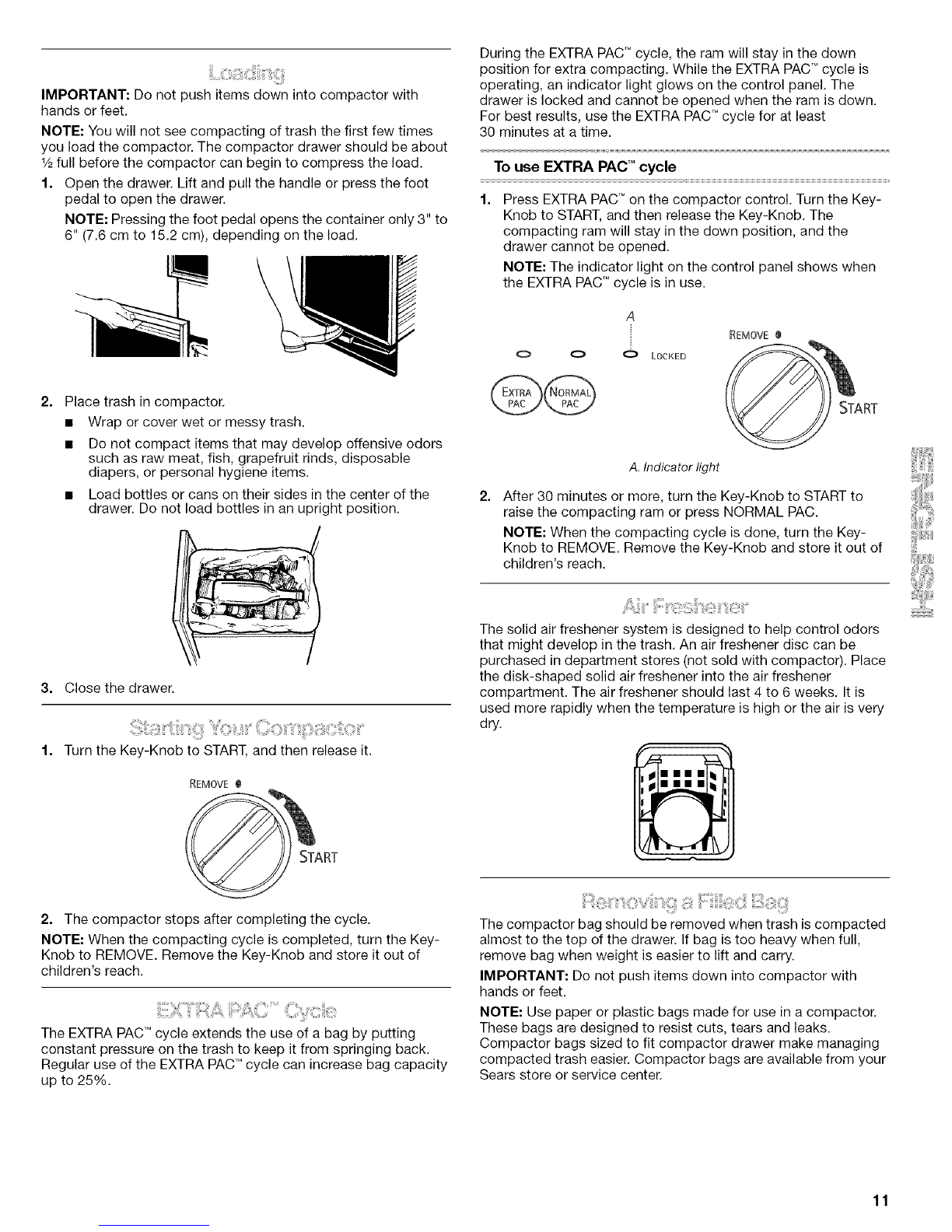

IMPORTANT: Do not push items down into compactor with
hands or feet,
NOTE: You will not see compacting of trash the first few times
you load the compactor. The compactor drawer should be about
1/2full before the compactor can begin to compress the load.
1. Open the drawer. Lift and pull the handle or press the foot
pedal to open the drawer.
NOTE: Pressing the foot pedal opens the container only 3" to
6" (7.6 cm to 15.2 cm), depending on the load.
\
2. Place trash in compactor.
• Wrap or cover wet or messy trash.
• Do not compact items that may develop offensive odors
such as raw meat, fish, grapefruit rinds, disposable
diapers, or personal hygiene items.
• Load bottles or cans on their sides in the center of the
drawer. Do not load bottles in an upright position.
3. Close the drawer.
1. Turn the Key-Knob to START, and then release it.
REMOVE O
START
During the EXTRA PACTM cycle, the ram will stay in the down
position for extra compacting. While the EXTRA PACTM cycle is
operating, an indicator light glows on the control panel. The
drawer is locked and cannot be opened when the ram is down.
For best results, use the EXTRA PACTM cycle for at least
30 minutes at a time.
To use EXTRA PAC TM cycle
Press EXTRA PACTM on the compactor control. Turn the Key-
Knob to START, and then release the Key-Knob. The
compacting ram will stay in the down position, and the
drawer cannot be opened.
NOTE: The indicator light on the control panel shows when
the EXTRA PACTM cycle is in use.
o o
A
O LOCKED
REMOVE t
START
A._dicatorlight
After 30 minutes or more, turn the Key-Knob to START to
raise the compacting ram or press NORMAL PAC.
NOTE: When the compacting cycle is done, turn the Key-
Knob to REMOVE. Remove the Key-Knob and store it out of
children's reach.
The solid air freshener system is designed to help control odors
that might develop in the trash. An air freshener disc can be
purchased in department stores (not sold with compactor). Place
the disk-shaped solid air freshener into the air freshener
compartment. The air freshener should last 4 to 6 weeks. It is
used more rapidly when the temperature is high or the air is very
dry.
2. The compactor stops after completing the cycle.
NOTE: When the compacting cycle is completed, turn the Key-
Knob to REMOVE. Remove the Key-Knob and store it out of
children's reach.
The EXTRA PACTM cycle extends the use of a bag by putting
constant pressure on the trash to keep it from springing back.
Regular use of the EXTRA PACTM cycle can increase bag capacity
up to 25%.
The compactor bag should be removed when trash is compacted
almost to the top of the drawer. If bag is too heavy when full,
remove bag when weight is easier to lift and carry.
IMPORTANT: Do not push items down into compactor with
hands or feet.
NOTE: Use paper or plastic bags made for use in a compactor.
These bags are designed to resist cuts, tears and leaks.
Compactor bags sized to fit compactor drawer make managing
compacted trash easier. Compactor bags are available from your
Sears store or service center.
11

To remove a filled bag
1=
2. Pull the drawer completely open.
You may already have a paper or plastic bag in place. Please
refer to appropriate instructions for your bag.
• Ifyou have a paper bag, lift and fold up the top folded
edges of the bag. Fold ends in and bring side flaps
together. Fold flaps to close bag.
Lift and fold up top bag edges. Fold ends to close bag.
• Ifyou have a plastic bag, remove top of bag from bag
retainer buttons. Close bag with a twist tie.
Removebag from retainer buttons.
3.
4=
Close bag with twist tie.
Release drawer side latch. Tilt right drawer side down. This
will make removing the full bag easier.
Lift bag by bag caddy handles. Remove trash bag from
compactor and dispose properly.
NOTE: Fully compacted trash bags will be heavy. Handle with
care.
A, Lifting bag caddy by handles
Do not use any kind of bag other than those designed especially
for use in your compactor. Order replacement compactor bags
through your local dealer. See "Accessories."
IMPORTANT:
Before installing a new bag, be sure:
• The drawer side is securely locked.
• The container is clean and free of debris.
To install a new bag
1. Close drawer side. Lock drawer side latch.
2=
3=
4=
Put bag caddy into drawer.
A.Bag caddy inside drawer
Place either a plastic or paper bag into the drawer.
• If using a paper bag, open bag and pull top edges over
the drawer top. Slide front edge of bag over front edge of
drawer. Slide rear edge over rear of drawer.
• If using plastic bag, open bag and pull top edges over
drawer top. Lock bag into place by pulling the
4 prepunched holes over the bag retainer buttons. Holes
will expand over buttons without harming bag.
Installing paper bag Instafling plastic bag
Press inside of bag against the drawer bottom, sides and
corners for a smooth fit.
12

COMPACTOR CARE
Your new compactor is designed to give you many years of dependable service. However, there are afew things you are expected to do
in order to properly maintain your compactor. This section will tell you how to clean and care for your compactor.
Before cleaning the compactor, turn the Key-Knob (or Key-
Switch) to the OFF & LOCK position and remove it.
NOTE: Any services other than those outlined in this section
should be performed by a designated service representative.
Cleaning Exterior Surfaces
1. Wash exterior surfaces (including stainless steel) with a clean
sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners. Rinse and dry thoroughly
with a soft cloth.
2. Wipe up spills right away. Some foods can damage the finish
if left on the compactor surface.
4. Wash the interior of the drawer with a clean sponge or soft
cloth and a mild detergent in warm water. Rinse and dry
thoroughly with a soft cloth.
5. If the drawer side was removed, slide it back into the tilted
position.
6. Press the lever-action lock (or Side-Lock Latch) down while
pushing the drawer side to the upright position.
7. Latch the drawer side by pushing up the lever-action lock (or
Side-Lock Latch).
Cleaning Inside the Cabinet
NOTE: You may want to wear protective gloves since there may
NOTE: You may want to wear protective gloves since there may
be bits of glass in the drawer.
1. Remove the bag. See the "Removing a Filled Bag."
2. Press down on the lever-action lock (or Side-Lock latch).
NOTE: Look to see how the drawer rollers move in the tracks.
It will be easier to replace the drawer after you have finished
cleaning.
3= Hold the lever-action lock down and tilt the side of the drawer
out until the lock clears the drawer front.
NOTE: If desired, the drawer side can be removed by tilting it
up, then lifting it out.
2. Lift the front of the drawer to clear the stops.
3. Grasp the drawer on the sides and pull it out the rest of the
way. Set the drawer down gently.
13

4. Vacuum the inside of the cabinet. Liquid spills or wet trash
should be cleaned up by hand, or by using a vacuum
designed to pick up liquids.
5. Wash the inside of the cabinet with a clean sponge or soft
cloth and a mild detergent in warm water. Rinse and dry
thoroughly with a soft cloth.
6. To replace the drawer, grasp it by the sides and insert the
rollers onto the tracks.
7. Lift the front of the drawer and push it in fully past the stops.
Cleaning the Ram
NOTE: You may want to wear protective gloves since there may
be bits of glass on the ram cover.
1. Wipe glass particles off of the ram cover with a cloth or paper
towels.
2. Remove foods with a clean sponge or soft cloth and a mild
detergent in warm water. Rinse and dry thoroughly with asoft
cloth.
Cleaning Before a Vacation
If you will be away for more than a couple of days, remove the
compactor bag. Remove the Key-Knob (or Key-Switch) and store
it out of children's reach.
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Trash is not compacting The drawer won't open
•Is the drawer less than half-full? Drawer must be more than
half full before trash is compacted. •Is the ram all the way up? Drawer will open only when ram is fully raised.
Your compactor won't operate
•Is the power supply cord unplugged? Plug into a grounded
3 prong outlet.
•Has a household fuse blown, or has a circuit breaker
tripped? Replace the fuse or reset the circuit breaker.
•Is the drawer completely closed? Close the drawer firmly
and start the compactor again.
•Is the Key-Knob turned all the way to START? Turn the
Key-Knob (Key-Switch) fully to START and release (on some
models). See "Starting Your Compactor."
•Did you press ON before pressing START? Press ON
before pressing START (on some models). See "Starting Your
Compactor."
To raise the ram on models with a Key-Knob (or Key-
Switch): Turn the Key-Knob (Key-Switch) to START and
release. See "Starting Your Compactor."
To raise the ram on models with push button controls:
Press OFF, and then press ON. See "Starting Your
Compactor."
There is not enough compaction or force
•Do you use the compacting cycle frequently enough?
Compacting works best when only a few items are loaded.
Bottles don't break
•How often do you notice this? Bottles will not break every
time. The thickness of the bottle's glass and the content of
the trash load below it may prevent the bottle from breaking.
14

15

iNDICE
CONTRATOS DE PROTECCION ................................................ 16
En los EE.UU............................................................................. 16
En Canada ................................................................................. 17
Accesorios ................................................................................. 17
GARANTiA .................................................................................... 17
SEGURIDAD DEL COMPACTADOR .......................................... 18
INSTRUCCIONES DE INSTALACION ........................................ 19
Desempaque del compactador ................................................ 19
Requisites de ubicaci6n ............................................................ 19
Requisites electricos ................................................................. 20
Instalaci6n independiente y debajo del mostrador ................... 21
Cambio del panel decorative .................................................... 22
USO DEL COMPACTADOR ........................................................ 25
C6mo funciona su compactador .............................................. 25
C6mo cargar .............................................................................. 25
Puesta en marcha de su compactador ..................................... 25
Ciclo EXTRA PACTM .................................................................... 25
Desodorante ambiental ............................................................. 26
Eliminaci6n de bolsas Ilenas ..................................................... 26
Instalaci6n de una bolsa nueva ................................................. 27
CUIDADO DEL COMPACTADOR ............................................... 27
Limpieza .................................................................................... 27
SOLUClON DE PROBLEMAS ..................................................... 29
NUMEROS DE SERVlClO .............................. CONTRAPORTADA
CONTRATOS DE
PROTECCION
Contratos Maestros de Proteccibn
iFelicitaciones por su inteligente adquisici6n! Su nuevo producto
Kenmore ®ha sido disedado y fabricado para brindarle a_os de
funcionamiento confiable. Pero al igual que todos los productos,
puede necesitar mantenimiento preventivo o reparaci6n de vez
en cuando. Es allf donde el Contrato Maestro de Protecci6n
puede ahorrarle dinero e inconvenientes.
Adquiera un Contrato Maestro de ProtecciOn hey y prot_jase
contra molestias y gastos inesperados.
El Contrato Maestro de Protecci6n tambien ayuda a prolongar la
vida de su nuevo producto. He aquf Io que se incluye en el
Contrato:
v' Servicio experto per nuestros 12.000 especialistas en
reparaci6n competentes
v' Servicio ilimitado y gratuito para repuestos y mano de obra
en todas las reparaciones protegidas por el contrato
v' Garantia "sin disgustos" - reemplazo de su producto
protegido si ocurren cuatro o mas fallas del producto en el
transcurso de doce meses
v' Reemplazo del producto si su producto protegido no puede
ser reparado
v' Revisi6n Anual de Mantenimiento Preventivo a solicitud
suya - sin costo adicional
v' Ayuda r_pida por tel_fono - asistencia por telefono a cargo
de un t_cnico de Sears para productos que deban ser
reparados en su hogar, ademas de un horario de reparaci6n
conveniente
v' Protecci6n de sobrevoltaje contra daSos electricos debido a
fluctuaciones de electricidad
v' Reembolso de la renta si la reparaci6n de su producto
protegido tarda mas de Io prometido
Una vez adquirido el Contrato, tan s61o tiene que Ilamar para fijar
la visita de servicio tecnico. Usted puede Ilamar a cualquier hera,
de dia o de noche, o fijar una visita tecnica en internet.
Sears cuenta con un equipo de mas de 12.000 especialistas en
reparaci6n competentes, quienes tienen a disposici6n mas de
4,5 millones de piezas y accesorios de calidad. 12sees el tipo de
profesionalismo con el que usted puede contar para ayudarle a
prolongar la vida de su nuevo artefacto por muchos ados mas.
iAdquiera boy su Contrato Maestro de Proteccidn!
Se aplican algunas limitaciones y exclusiones. Para obtener
precios einforrnaci6n adicional, Ilame al 1-800-827-6655.
Servicio de Instalacibn de Sears
Para la instalaci6n profesional de Sears de artefactos
electrodomesticos, abridores de puertas de garaje, calentadores
de agua y otros articulos importantes de la casa, en los EE.UU.
Ilame al 1-800-4-MY-HOME ®.
16

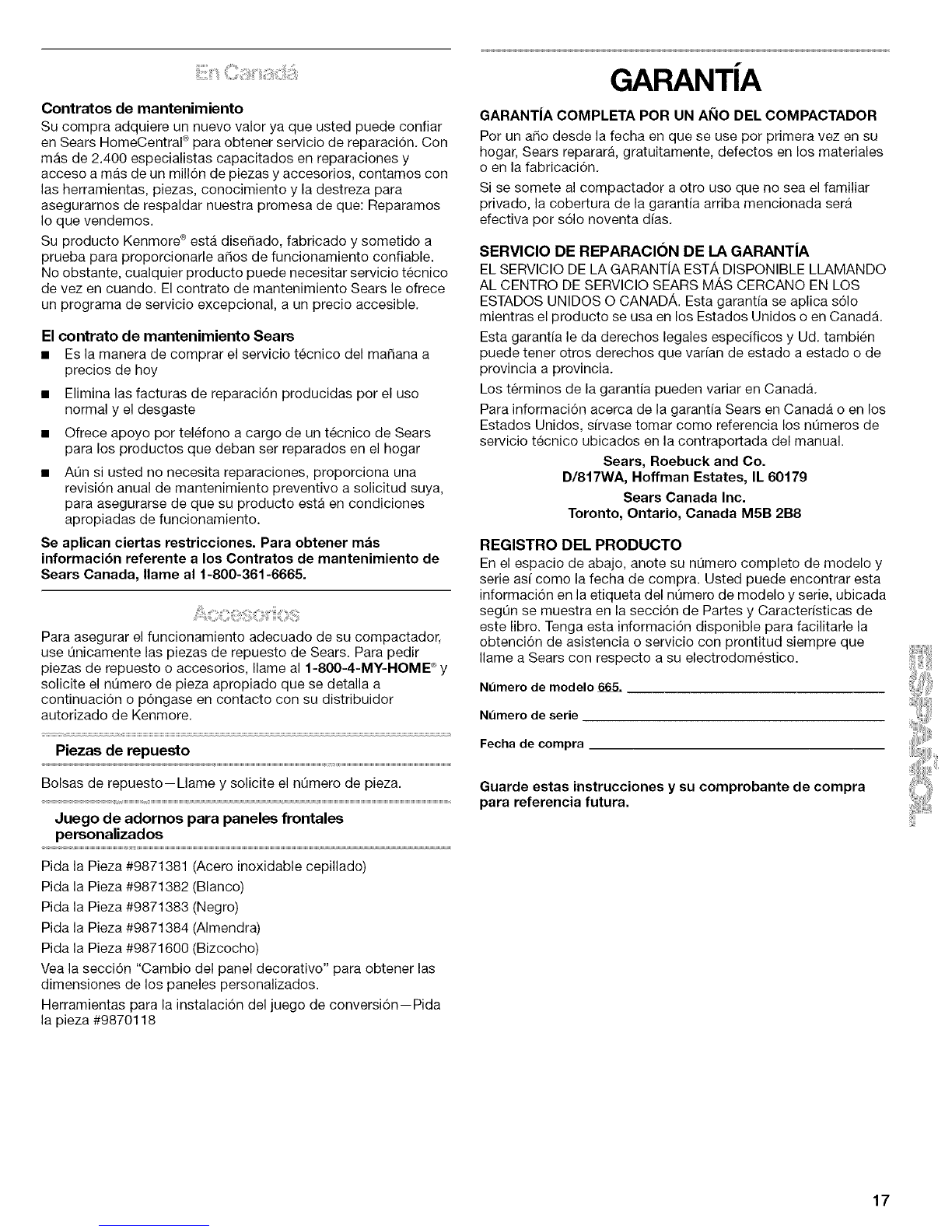

Contratos de mantenimiento
Su compra adquiere un nuevo valor ya que usted puede confiar
en Sears HomeCentral _para obtener servicio de reparaci6n. Con
mas de 2.400 especialistas capacitados en reparaciones y
acceso a mas de un mill6n de piezas y accesorios, contamos con
las herramientas, piezas, conocimiento y la destreza para
asegurarnos de respaldar nuestra promesa de que: Reparamos
Io que vendemos.
Su producto Kenmore ®esta disefiado, fabficado y sometido a
prueba para proporcionarle argos de funcionamiento confiable.
No obstante, cualquier producto puede necesitar servicio tecnico
de vez en cuando. El contrato de mantenimiento Sears le ofrece
un programa de servicio excepcional, a un precio accesible.
El contrato de mantenimiento Sears
• Es la manera de comprar el servicio tecnico del mar_ana a
precios de hoy
• Elimina las facturas de reparaci6n producidas por el uso
normal y el desgaste
• Ofrece apoyo por telefono a cargo de un tecnico de Sears
para los productos que deban ser reparados en el hogar
AOn si usted no necesita reparaciones, proporciona una
revisi6n anual de mantenimiento preventive a solicitud suya,
para asegurarse de que su producto esta en condiciones
apropiadas de funcionamiento.
Se aplican ciertas restricciones. Para obtener mas
informaci6n referente a los Contratos de mantenimiento de
Sears Canada, Ilame al 1-800-361-6665.
Para asegurar el funcionamiento adecuado de su compactador,
use Onicamente las piezas de repuesto de Sears. Para pedir
piezas de repuesto o accesorios, Ilame al 1-800-4-MY-HOME ®y
solicite el nQmero de pieza apropiado que se detalla a
continuaci6n o p6ngase en contacto con su distribuidor
autorizado de Kenmore.
Piezas de repuesto
Bolsas de repuesto--Llame y solicite el nt_mero de pieza.
Juego de adomos para paneles frontales
personalizados
Pida la Pieza #9871381 (Acero inoxidable cepillado)
Pida la Pieza #9871382 (Blanco)
Pida la Pieza #9871383 (Negro)
Pida la Pieza #9871384 (Almendra)
Pida la Pieza #9871600 (Bizcocho)
Vea la secci6n "Cambio del panel decorativo" para obtener las
dimensiones de los paneles personalizados.
Herramientas para la instalaci6n del juego de conversi6n--Pida
la pieza #9870118
GARANTIA
GARANTiA COMPLETA POR UN AI_IO DEL COMPACTADOR
Per un a_o desde la fecha en que se use por primera vez en su
hogar, Sears reparara, gratuitamente, defectos en los materiales
o en la fabricaci6n.
Si se somete al compactador a otro use que no sea el familiar
privado, la cobertura de la garantia arriba mencionada sera
efectiva per s61o noventa dfas.
SERVIClO DE REPARACI(3N DE LA GARANTiA
EL SERVICIO DE LA GARANTiA ESTA DISPONIBLE LLAMANDO
AL CENTRO DE SERVICIO SEARS MAS CERCANO EN LOS
ESTADOS UNIDOS O CANADA. Esta garantfa se aplica s61o
mientras el producto se usa en los Estados Unidos o en CanadA.
Esta garantia le da derechos legales especificos y Ud. tambien
puede tenet otros derechos que vafian de estado a estado o de
provincia a provincia.
Los terminos de la garantia pueden variar en CanadA.
Para informaci6n acerca de la garantfa Sears en Canada o en los
Estados Unidos, sfrvase tomar como referencia los nQmeros de
servicio tecnico ubicados en la contraportada del manual.
Sears, Roebuck and Co.
D/817WA, Hoffman Estates, IL 60179
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2B8
REGISTRO DEL PRODUCTO
En el espacio de abajo, anote su nQmero complete de modelo y
serie asf como la fecha de compra. Usted puede encontrar esta
informaci6n en la etiqueta del nQmero de modelo y serie, ubicada
segQn se muestra en la secci6n de Partes y Caractefisticas de
este libro. Tenga esta informaci6n disponible para facilitarle la
obtenci6n de asistencia o servicio con prontitud siempre que
Ilame a Sears con respecto a su electrodomestico.
NwJmerode modelo 665.
NwJmerode serie
Fecha de compra
Guarde estas instrucciones y su comprobante de compra
para referencia futura.
17

SEGURIDAD DEL COMPACTADOR
Su seguridad y la seguridad de los dem;is es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico.
Lea y obedezca siempre todos Hosmensajes de seguridad,
Este es el simbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una
lesi6n a usted y a los demas.
Todos los mensajes de seguridad iran a continuaci6n del simbolo de advertencia de seguridad
y de la palabra "PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted
puede morir o sufrir una lesibn grave.
Si no sigue las instrucciones, usted puede morir
o sufrir una lesibn grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran c6mo reducir las posibilidades de sufrir
una lesi6n y Io que puede suceder si no se siguen las instrucciones.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
ADVERTENCUA: AI usar artefactos el6ctricos, se deben seguir siempre precauciones bb_sicas, incluyendo
las siguientes:
Lea todas Hasinstrucciones antes de usar eH
compactador.
B Siempre que Hosni_os usen o est6n cerca dell aparato
es necesano vigiHarHos.No permita que se use como
juguete yen ningOn momento Hodeje funcionando
soHo. BHoqueeeHinterruptor Havecuando no est6 en
uso y guarde HaHavefuera dell aHcancede Hosni_os.
No toque Haspiezas mientras est6n en movimiento.
No ponga a funcionar eHaparato si tiene eHcame
eH6ctrico, eHenchufe o eHmotor daBado, o si ha
sufrido aHgOntipo de averia. Contrate un t6cnico en
reparaciones autorizado para que revise, repare o
reguHeeHcompactador.
Use eHaparato s6Hopara Hosfines que se describen en
este manual No use otros accesorios que no sean Hos
recomendados por eHfabricante.
No comprima materiaHt6xico o infiamabHey vokitiH
como pa_os grasosos e insecticidas en aerosol No
comprima cigarriHHosencendidos, habanos u otros
articuHos caHientes o encendidos. No sobrecargue eH
compactador.
No desarme eHcompactador. EHreensambHaje
incorrecto puede ocasionar choque eH6ctrico cuando
House posteriormente.
ManipuHe con cuidado HasboHsasHHenasde basura.
Los objetos puntiagudos pueden perforar HaboHsay
ocasionar Hesiones.No sobrecargue HaboHsade
basura con material pesado como vidrios.
Este compactador estA destinado s6Hopara uso
dom6stico.
GUARDE ESTAS INSTRUCCIONES
18

INSTRUCCIONES DE INSTALACION
Instalador(a): Deje el Manual de use y cuidado con el(la)
duei_o(a) de casa.
DueSo(a} de casa: Guarde el Manual de uso y cuidado para
consulta futura y para el uso del inspector de electricidad local si
Io requiere.
Coloque los 2 esquinales del cart6n en el piso cerca del
compactador. Abra la gaveta del compactador y saque todo
material de embalaje u otro articulo que se encuentre en la
gaveta. No saque la bolsa del compactador. Sujete la manija
y levante el frente de la gaveta hasta que pase los topes de la
gaveta. Sujete ambos lados de la gaveta y levante la gaveta
fuera del compactador. Coloque la gaveta sobre los
2 esquinales.
PeJigro de Peso E×ceeivo
Use doe o rnae personae para mover e inetalar
et compactador.
No eeguir eeta inetrucci6n puede ocaeionar
una teei6n en ta eepaJda u otto tipo de teeionee.
IMPORTANTE:
• Para mover el compactador no Io sujete per la consola.
1.
2.
Comience en el cuarto donde va a permanecer el
compactador.
Saque el compactador de su cart6n de embalaje. Saque
todos los materiales protectores de embalaje come la cinta
adhesiva y los rellenos de embalaje. Use un detergente suave
y agua tibia para quitar el residuo ceroso ocasionado por el
material protector de embalaje. Seque meticulosamente con
un paso suave. Para obtener mas informaci6n, vea
"Limpieza".
Cerciorese de que el cable electrico este fijo a la abrazadera
del cable en a la parte posterior del compactador.
m
m
Coloque los otros 2 esquinales en el piso al costado del
compactador. Sujete ambos lados del gabinete del
compactador y recueste el compactador sobre los
esquinales. Quite la base de embalaje del fondo del
compactador.
A. Patas niveladoras
B. Base de embalaje
:: :: ::: ::,:t::
Dimensiones del producto
A. Abrazadera del cable
341/8"
(86,7 cm)
19

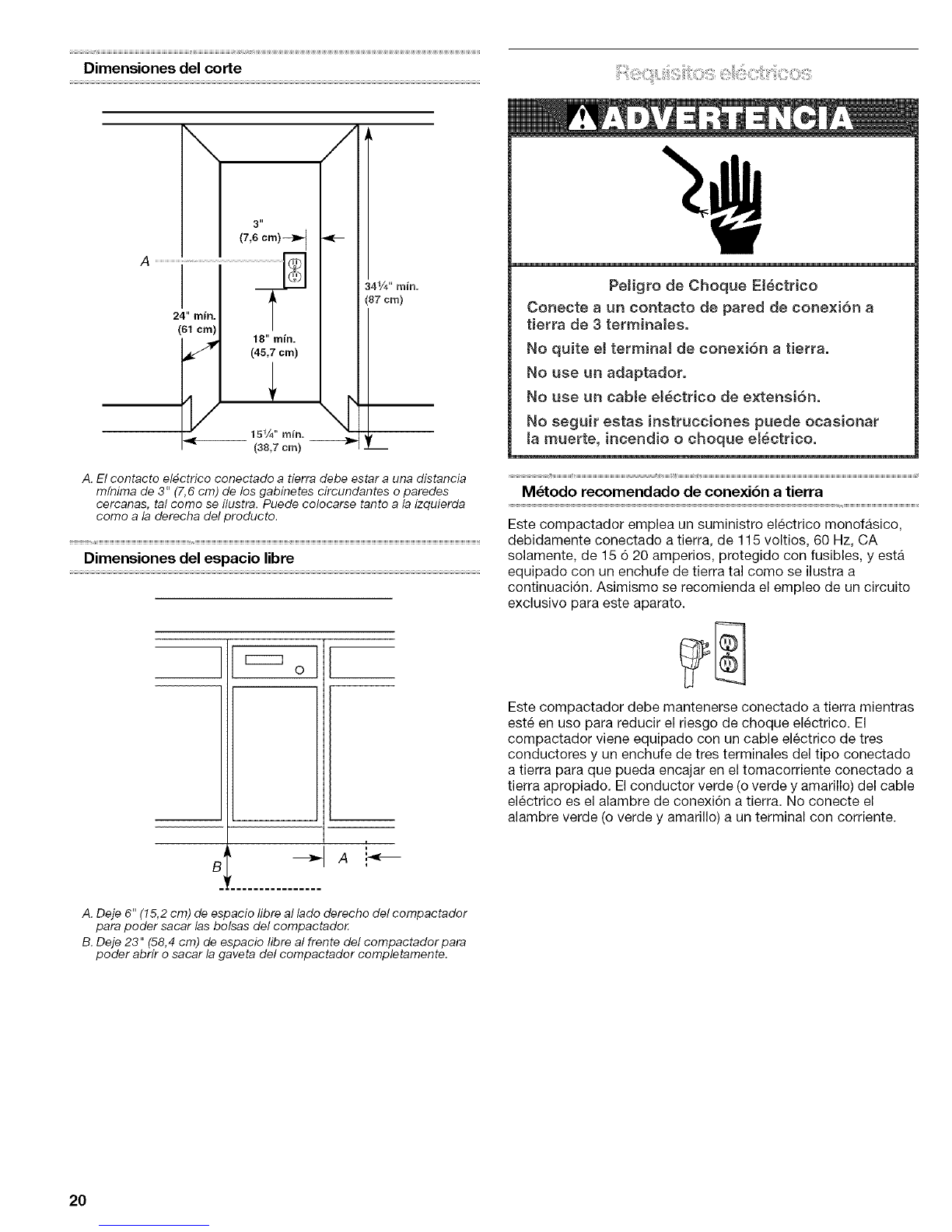

Dimensiones del corte
\
3"
(7,6 cm) ---_,_I
(61cm)
18,,iin.
(45,7 cm)
151/4" rain.
(38,7 cm)
Jl
34¼" m_rL
(87 era)
A. El contacto el_ctrico conectado a tierra debe estar a una distancia
mfnfina de 3" (7,6 cm) de los gabinetes circundantes o paredes
cercanas, tal como se flustra. Puede colocarse tanto a la izquierda
corno a la derecha del producto.
Dimensiones del espacio libre
B_
t
I '
PeHgro de Choque El_ctrico
Conecte a un contacto de pared de conexi6n a
tierra de 3terminates.
No quite e_ termina_ de conexi6n a tierra.
No use u_ adaptador.
No use un cabte el_ctrico de extensi6n.
No seguir estas i_strucciones puede ocasio_ar
ta muerte, incendio o choque etectrico.
M_todo recomendado de conexibn a tierra
Este compactador emplea un suministro electrico monofasico,
debidamente conectado a tierra, de 115 voltios, 60 Hz, CA
solamente, de 15 6 20 amperios, protegido con fusibles, y esta
equipado con un enchufe de tierra tal como se ilustra a
continuaci6n. Asimismo se recomienda el empleo de un circuito
exclusive para este aparato.
Este compactador debe mantenerse conectado a tierra mientras
este en uso para reducir el riesgo de choque electrico. El
compactador viene equipado con un cable electrico de tres
conductores y un enchufe de tres terminales del tipo conectado
a tierra para que pueda encajar en el tomacorriente conectado a
tierra apropiado. El conductor verde (o verde y amarillo) del cable
electrico es el alambre de conexi6n a tierra. No conecte el
alambre verde (o verde y amarillo) a un terminal con corriente.
A. Deje 6" (15,2 cm) de espacio fibre al /ado derecho del compactador
para poder sacar /as bolsas del compactadot:
B. Deje 23" (58,4 cm) de espacio fibre al frente del compactader para
poder abrir o sacar la gaveta del compactador cornpletarnente.
2O
