Your Pack-Master Manual will arrive in 1 box and include these parts:
Box:
Ram Plate with 2 ½” Bolt &
Nylock Nut
Base Plate
Jack Assembly
Left Upright,
Right Upright
Parts Bag Containing:
4 –½” x 1 ½” Long Bolts
1 –½” x 3 ½” Long Bolt
1 –½” x 4 ½” Long Bolt
6 –½” Nylock Nuts
12 –½” Flat Washers
Owner’s Manual
ASSEMBLY
1) Mount left (#1) and right (#2) uprights to
the base plate (#3) using 4, ½” x 1 ½”
long bolts, 8 flat washers and 4 nylock
nuts. (NOTE: Do not tighten bolts all the
way, so the jack assembly can be
installed).
2) Place control levers (#10 & #11) in the
“UP” position and then remove the face
plate from the jack assembly.
3) Insert the tongue of jack into left
(uncapped) upright with Jack Mounting
bracket, on UNDER SIDE of uprights. (See
Assembly Instruction Detail) and
assemble with a ½” x 3 ½” bolt on the
right, and a ½” x 4 ½” long bolt on the
left, 4 flat washers and 2 nylock nuts.
4) Align the uprights and ram assembly and
tighten all bolts. Install the face plate
back onto the jack assembly.
5) Mount the circular ram plate (#6) to the
jack assembly (#5) using the ½” x 2 ½”
bolt and nylock nut in the ram plate.
Front view showing components in correct position for
final assembly.
Figure 1
View from
rear of unit
Jack Assembly #5
Left Upright #1
Tongue
Ram Plate #6
Right
Upright #2
Base
Plate #3

PACK-MASTER MANUAL
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
Pack-Master Manual / 1258.0420
Page 5of 9
JACK PAR
OPERATION
Handle Lock
Hook #7
Handle Socket #12
Pitman Pin #14
Handle Socket Bolt
#16
Handle Socket Nut
#17
Pitman Arm
#15
Shear Pin
W/Nut #9
Upper 3” Jack Pin
W/Lever #11
Lower 4” Jack Pin
W/Lever #10
Jack Support Stud
#8

PACK-MASTER MANUAL
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
Pack-Master Manual / 1258.0420
Page 6of 9

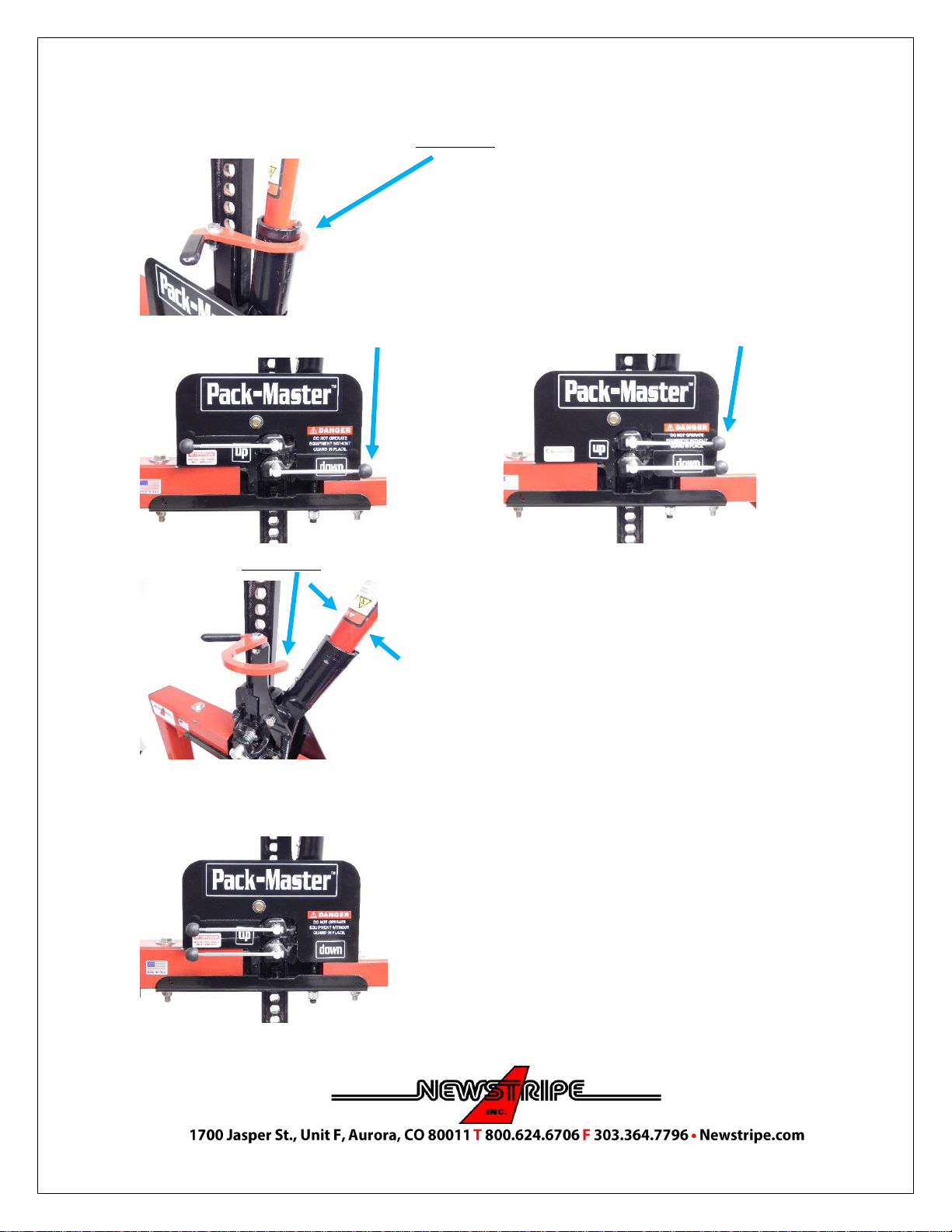

1) To operate the Pack-Master, engage the handle lock as shown.
2) Swing the lower lever to the “DOWN” position first, and then the upper lever to the “DOWN” position.
3) Disengage the handle lock and then begin pumping the jack handle up and down.
4) To retract the compactor plate, while applying slight downward pressure on jack handle, swing upper lever
to “UP” position, then the lower lever. This removes pressure on the pin and will extend the life of the
jacking pins.

PACK-MASTER MANUAL
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
Pack-Master Manual / 1258.0420
Page 7of 9
PRECAUTIONARY WARNINGS
Failure to adhere to the following statements
about unsafe practices may cause hazards that
cause serious injury.
The Pack-Master is not designed for crushing of
glass containers or items that may shatter or
contain volatile vapors.
DO NOT extend or modify the handle in any way.
DO NOT permanently bolt the Pack-Master to the
floor as damage and breakage of ram assembly
and personal injury may occur.
ALWAYS hold on to the jack handle while
compacting. Jack handle may “SPRING” up
when under load and pins have not snapped all the
way in to the jack rail.
ALWAYS engage the handle lock when moving
the levers, or the jack handle may fall suddenly,
causing injury.
ALWAYS keep your head out of the path of the
jack handle!

PACK-MASTER MANUAL
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
Pack-Master Manual / 1258.0420
Page 8of 9
PARTS LIST
Item
Description
Part #
Item
Description
Part #
1
Left Upright
10001425
10
4” Jack Pin w/lever (lower)
10001568
2
Right Upright
10001426
11
3” Jack Pin w/lever (upper)
10001567
3
Base Plate, Rev. B
10004752
12
Handle Socket
10001093
4
Mounting Bracket, Rev. B
10001427
13
Spring, Jack Pins (Not Shown)
10001305
5
Jack Assembly
10001458
14
Pitman Pin
10001094
6
Ram Plate, Rev. B (20” Dia.)
10001428
15
Pitman Arm
10001095
Optional
Ram Plate, Rev. B (17” Dia.)
10001288
16
Handle Socket Bolt
10001287
7
Handle Lock Hook
10000774
17
Handle Socket Nut
10001286
8
Jack Support Stud
10000773
18
Roll Pin, Jack Pins (Not Shown)
10001286
9
Shear Pin w/Nut
10001096
19
Jack Face Plate
10002570
Figure 1
View from
rear of unit
Left Upright
#1
Right
Upright
#2
Base Plate #3
Ram Plate #6
Mounting
Bracket #4
Jack Assembly #5
Face Plate #19
Jack Tongue
Jack Handle
