homexpert evohome Operation manual

evohome
Wireless Radiator
Zoning Kit
Installation & User Guide

Getting the most from your evohome system

Thanks for choosing an evohome Wireless Radiator
Zoning Kit. By adding Wireless Radiator Zoning Kits
to your evohome system you are creating smart
zones which means more comfort, more control
and savings of up to 40% on heating your home*.
Energy savings by smart zoning
Heating the whole house as one zone is like
turning all your lights on from one switch. With
an evohome Connected Pack and a Wireless
Radiator Zoning Kit on each radiator you can
divide your home into separate areas based on
your lifestyle, so you only need to heat areas
depending on when and where you spend time.
Working with zones
A zone can be one room or a number of rooms. For
example you may want to group all of your bedrooms
as one zone and control them together. Alternatively,
if you have several radiators in a single room or
open space, they can be grouped into a single zone
so you don’t need to control them individually.
Getting the most from your evohome system
*Source: Energy Saving Research Unit (ESRU), Strathclyde University 2013 & TACMA 2013 - Energy savings quoted were calculated
using a 3 bedroom, 2 level home, located in the UK, modelling a family of 4 over a typical week’s activity, comparing an evohome smart
zoning system, with recommended settings, to a system comprising of a simple timer, single non-programmable room thermostat and
no Thermostatic radiator valves. Individual Energy savings gained are dependent upon existing controls, environment and lifestyle.
1Installation & User Guide

22 Getting the most from your evohome system

Follow these instructions to learn more about smart
zoning and set up your Radiator Controllers.
Before you start
Make sure you have an evohome Wireless
Heating Controller installed and a Radiator
Zoning Kit for each radiator in your home.
Icon Key
In this guide
What’s in the box 4
Radiator Controller overview 4
Set up your Radiator Controller 5
Using your Radiator Controller 13
Troubleshooting 18
Technical & Safety information 19
evohome Controller
Radiator Controller
Getting the most from your evohome system
3Installation & User Guide 3

1 x Wireless Zoning Radiator Controller
1 x Adaptor pack to fit the majority of radiator valves
2 x AA batteries
What’s in the box
Radiator Controller
overview

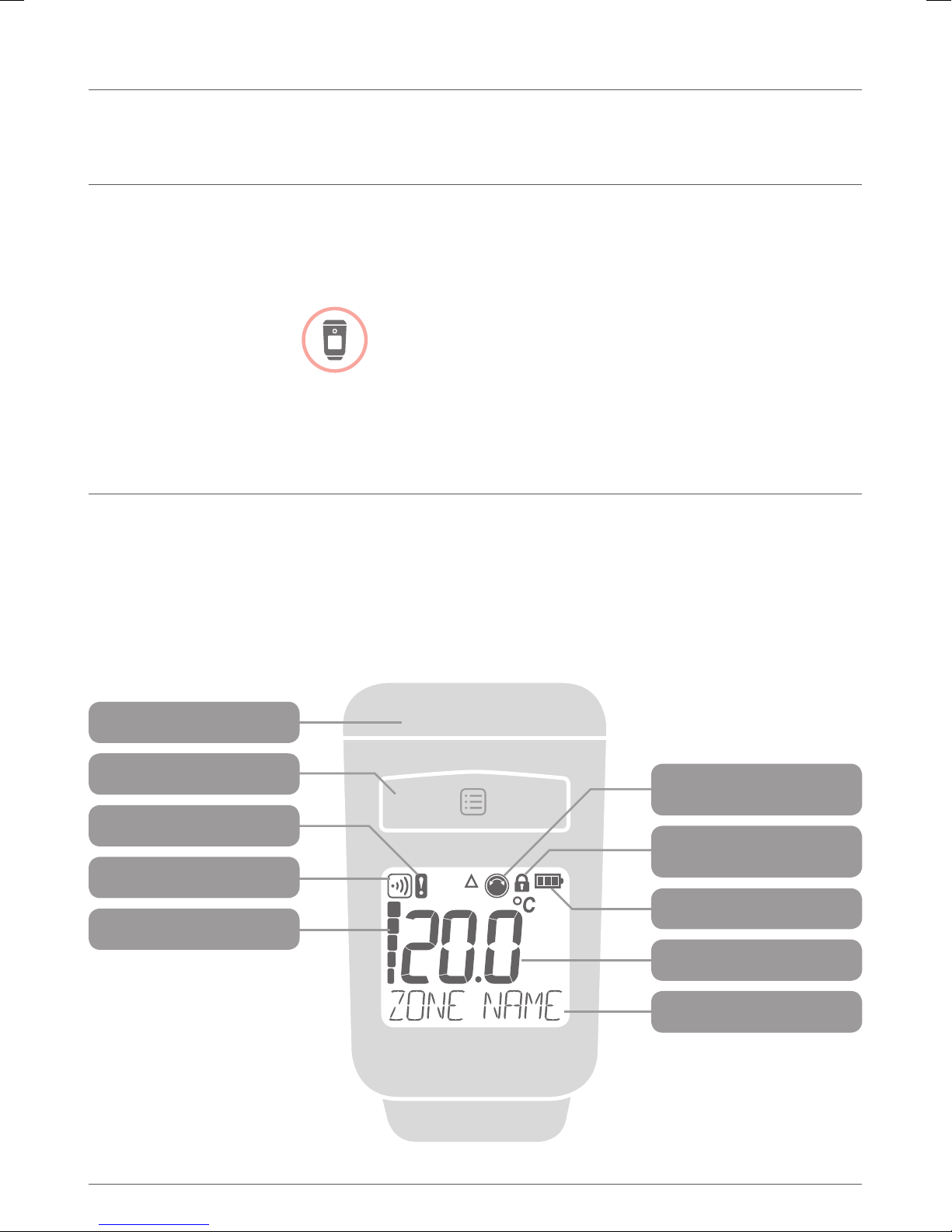

Adjustment dial
Temperature display
Line of text LCD display
Indicates a manual
adjustment from the dial
Manual adjustment has
been disabled
Battery status
Menu button
Communication error
Communication status
Wireless signal strength
4Information4

Set up your Radiator
Controller
If you are adding one or more Wireless Zoning Radiator
Kits to an evohome Connected Pack you need to power
up the Radiator Controllers and then bind them to the
evohome Controller using the ‘Installation Menu’.
It may be easier to power up and bind the
Radiator Controllers while they are close to
the evohome Controller – you can install
them in their assigned zones later.
When you bind a Radiator Controller to the
evohome Controller it permanently stores the
connection and there should never be a need
to rebind them even after a power cut.
In this section
Step 1: Power up and bind the Radiator Controller 6
Step 2: Install the Radiator Controller 8
Step 3: Wireless Signal Test 9
Advanced settings 10
5Installation & User Guide

Enter the binding mode on
evohome Controller
1Press and hold Settings for 3 seconds
2Press the green tick
3Press ADD ZONE
4Press the zone you want to add
the Radiator Controller to
5Rename the zone if required and/
or press the green tick
6Press RADIATOR VALVE
7If you want to control the zone temperature
with the evohome Controller (which
needs to be located in that zone)
press YES, otherwise press NO.
Monday 27 April
Living room
21˚ 18˚ 15˚
18˚ 17˚ 23˚
Quick Actions
21˚ 18˚ 17˚
19˚45˚ 17˚ 23˚
Kitchen Bedroom 2
Dining roomHot Water Bedroom 1 Bathroom
12:03
SETTINGS SCHEDULE
1
Step 1: Power up and bind the
Radiator Controller
CONTINUED ON NEXT PAGE
6Set up your Radiator Controller 6

12456
PRESS
ONCE
HOLD
5 SEC
PRESS
ONCE
Bind the Radiator Controller to the
evohome Controller
1Remove the adjustment dial
2Open the battery clip and insert
the AA batteries supplied
3Close the clip and replace the adjustment dial
4Press the button once − it
should say UNBOUND
5While UNBOUND is displayed press
and hold the button again for 5
seconds – it should say BIND
6Press the button once – it
should say BINDING
7You should receive a SUCCESS message on the
evohome Controller (if not go back and re-bind)
8The name of the allocated zone should
appear on the Radiator Controller display
when you press the button
9Either press the green tick to add
another Radiator Controller to the same
zone, or press the red cross if you don’t
need to add another radiator to the zone.
Synchronisation
can take up to
4 minutes until
the current room
setpoint temperature
is displayed on the
Radiator Controller.
If BINDING is
not successful,
it is terminated
automatically after
approx. 10 minutes.
– or –
To cancel BINDING,
select EXIT using
the adjustment dial
and confirm with the
button.
!
7Installation & User Guide

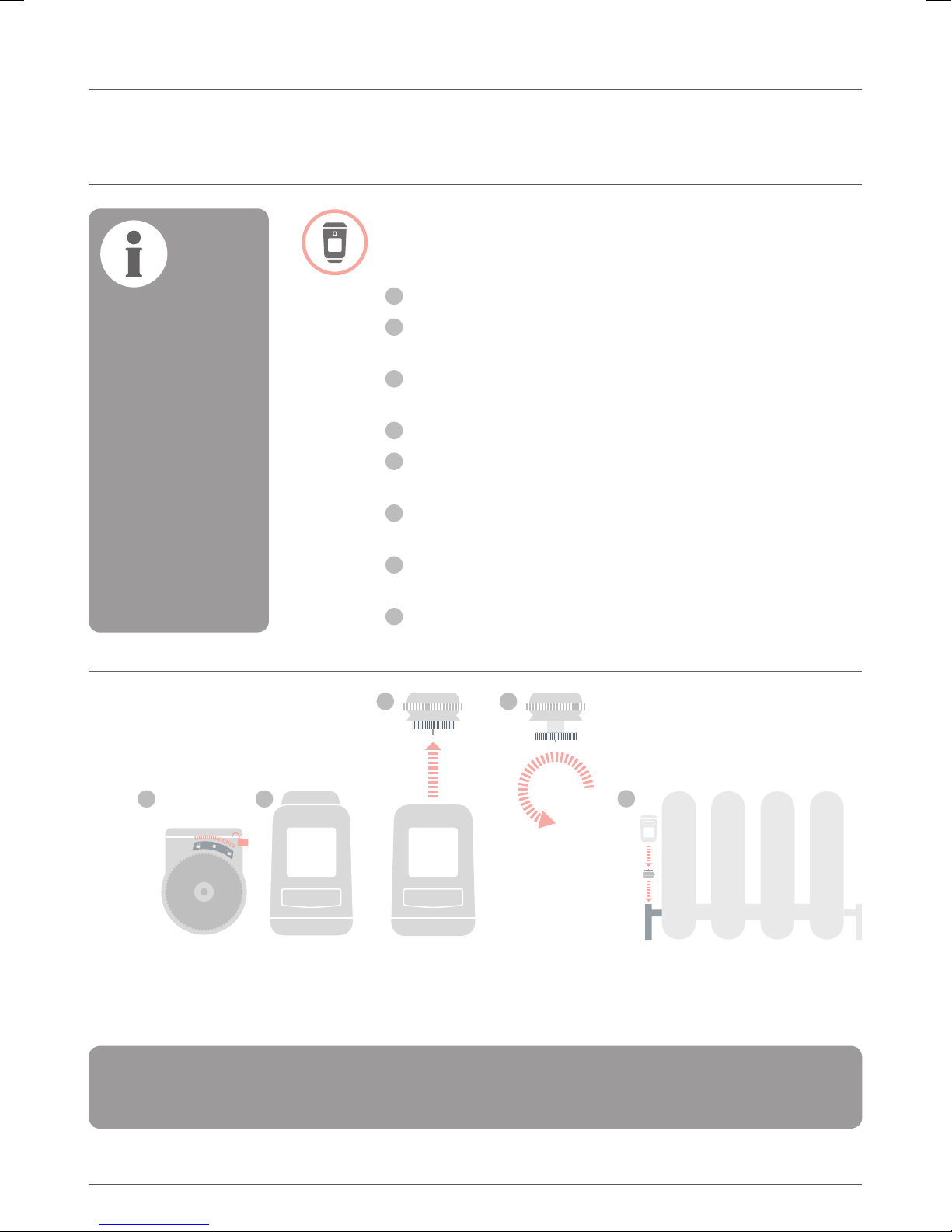

Install the Radiator Controller on
the radiator
1Locate the room (zone) for the radiator controller
2Slide the locking mechanism
to the unlock position
3Remove the adaptor from the bottom
of the Radiator Controller
4Unscrew the black wheel fully anticlockwise
5Remove any existing control
from the radiator valve
6Screw the white end of the adaptor
on to the radiator valve
7Push the Radiator Controller fully on to the
adaptor with the screen facing towards you
8Slide the locking mechanism
to the locked position
REMOVE
ROTATE
23
34
7
You may need to use
one of the adaptors
supplied with the
Wireless Radiator
Zoning Kit for your
radiator valve:
1. Slide the adaptor
onto the radiator
valve and turn it
until you feel it
click into place.
2. If necessary,
secure the
adaptor in place
with one of the
screws provided.
Steps 1 and 2 need to be repeated for each new zone you
are adding to the heating system.
Step 2: Install the Radiator Controller
8Set up your Radiator Controller

Check the wireless signal strength
Check the wireless signal strength between
the Radiator Controller and the evohome
Controller (the evohome Controller should
be placed in its normal location).

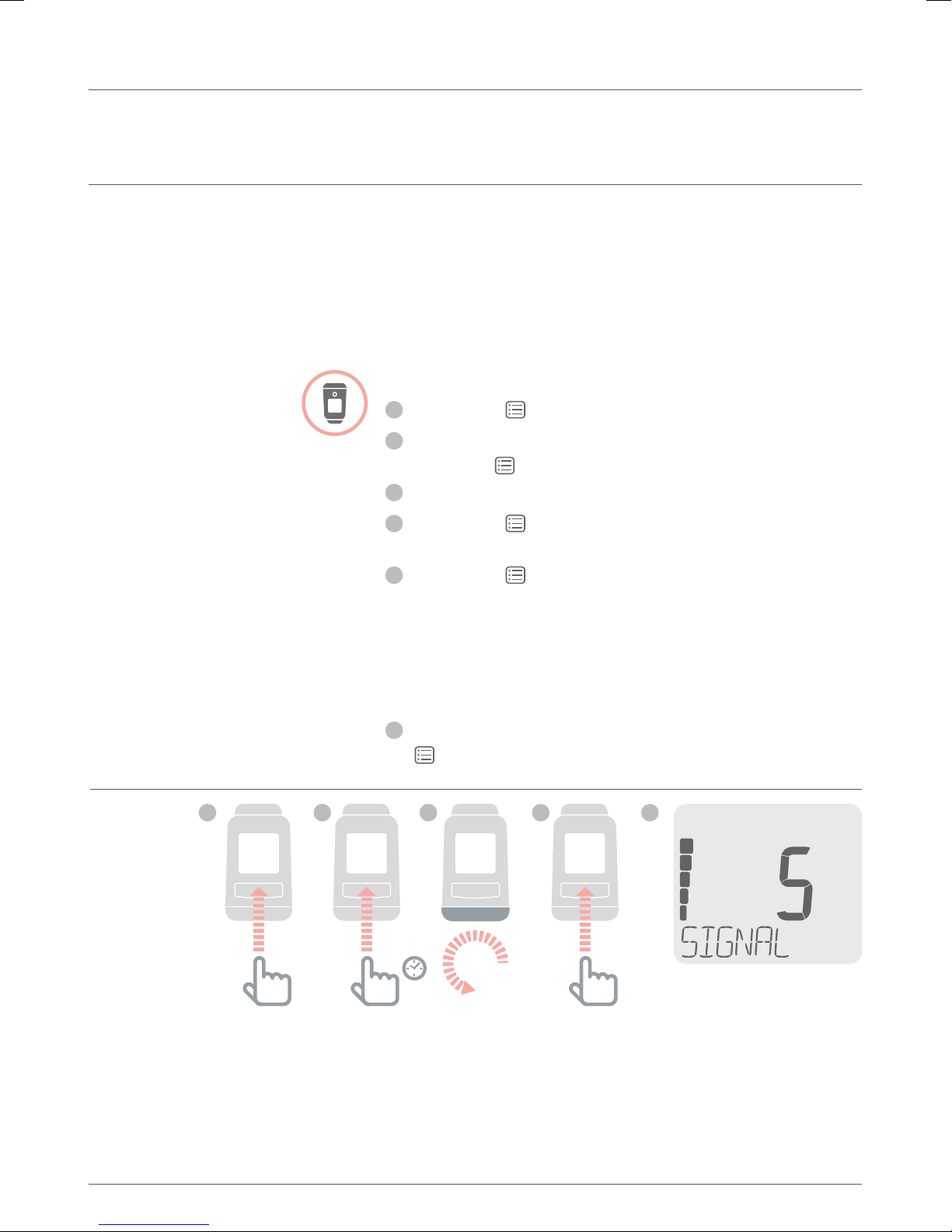

On the Radiator Controller for the selected zone
5Press the button - the zone name is displayed
6While the zone name is displayed press and
hold the button again for 5 seconds
7Turn the dial to display RF CHECK
8Press the button again - the
display should say CHECKING
9Press the button again to send a test signal
to the evohome Controller - The Radiator
Controller will display a signal strength bar and
a rating from 1 (poor) to 5 (excellent) – 0 means
the Radiator Controller has not received a test
signal back from the evohome Controller.
10
To exit test mode turn the dial to exit and press the
button. It will exit automatically after 10 minutes.
PRESS
ONCE
PRESS
ONCE
HOLD
5 SEC
Step 3: Wireless Signal Test
56789
9Installation & User Guide

Settings menu
The Radiator Controller has 12 basic settings
(parameters) that can be adjusted if required.

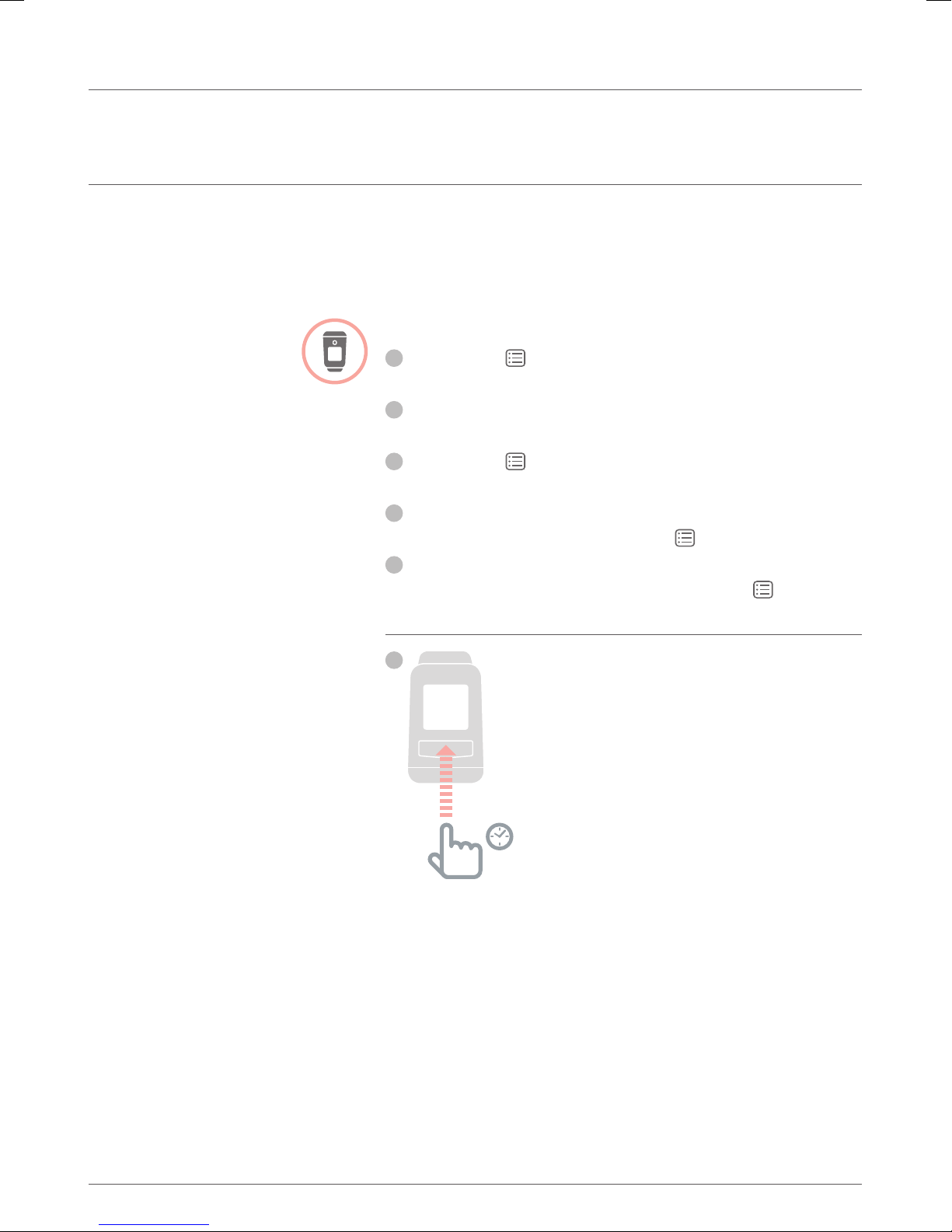

To enter the settings menu
1Press the button for approximately 5
seconds until LANGUAGE is displayed
2Turn the adjustment dial to select the desired
parameter (left-hand digit will flash).
3Press the button to edit the parameter
(right-hand digit will flash)
4Use the adjustment dial to set the desired
setting and confirm with the button
5To exit the menu, select exit using the
adjustment dial and confirm with the button
1
HOLD
5 SEC
Advanced settings
10 Set up your Radiator Controller

Parameter list
Parameter Description Available Settings
1language Display language
Sets the language of the interface on the display
1 ... 6
2= English*
2backlight Display backlight
Sets whether or not the display backlight comes on when
the adjustment dial is turned or the button is pressed
0= Disabled
1= Enabled*
3win time Auto window open duration
When an open window or door is detected the radiator
valve will be closed for this period of time
0= Inactive
30 = Minutes*
90 = Minutes
4win dec Auto window open temperature fall rate
Rate at which the room temperature decreases before
Auto Window Open function closes the radiator valve
0.2 ... 2.0
0.8 = 0.8°C per min*
5win inc Auto window open temperature rise rate
Rate at which the room temperature rises before Auto
Window Open function opens the radiator valve
0.2 ... 2.0
0.2 = 0.2°C per min*
6stroke Valve stroke range
Sets the stroke range to suit the radiator valve
0= Standard stroke*
1= Full stroke
7ROOMTEMP Temperature display
Displays either the programmed set temperature or the
measured room temperature
0= Set temperature*
1= Room temperature
8calibrate Temperature offset
Adjusts the measured temperature to compensate for the
location of the radiator controller
-3 ... 3
0= 0°C offset*
9battery Battery type
Sets the battery type used in the radiator controller -
Alkaline / Lithium / NiMH
0= Alkaline*
1= Lithium
2= NiMH
10 valve pos Valve position display
Briefly displays if the valve is open or closed when
enabled
0= Disabled*
1= Enabled
11 win typ e Auto Window Open function
Automatic window open detection
0= Disabled
1= Enabled*
12 fullreset Factory reset
Resets all parameter settings to factory default (does not
reset the stored binding data)
0= Disabled
1= Full reset*
13 exit Press to exit the settings menu
*recommended settings
11Installation & User Guide

12 Set up your Radiator Controller

Using your Radiator
Controller
The Radiator Controller will operate your smart
zone according to the programmed settings from
the evohome Controller and you shouldn’t need
to make many adjustments at the radiator.
There are however some basic adjustments and display
information you can do on the Radiator Controller.
In this section
Manual temperature override 14
Display the room (zone) name 15
Replacing the batteries 15
Automatic monitoring functions 16
Emergency operation 17
13Installation & User Guide

Manually override a room’s
scheduled temperature
The sheduled temperature for the room can
be changed by turning the adjustment dial.
This remains active until the Radiator Controller
receives the next scheduled temperature
change from the evohome Controller.
The symbol on the display shows
that the temperature was changed
manually and remains until the next
scheduled temperature change.
Turn the radiator OFF
By turning the adjustment dial
anticlockwise until OFF is displayed, the
valve will be closed permanently.
With the Radiator Controller set to OFF
it will no longer follow the programed
schedule from the evohome Controller.
It will still operate according to the frost
protection setting and will still run its valve
cycle to prevent the valve seizing.
To resume the heating schedule you need to
set a temperature on the Radiator Controller.
When the next set temperature is received from
the evohome Controller the Radiator Controller
will then follow the programmed schedule.
Manual temperature override
14 Using your Radiator Controller

To display the room (zone) name on
the Radiator Controller
1Press the button
2The name of the room (zone)
associated will the Radiator Controller
will be displayed for a few seconds
12
PRESS
ONCE
Display the room (zone) name
15Installation & User Guide
Replacing the batteries

Window open function
In order to save energy, if a window or
door gets opened and causes a sudden
temperature drop in the room, the Radiator
Controller closes the radiator valve.
window is displayed on the Radiator Controller
and the symbol is displayed on the
evohome Controller for that room.
When the temperature begins to rise again
the Radiator Controller will reopen the
radiator valve after 30 minutes (default).
Valve protection
To prevent the radiator valve from seizing, if
the valve has not been fully opened within a
period of two weeks the Radiator Controller
will cycle the valve open and closed. This
will happen on the Monday after the two
week period has been detected.
cycl is displayed on the Radiator
Controller during the valve cycle.
Frost protection
To prevent the water in the heating pipes from
freezing, if the room temperature drops below 5°C
the Radiator Controller opens the radiator valve
and closes it again when the temperature rises
to 6°C. It will maintain this cycle until the room
temperature rises above the frost protect level.
frost is displayed on the Radiator Controller
during the frost protection period.
Automatic monitoring functions
The heating system
must be switched
on for the frost
protection function
to operate.
!
16 Using your Radiator Controller

Emergency radiator valve operation
If the Radiator Controller is not functioning
(i.e. exhausted batteries) you can manually
open and close the radiator valve.
1Slide the locking mechanism
to the unlock position
2Remove the Radiator Controller from
the radiator valve adaptor
3Manually operate the radiator valve by
turning the black wheel on the adaptor:
Anticlockwise = open the valve
Clockwise = close the valve
4Replace the batteries or faulty Radiator
Controller as soon as possible to
return your smart zoning heating
system to its full energy efficiency
12
Manually opening
the radiator valve will
only heat the radiator
if the boiler is actively
providing heat to
another room in your
heating system.
Emergency operation
17Installation & User Guide

Troubleshooting
Problem/Display Possible Cause Remedy
Batteries exhausted Replace the batteries.
Icons are flashing
Wireless communication error Check the wireless communication between
the Radiator Controller and the evohome
Controller (Step 3: Wireless Signal Test).
Repeat the binding procedure.
Check the power supply to the evohome
Controller and the Radiator Controller.
no sync Wireless communication
interrupted
Check the wireless communication between the
Radiator Controller and the evohome Controller.
e1 sensor Radiator Controller defective Replace the Radiator Controller.
e2 valve
Motor cannot be
moved
Improper installation of
Radiator Controller
Seized radiator valve
Check the Radiator Controller is properly
installed on the radiator valve and adaptor.
Check that the valve can be manually opened and
closed (see Emergency operation on page 17).
Remove the blockage or replace seized valve.
The radiator stays
hot
The radiator valve not closing
fully
Check the Radiator Controller is properly
installed on the radiator valve and adaptor.
Check that the valve can be manually opened and
closed (see Emergency operation on page 17).
Remove the blockage or replace seized valve.
Change the valve stroke parameter to
full-stroke mode (Parameter 6).
Motor does not
move
Locking mechanism on the
Radiator Controller not in the
locked position
Slide locking mechanism to the locked
position
The Radiator
Controller does not
accept scheduled
temperature
changes from the
evohome controller
Radiator Controller has been
manually set to OFF
off is displayed
Use the adjustment dial to set the room
temperature to the desired value. When the
next scheduled temperature change is
received from the evohome Controller the
Radiator Controller will resume following the
programmed schedule.
blocked Local override of the Radiator
Controller has been disabled
by the evohome Controller
Enable local override for that zone in the
Installation Menu of the evohome Controller
18 FAQ/Troubleshooting
