Honeywell DELUXEHEATPUMP T8511G User manual

X-XX UL
INSTALLATION INSTRUCTIONS
®U.S. Registered Trademark • • All Rights Reserved
Microelectronic
Heat Pump Thermostats
T8511G
APPLICATION
The T8511G Microelectronic Heat Pump Thermostat provides electronic control of 24 Vac, two-stage heating and one-
stage cooling heat pump systems. Refer to Table 1 for a general description of the thermostat. All T8511 Thermostats
require a common wire to supply power.
Table 1. T8511 Thermostat Desription.
MERCURY NOTICE
If this control is replacing a control that contains
mercury in a sealed tube, do
not place your old
control in the trash.
Contact your local waste management authority for
instructions regarding recycling and the proper
disposal of the old thermostat.
INSTALLATION
When Installing this Product...
1. Read these instructions carefully. Failure to follow
the instructions can damage the product or cause a
hazardous condition.
2. Check the ratings given in the instructions and on
the product to make sure the product is suitable for
your application.
3. Installer must be a trained, experienced service
technician.
4. After completing installation, use these instructions
to check out the product operation.
CAUTION
Electrical Shock or Equipment Damage Hazard.
Can shock individuals or short equipment
circuitry.
Disconnect power supply before installation.
Location
Install the thermostat about 5 ft (1.5m) above the floor in
an area with good air circulation at average temperature.
See Fig. 1.
Do not install the thermostat where it can be affected by:
—drafts, or dead spots behind doors and in corners.
—hot or cold air from ducts.
—radiant heat from sun or appliances.
—concealed pipes and chimneys.
—unheated (uncooled) areas such as an outside wall
behind the thermostat.
Wallplate Installation
Mount tthermostat horizontally on the wall or on a 2 in. x 4
in. wiring box.
1. Position and level the wallplate (for appearance
only). The thermostat functions properly even when
not level.
T8511 Changeover System Selection Fan Selection Comments
G Automatic Em. Heat-Heat-Off-Auto-Cool On-Auto Use keyboard to make system and
fan selections.
69-0961-4

69-0961—4 2
MICROELECTRONIC HEAT PUMP THERMOSTAT
Fig. 1. Typical location of thermostat.
5 FEET
[1.5 METERS]
YES
NO
NO
NO
M10106
Fig. 2. Mounting the wallplate.
2. Use a pencil to mark the mounting holes. See
Fig. 2.
3. Remove the wallplate from the wall and drill two
3/16 inch holes in the wall (if drywall) as marked. For
firmer material such as plaster or wood, drill two
7/32 inch holes. Gently tap anchors (provided) into
the drilled holes until flush with the wall.
WIRES
THROUGH WALL
WALL
MOUNTING
HOLES
MOUNTING
SCREWS
M6530
WALL
ANCHORS
(2)
4. Position the wallplate over the holes, pulling wires
through the wiring opening.
5. Loosely insert the mounting screws into the holes.
6. Tighten mounting screws.
WIRING
All wiring must comply with local electrical codes and
ordinances. Refer to Fig. 3 through 5 for typical hookups.
A letter code is located near each terminal for
identification.
CAUTION
Electrical Shock or Equipment Damage Hazard.
Can shock individuals or short equipment
circuitry.
Disconnect power supply before installation.
1. Loosen the terminal screws on the wallplate and
connect the system wires. See Fig. 6.
IMPORTANT
Use 18 gauge, color-coded thermostat cable for
proper wiring.
2. Securely tighten each terminal screw.
3. Push excess wire back into the hole.
4. Plug the hole with nonflammable insulation to
prevent drafts from affecting the thermostat.

69-0961—4
3
MICROELECTRONIC HEAT PUMP THERMOSTAT
Fig. 3. Typical hookup in heat pump application.
Fig. 4. Typical hookup in heat pump system
with emergency heat relay.
Fig. 5. Typical hookup in heat pump application with
emergency heat relay and O/B terminal.
Fig. 6. Proper wiring technique.
Mounting Thermostat
1. Engage tabs at the top of the thermostat and
wallplate. See Fig. 7.
2. Press lower edge of case to close and latch.
M4826
FOR WRAPAROUND
INSERTION STRIP
7/16 IN. (11 MM).
FOR STRAIGHT
INSERTION STRIP
5/16 IN. (8 MM).
L1
(HOT)
L2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
AVAILABLE ON SELECT MODELS.
1
AUX. HEAT
RELAY
M4828
COMPRESSOR
CONTACTOR
FAN
RELAY
ROTOTOGY CE L
OUTDOOR
TEMPERATURE
SENSOR
COOL
CHANGEOVER
VALVE
EM. HEAT
RELAY
THERMOSTAT
1
2
2
W2
EQUIPMENT
MONITOR
L1
(HOT)
L2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
AVAILABLE ON SELECT MODELS.
1
M4829
COMPRESSOR
CONTACTOR
FAN
RELAY
ROTOTOGYC L
OUTDOOR
TEMPERATURE
SENSOR
COOL
CHANGEOVER
VALVE
THERMOSTAT
1
2
2
B
HEAT
CHANGEOVER
VALVE
EQUIPMENT
MONITOR
L1
(HOT)
L2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
AVAILABLE ON SELECT MODELS.
1
HEAT
RELAY 2
M4830
COMPRESSOR
CONTACTOR
FAN
RELAY
ROTOTO/B G Y1 C E W2
OUTDOOR
TEMPERATURE
SENSOR
COOL/HEAT
CHANGEOVER
VALVE
EM. HEAT
RELAY
THERMOSTAT
1
2
2
W1 L
HEAT
RELAY 1
EQUIPMENT
MONITOR

69-0961—4 4
MICROELECTRONIC HEAT PUMP THERMOSTAT
Fig. 10. T8511G (automatic changeover) system
and fan key locations.
NOTE: Always press the system and fan keys with your
fingertip or similar blunt tool. Sharp instruments
like a pen or pencil point can damage the
keyboard.
Temperature Settings
The default setpoint for heat is 70°F (21°C) and for cool is
78°F (25.5°C). Press the increase ▲or decrease ▼key to
change the present setting. To change between heat and
cool, press the Information i key until the setting to be
changed appears.
Fig. 7. Mounting thermostat on wallplate.
NOTE: To remove the thermostat from the wall, first
pull out at the bottom of the thermostat; then
remove top.
Using Thermostat Keys
Use thermostat keys to:
•Set temperature,
•Display present setting,
•Configure Installer Setup,
•Check System-Test,
•Display outdoor temperature (select models).
•Set system operation,
•Set fan operation.
See Fig. 8 for the key information.
M6798A
B. PRESS LOWER EDGE OF CASE TO LATCH.
A. ENGAGE TABS AT TOP OF THERMOSTAT AND WALLPLATE.
Fig. 8. Thermostat key locations and descriptions.
SETTINGS
System and Fan Settings
System settings control the thermostat operation as
follows:
Em. Heat: Emergency heat relay is automatically
controlled by the thermostat. The cooling system is
off. The compressor is de-energized.
Heat: The thermostat controls the heating.
Off: Both the heating and cooling are off.
Cool: The thermostat controls the cooling.
Auto: The thermostat automatically changes between
heating and cooling operation, depending on the
indoor temperature.
Fan settings control the system fan as follows:
On: Fan operates continuously.
Auto: Equipment controls fan.
The system default setting is Heat and the fan default
setting is Auto. Use the keyboard to change to the desired
settings. See Fig.10.
M10147
i
Press to select
heating or cooling
equipment.
Em. Ht. -Emergency heating
Heat—Heating equipment
Off — No equipment
Cool—Cooling equipment
Auto—Thermostat
automatically selects
heating and cooling
equipment.
Press to select
heating or cooling
equipment.
On—Fan runs continuously
Auto—Fan runs when
heating or cooling
equipment operates
System
System
System
Fan
Fan
Fan
1
1CHECK LIGHT ON SELECT MODELS
M6801
DISPLAY PRESENT
SETTINGS AND SCROLL
THROUGH INSTALLER
SETUP MODES
(INFORMATION KEY)
i
DECREASE
TEMPERATURE
SETTING
INCREASE
TEMPERATURE
SETTING

69-0961—4
5
MICROELECTRONIC HEAT PUMP THERMOSTAT
INSTALLER SETUP
NOTE: For most applications, the thermostat factory
settings do not need changing. Review the
Factory Setting column in Table 2 and if no
changes are necessary, go to the Installer
System-Test section.
Use the Installer Setup to customize the thermostat to
specific systems. Some of the options include temperature
display, changeover, minimum equipment on time and
minimum off time. Installer Setup numbers are listed in
Table 2. It includes all the configuration options and the
factory-settings available for the T8511.
IMPORTANT
The Installer Setup must be set correctly for the
HVAC equipment, thermostat and subbase to
operate properly.
A combination of key presses are required to use the
Installer Setup feature:
1. To enter the Installer Setup, press and hold the
Information i key and the increase ▲and
decrease ▼keys until the first number displays. All
display segments appear for approximately three
seconds before the number displays. See Fig. 11
and 12.
2. To advance to the next Installer Setup, press the
Information i key.
3. To change a setting, press the increase ▲or
decrease ▼key.
4. To exit the Installer Setup, press and hold the
Information i key until the display returns to
normal (approximately three seconds). The display
scrolls the numbers backward to get to the normal
display. The Installer Setup is automatically exited if
no key presses are made for five minutes.
Fig. 11. Display of all LCD segments.
Fig. 12. Display of installer setup and setting.
NOTE: Only configurable numbers are shown.
Em HeatOffCool Auto Only
Heat Cool
OnAuto
System Fan
Room
Outdoor
Em Ht Temporary Setting
Wait
%Humid
Aux Ht Remote
Repl
Batt
M4844
Table 2. Thermostat Installer Setup Options.
M10105A
INSTALLER SETUP
NUMBER DISPLAY
(COLUMN 2 OF TABLE 2)
FACTORY SETTING OR
OTHER CHOICE DISPLAY
(COLUMN 3 OR 5 OF TABLE 2)
aThe cycle rate for the last stage of heat is adjustable with 6 as the factory setting.
(continued)
Installer Setup
Number
(Press i key Factory Setting Other Choices
(Press ▲or ▼key to change) Actual
Select to change) Display Description Display Description Setting
Not used. 01 thru 04 — — — — —
Heating cycle 05 03 Stage 2. 03, 06 03—3 cph used for stage 1
rate. 06 — Not used. or 09 heat pump systems. —
07 09 Emergency heat. 06—6 cph used for
conventional systems.
09—9 cph used for electric
heat systems.
Not used. 08 thru 11 — — — — —
Changeover
(T8511G only). 12 01 Manual changeover. 00, 02 00—Automatic changeover. 02—Automatic changeover
only
Not used. 13 — — — — —
Degree
temperature
display.
14 00 Temperature is
displayed in °F. 01 Temperature is displayed in °C
Not used. 15 thru 18 — — — — —

69-0961—4 6
MICROELECTRONIC HEAT PUMP THERMOSTAT
Table 2. Thermostat Installer Setup Options (Continued).
Installer Setup
Number
(Press i key Factory Setting Other Choices
(Press ▲or ▼key to change) Actual
Select to change) Display Description Display Description Setting
Extended fan
operation in
heating.
19 00 No extended fan
operation after the call
for heat ends.
01 Fan operation is extended
90 seconds after the call for
heat ends.
Extended fan
operation in
cooling.
20 00 No extended fan
operation after the call
for cool ends.
01 Fan operation is extended
90 seconds after the call for
cool ends.
Not used. 21 thru 23 — — — — —
Outdoor
temperature
display.
24 00 No outdoor temperature
is displayed. 01 Outdoor temperature is displayed. Needs a
C7089B1000 Outdoor
Sensor to operate.
Not used. 25 thru 28 — — — — —
O/B terminal
energized in
heating or
cooling.
29 00 O/B terminal is
energized for reversing
valve in cooling.
01 O/B terminal is energized for
reversing valve in heating.
Not used. 30 thru 32 — — — — —
Minimum off
time for the
compressor.
33 05 5 minute minimum off-
time for the compressor. 00, 01, 02, 03
or 04
Minimum number of minutes
(0 thru 5) the compressor will
be off between calls for the
compressor.
Heating
setpoint range
stop.
34 90 Heating setpoint can be
set no higher than 90°F. 40 thru 90 Number can be set anywhere between 40 and
90 in 1°F increments.
Cooling
setpoint range
stop.
35 45aCooling setpoint can be
set no lower than 48°F. 48 thru 99 Number can be set anywhere between 48 and
99 in 1°F increments.
System On
display. 36 00 LCD On symbol is displayed when system
is energized.
01 Display is disabled, usually
set for 01 for a zoned
system.
Temperature
display
adjustment.
37 00 No difference in
displayed temperature
and actual room
temperature.
-3 thru
03
01—Display adjusts to 1°F
higher than actual room
temperature.
02—Display adjusts to 2°F
higher than actual room
temperature.
03—Display adjusts to 3°F
higher than actual room
temperature.
-1—Display adjusts to 1°F
lower than actual room
temperature.
-2—Display adjusts to 2°F
lower than actual room
temperature.
-3—Display adjusts to 3°F
lower than actual room
temperature.

69-0961—4
7
MICROELECTRONIC HEAT PUMP THERMOSTAT
Em HeatOffCool Auto Only
Heat Cool
OnAuto
System Fan
Room
Outdoor
Em Ht Temporary Setting
Wait
%Humid
Aux Ht Remote
Repl
Batt
M4844
INSTALLER SYSTEM-TEST
Use the Installer System-Test to check the thermostat
configurations and operation. Refer to Table 3 for a list of
the available system-tests.
To start the system-test:
CAUTION
Equipment Damage Hazard.
Minimum compressor off-time is bypassed
during the Installer System Test.
Be aware that equipment damage can occur if the
compressor is cycled too quickly.
Press and hold the increase ▲and decrease ▼ keys, at
the same time, until two zeros appear. All segments of the
LCD are displayed before the zeros appear.
NOTE: Press and hold the increase ▲and decrease ▼
keys for three seconds to exit the system-test.
The system-test times out after five minutes
without any key presses.
Table 3. Installer System-Tests.
Refer to Table 4 for descriptions of the specific tests.
Table 4. Installer System-Test Options.
aAvailable on select models.
(continued)
M6792
TEST NUMBER
Test
Number System-Test Description
10-19 Heating equipment can be turned on and off
20-29 Emergency heat (select models) equipment
can be turned on and off
30-39 Cooling equipment can be turned on and off
40-49 Fan equipment can be turned on and off
60-69 System key or system switch position test
70-79 Thermostat information displayed including
date code and software versions.
Key To
Press Test Number Description
Heating Equipment System-Test
i 10 Enter heating equipment system-test.
▲11 Stage-one heat comes on. The system fan is also energized.
▲12 Stage-two heat comes on. Stage-one heat and system fan remain on.
▼11 Stage-two heat turns off.
▼10 Stage-one heat and system fan turn off.
Emergency Heating Equipment System-Testa
i 20 Change from heating to emergency heating equipment system-test.
▲21 Emergency heat comes on. System fan also comes on.
▼20 Emergency heat turns off.
Cooling Equipment System-Test
i 30 Change from heating or emergency heating to cooling equipment system-test.
▲31 Stage-one cooling and system fan come on.
▼30 Stage-one cool and system fan turn off.

69-0961—4 8
MICROELECTRONIC HEAT PUMP THERMOSTAT
Table 4. Installer System-Test Options (Continued).
M6791
M4864
M4865
M4866
Thermostat Information
1. Press the Information i key to access the thermo-
stat information.
2. Press the increase ▲key to display the production
date code. The first two large digits are the month
and the third digit is the last digit of the year
(Example: 026 = February 1996).
3. Press the increase ▲key again to display the
software identification code (Example: 02 =
software ID code 2).
4. Press the increase ▲key again to display the
software revision number (Example: 001 =
revision number 1).
Key To
Press Test Number Description
Fan Equipment System-Test
i 40 Change from cooling to fan equipment system-test.
▲41 Fan comes on.
▼40 Fan turns off.
System Key
IMPORTANT
Test numbers are displayed only when the system is configured for the selected function.
EXAMPLE: Numbers 60, 61 and 62 are the only numbers that are displayed when a system is configured for
heat only.
SYSTEM KEY
i 60 Change from fan to key operation system-test.
System 61 Heat Test number is displayed.
System 62 Off Test number is displayed.
System 63 Cool Test number is displayed.
System 64 Auto Test number is displayed.
System 65 Emergency Heat Test number is displayed.
NOTE: Press system key again to repeat the System Key System-Test.
FAN KEY SYSTEM-TEST
Fan 68 Fan On Test number is displayed.
Fan 69 Fan Off Test number is displayed.

69-0961—4
9
MICROELECTRONIC HEAT PUMP THERMOSTAT
M4867

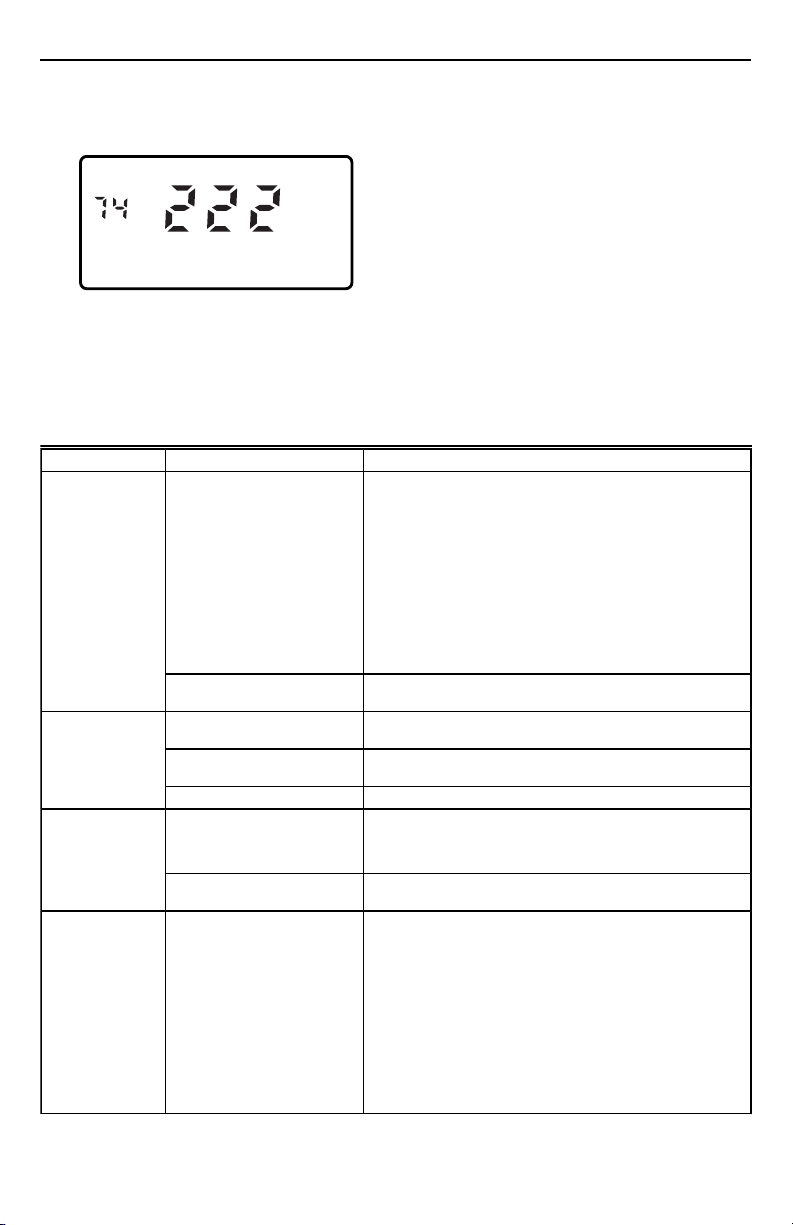

5. Press the increase ▲key again to display the
EEPROM identification code (Example: 222 =
EEPROM ID 222).
6. Press and hold the increase ▲and decrease ▼
keys until the room temperature is displayed to exit
the system-test. The system-test times out after five
minutes without any key presses.
CHECKOUT
Outdoor Temperature Sensor
(Where Applicable)
Allow the outdoor temperature sensor to absorb the
outdoor air for a minimum of five minutes before taking a
reading. With an accurate thermometer (±1°F [±0.5°C]),
measure the temperature at the sensor location, allowing
time for the thermometer to stabilize before reading. Match
the thermometer reading to the outdoor temperature
display at the thermostat.
TROUBLESHOOTING GUIDE
aAvailable on select models.
(continued)
Symptom Possible Cause Action
Display will not
come on. Thermostat is not being powered. • Check that C terminal is connected to the system transformer.
• Check for 24 Vac between C and R or RH terminals.
— If missing 24 Vac:
— Check if the circuit breaker is tripped—reset the
circuit breaker.
— Check if the system fuse is blown—replace the fuse.
— Check if the power switch on the HVAC equipment is
in the Off position—set to the On position.
— Check wiring between thermostat and HVAC
equipment—replace any broken wires and tighten
any loose connections.
— If 24 Vac is present, proceed with troubleshooting.
Thermostat microprocessor is
locked up. Remove the thermostat from the wallplate for 2 minutes. After 2 minutes, replace the thermostat on the wallplate.
Temperature
display is incorrect. Room temperature display has been reconfigured. Enter Installer Setup mode number 37 and reconfigure the display.
Thermostat is configured for °F
or °C display
a
.Enter Installer Setup mode number 14 and reconfigure the display.
Bad thermostat location. Relocate the thermostat.
Temperature
settings will not
change. (Example:
Cannot set the
The upper or lower temperature
limits were reached.
Check the temperature setpoints:
• Heating limits are 40 to 90°F (4.5 to 32°C).
• Cooling limits are 48 to 99°F (9 to 37°C).
heating higher or
the cooling lower.) The setpoint temperature range
stops were configured. Check Installer Setup mode numbers 34 and 35 and reconfigure the setpoint stops.
Heating will not
come on. No power to the thermostat. • Check that C terminal is connected to the system transformer.
• Check for 24 Vac between C and R or RH terminals.
— If missing 24 Vac:
— Check if the circuit breaker is tripped—reset the
circuit breaker.
— Check if the system fuse is blown—replace the fuse.
— Check if the system switch at the equipment is in the
Off position—set to On position.
— Check wiring between thermostat and HVAC
equipment—replace any broken wires and tighten
any loose connections.
— If 24 Vac is present, proceed with troubleshooting.

69-0961—4 10
MICROELECTRONIC HEAT PUMP THERMOSTAT
TROUBLESHOOTING GUIDE (Continued)
aAvailable on select models.
Symptom Possible Cause Action
Heating will not
come on.
Thermostat minimum off-time is
activated. Wait up to five minutes for the system to respond.
(continued) System selection is not set to
Heat. Set system selection to Heat.
O/B terminal configured
incorrectly
a
.Check Installer Setup mode number 29 and reconfigure correctly.
O or B terminal miswired
a
. Check system description to determine whether changeover
should be energized in heat (B) or cool (O). Rewire if
necessary.
Cooling will not
come on. No power to the thermostat. • Check that C terminal is connected to the system transformer.
• Check for 24 Vac between C and R or RC and Y terminals.
— If missing 24 Vac:
— Check if the circuit breaker is tripped—reset the
circuit breaker.
— Check if the system fuse is blown—replace the fuse.
— Check if the system switch at the equipment is in the
Off position—set to the On position.
— Check wiring between thermostat and HVAC
equipment—replace any broken wires and tighten
any loose connections.
— If 24 Vac is present, proceed with troubleshooting.
Thermostat minimum off-time is
activated. • Wait up to five minutes for the system to respond. • Enter Installer Setup mode number 33. Reconfigure
minimum off-time (if required).
System selection is not set to
Cool. Set system selection to Cool.
O/B terminal configured
incorrectly
a
.Check Installer Setup mode number 29 and reconfigure correctly.
O or B terminal miswired
a
. Check system description to determine whether changeover
should be energized in heat (B) or cool (O). Rewire if
necessary.
System On
indicator is lit, but
no heat is being
delivered.
Heating equipment is not
operating. Verify operation of heating equipment in system-test.

69-0961—4
11
MICROELECTRONIC HEAT PUMP THERMOSTAT

Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Scarorough, Ontario
M1V 4Z9
69-0961—4 G.H. Rev. 05-04
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
www.honeywell.com/yourhome
