Hootoo HT-BS030 User manual
HT-BS030
www.hootoo.com
NORTH AMERICA
[email protected] (US)
Tel: 1-888-456-8468
(Monday-Friday: 9:00 – 17:00 PST)
Address: 46724 Lakeview Blvd, Fremont, CA 94538
EUROPE
[email protected] (DE)
[email protected] (FR)
[email protected] (ES)
[email protected] (IT)
EU Importer: ZBT International Trading GmbH
Address: Halstenbeker Weg 98C, 25462 Rellingen,
Deutschland
ASIA PACIFIC
CONTENTS
Important
Know Your Barcode Scanner
What’s in the Box
Product Diagram
Specifications
Scan Aiming
Decode Zoom
Get Started
Power On / Off
Charge the Barcode Scanner
LED Indicator & Beeper
Pair the Scanner with a Device
Set Your Barcode Scanner
Normal Mode
Inventory Mode
Set Sleep Timer
Set Power off Time
Scanner Sound Setting
Same Code Delay Time Setting
Reading Setting
Code Suffix / Prefix Setting
Code ID Table
USB Receiver Setting
Language
Code Symbol On / Off
Troubleshooting
05-09
05
03-04
07-09
09-16
10-11
17-19
01-05
01
01
02
04
05
05
06
09
10
12
12
13
13
14
15
15
16
20
Know Your Barcode Scanner
The HooToo Bluetooth Scanner combines top scanning performance and excellent
ergonomics to provide the best value in a lightweight laser scanner. Whether used as a
hand-held scanner or hands-free in a stand, the scanner ensures comfort and ease of use
for extended periods of time.
Important Product Diagram
What’s in the Box
1 x HooToo Bluetooth Barcode Scanner
1 x Charging / Data Cable
1 x Thank You Card
1 x User Guide
1. Scan Lens
2. Laser Diode
3. Trigger
4. Battery Compartment
5. Battery
6. LED Indicator
Regularly clean the scanning window for better scanning accuracy
Keep the window away from any abrasive material
Remove any dirt particles with a damp cloth
Wipe the window using a tissue moistened with ammonia / water
Do not spray water or other cleaning liquids directly into the window
Thank You
Card
1
3
4
7
5
6
2
01 02
Scan Aiming
Note: Do not hold the scanner directly over the barcode.
65° 65°
Specifications
Communication Distance
Communication Protocol
Compatibility
Data Memory
Scanning Type
Source
Max Scanning Speed
Decoding Accuracy
Depth of Focus
Decoding IC
Print Contrast
Working Current
Battery
Charging Input
Charging Time
Service Time
Scan Mode
Prompting Mode
Error Rate
7 to 10 m / 22.9 to 32.8 ft
Bluetooth 3.0
iOS, Mac, Android, XP, Win 7, Win 10 etc.
16MB Flash
Single / Continuous / Automatic Scan
LED (622nm – 628nm)
200 times / second
3.3mil
3.3mil: 2mm – 100mm
10mil: 2mm – 350mm
15mil: 5mm – 500mm
30mil: 10mm – 600mm
32 bit high-speed processor
Minimum reflectivity of 30%
Decoding: 40mA
Working: 20mA
Standby: 5mA
Shutdown: 1.8uA
750mAh
5V 500mA
1.5 hours
30 hours
Wired / Wireless
Buzzer, LED Light
1/5000000
Scanning Angle
Decoding Ability
Support Interface
Rotation Angle: ±42°
Oblique Angle: ±65°
Deflecting Angle: ±65°
UPC-A, UPC-E, EAN-8, EAN-13, Code 128,
Code 39, Code 39, Full ASCII, Codabar / NW7,
Code 93, Code 11, MSI, Interleaved 25, Industrial
25, ISBN, ISSN, China Post etc.
General one-dimensional codes
USB HID, USB Virtual Serial (Need to install drive
and setup code), SPP
03 04
06
LED Indicator & Beeper
Beeper
3 beeps
3 beeps
N/A
N/A
3 beeps
2 beeps
1 tick
1 short beep
1 beep
1 tick
2 beeps
LED Indicator
Blue LED On
Red LED flashes 3 times
Red LED flashes 3 times
Red LED flashes
Red LED flashes, blue LED solid on
Blue LED on
Red LED on
Blue LED on
Blue LED on
Red LED on
N/A
Indication
Power up with over 30% battery
Power up on with battery lower
than 30%
Power off with battery lower
than 20%
Battery drained
(Charge for 30 to 50 minutes,
then power on again)
Pairing
Paired (Power up then pair)
Transmission error
Code scanned and uploaded
Code scanned and saved in
inventory mode
Transmission error or insufficient
space in inventory mode
Connected to host device in
wired mode
Shut Down
Pressing the Trigger will turn on the scanner and make the laser appear.
The scanner will automatically shut off if detecting no operation in 30 seconds. You
can also scan the following barcode to manually shut it off.

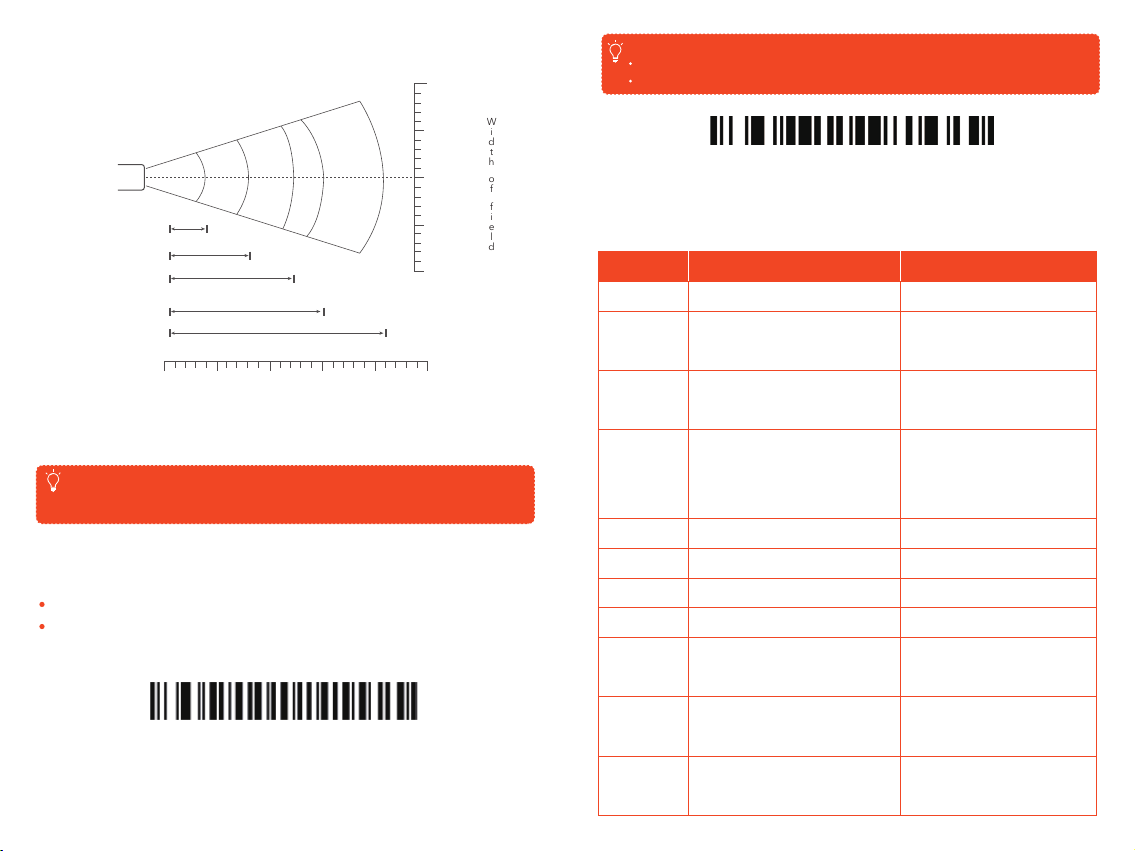

Decode Zone
TT Scanner
in.
10 25.4
12.7
0
12.7
25.4
5
0
5
10
cm
Width
of
field
5 mil
2.5”
1.5”
1.0” 14.5”
10.0”
6”
7.5 mil
10 mil
0 17.0”
100% UPC
* 23.0”
20 miL
0in.
cm 0
5
12.7
10
25.4
15
38.1
20
50.8
25
63.5
Depth of Field
*Minimum distance determined by symbol length and scan angle
Note: Typical performance at 73° (23℃) on high quality symbols in normal
room light.
Powering On / Off
Charge the Barcode Scanner
Simply connect the scanner with any USB power adapter via the included USB cable. The
LED light will flash red and blue alternately while the scanner is being charged.
Battery Status
Charge the scanner if the LED indicator flashes red 3 times as low battery alarm.
Scan the barcode to learn about the battery status on your PC.
Note:
05
08
07
1. Scan the barcode to pair with your host device.
Bluetooth SPP Mode
2. Scan the barcode to return to default setting.
Wired Connection
1. Plug the cable connector into the data port on the bottom of the scanner handle.
2. Gently tug the cable to ensure the connector is properly secured.
3. Connect the other end of the interface cable to the host computer.
4. Your PC will install the driver automatically. Once the driver installation is completed,
the scanner is ready for use.
Pair the Scanner with a Device

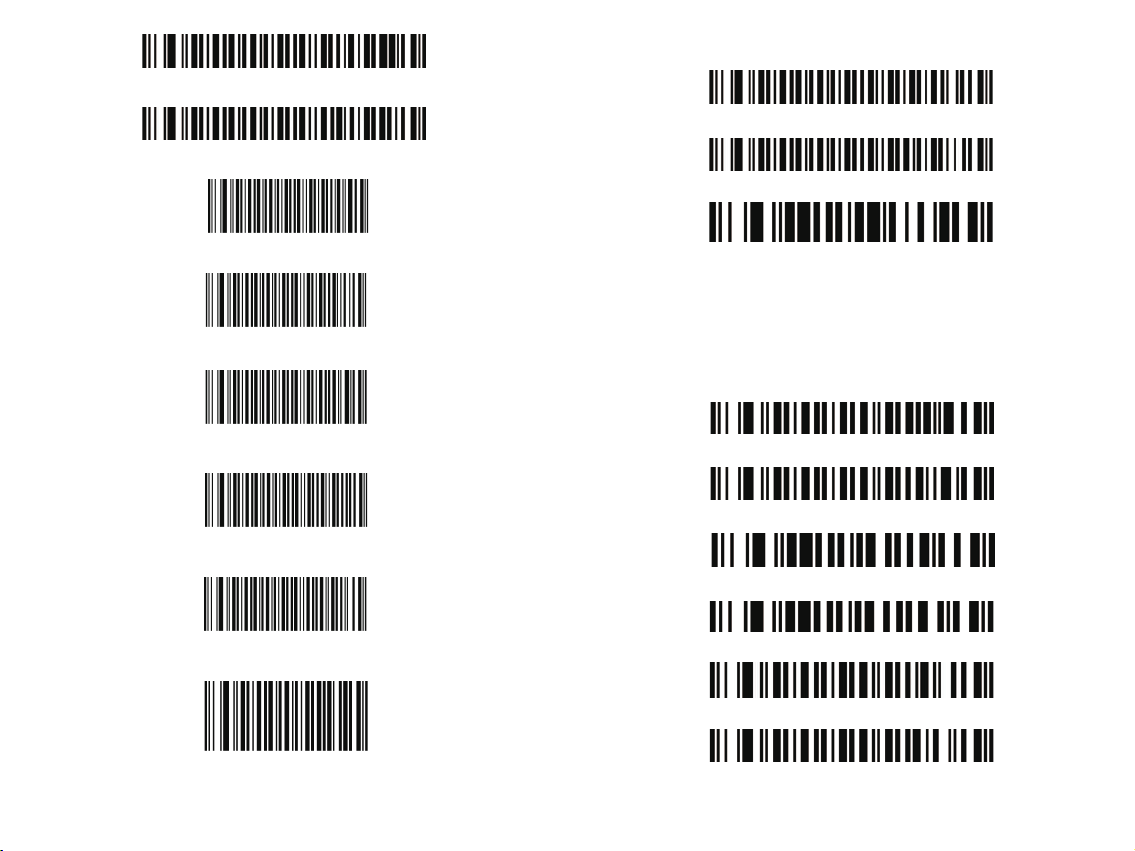

Scan the following barcodes to switch from wireless into wired mode to enable / disable
wired mode.
Wired Mode On *
Wired Mode Off
Bluetooth Connection
Bluetooth HID Mode *
Bluetooth Keyboard Speed (15)*
Bluetooth Keyboard Speed (30)
Bluetooth Keyboard Speed (40)
Bluetooth Keyboard Speed (50)
Bluetooth Keyboard Speed (60)
1009
Scan the barcodes directly, the decoded data will be transferred to the receiver and
displayed on the PC or your host. A prompt sound will be heard if registration failed.
Inventory mode allows you to use the scanner without any connection to a host. The
scanned codes will be stored in the built-in memory of the scanner. At the end of your
work, scan the “Transfer Data” code to transfer the data to your PC or other host.
Transfer Speed Setting (Inventory Mode Only)
Scan “Total Number of Data Entry” to check how many data is decoded
After you transfer the data in inventory mode, scan “Clear Data” to clear the inventory data.
Set Sleep Time
Normal Mode
Clear Data
Fast
Standard
Slow
Sleep Time 20 Seconds
Sleep Time 10 Seconds
Inventory Mode
Transfer Data
Total Number of Data Entry
Pair with phone, pad, or other devices.
Pair with your laptops or use the cable to connect the Bluetooth scanner.
Pair with PC without Bluetooth, you need to use a Bluetooth receiver or the wired mode to
connect with a PC without Bluetooth functionality.
3. Pair with different hosts
Turn on Bluetooth on the host device, scan the Bluetooth barcode to pair.
Set Your Barcode Scanner
Normal Mode (*)
Inventory Mode
11 12

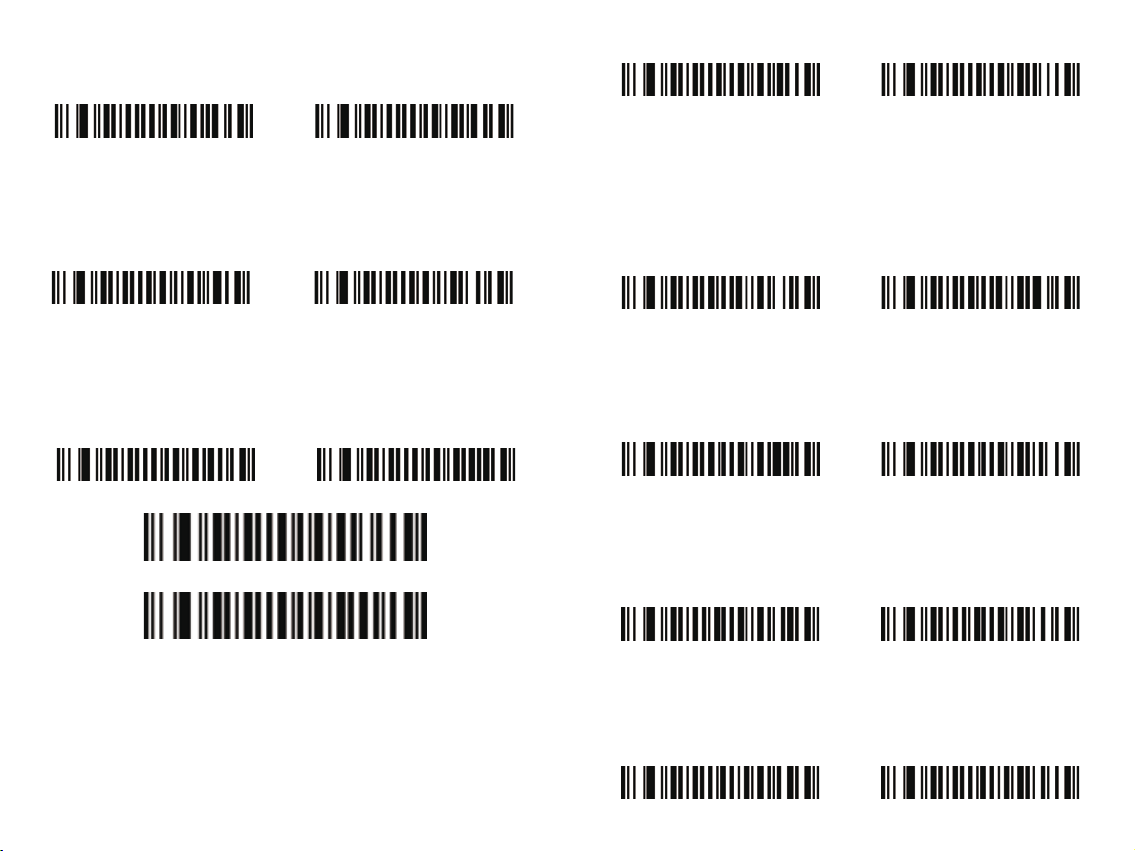

Sleep Time 5 minutes
Sleep Time 30 minutes
Set Power Off Timer
Scanner Sound Setting
Beeper Sound Off
Turn Off in 10 Seconds
Turn Off in 15 Minutes
Shut Down
Tone 0
Tone 1
Lower Beeper Volume
Medium Beeper Volume
High Beeper Volume
Sleep Time 30 Seconds
Sleep Time 60 Seconds
Sleep Time 2 Minutes
Sleep Time 10 Minutes
Sleep Time 20 Minutes
Stay Powering On
13 14

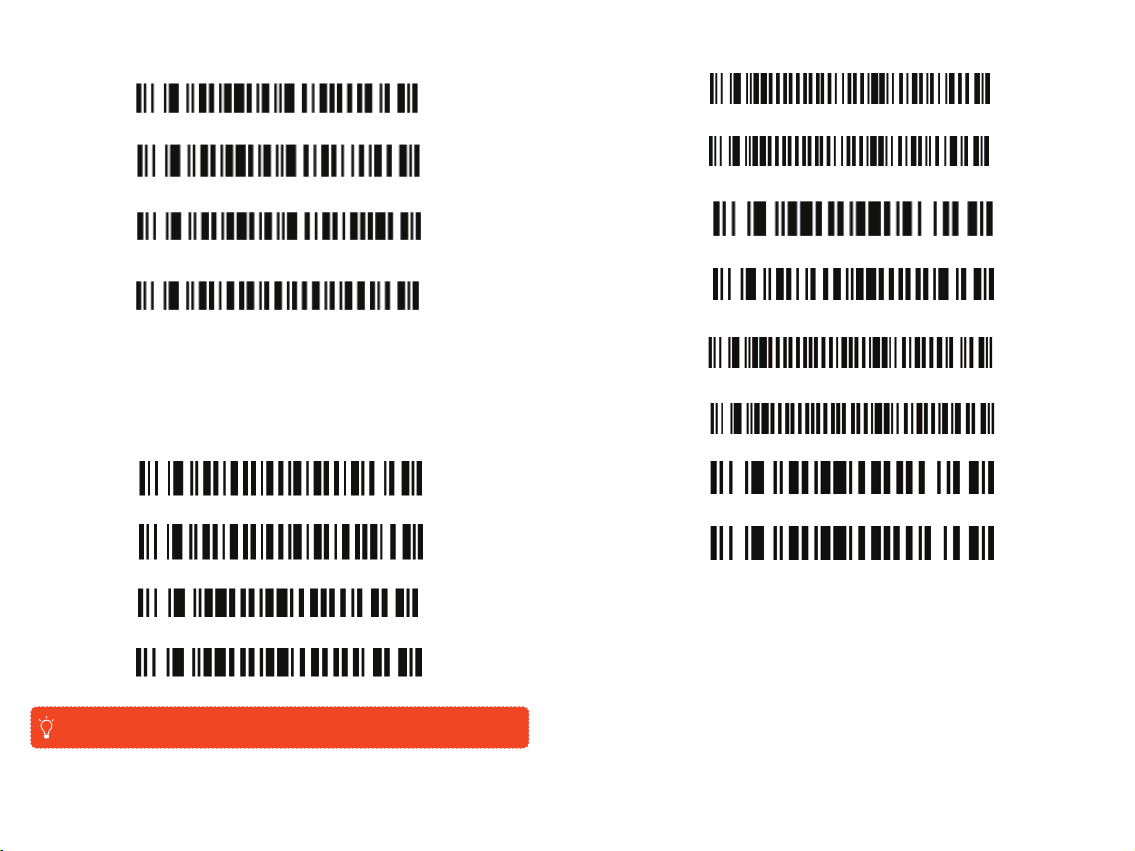

Same code delay time infinite
Same Code Delay Time Setting
Same code delay time 0 sec *
Same code delay time 1 sec
Same code delay time 2 sec
Set up the minimum delay time between decoding of the same codes:
Single Scan
Automatic Off
Automatic On
Scanner Reading Setting
Continuous Scan
Note: When you use the automatic mode, the sleep time is set to 15 minutes.
Disable
LF
CR+LF
CR
Code Suffix / Prefix Setting
Preamble - STX
Postamble - ETX
Add ID AS Prefix on
Add ID AS Prefix off *
1615

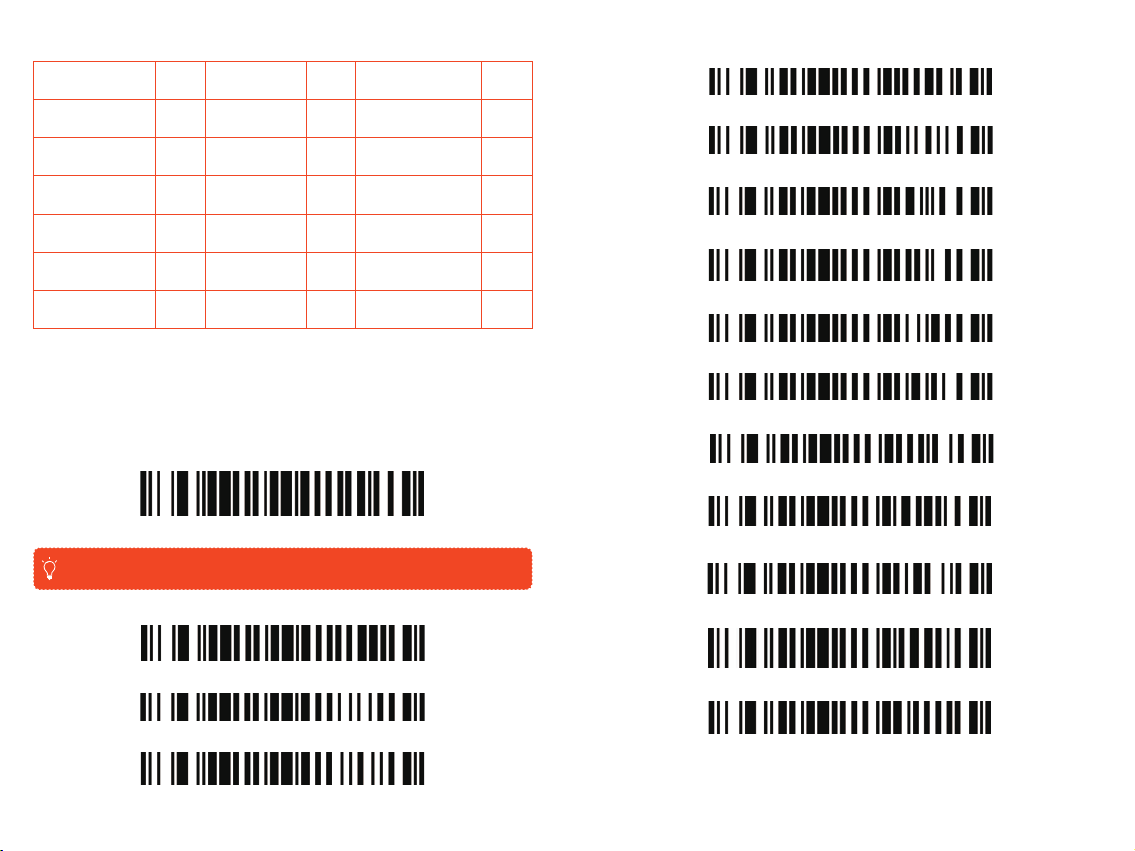

Code ID Table
Code Type
Code 39
EAN8
Code 128
Industrial 2 of 5
Code11
China Post Code
ID
a
d
g
j
M
y
ID
b
e
h
k
c
I
Code Type
UPC-E
ISBN
Interleaved 2 of 5
GS1 Data Bar
GS1 Expanded
GSI Limited
ID
c
f
i
D
E
L
Code Type
UPC-A
EAN13
Code93
CODABAR
Code32
MSI
Language Setting
UNITED STATES
FRANCE
SERBIA / YUGOSLAVIA
BELGIUM
GERMANY
SLOVENIA
BRAZIL
PORTUGAL
SPAIN
ITALY
UNIVERSAL
USB Virtual Serial
USB HID *
USB HID Fast (WINDOWS)
USB HID Slow (APPLE)
USB Receiver Setting (Functional with USB Cable Plugged in)
USB Receiver Setting (Optional)
1. USB virtual serial
2. USB HID *
Note: to activate the USB virtual serial, you need to install the driver beforehand.
18
17
Enable * Disable
Enable * Disable

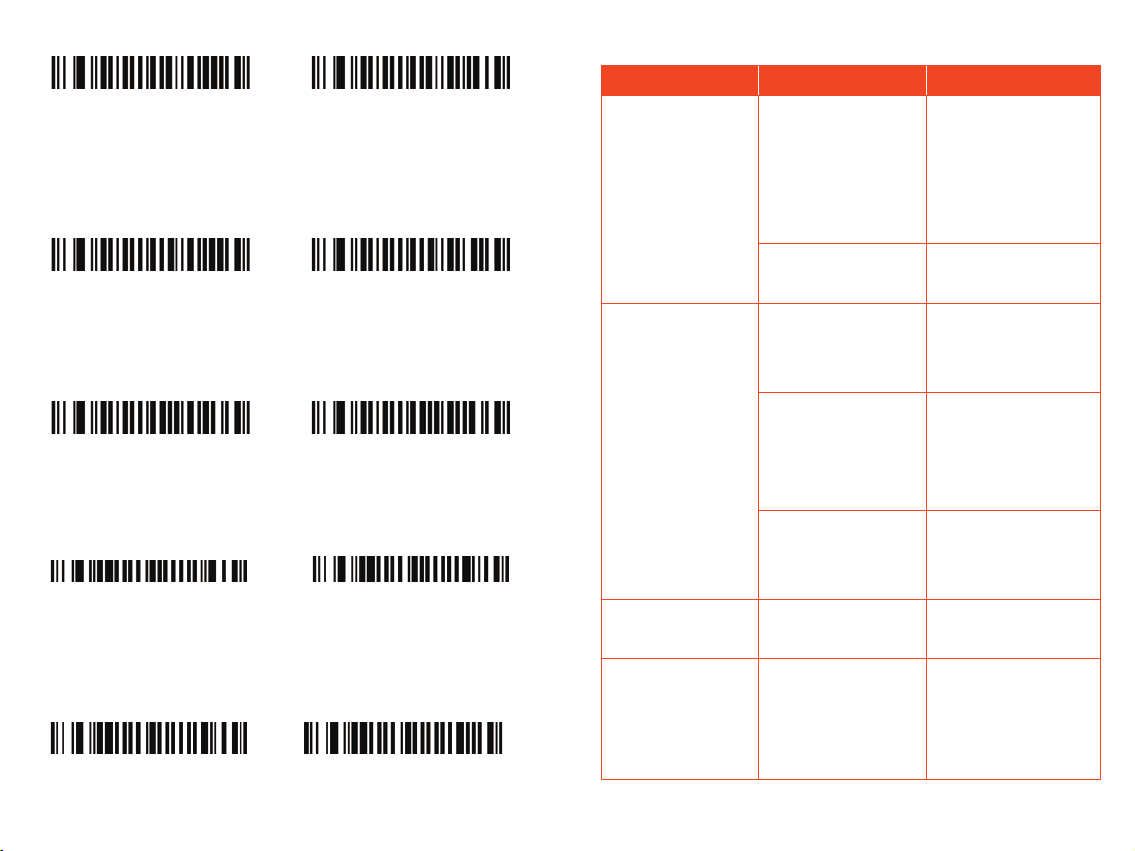

Code Symbol On / Off
CODE11
CODE128
FULL ASCII Enable
FULL ASCII Disable *
Enable * Disable
CODE 39
Enable * Disable
Industrial 2 of 5
UPC-A
Enable * Disable
Enable * Disable
Enable * Disable
Enable * Disable
CODE 93
CODABAR
Interleaved 2 of 5
2019
Enable * Disable
CODE32
On Off
CODE32 Check Digit
Enable * Disable
UPC-E
Enable * Disable
EAN - 13
Enable * Disable
EAN - 8
Troubleshooting
Problem Possible Causes
No power to the scanner.
Barcode is decoded, but
not transmitted to the host.
Scanner is not programmed
for the correct host type.
Scan the appropriate host
type barcode.
Interface / power cables
are loose.
Check for loose cable
connections.
Check the power
connection. Ensure the
power is connected if
required for your
configuration.
Possible Solutions
Nothing happens when
you operate the scanner
as instructed, or the
scanner performs
abnormally (laser does
not come on, scanner
emits frequent beeps).
Barcode is unreadable. Check the barcode to
make sure it is not defaced.
Try scanning test barcodes
of the same type.
Scanned data is
incorrectly displayed on
the host.
Scanner is not
programmed to work with
the host.
Check scanner host type
parameters or editing
options. Be sure proper
host is selected.
Laser comes on, but
barcode does not
decode.
Scanner is not
programmed for the
barcode type.
Be sure to program the
scanner to read the type of
barcode you are scanning.
Scanning angle /
distance is incorrect.
Move the scanner closer
to or further from the
barcode.
