INSTALLATION GUIDE
Built-in Dishwasher
INSTALLATION PREPARATION
STEP ONE
WARNING
!
ATTENTION
!
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so can result in death or electrical shock.
The installation of the pipes and electrical equipments
should be done by professionals. Choose a place near the sink to facilitate the installation
of inlet and drain hoses (see fig 1).
The installation position of dishwasher should be near the
existing inlet and drain hoses and power cord.
One side of the cabinet sink should be chosen to facilitate
the connection of drain hoses of the dishwasher.
Please check the accompanying installation accessories
(hook for aesthetic panel,screw).
Illustrations of cabinet dimensions and installation position
of the dishwasher. Preparations should be made before
moving the dishwasher to the installation place.
(Fig 1) Cabinet dimensions Less than 5mm between the top
of the dishwasher & cabinet and the outer door aligned
to cabinet.
Figure 2 - Minimum space when the door is opened

INSTALLATION GUIDE
AESTHETIC PANELS DIMENSIONS
& INSTALLATION
Page 2
STEP TWO
STEP ONE
TENSION ADJUSTMENT OF THE
DOOR STRING
STEP ONE
Built-in Dishwasher
Install the hook on the aesthetic wooden panel and put
the hook into the slot of the outer door of dishwasher
(see fig 4A). After positioning of the panel , fix the
panel onto the outer door by screws and bolts
(fig 4B).
(Fig 3) The aesthetic panel should be processed in
accordance with the illustrated dimensions (unit: mm)
The door springs are set at the factory to the proper
tension for the outer door. If aesthetic wooden panel are
installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjustor to strain
or relax the steel cable (see fig 5).
Door spring tension is correct when the door remains
horizontal in the fully opened position yet rises to a close
with the slight lift of a finger.
1) Take away the four short screws
2) Pin up the four long screws
Figure 4A
Installation of aesthetic panel
Figure 4B
Installation of aesthetic wooden panel
Figure 5
Tension adjustment of the door spring

Page 3
INSTALLATION GUIDE
CONNECTION OF DRAIN HOSES
STEP ONE
DISHWASHER INSTALLATION
STEP TWO
Built-in Dishwasher
STEP ONE
6) Affix the condensation strip under the work surface of
cabinet. Please ensure the condensation
strip is flush with edge of work surface.
7) Place the dishwasher into position.(Illustration 4)
8) Level the dishwasher. The rear food can be adjusted
from the front of the dishwasher by turning
the Allen screw in the middle of the base of dishwasher
use an Allen key (Illustration 5A). To adjust
the front feet, use a flat screw driver and turn the front
feet until the dishwasher is level (Illustration 5B).
9) The dishwasher must be secured in place. There are
two ways to do this:
A) Normal work surface:Put the installation hook into the
slot of the side plane and secure it to the
work surface with the wood screws (Illustration 6).
Dishwasher must be level for proper dish rack operation
and wash performance.
1) Place a spirit level on door and rack track inside the
tub as shown to check that the
dishwasher is level.
2) level the dishwasher by adjusting the three levelling
legs individually.
3) When level the dishwasher, please pay attention not
to let the dishwasher tip over.
Insert the drain hose into a drain pipe with a minimum
diameter of 40mm, or let it run into the sink, making sure
to avoid bending or crimping it. The top of the hose must
be less than 1000mm.
The maximum adjustment height of the feet is 50 mm.
1) Install the furniture door to the outer door of the
dishwasher using the brackets provided. Refer
to the template for positioning of the brackets.
2) Adjust the tension of the door springs by using an
Allen key turning in a clockwise motion to
tighten the left and right door springs. Failure to do this
could cause damage to your dishwasher (Illustration 2).
3) Connect the inlet hose to the cold water supply .
4) Connect the drain hose. Refer to diagram.(Fig 6)
5) Connect the power cord.

INSTALLATION GUIDE
ABOUT ELECTRICITY CONNECTING

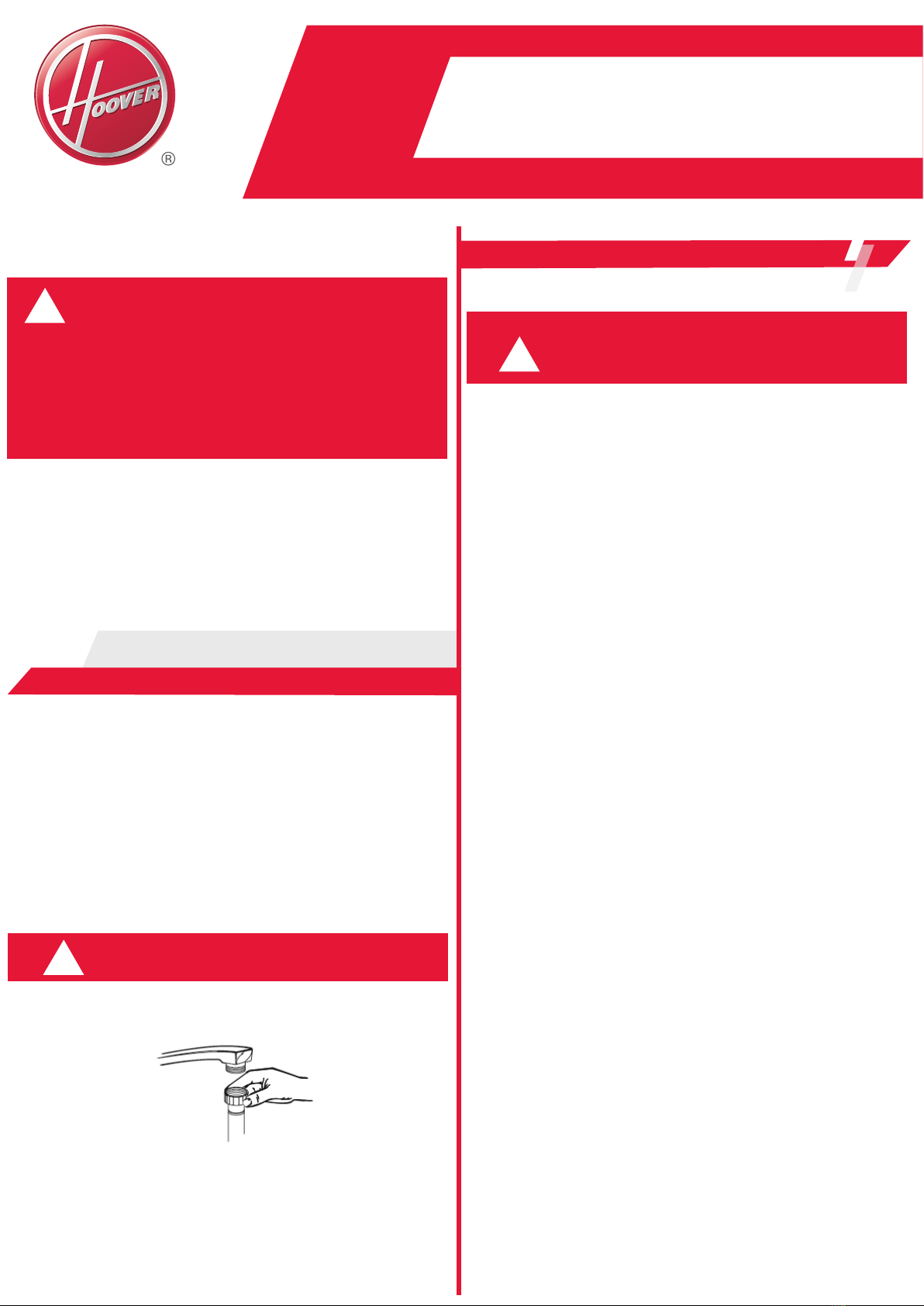

Page 4
Built-in Dishwasher
WARNING
!
For personal safety:
Do not use an extension cord or an adapter plug with
this appliance.
Do not, under any circumstances, cut or remove the
earthing
Connection from the power cord.
ELECTRICAL REQUIREMENTS
ELECTRICAL CONNECTION
!Insure proper ground exisits before use
COLD WATER CONNECTION
Ensure the voltage and frequency of the power being
corresponds to those on the rating plate. Only insert
the plug into an electrical socket which is earthed
properly. If the electrical socket to which the
applance must be connected is notappropriate for
the plug, replace the socket, rather than using a
adaptors or the like as they could cause overheating
and burns.
!WARNING!
Please close the hydrant after using
Connect the cold water supply hose to a threaded
3/4(inch) connector and make sure that it is fastened
tightly in place.If the water pipes are new or have not
been used for an extended period of time, let the water
run to make sure that the water is clear. This precaution
is needed to avoid the risk of the water inlet to be
blocked and damage the appliance.
POSITIONING THE APPLIANCE
Position the appliance in the desired location. The
back should rest against the wall behind it, and the
sides, along the adjacent cabinets or walls. The dish-
washer is equipped with water supply and drain hoses
that can be positioned either to the right or the left
sides to facilitate proper installation.
HOW TO DRAIN EXCESS WATER FROM HOSES
If the sink is 1000 higher from the floor, the excess
water in hoses cannot be drained directly into the
sink. It will be necessary to drain excess wate
from hoses into a bowl or suitable container that
is held outside and lower than the sink.
WATER OUTLET
Connect the water drain hose. The drain hose must be
correctly fitted to avoid water leaks. Ensure that the
water inlet hose is not kinked or squashed.
EXTENSION HOSE
If you need a drain hose extension, make sure to use
a similar drain hose. It must be no longer than 4
metres; otherwise the cleaning effect of the dish-
washer could be reduced.
SYPHON CONNECTION
Insert the drain hose into a drain pipe with a minimum
diameter of 40mm, or let it run into the sink, making sure
to avoid bending or crimping it.
The top of the hose must be less than 1000mm.
START OF DISHWASHER
The following things should be checked before starting
the dishwasher
1) The dishwasher is level and fixed properly
2) The inlet valve is open
3) Inlet hose connections are fully tightened and not
leaking
4) The wires are tightly connected
5) The power is switched on
6) The inlet and drain hoses are knotted
Please look at the rating label to know the rating volage
and connect the dishwasher to the appropriate power
supply. Use the required fuse 10 amp, time delay fuse or
circuit breaker recommended and provide separate
circuit serving only this appliance.
