Hoover HNL7126-80 User manual

W.MACHINE/WASHER-DRYER
31001354 HNL7126-80
Service Manual

31001354 HNL7126-80 0615 (12/04/2006)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.

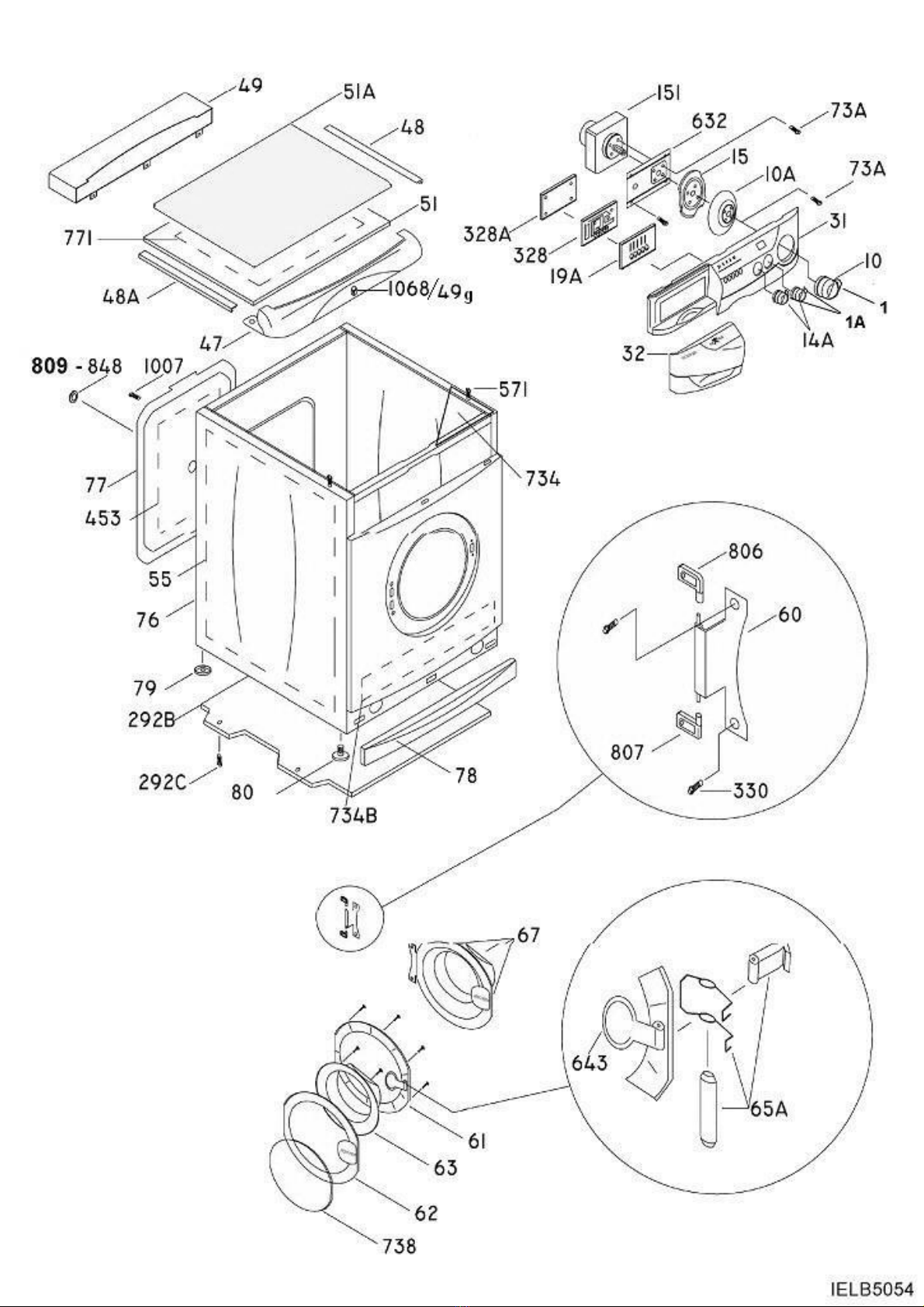

10 Timer/select. knob 09200509
10a Timer knob support 41009496
14l Knob 97923599
15 Cam disc 03850313
31 Control panel 40004331
32 Dispenser drawer front 40004330
47 Table top front frame 41010368
48 R/H side frame 90481946
48a L/H side frame 90481979
49 Top rear frame 41010373
49g Trade mark plate 91617795
51 Work top 41011597
59a Latch guide fix.screw 91402201
60 Hinge 41010676
61 Counter ring 41010383
62 Door surround 41010382
63 Door glass 91600903
65a Door catch with spring service pack 97924201
67 Glass door with frame 41010969
76 Cabinet assy 04230672
77 Rear panel 97911044
78 Socle 41006148
79 Rear foot 92606474
80 Front foot 92692300
94c Filter knob with gasket 06015493
96 Gasket 92606391
97c Stopper x drain/recycle pump 97918437
97d Filt hous w/filter cartridge 91941772
101 Dispenser drawer 41013614
109b Dispenser bottom section 41013608
110 Dispenser top section 41013609

31001354 HNL7126-80 0615 (12/04/2006)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
131 Hose clip 92470020
132 Hose 41013620
133 Hose clip 92470012
134 Solenoid valve 41013615
138 Drain hose 92693373
138a Drain house elbow 92689587
138b Hose clamp 92895051
141 Rubber washer 92485226
142 Fill hose 92250869
151f selector 16 settings 41014502
153 Pressure switch 28375052
157 Wiring harness 41016212
157x Flat cable 41005128
158 Mains block 91623678
161d Drain/recycle pump complete 97922819
162 Door safety device 41016879
164 Anti jamming filter radio 91212795
178 Motor connector 27719213
202 Drum 04060373
203 Tub 97920615 0627 (03/07/2006)
203 Tub 40004248 0627 (03/07/2006)
204a Front flange 04240184 0627 (03/07/2006)
204a Front flange 40004452 0627 (03/07/2006)
205 Drum shaft assy 97910319
211 Bolt 97923474
215 Tub gasket 92131689 0627 (03/07/2006)
215 Tub gasket 92605930 0627 (03/07/2006)
217 Seal retainer 92445600
218 Bearing 09170838
219 Bolt 21446068
221 Nut 41017213
224 Bearing 24152043

31001354 HNL7126-80 0615 (12/04/2006)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
225a Gasket 92445626
230 Tub gasket clip 91750458
230a Tub gasket clip 90488603
232 Heater holder 97910301
242 Support spring. 41015079
242a R/H support spring 41015078
244 Washer 92430206
244a Counter weight washer 97923615
246 Bolt 92419472
246a Bolt 97911507
247 Upper balance weight 97910491
248 Lower balance weight 03940700
251a Telescopic shock absorber 09200657
251e Shoch absorber pin 41017173
251f Antinoise bush 41017169
259 Support 92673961
271 Door gasket 41008852
272 Discharge pipe 41001597
273 Fill pipe 91620033
274 Pressure switch air chamber 06012804
275 5x8 hose 66655731
276 Steam hose 91620009
278a Hose clip d44 92470137
286 Heater 91201546
287m NTC probe 91201325
290 Drum pulley 92723824
292 Drive belt 92130442
292b Bottom panel 04230945
292c Clips 92473636
328 Control panel electronic module 41012352
330 Screw x hinge 97918445

31001354 HNL7126-80 0615 (12/04/2006)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
422 Circlip 91941775
466 Plug 09086935
470 Clip 92470038
473 Commutator motor 41002725
479i Coreboard 32K programmed 09200764
479m Electronic control 32K not programmed 41013996
483a Brush with brush holder 49000466
487 Special bolt 09183567
488 Rivet 92466655
491c Mains cable x UK 91200201
500 Hose clip 92470046
509 Potentiometer 41010932
547 Module protection 91601842
547a Module protection cover 91601843
558 Support bracket 92884204
588 Siphon 41013613
632 Control support plate 91802090
643 Door handle assembly 41010388
734 Timer protection 91602473
806 Door upper hinge 41010385
807 Door lower hinge 41010386
828b Tach.coil 49000464
831 Thermostat hole stopper 92898394
832 Discharge pipe circlip 91408004
833 Upper counterweight support 92898915
834 Lower counterweight supp. 92898923
835a Magnet 49000465
840 Drum paddle 03870539
841 Drum paddle fixing screw 92419555
848 Plug 92943216
1019 Instruction for use 40004332

31001354 HNL7126-80 0615 (12/04/2006) - Modifications History -
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
NEW TUB
203 Tub 97920615 0627 (03/07/2006)
203 Tub 40004248 0627 (03/07/2006)
204a Front flange 04240184 0627 (03/07/2006)
204a Front flange 40004452 0627 (03/07/2006)
215 Tub gasket 92131689 0627 (03/07/2006)
215 Tub gasket 92605930 0627 (03/07/2006)

2006 Nextra Washing Machines
©2006 GIAS U.K. / Hoover Ltd. PAGE 12

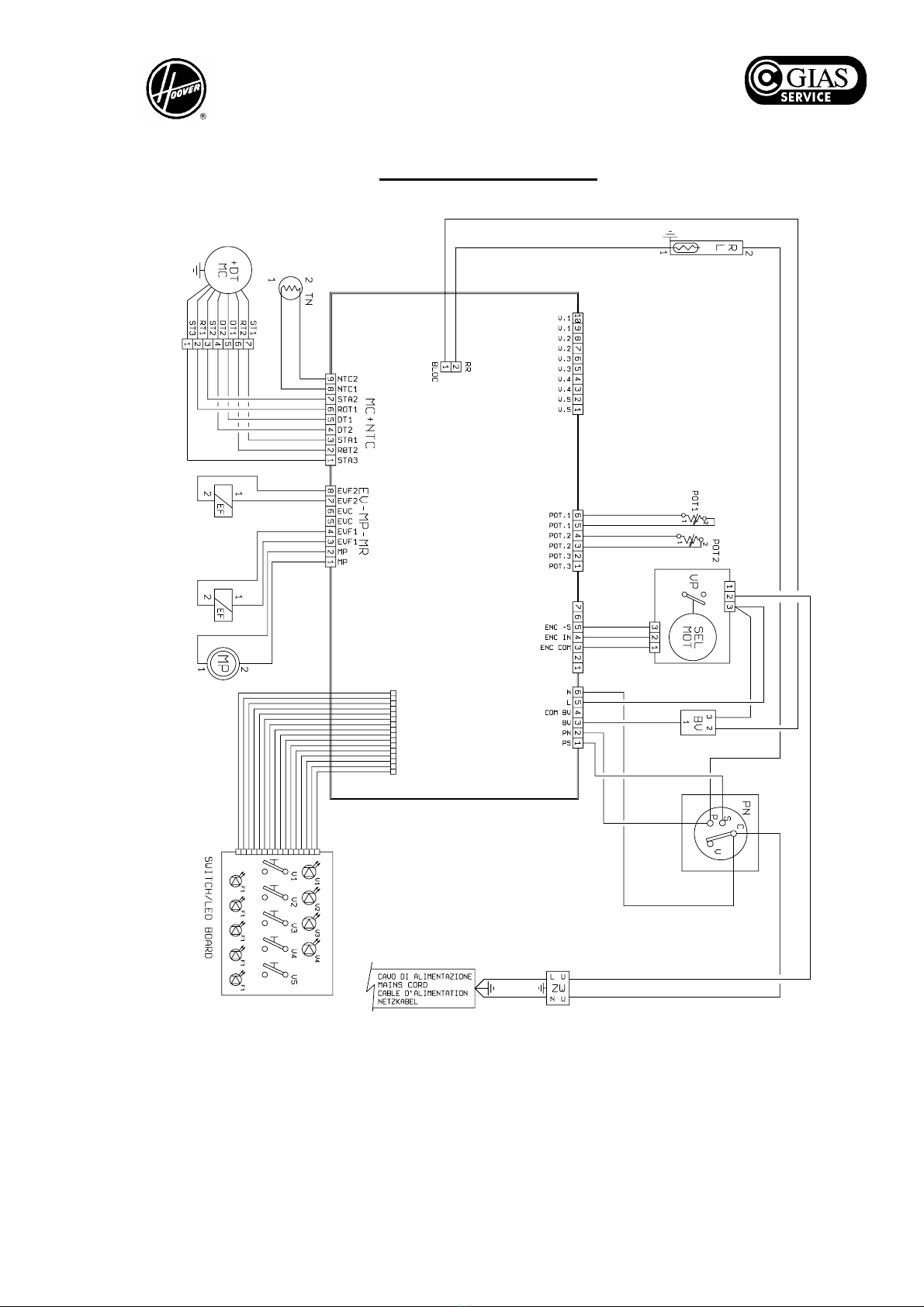

WIRING DIAGRAM
YELLOW YELLOW
RED
GREEN
BLUE
BLUE
RED
GREEN
YELLOW
WHITE
WHITE
BLUE
BLUE
GREEN
GREEN
BROWN
BLUE
BROWN
BLUE
BLUE
YELLOW
RED
RED
GREEN
WHITE
YELLOW
WHITE
RED
RED
RED
RED
RED
RED
RINSE NORMAL
WASH
DRAIN
PUMP
MAIN MODULE
PRESSURE
SWITCH
HEATER
MAIN MOTO
R
40002880 - COLD VALVE
(
2 POTS
)
BLACK
BLACK

2006 Nextra Washing Machines
©2006 GIAS U.K. / Hoover Ltd. PAGE 13
CIRCUIT DIAGRAM
DRAIN
PUMP
RINSE
NORMA
L
WASH
PRESSURE
SWITCH
TIMER
SELECTOR
MOTOR
DOOR
INTERLOCK
ON
/
OFF
SWITCH
HEATER
40002880 - COLD V
A
LVE (2 POTS)

1
2005
Legenda componenti lavaggio - Washing components list
Liste composantes lavage - Waschung komponenten liste
Leyenda componentes lavado – Yıkayıcılar parça listesi
Versione 22/04/2009
4Centrifuga lenta - Slow speed spin - Essorage lent - Langsame Zentrifuge - Centrifugado
bajo – Düúük hızda sıkma
8Centrifuga veloce - Fast speed spin - Essorage vite - Schnelle Zentrifuge - Centrifugado
rapido – Yüksek hızda sıkma
AN Antitrabocco - Anti-overflow - Dispositif anti debordement - Antiuberlaufener -
Antidesbordamento – Taúma önleyici
AT Timer asciugatura - Dryer timer - Programmateur sechage - Trochner timer -
Programador secado – Kurutucu zamanlayıcı
BL Basetta di linea - Terminal box - Boite a liesons - Klemmbrett - Placa de linea – Terminal
kutusu
BR Ritardatore apertura amperometrico - Amperometric opening delayer - Retardateur
ouverture amperemetrique - Stromverzögerungsrelais - Placa retardadora amperimetrica
– Akımsal kapı kilit mekanizması
BV Ritardatore apertura voltmetrico - Voltmetric opening delayer - Retardateur ouverture
voltmetrique - Voltmeter-Verzögerungsrelais - Placa retardadora voltmetrica – Gerilimsel
kapı kilit mekanizması
CCarico acqua calda - Hot water filling - Chargement eau chaude - Warmtwasserfuel lung -
Entrada agua caliente – Sıcak su giriú
CA Condensatore - Capacitor - Condensateur - Kondensator - Condensador - Kondansatör
CB Condensatore aggiunto - Additional capacitor - Condensateur supplementaire -
Beifuegende Kondensator - Condensador suplementario – ølave kapasitör
CC Condensatore centrifuga - Spin capacitor - Condensateur centrifuge - Zentrifuge
Kondensator - Condensador centrifugado – Sıkma kapasitörü
CL Condensatore lavaggio - Washing capacitor - Condensateur lavage - Waschen -
Kondensator - Condensador lavado – Yıkama kapasitörü
DLavaggio delicato - Soft tumble - Mouvement delicat - Delikate Washung - Lavado
delicado – Hassas kurutma

2
2005
DT Dinamo tachimetrica - Tachometric dynamo - Bobine tachymetrique - Regel Dynamo -
Dinamo taquimetrica – Takometrik dinamo
EA Elettrovalvola asciugatura - Drying solenoid valve - Electrovanne sechage - Trochen -
Elektroventil - Electrovalvula secado – Kurutucu solenoid valfi
EC Elettrovalvola acqua calda - Solenoid valve for hot water - Electrovanne eau chaude -
Warmes Wasser Elektroventil - Electrovalvula agua caliente – Sıcak su solenoid valfi
EF Elettrovalvola acqua fredda - Solenoid valve for cold water - Electrovanne eau froid -
Kaltes Wasser Elektroventil - Electrovalvula agua fria – So÷uk su solenoid valfi
FLavaggio forte - Strong tumble - Mouvement intensif - Stark Washung - Lavado energico
FA Centrifuga alta velocità - High speed spin - Centrifuge haute vitesse - Hochgesch
windigkeit Schleuderung - Centrifugado alta velocidad – Yüksek hızda sıkma
FB Centrifuga bassa velocità - Low speed spin - Centrifuge basse vitesse - Geschwi ndigkeit
Schleuderung - Centrifugado baja velocidad – Düúük hızda sıkma
FD Funzione 4° risciacquo - 4th rinse function - Fonction 4eme rincage - 4 Spülung Funktion
- Funcion cuarto enjuague – 4’üncü durulama fonksiyonu
FG Funzione lavaggio 35 giri - 35 rpm washing function - Fonction 35 tours lavage - 35
Abwashung Funktion - Foncion lavado 35 giros – 35 dev/dak yıkama fonksiyonu
FN Variante stock nord - Northern Europe market variation - Variation pour l'Europe du Nord
- Anderung Nord Europa - Variante stock nortico – Kuzey Avrupa pazarı farklılı÷ı
FP Protezione termostato di consenso - Protection for N.O. thermostat - Protection pour
thermostat N.O. - Schutz fuer N.O. Thermostat - Protecciòn termostato de paso 30°C –
N.A. termostat koruma
FR Rigenero - Regenerating rinse - Rincage avec regeneration - Ausspuelung - Aclarado –
Rejeneratif durulama
FS Funzione salto "stop con acqua in vasca" - Function for "jumping" over the "stop with
water in tub" - Fonction pour "sauter" le "stop avec l'eau dans la cuve" - Funktion für
"springen" die "stop mit wasser in wanne" - Foncion salto de "parada con agua en cuba"
– “Suda bekletme” fonksiyonu için durdurma fonksiyonu
FT Termofusibile - Thermal fuse - Fusible thermique - Thermosicherung - Termofusible –
Termal sigorta
GRigenero - Water exchange - Regénération d'eau - Wasser-Austausch – Regeneracion
de agua – Su çevrimi

3
2005
GT Morsetto generale di terra - Earth connection - Serre cable de sol - Erdklemme - Toma
general tierra – Topraklama ba÷lantısı
GV Morsetto messa a terra vasca - Tub earth connection - Serre cable de sol cuve -
Waschbottich Erdklemme - Toma tierra cuba L1 Lampada spia alimentazione elettrica -
Net pilot lamp - Lampe temoin - Kontrollampe - Piloto alimentacion electrica – Tambur
topraklama ba÷lantısı
HCarico acqua fredda - Cold water filling - Chargement eau froid - Kaltwasserfuellung -
Entrada agua fria – So÷uk su alma
LAlto livello - High water level - Haut niveau d'eau - Hoch Wasser Pegel - Nivel alto –
Yüksek su seviye
L2 Lampada spia fine asciugatura - End of drying pilot lamp - Lampe temoin du fin sechage
- Ende-Trochnen -Kontrollampe - Piloto fin ciclo secado – Kurutma bitti lambası
L3 Lampada spia raffreddamento - Cool down pilot lamp - Lampe temoin refroidisseme nt -
Abkuehlung-Kontrollampe - Piloto enfriamiento – So÷uma pilot lambası
L4 Lampada spia cassetto acqua pieno - Pilot lamp for full water container - Lampe tem oin
boite eau plein - Wasser Behaelter Voll Kontrollampe - Piloto nivel maximo agua – Su
haznesi dolu lambası
L5 Lampada spia filtro intasato - Clogged filter pilot lamp - Lampe filtre engorgè - Versto
pfter Filter Kontrollampe - Piloto filtro sucio – Filte tıkalı lambası
LA Spia asciugatura - Drying cycle pilot lamp - Lampe temoin sechage - Trochen-
Kontrollampe Piloto secado – Kurutma pilot lambası
LD Spia LED - LED pilot lamp - Lampe temoin LED - LED Kontrollampe - Piloto LED – LED
lamba
LF Spia asciugatura forte - Intensive drying pilot lamp - Lampe temoin sechage inten sif -
Starktrochen Lampe – Hassas kurutma lambası
LS Spia generale - Pilot lamp - Lampe temoin - Kontrollampe – Pilot lambası
MCarico acqua miscelata - Mixed water filling-up - Chargement eau mélangé – Gemischte
Wasserfüll. -Entrada agua mezclada – Karıúım suyu alma
MA Timer asciugatura - Drying timer - Timer sechage - Trochen Timer - Timer secado –
Kurutma zamanlayıcı
MC Motore a collettore - Brushes and collector motor - Moteur collecteur - Kollektor Motor -
Motor a collector – Kömürlü (fırçalı) motor

4
2005
MD Motore centrifuga - Spin motor - Moteur essorage - Schleuderung Motor - Motor secado –
sıkma motoru
ML Motore lavaggio - Washing motor - Moteur lavage - Waschung motor - Motor lavado –
Yıkama motoru
MP Elettropompa di scarico - Discharge electric pump - Pompe de vidange - Auslauf pumpe -
Electrobomba vaciado – Tahliye pompası
MR Elettropompa di ricircolo - Electric pump for water recycling- Pompe de reciclage -
Rezirkulation Pumpe - Electrobomba de recirculo – Su çevrim pompası
MT Motorino timer - Timer motor - Moteur timer - Timer motor - Motor programador –
Zamanlayıcı motoru
MV Motoventilatore asciugatura - Drying motor ventilator - Helice sechage - Trochen Fluegel
- Motoventilador secado – Kurutma fanı
PSpull stop - Stop with water in tub - Arret avec eau dans la cuve - Spüllstop - Stop cuba
llena(flot) – Suda bekletme
PA Pressostato alto livello - High level pressure switch - Pressostat du haut niveau - Hoch
Pegel Druckwaechter - Presostato nivel alto – Yüksek seviye basınç úalteri
PB Pressostato basso livello - Low level pressure switch - Pressostat du bas niveau - Niedrig
Pegel Druckwaechter - Presostato nivel bajo – Düúük seviye basınç úalteri
PD Potenziometro tempo lavaggio - Potenziometer adj length of cycle - Potenziometre temps
de lavage - Washzeit potentiometer - Potenciometro tiempo lavado – Yıkama süresi
potansiyometresi
PH Potenziometro temperatura - Potenziometer adj temperature - Potenziometre
temperature - Temperatur potentiometer - Potenciometro temperatura – Sıcaklık
potansiyometresi
PN Pressostato - Pressure switch - Interrupteur niveau - Druckwaechter - Presostato –
Basınç úalteri
PR Pressostato sicurezza resistenza- Heating element security pressure switch - Interrupteur
niveau protection resistance - Heizwiderstand Sicherheit Druckwaechter - Presostato
seguridad resistencia lavado – Isıtıcı emniyet basınç úalteri
PS Pressostato sicurezza - Security pressure switch - Interrupteur niveau de securitè -
Sicherheit Druckwaechter - Presostato seguridad – Emniyet basınç úalteri

5
2005
PT Potenziometro velocità centrifuga - Potentiometer adj spin speed - Potentiometre vitesse
essorage - Schleuderung geschwindigkeit potentiometer - Potenciometro velocidad
centrifugado – Sıkma hızı ayar potansiyometresi
PV Pressostato variabile - Adjustable pressure switch - Pressostat variable - Varierbarer
pressostat - Presostato variable – Ayarlanabilir basınç úalteri
RA Resistenza asciugatura - Drying heating element - Resistance sechage - Trockenheizung
- Resistencia secado – Kurutma rezistansı
RF Resistenza asciugatura forte - Intensive drying heating element - Resistance sechage
fort - Starktrocken Heizwiderstand - Resistencia secado energico. – Hassas kurutma
rezistansı
RL Resistenza lavaggio - Washing heating element - Resistance lavage - Waschung
Heizwiderstand - Resistencia lavado – Yıkama rezistansı
RT Regolatore di temperatura a tempo - Timer for temperature regulation - Reglage
temperature au temps - Zeit-Temperatur-Regler - Regulacion temperatura por tiempo –
Isı ayarı için zamanlayıcı
SScarico - Discharge - Vidange - Ablauf – Vaciado - Tahliye
SC Modulo motore a collettore - Collector motor electronic module - Platine electroni que
moteur collecteur - Modulo motor a colector – Motor sürücü elektronik kart
SD Ritardatore di partenza - Start delay - Retardateur de depart - Start-Verspaeter - Placa
retardadora – Baúlama geciktirme
SF Modulo funzioni – Function module – Module fonctions – Funktions modul - Modulo
funciones – Fonksiyon modülü
SM Selettore motorizzato – Motorised selector – Selecteur motorise – Programmselektor -
Selector motorizado – Motorlu seçici
ST Sonda termostato regolabile - Adjustable thermostat probe - Sonde pour thermostat
reglable -Einstellbar Thermostat Sonde - Sonda termostato regulable – Ayarlanabilir
termostat probu
ST3 Presa di campo – Tapped field coil – Modulation de champ - Conexion velocidad
maxima – Kollu sargı
SV Velocità regolabile (potenziometro) - Adjustable speed (potentiometer) - Vitesse reglable
(potentio-metre) - Einstellbar Geschwindigkeit (potentiometer) - Velocidad regulable
(potenciometro) – Hız ayarlama (potansiyometre)

6
2005
TResistenza con consenso termostato - Heater with thermostatic consent - Resistan ce
avec consentement thermostatique - Heizung mit Thermostat Erlaubnis - Resistencia con
paso termostato – Termostatlı ısıtıcı
TA Termostato di sicurezza asciugatura - Drying cycle safety thermostat - Thermostat de
securitè sechage - Sicherheits-Thermostat Trocknung - Termostato seguridad secado –
Kurutma emniyet termostatı
TB Termostato bassa temperatura - Low temperature thermostat - Thermostat pour basse
temperature - Niedrige temperatur thermostat - Termostato baja temperatura – Düúük
sıcaklık termostatı
TC Termostato di consenso N.A. - Timer feed through N.O. thermostat - Alimentation timer
par thermostat N.O. - N.O. thermostat timer speisung - Termostato de paso – N.A. kontak
üzerinden zamanlayıcı beslemesi
TF Termostato sicurezza asciugatura forte - Strong drying safety thermostat - Thermos tat
securitè essorage fort - Starke Abtrocknen Sicherheit Thermostat - Termostato seguridad
secado energico – Güçlü kurutma emniyet termostatı
TM Termostato di massima (84°C+/-2°) - Limit thermostat (84°C+/-2°) - Thermostat de
securitè (84°C+/-2°) - Sicherhelts-Thermostat (84°C+/-2°) - Termostato de maxima
(84°C+/-2°) – Emniyet termostatı (84°C+/-2°)
TN Termostato NTC - NTC termostat - Thermostat NTC - NTC thermostat - Termostato NTC
– Termostat NTC
TP Termostato di sicurezza ricircolo - Water recycling safety thermostat - Thermostat de
securitè recirculation eau sechage - Sicherheits-Thermostat für Rezirkulation -
Termostato de seguridad recirculo – Su çevrim emniyet termostatı
TR Termostato regolabile - Adjustable thermostat - Thermostat reglable - Regulierbarer-
Thermostat - Termostato regulable – Ayarlı termostat
TS Termostato di sicurezza - Safety thermostat - Thermostat de securitè - Sicherhei ts
Thermostat Termostato de seguridad – Emniyet Termostatı
VRaffreddamento - Cool down - Refroidissements - Abkühlung – Enfriamiento - So÷utma
V6 Tasto 6 Kg – 6 Kg push button – Poussoir 6 Kg – 6 Kg taste – Tecla 6 Kg – 6kg butonu
VA Tasto ammollo - Soak button - Poussoir trempage Einweicken Taste - Tecla remoio –
Suda bırakma butonu

7
2005
VB Tasto bassa temperatura (60°C) - Low temperature (60°C) button - Touche basse
temperature (60°C) - Niedrige Temperatur (60°C) Taste - Tecla baja temperatura (60°C)
– Düúük sıcaklık (60°C) butonu
VC Tasto ciclo freddo - Cold washing button - Bouton lavage froid - Taste Kaltes Wasche -
Tecla lavado frio – So÷uk yıkama butonu
VD Tasto extrarisciacquo - Super rinse pushbutton - Touche extra rincage - Extra spuelung
taste - Tecla de superaclarado – Ekstra durulama butonu
VE Tasto esclusione centrifuga - Spin cut-out button - Touche exclusion centrifuge -
Schleuderans Taste - Tecla exclusion centrifugado - Sıkma kesme butonu
VF Tasto asciugatura forte – Intensive drying pilot lamp - Touche sechage fort - Starke
Trocknungstatste - Tecla secado energico – Hassas kurutma lambası
VG Tasto lavaggio 35 giri - 35 rpm washing pushbutton - Touche 35 tours lavage - 35
Abwashung Drehzahl - Tecla 35 r.p.m. lavado VH Tasto start delay-Star delay
pushbutton-Touche start delay-Start delay taste - Tecla start delay – 35 dev/dak yıkama
butonu
VI Tasto centrifuga istantanea - Sudden spin button -Touche essorage istantanè - Taste
Augenblick-licher-Schleuderung - Tecla centrifugado istantaneo – Sıkma butonu
VK Tasto 90° - 90° pushbutton - Touche 90° - 90° taste - Tecla 90° - 90° butonu
VL Tasto "Plus" - "Plus" pushbutton - Poussoir "Plus" - "Plus" taste - Tecla "Plus" – “Plus”
butonu
VM Tasto mezzo carico elettrico - Switch for electric half load - Touche demi chargeme nt
electrique - Elektrische Halb-Einladen Taste - Tecla media carga electrico – Elektrikli yarı
yük butonu
VN Tasto mezzo carico meccanico - Switch for mechanical half load - Touche demi
chargement mecanique - Mechanische Halb-Einladen Taste - Tecla media carga
mecanico – Mekanik yarı yük butonu
VO Tasto prelavaggio - Prewash pushbutton - Touche prelavage - Vorwashung taste - Tecla
prelavado – Ön yıkama butonu
VP Tasto marcia/arresto - On/Off button - Touche marche/arret - Ein/Aus Schalter - Tecla
marcha / parada - On/Off butonu
VQ Tasto unidirezionale cesto – Unidirectional tumbling pushbutton - Touche rotation
tambour unidirectionel - Taste für einseitige Trommeldrehung -Tecla unidireccional del
tambor – øki yöne sıkma butonu

8
2005
VR Tasto economia - Economic washing pushbutton - Poussoir lavage economique -
Billigwasche Taste - Tecla economico – Ekonomik yıkama fonksiyonu
VS Tasto fermo con acqua in vasca (spull stop) - Stop with water in tub button (spull stop) -
Poussoir arret avec eau dans la cuve (spull stop) - Spull stop taste - Tecla flot – “Suda
bekletme” tuúu (sıkma durdurma)
VT Tasto 4° risciacquo - 4th rinse pushbutton - Touche de rincage - Spueltaste - Tecla
asclarado – 4’üncü durulama butonu
VU Tasto super rapido - Rapid program button - Touche super rapide - Super schnelltaste -
Tecla super rapido – Hızlı program butonu
VV Tasto cambio velocità - Speed change button - Poussoir changement de vitesse. -
Geschwindigkeitsaenderung Taste - Tecla cambio velocidad – Hız de÷iútirme butonu
VW Tasto "Softwasher" - "Softwasher" pushbutton - Poussoir "Softwasher" - "Softwasher"
Taste -Tecla "Softwasher" – “Softwasher” butonu
ZR Relè - Relay - Relais - Relais - Rele - Röle
ZT Trasformatore - Transformer - Transformateur - Transformator - Transformador - Trafo
ZW Filtro antidisturbi radio - Radio interference suppressor - Filtre anti-bruit radio -
Entstoerungsfilter - Filtro antiparasitario – Antiparazit filtre
