Hoover UH40155 User manual

®
Owner'sManual
Operating and Servicing Instructions
llll ll, i i
www, hoover.com
Pleasereview this manual before operating your Hoover®product.
iiiii II I III I I iii
©2008 Healthy Gain Investments, Ltd, All rights reserved. #56511C80-R0. 11/08

Thank you for choosing a HOOVER product.
Please enter the complete mode! and serial
numbers in the spaces provided.
Model
Serial Number
Hint: Attach your sales receipt to this owner's
manual. Verification of date of purchase
may be required for warranty service of your
HOOVER product.
j!I!i!!N!IL
Serial Number
Be sure to fill out and return the product registration card included with your cleaner.
Contents
Assembling Cleaner ....................................................... 4
Carton Contents .......................................................... 4
Cleaner Descriptions ...................................................... 5
How To Use ........................................................... 5-8
Cleaning Tools ........................................................ 7
Carpet Height Adjustment .............................................. 6
Troubleshooting ......................................................... 14
Clearing Blockages ................................................... 14
Important Safeguards ..................................................... 3
Lubrication ............................................................. 14
Maintenance
Authorized Service ................................................... t4
Cleaning filter ....................................................... 10
Replacing Agitator Brush Roll ........................................... 13
Replacing Brush Roll Belt .............................................. 11
Thermal Protector ....................................................... 14
If you need assistance:
Visit our website at hoover.com. Follow the service center link to find the service outlet
nearest you OR Call 1-800-944-9200 for an automated referral of authorized service outlet
locations (U.S. only) OR Call 1-800-263-6376 to speak with arepresentative in our Consumer
Response Center; Mon-Fri 8am-Tpm EST.
Please do not return this product to the store,
This carpet cleaner is intended for household use.
Not intended for commercial use in any household or for any other commercial purpose.
Operate carpet cleaner only at voltage specified on data plate on back of cleaner.
Pluff carpet cleaner into aproperly grounded outlet.

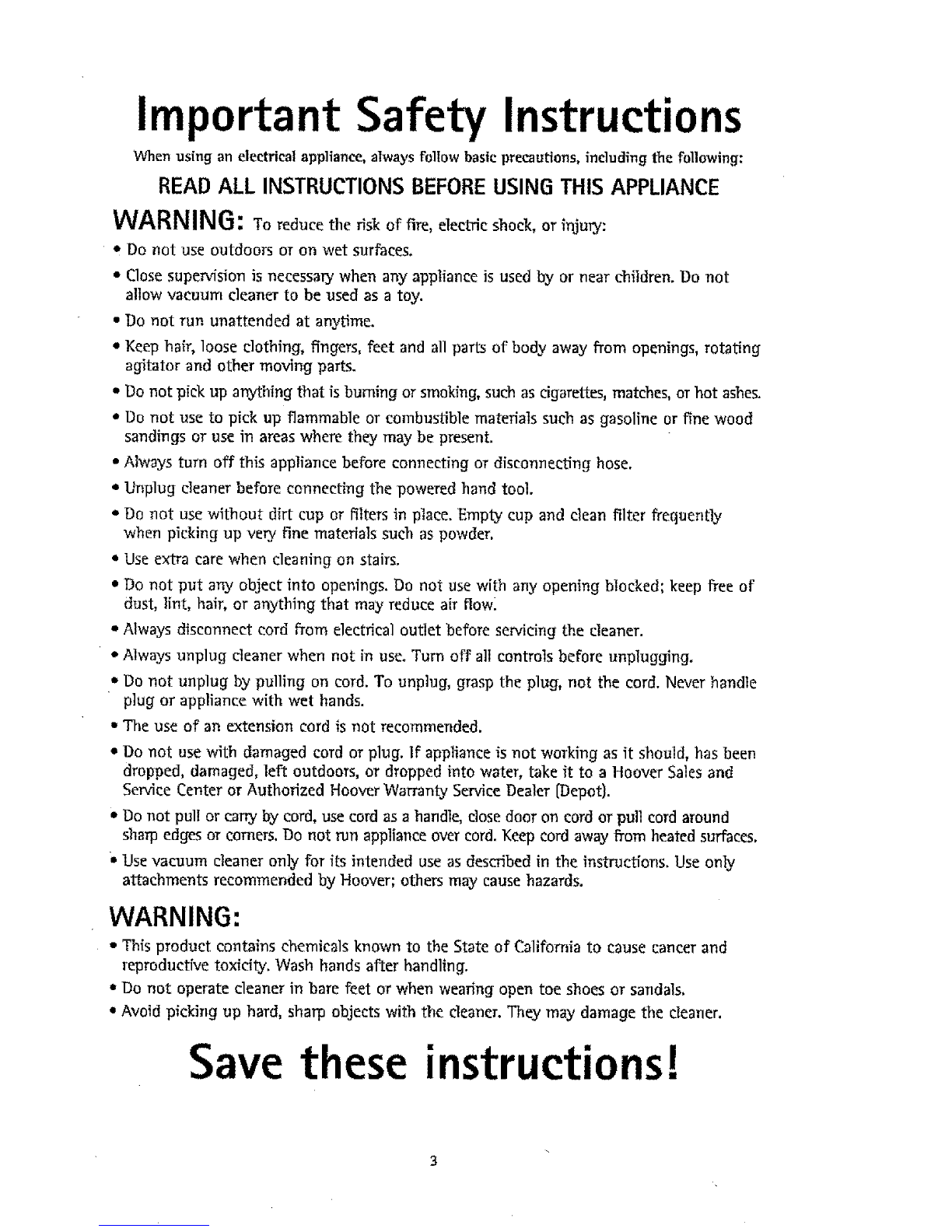

Important Safety Instructions
When using an electrical appliance, always follow basic precautions, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
WARNING: Toreducethe.skof.re,elect,cshock, or injury:
! Do not use outdoors or on wet surfaces.
• Close supervision is necessary when any appliance is used by or near children. Do not
allow vacuum cleaner to be used as a toy.
• Do not run unattended at anytime.
• Keephair, loose clothing, fingers,feet and all parts of bodyaway fromopenings,rotating
agitator and other moving parts.
• Do notpick up anythingthat is burningor smoking,suchascigarettes,matches,or hot ashes.
• Do not use to pick up flammableor combustiblematerialssuchas gasoline or fine wood
sandingsor use in areaswhere they may be present.
• Always turn off this appliance before connecting or disconnecting hose.
• Unplug cleaner beforeconnecting the powered hand tool.
• Do not use without dirt cup or Nters in place. Empty cup and clean filter frequently
when picking up very fine materialssuch aspowder.
•Use extra care when cleaning on stairs.
• Do not put any object into openings. Do not use with any opening blocked; keep free of
dust, lint, hair, or anything that may reduce air flow.
•Always disconnect cord From electrical outlet before servicing the cleaner.
• Always unplug cleaner when not in use. Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Never handle
plug or appliance with wet hands.
•The use ofan extension cord is not recommended.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, take it to a Hoover Sales and
Service Center or Authorized Hoover WarrantyService Dealer [Depot).
• Do not pult or carry by cord, use cord as a handle, close door on cord or pull cord around
sharp edges or comers. Do not run applianceover cord. Keep cord away from heated surfaces.
'Use vacuum cleaner only for its intended use asdescribed in the instructions. Use only
attachments recommended by Hoover; others may cause hazards.
WARNING:
• This product contains chemicals known to the State of California to cause cancerand
reproductive toxicity. Wash handsafter handling.
•Do not operate cleanerin bare feet or when wearing open toe shoesor sandals.
• Avoid picking up hard, sharp objects with the cleaner. They may damage the cleaner.
Save these instructions!

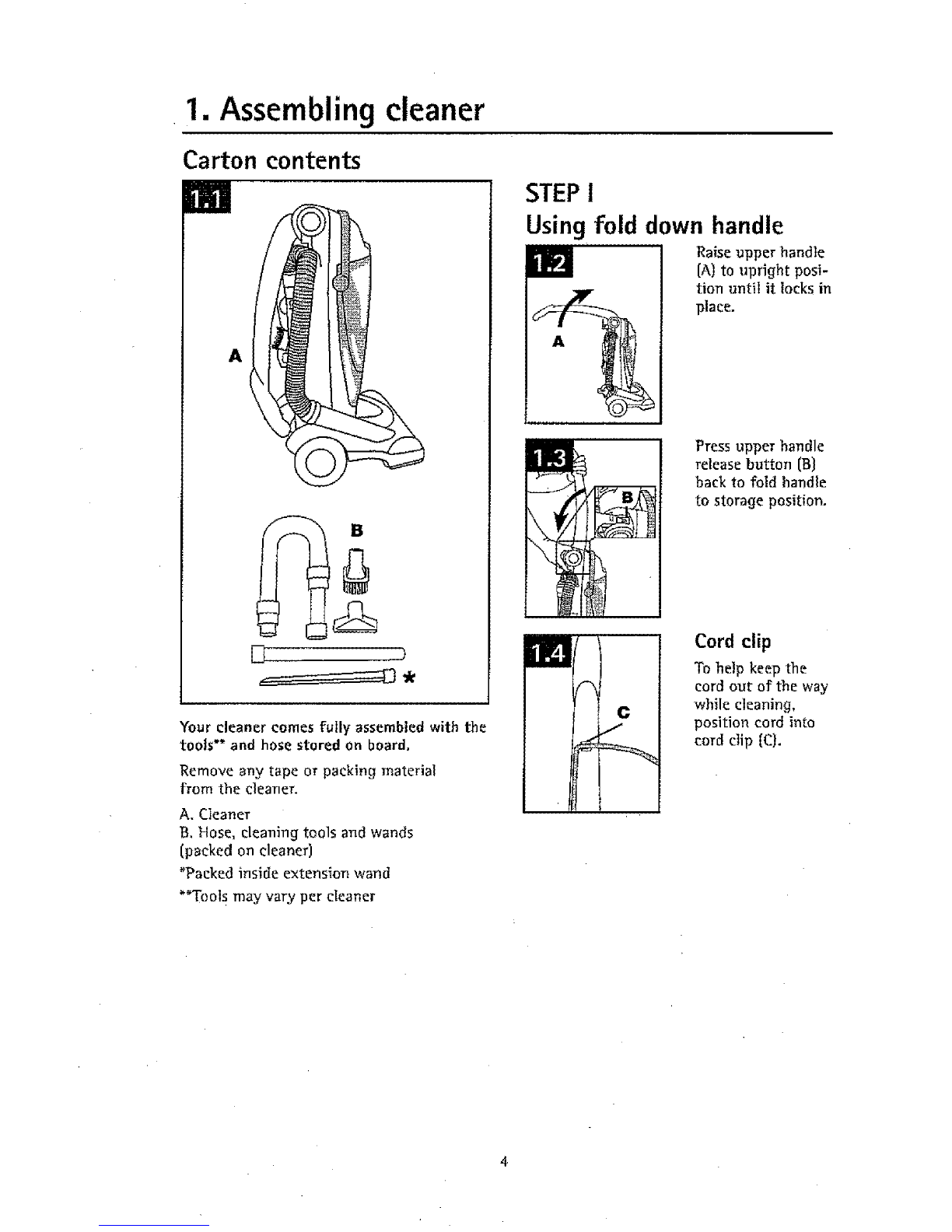

1. Assembling cleaner
Carton contents
m
A
[] ,,,)
Your cleaner comes fully assembled with the
toots** and hose stored on board.
Remove any tape or packing material
from the cleaner.
A. Cleaner
B. Hose, cleaning tools and wands
(packed on cleaner)
_Packed inside extension wand
*_Tools may vary per cleaner
STEP !
Using fold down handle
Raiseupper handle
%(A) to upright posi-
tion until it tocksin
place.
Press upper handle
release button (B)
back to fold handle
to storaqe position.
C
J
Cord clip
To help keep the
cord out of the way
while cleaning,
positioncord into
cord clip (C).

2. How to use
Cleaner description
Operate cleaner onIy at voltage specified on
data plate on bottom of cleaner,
The assembled cleaner will look like the
drawing.
LFoldAwayTM handle
2. Upper handle release
button
3. Dirt cup handle/latch
4. Carrying handle
5. Dirt cup filter chamber
6. Pleated filter (inside filter chamber}
7, Dirt cup
8. Headlight*
9. Stair cleaning handle: located under the
headlight.
10. Hood
ll. Carpet height adjustment knob: rotate
knob to correct setting for height of
carpet being cleaned,
12. ON/OFF switch: located on left rear corner
of cleaner body
13. Cord hooks: wrap cord around hooks for
storage. The top hook rotates to the left
for easy cord release,
14. Hose
15. Crevice wand*; stores inside wand
16. Furniture nozzle*
17. Extension wand"
18. Dusting brush*
19. Handle release pedal: step on pedal to
lower handle to operating or low positions.
"some models only.
This cleaner is intended for household use.
Not intended for commercial use in any
household o_ for any other commercial
purpose.
2
5
6
!
12
3
4
7
8
9
11
t5
17
18

Polarized
plug
To reduce the risk
of electric shock,
this appliance has
a polarized ptug
[one blade is wider
than the other).
This plug will fit in
a polarized outlet
on}y one way.
lithe plug does
not fit fully in the
outlet, reverse the
plug. If it still does
not fit, contact a
qualified electrician
to install the proper
outlet. Do not
change the plug in
any way.
On-Off
switch
Plug cord into elec-
trical outlet.
To turn cleaner
ON, push switch
(A) toward front of
cleaner.
To turn cleaner
OFF, push toward
back of cleaner.
Handle positions
The handle of your
cleaner has three po-
sitions; upright when
usingcleaning tools;
operating position for
general operation on
carpet and floors; low
for reaching under
low furniture. Step on
handle release pedal
to lower handle.
Transporting
cleaner
Put handle in up-
right position. Tilt
cleaner back on rear
wheels. Push
forward.
Carrying
handle
Use the carrying
handle to lift the
cleaner.
Carpet height
adjustment The cleaning of carpet
and rugs takes place at
the nozzle (A).
When it is necessary
to raise and lower the
nozzle for various car-
pet pile heights, turn
the carpet height ad-
justment knob (B) to
the desired setting.
For ease inturning
the knob, place handle
in upright position
and tilt cleaner back
slightly.
Settings
For maximum cleaning performance,
the following carpet height settings are recommended.
• Low setting: for all types of carpet and hard floors.
Note: If the cleaner is difficult to push, rotate knob to the next higher
setting.
• Medium and High settings: for deeper pile carpet where easier
pushing effort is desired, while maintaining good cleaning perfor-
mance.

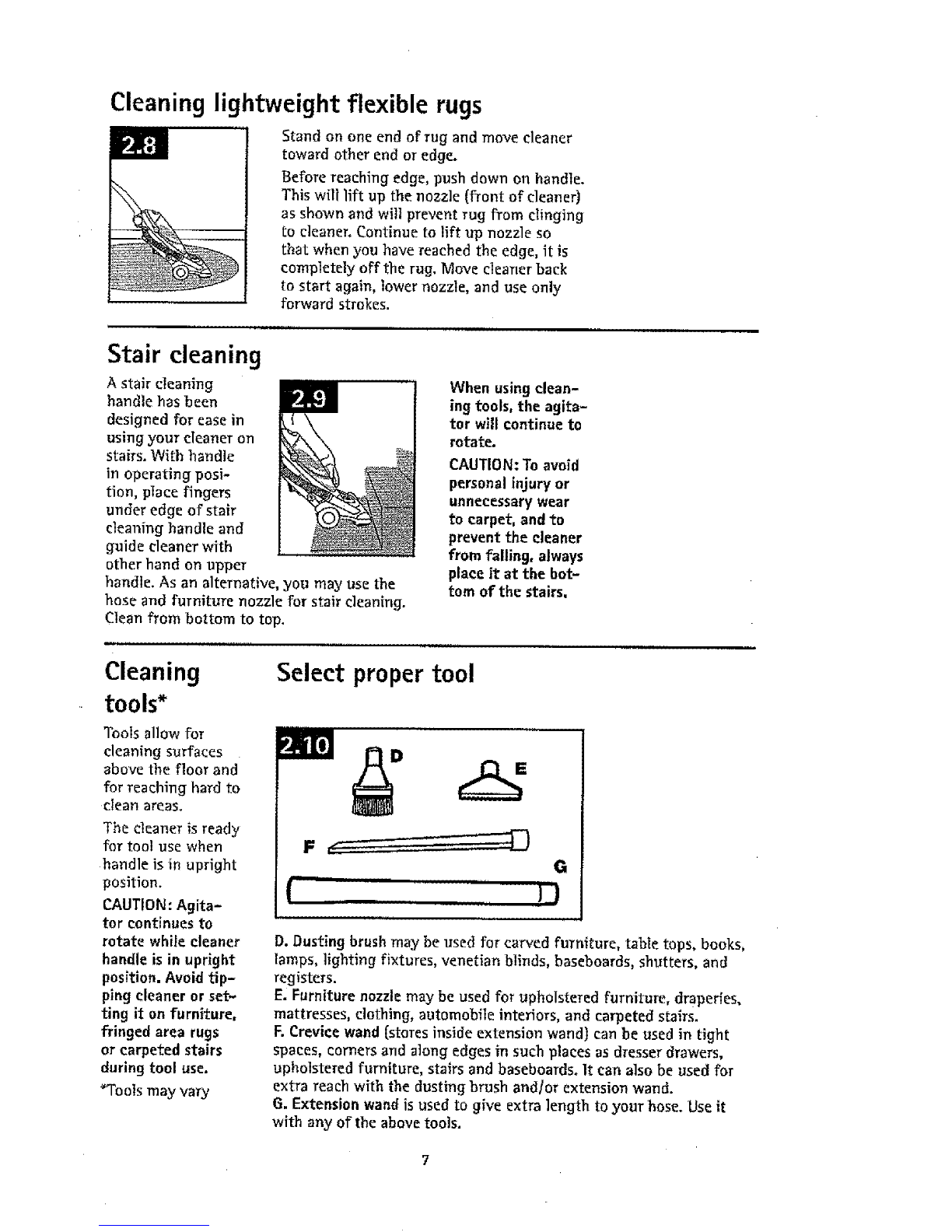

Cleaning lightweight flexible rugs
Stand on one end of rug and move cleaner
toward other end or edge.
Before reaching edge, push down on handle.
This will lift up the nozzle {front of cleaner)
as shown and will prevent rug from clinging
to cleaner. Continue to lift up nozzle so
that when you have reached the edge, it is
completely off the rug. Move cleaner back
to start again, lower nozzle, and use only
forward strokes.
Stair cleaning
Astair cleaning
handle has been
designed for ease in
using your cleaner on
stairs. With handle
in operating posi-
tion, placefingers
under edge of stair
cleaning handle and
guide cleaner with
other hand on upper
handle. As an alternative, you may use the
hose and furniture nozzle for stair cleaning.
(:lean from bottom to top.
When usingclean-
ing tools, the agita-
tor will continue to
rotate.
CAUTION: To avoid
personalinjury or
unnecessarywear
to carpet, and to
prevent the cleaner
from falling, always
place it at the bot-
tom of the stairs,
Cleaning
tools*
Tools allow for
cleaning surfaces
above the floor and
for reaching hard to
cIean areas.
The cleaner is ready
for tool use when
handle is in upright
position.
CAUTION: Agita-
tor continues to
rotate while cleaner
handle isin upright
position. Avoid tip-
ping cleaner or set-
ting it on furniture,
fringed area rugs
or carpeted stairs
during tool use.
_Toots may vary
Select proper tool
G
D.Dustingbrush may be used forcarved furniture, table tops, books,
lamps, lighting fixtures, venetian blinds, baseboards, shutters, and
registers.
E. Furniture nozzle may be used for upholstered furniture, draperies,
mattresses, clothing, automobile interiors, and carpeted stairs.
F. Crevice wand (stores inside extension wand) can be used in tight
spaces, corners and along edges in such places as dresser drawers,
upholstered furniture, stairs and baseboards. It can a]so be used for
extra reach with the dusting brush and/or extension wand.
6. Extension wand is used to give extra ]ength to your hose. Use it
with any of the above tools.

Remove hose
When using clean-
ing tools, cleaner
handle shouldbe
in the upright
position. Also, turn
cleaner OFF before
disconnecting and
connecting the
hose {A).
Remove hose end
from cleaner base.
Attach wand and tools
The tools are attached to the hose or the
wand in the same manner.
Push tool firmly onto hose; twist tool
stightly to tighten or loosen connection.
Attach second wand or tool to the wand in
the same manner.
Replacing hose
When you are
finished cleaning
with the tools, use
the end of the hose
to push the cover
(A) down and push
hose onto opening.
Twist hose end
slightly to tighten
the connector.
Extra reach hose
(available at additional cost]
The extra reach hose provideseasier clean-
ing of stairs and hard to reach places. Follow
the steps below for attaching and detaching
hose.
Turn" cleaner OFF before disconnecting and
connecting hose.
Remove hose end from cleaner base.
Align end of extra reach hose with projec-
tions (A) with slots (B} on end of attached
hose.
Slide hose into slots and twist hose to lock it
into place. (To detach hose, reverse proce-
dure.)
Attach wands or tools to the other end of
hose.
How to clean tools
To clean the hose, wipe off dirt with a cloth
dampened in amild detergent. Rinse with a
damp cloth.
Cleaning tools may he washed in warm water
with a detergent. Rinse and air dry before
using. Tools should be completely dry before
using again.

3. Maintenance
Familiarize yourself with these home
maintenance tasks as proper use and care of
your cleaner wll] ensure continued cleaning
effectiveness.
Dirt Cup
_A
The dirt cup assembly consists of the follow-
inff parts:
Dirt Cup (A)
Filter chamber (B)
Pleated filter (C)
Lid {D)
Dirt cup carry handle]latch (E)
Filter chamber release latch (F)
While the cleaner is in operation, the screen
at the bottom of the filter chamber will stop
larger debris from entering the pleated filter
chamber. This larger debris will be seen col-
lecting in the the dirt cup. The pleated filter
wilt collect fine particles that have passed
through the screen.
When to
empty
It is recommended that the dirt cup be emp-
tied before the dirt reaches the dirt open-
ing on back of dirt cup or after every use if
preferred.
CAUTION: Very fine materials, such asface
powder or cornstarch, may sealthe filter
and causelossof suction. When usingthe
cleaner for this type of dust, empty the cup
and clean the filters often.
How to
empty Disconnect cleaner
from electrical outlet.
Do not usethe cleaner
without dirt cup or
filters in place.
Pull dirt cup handle
(A) down. Remove dirt
cup.
Remove filter Holding the carry
chamber (A} from handle (A}, empty
dirt cup. dirt cup into waste-
basket.

Filter
assembly
How to clean
filter assembly
Press latch [A}
on front of filter
chamber and
remove lid. The
pleated filter is at-
tached to the lid.
The screen (B) on
the bottom of the
chamber can be
cleaned with a soft
brush.
Empty filter chain-
ben Holding lid, tap bottom of filter
against edge of
wastebasket until
dust particles stop
falling from filter.
Do not tap the soft,
pleated part of the
filter, It coulddam-
age the filter.
Do not rinse or
wash the filter,
Although not
necessary, the filter
can be removed
from the lid for
cleaning.
Putl filter off Iid
and tap bottom of
filter.
To replace, firmly
press filter onto lid
until it stops.
Replace lid and
filter on filter
chamber.
Replace chamber on
dirt cup.
Place bottom of cup behind tab (A) and press
cup into cleaner.
Rotate dirt cup handle {B} up to lock cup in
place.
tO
Be certain that the dirt cup is locked in the
correct position.
