Hoover Otsein OHTC30 User manual

The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Model: OHTC30
OHTC50
OHTC80
OHTC100
SEALED STORAGE ELECTRIC
WATER HEATER
Instruction Manual

1
The installation and maintenance has to be carried out by qualified professials or
authorized technicians.
The manufacturer shall not be held responsible for any damage or malfunction caused by
wrong installation or failing to comply with following instructions included in this pamphlet.
For more detailed installation and maintenance guidelines, please refer to below chapters.
TABLE OF CONTENTS
TITLE PAGE
1.CAUTIONS.......................................................................................................................(2)
2.PRODUCT INTRODUCTION ...........................................................................................(3)
3.UNIT INSTALLATION .......................................................................................................(5)
4.METHODS OF USING .....................................................................................................(7)
5.MAINTENANCE ...............................................................................................................(7)
6.TROUBLESHOOTING .....................................................................................................(8)
7.PRODUCE INFORMATION WITH EU REGULATION .....................................................(9)
8.DESCRIPTION TO ANNEX I..........................................................................................(13)
●
●
●
General Remark

2
The supply socket must be earthed reliably. The rated current of the socket shall not be lower
than 10A. The socket and plug shall be kept dry to prevent electrical leakage. Inspect
frequently whether the plugs contact well with the socket. Inspect method is as follows: insert
the power supply plug into socket, after using for half an hour, shut down the unit and pull the
plug out, and inspect the plug whether it scalds hand. If it scalds (over 50℃), please change
another well-contacted socket to avoid the plug being damaged, fire or other personnel
accidents result from bad-contacting.
The installation height of the supply socket shall not be lower than 1.8m.
The wall in which the electrical water heater is installed shall be able to bear the load more than
two times of the heater filled fully with water without distortion and cracks. Otherwise, other
strengthening measures shall be adopted.
The pressure relief valve attached with the heater must be installed at the cold water inlet of
this heater(see Fig.1), and make sure it is not exposed in the foggy. The water may be
outflowed from pressure relief valve, so the outflow pipe must open wide in the air; The
pressure relief valve need to be checked and cleaned regularly, so as to make sure it will not
be blocked.
Before installing this water heater,check and confirm that the earthing on the supply socket is
reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not
use extension boards. Incorrect installation and use of this electrical water heater may result in
serious injuries and loss of property.
Special Cautions
1. CAUTIONS
●
●
●
●

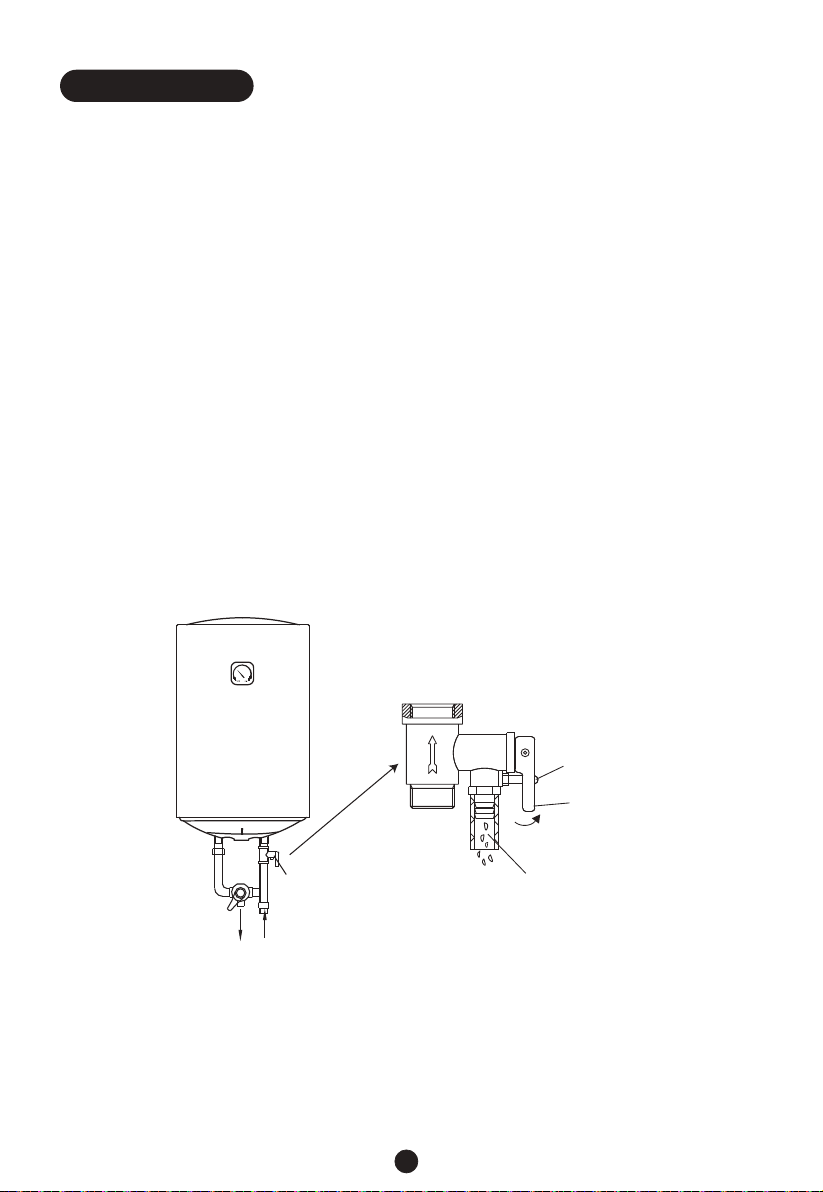

(Fig.1)
●
●
When using the heater for the first time(or the first use after maintenance), the heater can not
be switched on until it has been filled fully with water. When filling the water, at least one of the
outlet valves at the outlet of the heater must be opened to exhaust the air. This valve can be
closed after the heater has been filled fully with water.
The water heater is not intended for use by persons(including children)with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instructions concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the heater.
Hot water Cold water
Pressure
relief valve
Thread screw
Drain handle
Pressure release hole

3
2. PRODUCT INTRODUCTION
2.2 Brief introduction of product structure
●
●
●
●
●
●
●
●
During heating, there may be drops of water dripping from the pressure release hole of the
multifunction valves. This is a normal phenomenon. If there is a large amount of water leak,
please contact customer care center for repair. This pressure release hole shall, under no
circumstances, be blocked; otherwise, the heater may be damaged, even resulting in
accidents.
The drainage pipe connected to the pressure release hole must be kept sloping downwards.
Since the water temperature inside the heater can reach up to 75℃, the hot water must not be
exposed to human bodies when it is initially used. Adjust the water temperature to a suitable
temperature to avoid scalding.
Unscrew the thread screw on the multifunction safety valve, and lift the drain handle upwards.
(See Fig.1) to drain the water from the inner tank.
If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer
must be selected, and replaced by the professional maintenance personnel.
If any parts and components of this electrical water heater are damaged please contact
customer care center for repair.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
C
D
B
AShell
Thermometer
Inner tank
Thermal insulation
Anode rod
Heating element
Hot water outlet Cold water inlet
Heating indicator light
Model
Rated
Voltage
(ACV)
IPX4750.75220-240150030
OHTC30
Rated
Power
(W)
Volume
(L)
Rated
Pressure
(MPa)
Max Of Water
Temperature
(℃)
Protection
Class
Water
Proof
Class
2.1 Technical Performance Parameters
I
IPX4750.75220-240150050
OHTC50
I
IPX4750.75220-240150080
OHTC80
I
IPX4750.75220-2401500100
OHTC100
I

4
2.3 Internal Wire Diagram
WIRING DIAGRAM
(Note:All dimensions are in mm)
OHTC50
385
760
100
200
OHTC80
450
809
100
200
OHTC100
450
974
100
200
A
B
C
D
OHTC30
340
594
100
200
Heating Element
Heating Indicator Light
Thermal
Cut Out Thermostat
Brown
Blue
Yellow/Green
1
2

3.2 Pipelines Connection
3.1 Installation Instruction
①
②
3. UNIT INSTALLATION
5
This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot
bear the load equal to two times of the total weight of the heater filled fully with water, it is
then necessary to install a special support.
Incase of hollow bricks wall, ensure to fill it with cement concrete completely.
After selecting a proper location, determine the positions of the two install holes used for
expansion bolts with hook (determined according to the specification of the product you
select). Make two holes in the wall with the corresponding depth by using a chopping bit with
the size matching the expansion bolts attached with the machine, insert the screws, make
the hook upwards, tighten the nuts to fix firmly, and then hang the electric water heater on it
(see Fig.2).
④
If the bathroom is too small, the heater can be installed at another place without sun-scorched and
rain-drenched. However, in order to reduce the pipeline heat losses, the installation position of
the heater shall be closed to the location shall be as near as possible to the heater.
(Fig.2)
Expansion bolt
(with hook)
①
②
③
The dimension of each pipe part is G1/2” ; The massive pressure of inlet should use Pa as
the unit; The minimum pressure of inlet should use Pa as the unit.
Connection of pressure relief valve with the heater on the inlet of the water heater.
In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided
with the heater must be added at the end of the threads to ensure leak proof joints (see
Fig.4).
(Fig.3)
N (Blue)
Ground
≥1.8m
L (Brown) E (Yellow/Green)
③
Install the supply socket in the wall. The requirements for the socket are as follows: 250V/10A,
single phase, three electrodes. It is recommended to placed the socket on the right above
the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3). If
there is fault on power cable, it should be replaced by the manufacturers, agencies or qualified
person who is able to do this so as to ensure the safety.

NOTE
Please be sure to use the accessories provided by our company to install this electric
water heater. This electric water heater can not be hung on the support until it has been
confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from
the wall, resulting in damage of the heater, even serious accidents of injury. When
determining the locations of the bolt holes, it shall be ensured that there is a clearance
not less than 0.2m on the right side of the electric heater, to convenient the maintenance
of the heater, if necessary.
If the users want to realize a multi-way supply system, refer to the method shown in fig.5
for connection of the pipelines.
④
6
(Fig.5)
Water inlet valve
Water inlet valve
Running water pipe
Mixing valve
Water pool
Triple joint
Shower nozzle
Hot water
outlet
Cold
water
inlet
Pressure relief valve
(Fig.4)
Hot water outlet Cold water inlet
Pressure relief valve
Pressure release hole
Joint screw for cold water inlet
Adjusting handle for
mixing valve
Hot water
Main machine

Check the power plug and outlet as often as possible. Secure electrical contact and also proper
grounding must be provided. The plug and outlet must not heat excessively.
If the heater is not used for a long time, especially in regions with low air temperature(below 0
℃), it is nessary to drain water from the heater to prevent damage of the water heater, due to
water freezing in the internal tank.(Refer Cautions in this manual for the method to drain away
the water from the inner container).
To ensure long reliable water heater operation, it is recommended to regularly clean the
internal tank and remove deposits on the electric heating element of the water heater, as well
as check condition (fully decomposed or not) of the magnesium anode and, if necessary,
replace it with a new one in case of full decomposition.Tank cleaning frequency depends on
hardness of water located in this territory. Cleaning must be performed by special maintenance
services. You can ask the seller for address of the nearest service center.
●
●
●
5. MAINTENANCE
WARNING
Do cut off power supply before maintenance, to avoid danger like electric shock.
!
7
4. METHODS OF USING
NOTE
During normal operation, the inlet valve shall be always kept open.
First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet
valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies
that the heater has been filled fully with water, and the outlet valve can be closed.
Insert the supply plug into the supply socket, the two indicator lights will light up this time.
The thermostat will automatically control the temperature. When the water temperature inside
the heater has reached the set temperature, it will switch off automatically, when the water
temperature falls below the set point the heater will be turned on automatically to restore the
heating.
●
●
●

6. TROUBLESHOOTING
8
NOTE
Parts illustrated in this use and care manual are indicative only, parts provided with the
product may differ with illustrations.This product is intended for household use only.
Specifications are subject to change without notice.
Failures Reasons Treatment
The heating indicator
light is off.
Failures of the temperature
controller.
Contact with the professional
personnel for repair.
No water coming out
of the hot water outlet.
The water temperature
is too high.
Water leak.
1. The running water supply
is cut off.
2. The hydraulic pressure is
too low.
3. The inlet valve of running
water is not open.
1. Wait for restoration of
running water supply.
2. Use the heater again when
the hydraulic pressure is
increased.
3. Open the inlet valve of
running water.
Failures of the temperature
control system.
Seal problem of the joint
of each pipe.
Contact with the professional
personnel for repair.
Seal up the joints.

7. PRODUCE INFORMATION WITH EU REGULATION
The electrical storage water heater OHTC30 of the company Candy Hoover Group srl was
tested with a declared load profile of the size
that correspond to the water heating efficiency class
The product fulfills and corresponds to the requirements of the commission regulation standards (No
814/2013) for electrical storage water heater and achieved a water heating energy efficiency of
In accordance with AnnexⅡEnercy Efficiency Classes article 1 of the commission regulation (No
812/2013)
The evaluation of the result of this report with respect of conformity with the related commission
regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the
ErP-Label.
Electricity consumption Qelec、water heating energy efficiency ηwh and mixed water at 40℃（V40）
“S”
“C”
ηwh=32%
kWh
kWh
kWh
kWh
kWh
℃
℃
kg
L
kWh
kWh
℃
℃
℃
℃
L
L
Description Parameter Value Unit
k-Value k
Smart control compliance smart
Smart control factor SCF
Conversion coefficient CC
Ambient correction term Q
cor
Referenct energy Q
ref
Useful energy content Q
H2O
Correction ratio of reference and useful energy Q
ref/
Q
H2O
Daily electricity consumption (measured) Q
test_elec
Water temperature at the beginning of the 24h measurement cycle
T3
Water temperature at the end of the 24h measurement cycle T5
Storage volume M
act
Storage volume C
act
Daily electricity consumption (corrected) Q
elec
Water heating energy efficiency
η
wh
Annual Electricity Consumption AEC
Water heating energy efficiency class
Water temperature without tapping T
set
Average water temperature of outlet warm water θ'
p
Average water temperature of inlet cold water θ
c
Normalised value of the average temperature θ
p
Volume that delivered water of at least 40℃V
40exp
Calculated volume that delivered hot water of at least 40℃V
40
9
0.23
0
0
2.5
-0.391
2.1
2.137
0.983
63.3
3.003
68.3
30.1
30.1
2.779
32.0
576
63
62.6
10.4
62.6
25
44
C

10
The electrical storage water heater OHTC50 of the company Candy Hoover Group srl was
tested with a declared load profile of the size
that correspond to the water heating efficiency class
The product fulfills and corresponds to the requirements of the commission regulation standards (No
814/2013) for electrical storage water heater and achieved a water heating energy efficiency of
In accordance with AnnexⅡEnercy Efficiency Classes article 1 of the commission regulation (No
812/2013)
The evaluation of the result of this report with respect of conformity with the related commission
regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the
ErP-Label.
Electricity consumption Qelec、water heating energy efficiency ηwh and mixed water at 40℃（V40）
“M”
“C”
ηwh=36%
kWh
kWh
kWh
kWh
kWh
℃
℃
kg
L
kWh
kWh
℃
℃
℃
℃
L
L
Description Parameter Value Unit
k-Value k
Smart control compliance smart
Smart control factor SCF
Conversion coefficient CC
Ambient correction term Q
cor
Referenct energy Q
ref
Useful energy content Q
H2O
Correction ratio of reference and useful energy Q
ref/
Q
H2O
Daily electricity consumption (measured) Q
test_elec
Water temperature at the beginning of the 24h measurement cycle
T3
Water temperature at the end of the 24h measurement cycle T5
Storage volume M
act
Storage volume C
act
Daily electricity consumption (corrected) Q
elec
Water heating energy efficiency
η
wh
Annual Electricity Consumption AEC
Water heating energy efficiency class
Water temperature without tapping T
set
Average water temperature of outlet warm water θ'
p
Average water temperature of inlet cold water θ
c
Normalised value of the average temperature θ
p
Volume that delivered water of at least 40℃V
40exp
Calculated volume that delivered hot water of at least 40℃V
40
0.23
0
0
2.5
-0.480
5.845
5.945
0.983
63
6.963
65.9
50.1
50.1
6.680
36.0
1425
63
62.3
10.5
62.3
40
69
C

11
The electrical storage water heater OHTC80 of the company Candy Hoover Group srl was
tested with a declared load profile of the size
that correspond to the water heating efficiency class
The product fulfills and corresponds to the requirements of the commission regulation standards (No
814/2013) for electrical storage water heater and achieved a water heating energy efficiency of
In accordance with AnnexⅡEnercy Efficiency Classes article 1 of the commission regulation (No
812/2013)
The evaluation of the result of this report with respect of conformity with the related commission
regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the
ErP-Label.
Electricity consumption Qelec、water heating energy efficiency ηwh and mixed water at 40℃（V40）
“M”
“C”
ηwh=36%
kWh
kWh
kWh
kWh
kWh
℃
℃
kg
L
kWh
kWh
℃
℃
℃
℃
L
L
Description Parameter Value Unit
k-Value k
Smart control compliance smart
Smart control factor SCF
Conversion coefficient CC
Ambient correction term Q
cor
Referenct energy Q
ref
Useful energy content Q
H2O
Correction ratio of reference and useful energy Q
ref/
Q
H2O
Daily electricity consumption (measured) Q
test_elec
Water temperature at the beginning of the 24h measurement cycle
T3
Water temperature at the end of the 24h measurement cycle T5
Storage volume M
act
Storage volume C
act
Daily electricity consumption (corrected) Q
elec
Water heating energy efficiency
η
wh
Annual Electricity Consumption AEC
Water heating energy efficiency class
Water temperature without tapping T
set
Average water temperature of outlet warm water θ'
p
Average water temperature of inlet cold water θ
c
Normalised value of the average temperature θ
p
Volume that delivered water of at least 40℃V
40exp
Calculated volume that delivered hot water of at least 40℃V
40
0.23
0
0
2.5
-0.476
5.845
5.949
0.983
63.3
7.986
76.1
80.2
80.2
6.673
36.1
1424
63
62.4
10.4
62.4
52
91
C

12
The electrical storage water heater OHTC100 of the company Candy Hoover Group srl was
tested with a declared load profile of the size
that correspond to the water heating efficiency class
The product fulfills and corresponds to the requirements of the commission regulation standards (No
814/2013) for electrical storage water heater and achieved a water heating energy efficiency of
In accordance with AnnexⅡEnercy Efficiency Classes article 1 of the commission regulation (No
812/2013)
The evaluation of the result of this report with respect of conformity with the related commission
regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the
ErP-Label.
Electricity consumption Qelec、water heating energy efficiency ηwh and mixed water at 40℃（V40）
“M”
“C”
ηwh=36%
kWh
kWh
kWh
kWh
kWh
℃
℃
kg
L
kWh
kWh
℃
℃
℃
℃
L
L
Description Parameter Value Unit
k-Value k
Smart control compliance smart
Smart control factor SCF
Conversion coefficient CC
Ambient correction term Q
cor
Referenct energy Q
ref
Useful energy content Q
H2O
Correction ratio of reference and useful energy Q
ref/
Q
H2O
Daily electricity consumption (measured) Q
test_elec
Water temperature at the beginning of the 24h measurement cycle
T3
Water temperature at the end of the 24h measurement cycle T5
Storage volume M
act
Storage volume C
act
Daily electricity consumption (corrected) Q
elec
Water heating energy efficiency
η
wh
Annual Electricity Consumption AEC
Water heating energy efficiency class
Water temperature without tapping T
set
Average water temperature of outlet warm water θ'
p
Average water temperature of inlet cold water θ
c
Normalised value of the average temperature θ
p
Volume that delivered water of at least 40℃V
40exp
Calculated volume that delivered hot water of at least 40℃V
40
0.23
0
0
2.5
-0.456
5.845
5.952
0.982
46.1
8.972
64.9
101.2
101.2
6.638
36.2
1418
46
45.4
10.3
45.4
74
87
C

13
DESCRIPTION TO ANNEX I
(1)supplier’s name or trade mark
(2) supplier’s model identifier
(3) the declared load profile, expressed by the appropriate letter and typical usage in
accordance with Table 3 of Annex VII
(4) the water heating energy efficiency class of the model, determined in accordance
with point 1 of Annex II
(5) the water heating energy efficiency in %, rounded to the nearest integer
(6) the annual electricity consumption in KWh in terms of final energy and/or the annual
fuel consumption in GJ in terms of GCV, rounded to the nearest integer and
calculated in accordance with point 4 of Annex VIII
(7) the thermostat temperature settings of the water heater, as placed on the market
(8) the daily electricity consumption Q elec in KWh, rounded to three decimal places
(9) the declared load profile, expressed by the appropriate letter in accordance with
Table 1 of this Annex
(10) the mixed water at 40℃V40 in litres, rounded to the nearest integer
(11) maximum temperature of the thermostat
(12) ‘out of the box-mode’ is the standard operating condition, setting or mode set by the
manufacturer at factory level, to be active immediately after the appliance installation,
suitable for normal use by the end-user according to the water tapping pattern for
which the product has been designed and placed on the market
(13) the water heating energy efficiency in %, rounded to one decimal place
(14) All specific precautions for assembly, installation and maintenance are described in
the operating and installation instructions. Read and follow the operating and
installation instructions.
(15) All of the data that is included in the product information was determined by applying
the specifications of the relevant European directives. Differences to product
information listed elsewhere may result in different test conditions. Only the data that
is contained in this product information is applicable and valid.
8. DESCRIPTION TO ANNEX I

The product is subject to change without notice.
Please keep this manual properly.

Modelo: OHTC30
OHTC50
OHTC80
OHTC100
Manual de Operación
TERMO ELÉCTRICO
El diagrama que aparece es solo para referencia.
Sirvase tomar la apariencia del producto como un modelo estándar

1
La instalación y el mantenimiento de este aparato deben ser realizados por personal calificado
o técnicos autorizados.
El fabricante no se responsabiliza por cualquier daño o mal funcionamiento causado por una
instalación incorrecta o por no cumplir las instrucciones detalladas en este manual.
Para obtener instrucciones más detalladas y pautas de mantenimiento, sirvase revisar
los siguientes capitulos.
CONTENIDO
TITULO PÁGINA
1.PRECAUCIONES.............................................................................................................(2)
2.INTRODUCCIÓN DEL PRODUCTO ................................................................................(3)
3.INSTALACIÓN DE LA UNIDAD........................................................................................(5)
4.MÉTODOS DE UTILIZACIÓN..........................................................................................(7)
5.MANTENIMIENTO ...........................................................................................................(7)
6.RESOLUCIÓN DE PROBLEMAS ....................................................................................(8)
7.INFORMACIÓN DE PRODUCTO REGULACIÓN EU......................................................(9)
8.DESCRIPCION ANEXO I ...............................................................................................(13)
●
●
●
Observaciones Generales

2
El toma corriente de abastecimiento debe estar conectado a tierra de manera segura. La
corriente nominal del toma corriente no debe ser inferior a 10A. El toma corriente y el enchufe
deben permanecer secos para prevenir fugas eléctricas. Controlar frecuentemente que los
enchufes se encuentren bien conectados al toma corriente. El método de control debe
realizarse de la siguiente manera: insertar el enchufe de abastecimiento en el toma corriente,
luego de utilizar la unidad durante media hora, apagarla y desconectar el enchufe. Controlar si
el enchufe quema al contacto con la mano. Si lo hiciera (esto sucede por encima de los 50ºC),
sirvase cambiar a otro toma corriente bien conectado a tierra para evitar que el enchufe se
dañe, si hubiese un mal contacto, podrian generarse accidentes personales o incendios.
La altura de la instalación del toma corriente no debe ser inferior a 1.8m.
La pared en la cual se instale el termocalefón, deberápoder soportar el doble del peso del
calefón completamente lleno de agua sin deformaciones o grietas. De lo contrario, se deben
tomar otras medidas de refuerzo.
La válvula de descarga de presión que viene con el termocalefón, debe ser instalada en la
entrada de agua fria de este calefón (ver figura 1), y asegurarse de no exponerla al vapor. El
agua puede derramarse de la válvula de descarga de presión, por lo tanto el tubo de escape
debe abrirse en un costado; la vàlvula de descarga de presión se debe revisar y limpiar
regularmente, de taf modo a asegurarse de que no esté bloqueada.
Antes de instalar este termocalefón, revisar y confirmar que la conexión a tierra del toma
corriente se encuentra instalado a tierra correctamente. De lo contrario, el termocalefôn no
podrá ser instalado ni utilizado. No utilizar extensiones de conexión. Si se utiliza el termocalefón
con una instalación realizada de manera incorrecta, podrian generarse lesiones serias y
pérdidas de propiedad.
Precauciones Especiales
●
●
●
●
●
●
Al utilizar el termocalefón por primera vez (o al utilizarlo por primera vez luego de realizar el
mantenimiento), el mismo no puede ser encendido hasta que haya sido llenado de agua por
completo. Al llenar el agua, al menos una de las válvulas de salida del termocalefón debe ser
abierta para liberar el aire. Esta válvula puede ser cerrada luego de que el termocalefón se
llene de agua.
El termocalefón no está diseñado para ser utilizado por personas (incluyendo niños) con
discapacidades físicas, sensoriales o mentales disminuidas, o falta de experiencia y
conocimiento con respecto al mismo, a menos que hayan sido supervisados o instruidos
acerca de la utilización del aparato por una persona responsable de su seguridad. Los niños
deben ser supervisados para asegurarse de que no jueguen con el termo calefón.
Agua caliente Agua fría
Válvula de descarga
de presión
Tornillo de rosca
Manija de drenaje
Orificio de descarga de presión
(Figura 1)
1. PRECAUCIONES

3
2.2 Breve introducción a la estructura del producto
●
●
●
●
●
●
Durante el proceso de calentamiento, podrian caer gotas del orificio de descarga de presión
de las válvulas multifuncionales. Este es un fenómeno normal. Si hay una fuga grande de
agua, sirvase contactar con el centro de atención al cliente para realizar reparaciones. El
orificio de descarga de presión no debe ser bloqueado bajo ninguna circunstancia; de lo
contrario, el termocalefón podria ser dañado o generar accidentes.
El tubo de drenaje conectado al orificio de descarga de presión se debe mantener hacia abajo.
Ya que la temperatura del agua en el interior del termocalefón puede llegar a los 75ºC, el agua
caliente no debe ser expuesta al cuerpo humano al ser encendida recientemente. Ajustar la
temperatura del agua a una temperatura adecuada para evitar quemaduras.
Desatornillar el tornillo de rosca en la válvula de seguridad multifuncional, y levantar la manija
del drenaje hacia arriba (Ver Figura 1) para drenar el agua del tanque interno.
Si el cable de alimentaciön flexible se daña, debe ser reemplazado por un cable de alimentación
especial proveido por el fabricante y colocado por el personal de mantenimiento autorizado.
Si alguna pieza o componente de este termocalefón eléctrico se dañara, sirvase contactar con
el centro de atención al cliente para realizar reparaciones.
C
D
B
AArmaz
ó n
Term
ó metro
Tanque interno
Aislamiento térmico
Ánodo
Calentador Eléctrico
Entrada de agua fría Salida de agua caliente
Luz indicadora de calentamiento
Voltaje
nominal
(ACV)
IPX4750.75220-240150030
OHTC30
Potencia
Nominal
(W)
Volumen
(L)
Presión
nominal
(MPa)
Temperatura
máxima de agua
(℃)
Tipo
eléctrico
Grado de
impermea-
bilidad
2.1 Parámetros del Rendimiento Técnico
I
IPX4750.75220-240150050
OHTC50
I
IPX4750.75220-240150080
OHTC80
I
IPX4750.75220-2401500100
OHTC100
I
Modelo
2. INTRODUCTION DEL PRODUCTO

4
2.3 Diagrama del Cahleado interno
E QUEMA DE CONEXIONES
(Nota: Todas las dimensiones son en mm)
OHTC50
385
760
100
200
OHTC80
450
809
100
200
OHTC100
450
974
100
200
A
B
C
D
OHTC30
340
594
100
200
Calentador eléctrico
Luz indicadora de calentamiento
Apagado
Térmico Termostato
1
2
Marrón
Azul
Amarillo/verde
