Technical Manual
NTP/SINEC H1 LAN Board
Model 7273 and 7273RC
for housing versions
1U / 3U / DIN-Rail
ENGLISH
Version: 08.00
-
01.08.2018
_____________________________________________________________
SET
FIRMWARE
Valid for
Version: 08.xx
Version: 08.xx
Version: 02.xx
Industriefunkuhren

2 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•

INPORTANT NOTES
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 3 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
Version Numbers (Firmware / Description)
THE TERM SET DEFINES THE FIXED RELATIONSHIP BETWEEN THE IMAGE VERSION
AND THE ASSOCIATED H8 FIRMWARE VERSION.
THE FIRST TWO DIGITS OF THE TECHNICAL DESCRIPTION VERSION NUMBER,THE
SET VERSION AND THE IMAGE VERSION MUST BE THE SAME!THEY DESIGNATE THE
SHARED FUNCTIONAL IDENTITY BETWEEN DEVICE,SOFTWARE AND TECHNICAL
DESCRIPTION.
THE VERSION NUMBER OF THE IMAGE AND THE H8 SOFTWARE CAN BE READ IN THE
WEBGUI OF BOARD 7273 AND BOARD 7273RC (SEE CHAPTER 6.3.5.1 Device
Information AND CHAPTER 6.3.5.2 Hardware Information).
THE TWO DIGITS AFTER THE DOT IN THE VERSION NUMBER DESIGNATE
CORRECTIONS TO THE FIRMWARE AND/OR DESCRIPTION WHICH HAVE NO EFFECT ON
FUNCTIONALITY.
Downloading Technical Manuals
All current manuals of our products are available free of charge via our homepage on the
Internet.
Homepage: http://www.hopf.com
E-mail: [email protected]om
Symbols and Characters
Operational Reliability
Disregard may cause damages to persons or material.
Functionality
Disregard may impact function of system/device.
Information
Notes and Information.

SERVICE RELIABILITY
4 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
Safety regulations
The safety regulations and observance of the technical data serve to
ensure trouble-free operation of the device and protection of persons and
material. It is therefore of utmost importance to observe and compliance
with these regulations.
If these are not complied with, then no claims may be made under the
terms of the warranty. No liability will be assumed for any ensuing
damage.
Safety of the device
This device has been manufactured in accordance with the latest
technological standards and approved safety regulations
The device should only be put into operation by trained and qualified staff.
Care must be taken that all cable connections are laid and fixed in position
correctly. The device should only be operated with the voltage supply
indicated on the identification label.
The device should only be operated by qualified staff or employees who
have received specific instruction.
If a device must be opened for repair, this should only be carried out by
employees with appropriate qualifications or by
hopf
Elektronik GmbH.
Before a device is opened or a fuse is changed all power supplies must
be disconnected.
If there are reasons to believe that the operational safety can no longer
be guaranteed the device must be taken out of service and labelled
accordingly.
The safety may be impaired when the device does not operate properly
or if it is obviously damaged.
CE-Conformity
This device fulfils the requirements of the EU directive 2014/30/EU
"Electromagnetic Compatibility" and 2014/35/EU "Low Voltage Equipment".
Therefore the device bears the CE identification marking
(CE = Communautés Européennes = European communities)
The CE indicates to the controlling bodies that the product complies with the
requirements of the EU directive - especially with regard to protection of health and safety for
the operator and the user - and may be released for sale within the common markets.

TABLE OF CONTENTS
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 5 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
Contents Page
1Board Description 7273 and 7273RC...........................................................................9
1.1 Differences between the Boards 7273 and 7273RC................................................12
1.2 Overview of Assembly of Boards 7273(RC).............................................................12
1.2.1 DIP Switch DS1.................................................................................................................. 13
1.2.1.1 Functions of the DIP Switch DS1 for Board 7273....................................................................... 13
1.2.1.2 Functions of the DIP Switch DS1 for Board 7273RC.................................................................. 13
1.2.2 MAC Address for ETH0 ..................................................................................................... 13
1.3 Front Panels of Boards for the Different Housing Versions......................................14
1.3.1 Overview of Functions of the Front Panel Elements.......................................................... 14
1.3.1.1 SEND LED (not at DIN-Rail)....................................................................................................... 14
1.3.1.2 Reset Button (and Default Button).............................................................................................. 14
1.3.1.3 NTP Status LEDs (NTP/Stratum/Accuracy)................................................................................ 14

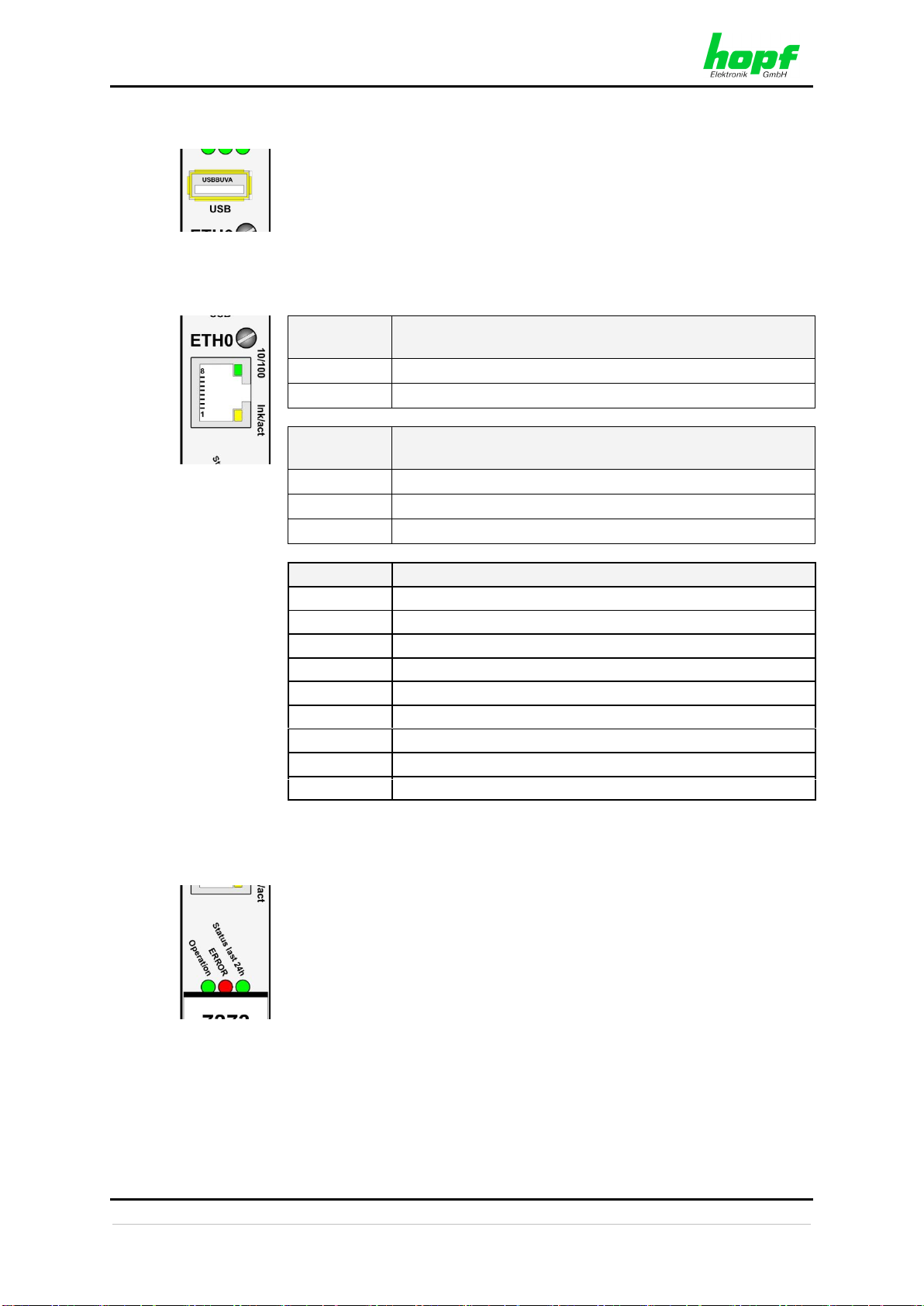

1.3.1.4 USB Female Connector (Host)................................................................................................... 15
1.3.1.5 RJ45 Socket (ETH0)................................................................................................................... 15
1.3.1.6 Board Status LEDs (Operation/ERROR/Status last 24h)............................................................ 15
1.3.1.6.1 General Function ............................................................................................................... 16
1.3.1.6.1 Function by Pressing the Reset Button.............................................................................. 16
1.3.1.6.2 Special Function for Update and Hardware Problems....................................................... 17
1.3.1.7 Option: Active 12V DC PPM (Minute Pulse)............................................................................... 17
1.3.2 Front Panel of Boards 7273 and 7273RC for 3U / 19" Racks ........................................... 18
1.3.3 Front Panel of Board 7273 for 1U / 19" Racks (Slim Line) ................................................ 19
1.3.4 Front Panel of Board 7273 for DIN Rail Mounting............................................................. 20
2System Behaviour of the Board 7273(RC).................................................................21
2.1 Boot Process...........................................................................................................21
2.2 NTP Regulating Phase (Stratum/Accuracy).............................................................21
2.3 Reset- (Default) Button............................................................................................21
2.3.1 Board Reset....................................................................................................................... 22
2.3.2 Set Board to Factory-Default-State (incl. LAN Parameter)................................................ 22
2.4 Firmware Update.....................................................................................................23
2.5 Board ERROR.........................................................................................................24
2.6 Activation of Functions (Activation Key)...................................................................25
3Implementing Board 7273(RC) in a modular
hopf
19" Base System .....................26
3.1 Handling of Board / ESD Protection.........................................................................27
3.2 General - Setting the Board Number for the Use in Base System............................27
3.3
hopf
Base Systems 6844, 6844RC, and 6855 –Only Board 7273 ........................28
3.3.1 Setting the Board Number for Base Systems 68xx ........................................................... 28
3.4
hopf
Base System 7001 –Only Board 7273..........................................................29
3.4.1 Setting the Board Number for Base System 7001............................................................. 29
3.5
hopf
Base System 7001RC –Only Board 7273RC................................................30
3.5.1 Setting the Board Number for Base 7001RC..................................................................... 30
3.5.2 NTP Accuracy Notification for Status- and Error Messages in System 7001RC............... 31
3.6 Creating the Network Connection............................................................................31

TABLE OF CONTENTS
6 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
4Network Configuration for ETH0 via LAN Connection through
hmc
......................32
5Network Configuration for ETH0 via the Base System.............................................35
5.1 Input Functions of Base Systems 6844, 6844RC and 6855 (Board 7273 only)........37
5.1.1 Entry the Static IPv4 Address / DHCP Mode..................................................................... 37
5.1.2 Entry the Gateway Address ............................................................................................... 38
5.1.3 Entry the Network Mask..................................................................................................... 38
5.1.3.1 Entry the Network Mask - Systems 6844 and 6844RC............................................................... 38
5.1.3.2 Entry of Network Mask - System 6855........................................................................................ 38
5.1.4 Entry the Control Byte........................................................................................................ 39
5.1.4.1 Bit 7-0 - No function at present................................................................................................... 39
5.2 Base System 7001 Input Functions (Board 7273 only)............................................40
5.2.1 Entry the Control Byte........................................................................................................ 40
5.2.1.1 Bit 7-0 - No Function at Present.................................................................................................. 40
5.2.2 Entry the Static IPv4 Address / DHCP Mode..................................................................... 41
5.2.3 Entry the Network Mask..................................................................................................... 42
5.2.4 Entry the Gateway Address ............................................................................................... 42
5.3 Input Functions of Base System 7001RC (Board 7273RC only)..............................42
5.3.1 Entry the Static IPv4 Address / DHCP Mode..................................................................... 43
5.3.2 Entry the Gateway Address ............................................................................................... 43
5.3.3 Entry the Network Mask..................................................................................................... 44
5.3.4 Entry the Control-Byte........................................................................................................ 44
5.3.4.1 Bit 7-0 - No Function at Present.................................................................................................. 44
5.3.5 Entry the Parameterbyte 01 (no function at present)......................................................... 45
5.3.6 Entry the Parameterbyte 02 (no function at present)......................................................... 45
5.4 Configuration in DIN Rail Modules...........................................................................45
5.5 Configuration via
hmc
(
hopf
Management Console) Remote Access..................45
6HTTP/HTTPS WebGUI –Web Browser Configuration Interface...............................46
6.1 Quick Configuration.................................................................................................46
6.1.1 Requirements..................................................................................................................... 46
6.1.2 Configuration Steps............................................................................................................ 46
6.2 General –Introduction.............................................................................................47
6.2.1 LOGIN and LOGOUT as a User ........................................................................................ 48
6.2.2 Navigation via the Web Interface....................................................................................... 49
6.2.3 Entry or Changing Data ..................................................................................................... 50
6.2.4 Plausibility Check during Input........................................................................................... 51
6.3 Description of the Tabs............................................................................................52
6.3.1 GENERAL Tab................................................................................................................... 52
6.3.2 NETWORK Tab.................................................................................................................. 53
6.3.2.1 Host/Nameservice ...................................................................................................................... 54
6.3.2.1.1 Hostname .......................................................................................................................... 54
6.3.2.1.2 Use Manual DNS Entries................................................................................................... 54
6.3.2.1.3 DNS Server 1 to 3.............................................................................................................. 54
6.3.2.1.4 Use Manual Gateway Entries ............................................................................................ 55
6.3.2.1.5 Default Gateway IPv4........................................................................................................ 55
6.3.2.1.6 Default Gateway IPv6........................................................................................................ 55
6.3.2.2 Network Interface ETH0.............................................................................................................. 56
6.3.2.2.1 Default Hardware Address (MAC) ..................................................................................... 56
6.3.2.2.2 Customer Hardware Address (MAC) ................................................................................. 56
6.3.2.2.3 DHCP ................................................................................................................................ 57
6.3.2.2.4 IPv4 Address ..................................................................................................................... 57

TABLE OF CONTENTS
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 7 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
6.3.2.2.5 IPv4 Network Mask............................................................................................................ 57
6.3.2.2.6 Operation Mode................................................................................................................. 58
6.3.2.2.7 Maximum Transmission Unit (MTU) .................................................................................. 58
6.3.2.2.8 IPv6 ................................................................................................................................... 59
6.3.2.2.9 DHCP-IPv6........................................................................................................................ 59
6.3.2.2.10 IPv6 Address ..................................................................................................................... 59
6.3.2.2.11 IPv6 Subnet Prefix Lengh.................................................................................................. 59
6.3.2.2.12 VLAN (Activation Key necessary)...................................................................................... 60
6.3.2.3 Routing ....................................................................................................................................... 61
6.3.2.4 Routing File................................................................................................................................. 62
6.3.2.5 Management-Protocols –HTTP, SNMP etc. .............................................................................. 63
6.3.2.5.1 SNMPv2 / SNMPv3 ........................................................................................................... 64
6.3.2.6 Time............................................................................................................................................ 65
6.3.2.6.1 Time Protocols –NTP, SNTP etc. ..................................................................................... 65
6.3.2.6.2 SINEC H1 time datagram .................................................................................................. 65
6.3.2.6.3 Transmission point of SINEC H1 time datagram ............................................................... 66
6.3.3 NTP Tab............................................................................................................................. 66
6.3.3.1 System Info................................................................................................................................. 67
6.3.3.2 Kernel Info .................................................................................................................................. 68
6.3.3.3 Peers .......................................................................................................................................... 68
6.3.3.4 Server Configuration................................................................................................................... 69
6.3.3.4.1 General / Synchronization Source..................................................................................... 69
6.3.3.4.2 General / Log NTP Messages to Syslog............................................................................ 69
6.3.3.4.3 Crystal Operation............................................................................................................... 70
6.3.3.4.4 Broadcast / Broadcast Address ......................................................................................... 71
6.3.3.4.5 Broadcast / Authentication / Key ID ................................................................................... 71
6.3.3.4.6 Additional NTP SERVERS................................................................................................. 71
6.3.3.5 Extended NTP Configuration...................................................................................................... 72
6.3.3.5.1 Suppression of unspecified NTP outputs (Block Output when Stratum Unspecified) ....... 72
6.3.3.5.2 NTP Timebase................................................................................................................... 72
6.3.3.6 Restart NTP................................................................................................................................ 74
6.3.3.7 Access Restrictions / Configuring the NTP Service Restrictions................................................. 74
6.3.3.7.1 NAT or Firewall.................................................................................................................. 75
6.3.3.7.2 Blocking Unauthorised Access .......................................................................................... 75
6.3.3.7.3 Allow Client Requests........................................................................................................ 76
6.3.3.7.4 Internal Client Protection / Local Network Threat Level..................................................... 76
6.3.3.7.5 Addition of Exceptions to Standard Restrictions................................................................ 77
6.3.3.7.6 Access Control Options ..................................................................................................... 78
6.3.3.8 Symmetric Key and Autokey....................................................................................................... 79
6.3.3.8.1 Why Authentication?.......................................................................................................... 79
6.3.3.8.2 How is Authentication used in the NTP Service?............................................................... 80
6.3.3.8.3 How is a key created? ....................................................................................................... 80
6.3.3.8.4 How does authentication work?......................................................................................... 80
6.3.3.9 Autokey / Public Key Cryptography ............................................................................................ 81
6.3.4 ALARM Tab........................................................................................................................ 82
6.3.4.1 Syslog Configuration................................................................................................................... 82
6.3.4.2 E-mail Configuration ................................................................................................................... 83
6.3.4.3 SNMP Configuration / TRAP Configuration ................................................................................ 84
6.3.4.4 Alarm Messages......................................................................................................................... 85
6.3.5 DEVICE Tab....................................................................................................................... 86
6.3.5.1 Device Information...................................................................................................................... 86
6.3.5.2 Hardware Information ................................................................................................................. 86
6.3.5.3 Restoring the Factory Settings - Factory Defaults ...................................................................... 87
6.3.5.4 Restarting the Board (Reboot Device / Hardware Reset) ........................................................... 88
6.3.5.5 Image Update & H8 Firmware Update........................................................................................ 89
6.3.5.5.1 Select Image Update......................................................................................................... 90
6.3.5.5.2 Start Image Update............................................................................................................ 91
6.3.5.6 Upload SSL-Server-Certificate.................................................................................................... 92
6.3.5.7 Customized Security Banner ...................................................................................................... 92
6.3.5.8 Option FG7273/PPM: Minute Pulse Length (PPM)..................................................................... 93
6.3.5.9 Product Activation....................................................................................................................... 94
6.3.5.10 Diagnostics Function .................................................................................................................. 95
6.3.5.11 Passwords (Master/Device)........................................................................................................ 95

TABLE OF CONTENTS
8 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
6.3.5.12 Downloading Configurations / SNMP MIB .................................................................................. 96
7SSH and Telnet Basic Configuration.........................................................................97
8Technical Data ............................................................................................................98
9Factory Defaults of Board 7273(RC)........................................................................100
9.1 Network.................................................................................................................100
9.2 NTP.......................................................................................................................101
9.3 ALARM..................................................................................................................102
9.4 DEVICE.................................................................................................................102
10 Glossary and Abbreviations ....................................................................................103
10.1 NTP-specific terminology.......................................................................................103
10.2 Tally Codes (NTP-specific)....................................................................................103
10.2.1 Time-specific expressions................................................................................................ 104
10.3 Abbreviations.........................................................................................................105
10.4 Definitions .............................................................................................................106
10.4.1 DHCP (Dynamic Host Configuration Protocol) ................................................................ 106
10.4.2 NTP (Network Time Protocol).......................................................................................... 106
10.4.3 SNMP (Simple Network Management Protocol).............................................................. 107
10.4.4 TCP/IP (Transmission Control Protocol / Internet Protocol) ............................................ 107
10.5 Syslog Messages..................................................................................................108
10.6 Accuracy & NTP Basic Principles..........................................................................108
11 List of RFC.................................................................................................................110
12 List of Open Source Packages used .......................................................................111

BOARD DESCRIPTION 7273 AND 7273RC
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 9 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1 Board Description 7273 and 7273RC
The LAN Boards 7273 and 7273RC are Network Time Server (abbreviation NTS) for the use
in the modular
hopf
Systems 7001RC, 7001, 6844, 6844RC and 6855 and also in the non
modular DIN Rail Systems such as GPS Module 6875.
Generally the NTP/SINEC H1 LAN boards 7273 and 7273RC provide
functions and fields of applications completely backward compatible to the
boards 7271 and 7271RC.
The boards 7273 and 7273RC can be used as direct replacements for
already supplied boards 7271 or rather 7271RC. The successor boards
provide all functions, adjustment options and protocols as offered by the
boards 7271 and 7271RC.
The successor boards are suitable for extensions of
hopf
Clock Systems,
already operating boards 7271 or rather 7271RC (mixed operation) without
problems.
The boards 7273 and 7273RC are equipped with Ethernet interface (ETH0) 10/100 Base-T
(autosensing).
The boards 7273 and 7273RC supports operation in IPv4 and IPv6
networks.
The boards 7273 and 7273RC can be used by networks for highly accurate synchronisation
over NTP (Network Time Protocol) which is available worldwide.
The following synchronisations protocols are available:
•NTP (including SNTP)
•SINEC H1 time datagram
•Daytime
•Time
The network connection of the LAN boards 7273 and 7273RC can be installed at any desired
point on the network. Each board 7273/7273RC is a completely independent NTP Time
Server.
Depending on the respective
hopf
system, a number of these LAN Boards can be
implemented (even subsequently) in the Base System on a modular basis.
A variety of management and monitoring functions are available (e.g. SNMP traps, E-mail
notification, Syslog messages).
Increased security is freely available via optional encryption methods such as symmetric keys,
Autokey and access restrictions and the disabling of unused protocols.

BOARD DESCRIPTION 7273 AND 7273RC
10 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
Extensive parameters are provided to suit the conditions of individual applications by means
of a variety of access / configuration channels.
•Depending on the clock system the accessibility of the LAN boards 7273 or 7273RC
can be adjusted in the network via the keyboard of the
hopf
base system or via a
hmc
remote connection.
•The boards are completely configured over Ethernet by means of a web browser:
oHTTP/HTTPS WebGUI (Graphical User Interface)
oOr text-based menus over Telnet and SSH
•Various protocols (e.g. IPv4, http, https, Telnet etc.) are available for the Ethernet
connection.
The Board 7273(RC) currently has unlockable features that are described in Chapter 2.6
Activation of Functions (Activation Key):
•IEEE 802.1Q Tagged VLAN
Some basic features of the boards:
Time Protocols
•NTPv4 Server
•NTP Broadcast Mode
•NTP Multicast Mode
•NTP Client for additional NTP Servers (redundancy)
•SNTP Server
•NTP Symmetric Key Encryption
•NTP Autokey Encryption
•NTP Access Restrictions
•PPS Time Source
•SINEC H1 time datagram
•RFC-867 DAYTIME Server
•RFC-868 TIME Server
Network Protocols
•HTTP/ HTTPS
•DHCP
•Telnet
•SSH
•SNMPv2 / SNMPv3, SNMP Traps (MIB II, Private Enterprise MIB)
•NTP (including SNTP)
•SINEC H1 time datagram

BOARD DESCRIPTION 7273 AND 7273RC
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 11 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
Configuration Channel
•HTTP/HTTPS WebGUI (browser-based)
•Telnet
•SSH
•External LAN configuration tool (
hmc
–Network-Configuration-Assistant)
•
hopf
7001RC system
hmc
, keypad and display –Board 7273RC only
•
hopf
7001 system keypad and display –Board 7273 only
•
hopf
68xx system (3U/Slim Line) keypad and display –Board 7273 only
•
hmc
Remote connection (for basic systems with remote function)
Ethernet Interface
•Auto negotiate
•10 Mbps half-/full duplex
•100 Mbps half-/full duplex
Additionally at Board 7273RC
•Hot-plug functionality
•NTP accuracy message for status and error messages in system 7001RC
Features
•HTTP/HTTPS (status, control)
•SNMPv2 / SNMPv3, SNMP Traps (MIB-II, Private Enterprise MIB)
•E-mail notification
•Syslog messages to external syslog server
•Update via TCP/IP
•Fail-safe
•Watchdog circuit
•Power management
•System management
•Customized security banner

BOARD DESCRIPTION 7273 AND 7273RC
12 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.1 Differences between the Boards 7273 and 7273RC
The board 7273RC is identical in function to the board 7273 but designed for the use in System
7001RC. For this purpose the board 7273RC additionally provides "Hot-Plug" and appropriate
internal interface functionality for the operation in a
hopf
7001RC Base System.
The boards 7273 and 7273RC should only be operated in the suitable Base
Systems.
The board 7273RC only works in a System 7001RC.
As the boards 7273 and 7273RC are identical in their most important
functions, the designation 7273(RC) is used in this manual unless there is
no different function of the boards.
In case a function is only provided by one of the two boards just the
designation of the appropriate board is used.
1.2 Overview of Assembly of Boards 7273(RC)

BOARD DESCRIPTION 7273 AND 7273RC
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 13 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.2.1 DIP Switch DS1
Depending on the type of board (7273 or 7273RC) the DIP switch DS1 is differently assigned.
1.2.1.1 Functions of the DIP Switch DS1 for Board 7273
The Base System in which the board is to be operated is set via DIP switch DS1. The board
number in the Base System is also set here.
DIP Switch
DS1
Function
8
Selection of the Base System 68xx or 7001
(see Chapter 3.3 + 3.4 )
7
No function at present
6
Transmissions point of SINEC H1 time datagram
(see Chapter 6.3.2.6.3)
5
Board number in System 7001 / 68xx
(see Chapter 3.3.1 + 3.4.1 )
4
3
2
1
1.2.1.2 Functions of the DIP Switch DS1 for Board 7273RC
Via DIP switch DS1 the board number in the Base System is set primary.
DIP Switch
DS1
Function
8
No function at present
7
Accuracy of the NTP message 7273RC is used in the system 7001RC for
the generation of status and error messages (see Chapter 3.5.2 )
6
Transmissions point of SINEC H1 time datagram
(see Chapter 6.3.2.6.3)
5
Board number in System 7001RC
(see Chapter 3.5.1 )
4
3
2
1
1.2.2 MAC Address for ETH0
Each LAN interface is uniquely identifiable in the Ethernet by means of a MAC address
(hardware address).
The MAC address assigned for the LAN interface ETH0 can be read in the WebGUI of the
appropriate board or determined by means of the
hmc
Network Configuration Assisant .
A unique MAC address is assigned for each LAN interface by
hopf
Elektronik GmbH.
hopf
Elektronik GmbH MAC addresses begin with 00:03:C7:xx:xx:xx.

BOARD DESCRIPTION 7273 AND 7273RC
14 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.3 Front Panels of Boards for the Different Housing Versions
1.3.1 Overview of Functions of the Front Panel Elements
This chapter describes the individual front panel elements and their functions.
1.3.1.1 SEND LED (not at DIN-Rail)
SEND LED
(yellow)
Description
Flashing /
flickering
Normal case –indicates access to the internal system
bus. Board 7273(RC) is correctly integrated into the
respective System.
Off
Board 7273(RC) is not ready for operation.
On
Fault on Board 7273(RC).
As the DIN Rail Systems have no internal system bus, there is no SEND
LED in the DIN Rail Systems available.
1.3.1.2 Reset Button (and Default Button)
The reset button is activated by means of a thin object through the hole in the
front panel next to the "Reset" inscription (see Chapter 2.3 Reset- (Default)
Button).
1.3.1.3 NTP Status LEDs (NTP/Stratum/Accuracy)
NTP-LED
(Green)
NTP Service of the Board 7273(RC)
On
Normal case, is started
Off
not started
Stratum1-LED
(Green)
NTP Service of the Board 7273(RC) works with:
On
Stratum 1
Flashing
Stratum 2-15
Off
Stratum16 (no synchronization of NTP clients)
Accuracy-LED
(Green)
NTP Service of the Board 7273(RC) works with
accuracy:
On
High accuracy
Flashing
Medium accuracy
Off
Low accuracy

BOARD DESCRIPTION 7273 AND 7273RC
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 15 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.3.1.4 USB Female Connector (Host)
The USB connection can be used for certain problems and after consulting the
hopf
support for a System recovery.
1.3.1.5 RJ45 Socket (ETH0)
10/100-LED
(Green)
Description
Off
10 MBit Ethernet detected.
On
100 MBit Ethernet detected.
lnk/act-LED
(Yellow)
Description
Off
No LAN connection to a network.
On
LAN connection available.
Flashes
Network activity (transmission / reception) at ETH0.
Pin-Nr.
Description
1
Tx+
2
Tx–
3
Rx+
4
Not in use
5
Not in use
6
Rx–
7
Not in use
8
Not in use
9
Not in use
1.3.1.6 Board Status LEDs (Operation/ERROR/Status last 24h)
The board 7273(RC) has 3 Status LEDs indicating the function status of the
board.

BOARD DESCRIPTION 7273 AND 7273RC
16 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.3.1.6.1 General Function
This describes the LED functions for the standard operation mode.
Operation-LED
(Green)
Description
On
Normal case, board 7273(RC) is in operation.
1Hz Flashing
Board 7273(RC) boots its operation system
(Duration approx. 1-1.5 minutes).
3Hz Flashing
A firmware update (Image) of board 7273(RC) is
processed (duration approx. 2-3 minutes).
Off
Board 7273(RC) is not ready for operation.
ERROR-LED (Red)
Description
Off
Normal case, board 7273(RC) is in operation
1Hz Flashing
Internal System error detected (incorrect
communication with the Base System).
5Hz Flashing
Fail-safe basic parameterization is not available
(emergency operation)
On
The primary CPU on board 7273(RC) shows no
activity.
Status last 24h-LED
(Green)
Description
Off
The NTP services of board 7273(RC) works less
than 1 hour with Stratum 1 or / and accuracy =
high
1Hz Flashing
The NTP services of board 7273(RC)
continuously works equal or greater to the value
of 1 hour with Stratum 1 and accuracy = HIGH
(optimum operation condition)
On
The NTP services of board 7273(RC)
continuously works more than 24 hours with
Stratum 1 and accuracy = HIGH (optimum
operation condition)
1.3.1.6.1 Function by Pressing the Reset Button
The duration of pressing the Reset button in the front panel of the board can be read by the
behaviour of all 3 Status LEDs.
All 3 LED
(Operation-LED,
ERROR-LED and
Status last 24h-LED)
Description of Special Function
LED Basis Function
Keypress: 0-1 second
2Hz Flashing
Keypress: 1-10 seconds
5Hz Flashing
Keypress: >10 seconds

BOARD DESCRIPTION 7273 AND 7273RC
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 17 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.3.1.6.2 Special Function for Update and Hardware Problems
A malfunction of the onboard µController (update/defect) can be recognized by the behaviour
of the 3 Status LEDs.
All 3 LED (Operation-
LED, ERROR-LED and
Status last 24h-LED)
Description of Special Function
0,5Hz Flashing
Firmware update of µController is active or the
µController is defective
1.3.1.7 Option: Active 12V DC PPM (Minute Pulse)
For output of an active minute pulse (PPM) the board 7273(RC) is optionally available with an
additional 3 pole pluggable screw terminal (FG7273/PPM). An upgrade of this option by the
customer is not possible.
Version 7273(RC) für 3HE Systeme
Version 7273 DIN-Rail
Pin No.
Assignment
1
Defined duration of minute pulse (isolated, reference
potential GND1)
2
+12V DC (isolated, reference potential GND1)
3
GND1 (isolated for minute pulse / +12V DC)

BOARD DESCRIPTION 7273 AND 7273RC
18 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.3.2 Front Panel of Boards 7273 and 7273RC for 3U / 19" Racks
Board 7273
3U/4HP
Board 7273
3U/4HP
with Option
FG7273/PPM
Board 7273RC
3U/4HP
Board 7273RC
3U/4HP
with Option
FG7273/PPM
Optionally the board 7273(RC) is assembled with a 3-pole pluggable screw terminal for output
of a minute pulse (PPM).
Parameterization see Chapter 6.3.5.8 Option FG7273/PPM: Minute Pulse Length (PPM)

BOARD DESCRIPTION 7273 AND 7273RC
7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00 19 / 113
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.3.3 Front Panel of Board 7273 for 1U / 19" Racks (Slim Line)
Board 7273/1U
1U (Slim Line)
Board 7273/1U
1U (Slim Line)
with Option
FG7273/PPM
Optionally the board 7273(RC) is assembled with a 3-pole pluggable screw terminal for output
of a minute pulse (PPM).
Parameterization see Chapter 6.3.5.8 Option FG7273/PPM: Minute Pulse Length (PPM)

BOARD DESCRIPTION 7273 AND 7273RC
20 / 113 7273 and 7273RC NTP/SINEC H1 LAN Board - V08.00
hopf
Elektronik GmbH
Nottebohmstr. 41
•
D-58511 Lüdenscheid
•
Tel.: +49 (0)2351 9386-86
•
Fax: +49 (0)2351 9386-93
•
Internet: http://www.hopf.com
•
1.3.4 Front Panel of Board 7273 for DIN Rail Mounting
Board 7273DIN-Rail
Board 7273DIN-Rail
with Option
FG7273/PPM
The board 7273DIN-Rail is non-modular pluggable. A replacement of
board can only be done in the factory at company
hopf
.
Optionally the board 7273(RC) is assembled with a 3-pole pluggable screw terminal for output
of a minute pulse (PPM).
Parameterization see Chapter 6.3.5.8 Option FG7273/PPM: Minute Pulse Length (PPM)
