Horiba Scientific LAQUA-PD210 User manual

I
CODE:M003658-3200793612-GZ0000553861
March,2019 © 2019 HORIBA Advanced Techno Co., Ltd.
• Preface
This manual describes the operation of the following instrument.
Be sure to read this manual before using the product to ensure proper and safe operation of
the product. Also, safely store the manual so it is readily available whenever necessary.
Product specifications and appearance, as well as the contents of this manual are subject to
change without notice.
• Warranty and responsibility
HORIBA Advanced Techno Co., Ltd. warrants that the product shall be free from defects in
material and workmanship and agrees to repair or replace free of charge, at option of HORIBA
Advanced Techno Co., Ltd., any malfunctioned or damaged product attributable to
responsibility of HORIBA Advanced Techno Co., Ltd. for a period of Three (3) years from the
delivery unless otherwise agreed in a written statement. In any one of the following cases,
none of the warranties set forth herein shall be extended:
• Any malfunction or damage attributable to improper operation
• Any malfunction attributable to repair or modification by any person not authorized by
HORIBA Advanced Techno Co., Ltd.
• Any malfunction or damage attributable to the use in an environment not specified in this
manual
• Any malfunction or damage attributable to violation of the instructions in this manual or
operations in the manner not specified in this manual
• Any malfunction or damage attributable to any cause or causes beyond the reasonable
control of HORIBA Advanced Techno Co., Ltd. such as natural disasters
• Any deterioration in appearance attributable to corrosion, rust, and so on
• Replacement of consumables
HORIBA Advanced Techno Co., Ltd. SHALL NOT BE LIABLE FOR ANY DAMAGES
RESULTING FROM ANY MALFUNCTIONS OF THE PRODUCT, ANY ERASURE OF DATA,
OR ANY OTHER USES OF THE PRODUCT.
• Trademarks
• Microsoft, Windows, Windows Vista are registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
Other company names and brand names are either registered trademarks or trademarks of the
respective companies. (R), (TM) symbols may be omitted in this manual.
Brand: LAQUA
Series name: LAQUA 200 Series Handheld Water Quality Meter
Model: LAQUA-PD210, LAQUA-PD220
Model description: pH/ORP/Dissolved Oxygen Meter

Regulations
II
• Regulations
• EU regulations
• Conformable standards
This equipment conforms to the following standards:
Warning: This product is not intended for use in industrial environments. In an
industrial environment, electromagnetic environmental effects may
cause the incorrect performance of the product in which case the
user may be required to take adequate measures.
• Information on disposal of electrical and electronic equipment and disposal
of batteries and accumulators
The crossed out wheeled bin symbol with underbar shown on the product or accompanying
documents indicates the product requires appropriate treatment, collection and recycle for
waste electrical and electronic equipment (WEEE) under the Directive 2012/19/EU, and/or
waste batteries and accumulators under the Directive 2006/66/EC in the European Union.
The symbol might be put with one of the chemical symbols below. In this case, it satisfies
the requirements of the Directive 2006/66/EC for the object chemical. This product should not
be disposed of unsorted household waste. Your correct disposal of WEEE, waste batteries and
accumulators will contribute to reducing wasteful consumption of natural resources, and
protecting human health and the environment from potential negative effects caused by
hazardous substance in products.
Contact your supplier for information on applicable disposal methods.
• Authorised representative in EU
HORIBA UK Limited
Kyoto Close, Moulton Park,
Northampton, NN3 6FL, United Kingdom
EMC: EN61326-1
Class B, Basic electromagnetic environment
RoHS: EN50581
9. Monitoring and control instruments

Regulations
III
• FCC rules
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Responsible Party for FCC matter
HORIBA Instruments Incorporated
Head Office
9755 Research Drive
Irvine, California 92618 USA
[phone]
Note
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
• Korea certification
• Taiwan battery recycling marks

Regulations
IV
• China regulation
标记的意义
Meaning of Marking
本标记适用在中华人民共和国销售电器电子产品，标记中央的数字
表示环境保护使用期限的年数。( 不是表示产品质量保证期间。)
只要遵守这个产品有关的安全和使用注意事项，从制造日开始算起
在这个年限内，不会给环境污染、人体和财产带来严重的影响。请
不要随意废弃本电器电子产品。
This marking is applied to electric and electronic products sold in
the People's Republic of China. The figure at the center of the
marking indicates the environmental protection use period in
years. (It does not indicate a product guarantee period.) It
guarantees that the product will not cause environment pollution
nor serious influence on human body and property within the
period of the indicated years which is counted from the date of
manufacture as far as the safety and usage precautions for the
product are observed. Do not throw away this product without any
good reason.

Regulations
V
产品中有害物质的名称及含量
Name and amount of hazardous substance used in a product
*1: 本部件的环保使用期限为 10 年。 The environmental protection use period
of this product is 10 years.
*2: 选配件 Optional products
部件名称
Unit name
有害物质
Hazardous substances
铅
Lead
(Pb)
汞
Mer-
cury
(Hg)
镉
Cad-
mium
(Cd)
六价铬
Hexa-
valent
chromium
(Cr (VI))
多溴联苯
Poly
bromobi-
phenyl
(PBB)
多溴二苯醚
Poly
bromo-
diphenyl
ether
(PBDE)
本体
Main unit ×○○ ○ ○ ○
电池
Battery ×○○ ○ ○ ○
AC 适配器
AC adopter*1,*2 ×○○ ○ ○ ○
电缆
Cable*2 ×○○ ○ ○ ○
支架
Stand*2 ○○○ ○ ○ ○
打印机
Printer*2 ×○○ ○ ○ ○
电极
Electrode*2 ×○×○○ ○
本表格依据 SJ/T 11364 的规定编制。
This form is prepared in accordance with SJ/T 11364.
○:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要
求以下。
Denotes that the amount of the hazardous substance contained in all of the
homogeneous materials used in the component is below the limit on the acceptable
amount stipulated in the GB/T 26572.
×: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的
限量要求。
Denotes that the amount of the hazardous substance contained in any of the
homogeneous materials used in the component is above the limit on the acceptable
amount stipulated in the GB/T 26572.

For Your Safety
VI
• For Your Safety
• Hazard classification and warning symbols
Warning messages are described in the following manner. Read the messages and follow the
instructions carefully.
• Hazard classification
• Warning symbols
This indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury. This is to be
limited to the most extreme situations.
This indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
This indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may also
be used to alert against unsafe practices.
Description of what should be done, or what should be
followed.
Description of what should never be done, or what is
prohibited.

For Your Safety
VII
• Safety precautions
This section provides precautions for using the product safely and correctly and to prevent
injury and damage. The terms of DANGER, WARNING, and CAUTION indicate the degree of
immanency and hazardous situation. Read the precautions carefully as it contains important
safety messages.
• Instrument and electrode
Do not disassemble or modify the instrument. Otherwise, it may heat up or be ignited
resulting in a fire or an accident.
Harmful chemicals
Some electrodes are used with hazardous standard solutions. Handle them with care.
The internal solution of pH electrode is highly concentrated potassium chloride (3.33
mol/L KCl) and internal solution of DO electrode is highly concentrated potassium
hydroxide (KOH). If the internal solution comes in contact with the skin, wash it off
immediately. If it gets into the eyes, flush with plenty of water and then consult a
doctor.
Broken glass
Broken glass may cause injury. The outer tube and tip of an electrode are made of
glass. Handle them with care.
Do not use the phono jack under wet or humid conditions. Otherwise, it may cause a
fire, electric shock, or breakage.

For Your Safety
VIII
• Battery
Keep batteries out of reach of children. If someone accidentally swallows a battery,
consult a doctor immediately.
If alkaline fluid from a battery gets into the eyes, do not rub the eyes, rinse with clean
water immediately and then consult a doctor. Contact with alkaline fluid could cause
blindness.
Do not put batteries in a fire, expose to heat, disassemble or remodel.
Doing so can case fluid leakage, overheating or explosion.

Product Handling Information
IX
• Product Handling Information
• Operational precautions (instrument)
• Only use the product including accessories for their intended purpose.
• Do not drop or physically impact the instrument.
• The instrument is made of solvent-resistant materials but that does not mean it is resistant
to all chemicals. Do not expose the instrument in strong acid or alkali solution, or wipe with
such solution.
• If the instrument is dropped into water or gets wet, wipe it using soft cloth. Do not heat to
dry it.
• The instrument has a dust-proof and waterproof structure i.e., the instrument does not
malfunction even when immersed in water of 1 m depth for 30 minutes. This does
guarantee non-destructive, trouble-free, dust-proof, and waterproof performance in all
situations.
• When replacing the batteries or when a serial cable connected, the instrument does not
have the dust-proof and waterproof performance. The dust-proof and waterproof
performance is maintained only when the covers are attached correctly.
• After replacing the batteries or removing the serial cable connected, make sure that the
waterproof gasket attached to the cover is not deformed or discolored, or has foreign
matter adhering to it. If the waterproof gasket is deformed, discolored or has foreign matter
adhering to it, dust could get inside, water leaks could occur that could lead to instrument
malfunction.
• To disconnect an electrode or serial cable, hold the connector and pull it off. If you pull at
the cable, it may cause breakage.
• The phono jack communication between the instrument and a personal computer (referred
to as PC in the rest of this document) may fail because of environmental conditions, such
as electromagnetic noise.
• Do not replace the batteries in a dusty place or with wet hands. Dust or moisture could get
inside the instrument, possibly causing instrument malfunction.
• Do not use an object with a sharp end to press the keys.
• If the power supply is interrupted while measurement data is being saved in the instrument,
the data could be corrupted.
• A NiMH rechargeable battery can be used in this instrument.
• Operational precautions (battery)
• Do not short circuit a battery.
• Position the + and side of the battery correctly.
• When the battery has depleted or the instrument will not be used for a long time, remove
the batteries.
• Of the specified battery types, make sure to use two batteries of the same type.
• Do not use a new battery together with a used battery.
• Do not use a fully charged nickel-metal hydride battery together with a partially charged
battery.
• Do not attempt to charge a non-rechargeable battery.

Product Handling Information
X
• Environmental conditions for use and storage
• Temperature: 0 °C to 45 °C
• Humidity: under 80% relative humidity and free from condensation
• Avoid the following conditions:
• Strong vibration
• Direct sunlight
• Corrosive gas environment
• Locations close to an air-conditioner
• Direct wind
• Transportation
When transporting the instrument, repackage it in the original package box. Otherwise, it may
cause instrument damage.
• Disposal
• Standard solution used for the calibration must be under neutralized before the disposal.
• When disposing of the product, follow the related laws and regulations of your country for
disposal of the product.

Contents
XI
■Product Overview ............................................................. 1
●Package Content........................................................ 1
●Key Features .............................................................. 2
●Product components ................................................. 3
■Basic operations ............................................................... 7
●Mode and measurement............................................ 9
■Calibration ....................................................................... 11
●pH Calibration ...........................................................11
●ORP/mV Calibration................................................. 13
●DO Calibration.......................................................... 15
●Temperature Calibration ......................................... 21
■Data .................................................................................. 23
●Data capture and storage........................................ 23
●Data transfer............................................................. 24
■Setup ................................................................................ 25
●P1 pH setup .............................................................. 25
●P1 DO setup ............................................................. 29
●P2 Data setup ........................................................... 33
●P3 General setup ..................................................... 40
●P4 CLK setup ........................................................... 49
■Maintenance and storage .............................................. 54
●Maintenance and storage of the instrument ......... 54

Contents
XII
●Maintenance and storage of electrodes ............... 55
■Error messages and trouble shooting .......................... 57
■Appendix ......................................................................... 62
●Appendix 1 ............................................................... 62
●Appendix 2 ............................................................... 65
●Appendix 3 ............................................................... 65

Product overview
1
■Product Overview
This section describes the package content, key features and product components of LAQUA
PD200 handheld meters.
●Package Content
After opening the carry case, remove the meter and check for damage on the instrument and
confirm that the standard accessories all exist. If damage or defects are found on the product,
contact your dealer.
LAQUA PD200 Series Handheld meter and meter kit include the following items:
S.NO. Name
1 Instrument
2 Instruction manual
3 2 AA batteries
4 Electrodes
5 Calibrating solutions
1
2
35
4

Product overview
2
●Key Features
• IP67 water ingress, dust-proof, shock-resistant, anti-slip meter housing.
• Large monochrome LCD (50 x 50 mm) with white LED back lighting.
• Built-in electrode holder (up to 2 electrodes).
• Foldable meter stand.
• Simple user interface and single parameter display.
• 500 (for PD210) / 1000 (for PD220) data memory.
• Automatic Temperature Compensation (ATC) with temperature calibration.
• Adjustable auto shut-off time (1 to 30 minutes).
• Auto-hold / Auto stable / Real-time measurement modes with stability indicator.
• Powered by 2 x AA batteries.
• Real-time clock (only for PD220).
• PC (standard USB) / Printer (25 pin serial) connection via 2.5 mm diameter phono jack.

Product overview
3
●Product components
No Name Function
1 Monochrome LCD Displays the measured value
2 Operation keys Used for instrument operation
3 Electrode connector Connect to the BNC connector of the electrode
4 Temperature connector (T) Connect to the temperature sensor of the electrode
5 Battery cover Open/close to insert/remove batteries
6 Electrode holder Hold the electrode to carry with the instrument
7 Meter stand Open stand to place the meter at an inclined position on a
flat surface
8 Serial connector Connects the serial cable and printer cable

Product overview
4
●Display
No Name Function
1 Status Icon Displays the current operation mode (Setup, Calibration,
Measurement and Data mode)
2 Parameters Displays the measured parameters like pH, RmV, and DO
3Stability indicator shows value is stable for documentation in
Auto Stable and Auto Hold modes
4Appears when the measured value display is stable and fixed in
auto-hold mode
5Temperature display
area Displays the measured temperature
6Measured value, set
item display area Displays the measured value and the set value
7 Indicates electrode sensitivity level
8Indicates error situation
9 Indicates data being transfered to the printer or computer
10 Displays the unit for the measurement parameter
11 Displays the battery level

Product overview
5
●Battery level display
●Electrode sensitivity level
100% battery life
50% battery life
20% battery life
Batteries are weak and need replacement. Refer “ BATT LOW ” (page 57) to
solve this
Electrode sensitivity above 95%(excellent)
Electrode sensitivity between 85% to 95% (very good)
Electrode sensitivity between 80% to 85%(good). Refer “ SLPE ERR ” (page
57) to solve this

Product overview
6

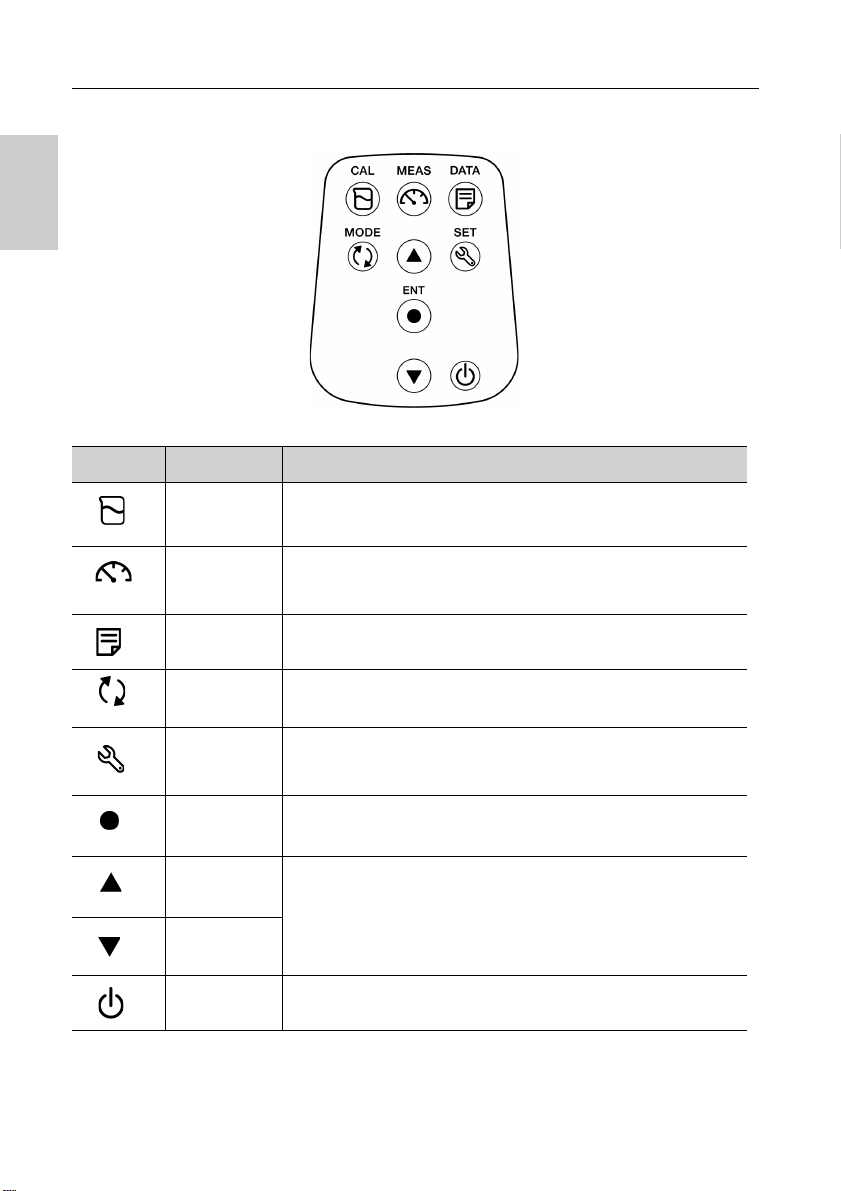

●Keypad operation
Keypad Name Function
CAL key Switches from the measurement mode to the calibration mode.
Starts calibration in the calibration mode.
MEAS key
Switches the operation mode to the measurement mode.
Releases the fixed measurement value mode in the auto hold
mode and begins a fresh measurement.
DATA key Switches from the measurement mode to the data mode.
MODE key In the measurement mode, changes measurement parameters.
SET key Switches from the measurement mode to the setup mode.
ENTER key Determines the selection or setup.
Saves data in the measurement mode and calibration mode.
UP key In the setup mode, navigates between various setups.
Selects preferred option in some setup screens.
Increases or decreases selected digit when entering numbers.
DOWN key
POWER key Powers ON/OFF the instrument.
