Hoshizaki Temp Guard PTR1SSB01-10 User manual

ISSUED:
71239
June 8, 2005
NUMBER:
HOSHIZAKI
TempGuardTM PASS THROUGH
MODEL
PTR1-SSB01-10
PARTS LIST
with

2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Pass Through .................................................................................................................... 5
B. Refrigeration System ......................................................................................................... 7
C. Control Panel Assembly (Glass Door Side) ...................................................................... 9
D. Front Panel Assembly - Hinged (Glass Door Side) ......................................................... 10
E. Control Panel Assembly (SS Door Side) ......................................................................... 11
F. Front Panel Assembly (SS Door Side) ............................................................................. 12
G. Body - Final ..................................................................................................................... 13
H. Label Location ................................................................................................................. 16
J. Fan - Evaporator Assembly .............................................................................................. 17
K. Evaporator Assembly ...................................................................................................... 18
L. Condenser Assembly ....................................................................................................... 19
M. Control Box Assembly ..................................................................................................... 20
N. Body - Prefinal ................................................................................................................. 22
P. Door - Half (UR) ............................................................................................................... 24
Q. Door - Half (LR) ............................................................................................................... 25
R. Mullion - Horizontal ......................................................................................................... 26
S. Literature & Packaging .................................................................................................... 27

3
Auxiliary Codes
PTR1-SSB01-10 M-5 August 2002
N-6 April 2003
P-5 January 2004
Q-5 December 2004
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must
be ordered separately.

4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
K-5
Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates significant part changes within the same year for this model. Base is 5 and this number
advances for each change.
Example: P-6
"P" indicates 2004.
"6" indicates the first significant part change for 2004.

5
A. Pass Through
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
1a
1
BB1 B2
CC1
DD1 D2 D3
D4 D5 D6 D7
EE1
FF1
G
H
1b
2a
22b
3a
33b 3c

6
Title: A. Pass Through Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
B REFRIGERERATION SYSTEM 1A0705A01 1
B1 BOLT ASSY 8x45 437889-01 1
B2 T2 SCREW 4x20, SS 7P32-0420 2
C CONTROL PANEL ASSEMBLY
(GLASS DOOR SIDE)
2A1269A05 1
C1 T2 SCREW 4x8, SS 7P32-0408 4
D FRONT PANEL ASSEMBLY -
HINGED (GLASS DOOR SIDE)
2A2011A01 1
D1 CLEVIS PIN 8907-0105 2
D2 COTTER PIN 8907-0103 2
D3 FLAT WASHER 4A0655-03 2
D4 BRACKET-HINGE 4A2306-01 2
D5 POP RIVET SSD(43)SSBS 7172-4300 4
D6 T2 SCREW 4x8, SS 7P32-0408 4
D7 SPACER-HINGE 4A2473-01 2
E CONTROL PANEL ASSEMBLY
(SS DOOR SIDE)
2A1269A06 1
E1 T2 SCREW 4x8, SS 7P32-0408 4
F FRONT PANEL ASSEMBLY
(SS DOOR SIDE)
3A2518G01 1
F1 TRUSS HEAD SCREW 5x8, SS 7C32-0508 4
G BODY-FINAL 1A0687A01 1
H LABEL LOCATION 2A1042A11 1
1 COVER-UL TOP 2A2505-01 1
1a T2 SCREW 4x8, SS 7P32-0408 2
1b TRUSS HEAD SCREW 5x10, SS 7C32-0510 3
2 FRAME-SIDE TOP 2A1803-01 2
2a TRUSS HEAD SCREW 5x10, SS 7C32-0510 8
2b INSERT-THREADED M5 4A0407-01 1
3 PANEL-SIDE TOP 2A1800-01 2
3a SCREW COUNTERSUNK 5x20, SS 7C42-0520 8
3b TAPER COLLAR 4H0171-01 8
3c T2 SCREW 4x8, SS 7P32-0408 4

7

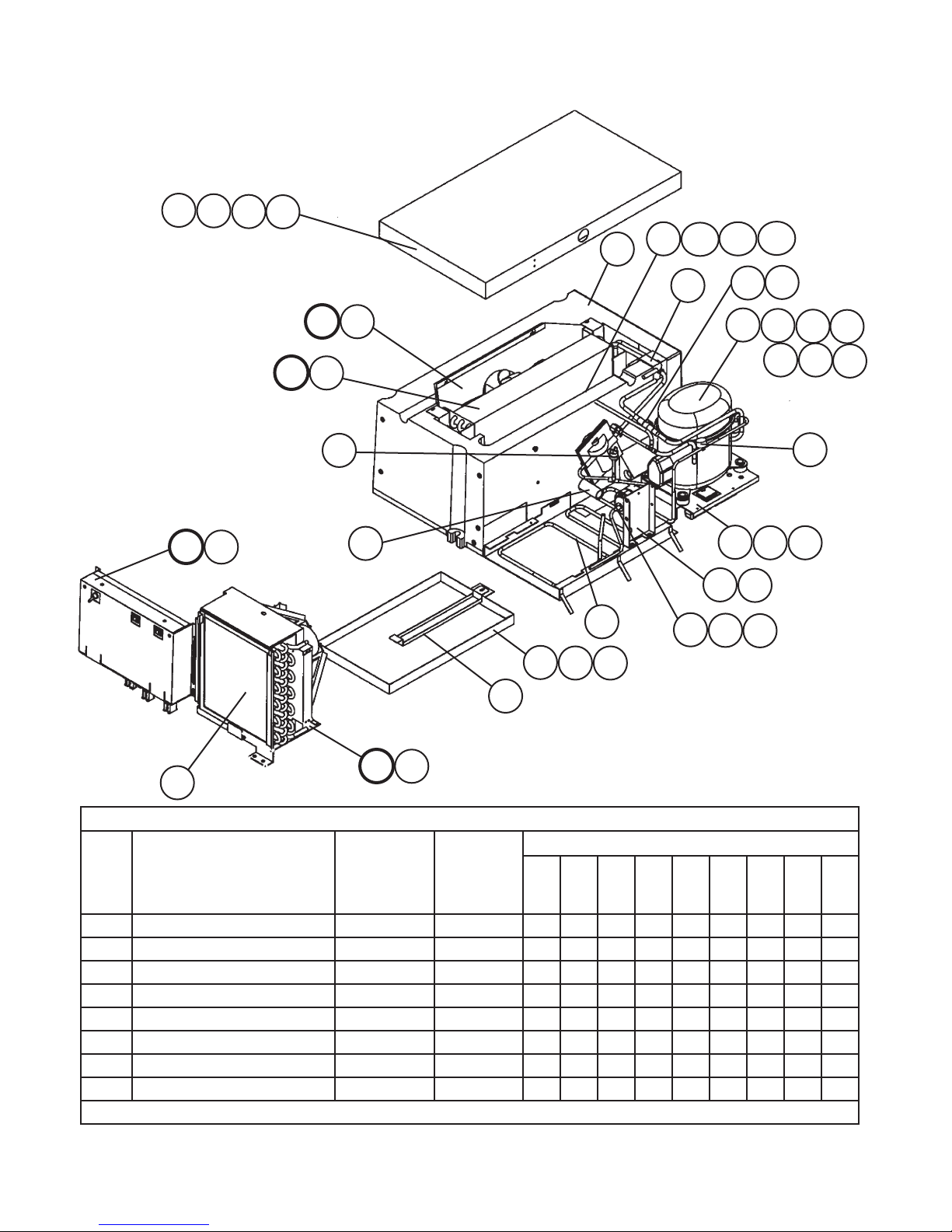

B. Refrigeration System
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
10
JJ1
KK1
LL1
MM1 2a
22b
3a
33b
12a
4
5a
55b 5c
6a
66b 6c
6d 6e 6f
7a
7
8a
88b
9
11
12b 12c
12
13
14
15 16
1
17
Title: B. Refrigeration System Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
J FAN-EVAPORATOR ASSY 2A0980A01 1
J1 TRUSS HEAD SCREW 4x12, SS 7C32-0412 4
K EVAPORATOR ASSEMBLY 2A0981A04 1
K1 TRUSS HEAD SCREW 4x20, SS 7C32-0420 2
L CONDENSER ASSEMBLY 3A2611A01 1
L1 T2 SCREW 4x8, SS 7P32-0408 2
M CONTROL BOX ASSEMBLY 2A1729A02 1
M1 TRUSS HEAD SCREW 4x16, SS 7C32-0416 4

8
Title: B. Refrigeration System Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 EVAP-CASE POSTFOAM 1A0712G05 1
2 BASE-COMPRESSOR 2A2756G01 1
2a TRUSS HEAD SCREW 4x16, SS 7C32-0416 1
2b TRUSS HEAD SCREW 5x10, SS 7C32-0510 1
3 PAN-EVAP DRAIN 2A0616-03 1
3a TRUSSHEAD SCREW 5X12, SS 7C32-0512 1
3b GASKET-COND COIL 4A0455-03 1
4 STRAP-CONDENSATE COIL 3A0232-03 1
5 COVER-EVAP CASE(1 SEC) 2A2726G01 1
5a DRAW LATCH 4A1710-01 4
5b TRUSS HEAD SCREW 4x16, SS 7C32-0416 4
5c T2 SCREW 4x8, SS 7P32-0408 8
6 COMPRESSOR 4A2785-01 1
6a GROMMET 4A2593-01 4
6b SPACER 4A2595-01 4
6c HEX BOLT 8x45 7B01-0845 4
6d FLAT WASHER 8 7W21-0800 4
6e SPLIT LOCK WASHER 8 7L21-0800 4
6f PROTECTOR 4A2634-02 1
7 DRIER BRACKET 4A0806-01 1
7a T2 SCREW 4X8, SS 7P32-0408 2
8 DRIER 4A0924-01 1
8a MOUNT-DRIER 4A1480-01 1
8b T2 SCREW 4X8, SS 7P32-0408 2
9 SWITCH-PRESSURE 4A2516-02 1
10 COIL-CONDENSATE 3A1644-01 1
11 PIPE-EVAP DRAIN 4A0831-01 1
12 THERMISTOR-CABINET TAIKO 4A1429 4A1429-01 1
12a THERMISTOR BRACKET 433964-01 1
12b THERMISTOR BRACKET 433920-01 1
12c TRUSS HEAD SCREW 4x16, SS 7C32-0416 2
13 FILTER-COND 3A0277-01 1
14 THERMOSTAT-CLEAN FILTER 4A0484-02 1
15 HOLDER/EXP. VALVE 3A0107-01 1
16 HOSE CLAMP 443461-01 1
17 SEAL-EVAP TUBING 4A0642-01 2

9

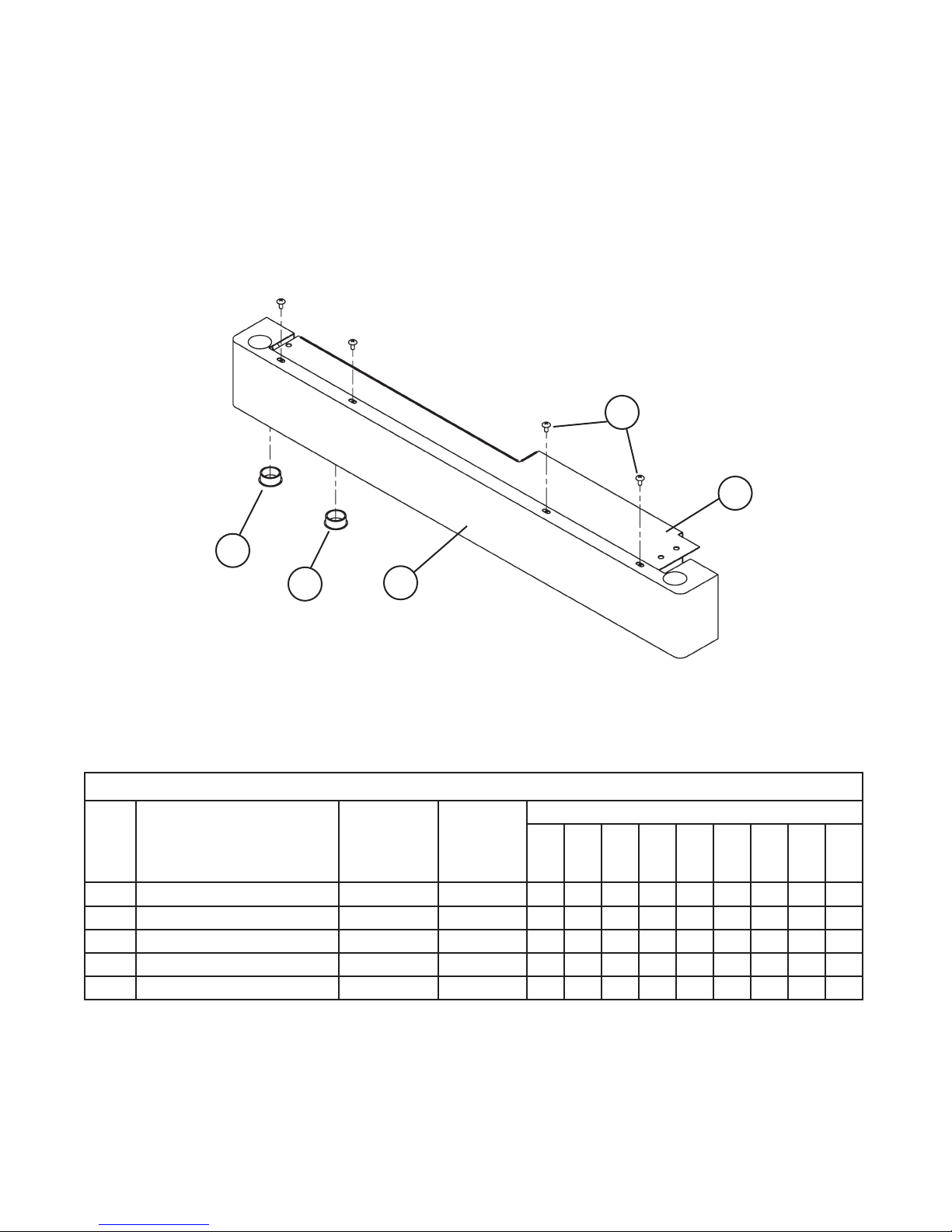

C. Control Panel Assembly (Glass Door Side)
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
Title: C. Control Panel Assembly (Glass Door Side) Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 COVER-WIRE 2A1033-01 1
1a T2 SCREW 4X8 SUS 7P32-0408 4
2 LOCKING HOLE PLUG 4A0586-02 2
3 LOCKING HOLE PLUG 4A0586-03 1
4 PANEL-CONTROL 1A0760-03 1
1a
1
2
3
4

10

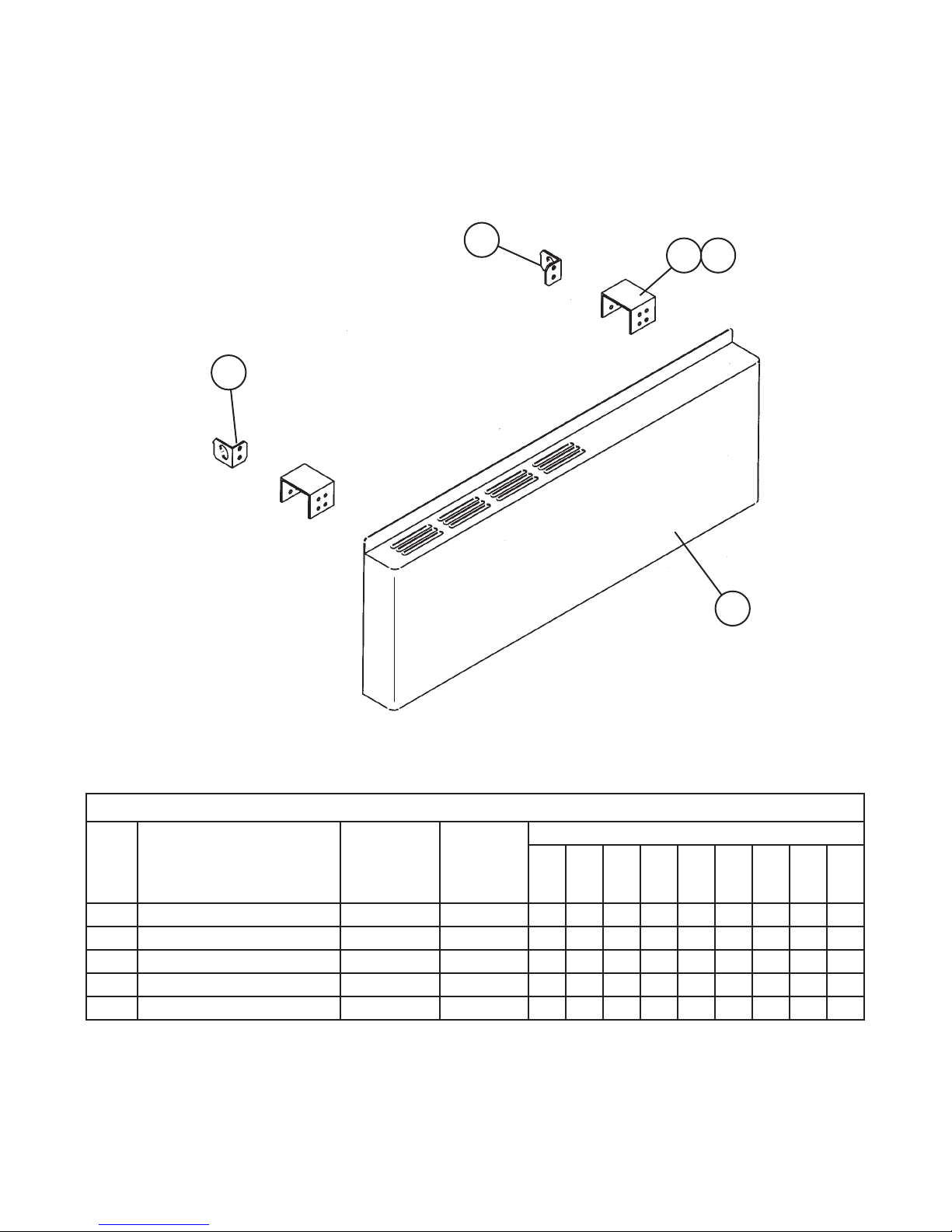

D. Front Panel Assembly - Hinged (Glass Door Side)
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
Title: D. Front Panel Assembly - Hinged (Glass Door Side) Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 HINGE – FRONT PANEL (L) GS 4A2153-01 1
2 HINGE – FRONT PANEL (R) GS 4A2154-01 1
3 CHANNEL – HINGE GS 4A2170-01 2
3a TRUSS HEAD SCREW 5X8, SS 7C32-0508 4
4 PANEL – FRONT SS 1A0624-01 1
1
3 3a
2
4

11

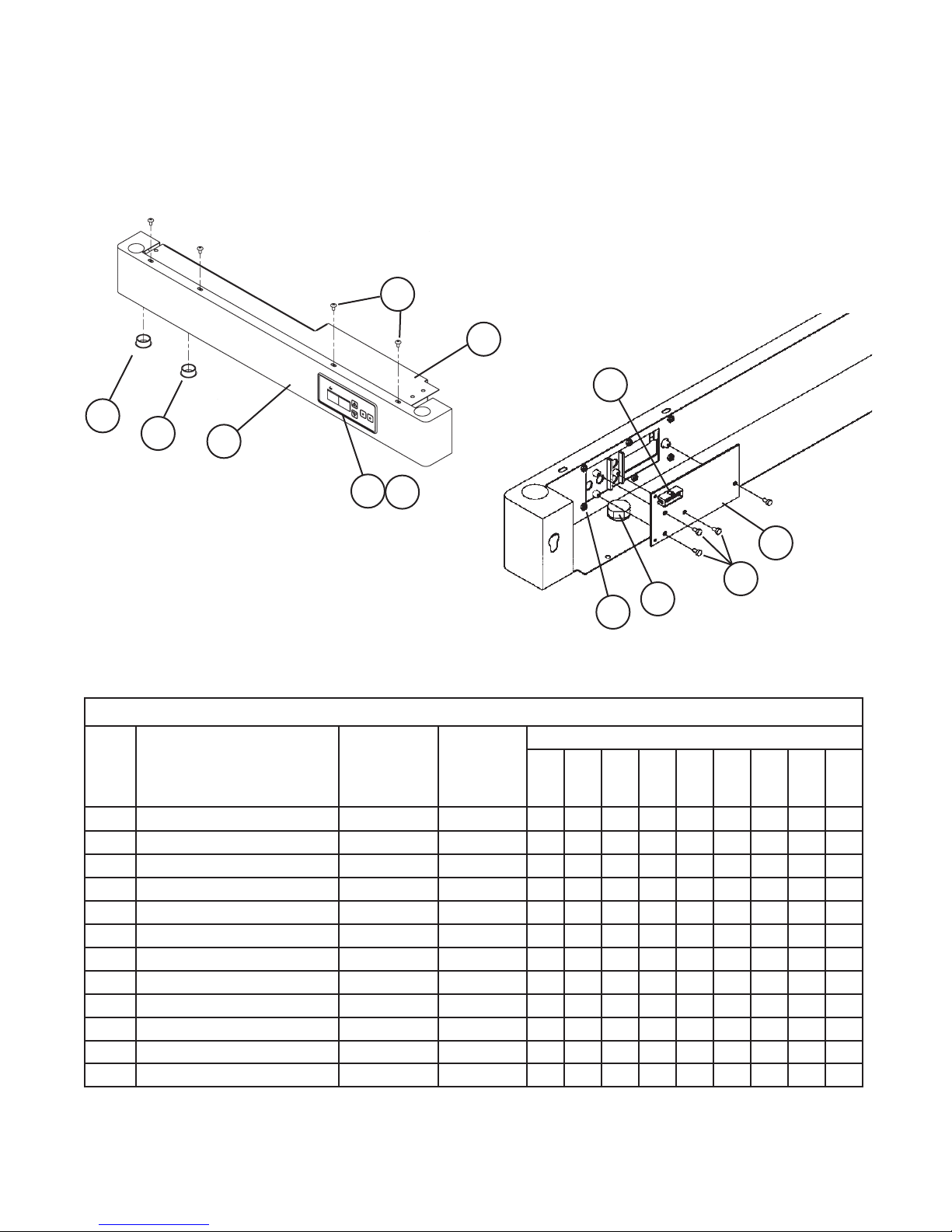

E. Control Panel Assembly (SS Door Side)
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
Title: E. Control Panel Assembly (SS Door Side) Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 COVER-WIRE 3A2577-01 1
1a T2 SCREW 4X8 SUS 7P32-0408 4
2 LOCKING HOLE PLUG 4A0586-02 2
3 LOCKING HOLE PLUG 4A0586-03 1
4 PANEL-CONTROL 1A0760-01 1
5 BOARD-DISPLAY 2A0883-01 1
6 NYLON SCREW 4A1397-01 4
7 PALNUT 4A1398-01 6
8 MOUNT-DISPLAY BOARD 3A0823-01 1
9 LABEL-DISPLAY 3A2850-01 1
10 BUSHING SB-1093-15 420470-03 2
11 RIBBON CABLE 4A1106-03 1
1a
1
2
3
4
89
710
6
5
11

12
F. Front Panel Assembly (SS Door Side)
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
11a
Title: F. Front Panel Assembly (SS Door Side) Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 PANEL – FRONT SS 1A0624-05 1
1a THREADED INSERT M5 4A0407-01 2

13
13
9
8
11
12
4
5
1
7
2
3
6
9
8
4
10
N
N1
P
Q
R
A
C
D
B
G. Body - Final
(1/2)
PTR1-SSB01-10
M-5, N-6, P-5, Q-5

14
G. Body - Final
(2/2)
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
15
17
16
14a
B
B
A
A
14 14b 14c 14d
14e 14f 14g 14h
18
19 20 20a
19 21 21a

15
Title: G. Body - Final Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
N BODY-PREFINAL 1A0354A05 1
N1 TRUSSHEAD SCREW 5X10 SUS 7C32-0510 25
P DOOR-HALF(UR) 1A0326A03 1
Q DOOR-HALF(LR) 1A0324A03 1
R MULLION-HORIZONTAL 2A1323A05 1
1 HINGE-STOP PIN 4A2180-01 1
2 HINGE-TENSION SCREW 4A0446-01 2
3 HINGE-BUSHING COVER 4A0445-01 2
4 HINGE-LOCK WASHER 4A0553-01 2
5 HINGE-PIVOT PIN(TOP) 4A2179-01 1
6 BRACKET-DOOR HINGE(LR) 3A1626-01 1
7 BRACKET-DOOR HINGE(UR) 3A1580-01 1
8 HINGE-STOP PLATE(R) 4A0441-01 2
9 SCREW-STOP PLATE 4A0483-01 2
10 COVER-CORNER 3A1751-01 8
11 STOP PIN 4A1734-01 1
12 PIVOT PIN 4A1735-01 1
13 BRACKET-DOOR HINGE(UL) 3A1581-01 1
14 GLASSDOOR-HALF(R) 4A2819-01 2
14a PIN-GLASSDOOR 4A2047-01 2
14b CLIP-GLASSDOOR 4A2048-02 2
14c ROD-TORQUE 4A2072-02 2
14d GASKET-GLASSDOOR 4A2052-02 2
14e HANDLE-GLASSDOOR 4A2106-01 2
14f CRANK, TORQUE 4A2068-01 4
14g PIN, TORQUE 4A2071-01 2
14h PLUG-HALF GLASSDOOR 4A2818-01 2
15 HALF GLASSDOOR HINGE-
UPPER
3A2442G01 2
16 HALF GLASSDOOR HINGE-
LOWER
3A2443G01 2
17 PIN, TORQUE 4A2071-01 2
18 MULLION-PREFOAM(H) 2A1313G05 1
19 LAMP-FLUORESCENT 4A2787-01 2
20 LAMPHOLDER-LOWER 3A2498G02 1
20a T2 SCREW 4x8 SUS 7P32-0408 2
21 LAMPHOLDER-UPPER 3A2498G01 1
21a TRUSSHEAD SCREW 5X10 SUS 7C32-0510 2

16
H. Label Location
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
Title: H. Label Location Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 LABEL-R404A 4A0960-01 1
2 LABEL-ON/OFF 4A0522-01 1
3 LABEL-DISPLAY INFO 3A1413-01 1
4 LABEL-DOOR HEATER
SWITCH 4A1039-01 1
5 CAUTION LABEL 4A1931-01 1
6 LABEL-GLASSDOOR HEATER
SWITCH 4A2076-01 1
7 LABEL-PENGUIN-HA(L) 4A0526-02 2
8 EMBLEM-HOSHIZAKI 4A0560-01 2
9 WIRING LABEL 2A2602-01 1
10 LABEL-WARNING 4A2968-02 1
1
10
2
3
4
5
6
7
8
9

17
J. Fan - Evaporator Assembly
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
Title: J. Fan - Evaporator Assembly Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 SHROUD-EVAPORATOR 2A0846-01 1
1a TRUSS HEAD SCREW 4×16, SS 7C32-0416 4
2 BRACKET-FAN MOTOR 3A2501-01 2
2a TRUSS HEAD SCREW 5×12, SS 7C32-0512 2
2b LOCK WASHER 4A0459-01 2
2c THREADED INSERT M5 4A0407-01 2
3 FAN MOTOR-EVAPORATOR 4A2563-01 1
3a TRUSS HEAD SCREW 4×40, SS 7C32-0440 4
3b SPLIT LOCK WASHER 4, SS 7L22-0400 4
3c HEX NUT 4, SS 7N12-0400 4
4 BLADE-EVAPORATOR FAN 4A2378-01 1
5 WIRE TIE (TWIST) 4A1223-01 1
11a
2c
5
22a 2b
4
3

18
K. Evaporator Assembly
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
Title: K. Evaporator Assembly Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 EVAPORATOR 999349 2A0781-01 1
2 BRACKET-EVAPORATOR SS 4A1588-01 2
2a T2 SCREW 4X8, SS 7P32-0408 4
3 THERMISTOR CLIP - 320418-01 1
4 THERMISTOR-DEFROST - 4A1428-01 1
5 VALVE-EXPANSION Y1150-EFS-
1/8-C 4A1594-01 1
6 TUBE-LIQUID CU 4A2210-01 1
7 TUBE-EVAP-INLET CU 4A1292-02 1
8 INSULATION TUBING L=450 7762-0717 1
9 EXP. VALVE COVER (A) PE FOAM 3A0372-01 1
10 EXP. VALVE COVER (B) PE FOAM 3A0372-02 1
122a
8
9
10
6
5
734

19
L. Condenser Assembly
PTR1-SSB01-10
M-5, N-6, P-5, Q-5
Title: L. Condenser Assembly Model: PTR1-SSB01-10
Index
No. Description
Material or
Model Number Part Number
Required Number
M-5
to
Q-5
1 SHROUD-CONDENSER 2A2723-01 1
1a T2 SCREW 4x8 SUS 7P32-0408 4
1b INSERT-THREADED (M5) 4A0407-01 5
2 CLIP-COND SHROUD 4A2987-01 2
2a POP RIVET SSD(43)SSBS 7172-4300 4
3 BASE-CONDENSER 2A2724G01 1
4 CONDENSER 2A0782-01 1
4a T2 SCREW 4x8 SUS 7P32-0408 4
5 BRACKET-MOTOR 3A2352-01 1
5a TRUSS HEAD SCREW 5x10 SUS 7C32-0510 4
6 FAN MOTOR 4A3158-01 1
6a SELF LOCKING NUT #8X32 7N21I0832 4
7 FAN BLADE(PULLER) 4A1865-01 1
8 CAPACITOR 443192-02 1
8a T2 SCREW 4x8 SUS 7P32-0408 1
9 RETAINER-FILTER 4A0790-01 1
9a T2 SCREW 4x8 SUS 7P32-0408 2
1a
11b
2a
2
3
4a
4
5a
5
8a
8
66a 7
9a
9

20

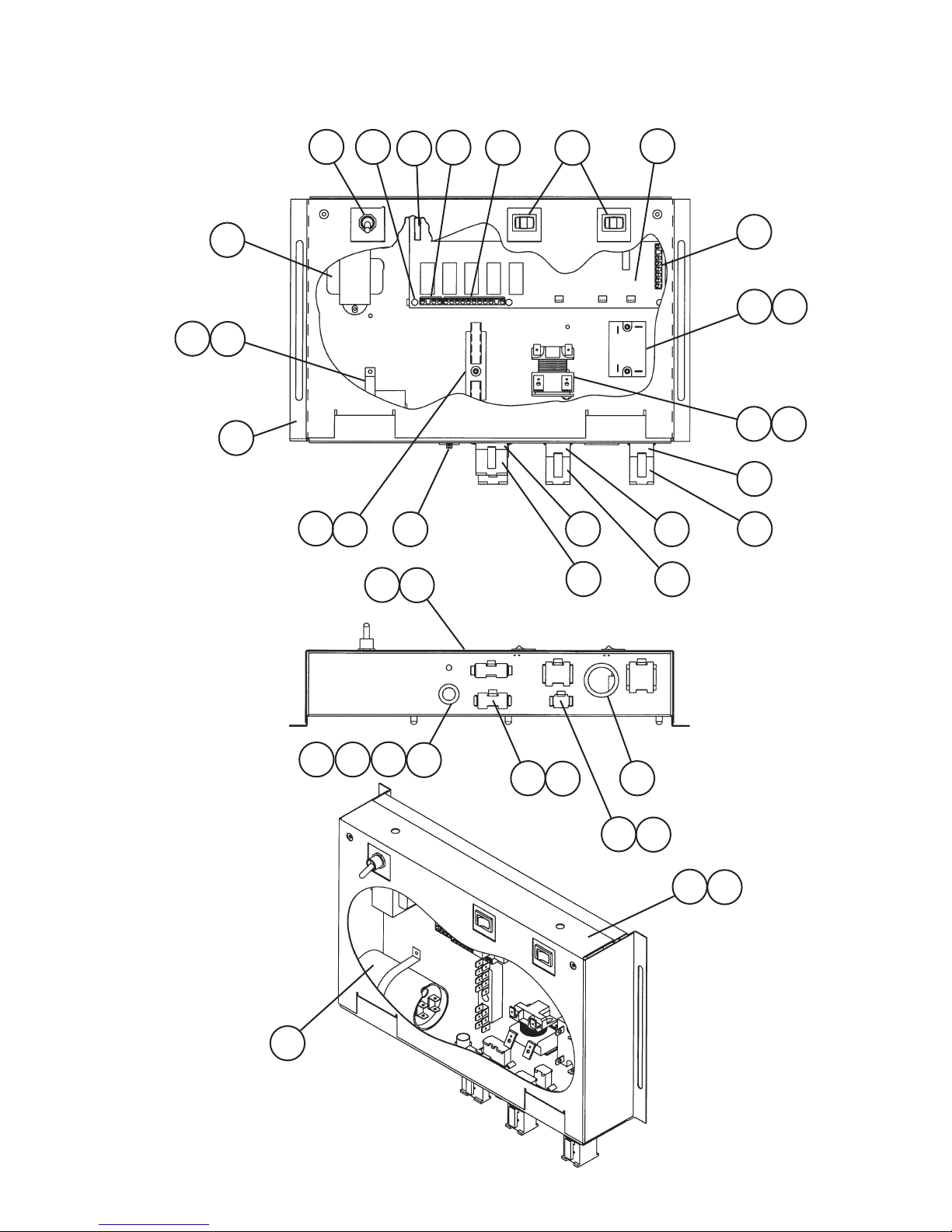

M. Control Box Assembly
PTR1-SSB01-10
M-5, N-6, P-5, Q-5 1
217
3
10 8 18
9
21 22
11
12
13
14
15
16
32 32a
29
27 28
30 30a
19
44a
7
623 24
25 26
55a
33
31
34 35 35a
