Hoshizaki Temp Guard RH1-SSB-HD User manual

Cabinet Construction
•Stainless steel interior and exterior for long life, durability
and easy maintenance
•Ducted air distribution system achieves a uniform box
temperature, even when full;An electronic control senses
cabinet air temperature and adjusts the refrigeration system
to maintain desired temperature
•(3) heavy duty epoxy shelves per section are standard;
Mounted on stainless steel pilasters, shelves are adjustable
in 1” increments
•Cabinet door perimeter heater provides condensation
control in high humidity environments and is equipped
with a back-up heater should the primary heater fail;
Manual power switch allows for energy savings in low
humidity conditions
•Cabinet and doors are 2 3/8” thick, insulated with R-134A, CFC free
foamed in place polyurethane
•Interior light automatically activated when doors are opened
•Die cast legs and stainless steel feet offer increased durability
Door Construction
•Doors are constructed of high grade 300 Series stainless steel inside
and out (HD - Two half doors per section)
•Flush mount door handles maximize aisle space by eliminating
protruding parts
•Door hinges are all metal with tension spring closure and will not
wear out like traditional cam-lift hinges; Doors stay open at 105˚
and are self-closing at 75˚; Door hinge spring tension is adjustable
•Step door design protects door gasket when product is removed
from the box; Snap-in magnetic door gaskets are durable and easily
removed
•Door hinging is field reversible
Refrigeration System
•High efficiency refrigeration system is designed with a large capacity
condenser and evaporator resulting in lower overall power consumption
•TempGuard’s®EverCheck®controls monitor high and low temperatures, high pressure, high and low
voltage, clean filter and cabinet temperature functions and provides audio and visual alarms to alert
operator to possible problems
•Refrigeration system is mounted on a fully insulated rotocast platform and is easily removable from
the main unit
•Evaporator coil is coated for extended life
•Refrigeration system is equipped with solid state, digital controls to maintain optimum cabinet
temperature
•Removable, cleanable air filter protects condenser and reduces cleaning requirements
•Hot gas condensate evaporator is standard with a condensate overflow tube to direct excess water
away from top of cabinet under extreme conditions
•115 volt units equipped with cord and plug
•Refrigerant: R-404A with expansion valve control
Hoshizaki
©HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Peachtree City, GA 30269 TEL [phone] FAX [phone] www.hoshiza i.com
RRHH11--SSSSBB--HHDD DDIIMMEENNSSIIOONNSS
W D H
RH1-2-3-SSB-HD
5/08
Item # 13135
TEMPGUARD®REACH-IN REFRIGERATORS
arranty
Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in
other countries.
Two Year - Parts & abor on entire machine.
Five Year - Parts on: Compressor.
RH1-2-3-SSB-HD
Item #
Project:
Qty:
Hoshizaki reserves the right to change specifications without notice.
27.5 x 33.6 x 84.5*
*with 6" adj. legs

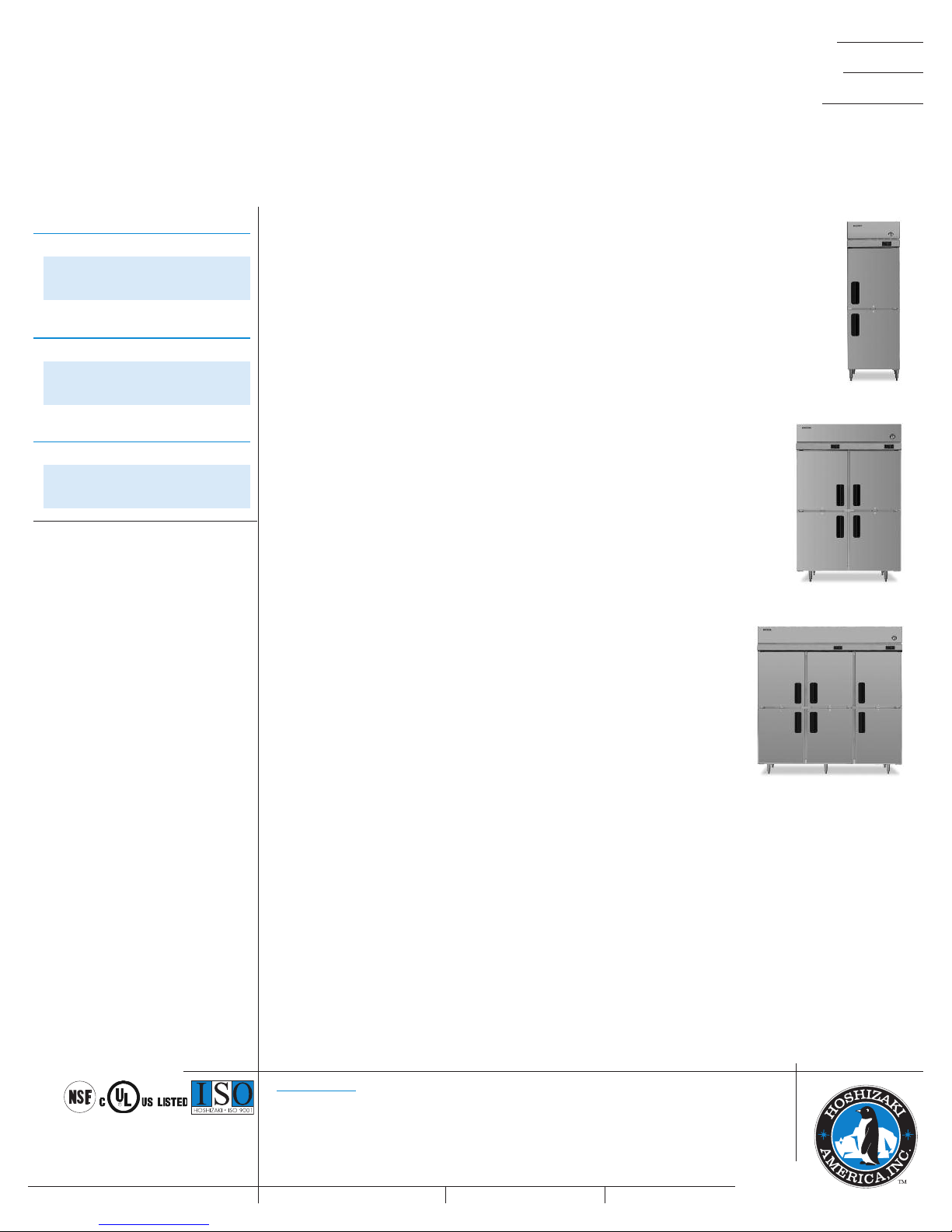

TEMPGUARD®Self-Contained Reach-In Refrigerators with EverCheck®Audio Alert
*AutoCad available on KC
RRHH22--SSSSBB--HHDD DDIIMMEENNSSIIOONNSS
W D H
55 x 33.6 x 84.5*
*with 6" adj. legs
RH2-SSB-HD
RH3-SSB-HD
RRHH33--SSSSBB--HHDD DDIIMMEENNSSIIOONNSS
W D H
82.5 x 33.6 x 84.5*
*with 6" adj. legs
RH1-SSB-HD

Hoshizaki
DDIIMMEENNSSIIOONNSS
W D H
RH1-SSB-HD
27.5 x 33.6 x 84.5*
* with 6" adj. legs
RH2-SSB-HD
55 x 33.6 x 84.5*
* with 6" adj. legs
RH3-SSB-HD
82.5 x 33.6 x 84.5*
* with 6" adj. legs
©HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Peachtree City, GA 30269 TEL [phone] FAX [phone] www.hoshiza i.com Printed in U.S.A.
RH1-2-3-SSB-HD
REACH-IN REFRIGERATORS
OPTIONS
Heavy duty 4" casters Door reversal kit
Additional epoxy shelves Stainless steel shelves
Patented foot pedal door Patented combination
opener tray/pan slides
Door padlock hasp
DIMENSIONS/CAPACITY
Model #
Interior StorageCapacity(CF)
Overall Width
Overall Depth
Height (including 6" adj. legs)
Depth with Door open at 90°
Door Opening Width
Door Opening Height
Adjusta le Shelves
Center Shelves
Shelf Dimensions (W x D)
Crated Shipping Weight
Crated Height
Crated Width
Crated Depth
ELECTRICAL & REFRIGERATION DATA
Model #
Voltage
Amperage
HACR Breaker
Electrical Connection
(NEMA)
*Energy Consumption
(kwh/day)
*Heat Rejection(BT /Hr.)
Approximate Nominal
Compressor BT /Hr.(HP)
Voltage Range
Am ient Temp. Range
Control Setpoint Range
*Refrigerant
22.3 ft3
27.5"
33.6"
84.5"
58.5"
21.75"
26.75"
3
-
21.25" x 26"
400 lbs
85"
32"
38"
* Based on 100°F ambient cycling at setpoint
48.3 ft3
55"
33.6"
84.5"
58.5"
21.75"
26.75"
6
3
21.25" x 26"
650 lbs
85"
59"
38"
One Section
RH1-SSB-HD
115/60/1
7.0
15.0
5-15P
7.6
1075
1490
(1/5hp)
104 - 126
45˚-100˚F
36˚-50˚F
R-404A
115/60/1
10.0
15.0
5-15P
12.2
1735
2700
(1/3hp)
104 - 126
45˚-100˚F
36˚-50˚F
R-404A
RH3-SSB-HD
SIDE VIEW (ALL NITS)
DOOR SWING (ALL NITS)
PLAN VIEW
PLAN VIEW
33.6”
65.0”
58.5”
84.5”
55.0”
33.6”
33.6”
84.5”
78.5”
82.5”
84.5”
6”
27.5”
33.6”
84.5”
RH2-SSB-HD
RH1-SSB-HD
PLAN VIEW
26.75”
Two Section
RH2-SSB-HD
ThreeSection
RH3-SSB-HD
73.7 ft3
82.5"
33.6"
84.5"
58.5"
21.75"
26.75"
9
6
21.25" x 26"
825 lbs
85"
87"
38"
115/60/1
13.0
15.0
5-15P
15.7
2236
3750
(1/2hp)
104 - 126
45˚-100˚F
36˚-50˚F
R-404A
One Section
RH1-SSB-HD
Two Section
RH2-SSB-HD
ThreeSection
RH3-SSB-HD
• 1 section refrigerator
• 2 section refrigerator
• 3 section refrigerator
