Hoshizaki FH1-SSB(-HD) User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Commercial Refrigerators & Freezers
TempGuard Series
Models
FH1-SSB(-HD)
Hoshizaki America, Inc.
Number: 71224
Issued: 3-8-1999
Revised: 4-29-2008
PARTS LIST
®

CONTENTS
Auxiliary Codes...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Reach-In............................................................................................................................ 5
FH1-SSB ........................................................................................................................... 5
FH1-SSB-HD ..................................................................................................................... 8
B. Refrigeration System ........................................................................................................11
C. Control Panel Assembly .................................................................................................. 16
D. Body-Final ....................................................................................................................... 17
FH1-SSB ......................................................................................................................... 17
FH1-SSB-HD ................................................................................................................... 20
E. Panel-Front Hinged Assembly ......................................................................................... 23
F. Label Location.................................................................................................................. 24
G. Evaporator Fan Shroud Assembly................................................................................... 25
H. Evaporator Assembly ...................................................................................................... 27
J. Condenser Assembly ....................................................................................................... 29
K. Control Box Assembly...................................................................................................... 32
KK. Common Control Box.................................................................................................... 34
L. Body-Prenal.................................................................................................................... 36
M. Door-Right....................................................................................................................... 39
FH1-SSB ......................................................................................................................... 39
N. Door-Half (UR) ................................................................................................................ 41
FH1-SSB-HD ................................................................................................................... 41
P. Door-Half (LR).................................................................................................................. 43
FH1-SSB-HD ................................................................................................................... 43
Q. Mullion-Horizontal ........................................................................................................... 45
FH1-SSB-HD ................................................................................................................... 45
R. Distributor-Air Top Assembly............................................................................................ 46
S. Accessories & Packaging ................................................................................................ 47
2

3
Auxiliary Codes
FH1-SSB H-0 May 1998
J-0 March 1999
J-1 September 1999
J-2 October 1999
K-0 December 1999
K-1 June 2000
L-5 April 2001
M-5 February 2002
M-6 March 2002
M-7 August 2002
N-5 December 2002
N-6 January 2003
P-5 December 2003
P-6 March 2004
P-7 November 2004
Q-5 December 2004
R-5 December 2005
S-6 February 2007
Auxiliary Code Breakdown
K-5
Designates the year."K" indicates the year 2000.Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates significant part changes within the same year for this model. Base is 5 (0 for auxiliary
codes H through K) and this number advances for each change.
Example: P-6
"P" indicates 2004.
"6" indicates the first significant part change for 2004.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered
separately.
FH1-SSB-HD H-0 September 1998
J-0 January 1999
J-1 September 1999
J-2 October 1999
K-0 December 1999
K-1 June 2000
L-5 September 2001
M-6 April 2002
M-7 September 2002
N-6 March 2003
P-6 March 2004
Q-5 January 2005
R-5 December 2005
S-5 January 2007
S-6 March 2007

4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrauoroethylene = Teon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel

5

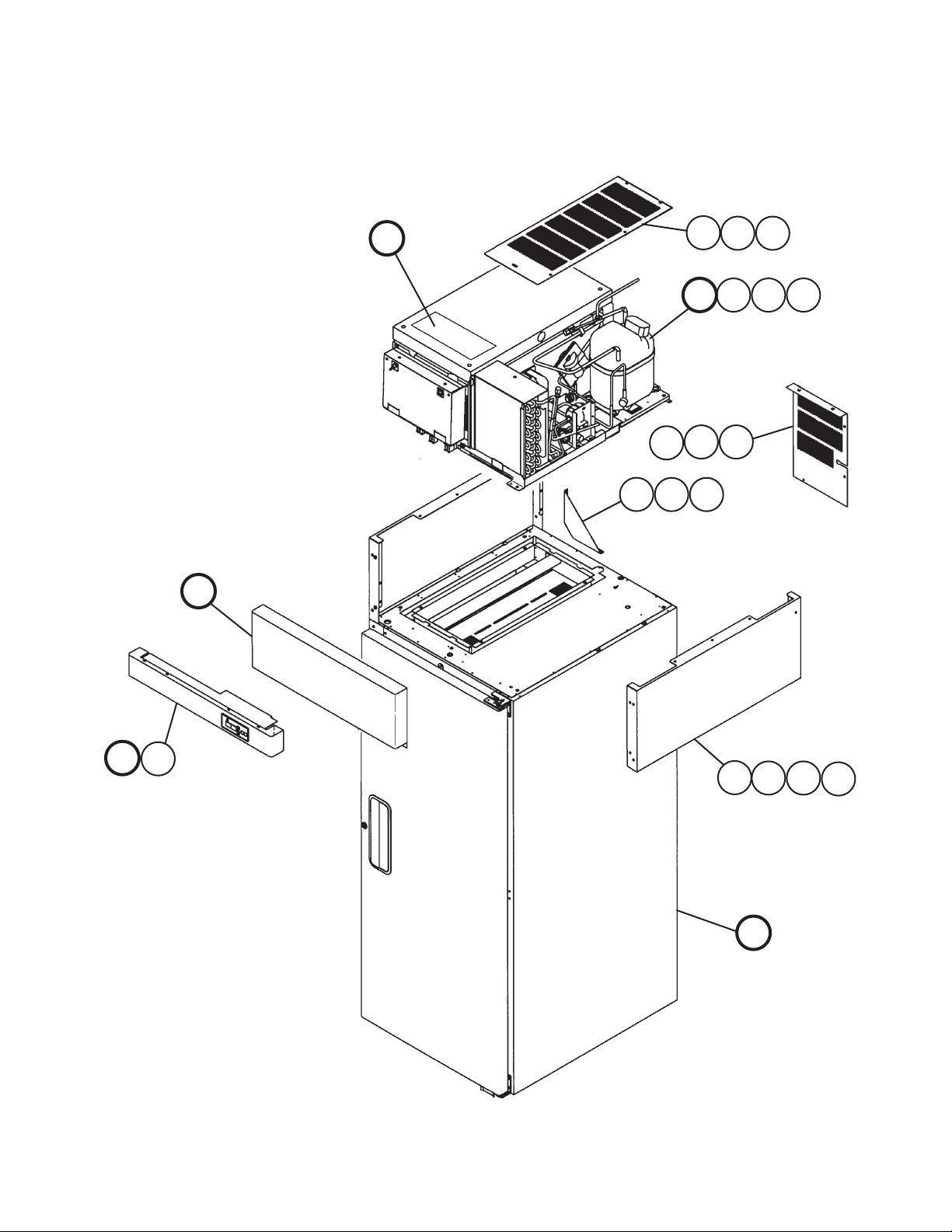

A. Reach-In
FH1-SSB
H-0, J-0, J-1, J-2, K-0, K-1
2
BB1 B2
2a 2b
B3
4a 4b
4
F
2c
CC1
5b5a
5
1a 1b
1
D
E

6
A. Reach-In
FH1-SSB
L-5, M-5, M-6, M-7, N-5, N-6, P-5, P-6, P-7, Q-5, R-5, S-6
67
2
BB1 B2
2a 2b
B3
4a 4b
4
F
CC1
5b
5a
5
1a 1b
1
D
38a
8
99a
EE1 E2
E3 E4
2c

7
Title: A. Reach-In Model: FH1-SSB
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
to
K-1
L-5
to
M-6
M-7
to
P-7
Q-5
R-5 S-6
B Refrigeration System - 1A0278A01 1 1 1 1 1
B1 Bolt Assembly 8x45 437889-01 5 5 5 5 5
B2 Truss Head Screw 5x25, SS 7C32-0525 2 2 2 2 2
B3 Washer 5 7W22-0500 2 2 2 2 2
CControl Panel Assembly - 2A1269A01 1 1 1 1 1
C1 T2 Screw 4x8, SS 7P32-0408 6 6 6 6 6
D Body-Final - 1A0299A06 1 1 1 1 1
E Panel-Front SS 1A0119-01 1 -
Panel-Front Hinged Assembly - 2A2011A01 1 1 1 1
E1 Clevis Pin - 8907-0102 2 2 2 2
E2 Cotter Pin - 8907-0103 2 2 2 2
E3 Flat Washer - 4A0655-03 2 2 2 2
E4 Spacer-Hinge - 4A2473-01 2 2 2 2
F Label Location - 2A1042A01 1 1 1 1 1
1Gusset-Side Top GS 3A1006-01 1 -
Gusset-Frame 4A2845-01 1 1 -
4A3856-01 1 1
1a T2 Screw 4x8, SS 7P32-0408 2 4 4 4 4
1b Truss Head Screw 5x10, SS 7C32-0510 2 -
2Panel-Side, Top SS 2A0615-02 2 -
2A1800-01 2 2 2 2
2a Taper Collar SS 4H0171-01 4 4 4 4 4
2b Screw-Countersunk 5x20, SS 7C42-0520 4 4 4 4 4
2c Truss Head Screw 5x10, SS 7C32-0510 2 2 2 2 2
3 Bracket-Hinge - 4A2306-01 2 2 2 2
4Cover-UL, Top GS 2A0955-01 1 1 -
2A2751-01 1 1 -
2A2755-01 1
4a Truss Head Screw 5x10, SS 7C32-0510 3 -
4b T2 Screw 4x8, SS 7P32-0408 2 5 5 5 5
5 Cover-UL, Rear GS 2A0956-01 1 1 -
2A2752-01 1 1 -
2A4261-01 1
5a Truss Head Screw 5x10, SS 7C32-0510 2 -
5b T2 Screw 4x8, SS 7P32-0408 2 4 4 4 4
6 Power Cord - 4A0520-01 1 1 1 1
7 Bushing SB-625-8 420470-01 1 1 1 1
8 Wire Clamp - 4A0809-02 1 1 1 1
8a T2 Screw 5x8, SS 7C32-0508 1 -
9Frame-Side Top GS 2A1803-01 2 2 2 2
9a Truss Head Screw 5x10, SS 7C32-0510 8 8 8 8

8
A. Reach-In
FH1-SSB-HD
H-0, J-0, J-1, J-2, K-0, K-1, L-5
2
BB1 B2
2a 2b
B3
4a 4b
4
F
2c
CC1
5b5a
5
1a 1b
1
D
E

9

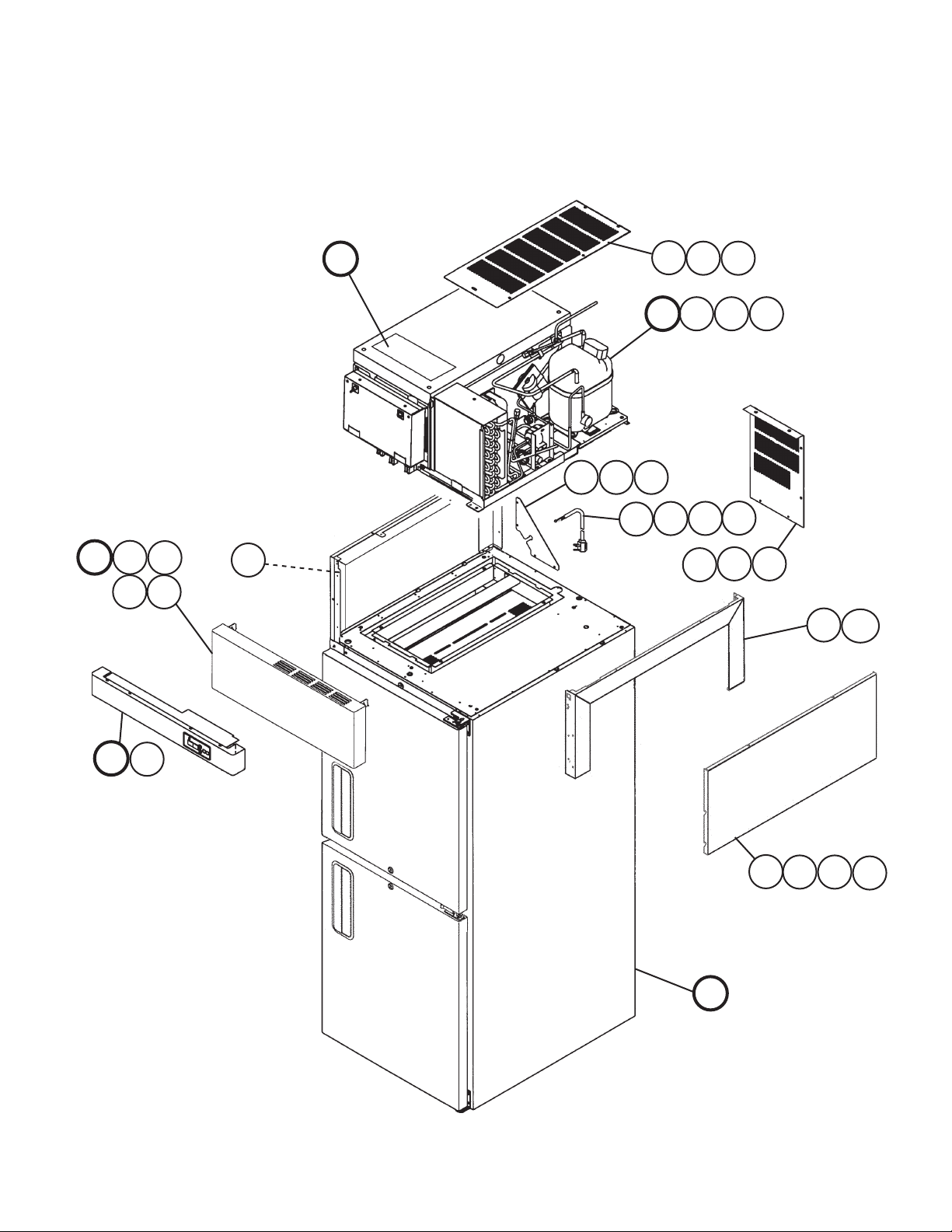

A. REACH-IN
FH1-SSB-HD
M-6, M-7, N-6, P-6, Q-5, R-5, S-5, S-6
3
67
2
BB1 B2
2a 2b
B3
4a 4b
4
F
2c
CC1
5b5a
5
1a 1b
1
D
8a
8
99a
EE1 E2
E3 E4

10
Title: A. Reach-In Model: FH1-SSB-HD
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
to
K-1
L-5
M-6
M-7
to
P-6
Q-5
to
S-5 S-6
B Refrigeration System - 1A0278A01 1 1 1 1 1
B1 Bolt Assembly 8x45 437889-01 5 5 5 5 5
B2 Truss Head Screw 5x25, SS 7C32-0525 2 2 2 2 2
B3 Washer 5 7W22-0500 2 2 2 2 2
CControl Panel Assembly - 2A1269A01 1 1 1 1 1
C1 T2 Screw 4x8, SS 7P32-0408 6 6 6 6 6
D Body-Final - 1A0360A04 1 1 1 1 1
E Panel-Front SS 1A0119-01 1 -
Panel-Front Hinged Assembly 2A2011A01 1 1 1 1
E1 Clevis Pin - 8907-0102 2 2 2
E2 Cotter Pin - 8907-0103 2 2 2
E3 Flat Washer - 4A0655-03 2 2 2
E4 Spacer-Hinge - 4A2473-01 2 2 2 2
F Label Location - 2A1042A04 1 1 1 1 1
1Gusset-Side Top GS 3A1006-01 1 -
Gusset-Frame 4A2845-01 1 1 -
4A3856-01 1 1
1a T2 Screw 4x8, SS 7P32-0408 2 2 2 4 4
1b Truss Head Screw 5x10, SS 7C32-0510 2 2 2 -
2Panel-Side, Top SS 2A0615-02 2 -
2A1800-01 2 2 2 2
2a Truss Head Screw 5x10, SS 7C32-0510 2 2 2 2
2b Taper Collar SS 4H0171-01 4 2 2 2 2
2c Screw-Countersunk 5x20, SS 7C42-0520 4 2 2 2 2
3 Bracket-Hinge - 4A2306-01 2 2 2 2
4 Cover-UL, top GS 2A0955-01 1 1 -
2A2751-01 1 1 -
2A2755-01 1
4a Truss Head Screw 5x10, SS 7C32-0510 3 3 -
4b T2 Screw 4x8, SS 7P32-0408 2 2 5 5 5
5 Cover-UL, Rear GS 2A0956-01 1 1 -
2A2752-01 1 1 -
2A4261-01 1
5a Truss Head Screw 5x10, SS 7C32-0510 2 2 -
5b T2 Screw 4x8, SS 7P32-0408 2 2 4 4 4
6 Power Cord - 4A0520-01 1 1 1 1
7 Bushing SB-625-8 420470-01 1 1 1 1
8 Wire Clamp - 4A0809-02 1 1 1 1
8a T2 Screw 4x8, SS 7P32-0408 1 1 1 1
9Frame-Side Top GS 2A1803-01 2 2 2 2
9a Truss Head Screw 5x10, SS 7C32-0510 8 8 8 8

11
B. Refrigeration System
1/2
FH1-SSB(-HD)
H-0, J-0, J-1, J-2, K-0, K-1, L-5, M-5, M-6, M-7, N-5, N-6, P-5, P-6, P-7, Q-5, R-5, S-5,
S-6
1
2a
2
2b
1a 1b 1c
1d 1e
2c2d
2e 2f
7
15
3
4
13
10 16
9
12 14 14a
11
JJ1
6
KK1
H
GG1
8
17 18
19
520 20a
21
22
24
25
27
48 49
50
51
47
52
23
23a
23b
34
44
45
49
H-0 to N-5

12
B. Refrigeration System
2/2
FH1-SSB(-HD)
H-0, J-0, J-1, J-2, K-0, K-1, L-5, M-5, M-6, M-7, N-5, N-6, P-5, P-6, P-7, Q-5, R-5, S-5,
S-6
29 30 31 32
36
35
33
40 41
39
42
43
46
28
3726
43a
53 53a
38

13
Title: B. Refrigeration System Model: FH1-SSB(-HD)
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
J-0
to
M-5
M-6
to
N-5
N-6
P-5
P-6
to
S-5 S-6
G Evapaporator Fan Shroud
Assembly
- HS-3545 1 1 -
2A2517A01 1 1 -
2A2517A02 1 1
G1 Truss Head Screw 4x12, SS 7C32-0412 4 4 4 4 4 4
HEvaporator Assembly - 2A0981A01 1 1 1 1 1 -
2A0981A06 1
JCondenser Assembly - 3A0724A01 1 1 1 -
3A2610A01 1 1 -
3A2611A01 1
J1 T2 Screw 4x8, SS 7P32-0408 2 2 2 2 2 2
KControl Box Assembly - 2A1226A01 1 1 1 1 1 -
2A1226A03 1
K1 Truss Head Screw 4x16, SS 7C32-0416 4 4 4 4 4 4
1 Cover-Evapaporator Case - 2A0428G01 1 1 1 -
2A2726G01 1 1 1
1a Draw Latch 97-50-224-11 4A1710-01 4 4 -
- 4A3988-01 4 4 4
1b Truss Head Screw 4x16, SS 7C32-0416 4 4 4 4 4
1c T2 Screw 4x8, SS 7P32-0408 8 8 8 8 8
1d Catch-Latch - 4A3987-01 4 4 4
1e Truss Head Screw 4x16, SS 7C32-0416 4 4 4
2 Compressor AJA2425ZXA 2A0937-01 1 1 1 1 1 -
SC15CLX.2 4A3815-01 1
2a Grommet-Compressor Mount EPDM 4A1305-01 4 4 4 4 4 -
4A2593-01 4
2b Sleeve-Grommet Tecumseh70459 4A0449-01 4 4 4 4 4 -
Spacer-Compressor -4A2595-01 4
2c Hex Bolt 8x45 7B01-0845 4 4 4 4 4 4
2d Washer-Flat 8 7W21-0800 4 4 4 4 4 4
2e Split Lock Washer 8 7L21-0800 4 4 4 4 4 4
2f Protector CRA4765-132 4A1860-02 1 1 1 1 1 -
117U3212 4A3679-01 1
3 Switch-Pressure (Included in
2A1257G01)
- 3A0335-02 1 1 -
4A2516-02 1 1 1 1
4 Drier Sporlan CW-
052-S
4A0924-01 1 1 1 1 1 1
5 Thermistor-Cabinet Taiko 4A1429 4A1429-01 1 1 1 1 1 1
6 Filter-Condenser - 3A0277-01 1 1 1 1 1 1
7 Thermostat-Clean Filter 37TJ32 4A0484-01 1 1 1 1 1 1
8Seal-Evaporator Tubing Neoprene/
EPDM
4A0642-01 2 2 2 -
4A3089-01 2 2 2
9 Fitting-Drain Overow
(Included in 3A0381A05)
PP 4A0664-01 1 1 -
4A2182-01 1 1 1 1
10 Washer-Drain Overow
(Included in 3A0381A05)
- 4A0665-01 1 1 -
Rubber Gasket
(Included in 3A0381A05)
413854-03 1 1 1 1

14
Title: B. Refrigeration System Model: FH1-SSB(-HD)
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
J-0
to
M-5
M-6
to
N-5
N-6
P-5
P-6
to
S-5 S-6
11 Nut-Drain Fitting
(Included in item 9: 4A2182-01)
Heyco 8463 4A0666-01 1 1 -
12 Gasket-Condenser Coil
(Included in 3A0381A05)
- 4A0455-03 1 1 1 1 1 1
13 Evaporator Drain Pan (Included
in 3A0381A05)
SS 2A0616-02 1 1 -
2A2760-01 1 1 1 1
14 Strap-Condensate Coil
(Included in 3A0381A05)
- 3A0232-03 1 1 1 1 1 1
14a Truss Head Screw (Included in
3A0381A05)
5×12, SS 7C32-0512 2 2 2 2 2 2
15 Drier Bracket
(Included in 2A1257G01)
GS 4A0806-01 1 1 1 1 1 -
Nylon Tie
(Included in 2A1257G01)
- 8911-0301 1
15a T2 Screw 4×8, SS 7P32-0408 2 2 2 2 2 -
16 Rubber Gasket (Included in
3A0381A05)
- 413854-03 1 1 1 1
17 Heater-Drain 10758 10W
115V
4A2975-01 1 1
18 Nylon Tie CV-200 8911-0200 1 1
19 Drier Mount
(Included in 2A1257G01)
- 4A1480-01 1 1 1 1 1 -
Drier Bracket
(Included in 2A1257G01)
GS 4A4282-01 1
20 Thermistor Bracket (A) ABS 433964-01 1 1 1 1 1 1
20a Truss Head Screw 4×16, SS 7C32-0416 2 2 2 2 2 2
21 Thermistor Bracket (B) ABS 433920-01 1 1 1 1 1 1
22 Coil-Condensate Coated
(Included in 2A1256G01)
- 4A1362G01 1 1 -
Coil-Condensate (Included in
2A1256G02)
- 3A1644-01 1 1 1 1
23 Compressor Base - 2A2756G01 1 1 1 1 1 1
23a Truss Head Screw 4×16, SS 7C32-0416 2 2 2 2 2 2
23b Truss Head Screw 5×10, SS 7C32-0510 1 1 1 1 1 1
24 Pressure-Check Valve HS-3515 3A1454A01 1 1 1 1 1 1
25 Process Assembly Pipe Access Valve 3A0932G01 1 1 1 1 -
3A2349G01 1 -
3A4455G01 1
26 Vinyl Hose L=300 7730I3812 1 1 1 1 1 1
27 Drain-Pipe Evaporator - 4A0831-01 1 1 1 1 1 1
28 Wire Tie Twist - 4A1223-01 1 1 1 1 1 1
29 Insulation Tubing L=150 7762-3555 1 1 1 1 1 1
30 Cable Tie CV-200 8911-0200 5 5 5 5 5 5
31 Holder Expansion Valve - 3A0107-01 1 1 1 1 1 1
32 Hose Clamp - 443461-01 1 1 1 1 1 1
33 Liner-Evaporator - 2A1182-01 1 1 -
Plated Heat-Shield - 3A1851G01 1 -
- 3A2614G01 1 1 1
34 Insulation Tubing L=700 7762-1330 1 1 1 1 1 -
L=1200 1

15
Title: B. Refrigeration System Model: FH1-SSB(-HD)
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
J-0
to
M-5
M-6
to
N-5
N-6
P-5
P-6
to
S-5 S-6
35 Suction Tube - 3A0850-01 1 1 1 1 1 -
3A4312-01 1
36 Insulation Tubing L=50 7762-1020 2 3 3 3 3 3
37 Bushing SB-750-625 420470-13 1 1 1 1 1 1
38 Elbow-Tubing - 4A0711-01 1 1 1 1 1 1
39 Drain Baffle - 3A1126-01 1 -
3A1126-02 1 1 1 1 1
40 Grommet Strip L=33 4A1341L01 1 1 1 1 1 1
41 Grommet Strip L=29 1 1 1 1 1 1
42 Grommet Strip L=236 1 1 1 1 1 1
43 Wire Clamp - 4A0809-01 1 1 1 1 1
43a T2 Screw 4x8, SS 7P32-0408 1 1 1 1 1
44 Insulation Tubing L=85 7762-1030 1 1 1 1 1
45 Insulation Tubing L=145 7762-1323 1 1 1 1 1
46 Cork Insulation Tape L=40 8216-BK20 2 2 2 2 2
47 Gasket L=685 4A0808L01 1 1 1 1 1
48 Gasket L=316 1 1 1 1 1
49 Gasket L=46 2 2 2 2 2
50 Gasket L=58 1 1 1 1 1
51 Gasket L=500 1 1 1 1 1
52 Gasket L=236 1 1 1 1 1
53 Elbow-Drilled - 4A2510-01 1 1 -
4A2829G01 1 1 1 1
53a T2 Screw 4x8, SS 7P32-0408 1 1 1 1 1

16
C. Control Panel Assembly
FH1-SSB(-HD)
H-0, J-0, J-1, J-2, K-0, K-1, L-5, M-5, M-6, M-7, N-5, N-6, P-5, P-6, P-7, Q-5, R-5, S-5,
S-6
Title: C. Control Panel Assembly Model: FH1-SSB(-HD)
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
to
K-1
L-5
to
N-5
N-6
to
S-6
1 Panel-Control (Painted) - 3A0914G01 1 -
- 1A0625G01 1 -
Panel-Control - 1A0760-01 1
2 Board-Display - 2A0883-01 1 1 1
2a Nylon Screw - 4A1397-01 4 4 4
2b Palnut - 4A1398-01 6 6 6
3 Label-Display PC 4A1558-02 1 1 -
3A2850-02 1
4 Mount-Display Board PC 3A0823-01 1 1 1
5 Cover-Wires GS 2A1033-01 1 1 1
5a T2 Screw 4x8, SS 7P31-0408 2 2 2
6 Ribbon Cable - 4A1106-01 1 1 1
7 Grommet Strip L=342 4A1341L01 1 1 1
8 Grommet Strip L=30 4A1341L01 1 1 1
9 Locking Hole Plug - 4A0586-02 1 1 1
10 Locking Hole Plug - 4A0586-03 2 2 2
5
22a
5a
2b
1
4
3
6
10
78
9
10

17
D. Body-Final
FH1-SSB
H-0, J-0, J-1, J-2, K-0, K-1
M
L
12
12a
11
8a
8
7a
7
4
5
10
9
6
4
1
2
3

18
D. Body-Final
FH1-SSB
L-5, M-5, M-6, M-7, N-5, N-6, P-5, P-6, P-7, Q-5, R-5, S-6
M
L
12
12a
8a
8
7a
7
10
9
6
4
1
2
3
14
14
13

19
Title: D. Body-Final Model: FH1-SSB
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
to
K-1 L-5 M-5
M-6
to
S-6
L Body-Prenal - 1A0298A01 1 1 1 -
1A0298A05 1
M Door-Right - 1A0318A01 1 1 1 -
1A0318A03 1
1 Hinge Stop Pin - 4A0444-01 1 -
4A2180-01 1 1 1
2Hinge Tension Screw - 4A0446-01 1 1 1 1
3 Hinge Bushing Cover - 4A0445-01 1 1 1 1
4Hinge Lock Washer - 4A0553-01 2 1 1 1
5 Hinge Pivot Pin (BTM) - 4A0443-01 1 -
6 Hinge Pivot Pin (Top) - 4A0442-01 1 -
4A2179-01 1 1 1
7 Bracket Door Hinge (UL,LR) Use latest for
all aux. codes
3A0209-01 1 -
Bracket Door Hinge (LR) 3A1626-01 1 1 1
7a Countersunk Screw (Included
in 1A0172G05)
5×20, SS 7C42-0520 3 3 3 3
8 Bracket Door Hinge (LL,UR) - 3A0215-01 1 -
Bracket Door Hinge (UR) 3A1580-01 1 1 1
8a Countersunk Screw (Included
in 1A0172G05)
5×20, SS 7C42-0520 3 3 3 3
9 Hinge Stop Plate (Right) - 4A0441-01 1 1 1 1
10 Screw-Stop Plate - 4A0483-01 1 1 1 1
11 Cover-Corner - 3A0221-01 4 -
12 Plate-Strike (Side) - 4A0470-01 1 1 1 1
12a T2 Screw 4×8, SS 7P32-0408 2 2 2 2
13 Filler T2 Screw 4×8, SS 7P32-0408 2 2 2 2
14 Filler Truss Head Screw 5×10, SS 7C32-0510 6 6 6 6

20
D. Body-Final
FH1-SSB-HD
H-0, J-0, J-1, J-2, K-0, K-1
L
Q
N
P
3
2
1
4
6
8a
8
10
10
9
7a
7
11
4
5
9
77a
12
4
13
