Hosokawa Micron Powder Systems Mikro Air Jet Sieve Installation and operation manual

HOSOKAWA MICRON POWDER SYSTEMS
10 Chatham Road, Summit, NJ 07901 · Tel. [phone] · Fax [phone]
OPERATING & MAINTENANCE
MANUAL
Mikro Air Jet Sieve®
Document No.: M691477 –181023.01
Revision
Date
Description
Issue
October 23, 2018
Issue
Record the MODEL and SERIAL NUMBER of your Air Jet Sieve and always refer to them when
ordering replacement parts or requesting service assistance.
Please refer to pages 46 through 56 for additional Service Information
Carefully read this manual
before operating or servicing this equipment

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 2 of 56
Introduction
The Mikro Air Jet Sieve®is a highly accurate and reliable particle size analyzer designed for determining
the particle size distribution of dry powder ranging from 20 μm to 4,750 μm.
Record your Air Jet Sieve MODEL and SERIAL NUMBER.
Refer to them when ordering replacement parts or requesting service assistance.
IMPORTANT NOTICE:
(1) Before installing, operating or maintaining this instrument, carefully read this Manual and
follow the safety recommendations in Section 3.
(2) Reproduction of this manual in part or in whole is strictly prohibited without prior permission
from Hosokawa Micron Powder Systems.
(3) The contents of this manual are subject to change without notice.
(4) The contents of this manual have been carefully prepared. If you have any questions, find
errors or omissions, please contact Hosokawa Micron Powder Systems.
(5) Hosokawa Micron Powder Systems does not permit the improper use or handling of this
product by a third party. Only Hosokawa Micron Powder Systems service personnel are
authorized to repair or modify this product. Note that Hosokawa Micron Powder Systems
assumes no responsibility for damage or injury attributed to repairs, changes, etc. performed
by a third party.
(6) Hosokawa Micron Powder Systems assumes no responsibility for damages or injury
resulting from the attaching, using options or consumables other than Hosokawa Micron
Powder Systems genuine qualified parts.
(7) The software of this product is owned by Hosokawa Micron Powder Systems and copyright
protected. Copying the software and/or instruction manual in part or whole without
permission from Hosokawa Micron Powder Systems is prohibited.
(8) The MAJSx was designed for use with the Hosokawa Micron Test Sieve Screens. While other
manufactures screens can and do fit the instrument, Hosokawa Micron Powder Systems
cannot guarantee operational results and is not responsible should any damage occur.
(9) The warranty period of this machine is one (1) year from the date of shipment. Any
Dismantling, Tampering “Opening” or “Removal” of Fixed Components will VOID the
Warranty, unless specified herein.

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 3 of 56
CRITICAL INFORMATION:
This Instruction Manual describes the proper and safe operation of the Hosokawa Micron Product.
It is important that this Instruction Manual be read and fully understood before equipment
installation, operation, maintenance and/or inspection of this instrument. Especially, complete
understanding of the warning labels, as contained in this manual for safe operation of this
instrument.
Prediction of all possible operation hazards as defined in the manual is impossible however; the
dangers can be minimized by following the instructions described in this manual. Operate this
device with great care and make every endeavor to avoid any accident or damage to the device.

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 4 of 56
Table of Contents
Section 1: Process Description ....................................................................................................................5
Section 2: Principles of Operation..............................................................................................................6
Section 3: Safety ...........................................................................................................................................8
Section 3-1: Precautions......................................................................................................................... 8
Section 3-2: Electrical Shock............................................................................................................... 10
Section 3-3: Personal Protective Equipment...................................................................................... 10
Section 3-4: Material Safety Data Sheet (MSDS).............................................................................. 10
Section 3-5: First Aid ........................................................................................................................... 10
Section 3-6: Administrator & Supervisor Operators Instructions.................................................. 10
Section 4: What is in the Box.....................................................................................................................11
Section 4-1: Major Components ......................................................................................................... 11
Section 5: Unpacking and Installation .....................................................................................................12
Section 5: Unpacking and Installation (continued) .................................................................................13
Section 6: General Arrangement Drawing ..............................................................................................14
Section 7: MAJSx2Operation Component Layout .................................................................................15
Section 8: Preparing the MAJSx2Air Jet Sieve.......................................................................................16

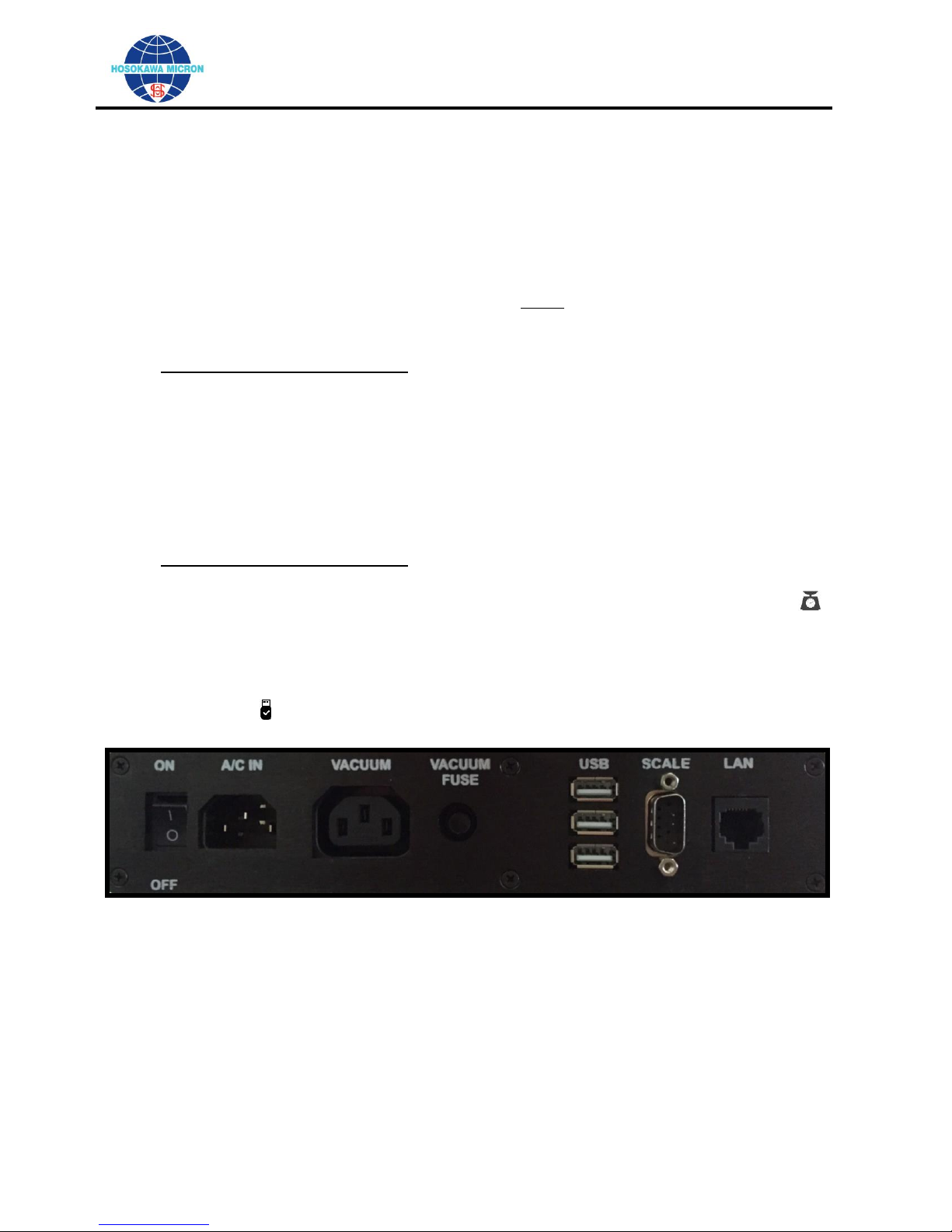

Section 8-1: Power/Communication Panel.................................................................................... 16
Section 8-2: Cable Connection....................................................................................................... 16
Section 9: Basic Model Operating Procedure (Factory Default).............................................................17
Section 9-1: Power-up the MAJSx2...................................................................................................... 17
Section 9-2: Set-Up for Basic Operation ............................................................................................ 18

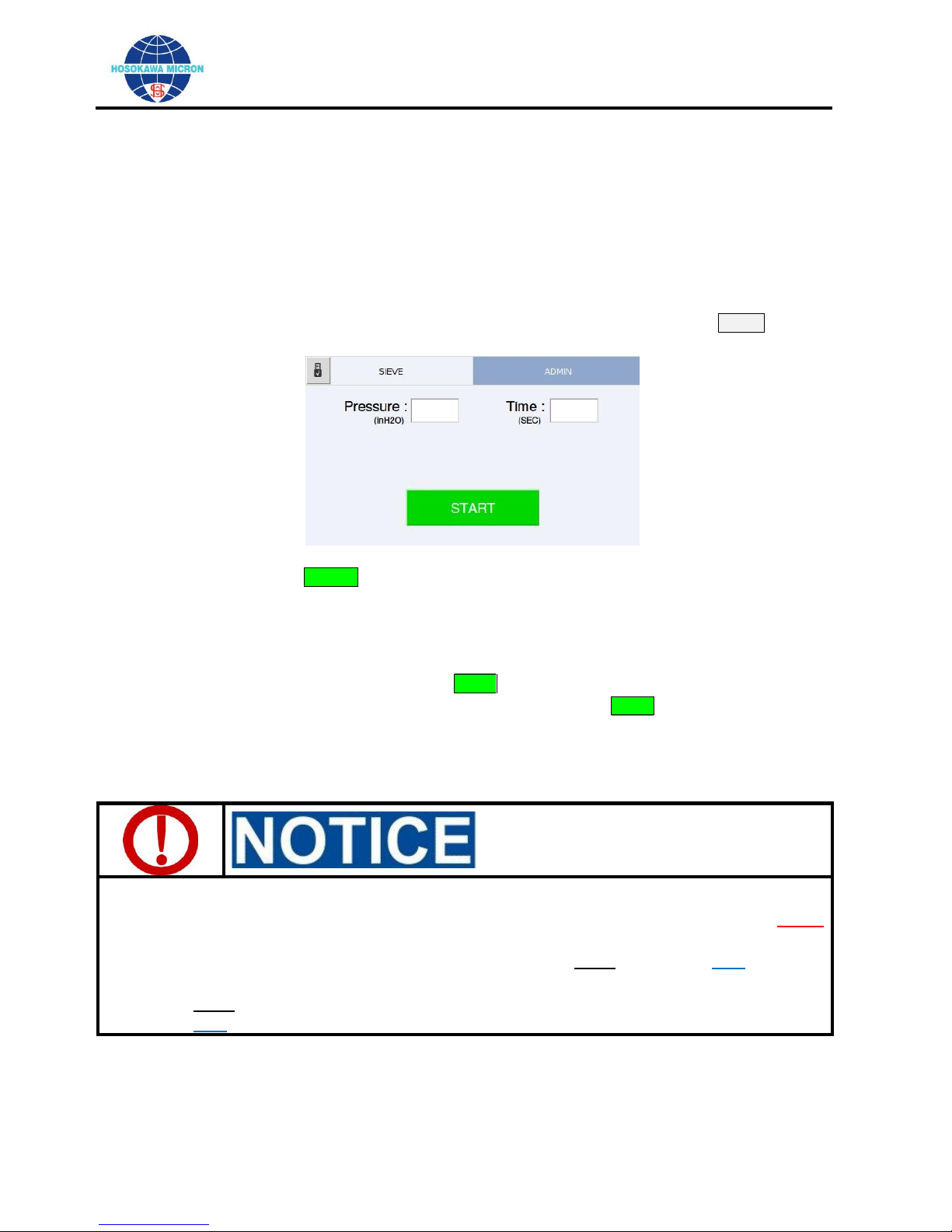

Section 9-3: Basic Mode (Manual) Operating Procedure................................................................. 20
Section 10: Advance Model Operating Procedure (Optional).................................................................22
Section 10-1: Power-up the MAJSx2in the Advance Operation Mode............................................ 22
Section 10-2: SIEVE Page..................................................................................................................... 24
Section 10-3: REPORT Page................................................................................................................ 32
Section 10-4: SETTINGS Page............................................................................................................. 35
Section 11: Optimizing Sieving Times.......................................................................................................44
Section 12: Maintenance.............................................................................................................................44
Section 12-1: Disassembly and Cleaning............................................................................................. 44
Section 12-2: Cleaning of Test Sieve Screens...................................................................................... 45
Section 12-3: Test Sieve Screen Selection Chart................................................................................. 46
Section 12-4: Test Sieve Screen Statical Data Terminology Chart................................................... 47
Section 12-5: Recommended Test Sieve Screen Recertification Schedule ...................................... 47
Section 12-6: Troubleshooting.............................................................................................................. 48
Section 12-7: Critical Instrument Verification................................................................................... 49
12-7.1 Verification of Vacuum Gauge.............................................................................................49
12-7.2 Verification of Timer.............................................................................................................49
12-7.3 Calibration of Test Sieve Screens.........................................................................................49
Section 12-8: Recommended Operating Parameters ........................................................................ 50
12-8.1 Mikro Air Jet Sieve®(MAJSx2)............................................................................................50
12-8.2 Vacuum Pressure...................................................................................................................50
12-8.3 Sample Weight and Sieving Time. .......................................................................................50
12-8.4 Sieving of Difficult Material .................................................................................................51
Section 12-9: Instructions for Connecting the Cyclone to the MASJx2........................................... 51
12-9.1 Adhere to the following Instruction steps: ..........................................................................51
Section 12-10: Instructions for Cleaning the Vacuum...................................................................... 52
Section 12-11: Recommended Vacuum Filter Replacement ............................................................ 52
Section 13: Aftermarket Services..............................................................................................................55
Section 13-1: Aftermarket Service Regional Parts Coordinators.................................................... 56

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 5 of 56
Section 1: Process Description
The Mikro Air Jet Sieve®–Model X2(MAJSx2) is easy to operate and quickly determines particle size with
a short series of sieve test screens. The system utilizes the pneumatic sieving principle that enhances the
accuracy and reproducibility of particle size analysis. Use of this device has become a preferred method
for such tasks as quality assurance of incoming raw materials and confirmation of final product
specifications.
While under negative pressure sample particles are dispersed and de-agglomerated by means of a
positive airflow introduced upward through the rotating slit wand. Those particles small enough to pass
through a defined Test Sieve opening are carried in the airflow to the vacuum collector.
Precise particle size ranging from 20 to 4,750 μm can quickly be determined. This unique rotating wand
method also eliminates the need for tapping or brushing and increases reproducibility with controlled
measurements of pressure drop and duration. Overall the system is designed to operate cleaner, quieter
and requires less space than other types of similar analytical equipment.
The most important variables to insure a repeatable analysis using the Mikro Air Jet Sieve®are as follows:
The Sample Volume.
The Vacuum Pressure.
The Sieving Time.
The Test Sieve Screen Integrity.

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 6 of 56
Section 2: Principles of Operation
The Mikro Air Jet Sieve®- Model x2(MAJSx2) is a highly accurate and reliable particle size analyzer
designed to determine the particle size distribution of dry powders ranging from 20 to 4,750 micron. The
short sieving times at each sieve cut point are obtained by a reverse air current jetting out of a rotating air
wand beneath the Test Sieve Screens. This jetting air action disperses and distributes the analysis
material across the surface of the Test Sieve Screen. A Vacuum Fines Collector produces the required
airflow jetting action. The same airflow carries the fines fraction that passes through the Test Sieve
Screen, according to the principle of aerodynamic sifting. The fines fraction is then collected in either a
High Efficiency Cyclone or the Vacuum Fines Collector. A step-by-step description of this sieving action of
the Mikro Air Jet Sieve®as shown on Air Flow Diagram Sketch No.: 011414.1, on page 7 of 56 is as
follows:
Air enters through the Air Inlet opening located on the back of the MAJSx2.
Air continues through the duct to the hollow rotation wand.
Air exits the special shaped slot in the top of the rotating wand with sufficient velocity to pass through
the Test Sieve Screen.
The wand is propelled by the electric motor, thereby sweeping the complete diameter of the sieving
area.
The jet of air distributes, de-blinds, (dislodges) and possibly de-agglomerates the powder analysis
sample residing on the top surface of the Test Sieve Screen.
Those particles fine enough to pass through the Test Sieve Screen are carried away in the air stream
and collected in the vacuum and/or cyclone.
Air and fine particles enter the primary discharge duct and exit the MAJSx2.
The vacuum pressure is set by the operator on the “Testing” screen (while in the advance mode) or
“Sieving” screen (while in the basic mode) and is automatically adjusted internally by a rotating valve
located between the “Air Inlet” and “Vacuum” air ducts.
The recommended vacuum pressure range, displayed on the “Testing” screen (while in the advance
mode) or “Sieving” screen (while in the basic mode) of the MAJSx2during operation, should read
between 8 and 16 inches water column. Refer to page 49 for vacuum gauge verification procedures.
Utilizing the standard MAJSx2arrangement, the fine dust particles and air exit the main unit and travel
through the vacuum hose to the vacuum collection canister.
If an optional cyclone is attached the dust-laden air is redirected to the cyclone and based upon the
efficiency of the cyclone the coarse particles are collected in the cyclone container and the ultra-fines
are carried in the air stream to the vacuum collection canister.
CRITICAL OPERATION INFORMATION:
The MAJSx2was designed for use with the Hosokawa Micron Test Sieve Screens. While certain
manufactures screens can and do fit the instrument, Hosokawa Micron Powder Systems cannot
guarantee operational results and is not responsible should any damage occur.
Hosokawa Micron 200mm diameter Test Sieve Screens are supplied with a Blue Test Sieve Gasket and a
Black O-Ring. Remove and Discard the Blue Test Sieve Gasket. ONLY the Black O-Ring is to be used
on the Test Sieve Screen for proper vacuum seal.

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 7 of 56

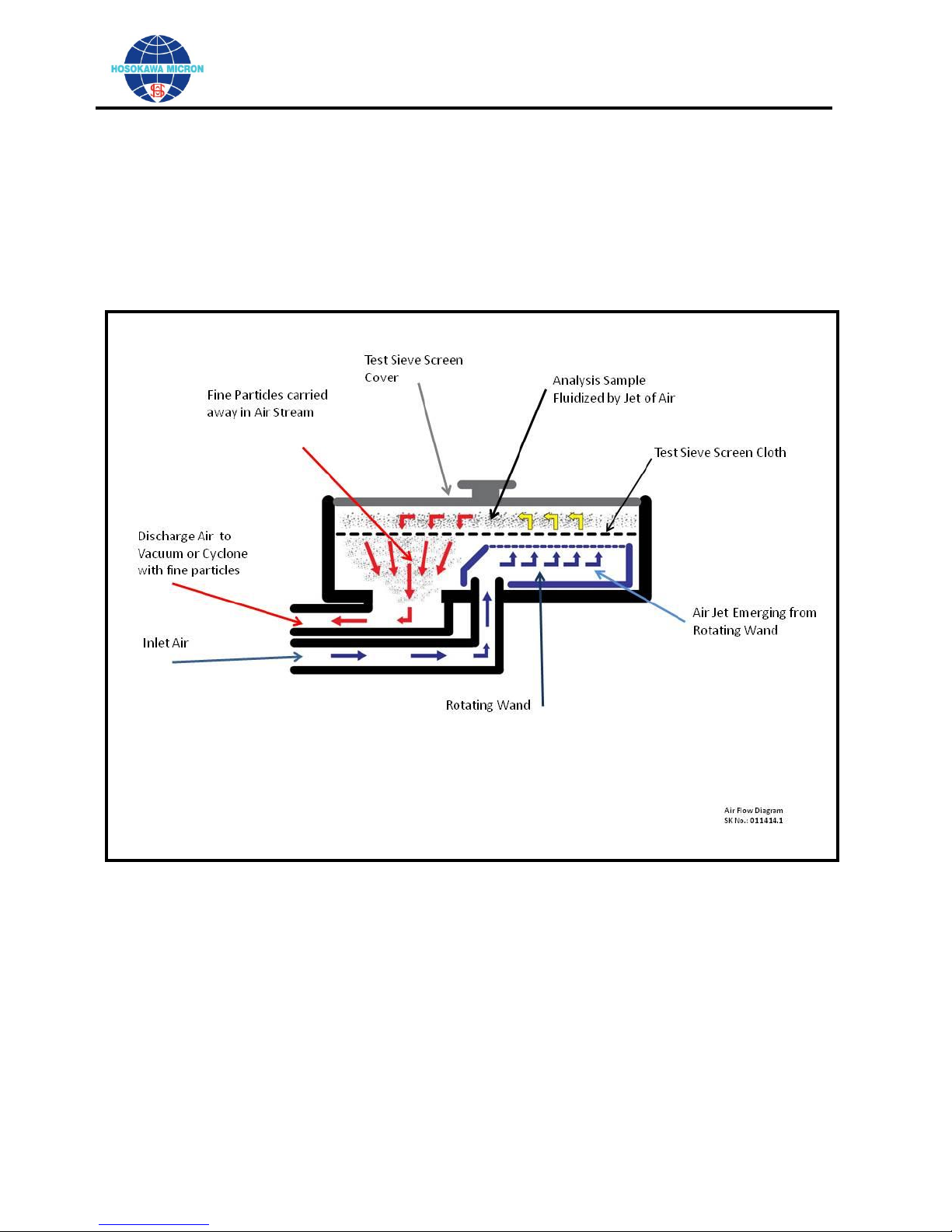

Sketch No.: 011414.1

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 8 of 56
Section 3: Safety
SECTION 3 - 1:
Precautions
SECTION 3 - 2:
Electrical Shock
SECTION 3 - 3:
Personal Protective Equipment
SECTION 3 - 4:
MSDS (MATERIAL SAFETY DATA SHEET)
SECTION 3 - 5:
First Aid
SECTION 3 - 6:
Administrators and Supervisors of Operators’ Instructions
Section 3-1: Precautions
The precautions shown below are for safe operation of the MAJSx2.
In this instruction manual, in order to use the MAJSx2safely, the following indications and symbols are
used to identify precautions.
CAUTION:
Indicates that handling the machine improperly could result in severe personal injury, death or
serious property damage.
Locate the MAJSx2in an area where the electrical components will not be exposed to water.
Locate the MAJSx2in a place where it will not be adversely affected by high temperature, high
humidity or excessive dust. Asafe operating temperature range is -10˚C ~ 60˚C (14˚F ~ 140˚F)
Relative humidity should not exceed 90% non-condensing.
Do not subject the MAJSx2to strong shock or vibration. Doing so can and will result in failure of
the MAJSx2.
As specified by the Material Safety Data Sheet (MSDS) of the powder being analyzed, use
proper personal protection and/or a suitable respirator in accordance with plant policy, OSHA or
local regulations

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 9 of 56
WARNING:
The instrument is to be properly grounded (earthed); not doing so may result in an electric
shock.
While the machine is energized and running, never open the Access Covers. Doing so may
cause injury.
Before performing maintenance, inspection, etc., turn OFF the power to the main body and
disconnect the power plug from the power receptacle. When touching parts in the machine,
wait for approximately 10 seconds or more after disconnecting the power plug. Not doing so
may cause an electric shock
Use ONLY the supplied power cable. If a power cable other than the one supplied is connected,
a fire, electric shock or serious failure may result.
Do not damage, place a heavy object on or forcedly pull the power cord. Doing so may result in
a fire and/or electric shock.
Do not use the machine in a place where combustible gas or ignitable products may be
present. Doing so may result in a fire.
Do not modify the machine.
This machine is not rated for use in a hazardous environment. Do not analyze flammable or
explosive materials.
When cleaning the pan area, refer to the maintenance service section of this manual for
additional information.
Use properly grounded power outlets for the MAJSx2, vacuum and all auxiliary equipment
attached to the sieving device

OPERATING AND MAINTENANCE MANUAL
Mikro Air Jet Sieve®
Page 10 of 56
Section 3-2: Electrical Shock
Do not open the Access Covers on the bottom of the
instrument when energized.
Touching the electronic components inside may result in an
electric shock or damage to the electronics.
Section 3-3: Personal Protective Equipment
When operating this instrument, wear dustproof goggles, dustproof masks, gloves, etc. as
required.
Section 3-4: Material Safety Data Sheet (MSDS)
When using this machine, carefully read and follow the MSDS pre-cautions for the specific powder
sample being analyzed.
Section 3-5: First Aid
In the event the analyzed powder comes in contact with the operators’ eyes, skin or is inhaled,
administer First Aid in accordance with the prior reviewed powder MSDS.
Section 3-6: Administrator & Supervisor Operators Instructions
Before installing, operating or maintaining this equipment all individuals involved in the installation,
operation and maintenance must carefully read and understand the contents of this manual and
follow the Safety Recommendations.
To protect the instrument from the effects of static electricity confirm the following:
Confirm that the Main Access Cover is attached with all four mounting threaded rubber
pads and that all of the pads are securely tightened and are in good condition.
Confirm that the touch screen panel bottom plate is attached and secured with all five (5)
screws.
Use properly grounded power outlets for the MAJSx2, vacuum and all auxiliary equipment
attached to the sieving device.
