Hoteche P702015 User manual

Original Instructions
2 of 8
SAFETY AND OPERATING MANUAL
Caution: Carefully read this entire Instruction Manual before using this product
SAFETY INSTRUCTIONS FOR SOLDERING IRONS
WARNING. This tool must be placed on it’s stand when not in use.
• Ensure this product is always used on a mains circuit protected by an earth.
• Always wear safety glasses when operating the soldering iron as solder may spit.
• When the soldering iron is not in use, always return it to its stand.
• Always ensure the work area is both well lit and well-ventilated.
• Never leave the soldering iron plugged in and unattended.
• Be sure to always solder on a fire resistant surface.
• Never touch the soldering tip while the soldering iron is plugged in.
• Solder contains lead which is a poisonous metal, so always ensure your hands are
washed after using solder.
• If the charger or battery is damaged, it must be replaced by the manufacturer or
authorized service centre in order to avoid a hazard.
To use this tool properly, you must observe the safety regulations, the assembly
instructions and the operating instructions to be found in this Manual. All persons
who use and service the machine have to be acquainted with this Manual and must be
informed about its potential hazards. Children must not use this tool. Children should
be supervised at all times if they are in the area in which the tool is being used. It is
also imperative that you observe the accident prevention regulations in force in your
area. The same applies for general rules of occupational health and safety.
The manufacturer shall not be liable for any changes made to the tool nor for any
damage resulting from such changes.
Even when the tool is used as prescribed it is not possible to eliminate all residual risk
factors. The following hazards may arise in connection with the tool’s construction
and design:
• Damage to the lungs if effective respiratory protection is not worn.
• Damage to eyes if effective eye protection is not worn.
• Risk of injury unless all parts of the body are kept well clear of hot surfaces.
Additional safety instructions for batteries and chargers
Batteries
1. Never attempt to open for any reason.
2. Do not store in locations where the temperature may exceed 40 °C.
3. Charge only at ambient temperatures between 4 °C and 40 °C.
4. Charge only using the charger provided with the tool.
5. When disposing of batteries, follow the instructions given in the section
“Protecting the environment”.
6. Do not cause short circuits. If connection is made between the positive (+) and
negative (-) terminal directly or via accidental contact with metallic objects, the
battery is short circuited and an intense current will flow causing heat generation
which may lead to casing rupture or fire.

Original Instructions
3 of 8
7. Do not heat. If batteries are heated to above 100 °C, sealing and insulating
separators and other polymer components may be damaged resulting in electrolyte
leakage and/or internal short circuiting leading to heat generation causing rupture or
file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning
may result.
8. Under extreme conditions, battery leakage may occur. When you notice liquid on
the battery, proceed as follows:
·- Carefully wipe the liquid off using a cloth. Avoid skin contact.
·- In case of skin or eye contact, follow the instructions below:
i. Immediately rinse with water. Neutralize with a mild acid such as lemon juice or
vinegar.
ii. In case of eye contact, rinse abundantly with clean water for at least 10 minutes.
Consult a physician.
Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not
incinerate the battery.
Chargers(If contain):
1. Use the charger provided with the tool only to charge the battery
2. Never attempt to charge non-rechargeable batteries.
3. Have defective cords replaced immediately.
4. Do not expose to water.
5. Do not open the charger.
6. Do not probe the charger.
7. The charger is intended for indoor use only.
Explain the symbol
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your local
Authority or retailer for recycling advice.
Warning –
To reduce the risk of injury, user must read instruction
manual
In accordance with essential applicable safety standards of European
directives
For indoor use only
Wear hearing protection.

Original Instructions
4 of 8
Wear protective glasses.
Wear breathing protection.
SAVE THIS INSTRUCTIONS
Before First Use
NOTICE
Before first use, the soldering iron
must be awakened by
connecting the adapter to the power supply, the charging indicator
(6) shows red, the tool can be used normally aft
er unplug the
adapter.
Technical specifications
Rated voltage:
4.0V
Battery capacity
：
Li-Ion, 4400mAh
Charger rating input:
100-240V~50/60Hz,
Charger rating output:
5VDC, 1000mA
Charge time:
About 5-6hours
Preheating time:
About 60s
Woek time:
> 60 minutes

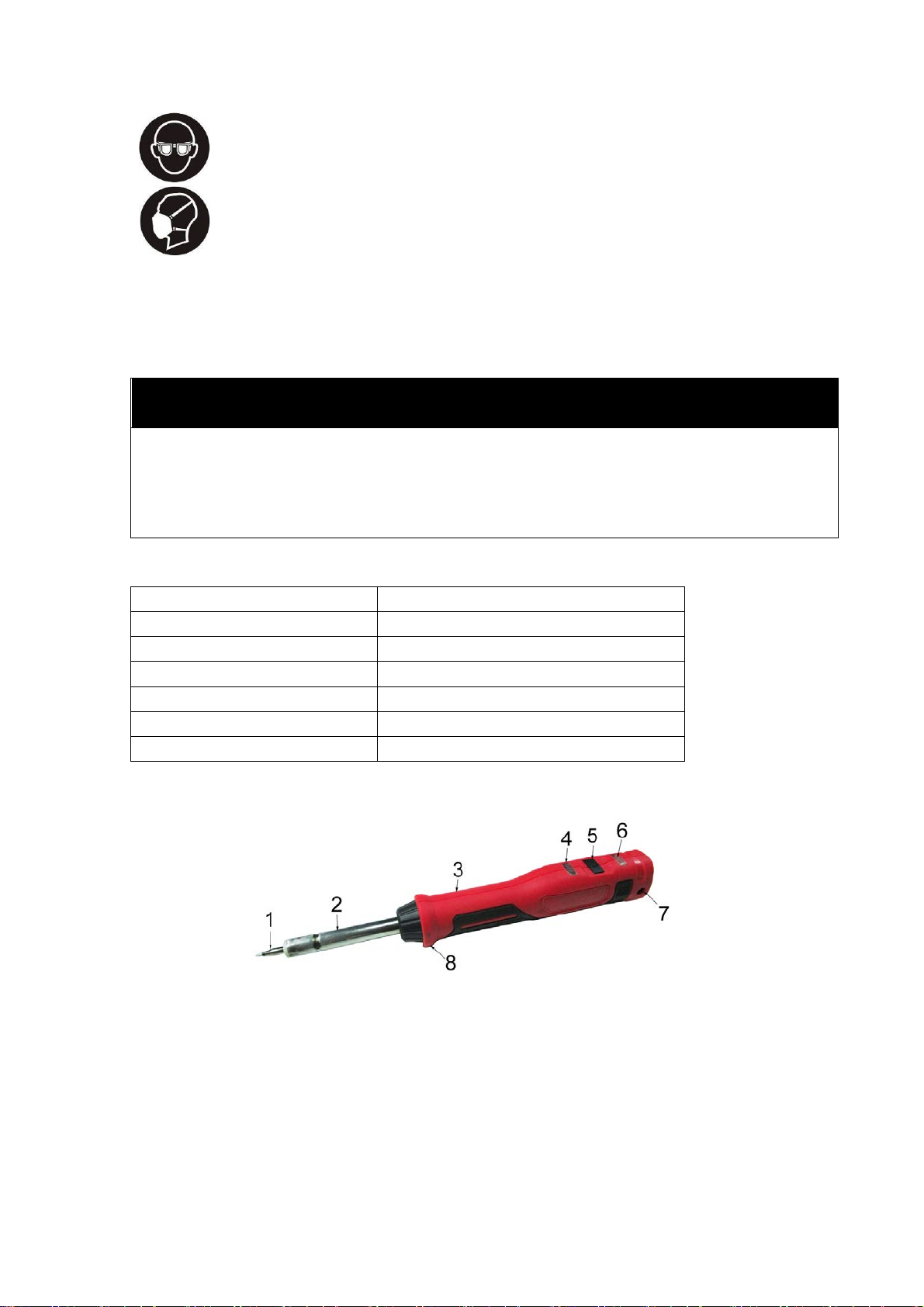

Major components (Fig. 1)
Fig. 1
1. Solder tip
2. Shaft
3. Grip
4. Heating indicator
5. ON/OFF switch button
6. Charging and battery indicator

Original Instructions
5 of 8
7. Charging socket
8. Flange
Operating Instructions
Charging the battery

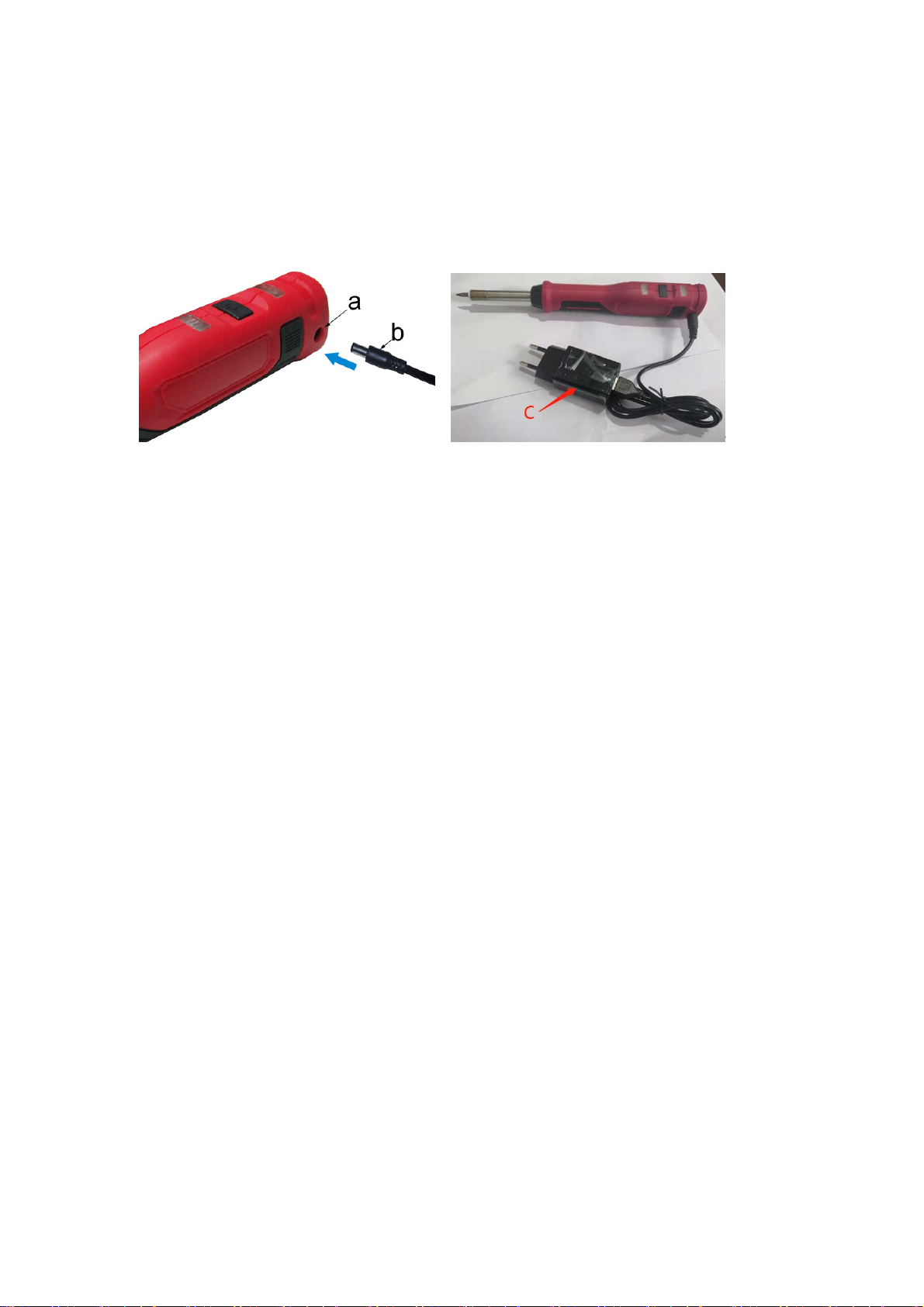

Fig. 2 Fig. 3
Description
a. Charging socket
b. DC plug
c. Adapter (Contains only one line)
d. NOTE: During charging the battery will become warm as it is being charged. The
battery supplied with this power tool contains a test charge only and must be fully
charged before use. First read the safety instructions then follow the charging
instructions.
1. Connect the adapter (c) to a suitable mains socket (important hints: check the
voltage on the model plate of the adapter).
2. Plug the charger plug (b) into the charging socket (a) on the rear side of this cordless
soldering iron.
Charge time is approx 5-6hours.
3. When the battery is charging, the RED indicator (6) keeps illuminate.
4. When fully charged, the indicator (6) will change to GREEN until unplug the adapter
(c) from the mains socket and the soldering iron is ready to use.
NOTE: Do not allow the cable to become knotted or kinked.
NOTE: Do not use the charger that does not meet the voltage of the machine to
charge the machine
Unplug the adapter when not in use and store it in a suitable storage cabinet.
Avoid charging your battery in freezing conditions as charging power will not be
sufficient.

Original Instructions
6 of 8
NOTE: If the tool will not be used for long periods of time, charge the battery every
3-6 months.
NOTE: To prevent damage to the battery, when charge runs out, charge the battery to
reach full or no less than half charge before storage.
ON/OFF switch button

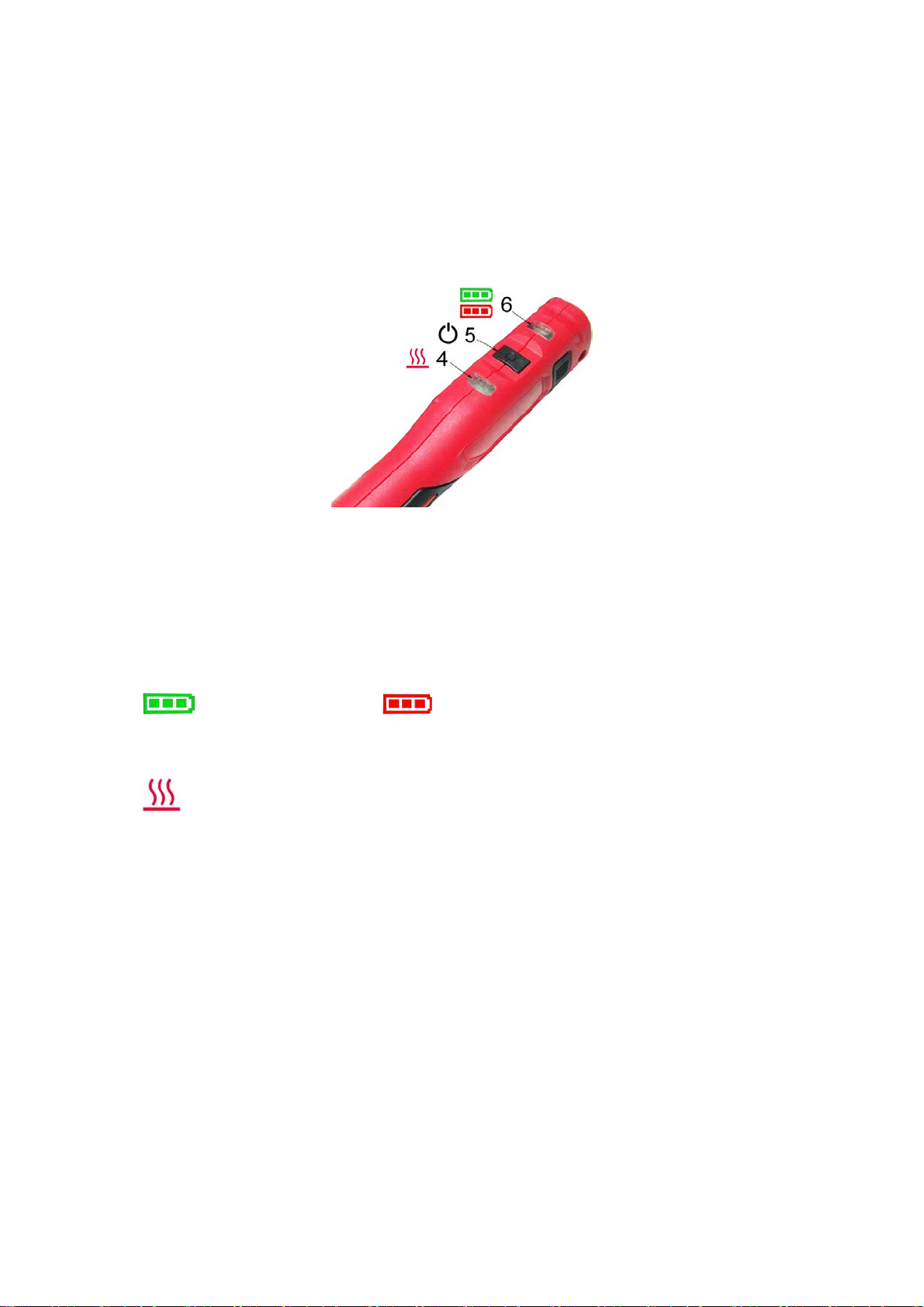

Fig. 4
The cordless soldering iron is equipped with an ON/OFF switch button (5), an
indicator (6) and a heating indicator (4).
With ON/OFF switch button:
1. Single click, power indicating.
Green: Enough power; Red: Low power.
2. Press and hold 1-2s – power on.
Red: Operation after preheating 60s.
3. Press and hold 1-2s – power off.
Release/set shipping mode
NOTE: this tool is preset to shipping mode (dormant state) which to avoid the
battery was discharged due to misoperation and the risk of fire, so the switch
cannot be start the tool.
Before first use, the soldering iron must be awakened by connecting the adapter
to the power supply, the charging indicator (6) shows red or green, the tool can
be used normally after unplug the adapter.
It is recommended that reset the tool to shipping mode when transport or storage.
Press and hold the switch button (5) 5-8s, release it after the red indicator (6) flashes 3
times and make sure that the switch does not work.
Preparing to solder

Original Instructions
7 of 8
WARNING:Always use safety glasses and ensure the work area is well ventilated to
help avoid breathing in dangerous fumes.
The Soldering Iron is typically used to melt and apply solder on various surfaces
including circuit boards.
Before beginning to solder, secure the workpiece so that it does not move and affect
your accuracy.
Fig. 5
Prepare a damp sponge nearby to clean the tip when required.
NOTE: It is highly recommended that the soldering tip is wiped clean on a damp
sponge (not included) after use to prolong service life and performance.
Fig. 6
Melt a small amount of solder onto the tip of the iron (1). This process is known as
‘tinning’ and will assist the heat in flowing from the soldering iron’s tip, to the solder
joint. It is important to do this immediately with new soldering tips.
Ensure that the workpiece and soldering tip are clean.
The workpiece can be cleaned with the use of a small file or knife blade. It is
recommended that the user wipe clean the soldering tip with a damp sponge before,
during and after soldering. This will help promote a cleaner and stronger solder joint.
Soldering
Hold the soldering iron close to the base of the grip (3), and just above the flange (8)
like a pen.
WARNING: Never touch the shaft (2) or tip (1) as temperatures can range up to 450°

Original Instructions
8 of 8
C.
Hold the soldering iron with the tip pressed onto the workpiece for a few second to
allow it to heat up.
Slowly feed the solder onto the joint, not the soldering iron, allowing the solder to
melt onto the joint.
Once the solder has been applied to the joint, hold the workpiece still while removing
the solder and soldering iron simultaneously.
NOTE: A good solder joint will appear smooth and shiny. If this is not the case,
you will need to reheat the joint and re-apply the solder.
NOTE: The solder tip is designed for very high lifetime, so do not need to replace
it under normal use.
Maintenance and servicing
The equipment may be stored not in damp environment or in places with corrosive
gases, but at a dry place outside of the range of children.
Cleaning the surface of the equipment and wipes it off only with a dry cloth.
The equipment may not be dismantled. If the equipment is damaged, contact the
supplier or manufacturer.
Maintenance and servicing are not required under normal conditions.
Risk of injury
Service, testing and repairs should only be carried out by authorised service centres.
We recommend our customer service department or authorised service centres.
Recycling
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities. Contact you local government for information regarding the
collection systems available. If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the groundwater and get into the food
chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to
take back your old appliance for disposals at least free of charge.
