Hotpoint GW81 User manual

Instructions for Installation and Use
GW81
The cooker must be installed in accordance with the regulations in
force and only used in a well ventilated space.
To the Installer
Before installation fill in the product details on the back cover of this
booklet. The information can be found on the rating plate.
To the User
You must read the instructions prior to using the appliance and then
retain them for future reference.

PAGE
Introduction 3
For Your Safety 4 & 5
Oven Timer Operation 6
Hotplate 12
Grill 13
Main Oven 15
The “E” Setting 19
Top Oven 20
Care and Cleaning 23
Something Wrong ? 26
Installation Instructions 28
Service 36 & Back Cover
2
CONTENTS

To help you make the best use of your cooker, PLEASE READ THIS BOOKLET
CAREFULLY.
Your new cooker is guaranteed and will give lasting service. The guarantee is
only applicable if the cooker has been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use and responsibility will not be
accepted for use in any other installation.
When first using the cooker ensure that the room is well ventilated (e.g. open a
window or use an extractor fan) and that persons who may be sensitive to the
odour avoid any fumes. It is suggested that any pets be removed from the room
until the smell has ceased. This odour is due to any temporary finish and also
any moisture absorbed by the insulation.
3
INTRODUCTION
FEATURES
VENTILATION SLOTS
GLASS LID WITH CUT OFF
VALVE
HIGH SPEED BURNERS
SIMMERING BURNERS
AUTOMATIC OVEN TIMER
TOP OVEN AND GRILL
MAIN
OVEN
DATA BADGE
VENTILATION SLOTS

Please read the precautions below before using your cooker.
ALWAYS . . .
ALWAYS make sure you understand the controls before using the cooker.
ALWAYS check that all controls on the cooker are turned off after use.
ALWAYS stand back when opening an oven door to allow heat to disperse.
ALWAYS use dry, good quality oven gloves when removing items from the ovens.
ALWAYS take care when removing items from the top oven/grill when the main
oven is on, as the contents may be hot.
ALWAYS keep the oven and grill doors closed when the cooker is not in use.
ALWAYS place pans centrally over the hotplate burners and position them so
that the handles cannot accidentally be caught or knocked or become
heated by other burners.
ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can
cause a fire.
ALWAYS allow the cooker to cool before cleaning.
ALWAYS follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
ALWAYS keep ventilation slots clear of obstructions.
ALWAYS turn off the electricity supply before cleaning or replacing the oven
lamp.
ALWAYS refer servicing to CORGI registered appliance service engineers.
4
FOR YOUR SAFETY

NEVER . . .
NEVER leave children unsupervised where the cooker is installed as all surfaces
will get hot during and after use.
NEVER allow anyone to sit or stand on any part of the cooker.
NEVER store items that children may attempt to reach above the cooker.
NEVER heat up unopened food containers as pressure can build up causing
the container to burst.
NEVER store chemicals, food stuffs, pressurised containers in or on the cooker,
or in cabinets immediately above or next to the cooker.
NEVER fill a deep fat frying pan more than 1/3 full of oil, or use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
NEVER place flammable or plastic items on or near the hotplate.
NEVER use proprietary spillage collectors on the hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other times over or near to the hotplate or oven/
grill doors.
NEVER wear garments with long flowing sleeves whilst cooking.
NOTE: The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is well venti-
lated; keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation, for
example opening of a window, or more effective ventilation, for example
increasing the level of mechanical ventilation where present.
5
FOR YOUR SAFETY

6
OVEN TIMER OPERATION
The oven timer offers you the following features:
1. Time of Day
2. Automatic Cooking
3. Minute Minder
AUTOMATIC COOKING
The Top Oven and Main Oven can be controlled automatically. When the
timer control has been set for one oven it is possible to use the other oven
only on the same automatic cooking programme.
GUIDANCE ON AUTOMATIC COOKING
1. Select foods which will take the same time to cook.
2. Set the oven timer so that the food has just finished or is just about to
finish cooking on your return to the oven. This will ensure the food has
not cooled down and does not require reheating before serving.
3. Food should be as cold as possible when it goes into the oven, ideally
straight from the refrigerator. Frozen meat and poultry should be
thawed thoroughly before it is put in the oven.
4. Warm food should never be placed in the oven if there is to be a
delay period. Stews prepared by frying the meat and vegetables should
be cooked as soon as possible.
5. Dishes containing left-over cooked poultry or meat, for example
Shepherds Pie, should not be cooked automatically if there is to be a
delay period.
6. Stews and joints should be cooked by the long slow method, so that the
delay period is kept to a minimum.
7. On warm days, to prevent harmful bacterial growth in certain foods (ie
poultry, joints, etc) the delayed start should be kept to a minimum.
8. Wine or beer may ferment and cream may curdle during the delay
period, so it is best to add these ingredients just before serving.
9. Foods which discolour should be protected by coating in fat or tossing in
water to which lemon juice has been added, prior to placing food in the
oven.
10. Dishes containing liquid should not be filled too full to prevent boiling
over.
11. Food should be well sealed (but not airtight) in a container to prevent the
loss of liquid during cooking. Aluminium foil gives a good seal.
12. Ensure food is cooked thoroughly before serving.
TIMER OPERATION
1. Make sure all oven controls are turned Off.
2. Check that the electricity supply to the cooker is turned On.
3. Check that the timer is set to the right time of day.

7
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure correct time of day is always set, before using your cooker.
PLEASE NOTE THAT THE DISPLAY WILL DIM BETWEEN 22.00
HOURS AND 06.00 HOURS TO PREVENT GLARE.
However, should you operate the timer during these hours the display will
return to normal brightness for a few seconds and then dim again.
SYMBOLS
will light up when you select a Minute Minder Period and will remain
lit for the period set. At the end of the Minute Minder Period, the timer
will emit an audible tone for 2 minutes, the symbol will start to flash
and will continue to flash until the Minute Minder function is cancelled.
This “Cookpot” symbol will light up either:–
– When you press the Cook Period Button and set a length of time for
an Auto Cooking Programme. (It will go out again a few seconds after
you release the timer buttons).
– During the actual Cook Period.
“AUTO” will light up:–
– When the timer is first turned on it will flash. (It will go out when a
time of day is set.
– When an Auto Cooking Programme has been set.
The “Auto” symbol will flash at the end of an Auto Cooking programme
to indicate that the programme has finished.
(When the “Auto” symbol is flashing, to return the oven to Manual
operation, turn the oven controls off, ensure that the correct time
of day is set, and press the “Manual” button twice – The “Auto”
symbol will go out.
Here you can set a time period of up to 23 hours 59 minutes, that will count down.
When it reaches zero, the timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.
Cook Period is the actual length of time for which, the timer will switch the oven(s)
on as part of an “Auto Cooking” programme.
(e.g. If you set 2 hours, the food will be cooked for 2 hours).
The time of day at which you want an “Auto Cooking” programme to end.
For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00. The
timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will
hear a audible tone at 11:00, to indicate that the Auto
Cooking Programme has finished.
Notes:
– When setting an Auto Cooking programme you will need to set the oven con-
trols(s) to the required temperature(s) when you set the timer.
_ If an Auto Cooking programme has been set the oven(s) will only operate during
the pre-programmed time.
Needs to be pressed to cancel an Auto Cooking programme and return the
ovens(s) to Manual operation.
Used to adjust the various timer function settings.
Minute Minder
Button
Cook Period Button
End Time Button
Manual Button
“+” and “–” Buttons
Minute
Minder Cook
Period End Time Manual
A
U
T
O
A
U
T
O
Minute
Minder Cook Period End Time Manual
TIMER FUNCTION BUTTONS
AUTO COOKING PROGRAMME
KNOW YOUR TIMER

SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned Off.
Step 2 Check the electricity supply to the cooker is turned on.
Step 3 When switched on the display will show 0.00 and Auto symbol
will be flashing intermittently.
Step 4 Press & hold in both the “Minute Minder” & “Cook Period” button
together.
Step 5 With the “Minute Minder” & “Cook Period” buttons still held in,
press either the “+” or “–” buttons to set the correct time of day.
Step 6 Release all the buttons simultaneously.
THE TIME OF DAY IS NOW SET.
To change the time of day repeat Steps 4, 5 & 6 above.
Note: You cannot adjust the time of day if the timer has been set
for an Auto Cooking Programme.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and hold the Minute Minder Button, a symbol will light up.
Step 3 With the “Minute Minder” button held in, set the required Minute
Minder time using the “+” and “–” buttons.
Release all buttons and the timer display will revert back to the time of day.
Bell symbol will remain lit to signify that a Minute Minder period has been set.
At the end of the set time a bleeping sound will be heard, and the
symbol will flash for approximately 2 minutes.
After approximately 2 minutes the bleeping sound will stop and the
symbol will go out automatically.
Step 4 To cancel the bleeping sound within the two minutes press the
Minute Minder button.
A
U
T
O
Minute
Minder Cook Period End Time Manual
Minute
Minder Cook Period End Time Manual
Bell Symbol
Minute
Minder Cook Period End Time Manual
Minute
Minder Cook Period End Time Manual
Note 1 When the Minute Minder has been set, the time remaining can be
checked at any time by simply pressing the Minute Minder button.
Note 2 If necessary the Minute Minder can be cancelled before the tone sounds
by pressing and holding the Minute Minder button and then at the same
time pressing the “–” button until 0.00 appears in the display window.
8
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION

9
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION
Step 3 Press and hold in the Cook Period button.
The display will read 0.00 with the cookpot ( ) symbol lit.
Step 4 With the Cook Period button still held in, set the required Cook
Period using the “+” and “–” buttons.
Release the buttons and the timer display will revert to the time of day
with the Auto symbol and Cookpot ( ) symbol lit.
Step 5 Press and hold in the “End Time” button.
The display will read the earliest possible end time for the Cook
Period that you have set above.
The Auto symbol and Cookpot ( ) symbol lit.
Step 6 With the End Time button still held in, use the “+” and “–”
buttons to set the “End Time” (i.e. The time you require the oven
to switch off).
Release all the buttons and the timer will revert back to the time of day.
The “Auto” symbol will remain lit to signify that an Auto Cooking
Programme has been set. The ( ) symbol will go out.
Step 7 Turn the oven control(s) to the required temperature, and if
necessary select the appropriate oven function.
Note: If your appliance has two ovens: When the timer has been
set for one oven it is possible to use the other oven only during the same
Automatic programme.
At the end of the Automatic Cook Period the Auto Symbol will flash and
an intermittent bleeping sound will be heard.
The bleeping sound will continue for approximately 2 minutes unless
cancelled. The “Auto” symbol will continue to flash until the timer is
returned to Manual operation (see below).
Step 8 Press the Manual button to cancel the bleeping sound. (If 2
minutes has not elapsed).
Step 9 Turn the oven control(s) to the OFF position.
Step 10 Press the manual button again to return the oven(s) to Manual
Operation. (The Auto symbol will go out)
AUTO COOKING PROGRAMMES
There are two Auto Cooking programmes that can be selected using your timer:–
(a) To set the timer to switch the oven(s) On and Off Automatically
(b) To set timer to switch on immediately and OFF automatically after a set cook period.
a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY
This allows you to cook at a specified time for a chosen period before the oven
switches off Automatically.
Step 1 Check that the correct time of day is set, if not follow instructions for setting the
time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Minute
Minder Cook Period End Time Manual
Cooktop Symbol
A
U
T
O
A
U
T
O
Minute
Minder Cook Period End Time Manual
A
U
T
O
Minute
Minder Cook Period End Time Manual
Minute
Minder Cook Period End Time Manual

10
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION
Step 4 Press & hold in the “Cook Period” button, the display will read
0.00 and the cookpot ( ) symbol will light up.
With the Cook Period button still held set the required Cook Period
using the “+” and “–” buttons. Example: 1hr 30 minutes (as shown).
Note: Cook Period is the length of time the food requires to cook.
Step 5 Release all buttons.
The timer display will revert to the time of day with the Auto symbol lit &
Cookpot symbol remaining lit.
At the end of the Cook Period the “Auto” symbol will flash and an
intermittent bleeping sound will be heard.
The bleeping sound will continue for approximately 2 minutes unless
cancelled. The “Auto” symbol will continue to flash until the timer is
returned to Manual operation (see below).
Step 6 Press the manual button to cancel the bleeping.
(If 2 minutes has not elapsed)
Step 7 Turn the oven control(s) to the OFF position.
Step 8 Press the “Manual” button again to return the cooker to Manual
operation. (The Auto symbol will go out).
b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY
AFTER A SET COOK PERIOD
Step 1Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3Turn the oven control(s) to the required temperature, and if necessary select the appropriate
oven function.
A
U
T
O
Minute
Minder Cook Period End Time Manual
Cookpot Symbol
A
U
T
O
A
U
T
O
Minute
Minder Cook Period End Time Manual
A
U
T
O
Minute
Minder Cook Period End Time Manual
Note: Cookpot symbol disappears
Note 1 When cooking automatically the Cook Period can be checked at any time
by simply pressing the Cook Period button.
Note 2 When cooking automatically the End Time can be checked at any time by
simply pressing the End Time button.

11
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION
OTHER NOTES ON TIMER OPERATION
1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the
Cook Period button.
2. When cooking Automatically the End Time can be checked at any time by simply pressing the
End Time button.
3. Having set a Cook Period and End Time an electronic device stores the information. The device
within the timer will switch the oven(s) on and off at the required times.
4. When setting an Auto Cooking Programme and a mistake is made, to clear:–
(a) Press and hold in the “Cook Period” button.
(b) With the Cook Period button still held in, return the display to by pressing the “–”
button.
(c) Release the “Cook Period” & “–” buttons, and the display will revert to the time of day and
the “Auto” symbol will flash.
(d) Press & release the “Manual” button.
(e) Start the sequence again.
5. If at any time the display shows three flashing zero’s 0.00. It is likely that the electricity supply
to the oven has been interrupted. Reset the timer to the correct time of day.
Food in the oven may, therefore, not have been cooked, before serving check food is
thoroughly heated and completely cooked.
6. To set each function always press and hold the required function button and at the
same time press “+” or “–” buttons.
Note: Between the hours of 22.00 & 06.00 the display dims to prevent glare.
However, if you should operate a button during this period, the timer will return to
normal brightness for a few seconds and then dim again.
A
U
T
O
TO CANCEL AN AUTO COOKING PROGRAMME BEFORE
THE COOK PERIOD HAS FINISHED.
Step 1 Turn the oven control(s) to the OFF position.
Step 2 Press and hold in the “Cook Period” button.
Step 3 With the “Cook Period” button still held in, return the display to
0.00 by pressing the “–” button.
Step 4 Release the “Cook Period” and “–” buttons and the display will
revert to the time of day and the “Auto” symbol will flash.
Step 5 Press the “Manual” button to return the oven(s) to “Manual”
operation. The “Auto” symbol will go out.
Minute
Minder Cook Period End Time Manual
A
U
T
O
Minute
Minder Cook Period End Time Manual
Note 1 When cooking automatically the Cook Period can be checked at any time by
simply pressing the Cook Period button.

12
HOTPLATE
The hotplate lid is fitted with a safety device which cuts off the gas supply to the
hotplate burners unless the lid is fully open. Do not use the safety device as a
means of controlling the hotplate burners.
The hotplate has two high speed burners and two simmering burners which will
accommodate pans between 100mm (4”) and 230mm (9”) diameter. All pans
should be positioned centrally over the burners.
Simmering aids such as steel plates should not be used because they can cause
damage to the pan supports.
TO USE THE HOTPLATE
1. Check that the electricity supply is switched on.
2. Push in and turn the control knob of the chosen burner anti-clockwise
to the large flame symbol. Press the ignition button until the spark lights
the gas.
3. Turn the control knob anti-clockwise to the desired setting. Only turn
the control knob between the large flame symbol and the small flame
symbol for adjusting the setting.
4. To turn off, turn the control knob fully clockwise.
DO NOT use mis-shapen pans which may be unstable.
DO NOT use round base woks directly on the pan supports.
DO NOT use the glass lid as a working surface.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off the
burner control and do not attempt to re-ignite the burner for at least one minute.
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
1. Never fill chip pans more than one third full with oil or fat.
2. Never leave oil or fat unattended during the heating or cooling period.
3. Never heat fat or fry with a lid on the pan.
4. Always dry food thoroughly before frying, and lower it slowly into the
hot oil or fat. Frozen foods in particular will cause frothing and spitting if
added too quickly.
5. Always keep the outside of the pan clean and free from streaks of oil or
fat.
HOW TO DEAL WITH A FAT FIRE
1. Do not move the pan.
2. Turn off the hotplate burners.
3. Smother the flames with a fire blanket or damp cloth to extinguish the
fire. Do not use water or a fire extinguisher as the force of it may
spread the burning fat or oil over the edge of the pan.
4. Leave the pan for at least 60 minutes before moving it.

13
GRILL
ABC
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS USED.
YOUNG CHILDREN SHOULD BE KEPT AWAY.
GRILL PAN AND HANDLE
The grill pan handle is detachable from the pan to facilitate cleaning and storage.
The handle can be fixed as follows :
1. Remove the screw and washer from the grill pan bracket.
2. Tilt the handle over the recess. (A)
3. Slide the handle towards the centre of the pan. (B)
4. Locate the handle over the bracket. (C)
or a fixed handle, replace the screw and washer and ensure they are fully
tighened.If a detachable handle is required, do not replace the screw and
washer. Warning : Ensure when using the grill pan handle in the detachable
manner it is centralised and secure.
The grill pan can be stored in the top compartment with the handle attached
by placing the shelf in the middle or lower position and tilting the grill pan
over the rear edge of the shelf.
TO USE THE GRILL
1. Check that the electricity supply is switched on.
2. Open the top oven/grill door and remove the grill pan.

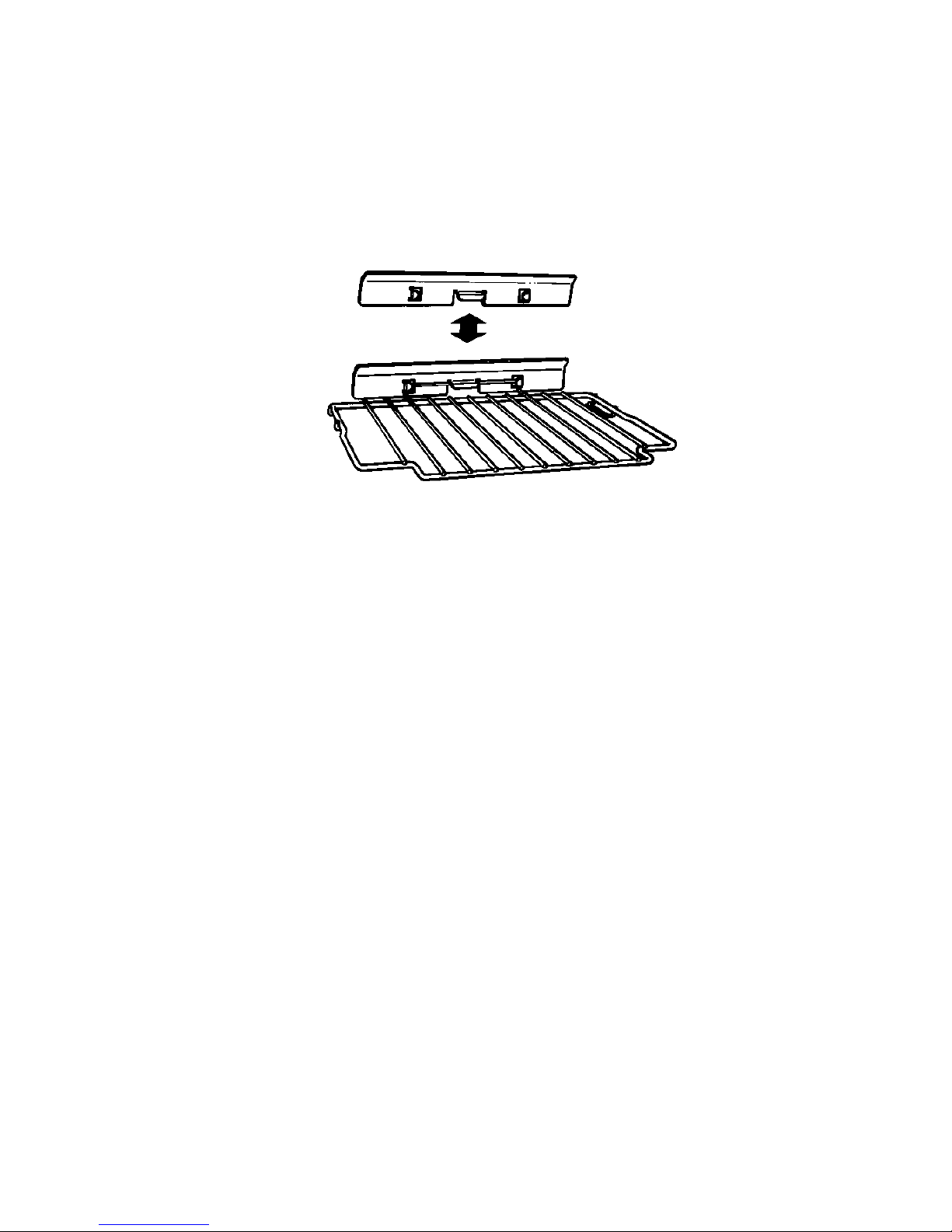

3. Remove the heat shield from the rear of the shelf for maximum grilling
area.
4. Place shelf in chosen position. Refer to grilling chart.
5. Push in and turn the control knob clockwise to the large flame symbol.
Press the ignition button until the spark lights the gas.
6. Slide the grill pan along the shelf towards the rear of the grill
compartment until it stops.
7. Turn the control knob clockwise to the desired setting. Only turn the
control knob between the large flame symbol and the small flame
symbol when adjusting the setting.
8. To turn off, turn the control knob anti-clockwise to the symbol ●.
The grill cannot be used at the same time as the top oven.
An odour may be noticed when first using the grill – this should cease after a
short period of use.
DO NOT use the grill with the door closed.
DO NOT cover the grill pan or grid with aluminium foil as this can hold fat,
intensify the heat and create a fire hazard.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off
the burner control and do not attempt to re-ignite the burner for at least
one minute.

The following chart is a guide. Grilling can be started from cold but for best
results preheat for approximately two minutes. Most cooking is done with the
heat on full, but it may be desirable to reduce it for thicker pieces of meat or for
keeping food warm.
For au gratin dishes eg. Macaroni Cheese and meringue toppings eg. Baked
Alaska, place the dish on the floor of the grill compartment. The base of the grill
pan can be used for warming fruit garnishes on the reduced setting.
NOTE: Strong detergents used in dishwashers may damage the grill pan grid
finish; clean in soapy water as described in CARE AND CLEANING section.
Always ensure that the grill pan handle is correctly fitted to the grill pan.
If necessary tighten any loose screws with a screwdriver.
14
GRILL
Shelf Position Food
Toast, pikelets/crumpets, bacon, thin sausages,
beefburgers, tomato halves, steak (rare and medium),
kippers, gammon, kidneys and toasted snacks.
Toast, toasted snacks, thick sausages, beefburgers,
fish fingers, steak (well done) and gammon, chops (with
heat turned down for part of cooking time).
Whole fish, fish fillets and fish steaks (on base of pan).
Chicken portions (with heat turned down for part of
cooking time).
HIGH POSITION
CENTRE POSITION
LOW POSITION
REMOVE HEAT SHIELD
FROM SHELF WHEN
GRILLING FOR MAXIMUM
GRILLING AREA.

The oven has different heat zones – the thermostat settings refer to the
temperature on the middle shelf; above this shelf it is hotter and below it is
cooler. Two shelves provide six possible cooking levels enabling full use of the
different temperatures inside the oven.
Each shelf has a safety stop to prevent if from being pulled out too far when
attending to food. Shelves are removed from the oven by pulling them out to the
stop and then lifting them at the front to withdraw.
The baking dish and grill pan without the handle can be used in the oven. The
maximum size of baking tray that should be used is 300mm x 350mm (12” x 14”).
TO USE THE MAIN OVEN
1. Check that the electricity supply is switched on and the timer is set to
manual mode.
2. Place oven shelves in the chosen positions (refer to cooking charts).
3. Push in and turn the oven control knob fully anti-clockwise. Sparking
will continue until the burner is lit.
4. Turn the control knob clockwise to the required setting (refer to
cooking chart). There is a delay of about one minute whilst the safety
device operates before the burner comes on full.
5. To turn off, turn the control knob fully clockwise the the symbol ●.
Never place dishes on the oven base over the burner.
An odour may be noticed when first using the oven – this should cease after a
short period of use.
15
MAIN OVEN

COLD START COOKING
Anything requiring long slow cooking such as casseroles and rich fruit
cakes can be put into a cold oven. Satisfactory results can also be
obtained with creamed mixture, rich pastries or yeast mixtures, but for
perfection we recommend preheating the oven for about 15 minutes at the
gas mark you require for cooking.
ROASTING OF LARGE POULTRY
The maximum weight of poultry that can be accommodated is 11.5kg
(25 lbs) of suitable shape.
It is important to check that the bird DOES NOT overhang the burner at
the back of the oven.
STORAGE AND RE-HEATING OF FOOD
It is vitally important to strictly adhere to the basic principles of food
handling and hygiene to prevent the possibility of bacterial growth.
1. If food is to be frozen or not served immediately, cool it in a clean
container as quickly as possible.
2. Completely thaw frozen food in the refrigerator before re-heating.
3. Re-heat food thoroughly and quickly either on the hotplate or in a hot
oven, Mk. 6, and then serve immediately.
4. Only re-heat food once.
‘COOK CHILL’ DISHES
These should always be placed in a pre-heated oven ideally on the first or
second shelf position. Follow the packet instructions for cooking time.
ALUMINIUM FOIL
If using Aluminium Foil:
1. Remember that it is important to increase the cooking time by one
third.
2. Never allow the foil to touch the sides of the oven.
3. Never cover the oven interior with foil.
4. Never cover the oven shelves with foil.
16
MAIN OVEN

The following times and setting are for guidance only. You may wish to alter the setting to give a
result more to your satisfaction. When a different setting to that shown below is given in a
recipe, the recipe instructions should be followed. Allow 15 minutes preheat for best results.
Always turn the thermostat knob to Mark 9 before selecting the required Gas Mark.
Shelf position 1 is the highest.
17
MAIN OVEN COOKING CHART
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
STARTERS
Patés and Terrines 3 or 4 4 11/2- 2 hrs
FISH
Oily Fish (whole) 4 or 5 3
White Fish (fillets & steaks) 4 or 5 3 25 - 30 mins.
MEAT AND POULTRY
Veal 5 4 25 mins per lb + 25 mins
Beef 4 or 5 4 25 - 30 mins per lb + 25 mins
Ham 5 4
Lamb 5 4 30 - 35 mins per lb + 30 mins
Pork 5 4 40 mins per lb + 40 mins
Chicken 5 4 25 mins per lb + 25 mins
Duckling & gosling 5 4 25 mins per lb + 25 mins
Turkey 4 or 5 4 or 5 15 - 20 mins per lb + 20 mins
Game birds 6 4
Casseroles 3 3 or 4 11/2- 6 hrs. (depending on type of meat)
PUDDINGS
Milk Puddings 3 3 or 4
Baked Custard 3 3 or 4 45 mins in bain-marie
Baked sponges 4 3 40 - 50 mins
Baked Apples 3 4
Meringue puddings 1 4 or 5 15 mins or until 'tinged' with brown
Apple Pie 1x9" (230mm) 6 3 45 - 55 mins stand dish on a baking tray
Fruit crumbles 5 or 6 3 35 - 45 mins
25 mins - 1 hr, depending on recipe
and size of fish
40 mins per lb covered in foil
+ 40 mins per lb uncovered
50 mins. Remove bacon for last 15 mins.
Add extra 15 mins if roasting brace
21/4- 21/2hrs stand dish on a baking tray and
started with warm milk
30 - 45 mins depending on the size
and type of apples

18
MAIN OVEN COOKING CHART
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
CAKES, PASTRIES AND BISCUITS
Small cakes - 2 trays 5 2 & 4 17 - 25 mins
- 1 tray 5 2 or 3 only "
Victoria sandwich 2x8" (205mm) 4 2 & 4 25 - 35 mins
5 2 20 - 25 mins. 2 tins side by side
Christmas cake 2 3 or 4 4 - 61/2hrs depending on recipe
Madeira cake 7" (180mm) 4 3 11/4- 11/2hrs
Rich Fruit cake 9" (230mm) 2 3 3 - 31/2hrs.
Shortcrust pastry 6 2 or 3 15 mins - 1 hr depending on recipe
Rich Shortcrust pastry - 1 tray 5 2 20 - 40 mins depending on recipe
Flaky & puff pastry - 2 trays 7 1 & 3 10 - 30 mins depending on recipe
- 1 tray 2 or 3 " " " "
Choux pastry - éclairs 1 tray 6 2 35 - 40 mins
Scones - 2 trays 7 2 & 4 10 - 15 mins
- 1 tray 2 or 3 "
Shortbread - 7" (180mm) round 2 4 55 - 1hr depending on thickness
Biscuits - 2 trays 4 1 and 3 15 - 20 mins depending on recipe
- 1 tray 2 or 3 " " " "
YEAST MIXTURES
Bread 7 or 8 3 or 4 45 - 50 mins
Rolls 7 or 8 2 or 3 15 - 20 mins
Chelsea buns 5 2 or 3 30 - 40 mins
MISCELLANEOUS
Yorkshire Pudding - large 7 1 or 2 45 - 50 mins
- individual 7 1 or 2 25 - 30 mins
Soufflés 4 3 30 mins
Meringues 'E'
Baked Potatoes 4 or 5 3 11/2- 3 hrs until soft, depending on size
2 - 5 hrs starting on shelf 4 until 'set'
and then on the baseplate until dried
out - turn when necessary.
Fatless sponge 2x7" (180mm) -
3 egg mix
4 &
baseplate
When baking with two trays or tins on two levels, the top tray is removed first and the lower
tray moved up to the top position for a few minutes longer.
Soft Margarine – Use the oven settings recommended by the margarine manufacturer and
not those indicated on the cooking chart.

The ‘E’ setting on the main oven thermostat is used for slow cooking, keeping
food warm and warming plates for short periods.
USING THE ‘E’ SETTING FOR SLOW COOKING
1. All dishes cooked by the ‘E’ setting should be cooked for a minimum 6
hours. They will ‘hold’ at this setting for a further hour but marked
deterioration in appearance will be noticed in some cases.
2. Joints of meat and poultry should be cooked at Mk. 6 for 30 minutes
before turning to the ‘E’ setting and never be cooked lower than the
middle shelf position.
3. Joints of meat over 6 lbs (2.7kg) and poultry over 4 lbs 8oz (2 kg)
should not be cooked using the ‘E’ setting.
4. Always stand covered joints on a rack over the meat tin to allow good
air circulation.
5. A meat thermometer should be used when cooking pork joints and
poultry. The internal temperature of the food should reach at least 88oC.
6. This method is unsuitable for stuffed meat and stuffed poultry.
7. Always bring soups, casseroles and liquids to the boil before putting in
the oven.
8. Cover casseroles with foil and then the lid to prevent loss of moisture.
9. Always thaw frozen food completely before cooking.
10. Root vegetables will cook better if cut into small pieces.
11. Adjust seasonings and thickenings at the end of the cooking time.
12. Use the zones of heat in the oven, e.g. meringues and milk puddings
can be cooked lower in the oven whilst other dishes requiring greater
heat can be cooked above them.
13. Egg and fish dishes need only 1-5 hours cooking and should be
included in day cooking sessions, when they can be observed from
time to time.
14. Dried red kidney beans must be boiled for a minimum of ten minutes
after soaking, before inclusion in any dish.
19
THE ‘E’ SETTING

The top oven can be used to cook small quantities of food or used in conjunction
with the main oven to provide additional cooking space.
The shelf in the top oven has a heat shield fitted at the rear. The shield can be
removed for cleaning and grilling, but must be replaced when using the oven.
The shelf can be used in three different positions. It has a safety stop to prevent
it from being pulled out too far when attending to food. The shelf is removed from
the oven by pulling it out to the stop and then lifting at the front to withdraw.
The baking dish and grill pan without the handle can be used in the oven. The
maximum size of baking tray that should be used is 300mm x 350mm (12” x 14”).
TO USE THE TOP OVEN
1. Check that the electricity is switched on and that the timer is set in
manual mode.
2. Check that the heat shield is fitted to the shelf.
3. Place the top oven shelf in the chosen position. (refer to cooking chart).
4. Push in and turn the top oven/grill control knob fully anti-clockwise.
Sparking will continue until the burner has lit.
5. Turn the control knob clockwise to the required setting. (refer to cooking
chart).
6. There is a delay of about one minute whilst the safety device operates
before the burner comes on full.
7. To turn off, turn the control knob clockwise to the symbol ●.
NOTE: It is normal for a slight resistance to be felt to be felt when turning
the control knob to the oven settings.
GUIDANCE ON USING THE TOP OVEN
1. Best results are obtained by pre-heating the oven for about 15 minutes.
2. The tray or dish on which the food is to be cooked, should be pushed
to the back of the shelf.
3. Food which is higher than or will rise above 125mm (5”) cannot be
cooked in the top oven.
Never place dishes on the oven base over the burner.
An odour may be noticed when first using the oven – this should cease after a
short period of use.
20
TOP OVEN
