Hotpoint C368e User manual

64

FI~CJiLE~

eOAb

Ho·T

PO\WT

f!v\oDEL

bl

~cw

SEE\AL

6D~ls-C)00

9

II

Hotpoint

Designed

for

the

real world

Instructions

60cm

Slot-in

Cookers

This book covers:

C367E

C368

61DC

ARC60

2

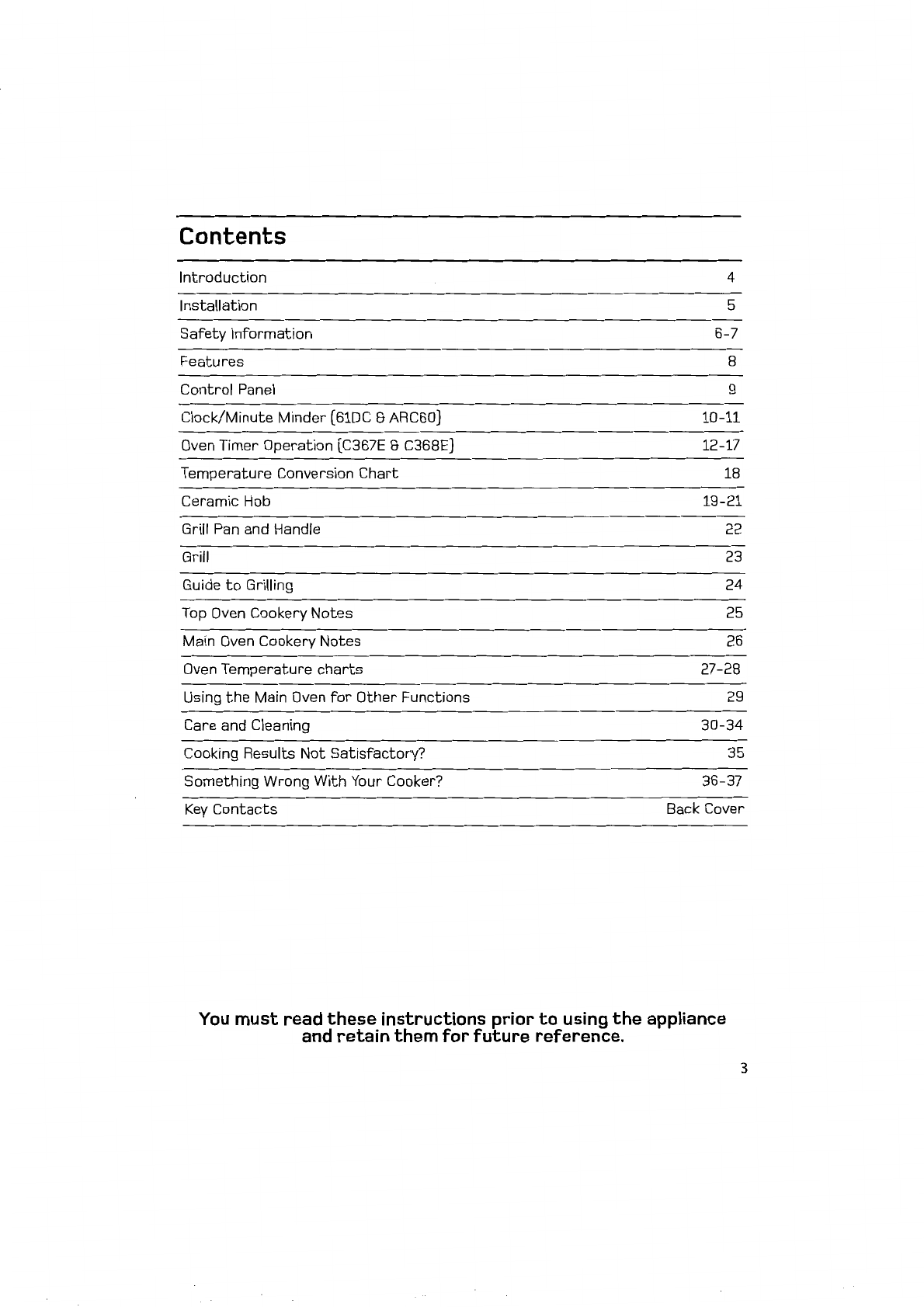

Contents

Introduction

4

Installation

5

Safety

Information

6-7

Features

8

Control

Panel 9

Clock/Minute

Minder

(61DC 8 ARC60) 10-11

Oven

Timer

Operation

(C367E 8 C368E) 12-17

Temperature

Conversion

Chart

18

Ceramic Hob

19-21

Grill Pan and Handle 22

Grill 23

Guide

to

Grilling 24

Top Oven Cookery

Notes

25

Main Oven Cookery

Notes

26

Oven

Temperature

charts

27-28

Using

the

Main Oven

for

Other

Functions

29

Care and Cleaning

30-34

Cooking

Results

Not

Satisfactory?

35

Something

Wrong

With

Your Cooker?

36-37

Key

Contacts

Back Cover

You

must read these instructions prior

to

using

the

appliance

and retain them

for

future

reference.

3

Introduction

Your new appliance is

guaranteed*

and will give lasting service. This guarantee is only

applicable

if

the

appliance has been installed

in

accordance with

the

installation

instructions

detailed

in

this

booklet.

To

help make

best

use

of

your cooking equipment, please read

this

booklet carefully.

The

cooker is designed specifically

for

domestic use and responsibility will

not

be

accepted

for

use

in

any

other

installation.

When

the

cooker

is

first

used an odour may

be

emitted,

this will cease

after

a period

of

use

When

first

using

the

cooker ensure

that

the

room is well ventilated

(e.g.

open a window

or

use an

extractor

fan) and

that

persons who may

be

sensitive

to

the

odour

avoid any

fumes.

It

is suggested

that

any

pets

be

removed

from

the

room until

the

smell has

ceased. This odour is due

to

temporary

finish

on

oven liners and elements and also any

moisture

absorbed

by

the

insulation.

* The guarantee

is

subject

to

the

provisions

that

the

appliance:

(a) Has been used solely

in

accordance with

the

Users Instruction Book.

(b) Has been properly connected

to

a suitable supply voltage as

stated

on

the

rating plate attached

to

this equipment.

(c) Has

not

been subjected

to

misuse

or

accident

or

been modified

or

repaired by

any person

other

than

the

authorised employee

or

agent.

(d) Has been correctly installed.

This appliance

conforms

to

the

following

EEC

Directives:

Electromagnetic

Compatibility

89/336/EEC

92/31/EEC

93/68/EEC

4

Low Voltage Equipment

73/23/EEC

93/68/EEC

CE

Installation

WARNING-THIS

APPLIANCE

MUST

BE

EARTHED.

Mains Connection

Your cooker should have been checked

to

ensure

that

the

voltage corresponds with your

supply voltage,

this

is

stated

on

the

rating plate, which is

situated

on

the

outer

rear

panel.

The

model number and serial number are located

on

the

front

of

the

cooker, as shown

on

the

Feature's page.

The

cooker

must

be

connected

by

a competent person such

as

one

who is

a,

NICEIC

registered

contractor

to

a suitable double-pole control unit with a minimum rating

of

32A

and

a minimum

contact

clearance

of

3mm (applicable

to

newer properties, older

properties

where a 30A

double pole

control

unit

and a minimum

contact

clearance

of

3mm is acceptable}.

The

double pole

control

unit

should

be

fitted

adjacent

to

the

cooker, in accordance

with

lEE

regulations. The

control

unit

must

be

within 2

metres

of

but

not

directly

above

the

appliance and should

be

easily accessible in

the

event

of

an

emergency.

The

power supply cable should conform

to

B.S.6004 with a conductor size

of

6mm

2, minimum.

Access

to

the

mains terminals is gained

by

removing

the

rear

access cover.

The

mains

cable

must

pass

through

the

cable clamp adjacent

to

the

terminal block.

Sufficient

cable

should

be

used

to

allow

the

cooker

to

be

pulled

out

for

servicing.

Ensure

that

the

mains cable

is

routed away from any brackets affixed

to

the

rear

panel

and

is

not

trapped

to

the

rear

wall when

pushing

the

cookerinto position between cabinets.

Levelling

Four

feet

are

fitted

which

can

be

adjusted up

or

down

to

set

the

height (900mm -930mm)

and

level

the

cooker.

The

feet

can

be

simply screwed

in

or

out

to

lower

or

raise

the

cooker.

After

the

correct

height is achieved, lock

the

feet

into position

by

tightening the locking

nut

using

an

open ended spanner.

CAUTION:

Some

soft

floor

coverings

may

get

damaged

if

the

cooker is

not

moved carefully.

NOTE:

Ensure oven shelves are level

by

using a

spirit

level

on

the

rod shelves.

Siting

the

Cooker

The

cooker is designed

to

fit

between kitchen cabinets spaced 600mm

apart.

The space

either

side need only

be

sufficient

to

allow withdrawal

of

the

cooker

for

servicing.

It

can

be

used

with

cabinets one side

or

both

as well as

in

an

angled

corner

setting.

It

can also

be

used freestanding.

Adjacent side walls which

project

above hob level,

must

not

be

nearer

to

the

cooker

than

150mm and should

be

protected

by

heat

resistant

material.

Any

overhanging

surface

or

cooker hood should

not

be

nearer

than

650mm.

Note: This appliance must

NOT

be

fitted

on

a platform.

Moving

the

Cooker

Before moving

your

cooker, switch

off

at

the

cooker

control

unit, ensure

that

it

is cool.

Open

the

grill

door

sufficiently

to

allow a

comfortable

grip

on

the

underside

front

edge

of

the

oven roof, avoiding any grill elements.

Radio

Interference

This appliance

conforms

to

EN

55014 regarding suppression

of

radio and television

interference.

Note: Take care

in

moving

the

cooker

as

it

is

heavy. Take care

to

ensure

that

any

floor

covering

is

not

damaged.

5

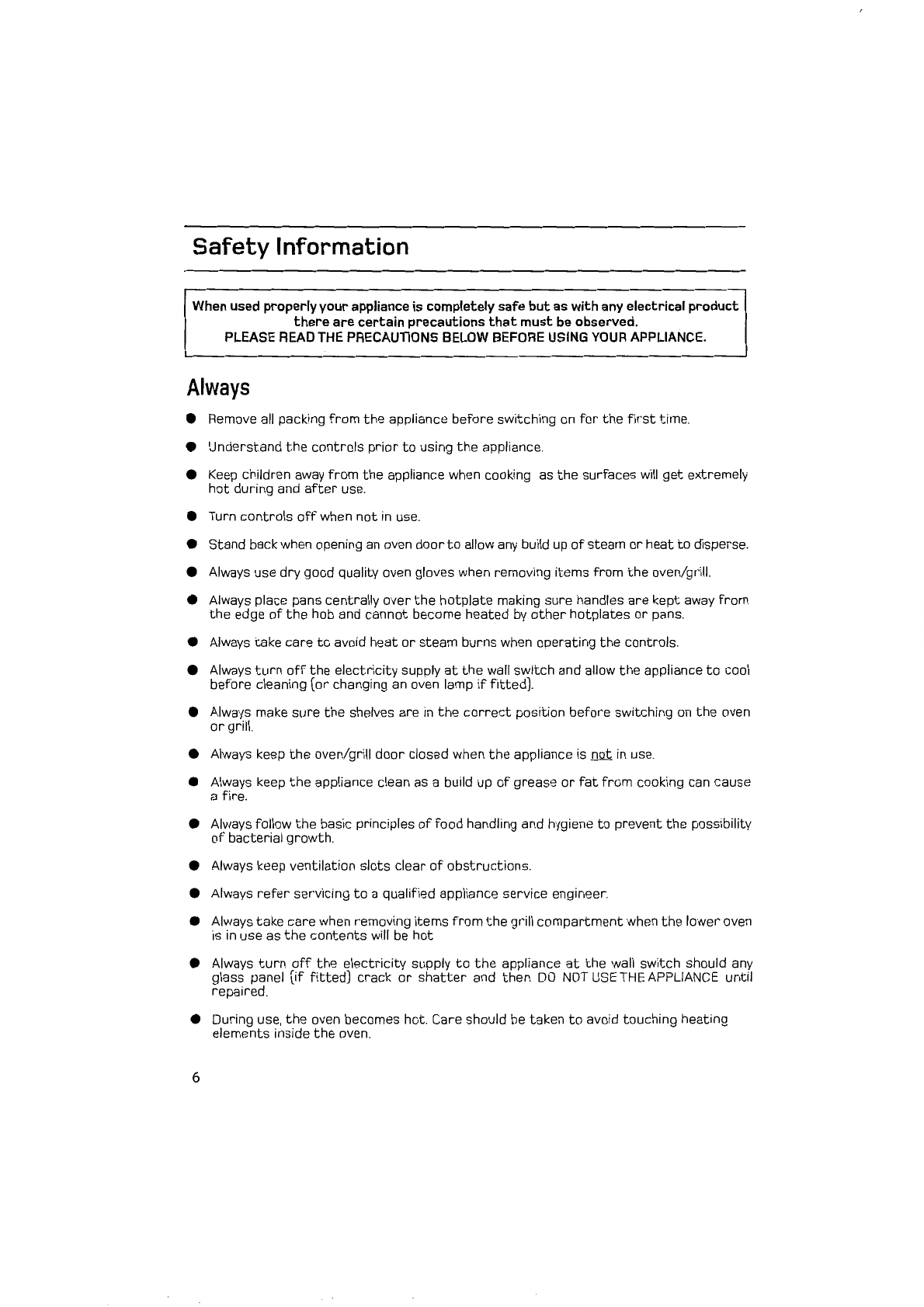

Safety

Information

When used properly your appliance

is

completely safe but

as

with any electrical product

there

are

certain precautions

that

must

be

observed.

PLEASE

READ

THE

PRECAUTIONS

BELOW

BEFORE

USING

YOUR

APPLIANCE.

Always

e Remove all packing

from

the

appliance

before

switching on

for

the

first

time.

e

Understand

the

controls

prior

to

using

the

appliance.

e

Keep

children away

from

the

appliance when cooking as

the

surfaces will

get

extremely

hot

during and

after

use.

e Turn

controls

off

when

not

in

use.

e Stand back when opening

an

oven

door

to

allow any build up

of

steam

or

heat

to

disperse.

e Always use

dry

good quality oven gloves when removing

items

from

the

oven/grill.

e Always place pans centrally

over

the

hotplate

making

sure

handles are

kept

away

from

the

edge

of

the

hob and

cannot

become

heated

by

other

hotplates

or

pans.

e Always take care

to

avoid

heat

or

steam burns when operating

the

controls.

e Always

turn

off

the

electricity

supply

at

the

wall

switch

and allow

the

appliance

to

cool

before

cleaning

(or

changing

an

oven lamp

if

fitted).

e Always make sure

the

shelves are

in

the

correct

position

before

switching

on

the

oven

or

grill.

e Always keep

the

oven/grill

door

closed when

the

appliance is

not

in

use.

e Always keep

the

appliance clean as a build up

of

grease

or

fat

from

cooking can cause

a

fire.

e Always follow

the

basic principles

of

food handling and hygiene

to

prevent

the

possibility

of

bacterial

growth.

e Always keep

ventilation

slots

clear

of

obstructions.

e Always

refer

servicing

to

a qualified appliance service engineer.

e Always

take

care

when removing

items

from

the

grill

compartment

when

the

lower

oven

is

in

use as

the

contents

will

be

hot

e Always

turn

off

the

electricity

supply

to

the

appliance

at

the

wall

switch

should any

glass panel

(if

fitted)

crack

or

shatter

and

then

DO

NOT

USE

THE

APPLIANCE

until

repaired.

e During use,

the

oven becomes hot. Care should be

taken

to

avoid touching heating

elements inside

the

oven.

6

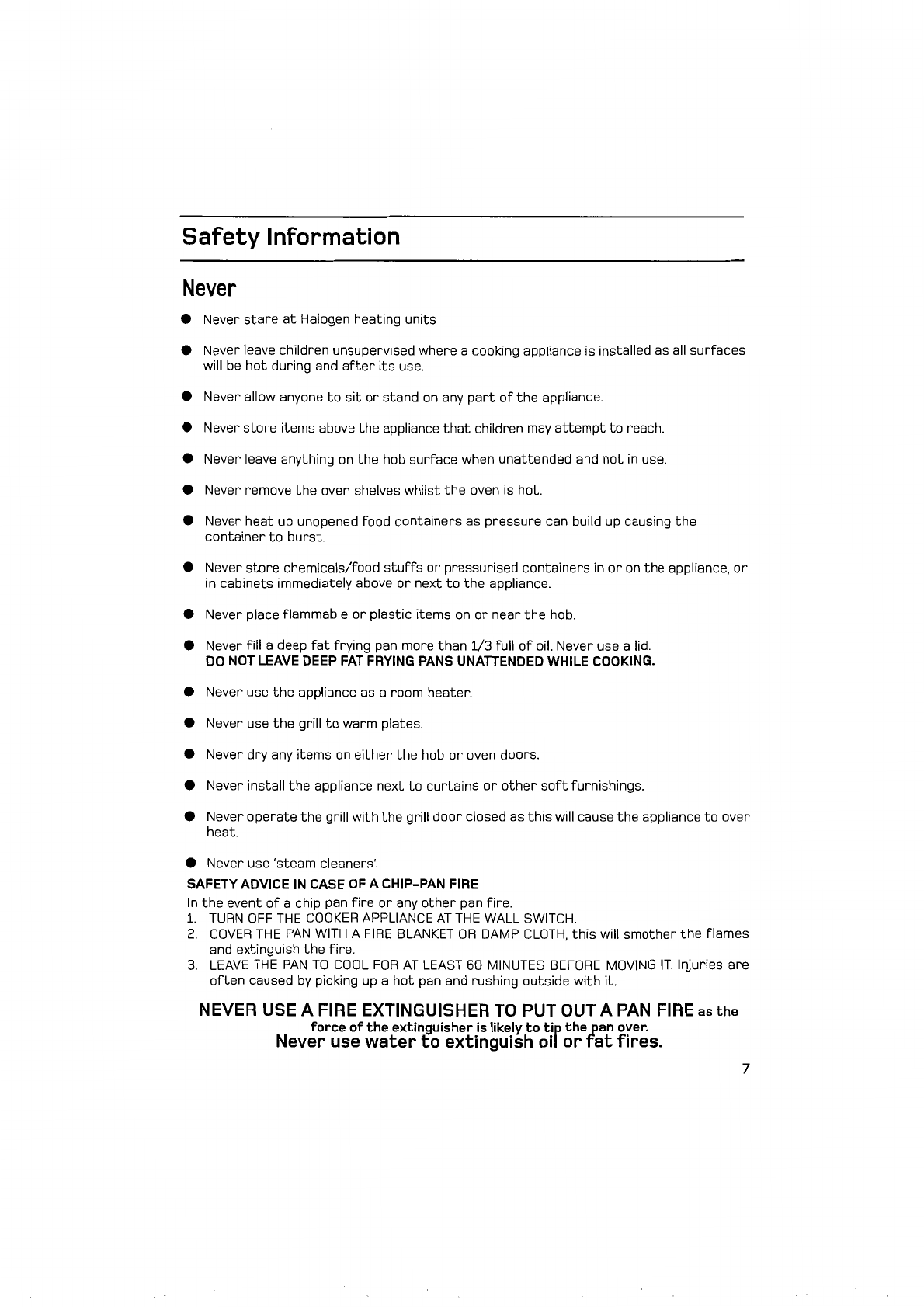

Safety

Information

Never

e Never

stare

at

Halogen heating

units

e Never leave children unsupervised where a cooking appliance is installed as all

surfaces

will

be

hot

during and

after

its

use.

e Never allow anyone

to

sit

or

stand

on any

part

of

the

appliance.

e Never

store

items above

the

appliance

that

children

may

attempt

to

reach.

e Never leave anything on

the

hob

surface

when

unattended

and

not

in

use.

e Never remove

the

oven shelves

whilst

the

oven is hot.

e Never

heat

up unopened

food

containers

as

pressure

can build up causing

the

container

to

burst.

e Never

store

chemicals/food

stuffs

or

pressurised

containers

in

or

on

the

appliance,

or

in cabinets immediately above

or

the

appliance.

e Never place flammable

or

plastic

items

on

or

near

the

hob.

e Never fill a deep

fat

frying

pan more

than

1/3

full

of

oil. Never use a lid.

DO NOT LEAVE DEEP

FAT

FRYING PANS UNATTENDED WHILE COOKING.

e Never use

the

appliance as a room heater.

e Never use

the

grill

to

warm plates.

e Never

dry

any

items

on

either

the

hob

or

oven doors.

e Never install

the

appliance

curtains

or

other

soft

furnishings.

e Never

operate

the

grill

with

the

grill

door

closed as

this

will cause

the

appliance

to

over

heat.

e Never use

'steam

cleaners'.

SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE

In

the

event

of

a chip pan

fire

or

any

other

pan

fire.

1.

TURN

OFF

THE

COOKER

APPLIANCE

AT

THE

WALL

SWITCH.

2.

COVER

THE

PAN

WITH

A

FIRE

BLANKET

OR

DAMP

CLOTH,

this

will

smother

the

flames

and extinguish

the

fire.

3.

LEAVE

THE

PAN

TO

COOL

FOR

AT

LEAST

60 MINUTES

BEFORE

MOVING

IT.

Injuries

are

often

caused by picking up a

hot

pan and rushing outside

with

it.

NEVER USE A FIRE EXTINGUISHER

TO

PUT OUT A

PAN

FIRE

as

the

force

of

the

extinguisher is likely

to

tir

the

pan

over.

Never use

water

to

extinguish

oi

or

tat

fires.

7

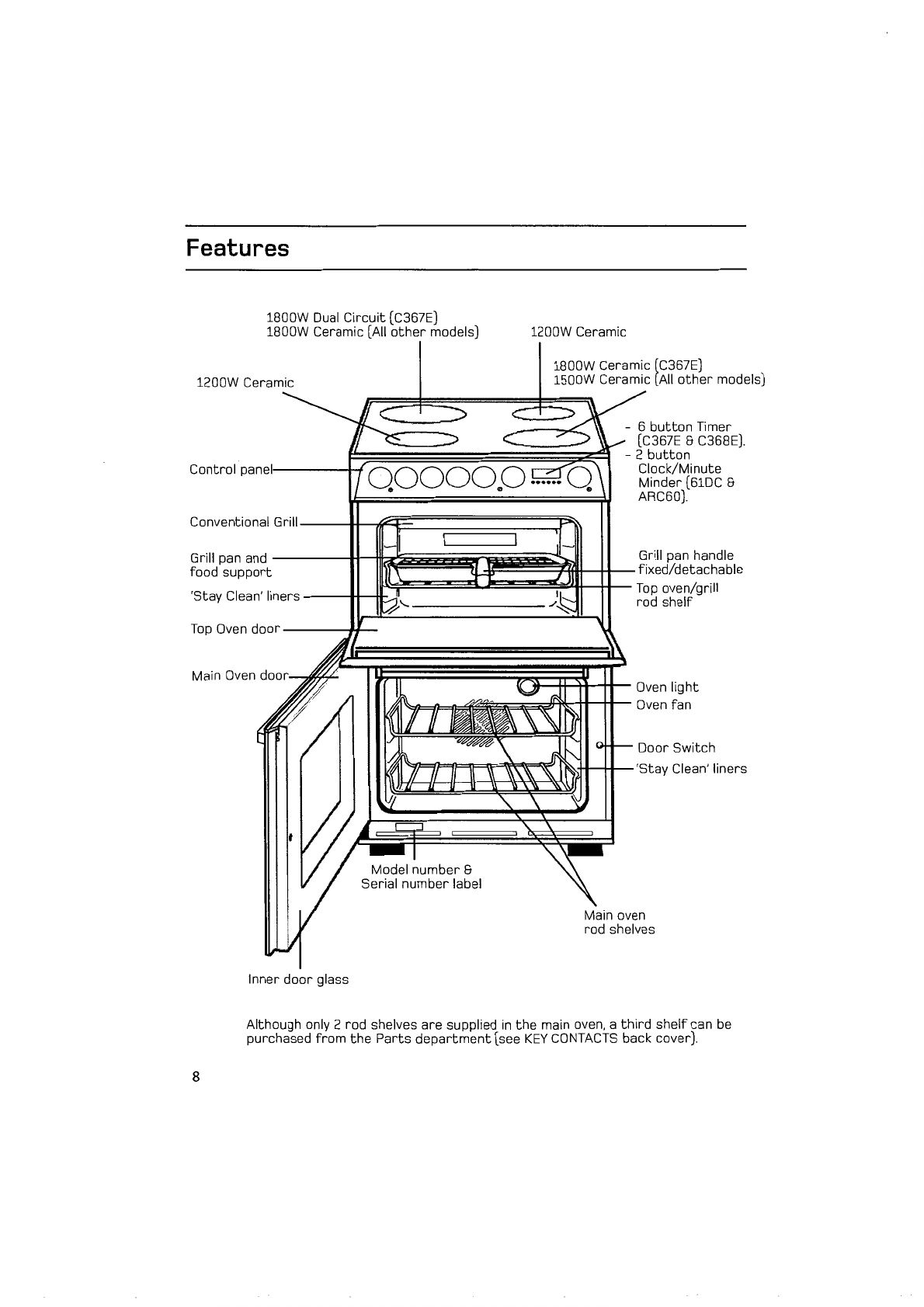

Features

1800W Dual

Circuit

(C367E)

lBOOW

Ceramic [All

other

models) 1200W Ceramic

lBOOW

Ceramic [C367E)

1200W Ceramic 1500W Ceramic [All

other

models)

8

Inner

door

glass

- 6

button

Timer

[C367E 8 C368E).

- 2

button

Clock/Minute

Minder

[61DC 8

ARC60).

Door

Switch

~11-1--+1--

'Stay

Clean' liners

~~t;td~~

Although only 2

rod

shelves

are

supplied

in

the

main oven, a

third

shelf

can

be

purchased

from

the

Parts

department

[see

KEY

CONTACTS

back cover).

Control Panel

C367E S

C368E

Hotplate

controls

Grill

Top

Oven

control

Hob

Hot

neon

Top

Oven

neon Main Oven

neon

61DC S

ARC

SO

Operating

controls when

the

grill

is

in

use

Cooling fan

Main Oven light

Slow cooking 'S'

Element and Fan

cut

off

Hob

Hot

Neon

Dual Plate

control

(C367E only)

Hob

Hot

neon

Hotplate

controls

6

button

Timer

(Main

Oven

only)

Grill

Top

Oven

control

Main

Oven

control

Top

Oven

Main Oven

neon neon

2

button

Clock/Minute

Minder

In

common

with

all cookers having

controls

sited above

the

grill

compartment, care

must

be

taken when

setting

the

controls, due

to

the

hot

air

expelled

from

the

grill compartment.

Note:

After

use,

it

is

advisable

to

check

that

all

cooker

controls

have

been switched Off.

A gentle

flow

of

air

will

be

blown below

the

control

panel when

the

grill

control

is

in

use. When

the

oven/s are

in

use

the

cooling fan will

operate

after

a

short

period

of

time

and

may

run

on

after

all

controls

are switched off.

The

main oven

light

will illuminate when

the

thermostat

is operated.

The

light will remain

on

during

the

cook period.

The

main oven has

an

'S'

setting

specially designed

to

reduce energy

usage. Full details

of

this

can

be

found

in

the

Slow Cooking section.

The

oven

is

fitted

with a safety device which disconnects

the

heating

element and oven fan when

the

door

is

opened.

The

heating element

and

oven fan will

not

operate

until

the

oven

door

is

closed.

A

short

time

(approx. 30 seconds)

after

the

hob heating areas have

been

turned

on,

the

Hob

Hot

neon will illuminate.

This light will remain illuminated until

all

the

hob

controls

have been

turned

off

and all hob heating areas have cooled.

9

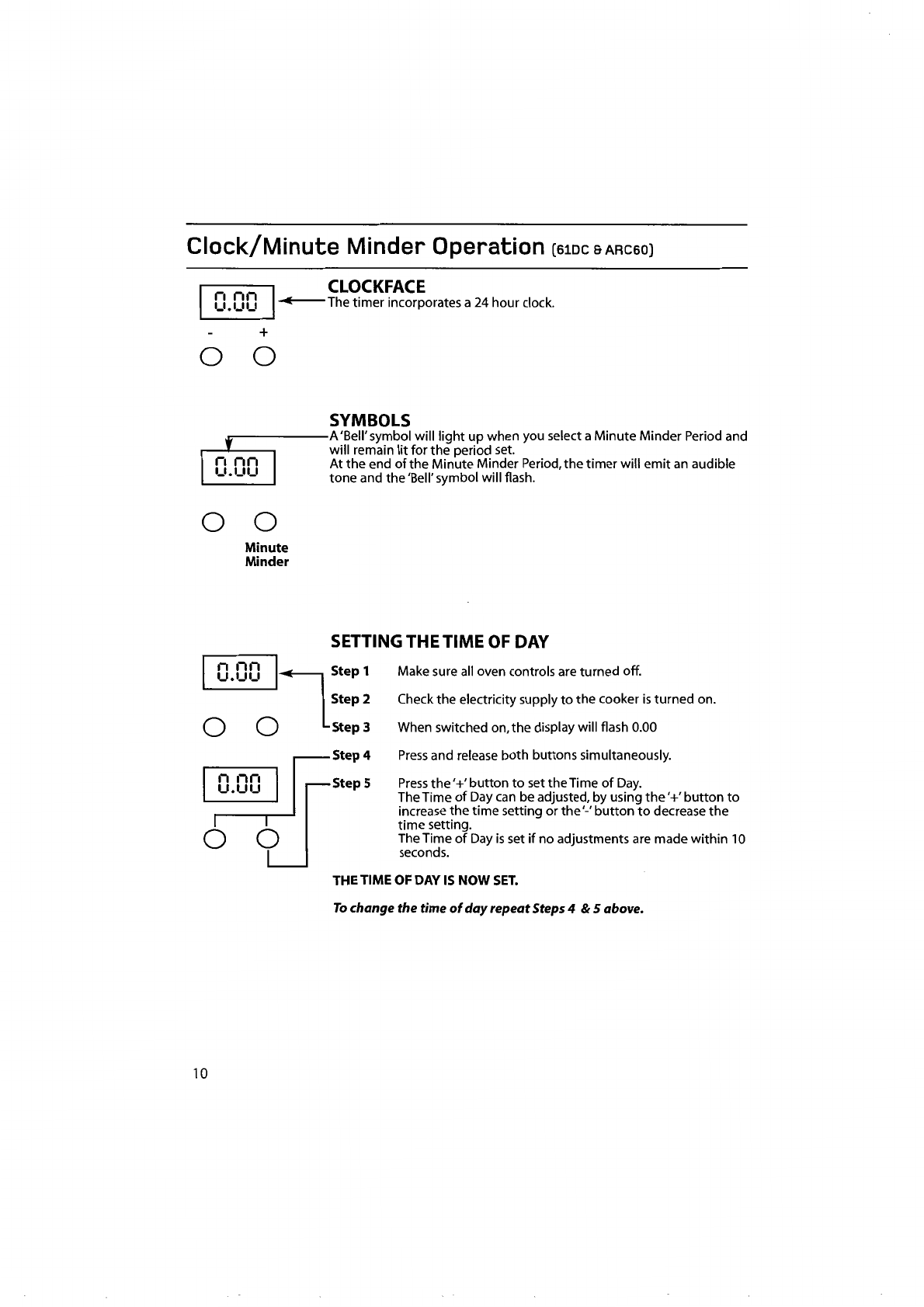

Clock/Minute Minder Operation

[s1oc

&ARcsoJ

CLOCKFACE

...__The

timer incorporates a

24

hour clock.

+

0 0

SYMBOLS

1

r:------A

'Bell'symbol will light up when you select a Minute Minder Period and

-will remain lit for the period

set.

II

1111

At the end

of

the Minute Minder Period,the timer will emit

an

audible

1

-1•1

-1L1 tone and the'Bell'symbol will flash.

0 0

0

Minute

Minder

SETTING THE TIME

OF

DAY

~

Step1

l

Step2

Q

Step3

Make sure all oven controls

are

turned off.

Check the electricity supply

to

the cooker

is

turned on.

When switched on,the display will flash 0.00

Step 4

Press

and

release

both buttons simultaneously.

0

0.0

OQI

[Step

5

Press

the'+'

button

to

set

theTime

of

Day.

TheTime

of

Day

can

be adjusted, by using

the'+'

button

to

increase the time setting or

the'-'

button

to

decrease the

time setting.

The

Time

of

Day

is

set

if

no adjustments

are

made within

10

seconds.

THE

TIME

OF

DAY

IS

NOW

SET.

To

change the time

of

day

repeatSteps 4 & 5 above.

10

Clock/Minute Minder Operation

[s1oc

sARcso)

Here you can set a

time

period

of

up

to

10 hours,

that

will

count

down.

When

it

reaches zero,

the

timer

will

emit

an

audible tone.

For Example:

If

you set 20 minutes,the audible

tone

will occur 20

minutes later.

SETTING THE

MINUTE

MINDER

Step 1

n

nn

l

~Step2

U,IJLI~

0

UStep3

Ensure the

time

of

day

is

set correctly.

Press

and release

the'+'

button.

Note: Step 3

must

be

startedwithin

10

seconds,otherwise

you

must

repeatStep2.

Press

the'+'

button

to

set

the

required

time

period.

A'Bell' symbol will

light

up.

n

nn

u.uu

The

time

period can be adjusted,

by

using

the'+'

button

to

increase

the

time

period or

the'-'

button

to

decrease

the

time

period.

Release

all buttons,

the

timer

display will show

the

remaining

time

period.The 'Bell'symbol will remain

lit

to

signify

that

a

time

period

has

been set.

At

the

end

of

the

set

time

an audible tone will be heard and

the

'Bell'

symbol will flash.

0

o--step4

To

cancel

the

audible tone press

the'+'

button.

I

Ll

I

1.11

To

cancel

the

minute

minder

period press

the'-'

button

until 0.00

is

displayed in

the

window

then release

the

button.

If

at any

time

the

display shows flashing

zero's,

it

is

likely

that

the

electricity supply

has

been interrupted.

Reset

the

timer

to

the

correct

time

of

day.

Note: The Timer display will

show

the

minute

minder

period

as

follows:

Any period up

to

99 minutes

and

50

seconds-

The display shows

MINUTES

and

SECONDS

(1

Os

intervals)

eg. 19 minutes 50 seconds

Any period

between

100 minutes

(1

hour

40 minutes)

and

up

to

10

hours-

The display shows

HOURS

and

MINUTES

eg. 1

hour

41

minutes

11

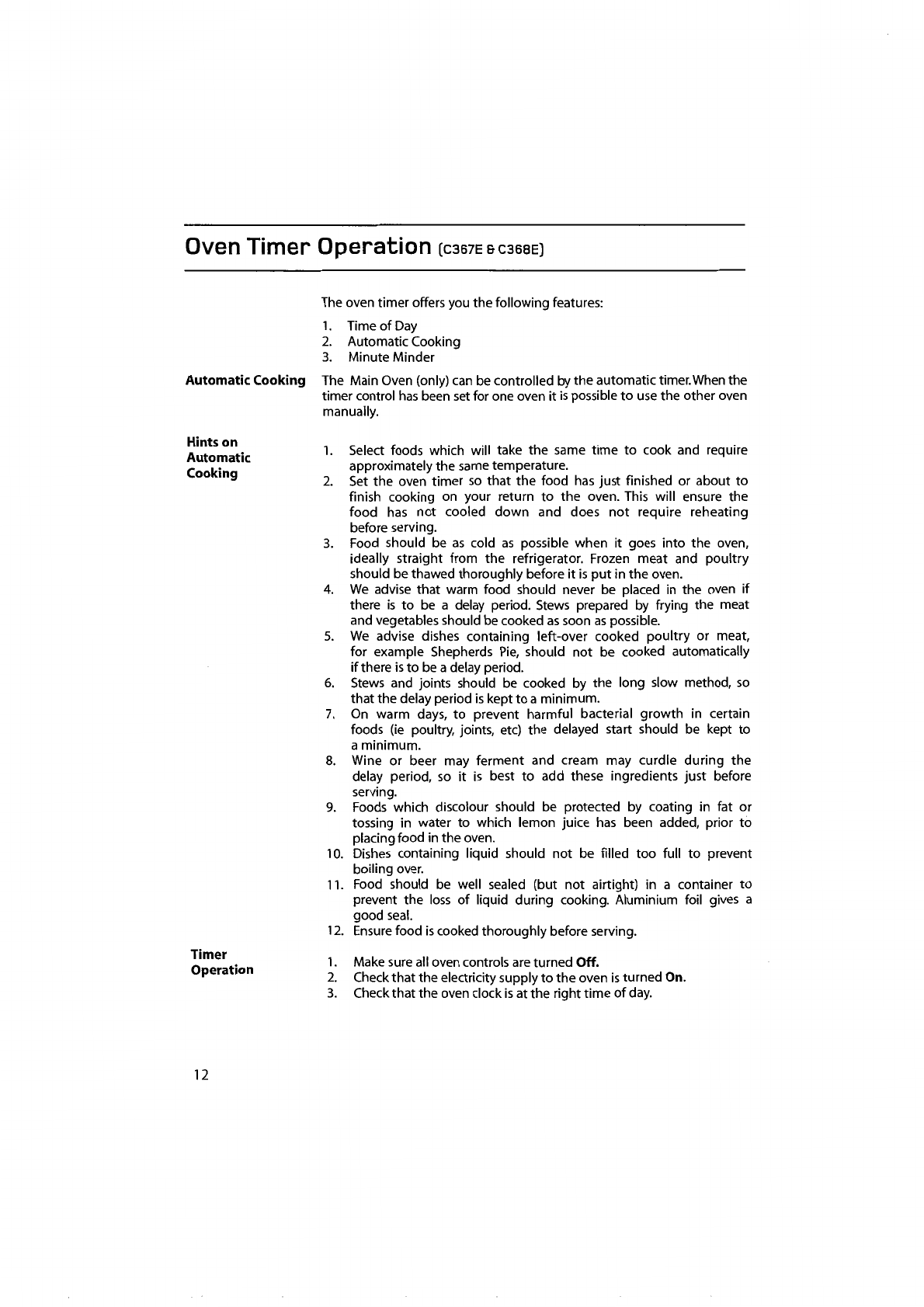

Oven Timer Operation [c3s7E & c3saE)

The

oven timer offers you the following features:

1.

Time

of

Day

2.

Automatic Cooking

3.

Minute Minder

Automatic Cooking The Main Oven (only)

can

be

controlled bythe automatic timer.

When

the

timer control

has

been

set

for one oven

it

is

possible

to

use

the other oven

manually.

Hints on

Automatic

Cooking

Timer

Operation

12

1.

Select foods which will take the

same

time

to

cook and require

approximately the

same

temperature.

2.

Set

the oven timer

so

that the food

has

just finished or about

to

finish cooking on your return

to

the oven. This will ensure the

food

has

not

cooled

down

and does

not

require reheating

before serving.

3.

Food should be

as

cold

as

possible when

it

goes into the oven,

ideally straight from the refrigerator. Frozen meat and poultry

should be thawed thoroughly before

it

is

put

in the oven.

4.

We

advise that warm food should never

be

placed in the oven

if

there

is

to

be

a delay period.

Stews

prepared by frying the meat

and vegetables should

be

cooked

as

soon

as

possible.

5.

We

advise dishes containing left-over cooked poultry or meat,

for example Shepherds

Pie,

should not be cooked automatically

if

there

is

to

be

adelay period.

6.

Stews

and joints should

be

cooked by the long slow method,

so

thatthe delay period

is

kept

to

a minimum.

7.

On

warm days,

to

prevent harmful bacterial

growth

in certain

foods

(ie

poultry, joints, etc) the delayed start should be kept

to

aminimum.

8.

Wine or beer may ferment and cream may curdle during

the

delay period,

so

it

is

best

to

add these ingredients just before

serving.

9.

Foods

which discolour should be protected by coating in fat or

tossing in water to which lemon juice

has

been added, prior

to

placing food in the oven.

10.

Dishes

containing liquid should

not

be filled too full

to

prevent

boiling

over.

11.

Food

should

be

well

sealed

(but

not

airtight) in a container

to

prevent the

loss

of

liquid during cooking. Aluminium foil gives a

good

seal.

12.

Ensure

food

is

cooked thoroughly before serving.

1.

Make

sure

all oven controls

are

turned

Off.

2.

Check

that the electricity supply

to

the oven

is

turned On.

3.

Check that the oven clock

is

at the right time

of

day.

Know your Timer

[c3s7E

s

c3saEJ

l

~b

I

CLOCKFACE

0 00

...,.._

The

timer

incorporates a 24 hour clock.

• Ensure

the

correct time

of

day

is

always set, before using your cooker.

000000

I I

SYMBOLS

0.00 A'bell'symbol will

light

up

when you select a

Minute

Minder Period and will

remain

lit

for

the period set.

L-1

-----

At the end

of

the Minute Minder Period,

the

timer

will

emit

an audible

tone

and

000000

the'bell'symbolwillflash

.

....-----

The'cookpot'symbol will

light

up either:-

I

o.oo

I

000000

I

li

o.

oo

I

000000

When the

timer

is

in

manual mode,

or

During

the

actual Cook Period.

'AUTO'will

light

up:-

When

the

timer

is

first turned on

it

will flash.

It

will

go

out

when a

time

of

day

is

set

or

when the

timer

is

set

to

manual.

The'AUTO'symbol will flash at

the

end

of

an

Auto Cooking programme

to

indicate

that

the

programme

has

finished.

(When

the

'AUTO'

symbol

is

flashing, to return

the

oven

to Manualoperation,

turn

the

oven

controls off, ensure

that

the correct

time

of

day

is set,

and

press

the

"Manual"

button

-

The

'AUTO'

symbol

will

go

out}.

TIMER

FUNCTION

BUTTONS

.£<I

Minute

Minder

Here you can set a

time

period

of

up

to

23

hours 59 minutes,

that

will count down.

LX

Button When

it

reaches zero, the

timer

will

emit

an

audible tone.

For Example:

If

you set

20

minutes,the audible

tone

will occur 20 minutes later.

AUTO

COOKING

PROGRAMME

a. Cook Period Button Cook Period

is

the

actual length

of

time

for

which,

the

timer

will switch

the

oven(s)

on

as

part

of

an"Auto Cooking"programme.

(e.g.

If

you set 2 hours,

the

food will be cooked for 2 hours).

"l:!!t

End

Time Button The

time

of

day at which you

want

an"Auto Cooking"programme

to

end.

~

Manual Button

For Example:

If

you set a"Cook Period"for 2 hours, and "End Time"

of

11:00.The

timer

will

switch

the

oven(s)

on

at 9:00 and

turn

the oven(s)

off

at 11:00.

You

will hear a

audible

tone

at 11:00,

to

indicate that the Auto Cooking Programme

has

finished.

Notes:

When setting an Auto Cooking programme you will need

to

set

the

oven

control(s)

to

the

required temperature(s) when you set

the

timer.

If

an Auto Cooking programme

has

been set the oven(s)

will

only

operate during

the

pre-programmed time.

Needs

to

be pressed

to

cancel an Auto Cooking programme and return

the

oven(s)

to

Manual operation.

"+"and"-"

Buttons Used

to

adjust

the

various

timer

function settings.

13

Electronic

Clock

S

Automatic

Oven

Timer

Operation

(c3s7E e c3saE)

"'-

" 1 1 /

SETTING

THE

TIME

OF

DAY

~I~

n 00

l:

Step

1 Make sure all oven controls are

turned

Off.

----1~

u.

F

/ 1 I \ "'-

Step

2 Check

the

electricity supply

to

the

cooker

is

turned

on.

0000

0

0-

Step

3 When switched on

the

display will show 0.00 and the Auto symbol,

flashing intermittently.

l~

o.

ooI

Step

4

Press

& hold in

both

the

Cook Period &

End

Time buttons together.

t t

JJol

steps

0QQ0tlj

Step

6

With

the

Cook Period &

End

Time buttons still held in, press either

the"+"

or"-"

buttons

to

set

the

correct

time

of

day.

Release

all

the

buttons simultaneously.

THE

TIME

OF

DAY

IS

NOW

SET.

To

change the time

of

dayrepeatSteps

4,

5 & 6 above.

Note:

You

cannot

adjust

the

time

of

day

if

the

timer

has

been

set

for

an

Auto Cooking Programme.

SETTING

THE

MINUTE

MINDER

Step

1 Ensure

the

time

of

day

is

set correctly.

I 0.00I j

Step

2

Press

and hold

the

Minute

Minder

button.

t

ru

Step

3 With

the

Minute

Minder

button

held in, set

the

required Minute

Minder

OOOOOO

period using

the"+".and"-:'button~.A'bell'symbol

willl~ght

up.

Release

all buttons and

the

t1mer display

w1ll

revert back

to

the

t1me

of

day.

The'bell'symbol will remain

lit

to

signify

that

a

Minute

Minder

period

has

been

set.

At

the

end

of

the

set

time

an audible

tone

will be heard, and

the

'bell'symbol will

flash.

li

o.

oo

I

,,.......:::=:=:==::.

___

Step

4

To

cancel

the

audible

tone

press

the

Minute

Minder

button.

000000

Note 1 When

the

Minute Minder

has

been

set,

the

time remaining can

be

checked

at

any

time bysimply pressing

the

Minute Minder

button.

Note 2

If

necessary

the

Minute Minder can

be

cancelled before

the

tone

sounds by

pressing

and

holding

the

Minute Minder

button

and

then

at

the

same

time

pressing

the

u_,

button

until 0.00

appears

in

the

display window.

14

Electronic Clock S Automatic Oven Timer

Operation

(c3s7E

s

c3saEJ

AUTO

COOKING

PROGRAMMES

There are

two

Auto Cooking programmes

that

can be selected using your

timer:-

(a)

To

set

the

timer

to

switch

the

oven(s) On and Off Automatically

(b)

To

set

timer

to

switch

on

immediately and

OFF

automatically after a set cook period.

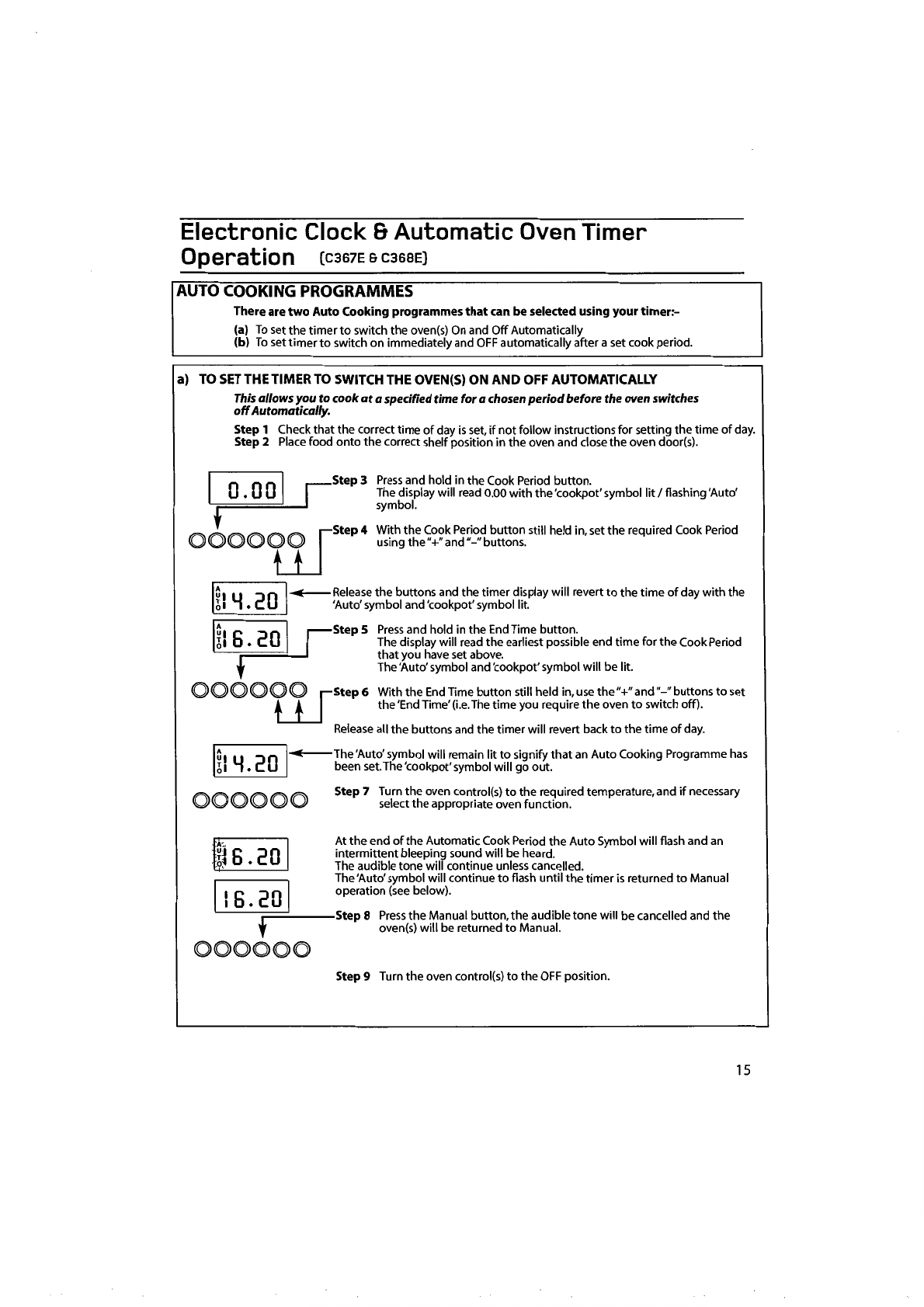

a)

TO

SET

THE

TIMER

TO

SWITCH

THE

OVEN(S)

ON

AND

OFF

AUTOMATICALLY

This

allows

you

to

cook

at

a

specified

time for a

chosen

periodbefore the

oven

switches

off

Automatically.

Step 1 Check

that

the

correct time

of

day

is

set,

if

not

follow instructions for setting

the

time ofday.

Step 2 Place food

onto

the

correct shelf position

in

the

oven and close

the

oven door(s).

I 0•00I

~Step

3

0~00~~

1Step4

Press and hold

in

the

Cook Period button.

The display

will

read 0.00 with

the

'cookpot'symbol

lit

I flashing 'Auto'

symbol.

With

the

Cook Period button still held

in,

set

the

required Cook Period

using the"+"and•

-"buttons.

~Release

the

buttons and

the

timer display

will

revert

to

the

time ofday with

the

'Auto'symbol and 'cookpot'symbol

lit.

Press

and

hold

in

the

End Time button.

The display

will

read

the

earliest possible

end

time for

the

Cook Period

that

you have set above.

The 'Auto' symbol and'cookpot'symbol

will

be

lit.

With

the

End

Time button

still

held

in,

use

the"+"and"-"buttons

to

set

the

'End Time'

(i.e.

The time you require

the

oven

to

switch off).

~The

'Auto' symbol

will

remain

lit

to

signify

that

an Auto Cooking Programme has

been

set.The'cookpot'symbol

will

go out.

000000

Step 7 Turn

the

oven control(s)

to

the

required temperature,and

if

necessary

select

the

appropriate oven function.

At

the

end

of

the

Automatic Cook Period

the

Auto Symbol

will

flash and an

intermittent bleeping sound

will

be

heard.

The audible

tone

will

continue unless cancelled.

The'Auto' symbol

will

continue

to

flash until

the

timer

is

returned to Manual

operation (see below).

L---;=:::!.---Step

8 Press

the

Manual button,

the

audible

tone

will

be

cancelled and

the

oven(s)

will

be

returned

to

Manual.

Step 9 Turn

the

oven control(s)

to

the

OFF

position.

15

Electronic Clock 6 Automatic

Oven

Timer

Operation

[c3s7E

e

c3seEJ

Note 1 When cooking automatically

the

CookPeriod can be checked

at

any

time

by

simply

pressing

the

CookPeriod

button.

Note2 When

cooking

automatically

the

End Time can be checked

at

any

time

by

simply

pressing

the

End Time

button.

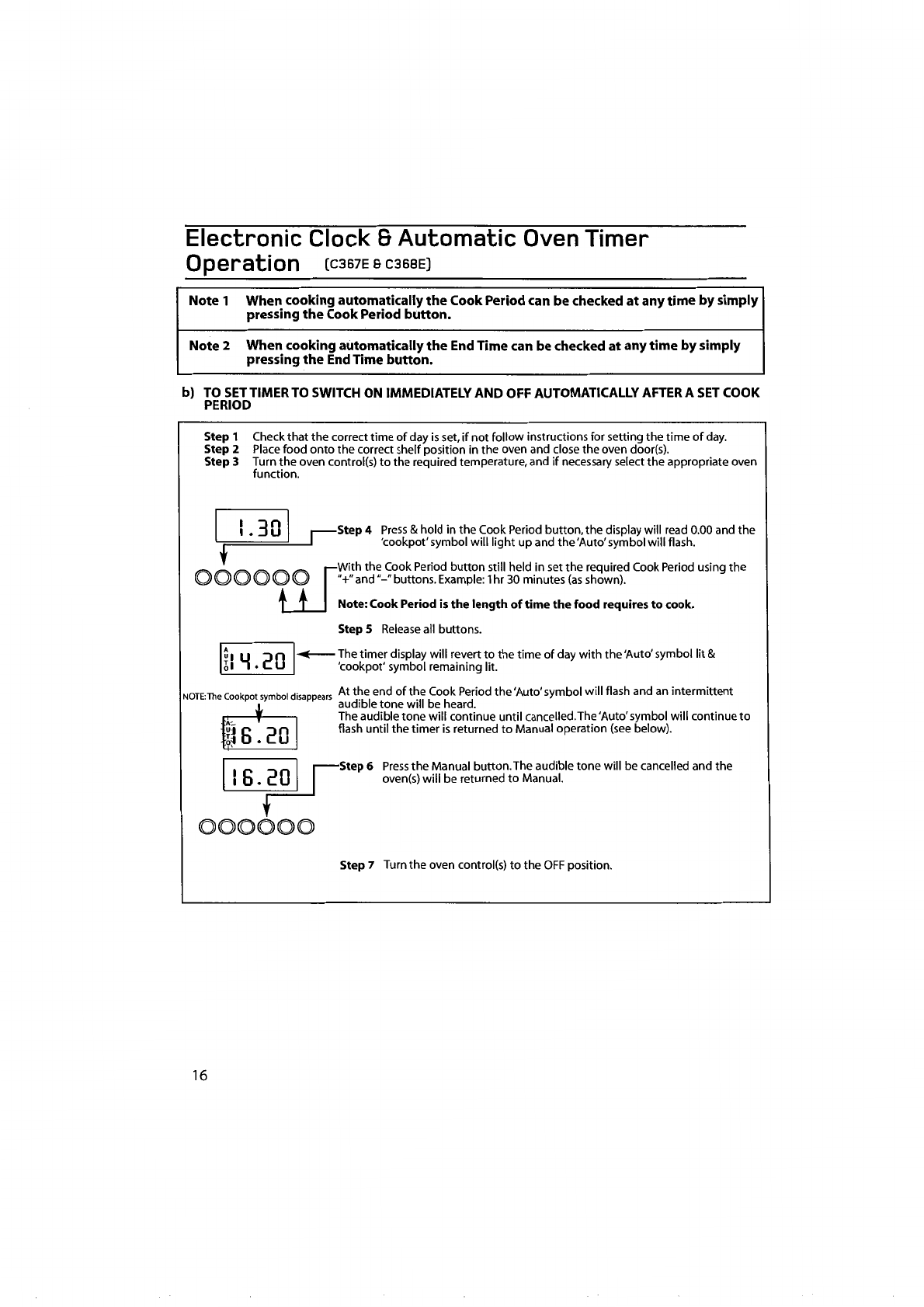

b)

TO

SET

TIMER

TO

SWITCH

ON

IMMEDIATELY AND

OFF

AUTOMATICALLY

AFTER

A

SET

COOK

PERIOD

Step

1 Check

that

the

correct time ofday

is

set,

if

not follow instructions for setting

the

time

of

day.

Step

2 Place food

onto

the

correct shelf position

in

the

oven and close

the

oven door(s).

Step

3 Turn

the

oven control(s)

to

the

required temperature, and

if

necessary select

the

appropriate oven

function.

I.30I 1

step

4 Press & hold

in

the

Cook Period button,

the

display

will

read 0.00 and

the

'-r==="'"-_J·

'cookpot'symbol

will

light

up

and

the

'Auto' symbol

will

flash.

Oo

t

oowWith

the

Cook Period

button

still held

in

set

the

required Cook Period using

the

D D D D

"+"and"-"

buttons. Example: 1hr 30 minutes (as shown).

Note: Cook Period is

the

length

of

time

the

food

requires

to

cook.

Step

5 Release

all

buttons.

,.._The

timer display

will

revert to

the

time ofday with

the

'Auto' symbol

lit

&

'cookpot' symbol remaining

lit.

NOTE:

The

cookpot

symbol

disappears

At

t~e

end of

t~e

Cook Period

the

'Auto' symbol

will

flash and an intermittent

aud1ble

tone

w1ll

be heard.

The audible

tone

will

continue until cancelled.The 'Auto'symbol

will

continue

to

flash until

the

timer

is

returned

to

Manual operation (see below).

l1s.rJ--r

.....

Press

the

Manual button.The audible

tone

will

be cancelled

and

the

oven(s)

will

be

returned

to

Manual.

000000

Step

7 Turn

the

oven control(s)

to

the

OFF

position.

16

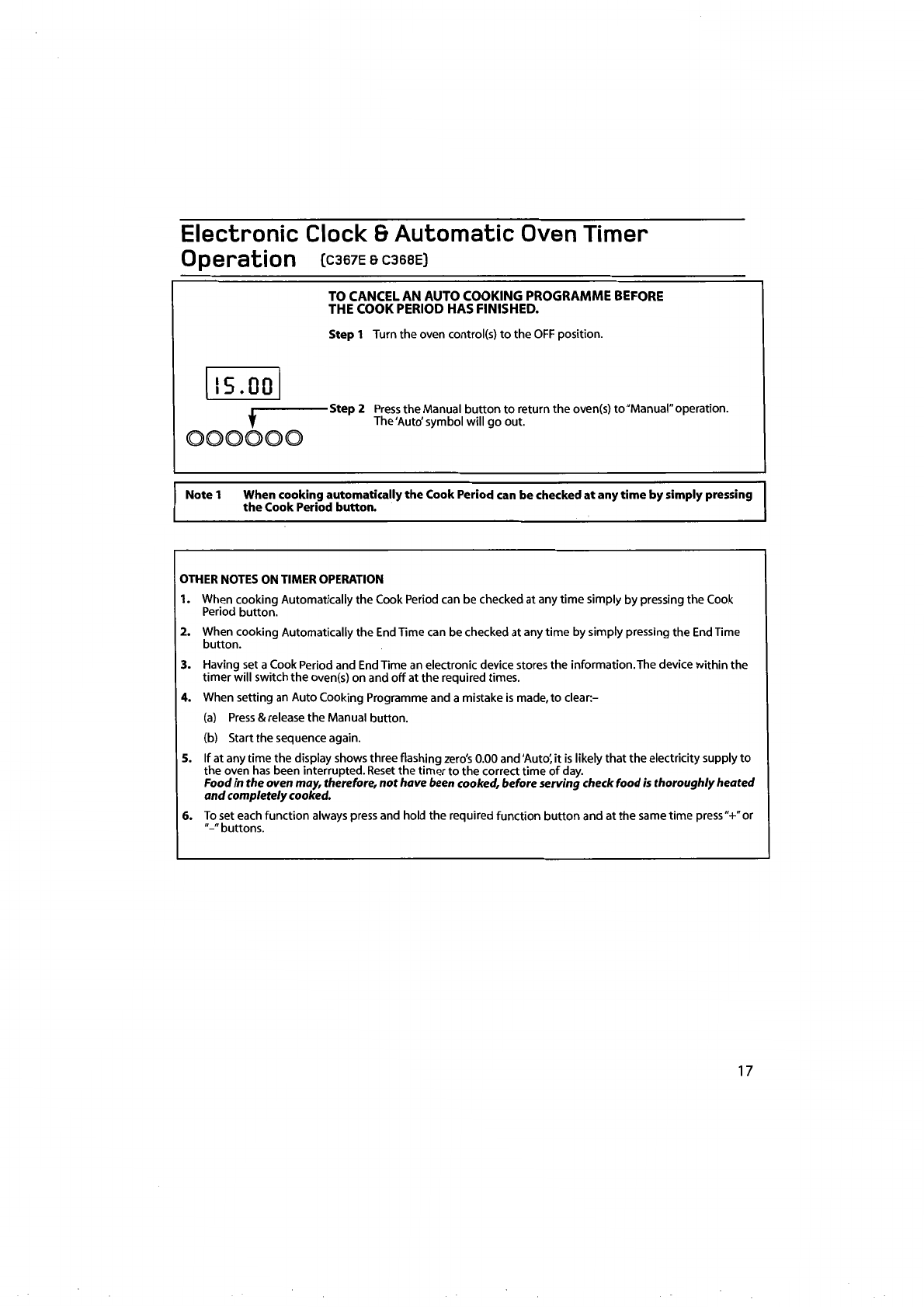

Electronic

Clock S

Automatic

Oven

Timer

Operation

(c3s7E s c3seEJ

l1s

.oo

I

TO

CANCEL

AN

AUTO

COOKING PROGRAMME

BEFORE

THE

COOK

PERIOD

HAS

FINISHED.

Step 1 Turn

the

oven control(s)

to

the

OFF

position.

..,.------Step

2 Press

the

Manual button

to

return

the

oven(s)

to

"Manual"operation.

' The'Auto' symbol

will

go

out.

000000

Note 1 When cooking automatically

the

Cook Period can

be

checked

at

any

time

by

simply pressing

the

Cook Period

button.

OTHER

NOTES

ON

TIMER

OPERATION

1. When cooking Automatically

the

Cook Period can

be

checked

at

any time simply by pressing

the

Cook

Period button.

2. When cooking Automatically

the

End

Time can be checked at any time by simply pressing

the

End

Time

button.

3.

Having set a Cook Period and

End

Time an electronic device stores

the

information.The device within

the

timer

will

switch

the

oven(s) on and off

at

the

required times.

4. When setting an Auto Cooking Programme and a mistake

is

made,

to

clear:-

(a)

Press & release

the

Manual button.

(b)

Start

the

sequence again.

5.

If

at

any time

the

display shows threeflashing zero's 0.00 and 'Auto; it

is

likely

that

the

electricity supply

to

the

oven has been interrupted. Reset

the

timer

to

the

correct time of day.

Foodin the oven may, therefore,

not

havebeen cooked, beforeserving check

food

is

thoroughly

heated

and

completelycooked.

6.

To

set each function always press and hold

the

required function button and

at

the

same time press"+"or

"-"buttons.

17

Temperature Conversion

Chart

Gas Main

Top

Main

Mark

"F

Conventional Convection Fan

Oven Oven Oven

1/2

250 120

110

100

1

275

140 130 120

2 300 150 140 130

3 325 160 150 140

4 350 180

170

160

5

375

190 180

170

6 400 200 190 180

7 425 220

210

200

8 450 -220

210

9

475

--220

18

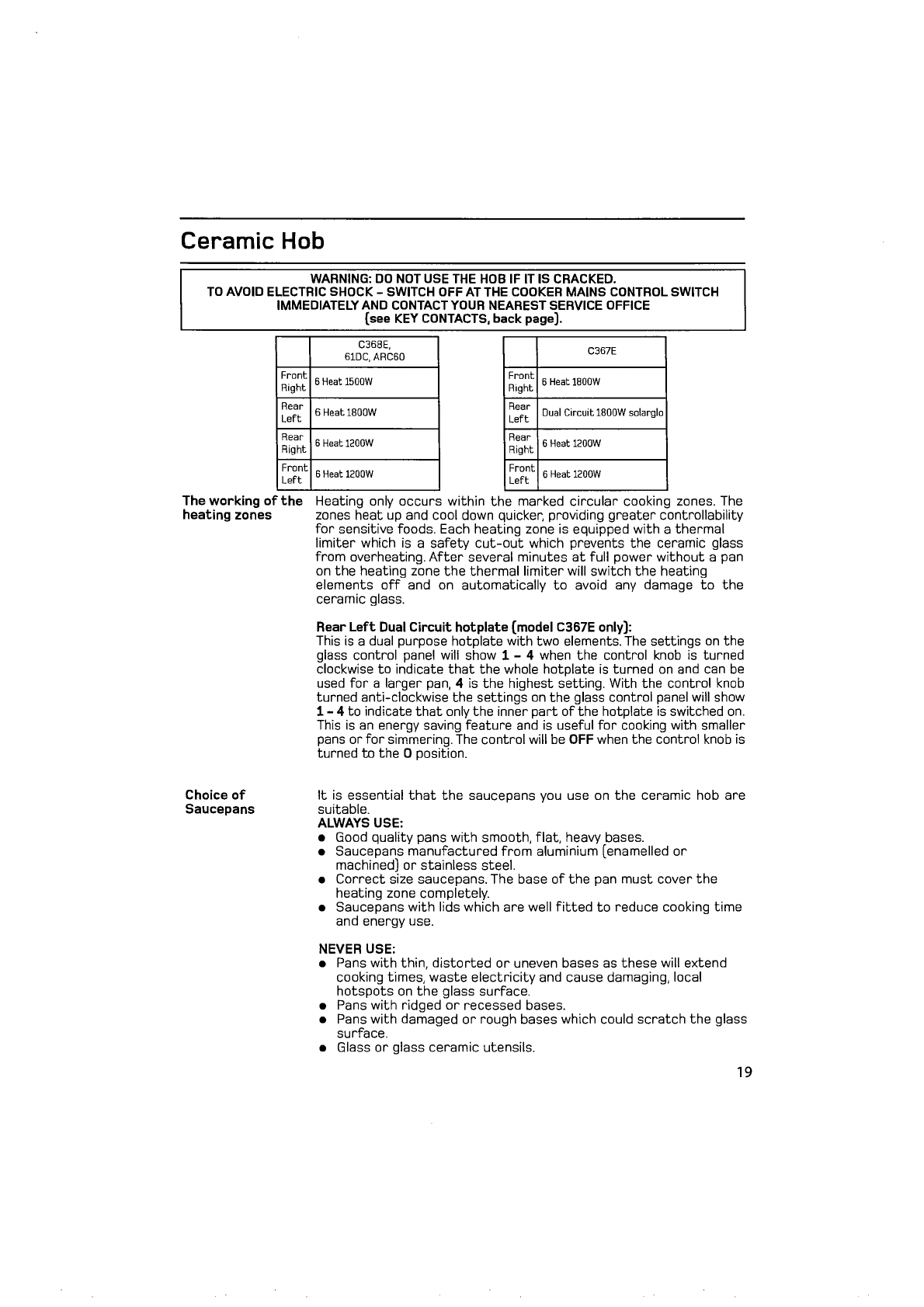

Ceramic

Hob

WARNING:

DO

NOT USE THE HOB IF IT IS CRACKED.

TO

AVOID ELECTRIC

SHOCK-

SWITCH OFF

AT

THE COOKER MAINS CONTROL SWITCH

IMMEDIATELY AND CONTACT YOUR NEAREST SERVICE OFFICE

Front

Right

Rear

Left

Rear

Right

Front

Left

The

working

of

the

heating

zones

Choice

of

Saucepans

(see KEY CONTACTS,

back

page).

C368E, C367E

61DC, ARC60

6 Heat 1500W

Front

6 Heat 1800W

Right

6

Heat

1800W

Rear

Dual

Circuit 1800W solarglo

Left

6 Heat 1200W

Rear

6 Heat 1200W

Right

6 Heat

1200W

Front

6 Heat

1200W

Left

Heating only occurs within

the

marked

circular

cooking zones.

The

zones

heat

up

and cool down quicker, providing

greater

controllability

for

sensitive foods. Each heating zone is equipped

with

a

thermal

limiter

which is a

safety

cut-out

which prevents

the

ceramic glass

from

overheating.

After

several minutes

at

full power

without

a pan

on

the

heating zone

the

thermal

limiter

will switch

the

heating

elements

off

and

on

automatically

to

avoid any damage

to

the

ceramic glass.

Rear

Left

Dual

Circuit

hotplate

(model C367E only):

This

is

a

dual

purpose hotplate with

two

elements.

The

settings

on

the

glass control panel will show 1 - 4 when

the

control

knob

is

turned

clockwise

to

indicate

that

the

whole hotplate

is

turned

on

and

can

be

used

for

a larger

pan,

4 is

the

highest setting. With the control

knob

turned anti-clockwise the settings

on

the

glass control panel will show

1-

4

to

indicate

that

only

the

inner

part

of

the

hotplate is switched

on.

This

is

an

energy saving

feature

and

is

useful

for

cooking with smaller

pans

or

for

simmering.

The

control will

be

OFF when

the

control

knob

is

turned

to

the

aposition.

It

is essential

that

the

saucepans you use

on

the

ceramic hob are

suitable.

ALWAYS USE:

• Good quality pans

with

smooth,

flat,

heavy bases.

• Saucepans

manufactured

from

aluminium (enamelled

or

machined)

or

stainless steel.

•

Correct

size saucepans. The base

of

the

pan

must

cover

the

heating zone completely.

• Saucepans

with

lids which are well

fitted

to

reduce cooking

time

and energy use.

NEVER USE:

• Pans with thin,

distorted

or

uneven bases

as

these

will extend

cooking times,

waste

electricity

and cause damaging, local

hotspots

on

the

glass surface.

• Pans with ridged

or

recessed bases.

• Pans with damaged

or

rough bases which could

scratch

the

glass

surface.

• Glass

or

glass ceramic utensils.

19

Care

of

the

Ceramic

Hob

Do

Not

Do

20

In

order

to

keep your ceramic hob

in

good condition, follow

these

simple guidelines:

Do

not

stare

at

halogen heating units.

Do

not

cook directly

on

the

hob

surface

without

a cooking utensil,

as

this will

result

in

damage

to

the

surface

of

the

hob.

Do

not

use

the

hob

as

a worktop surface

as

damage

may

occur

to

the

smooth surface

of

the

hob.

Do

not

drag

or

slide utensils

on

the

hob

surface,

as

this

will cause

scratches

in

the surface

of

the

hob.

Do

not

allow a cooking utensil

to

come into

contact

with

the

hob

surround.

Do

not

place anything between

the

base

of

the utensil

and

'I

r

the

ceramic

hob,

e.g.

do

not

use

asbestos mats, X X

aluminium

or

wok stand.

Do

not

leave

any

utensils, food

or

combustible items

on

the

hob when

it

is

not

in

use.

Do

not

place aluminium

or

plastic foil,

or

plastic containers

on

the

hob.

Do

not

leave

the

hotplates

or

cooking areas switched

On

unless they

are being used.

Do

not

leave heating zones uncovered when they are switched

On.

We

recommend

not

to

place large preserving pans

or

fish kettles

across

two

heating areas.

Do

not

leave utensils partly covering

the

heated areas. Always

ensure

that

they are placed centrally over

the

heated f;{l'

areas

and

have

the

same diameter

as

the

heating area

used.

Always ensure

that

the

bottom

of

the

pan

is

both clean

and

dry.

Dirt

or

moisture between

the

pan

and

the

hob can cause pitting

of

the

surface

of

the glass.

We

do

not

recommend

the

use

of

utensils with a base diameter

greater

than 25cm [lOins].

Pressure cookers

or

other

large pans should

be

used

on

the

front

cooking areas.

Always ensure

that

saucepan handles are positioned safely.

Always take extra care

when

cooking foods with a

high

sugar content

eg.

jam, as spillage will cause damage

to

the

surface

of

the

glass.

Always clean spills immediately [see Care

and

Cleaning).

Hotpoint C368E User manual

Popular Cooker manuals by other brands
