Hotpoint SY36B/1 User manual

Operating Instructions
Contents
Installation, 2
Positioning
Electrical connection, 3
Data plate
Description of the appliance, 4
Overall view
Control panel
Start-up and use, 5
Starting the oven
The electronic cooking progra er, 6
Cooking odes, 7-8
Cooking modes
Practical cooking advice
Cooking advice table
Precautions and tips, 9-10
General safety
Disposal
Respecting and conserving the environment
Maintenance and care, 10
Switching the appliance off
Cleaning the appliance

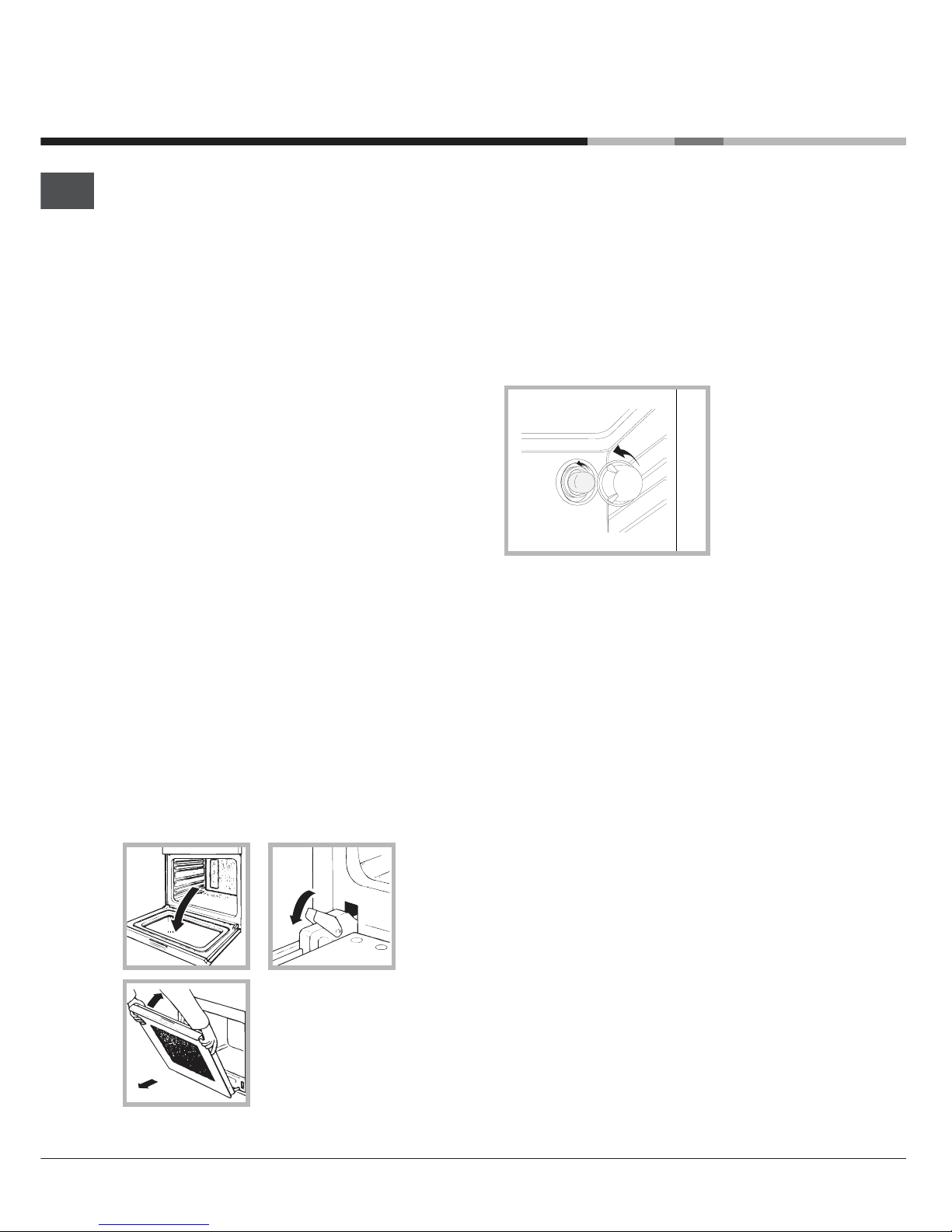

Cleaning the oven door
Replacing the light bulb
After Sales Service, 11
Guarantee, 12
SY36B/1
SY36K/1
SY36W/1
SY36X/1
SY37B/1
SY37K/1
SY37W/1
SY37X/1
English,1
GB
OVEN
GB

2
GB
595 mm.
595 mm.
24 mm.
545 mm.
5 mm.
567 mm.
23 mm.
593 mm.
45 mm.
558 mm.
547mm. min.
Installation
560 mm.
45 mm.
 Before you operate yuor new otpoint Single Oven,
please read these instructions fully. They contain
important information for safe use, for installation and
for care of the appliance.
 Please keep these operating instructions for future
reference. Pass them on to possible new owners of
the appliance.
 Keep packaging material out of the reach of
children.It can become a choking or suffocation
hazard. see Precautions and tips).
Positioning
! The appliance must be installed by a qualified
person in compliance with the instructions provided.
Incorrect installation may cause harm to persons,
animals or may damage property.
Fitting the appliance
Use the appropriate cabinet to ensure that the
appliance functions properly.
 The panels adjacent to the oven must be made of
heat-resistant material.
 Cabinets with a veneer exterior must be assembled
with glues which can withstand temperatures of up
to 100°C.
 To install the oven under the counter (see diagram)
and in a kitchen unit, the cabinet must have the
following dimensions:
! The appliance must not come into contact with
electrical parts once it has been installed.
The consumption indications on the data plate have
been calculated for this type of installation.
Ventilation
To ensure good ventilation, the back panel of the
cabinet must be removed. It is advisable to install the
oven so that it rests on two strips of wood, or on a
completely flat surface with an opening of at least 45 x
560 mm (see diagrams).
Centring and fastening
Position the 4 tabs on the side of the oven according
to the 4 holes of the outer frame. Adjust the tabs
according to the thickness of the cabinet side panel,
as shown below:
thickness of 20 mm: take off
the removable part of the tab
(see diagram)
thickness of 18 mm: use the
first groove, which has already
been set in the factory (see
diagram)
thickness of 16 mm: use the
second groove (see diagram)
Secure the appliance to the cabinet by opening the
oven door and putting 4 screws into the 4 holes of the
outer frame.
! All parts which ensure the safe operation of the
appliance must not be removable without the aid of a
tool.

3
GB
Electrical Connection
Electrical connection
The electrical connection to the mains must be made
on the appliance. The power voltage and frequency
are as indicated on the rating plate.
! THIS APPLIANCE MUST BE EARTHED.
Connecting the power supply cable
To open the terminal board:
 Using a screwdriver, press on the tabs situated on
each side of the terminal board cover.
 Pull open the terminal board cover.
To connect the power supply cable, proceed as
follows:
Unscrew the cable clamp screw and the contact
screws L-N-$.
 Fasten the wires beneath the screwheads using the
following colour scheme: Blue (N) Brown (L)
Yellow-Green $
 Fasten the power supply cable in the
corresponding cable clamp and close the cover.
Electrical Connection:
Voltage Frequency: 230
V-1+N 50 z
Fuse Section: 16A
Supply cable: 3x1.5mm2
You can connect your oven to the system means of a
terminal board. Refer to above information for the
minimal cable sections and the calibration of the
protective elements according to the connection.
If the appliance is installed with a junction box, an
omnipolar circuit breaker - with a minimum contact
opening of 3mm - should be installed between the
appliance and the mains.
Power cable supply connection to the electrical
mains:
We recommend you use a power supply cable which
is long enough to allow you to take the oven out of its
recess in the event of maintenance operations (only
use AR - 05 - RRF quality cables fitted with a plug
conforming to the regulations in force.
The plug must be accessible at all times.
Unplug the appliance before all operations, even
when replacing the oven lamp.
Using the appliance without correct earthing is
highly dangerous.
! After connecting the appliance to the flexible
cable, tighten all the screws on the terminal board.
42
NL
DATA PLATE
Dimensions
width cm 43.5
height cm 32
depth cm 40
Volume lt. 56
Electrical
connections
voltage: 230-240V ~ 50Hz
maximum power absorbed
2250W-2400W
Directive 2002/40/EC on the label
of electric ovens.
Standard EN 50304
ENERGY LABEL
Declared energy consumption for
Forced convection Class – heating
mode: Fan assisted
This appliance conforms to the
following European Economic
Community directives:
- 2006/95/EEC of 12/12/06 (Low
Voltage) and subsequent
amendments;
- 89/336/EEC of 03/05/89
(Electromagnetic Compatibility) and
subsequent amendments;
- 93/68/EEC of 22/07/93 and
subsequent amendments.
- 2002/96/EC

GB
Control panel
GRILL
DRIPPING PAN
GUIDES for the
sliding racks
position 5
position 4
position 3
position 2
position 1

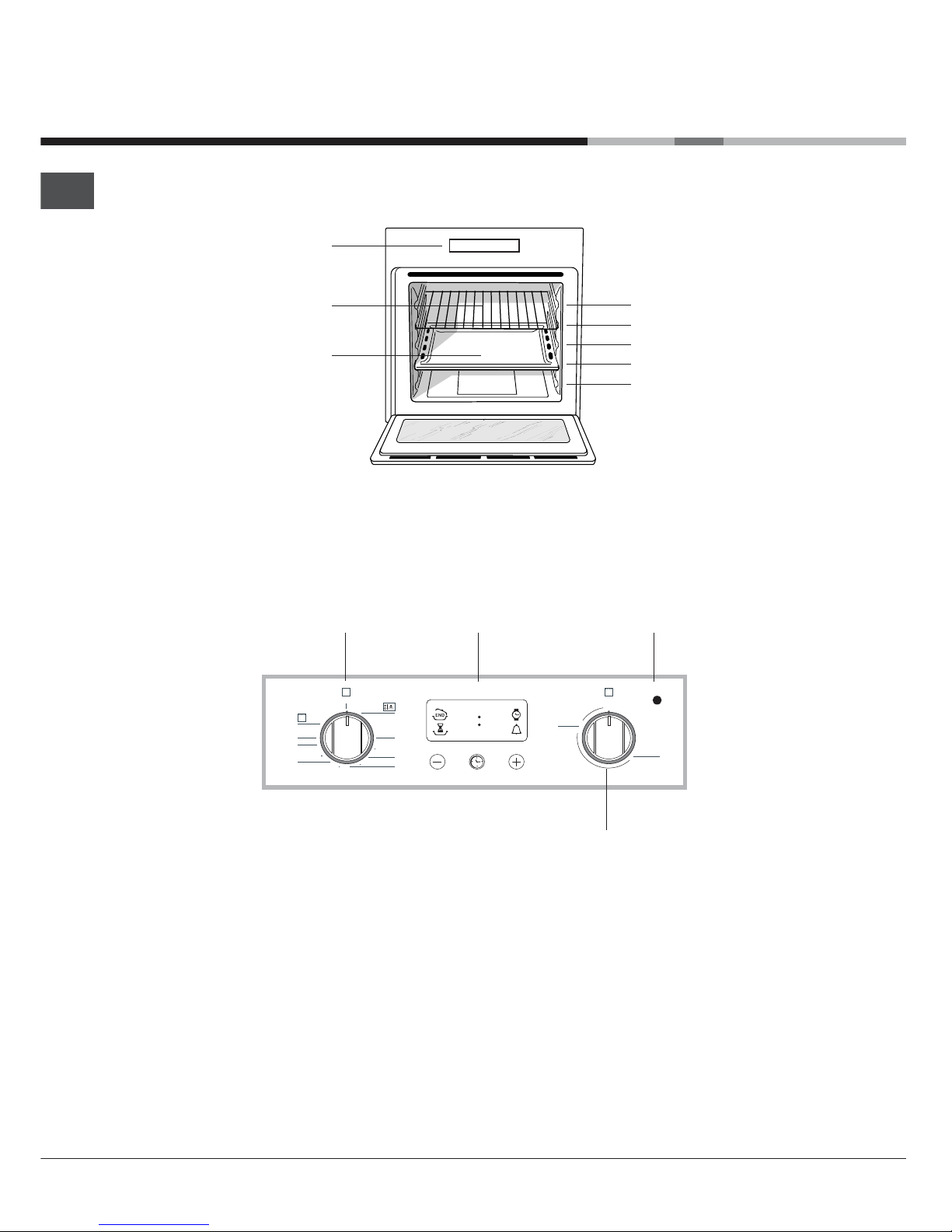

Description of the appliance
Overall view
Control panel
SELECTOR
Knob
ELECTRONIC
programmer*
Indicator light
THERMOSTAT
VARIABLE GRILL
Knob
MAX
1/2
MIN
0
MA
60
10 0
220
18 0
14 0
•• ••

5
GB
Start-up and use
! The first time you use your appliance, heat the
empty oven with its door closed at its maximum
temperature for at least half an hour. Ensure that the
room is well ventilated before switching the oven off
and opening the oven door. The appliance may
produce a slightly unpleasant odour caused by the
burning away of protective substances used during
the manufacturing process.
Starting the oven
1. Select the desired cooking mode by turning the
SELECTOR knob.
2. Select the desired temperature with the
VARIABLE GRILL knob. See the Cooking advice
table for cooking modes and the suggested cooking
temperatures (see Cooking Modes).
3. When preheating is finished, the T ERMOSTAT
indicator light will stay on: place the food in the
oven.
4. You may do the following during cooking:
- change the cooking mode by turning the
SELECTOR knob.
- change the temperature by turning the VARIABLE
GRILL knob.
- stop cooking by turning the SELECTOR knob to the
0 position.
! Never put objects directly on the oven bottom to
avoid damaging the enamel coating.
! Always place cookware on the rack(s) provided.
Cooling ventilation
In order to cool down the external temperature of the
oven, some models are fitted with a cooling fan that
blows out air between the control panel and the oven
door.
! Once the cooking has been completed, the cooling
fan remains on until the oven has cooled down
sufficiently.
Oven light
It goes on when selecting z
with the SELECTOR
knob. It stays on when a cooking mode is selected.

6
GB
The electronic
cooking programmer
DISPLAY
SET TIME
button
END OF
COOKING icon
CLOCK icon
DURATION
icon
TIMER icon
DECREASE TIME
button
INCREASE TIME
button
•• ••
Setting the clock
 The clock may be set when the oven is switched
off or when it is switched on, provided that a the end
time of a cooking cycle has not been programmed
previously.
After the appliance has been connected to the
mains, or after a blackout, the icon and the four
numerical digits on the DISPLAY will begin to flash.
1. Press the button several times until the
icon and the four digits on the display begin to
flash.
2. Use the + and - buttons to adjust the time; if
you press and hold either button, the display will
scroll through the values more quickly, making it
quicker and easier to set the desired value.
3. Wait for 10 seconds or press the button again
to finalise the setting.
Setting the ti er
 This function does not interrupt cooking and does
not affect the oven; it is simply used to activate the
buzzer when the set amount of time has elapsed.
1. Press the button several times until the
icon and the three digits on the display begin to
flash.
2. Use the + and - buttons to set the desired
time; if you press and hold either button, the display
will scroll through the values more quickly, making it
quicker and easier to set the value.
3. Wait for 10 seconds or press the button again
to finalise the setting.
The display will then show the time as it counts
down. When this period of time has elapsed the
buzzer will be activated.
Progra ing cooking
 A cooking mode must be selected before
programming can take place.
Programming the cooking duration
1. Press the button several times until the
icon and the three digits on the DISPLAY begin to
flash.
2. Use the + and - buttons to set the desired
duration; if you press and hold either button, the
display will scroll through the values more quickly,
making it quicker and easier to set the value.
3. Wait for 10 seconds or press the button again
to finalise the setting.
4. When the set time has elapsed, the text END
appears on the DISPLAY, the oven will stop cooking
and a buzzer sounds.
 For example: it is 9:00 a.m. and a time of 1 hour
and 15 minutes is programmed. The programme
will stop automatically at 10:15 a.m.
Setting the end time for a cooking mode
 A cooking duration must be set before the cooking
end time can be scheduled.
1. Follow steps 1 to 3 to set the duration as detailed
above.
2. Next, press the button until the icon and
the four digits on the DISPLAY begin to flash.
3. use the + and - buttons to adjust the cooking
end time; if you press and hold either button, the
display will scroll through the values more quickly,
making it quicker and easier to set the desired
value.
4. Wait for 10 seconds or press the button again
to finalise the setting.
5. When the set time has elapsed, the text END
appears on the DISPLAY, the oven will stop cooking
and a buzzer sounds.
Programming has been set when the and
buttons are illuminated. The DISPLAY shows the
cooking end time and the cooking duration
alternately.
Cancelling a programme
To cancel a programme:
 press the button until the icon corresponding to
the setting you wish to cancel and the digits on the
display are no longer flashing. Press the - button
until the digits 00:00 appear on the display.
 Press and hold the + and - buttons; this will
cancel all the settings selected previously,
including timer settings.

7
GB
Cooking modes
Cooking modes
! GRILL (recommended: set only to MAX power
level);
Thermostatically controlled oven (Fan Assisted
Mode)
When the SELECTOR knob is turned in a clockwise
direction to the symbol z the fan and oven light
will come on to assist in the defrosting of frozen
food. Rotating further to the complete range of
temperatures shown on the dial you can choose
which is most suitable for the food you are going to
cook. The temperature is reached automatically and
controlled by the oven thermostat (from 60°C to
MAX).
! Whilst using tag oven for conventional VARIABLE
GRILL knob must be set with MAX in line with the
reference mark on the control panel.
@ GRILL mode
The top heating element comes on. The extremely
high and direct temperature of the grill makes it
possible to brown the surface of meats and roasts
while locking in the juices to keep them tender. The
grill is also highly recommended for dishes that
require a high temperature on the surface: such as
beef steaks, veal, rib steak, filets, hamburgers etc...
Some grilling examples are included in the Practical
Cooking Advice paragraph. Always cook in this
mode with the oven door partially open.
To operate the grill:
1. Turn the oven SELECTOR knob clockwise until the
required grilling symbol is in line with the mark on
the control panel. The element is now on.
2. The VARIABLE GRILL knob can now be operated
to select the required heat.
Practical cooking advice
! Do not place racks in position 1 and 5 during fan-
assisted cooking. Excessive direct heat can burn
temperature sensitive foods.
! In the GRILL cooking modes, place the dripping
pan in position 1 to collect cooking residues (fat
and/or grease).
GRILL
 Insert the rack in position 3 or 4. Place the food in
the centre of the rack.
 We recommend that you set the maximum power
level. The top heating element is regulated by a
thermostat and may not always be on.
PIZZA
 Use a light aluminium pizza pan. Place it on the
rack provided.
For a crispy crust, do not use the dripping pan
(prevents crust from forming by extending
cooking time).
 If the pizza has a lot of toppings, we recommend
adding the mozzarella cheese on top of the pizza
halfway through the cooking process.

8
GB
Cooking advice table
Foods Weight.
(wt)
Ra k position Temperature
(°C)
Variable
grill
Pre-heating time
(min)
Cooking
time
(min.)
Pasta
Lasa
g
ne 2.5 3 210 - 75-80
Cannelloni 2.5 3 210 MAX - 75-80
Oven-baked
noodles
2.5 3 210 - 75-80
Meat
Veal 1.7 3 230 - 85-90
Chicken 1.5 3 220 - 110-115
Turke
y
3.0 3 MAX MAX - 95-100
Duck 1.8 3 230 - 120/125
Rabbit 2 3 230 - 105/110
Pork 2.1 3 230 - 100/110
Lamb 1.8 3 230 - 90-95
Fish
Mackerel 1.1 3 210-230 - 55-60
Dentex 1.5 3 210-230 MAX - 60-65
Trout baked in
p
a
p
er
1.0 3 210-230 - 40-45
Pizza
Na
p
olitan 1.0 3 MAX MAX 15 30-35
Cake
Biscuits 0.5 3 180 15 30-35
Tarts 1.1 3 180 MAX 15 30-35
Chocolate cake 1 3 200 15 45-50
Raised Cakes 1 3 200 15 50/55
Grill ooking
Toast n.° 4 4 5 5-6
Pork cho
p
s 1.5 4 3/4 5 20-30
Mackerel 1.1 4 5 20-30

9
GB
Precautions and tips
! The appliance was designed and manufactured in
compliance with international safety standards. The following
warnings are provided for safety reasons and must be read
carefully.
General safety
 The appliance was designed for domestic use inside the
home and is not intended for commercial or industrial use.
 The appliance must not be installed outdoors, even in
covered areas. It is extremely dangerous to leave the
appliance exposed to rain and storms.
 When handling the appliance, always use the handles
provided on the sides of the oven.
 Do not touch the appliance with bare feet or with wet or
moist hands and feet.
 The appliance must be used to cook food by adults only
and according to the instructions in this manual.
When the appliance is in use, the heating
elements and some parts of the oven door
become extremely hot. Make sure you don't
touch them and keep children well away.
 Ensure that the power supply cable of other electrical
appliances does not come into contact with the hot parts
of the oven.
 The openings used for ventilation and dispersion of heat
must never be covered.
 Always grip the oven door handle in the centre: the ends
may be hot.
 Always use oven gloves to place cookware in the oven or
when removing it.
 Do not use aluminium foil to line the bottom of the oven.
 Do not place flammable materials in the oven: if the
appliance is switched on by mistake, it could catch fire.
 Always make sure the knobs are in the l/¡ position
when the appliance is not in use.
 When unplugging the appliance always pull the plug from
the mains socket, do not pull on the cable.
 Never carry out any cleaning or maintenance work without
having unplugged the plug from the mains.
 In the case of a malfunction, under no circumstances
should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause
injury or further malfunctioning of the appliance. Contact a
Service Centre (see Assistance).
 Do not rest heavy objects on the open oven door.
 The appliance should not be operated by people (including
children) with reduced physical, sensory or mental
capacities, by inexperienced individuals or by anyone who
is not familiar with the product. These individuals should, at
the very least, be supervised by someone who assumes
responsibility for their safety or receive preliminary
instructions relating to the operation of the appliance.
 Do not let children play with the appliance.
Disposal
 Observe local environmental standards when disposing
packaging material for recycling purposes. Observe
existing legislation when disposing of the old appliance.
 The European Directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE), requires that old
household electrical appliances must not be disposed of in
the normal unsorted municipal waste stream. Old
appliances must be collected separately in order to
optimise the recovery and recycling of the materials they
contain and reduce the impact on human health and the
environment. The crossed out wheeled bin symbol on the
product reminds you of your obligation, that when you
dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer
for information concerning the correct disposal of their old
appliance.
Respecting and conserving the
environ ent
 By using the appliance in the hours between late afternoon
and early morning, you can help reduce the work load
placed on electrical companies.
 Regularly check the door seals and wipe clean to ensure
they are free of debris so that they stick properly to the
door and do not allow heat to disperse.

0
GB
Maintenance and care
Switching the appliance off
Disconnect your appliance from the electricity
supply before carrying out any work on it.
Cleaning the appliance
 Never use steam cleaners or pressure cleaners on
the appliance.
 The stainless-steel or enamel-coated external
parts as well as the rubber seals may be cleaned
using a sponge that has been soaked in
lukewarm water and neutral soap. If these stains
are difficult to remove, use only specialised
products. After cleaning, rinse and dry
thoroughly. Do not use abrasive powders or
corrosive substances.
 Ideally, the inside of the oven should be cleaned
after each use, when it is still lukewarm. Use hot
water and detergent, rinse and dry with a soft
cloth. Do not use abrasive products.
 The accessories can be washed like everyday
crockery (even in your dishwasher).
Cleaning the oven door
Clean the glass part of the oven door using a
sponge and a non-abrasive cleaning product, then
dry thoroughly with a soft cloth. Do not use rough
abrasive material or sharp metal scrapers as these
could scratch the surface and cause the glass to
crack.
To clean more thoroughly, you can remove the oven
door.
1. Open the oven door fully (see diagram).
2. Lift up and turn the small levers located on the
two hinges (see diagram).
3. Grip the door on the two
external sides and close it
approximately half way. Then
pull the door towards you
lifting it out of its seat (see
diagram).
To replace the door, reverse
this sequence.
Inspecting the seals
Check the door seals around the oven periodically. If
the seals are damaged, please contact your nearest
After-sales Service Centre (see Assistance). We
recommend not using the oven until the seals have
been replaced.
Replacing the light bulb
To replace the oven light bulb:
1. Remove the glass cover of the lamp-holder.
2. Remove the light bulb and replace it with a similar
one: Wattage 25 W, cap E 14.
3. Replace the glass cover (see diagram).

11
GB
After Sales Service
No one is better placed to care for your Hotpoint appliance during the course of its working life than
us - the manufacturer.
Essential Contact Information
Hotpoint Service
We are the largest service team in Europe offering you access to 400 skilled telephone advisors and
1100 fully ualified engineers on call to ensure you receive fast, reliable, local service.
UK: 08709 066 066
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Please note: Our advisors will require the following information:
odel number:
Serial number:
Parts and Accessories
We supply a full range of genuine replacement parts as well as accessory products that protect and
hygienically clean your appliance to keep it looking good and functioning efficiently throughout its life.
UK: 08709 077 077
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Appliance Registration
We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts
guarantee you must register your appliance with us.
UK: 0870 6092094
Republic of Ireland: 01 230 0800
www.hotpointservice.co.uk
Indesit Company UK Ltd. orley Way, Peterborough, PE2 9JB
Indesit Company Unit 49 Airways Industrial Estate,Dublin 17
ecycling & Disposal Information
As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use
uality, recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children,
remove the door, plug and cut the mains cable off flush with the appliance. Dispose of these parts
separately to ensure that the appliance can no longer be plugged into a mains socket, and the door
cannot be locked shut.

12
G
Guarantee
12 Months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturers guarantee, which covers the cost of breakdown
repairs for twelve months from the date of purchase.
This gives you the reassurance that if, within that time, your appliance is proven to be defective
because of either workmanship or materials, we will, at our discretion, either repair or replace the
appliance at no cost to you.
This guarantee is subject to the following conditions:
-The appliance has been installed and operated correctly and in accordance with our
operating and maintenance instructions.
-The appliance is used only on the electricity or gas supply printed on the rating plate.
-The appliance has been used for normal domestic purposes only.
-The appliance has not been altered, serviced, maintained, dismantled, or otherwise
interfered with by any person not authorised by us.
-Any repair work must be undertaken by us or our appointed agent.
-Any parts removed during repair work or any appliance that is replaced become our property.
-The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
-Damage resulting from transportation, improper use, neglect or interference or as a result
of improper installation.
-Replacement of any consumable item or accessory . These include but are not limited to: plugs,
cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.
-Replacement of any removable parts made of glass or plastic.
THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN CO ERCIAL
OR NON-DO ESTIC PRE ISES.
5 Year Parts Guarantee
Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you
registering your appliance with us and the parts being fitted by one of our authorised engineers.
There will be a charge for our engineer's time. To activate the extra parts warranty on your appliance,
simply call our registration line on 0870 6092094 (ROI 01 230 0800).
Extended Guarantees
We offer a selection of repair protection plans that enable you to fully cover yourself against the
expense of repair bills for the life of your policy. To find the ideal plan for you please call our advice
line on 08709 088 088 (ROI 01 230 0233).
Free Helpdesk Service
We have a dedicated team who can provide free advice and assistance with your appliance if you
experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint
Service Hotline on 08709 066 066 (ROI 0818 313 413) for telephone assistance, or, where necessary,
to arrange for an engineer to call. If we cannot resolve the technical problem we will replace your
machine or, if you prefer, give you your money back.
04/2008 - 195068438.00
XEROX USINESS SERVICES
