Hotpoint KM 3xxx AA E User manual

English
Operating Instructions
REFRIGERATOR/FREEZER COMBINATION
Contents
Operating Instructions, 1
Assistance, 2
Description of the appliance, 3
Energy Saving, 3
Description of the appliance, 4
Installation, 5
Start-up and use, 6
Maintenance and care, 7
Precautions and tips, 8
Troubleshooting, 9
KM 3xxx AA E
HM 3xxx AA E
Register your
appliance now on
08448 24 24 24

2
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24
Assistance
Guarantee
12 months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturer’s guarantee,
which covers the cost of breakdown repairs for twelve months
from the date of purchase.
This gives you the reassurance that if, within that time, your
appliance is proven to be defective because of either workmanship
or materials, we will, at our discretion, either repair or replace the
appliance at no cost to you.
This guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in
accordance with our operating and maintenance instructions.
- The appliance is used only on the electricity or gas supply
printed on the rating plate.
- The appliance has been used for normal domestic purposes
only.
- The appliance has not been altered, serviced, maintained,
dismantled, or otherwise interfered with by any person not
authorised by us.
- Any repair work must be undertaken by us or our appointed
agent.
- Any parts removed during repair work or any appliance that is
replaced become our property.
- The appliance is used in the United Kingdom or Republic of
Ireland.
The guarantee does not cover:
- Damage resulting from transportation, improper use, neglect
or interference or as a result of improper installation.
- Replacement of any consumable item or accessory. These
included but not limited to: plugs, cables, batteries, light bulbs,
fluorescent tubes and starters, covers and filters.
- Replacement of any removable parts made of glass or plastic.
THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS
BEEN USED IN COMMERCIAL OR NON-DOMESTIC PREMISES.
5 Year Parts Guarantee
Hotpoint also offers you a free 5 year parts guarantee. This
additional guarantee is conditional on you registering your
appliance with us and the parts being fitted by one of our
authorised engineers. There will be a charge for our engineer’s
time. To activate the extra parts warranty on your appliance,
simply call our registration line on 08448 242424 (Republic of
Ireland 01 230 0233).
Extended Guarantees
We offer a selection of protection plans that enable you to fully
cover yourself against the expense of repair bills for the life of your
policy. To find the ideal plan for you please call our advice line on
08448 226 226 (Republic of Ireland 01 230 0233).
Helpdesk Service
We have a dedicated team who can provide free advice and
assistance with your appliance if you experience any technical
difficulties within the first 90 days of ownership. Simply call our
Hotypoint Service Hotline on 08448 224 224 (Republic of Ireland
0818 313 413) for telephone assistance, or, where necessary, to
arrange for an engineer to call.
After Sales Service
We pride ourselves on ensuring that you and your Hotpoint
appliance receive the very highest level of service. No one
understands Hotpoint appliances like we do, so for service from the
people that know your appliance best, simply call 08448 224 224.
Our operators are on hand to answer your call every day including
weekends and bank holidays.
Our team of 1000 technicians are the largest white goods service
organisation in the UK and Ireland available to provide fast,
reliable and local service. They have all undergone extensive
training at our Training Centre of Excellence and are equipped
with the latest diagnostic tools to deliver expert servicing of your
Hotpoint appliance.
UK: 08448 224 224
Republic of Ireland: 0818 313 413
or visit
www.hotpointservice.co.uk
Model number: _____________________________________
Serial number: _____________________________________
Parts and Accessories
We supply a full range of genuine replacement parts as well as
accessory products that protect and hygienically clean your
appliance to keep it looking good and functioning efficiently
throughout its life.
UK: 08448 225 225
Republic of Ireland: 0818 313 413
or visit
www.hotpointservice.co.uk
Appliance Registration
We want to give you additional benefits of Hotpoint ownership.
To activate your free 5 year parts guarantee you must register
your appliance.
By registering your appliance with us not only do you do you
activate the guarantee all your information will be logged onto our
repair system. In the unfortunate event that you need assistance
we will have your appliance details to hand when you call us.
UK: 08448 24 24 24
Republic of Ireland: 01 230 0800
or visit
www.hotpointservice.co.uk
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB
Indesit Ireland Ltd. The Crescent Building, Northwood Park,
Santry, Dublin 9.
Recycling and Disposal Information
- model - serial number

3
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24
Energy Saving function
The Energy Saving function can be activated to optimise energy con-
sumption while maintaining the cooling performance of the product.
This function maximises the amount of energy saved. Under these
conditions, the display remains off even when the door is opened.
The function is activated by pressing and holding the super freezer
and FRZ (+) buttons simultaneously for at least 6 seconds. Once the
function has been activated, all LEDs will light up for 2 seconds to
confirm activation, and the temperature setting of +5, -18 will appear
on the display. The display switches off after 5 seconds. To change
the temperature, simply press the + and – buttons until you have rea-
ched the desired temperature.
However, the Energy Saving function can also be disabled by
switching the product off using the ON/OFF button. When it is switched
back on, the Energy Saving will be disabled.
In humid environments, when the Energy Saving function is enabled,
slight condensation may form on the appliance door; normal opera-
ting conditions are restored when the function is disabled.
Description of the appliance
Control panel
1. ON/OFF
The entire product (both the refrigerator and freezer compartments)
may be switched on by pressing this button.
The indicator light indicates that the product is off, even if it is
still receiving power. Once the product has been switched on, this
indicator light will no longer be visible.
2. REFRIGERATOR - and + temperature adjustment
Used to modify the temperature setting of the refrigerator; confirmation
corresponding to the selected temperature appears on the display.
3. Refrigerator display
Shows the set temperature for the refrigerator compartment.
4. FREEZER TEMPERATURE ALARM
The temperature of the freezer has exceeded the safety threshold for
optimal food storage (see Troubleshooting section)
5. DOOR OPEN ALARM
The refrigerator door has been open for more than two minutes (see
Troubleshooting section)
6. FREEZER - and + temperature adjustment
Used to modify the temperature setting of the freezer; confirmation
corresponding to the selected temperature appears on the display.
7. FREEZER display
Shows the set temperature for the freezer compartment.
8. SUPER COOL
Activates or deactivates the SUPER COOL function (rapid cooling).
will appear on the display
9. SUPER FREEZE
Activates or deactivates the SUPER FREEZE function (rapid freezing).
will appear on the display
10. HOLIDAY
Activates or deactivates the HOLIDAY function (the HOLIDAY LED
on the keypad lights up), while the temperature values +12°C and
-18°C appear on the refrigerator and freezer displays respectively.
Ten minutes after the most recent user interaction, the display enters
its energy saving mode
182376910
45

4
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24
Description of the appliance

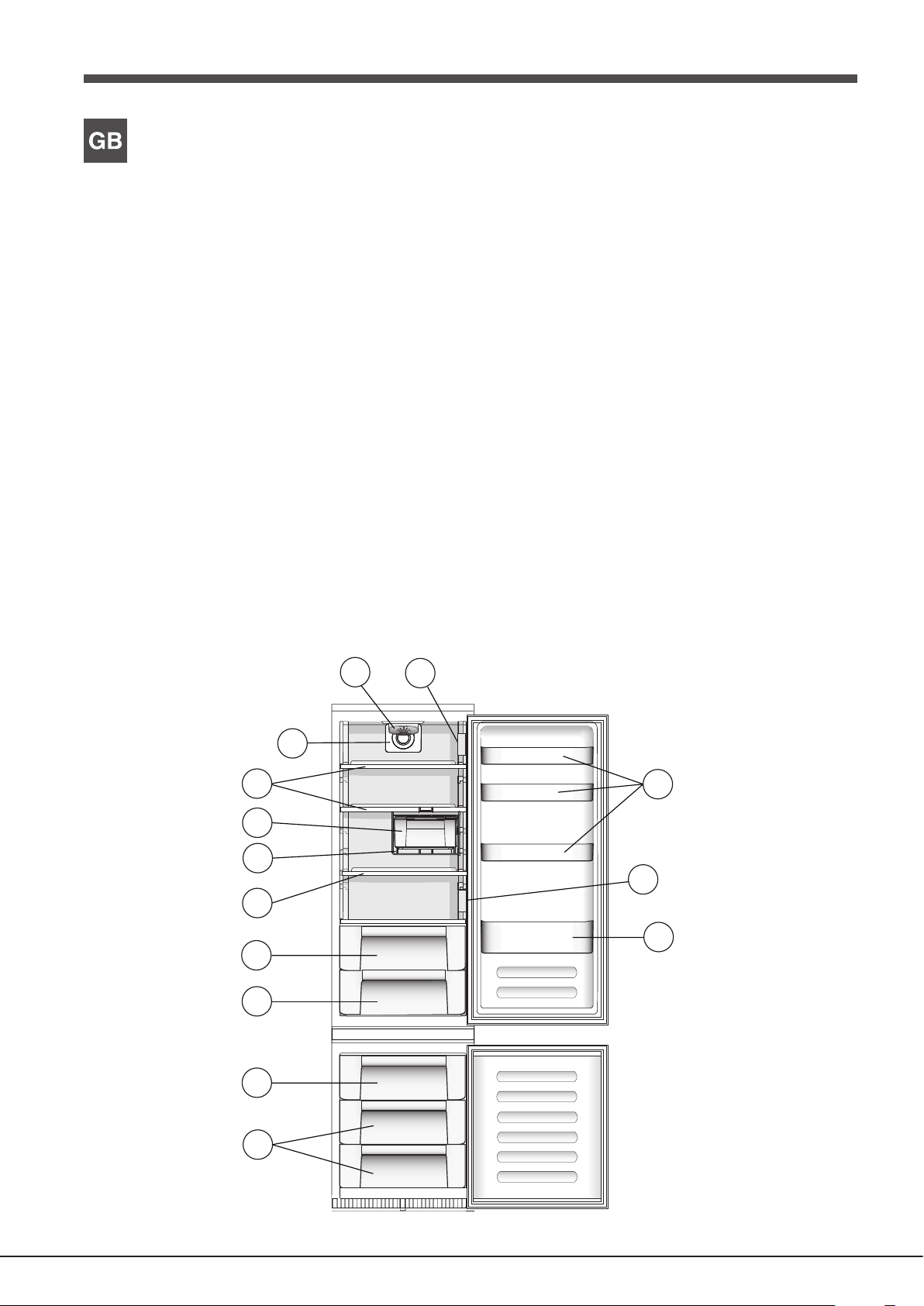

Overall view
The instructions contained in this manual are applicable to different
model refrigerators. The diagrams may not directly represent the
appliance purchased. For more complex features, consult the
following pages.
1STORAGE compartment *
2FREEZER and STORAGE compartment
3FRUIT and VEGETABLE bin *
4FOOD CARE ZONE for MEAT and CHEESE *
5WINE RACK *
6SHELVES *
7LAMP (see Maintenance). *
8Removable multipurpose SHELVES *
9BOTTLE shelf
10 FRESH BOX *
11 ACTIVE OXYGEN *
12 AIR *
*Varies by number and/or position, available only on certain
models.
1
12
2
6
5
11
8
9
10
7
7
3
4
6

GB
5
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24
Installation
! Before placing your new appliance into operation please read
these operating instructions carefully. They contain important
information for safe use, for installation and for care of the
appliance.
!Please keep these operating instructions for future reference.
Pass them on to possible new owners of the appliance.
Positioning and connection
Positioning
1.Place the appliance in a well-ventilated humidity-free room.
2.Do not obstruct the rear fan grills. The compressor and
condenser give off heat and require good ventilation to operate
correctly and save energy.
3.Ensure the appliance is away from any sources of heat (direct
sunlight, electric stove, etc.).
Electrical connections
After the appliance has been transported, carefully place it
vertically and wait at least 3 hours before connecting it to the
electricity mains. Before inserting the plug into the electrical socket
ensure the following:
• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance,
which is indicated on the data plate located on the bottom left
side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated
on the data plate located on the bottom left side (e.g. 220-
240V).
• The socket is compatible with the plug of the appliance. If
the socket is incompatible with the plug, ask an authorised
technician to replace it (see Assistance). Do not use extension
cords or multiple sockets.
!Once the appliance has been installed, the power supply cable
and the electrical socket must be easily accessible.
!The cable must not be bent or compressed.
!The cable must be checked regularly and replaced by authorised
technicians only (see Assistance).
!The manufacturer declines any liability should these safety
measures not be observed.
WARNING:
THIS APPLIANCE MUST BE EARTHED.
Replacing fuse covers:
When replacing a faulty fuse, a 13amp ASTA approved fuse to BS
1362 should always be used and the fuse cover re-fitted.
If the fuse cover is lost, the plug must not be used until a
replacement is obtained.
Replacement fuse covers:
If a replacement fuse cover is fitted, it must be of the correct
colour as indicated by the coloured marking or the colour that is
embossed in words on the base of the plug.
Changing the plug:
Removing the plug
If your appliance has a non-rewireable moulded plug and you
should wish to remove it to add a longer cable or to re-route the
mains cable through partitions, units etc. please ensure that either:
- The plug is replaced by a fused 13amp re-wireable plug
bearing the BSI mark of approval.
or
- The mains cable is wired directly into a 13amp cable outlet,
controlled by a switch (in compliance with BS 5733) which is
accessible without moving the appliance.
Disposing of the plug
Cut off and dispose of the supplied plug if it does not fit your socket.
The cable should be cut as close as possible to the moulded plug.
Remove the fuse.
WARNING:
To avoid a shock hazard do not insert the discarded plug
into a socket anywhere else.
Fitting a new plug
IMPORTANT:
WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE
WITH THE FOLLOWING CODE...
Green and Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the wires in the mains lead may not correspond
with the coloured markings identifying the terminals in your plug,
proceed as follows:
- Connect Green and Yellow wire to terminal marked ‘E’ or
or coloured Green and Yellow.
- Connect Brown wire to terminal marked ‘L’ or coloured red or
brown.
- Connect Blue wire to terminal marked ‘N’ or coloured Black
or Blue.
If a 13amp plug (BS 1363) is used it must be fitted with a 13amp fuse.
If you are in any doubt about the electrical supply to your
machine, consult a qualified electrician before use.
CE Marking certifies that this appliance conforms to the
following EEC directives:
Low Voltage Equipment - 73/23/EEC & 93/68 EEC
Electromagnetic Compatibility 89/336/EEC, 92/31/EEC &
93/68/EEC
