Kenmore Grab-N-Go 795.7033 Series User manual

Grab-N-Go
Models: 795.7033*

TABLE OF CONTENTS
Warranty ............................................................................. 3
~ Freezer Section
Protection Agreements .............................................. 4 Extra Ice
Bin ................................................. 27

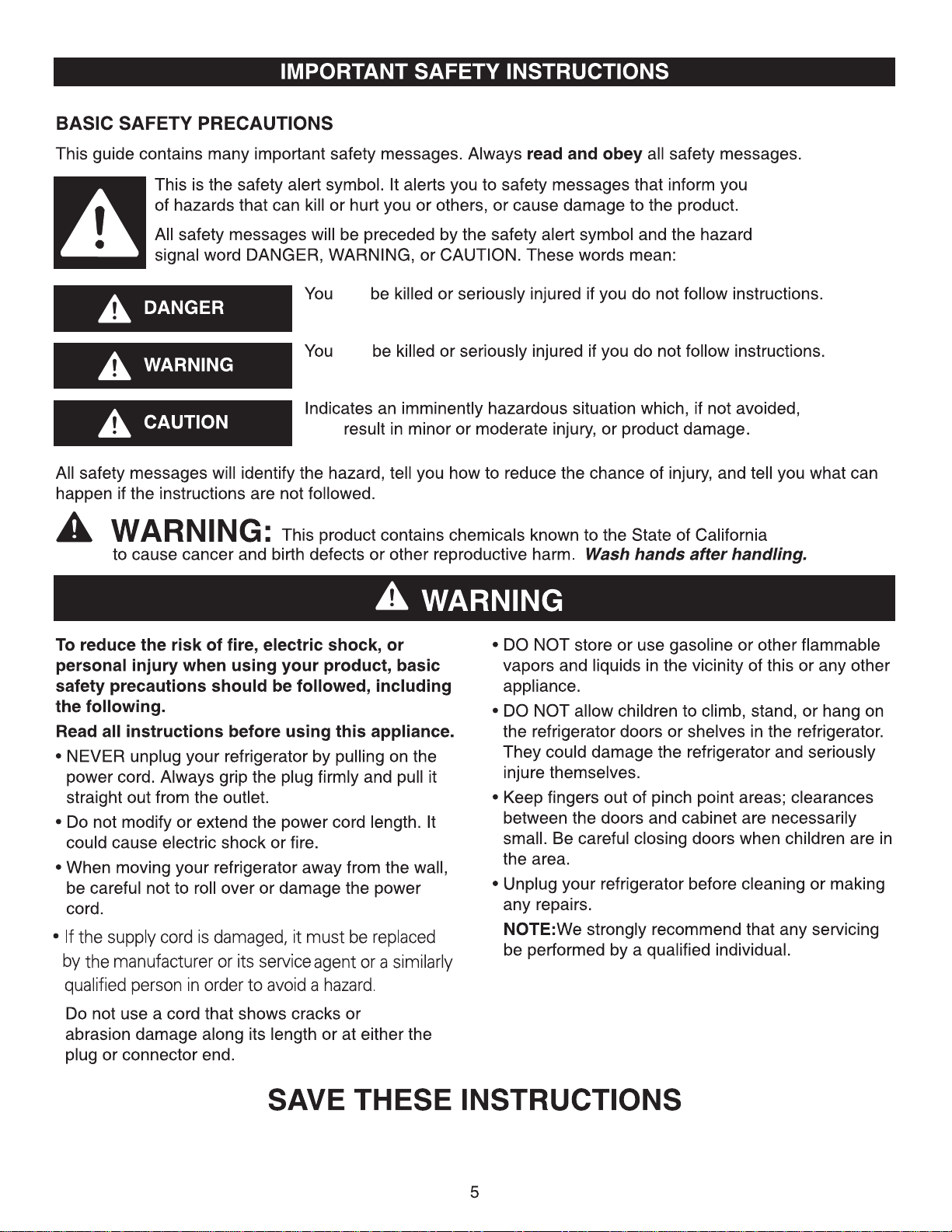

Important Safety Instructions ........................... 5-7 Durabase
••..••..••..••..••..••..••..••..••..••..••..••..••..••.. 28
Electrical & Grounding Requirements .............. 7 Durabase
Divider .......................................... 28

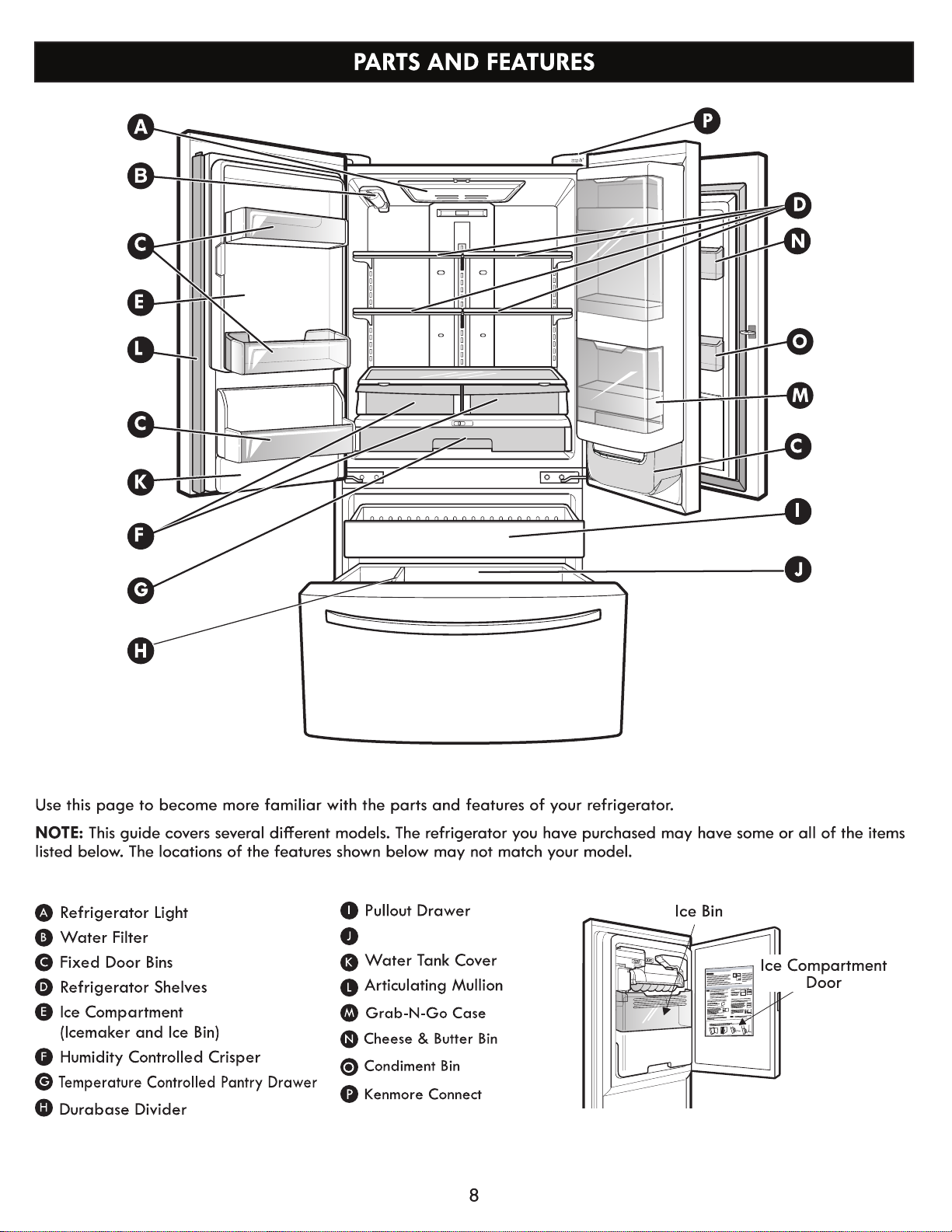

Parts and Features ....................................................... 8 Pullout Drawer .•..•....•..•....•..•....•..•....•..•....•..•.
28
Refrigerator Installation..............................9-17 Water Filter ...............................................
29-32
Unpacking Your Refrigerator ••..••..••..••..••..••..•• 9
Care And Cleaning................................... 33-34
Installation .................................................................... 10
General Cleaning Tips ................................ 33
Removing/Replacing Your Refrigerator and
Freezer Handles, Doors
and Drawers ....... ll-16 Exterior ...•..•....•..•....•..•....•..•....•..•....•..•....•..•...
33
Inside Walls ................................................... 33
Leveling and Door Alignment •••••••••••••••••••••• 17
Door Liner And Gaskets ••••••••••••••••••••••••••••••• 33
Using
Your Refrigerator............................18-28 Plastic Parts
•....•..•....•..•....•..•....•..•....•..•....•..•... 33
Setting the Controls •..••..••..••..••..••..••..••..••. 18-19 Condenser Coils
••••••••••••••••••••••••••••••••••••••••••••• 33
In- Door Ice Bin .......................................................... 20
LED Replacement ........................................... 33
Automatic lcemaker ..••..••..••..••..••..••..••..•• 21-22 Power Interruptions
•..••..••..••..••..••..••..••..••..••.. 34
Food Storage Guide .••..••..••..••..••..••..••..••..••. 23
When You Go On Vacation •••••••••••••••••••••••• 34
~ Refrigerator Section
When You Move •••••••••••••••••••••••••••••••••••••••••••• 34
Water Dispenser ••••••••••••••••••••••••••••••••••••••••••• 24
Connecting the Water Line ...................... 35-37
Refrigerator Shelves ................................................ 25
Troubleshooting Guide............................. 38-45
HUMIDITY CONTROLLED CRISPER •••••••••••• 26
Kenmare Connect .......................................... 46
Temperature Controlled Pantry Drawer •••••••• 26
Service ••••••••••••••••••••••••••••••••••••••••••••• Back Cover
Grab-N-Go Case ••...•••...•••...•••...•••...•••...•••...•••... 27
2

KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or
workmanship when it is correctly installed, operated and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option
of seller.
To arrange for warranty service, call 1-800-4-MY-HOME® (1-800-469-4663)
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if
this appliance is ever used for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters,
belts, screw-in base light bulbs and bags.
2. A service technician to instruct the user in correct product installation, operation
or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to
all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its
intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils
other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made
to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement
as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for
incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation
of incidental or consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
*In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover
user or servicer travel and transportation expenses if this product is located in a remote area (as defined
by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore® product is designed and manufactured for
years of dependable operation. But like all products,
it may require preventive maintenance or repair from
time to time. That's when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend
the life of your new product. Here's what the
Agreement* includes:
• Parts and Iabar needed to help keep products
operating properly under normal use, not just defects.
Our coverage goes well beyond the product warranty.
No deductibles, no functional failure excluded from
coverage-- real protection.
• Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
• Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
• "No-lemon" guarantee -replacement of your covered
product if four or more product failures occur within
twelve months.
• Product replacement if your covered product can't be
fixed.
• Annual Preventive Maintenance Check at your request
-no extra charge.
• Fast help by phone- we call it Rapid Resolution
-phone support from a Sears representative on all
products. Think of us as a "talking owner's manual."
• Power surge protection against electrical damage due
to power fluctuations.
• $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
• Rental reimbursement if repair of your covered
product takes longer than promised.
• 25% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call
is all that it takes to schedule service. You can call at
any time day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund or a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
Far prices and additional information in the
U.S.A. ca111-800-827-6655.
*Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-MY-HOM~.
PRODUCT RECORD
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these
items of information available whenever you contact Sears concerning your product.
ModeiN~·-------------- Date of Purchase ---------------
Serial N~---------
Save these instructions and attach your sales receipt for future reference.
4

will
can
may

dangerous, even if they are sitting
child

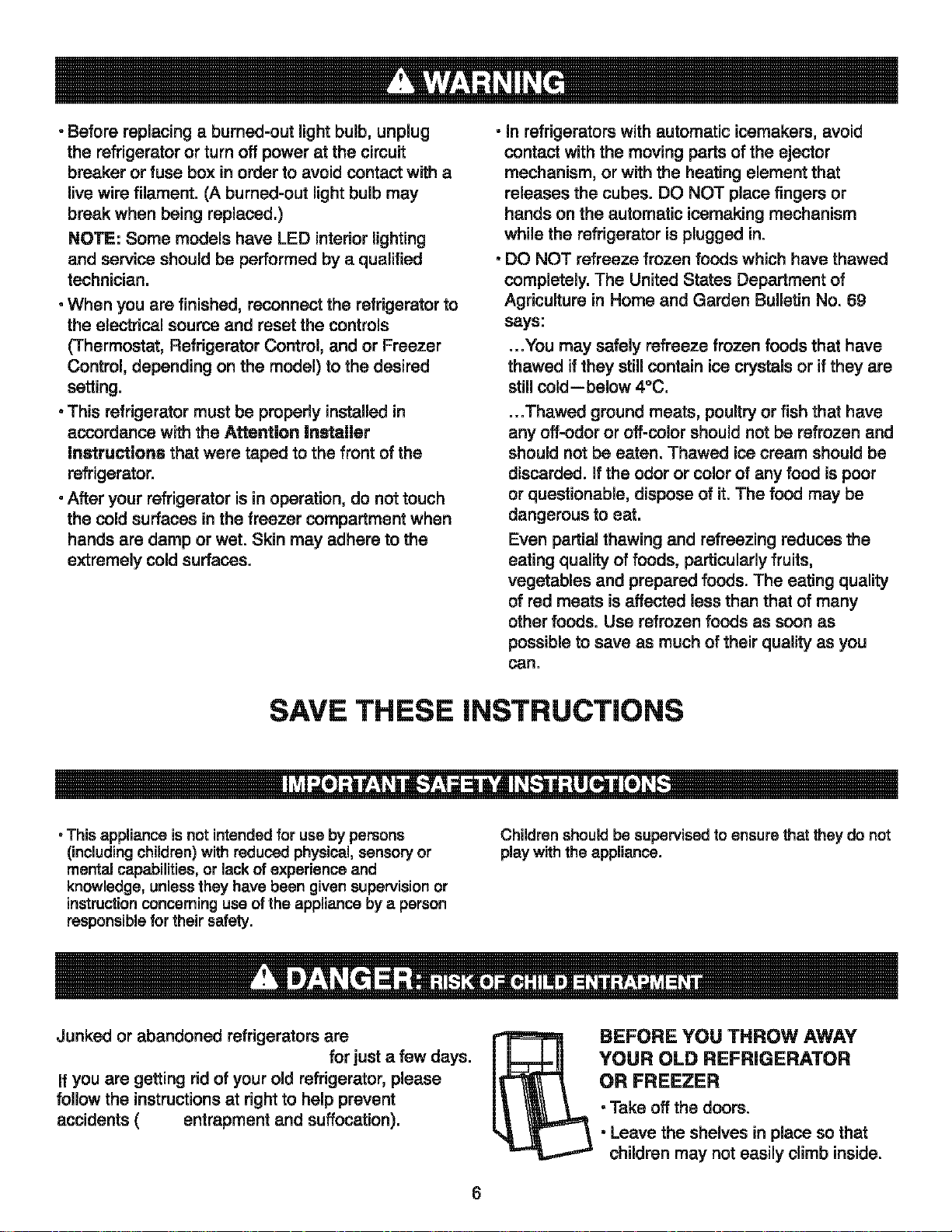

II WARNING
• Before replacing a burned-out light bulb, unplug
the refrigerator or turn off power at the circuit
breaker or fuse box in order to avoid contact with a
live wire filament. (A burned-out light bulb may
break when being replaced.)
NOTE: Some models have LED interior lighting
and service should be performed
by a qualified
technician.
•When you are finished, reconnect the refrigerator to
the electrical source and reset the controls
(Thermostat, Refrigerator Control, and or Freezer
Control, depending on the model) to the desired
setting.
•This refrigerator must be properly installed in
accordance with the
Attention Installer
Instructions that were taped to the front of the
refrigerator.
•After your refrigerator is in operation, do not touch
the cold surfaces in the freezer compartment when
hands are damp or wet. Skin may adhere to the
extremely cold surfaces.
•
In refrigerators with automatic icemakers, avoid
contact with the moving parts
of the ejector
mechanism, or with the heating element that
releases the cubes. DO NOT place fingers or
hands on the automatic icemaking mechanism
while the refrigerator is plugged
in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69
says:
...
You maysafely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still
cold-below 4•c.
...Thawed ground meats, poultry or fish that have
any off-odor or off-color should not be refrozen and
should not be eaten. Thawed ice cream should be
discarded. If the odor or color of any food is poor
or questionable, dispose of it. The food may
be
dangerous to eat.
Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits,
vegetables and prepared foods. The eating quality
of red meats is affected less than that of many
other foods. Use refrozen foods as soon as
possible to save as much of their quality as you
can.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFE1'¥ INSTRUCTIONS
·This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use
of the appliance by a person
responsible
lor their safety.
Children should be supervised to ensure that they do not
play with the appliance.
• DANGER: RISK OF CHILD ENTRAPMENT
Junked or abandoned refrigerators are
for just a few days.
If you are getting rid of your old refrigerator, please
follow the instructions at right to help prevent
accidents ( entrapment and suffocation).
6
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
•Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.

CFC/HCFC DISPOSAL
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and HCFCs are
believed to harm stratospheric ozone if released to the
atmosphere.
Other refrigerants may also cause harm to
the environment if released to the atmosphere.
If you are throwing away your old refrigerator, make
sure the refrigerant is removed for proper disposal
by a qualified technician. If you intentionally release
refrigerant, you may be subject to fines and imprisonment
under provisions
of environmental legislation.
ELECTRICAL & GROUNDING REQUIREMENTS
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
A WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked
by a qualified electrician to make sure the
outlet is properly grounded.
3-prong
grounding
type
wa II receptacle
3-prong
grounding
plug
Ensure proper
ground exists
before
use.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard
from overheated wires. It is recommended that a
separate circuit serving only this
appliance be provided.
Use a receptacle that cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet
is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet.
7
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions,
the use of an extension cord is not
recommended. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a UL-
Iisted {USA), 3-wire grounding type appliance extension
cord having a grounding
type plug and outlet, and that
the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.

Durabase

REFRIGERATOR INSTALLATION
A WARNING
Excessive Weight Hazard:
Use two or more people to move and install the
refrigerator. Failure
to do so can result in back or
other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or
the Tech Sheet that is located under the front of the
refrigerator,
behind the base grille.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers.
Wipe with warm
water and dry.
Do
not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
9
A WARNING
Excessive Weight Hazard:
Your refrigerator is heavy. When moving the
refrigerator
for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do
not wiggle or walk the refrigerator when
trying
to move it, as floor damage could occur.
A WARNING
Explosion Hazard:
Keep flammable materials and vapors, such as
gasoline, away from the refrigerator. Failure to do so
can result in fire, explosion, or death.

REFRIGERATOR INSTALLATION
BASE GRILLE INSTALLATION
To remove the base grille:
1) Open the Freezer Drawer. (Drawer not shown for
clarity.)
2) Once the drawer is open, and there is suffcient
clearance, remove the screws on the top of
the cover.
To replace the base grille:
Place the cover into position and then insert and
tighten the screws.
PRIOR TO USE
1. Clean your refrigerator thoroughly and wipe off all
dust that accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Allow your refrigerctor to run for at least two to three
hours before putting food in it. Check the flow of
cold air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
INSTALLATION
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
WARNING
Shock Hazard:
To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
10
INSTALLATION (continued)
1. To avoid noise and vibration, the unit must be leveled
and installed on a solidly constructed floor. If required,
adjust the leveling legs to compensate for unevenness
of the floor. The front should be slightly higher than
the rear to aid in door closing. Leveling legs can be
turned easily by tipping the cabinet slightly. Turn the
leveling legs to the left to rcise the unit or to the right to
lower it. (See LEVELING AND DOOR ALIGNMENT.)
NOTE: Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure is not
recommended.
2. Install this appliance in an area where the temperature
is between 55°F (l3°C) and 110°F (43°C). If the
tempercture around the appliance is too low or high,
cooling ability may be adversely affected.
3. Select a place where a water supply can be easily
connected for the automatic icemaker.
NOTE: The water pressure must be between 20 and
120 psi (140 and 830 kPa) on models without a water
filter and between 40 and120 psi (280 and 830kPa)
on models with a water filter.
4. Too small of a distance from adjacent items may
result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24
inches (61 em} in front of the refrigerator to open the
doors and at least 2 inches (5.08 em) between the
back of the refrigerator and the wall.
I
2" (5.08 em)-- --

REFRIGERATOR INSTALLATION
NOTE: Removing the doors is the recommended procedure when it is necessary to move the refrigerator through
a
narrow opening. If it is necessary to remove the handles, follow the directions below.
HOW TO REMOVE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
the illustrations on this page.
Removing Refrigerator Handle
Loosen the set screws with a 3 /32 in. Allen
wrench and remove the handle.
NOTE:
If the handle mounting fasteners need
to be tightened or removed, use a V.. in. Allen
wrench.
HOW TO REPLACE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
theillustrations on this page.
Replacing Refrigerator Door Handle
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners
and tightening the set screws
with a 3/32 in Allen wrench.
NOTE: If the handle mounting fasteners
need
to be tightened or removed, use a
1;4 in. Allen wrench.
Allen
Wrench
Mounting
Fasteners
11

When assembling or disassembling the handles:
Grasp the handle firmly to ensure it will not drop or
cause injury.
Prevent the handle from swinging toward nearby
people or animals.
Insert the bracket hole of the handle into the stopper
bolt of the door exactly, then assemble the set screws
to fix the handle in place.
Check for any gap between the door and handle
after the handle is fixed in place.

the

the the the

HOW TO REMOVE THE FREEZER DRAWER
A WARNING: Use two or more people to remove and
install the freezer drawer. Failure to do so can result in
back or other injury.
Pull the drawer open to full extension. Remove the
lower basket<!) by lifting the basket from the rail
system.
Press the tabs on each of the rail covers and lift them
up
to separate the from the rail assembly.
15
REFRIGERATOR INSTALLATION
Remove the screws ®from the rail on both sides.
Grasp the
drawer on each side and pull it up to
separate it from the ralls.
With both hands, hold the center bar and push it in to
allow both rails to slide in simultaneously.
.A CAUTION: Do not hold the handle when removing or
replacing the drawer. The handle may come off and it
could cause personal injury.

REFRIGERATOR INSTALLATION
HOW TO REPLACE THE FREEZER DRAWER
With both hands, pull out the center bar until the rail
is fully extended.
Hook the
door support into the rail tabs on both sides.
Lower the
drawer into its final position and tighten the
screws®.
Align the tabs on the covers with the assembly holes
on each rail and snap the rail covers into place to
secure.
NOTE:
Make sure that the left and right rail covers are
attached to the correct rails. See picture below.
Left Rail
Cover
With the drawer ..,e.ulled out to full extension, insert the
lower basket ~ in the rail assembly.
A WARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suffocation risk, DO NOT allow them to touch or go
near the freezer drawer.
A WARNING: DO NOT step or sit down on freezer
drawer.
LEVELING AND DOOR ALIGNMENT
Leveling
After installing, secure the stability of the product
with the leveling legs.
Your refrigerator has two front leveling legs-one on
the right and one on the left. Adjust legs
to altertilt
from front-to-back or side-to-side. Ifyour refrigerator
seems unsteady or you wantthe doors
to close
easier, adjust the refrigerator's tilt using the
instructions below:
1. Plug the refrigerator's power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position. Remove the base cover.
To remove the base cover
1) Open the Freezer Drawer. (Drawer notshown
forclarity.)
2) Once the drawer is open and there is sufficient
clearance, remove screws on the top of the
cover.
16

To replace base cover:
• Place cover into position and insert and tighten
the screws.
2. Turn the leveling leg clockwise
to raise that side of
the refrigerator or counterclockwise to lower it. It
may take several turns of the leveling leg to adjust
the tilt
of the refrigerator.
NOTE: Having someone push backward against
the top
of the refrigerator takes some weight off
the leveling legs. This makes it easier to adjust the
legs.
3. Open both doors again and check to make sure
that they close easily.
If not, tilt the refrigerator
slightly more to the rear by turning both leveling
legs clockwise. It maytake several more turns,
and you should turn both leveling legs the
same
amount.
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely designed
with
two fresh food doors. Either door can be
opened
or closed independently of one another.
You may have
to exert slight pressure on doors to
get them to close completely.
Door Alignment
The left refrigerator door has an adjustable nut, located
on the bottom hinge, to raise and lower the door for
proper alignment.
If the space between your doors is uneven, follow the
instructions below to align the doors evenly:
17
REFRIGERATOR INSTALLATION
Use the wrench (included with the Use &Care Guide) to
turn the nut in the door hinge
to adjust the height. To the
right
to raise or to the left to lower the height.
The right refrigerator door does not have an adjustable nut.
If the space between your doors is uneven, follow the
instructions below to align the right door:
1. With one hand, lift up both the inner and outer door
sections
of the right door to raise them at the middle
hinge. (Opening the door may make lifting it easier)
2.
With the other hand, use pliers to insert the snap
ring on the middle hinge
of the inner door section
as shown. Do not insert the ring
on the hinge of the
outer door section.
3. Insert additional snap rings until the right door
is
aligned. (Two snap rings are provided with the unit.)
Level the refrigerator by using an 11116 inch
(18mm) wrench
or a flat blade screwdriver.
Turn the leveling legs (counterclockwise) to raise
or (clockwise) to lowerthe height of the front of the
refrigerator.
NOTE: The front of the refrigerator should be
slightly higherthan the back.

USING YOUR REFRIGERATOR
SETTING THE CONTROLS
AIRFLOW
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
colder the setting, the longer the compressor will run to
keep the temperature colder. The freezer control adjusts
the cold air flow from the freezer to the refrigerator.
Setting the freezer control to a lower temperature keeps
more cold air in the freezer compartment to make it
colder.
Cold air circulates from the freezer to the fresh food
section and back again through air vents in the wall
dividing the two sections. Be sure not to block vents while
packing your refrigerator. Doing so will restrict airflow
and may cause the refrigerator temperature to become
too warm or cause interior moisture buildup. (See air flow
diagram below.)
Temperature
• The Refrigerator Temp Control ranges from 33°F to
46°F (0°C to 8°C), Press the Refrigerator Temp button
to cycle through the available temperature settings one
increment at a time.
• The Freezer Temp Control range is from -6°F to 8°F
(-21°C
to -13°C). Press the Freezer Temp button to
cycle through the available temperature settings one
increment at a time.
18
NOTE: When changing control settings, wait 24 hours
before making additional adjustments. The controls are
set correctly when milk or juice is as cold as you would
like and when ice cream is firm. If the temperature in
either compartment is too cold or too warm, change the
setting one increment at a time. Wait 24 hours for the
change to stabilize before adjusting again.
Dispenser
• Press the Ice/Water
Select button to select
either Water, Cubed
Ice or Crushed Ice. The
selected option will
illuminate.
• Some dripping may
occur after dispensing.
Hold your cup beneath
the dispenser for a
few seconds after
dispensing to catch all
of the drops.
NOTE: The dispenser will not work if any door is left open
or if the control lock is engaged•
.A CAUTION: The control display is operated by
touch. Excessive moisture on the display may cause a
malfunction. Please keep the display clean and dry.
Ultra Ice.
• When you press the Ultra Ice button, the Ultra Ice
graphic will illuminate in the display and will continue
for 24 hours. The function will automatically shut off
after 24 hours.
• You can stop this function manually by touching the
button one more time.
• This function increases both ice making and freezing
capabilities.
Water Filter Reset @
OIANGERLTER
When the water filter indicator turns on, you have
to change the water filter. After changing the water
filter, press and hold the Ultra Ice (Filter Reset) button
for three seconds to turn the indicator light off. You
need to change the water filter approximately every
six months.

Articulating Mullion
This feature is a metal strip attached to the left door
that articulates (rotates) 90 degrees as the door is
closed, forming a mullion (base) for the left and right
door gaskets to seal against.
AcAUTION
To reduce the risk of door scratches and breaking the
door mullion, make sure that the refrigerator
door mullion is always folded in.
If moisture gathers on the refrigerator door mullion at
any point, turn off the Energy Saver mode until the
issue is resolved.
Door Alarm (~)
• When power is connected to the refrigerator, the door
alarm is initially set to ON. When you press the Door
Alarm button, the display will change to OFF and the
Door Alarm function will deactivate.
• When either the refrigerator or the freezer door is left
open for more than 60 seconds, the alarm tone will
sound to let you know that the door is open.
• When you close the door, the door alarm will stop.
19
USING YOUR REFRIGERATOR
Energy Saver .,JJ
The Energy Saver function disables the mullion heater
located on the refrigerator door in order to conserve
electricity. Press and hold the Energy Saver button for
3 seconds to activate or deactivate this function.
NOTE: Discontinue using the Energy Saver function
if excessive moisture begins to collect on the door
mullion.
Control Lock 6
~ID&.HOLD
• When power is initially connected to the refrigerator,
the Lock function
is off.
• If you want to activate the Lock function to lock other
buttons, press
and hold the Door Alarm button for
approximately three seconds. The Control Lock icon will
display
and the Lock function is now enabled.
• When the Lock function
is activated, no other buttons
will work. The dispenser pad is also deactivated.
• To disable the Lock function, press and hold the Door
Alarm button for approximatelythree seconds.
Temperature Mode Switch Function (°F <->
0C)
If you want to convert °F to °C or vice versa, press and
hold the Freezer Temp and Refrigerator Temp buttons at
the same time for approximately five seconds.
Demo Mode (For Store Use Only)
The Demo Mode disables all cooling in the refrigerator
and freezer sections to conserve energy while on display
in a retail store. When activated, OFF will display on the
control panel.
D FF
To deactivate:
With either refrigerator door opened, press and hold
the Refrigerator Temp and Ultra Ice buttons at the same
time
for five seconds. The control panel will beep and the
temperature settings will display
to confirm that Demo
Mode is deactivated. Use the same procedure to activate
the Demo
Mode.

USING YOUR REFRIGERATOR
IN-DOOR ICE BIN
.&CAUTION
Keep hands and tools out of the ice compartment door
and dispenser chute. Failure to do so may result in
damage or personal injury.
The icemaker will stop producing ice when the in-door Ice
bin is full. If you need more ice, empty the ice bin into the
extra ice bin in the freezer compartment. During use, the
ice can become uneven causing the icemaker to misread
the amount of ice cubes and stop producing ice. Shaking
the ice bin to level the ice within it can reduce this problem.
NOTE: Storing cans or other items in the ice bin will
damage the icemaker.
Keep the ice compartment door closed tightly . If the ice
compartment door Is not closed tightly, the cold air In the
ice bin will freeze food in the refrigerator compartment.
This could also cause the icemaker to stop producing ice.
NOTE: If the ON/OFF switch on the icemaker is set to
OFF for an extended period of time, it is recommended to
empty the ice bin.
.&CAUTION
When handling the
ice bin, keep hands
away from the
icemaker tray area to
avoid personal injury.
1. Pull or push the door handle to open or close the ice
compartment.
20
2. To remove the in-door ice bin, grip the front handle,
slightly lift the lower part, and slowly pull out the bin
as shown.
3. To reinstall the in-door ice bin, slightly slant the
bin during replacement to avoid contact with the
icemaker.
4. Avoid touching the ice-detecting sensor when
replacing the ice bin. See the label on the ice
compartment door for details.
