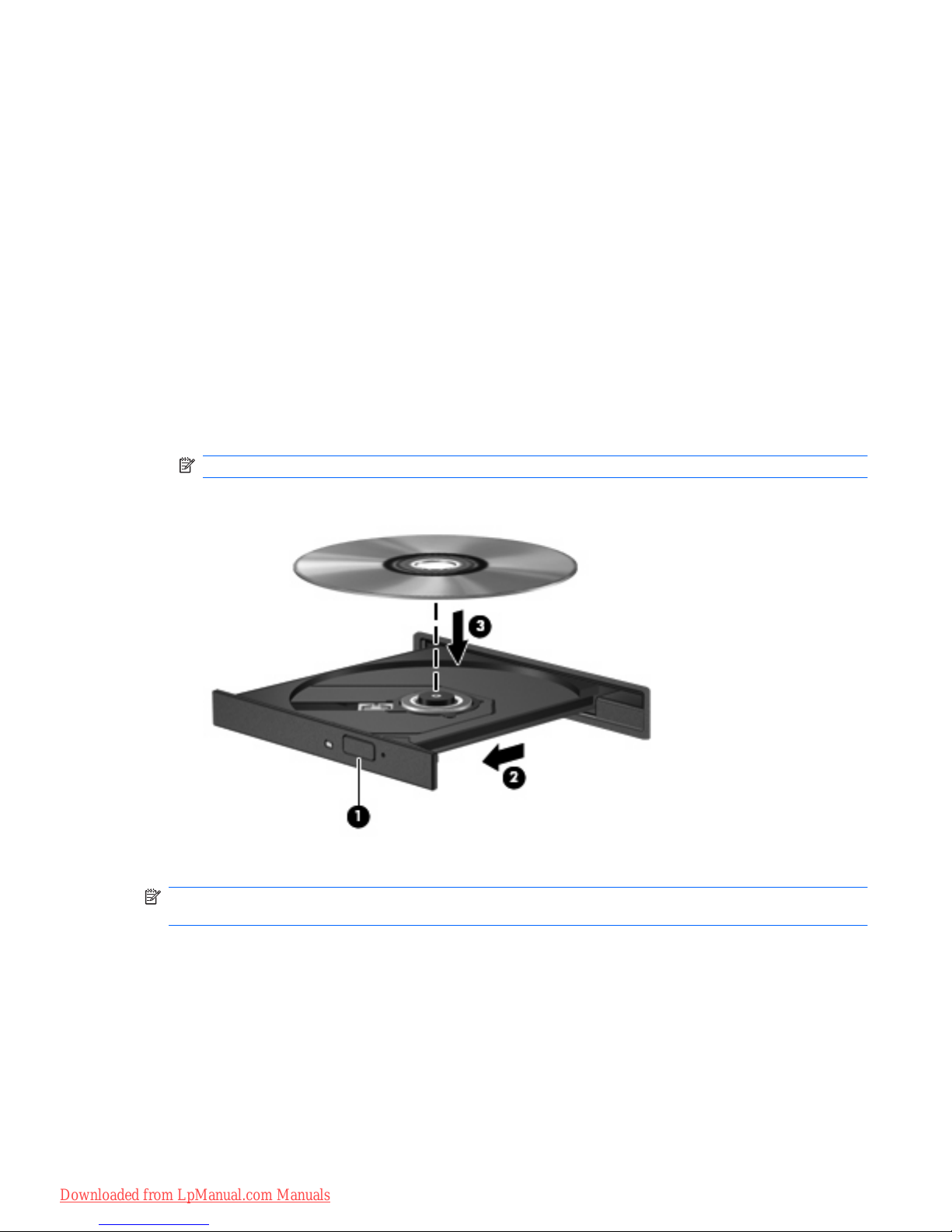

Inserting an optical disc (CD or DVD) ................................................................................ 11
Removing an optical disc when running on battery or external power .............................. 12
Removing an optical disc when no computer power is available ....................................... 13
Using the media activity functions ...................................................................................................... 14

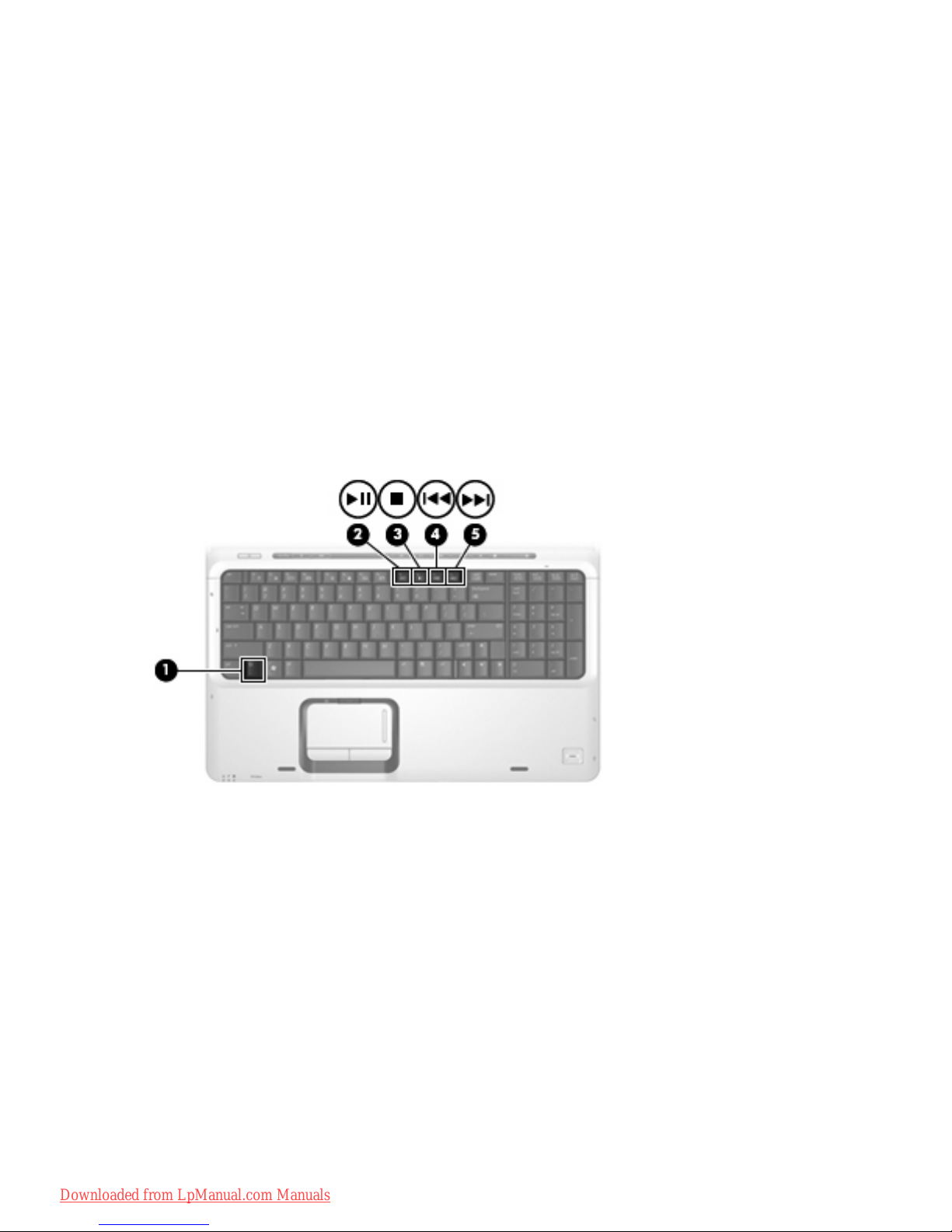

Using the media activity hotkeys ....................................................................................... 14
Using the media activity buttons ........................................................................................ 15
Previous/rewind button ...................................................................................... 15
Play/pause button ............................................................................................. 15
Next/fast forward button .................................................................................... 16
Stop button ........................................................................................................ 16
2 Working with multimedia software
Opening preinstalled multimedia software ......................................................................................... 18
Installing multimedia software from a disc .......................................................................................... 18
Using multimedia software ................................................................................................................. 18
Preventing playback disruptions ......................................................................................................... 19
Changing DVD region settings ........................................................................................................... 20
Observing the copyright warning ........................................................................................................ 20
Index ................................................................................................................................................................... 21
v
Downloaded from LpManual.com Manuals

vi
Downloaded from LpManual.com Manuals

1 Using multimedia hardware
Using the audio features
The following illustration and table describe the audio features of the computer.
Component Description
(1) Internal microphones (2) Record sound.
(2) Speakers (2) Produce sound.
(3) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(4) Audio-out (headphone) jack (1 or 2; second jack
included on select models only)
Connects optional powered stereo speakers, headphones, ear
buds, a headset, or television audio.
(5) Volume mute button Mutes and restores speaker sound.
(6) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also tap the
minus sign on the scroll zone to decrease volume, or tap the plus
sign on the scroll zone to increase volume.
Using the audio features 1
Downloaded from LpManual.com Manuals

Important audio settings
For best results, when you connect an audio or video device, such as a high-definition TV, to the HDMI
port on your computer, follow these guidelines:
●Use QuickPlay as your software application.
●Set S/PDIF (Sony/Philips Digital Interface) as your default audio playback device.
Otherwise, you may hear audio only through your computer speakers, not through the audio or video
device.
To set S/PDIF as your default audio playback device, follow these steps:
1. Select Start >Control Panel >Hardware and Sound >Sound icon.
2. Select the Playback tab.
3. Select S/PDIF Interface >Set Default, and then click OK.
4. Start QuickPlay (or restart it if it is already running), and you should hear audio on your device.
2 Chapter 1 Using multimedia hardware
Downloaded from LpManual.com Manuals

Using the audio-in (microphone) jack
The computer is equipped with a stereo (dual-channel) microphone jack that supports an optional stereo
array or monaural microphone. Using sound recording software with external microphones allows for
stereo recordings.
When connecting a microphone to the microphone jack, use a microphone with a 3.5-mm plug.
Using the audio-out (headphone) jack
WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and
Environmental Notices.
CAUTION: To prevent possible damage to an external device, do not plug a single sound channel
(monaural) connector into the headphone jack.
In addition to connecting headphones, the headphone jack is used to connect the audio-out function of
an audio device such as external powered speakers or a stereo system.
When connecting a device to the headphone jack, use only a 3.5-mm stereo plug.
When a device is connected to the headphone jack, the speakers are disabled.
Using the audio features 3
Downloaded from LpManual.com Manuals

Adjusting the volume
You can adjust the volume using the following controls:
●Computer volume buttons:
◦To mute or restore volume, press the mute button (1).
◦To decrease volume, press the volume down button (2).
◦To increase volume, press the volume up button (3).
NOTE: The tapping sound made by the volume button is enabled at the factory. You can
disable the sound in the Setup Utility (f10).
●Windows® volume control:
a. Click the Volume icon in the notification area, at the far right of the taskbar.
b. Increase or decrease the volume by moving the slider up or down. Click the Mute icon to mute
the volume.
– or –
a. Right-click the Volume icon in the notification area, and then click Open Volume Mixer.
b. In the Device column, increase or decrease the volume by moving the slider up or down. You
can also mute the volume by clicking the Mute icon.
If the Volume icon is not displayed in the notification area, follow these steps to add it:
a. Right-click in the notification area, and then click Properties.
b. Click the Notification Area tab.
c. Under System icons, select the Volume check box.
d. Click OK.
●Program volume control:
Volume can also be adjusted within some programs.
4 Chapter 1 Using multimedia hardware
Downloaded from LpManual.com Manuals

Using the Quick Launch buttons

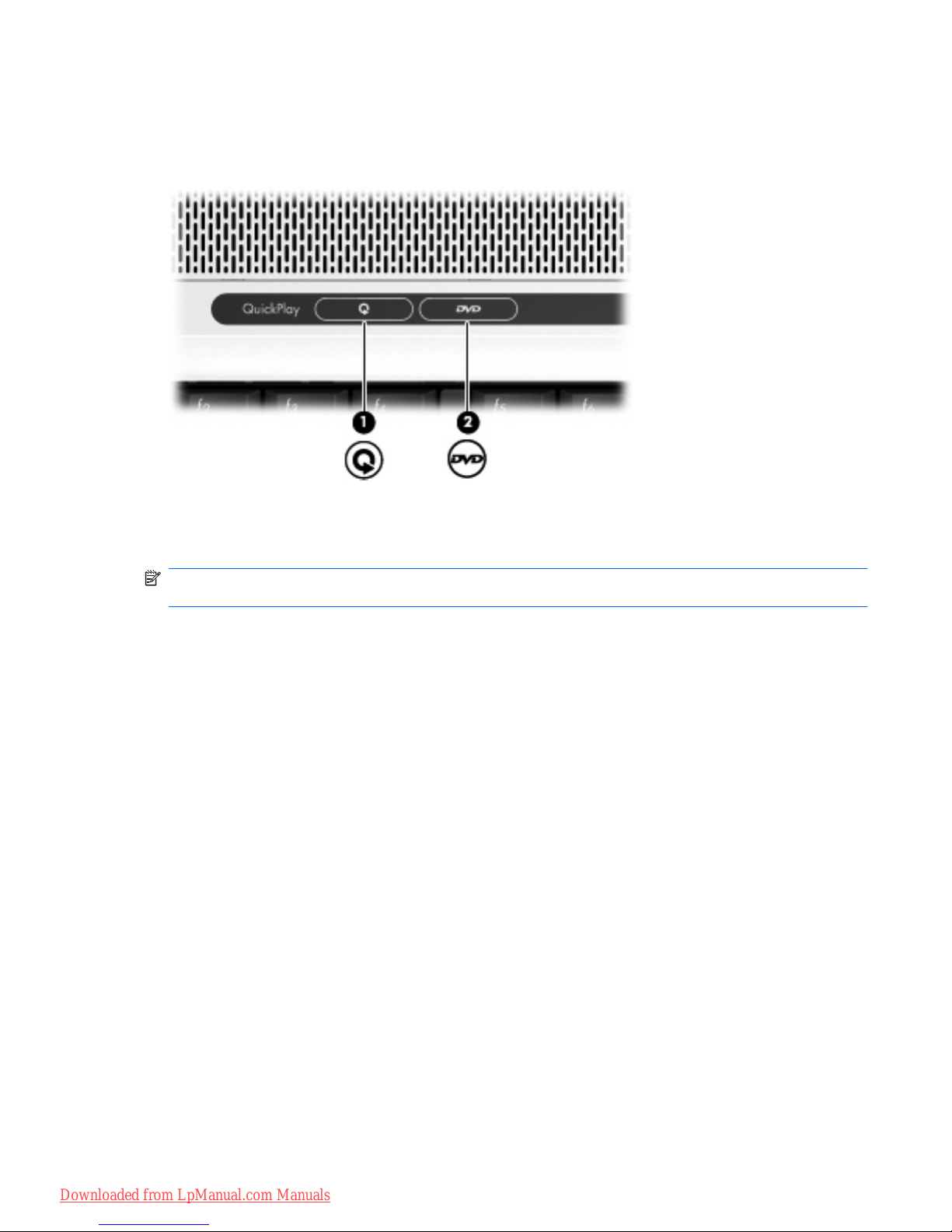

The media button (1) and DVD button (2) functions vary by model and installed software. With these
buttons, you can watch movies, listen to music, and view pictures.
Pressing the media button launches the QuickPlay program.
Pressing the DVD button launches the DVD playback feature of the QuickPlay program.
NOTE: If the computer has been set up to require a logon password, you may be asked to log on to
Windows. QuickPlay launches after you log on. Refer to the QuickPlay online Help for more information.
Using the Quick Launch buttons 5
Downloaded from LpManual.com Manuals

Using the video features
Using the external monitor port
The external monitor port connects an external display device, such as an external monitor or a projector,
to the computer.
▲To connect a display device, connect the device cable to the external monitor port.
NOTE: If a properly connected external display device does not display an image, press fn+f4 to
transfer the image to the device. Repeatedly pressing fn+f4 alternates the screen image between the
computer display and the device.
6 Chapter 1 Using multimedia hardware
Downloaded from LpManual.com Manuals

Using the S-Video-out jack (select models only)
The 7-pin S-Video-out jack connects the computer to an optional S-Video device such as a television,
VCR, camcorder, overhead projector, or video capture card.
To transmit video signals through the S-Video-out jack, you need an S-Video cable, available from most
electronics retailers. If you are combining audio and video functions, such as playing a DVD movie on
your computer and displaying it on your television, you also need a standard audio cable, available from
most electronics retailers, to connect to the headphone jack.
The computer can support one S-Video device connected to the S-Video-out jack, while simultaneously
supporting an image on the computer display or on any other supported external display.
NOTE: The S-Video connection provides a higher quality image than a composite-video connection.
To connect a video device to the S-Video-out jack:
1. Plug one end of the S-Video cable into the S-Video-out jack on the computer.
NOTE: If the S-Video-out jack on the computer is not accessible because the computer is docked
in an optional docking device, connect the S-Video cable to the S-Video-out jack on the docking
device.
2. Plug the other end of the cable into the video device, as instructed in the user guide included with
the device.
3. Press the fn+f4 keys to switch the image between display devices connected to the computer.
Using the video features 7
Downloaded from LpManual.com Manuals

Using the webcam (select models only)
The computer includes an integrated webcam, located at the top of the display. To access the webcam
and CyberLink YouCam software, select Start >All Programs >Accessories >CyberLink
YouCam >YouCam.
NOTE: The first time you access the webcam software, you may experience a brief delay as the
software loads.
For more information about using the webcam, see the HP Web site at http://www.hp.com/support.
Select your language and search for notebook webcam.
Using YouCam as your default webcam software enables you to experiment with the following features:
●Video—Record and play back webcam video. You can also e-mail or upload video to YouTube,
using the icon on the software interface.
●Streaming video—When you open your instant message program, YouCam displays a floating
toolbar that lets you add graphic effects.
●Special effects—Add frames, filters, and emoticons to your snapshots and video.
●Snapshots—Take single frame or "burst" webcam snapshots in rapid succession.
●Connect—E-mail photos and video using the icon on the software interface.
NOTE: For information about using software designed for use with the integrated camera, refer to the
online Help for that software.
The camera light (1) turns on when video software accesses the camera (2).
8 Chapter 1 Using multimedia hardware
Downloaded from LpManual.com Manuals

For optimum performance, observe the following guidelines while using the webcam:
●Be sure that you have the latest version of an instant message program before starting a video
conversation.
●The webcam may not work properly across some network firewalls. If you are having trouble
viewing or sending video to someone on another LAN or outside your network firewall, temporarily
disable the firewall.
NOTE: Under some circumstances a firewall can block access to Internet games, interfere with
printer or file sharing on a network, or block authorized e-mail attachments. To temporarily solve
the problem, disable the firewall, perform the task that you want to perform, and then reenable the
firewall. To permanently resolve the problem, reconfigure the firewall.
●Whenever possible, place bright light sources behind the camera and out of the picture area.
Using the webcam (select models only) 9
Downloaded from LpManual.com Manuals

Adjusting webcam properties
You can adjust the following webcam properties:
●Brightness—Controls the amount of light that is incorporated into the image. A higher brightness
setting creates a brighter image; a lower brightness setting creates a darker image.
●Contrast—Controls the difference between lighter and darker areas on the image. A higher contrast
setting intensifies the image; a lower contrast setting maintains more of the original information’s
dynamic range but leads to a flatter image.
●Hue—Controls the aspect of color that distinguishes it from another color (what makes a color red,
green, or blue). Hue is distinct from saturation, which measures the intensity of the hue.
●Saturation—Controls the strength of color in the final image. A higher saturation setting creates a
bolder image; a lower saturation setting creates a more subtle image.
●Sharpness—Controls the definition of edges in an image. A higher sharpness setting creates a
more defined image; a lower sharpness setting creates a softer image.
●Gamma—Controls the contrast affecting the mid-level grays or midtones of an image. Adjusting
the gamma of an image allows you to change the brightness values of the middle range of gray
tones without dramatically altering the shadows and highlights. A lower gamma setting makes
grays look black, and makes dark colors even darker.
●Backlight Comp—Compensates in cases where a subject with a large amount of background light
would otherwise be obscured by blooming or silhouetting.
The Properties dialog box is accessible from various programs that use the integrated camera, usually
from a configuration, settings, or properties menu.
10 Chapter 1 Using multimedia hardware
Downloaded from LpManual.com Manuals

Using an optical drive
Depending on the type of optical drive and software installed in your computer, the optical drive plays,
copies, and creates CDs or DVDs.
Identifying the installed optical drive
▲Select Start >Computer.
Inserting an optical disc (CD or DVD)
1. Turn on the computer.
2. Press the release button (1) on the drive bezel to release the disc tray.
3. Pull out the tray (2).
4. Hold the disc by the edges to avoid touching the flat surfaces and position the disc label-side up
over the tray spindle.
NOTE: If the tray is not fully accessible, tilt the disc carefully to position it over the spindle.
5. Gently press the disc (3) down onto the tray spindle until the disc snaps into place.
6. Close the disc tray.
NOTE: After you insert a disc, a short pause is normal. If you have not selected a media player, an
AutoPlay dialog box opens. It prompts you to select how you want to use the media content.
Using an optical drive 11
Downloaded from LpManual.com Manuals

Removing an optical disc when running on battery or external power
1. Press the release button (1) on the drive bezel to release the media tray, and then gently pull out
the tray (2) until it stops.
2. Remove the disc (3) from the tray by gently pressing down on the spindle while lifting the outer
edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.
NOTE: If the tray is not fully accessible, tilt the disc carefully as you remove it.
3. Close the media tray and place the disc in a protective case.
12 Chapter 1 Using multimedia hardware
Downloaded from LpManual.com Manuals

Removing an optical disc when no computer power is available
1. Insert the end of a paper clip (1) into the release access in the front bezel of the drive.
2. Press in gently on the paper clip until the tray is released, and then pull out the tray (2) until it stops.
3. Remove the disc (3) from the tray by gently pressing down on the spindle while lifting the outer
edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.
NOTE: If the tray is not fully accessible, tilt the disc carefully as you remove it.
4. Close the media tray and place the disc in a protective case.
Using an optical drive 13
Downloaded from LpManual.com Manuals

Using the media activity functions
The media activity hotkeys and the media activity buttons (select models only) control the play of an
audio CD or a DVD that is inserted into the optical drive.
Using the media activity hotkeys
A media activity hotkey is a combination of the fn key (1) and a function key.
●When an audio CD or a DVD is not playing, press fn+f9 (2) to play the disc.
●When an audio CD or a DVD is playing, use the following hotkeys:
◦To pause or resume playing the disc, press fn+f9 (2).
◦To stop the disc, press fn+f10 (3).
◦To play the previous track of an audio CD or the previous chapter of a DVD, press fn+f11
(4).
◦To play the next track of an audio CD or the next chapter of a DVD, press fn+f12 (5).
14 Chapter 1 Using multimedia hardware
Downloaded from LpManual.com Manuals
