HPM XLP940WEWE User manual

1Specifications
If the ambient light level is below 2.5 lux and movement is detected within the eld of view, the indicator light
turns on for 30 seconds and a short sound signal is emitted. The sound feature can be enabled or disabled
using the switch located underneath the front cover of the mechanism.
A graphical representation of how the unit operates is shown below.
Movement detector
LED lighting
Illuminated Obstacle Indicator
Cat XLP940WEWE
Instruction Manual
2Operation
Supply voltage 100-240V a.c.
Max power 1.3W
Stand-by power 0.5W
Light source LED
Terminal capacity 1 x 2.5mm² or 2 x 1.5mm²
IP rating IP41
Storage
temperature
0°C to +35°C
Operating
temperature
0°C to +35°C
Resistant to the
following agents
Hexane, methylated spirits, soapy
water, diluted ammonia, diluted
pure bleach (10%), glass cleaning
substance, pre-impregnated wipes,
diluted hydrogen peroxide (35%)
Not resistant
to the following
agents
Acetone, tar remover,
trichloroethylene

Customer Service
For all customer service and technical support
please call Monday to Friday during business hours.
HPM Legrand Australia
1300 369 777
www.hpm.com.au
HPM Legrand - New Zealand
0800 476 009
www.hpm.co.nz
Legrand Australia Pty Ltd
ABN: 31 000 102 661
Warranty
HPM Cat XLP940WEWE is warranted as here and after
appears, against faulty material and/or workmanship
for a period of one year from the day of purchase.The
obligation of the manufacturer under this warranty is
limited to servicing and replacing defective parts when
the unit is returned to the authorised place of purchase.
To obtain warranty repair, the purchase receipt should
be returned with the product.This warranty becomes void
on any unit which has been tampered with or damaged
by accident, short circuited, loaded beyond rating or
damaged otherwise by improper operation. The warranty
is also conditional on the unit being installed by a licensed
electrical contractor. All other warranties, whether
expressed or implied, and whether arising by operation of
law or otherwise are hereby excluded.
23809A
This product must only be connected to the mains supply by a qualied electrician.
5
3 4
Warning

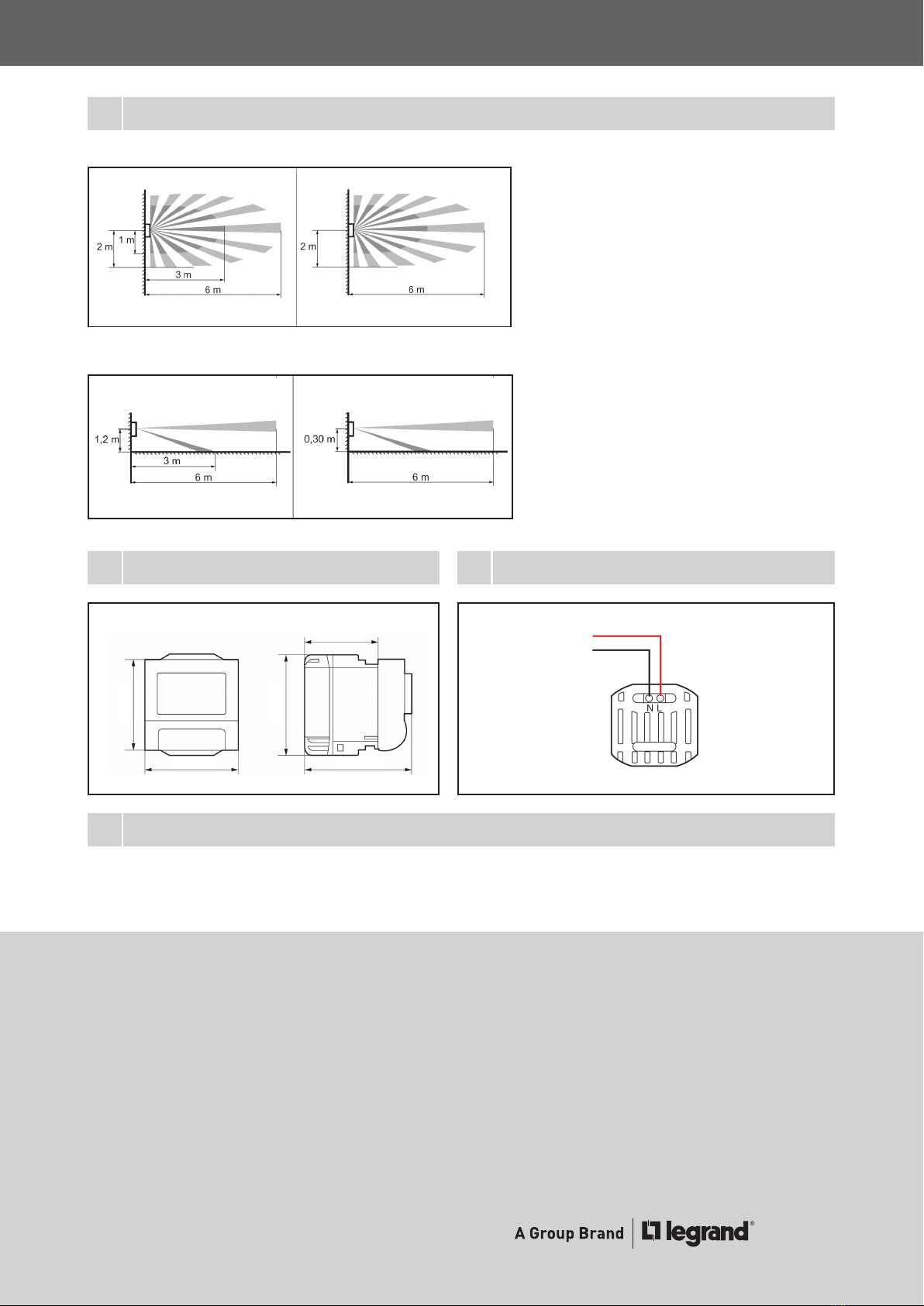

Mechanism Dimensions Wiring
Horizontal detection
Vertical detection
2Operation continued
45 mm
45 mm 55,1 mm
34,2 mm Active
Neutral
50 mm
Mounting height 1.2m Mounting height 0.3m
Mounting height 1.2m Mounting height 0.3m
