Model AD-340
Universal Audio Delay Processor
User’s Manual

Universal Audio Delay Processor
1
Contents
1 Introduction.....................................................................................2
1.1 General........................................................................................................2
1.2 Features.......................................................................................................3
2 Installation.......................................................................................4
2.1 Package Contents .......................................................................................4
2.2 Front and Rear Panel..................................................................................4
2.3 Input and Output Connections.....................................................................5
3 Configuration & Operation.............................................................6
3.1 Front-Panel Button Operation......................................................................6
3.2 Windows-Based Software GUI....................................................................7
3.2.1 Installation.................................................................................................7
3.2.2 Operation..................................................................................................8
3.3 Audio Configuration...................................................................................12
3.3.1 General...................................................................................................12
3.3.2 Sampling Rates ......................................................................................13
3.3.3 Audio Mute Function...............................................................................13
3.3.4 Analog Input/Output Volume Control......................................................14
3.3.5 Delay Function........................................................................................14
3.3.6 Factory Default Settings .........................................................................17
4 Troubleshooting............................................................................17
4.1 FAQ...........................................................................................................17
4.2 Contacting Hall Research..........................................................................18
4.3 Shipping and Packaging............................................................................18
5 Specifications................................................................................19
6 Trademarks....................................................................................19
FCC Statement
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly,
that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
It has been designed to comply with the limits for a Class A computing device in accordance with the
specifications in Subpart B of Part 15 of FCC rules, which are intended to provide reasonable protection against
such interference when the equipment is operated in a commercial environment. Operation of this equipment in
a residential area is likely to cause interference, in which case the user at their own expense will be required to
take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

Model AD-340
2
1 Introduction
1.1 General
Thank you for purchasing the professional and compact AD-340 Audio Delay
Processor from Hall Research. This User’s Manual applies to both the AD-340
Audio Delay Hardware and the Windows-based Audio Delay Software Graphical
User Interface (GUI).
The AD-340 can be configured directly from the Front Panel Push Buttons or
from the GUI when the AD-340 is connected to a Windows HOST PC with a USB
cable. The Software GUI for the AD-340 is designed to be an intuitive and
powerful user interface, and the front panel is simple and easy to use.
The AD-340 Audio Delay Processor provides both Analog (Left and Right Stereo
Channels) and Digital Audio Inputs and Outputs, including CD, DVD or Blu-Ray
Disc quality audio processing.
The user controllable Delay Functions allow an adjustable digital delay for
audio/video synchronization/timing alignment and for acoustic external delay
alignments for speaker systems located at different distances relative to the
listeners.

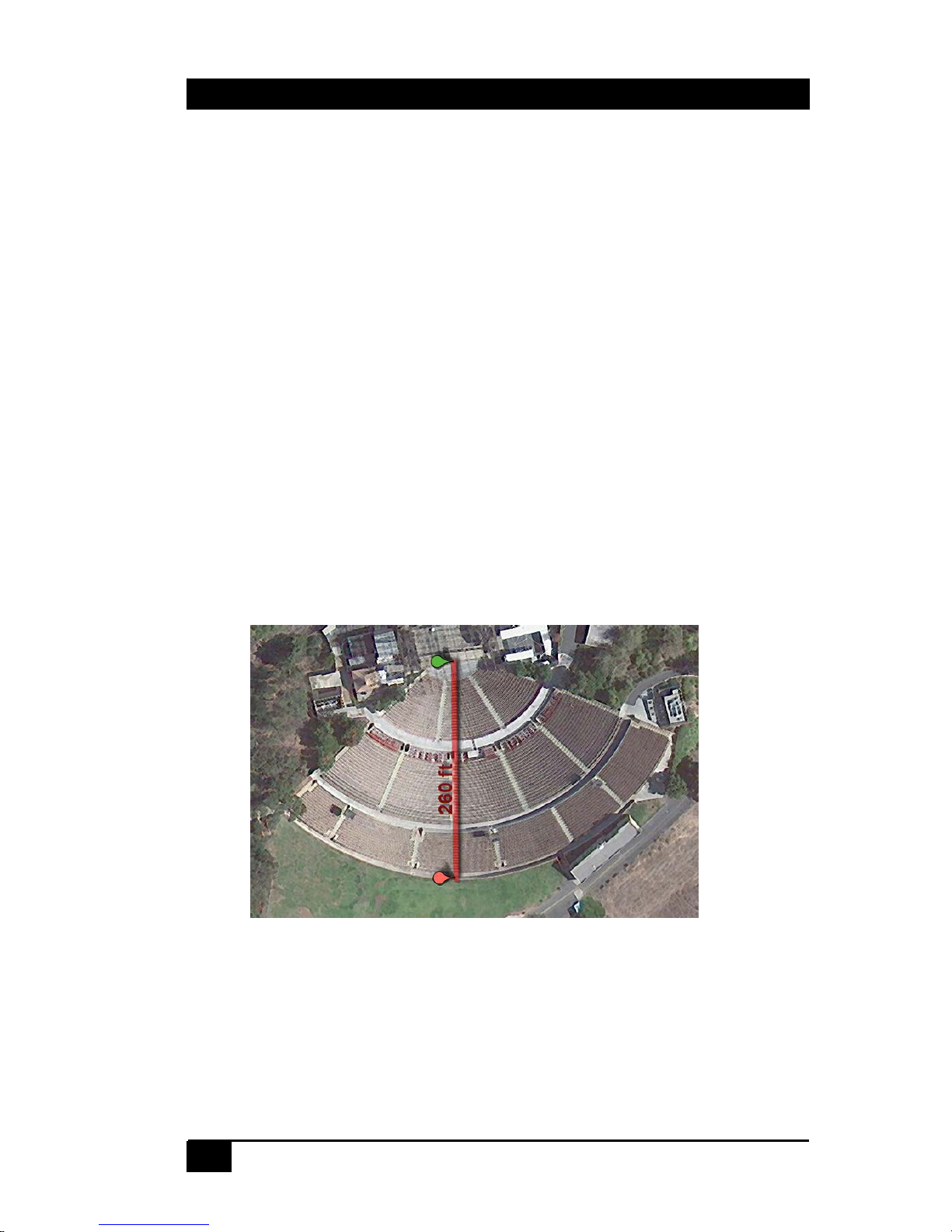

The AD-340 is equipped to adjust for virtually any environment. Even the Verizon
Amphitheater one of the largest venues in Southern California, is well within the
capabilities of this unit, which can adjust for distances of up to 510 feet (155
meters)

Universal Audio Delay Processor
3
1.2 Features
•Stereo Analog Input and Outputs (left and right channel) – RCA connectors
•Analog Audio Compatible with 2 Vrms Line level for CD, DVD and BD Players
•Digital Audio Input and Outputs - SPDIF over coaxial - for RCA connector
•Digital Audio (IEC60958) supporting standard CD, DVD and BD sample rates
at 32 kHz, 44.1 kHz, 48 kHz and 96 kHz
•Supports 2-channel linear PCM digital audio and 5.1 Channel Dolby Digital
and DTS encoded bitstreams.
•Converts linear PCM digital input to analog output – and analog inputs to
LPCM digital output
•User selectable digital delay functions for audio delay in millisecond, video
frames and external delay set in feet or meter
•Delay time selectable from 0 to 510 milliseconds in 1 msec increments– or 0 to
16 video frames (both 50 Hz and 60 Hz TV-systems)
•Delay time for analog or digital at 48 Hz sampling rate – up to 340 millisecond
•External delay up to 510 feet or 155 meter
•Auto-detection of digital frame rates and bitstream formats like Dolby Digital
and DTS - Indicators for SPDIF input signal quality.
•Ground Loop Isolated Analog inputs and Transformer coupled SPDIF output
•Adjustable audio input volumes for MIC inputs (with RCA adapters)
•Adjustable analog audio output volumes
•User controllable muting: Auto-mute when changes are being made
•Advanced mode: automatic calculations of speed of sound based on user
selectable temperatures (Fahrenheit or Celsius)
•Powerful and intuitive front panel controls for configuration
•Auto-save of current configuration settings
•Windows based GUI for configuration control -
•Interface to HOST PC – via Mini-B USB connector - USB 2.0
•GUI: Save and Recall of configuration settings, Factory Default Reset
•Made in USA
