HTC Athena 1.5 User manual

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 1 of 110
Athena 1.5
Service Manual
UUHTC Proprietary
Confidential Treatment Requested
Rev. A03
HTC CONFIDENTIAL
2008/08/28

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 2 of 110
HTC CONFIDENTIAL
HTC Corporation
Engineering Mobility
Revision Control Table
Rev Date Contents Dept Revised Stage
AX01 2008/3/26 Modified Athena service manual
to Athena 1.5. PSE Aken_Kan DVT
AX02 2008/4/21 AX02 version Modified SPL, L2.5 and
Labeling plan. PSE Aken_Kan PVT
A01 2008/4/28
1. Modified device assembling
and disassembling procedure.
2. Modified diagnostics test
procedure.
PSE Aken_Kan MV
A02 2008/6/12
Add 6.4 Build up map files thru
MiniSD card from page 79.
PSE Aken_Kan MV
A03 2008/8/28
1. Remove
VueFLO from product
feature.
2. Modify some pictures. PSE Aken_Kan MV

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 3 of 110
HTC CONFIDENTIAL
Table of Contents
CHAPTER 1–INTRODUCTION
1.1 Product Feature
1.2 Product overview
1.3 Using the Hardware Keyboard
CHAPTER 2–COSMETIC INSPECTION CRITERIA
2.1 Classes definition of inspective area
2.2 Display inspection
2.3 Main unit inspection
CHAPTER 3–DEVICE ASSEMBLING AND DISASSEMBLING PROCEDURE
3.1 Disassembling procedure
3.2 Assembling procedure
CHAPTER 4–DIAGNOSTICS PROGRAM AND WINCE TEST ITEM
4.1 Test Plan
4.2 Diagnostics Test Procedure
4.3 WinCE Test procedures
CHAPTER 5–LEAKAGE CURRENT MEASUREMENT
CHAPTER 6–OS RE-FLASH PROCEDURE
6.1 OS upgrade thru RUU
6.2 OS upgrade thru MiniSD card
6.3 OS upgrade thru diagnostic MiniSD card
6.4 Build up map files thru MiniSD card
CHAPTER 7–GENERIC SPARE PART LIST AND PHOTOS
CHAPTER 8–GENERIC LABELING PLAN
CHAPTER 9–RFANTENNA TEST SPECIFICATION AND TEST EQUIPMENT P/N
CHAPTER 10 –BOARD LEVEL 2.5 REPAIRS
CHAPTER 11 –GENERIC TROUBLESHOOTING
CHAPTER 12 –BATTERY RUNDOWN TEST PROCEDURE

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 4 of 110
HTC CONFIDENTIAL
1.INTRODUCTION
This manual provides the technical information to support the service activities of Athena 1.5.
This document contains highly confidential information, so any or all of this document should not be revealed to
any third party.
1.1 Product Features
Platform
¾Mobile Power Pad with detachable & thin QWERTY keyboard
¾Microsoft Windows Mobile Pocket PC Phone Edition
Dimension
¾133.5 x 98 x 16 mm (additional 4mm for KB)
¾Less than 359g with battery and KB
Processor/Chipset
¾Qualcomm MSM 6275
¾Intel Bulverde 624 MHz
¾ATi Graphic Chip 2284
Memory
¾ROM: 256 MB
¾RAM: 128 MB SDRAM
¾Flash Disk: 16 GB
LCD Module
¾5” 480x640 VGA resolution
¾65K-color TFT LCD with LED backlight
¾Sensitive Touch Screen
UMTS/HSDPA/GSM/EDGE Function
¾Internal antenna
¾HSDPA/UMTS Tri-mode (2100MHz for Europe and 850/1900MHz for USA) and GSM/GPRS/EDGE quad band
(850/900/1800/1900)
¾HSDPA/UMTS
¾850: 824-849, 869-894MHz
¾1900: 1850-1910MHz, 1930-1990MHz
¾2100: 1920-1980MHz, 2110-2170MHz

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 5 of 110
HTC CONFIDENTIAL
¾GSM / GPRS/EDGE
¾850: 824-849, 869-894MHz
¾900: 880-915, 925-960MHz
¾1800: 1710-1785, 1805-1880MHz
¾1900: 1850-1910, 1930-1990MHz
¾HSDPA / UMTS
¾UMTS: 3GPP Release 99 compliant
¾HSDPA: 3GPP Release 5 compliant
¾UE category 12, QPSK, 1.8Mbps peak rate
¾DL up to 1.8Mbps and UL up to 384Kbps
¾PS RAB on HSDPA channel and CS data call (VT call) simultaneously will be supported
¾Global roaming
¾Auto band switching
¾Handover and cell selection between GSM/EDGE and UMTS
¾Generic Services
¾Call Holding, Waiting, Forwarding
¾Call Barring
¾CLI (Calling Line Identity)
¾SMS (Short Message Service)
¾SMSMT, SMSMO, SM Reply, SM Replace, SM Acknowledgement, 8 Bits SMS Data
¾Concatenated messages, up to 640 characters
¾Display own number, telephone number storage capability in terminal and SIM card
¾Network selection
¾Cell broadcast
¾Multi-party conference capability
¾Phase 2 Unstructured Supplementary Service Data
¾Audio Codec: AMR/EFR/FR/HR
¾Network Lock
¾CPHS (Partial Compliance)
¾E-GPRS Function
¾EGPRS class B
¾Multi-slot standard class 10
¾MO/MT SMS over GPRS
¾PBCCH

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 6 of 110
HTC CONFIDENTIAL
¾USIM/SIM
¾1.8 / 3V of UICC
¾Mega SIM
¾USIM Application at least according to 3GPP TS 31.102
¾SIM Application Tool Kit release 96, 98 class 3 and 99 partial
¾Over the Air (OTA) programming
¾Abbreviation Dial Number (ADN)
¾Security Pin 1 & 2 control
Standalone GPS
¾Internal GPS antenna for UMTS & EDGE
¾Support NMEA 0183 version 3.0 or above
¾20 parallel channel GPS receiver
¾Acquisition time
¾Hot start: 8 seconds, typical TTFF
¾Warm start: 35 seconds, typical TTFF
¾Cold start: 45 seconds, typical TTFF
¾Update rate: user configurable once/1sec, once/10sec and once/30sec continuous
¾GPS Accuracy
¾Position: < 15 meters, 95% typical
¾Velocity: 0.05 meter/sec steady state
Digital Camera
¾Main Camera: 3 Mega pixel with Auto Focus
¾2
nd camera: Color CMOS VGA camera
¾High Power LED for camera flash
Keyboard/Button/Switch
¾POWER button (Side)
¾Short Press: Power On/Off
¾Long Press: Turn off system power totally
¾Camera capture button (Side)
¾Two step camera button for 3M pixel AF
¾Volume Up / Down control (Side)
¾Home Key / Portal key (Front)
¾Built-in 57 keys QWERTY Keyboard (including two soft keys, one start button, one OK button, one send call key, one
end call key, and alphanumeric and symbol keys)

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 7 of 110
HTC CONFIDENTIAL
¾RESET switch (Back)

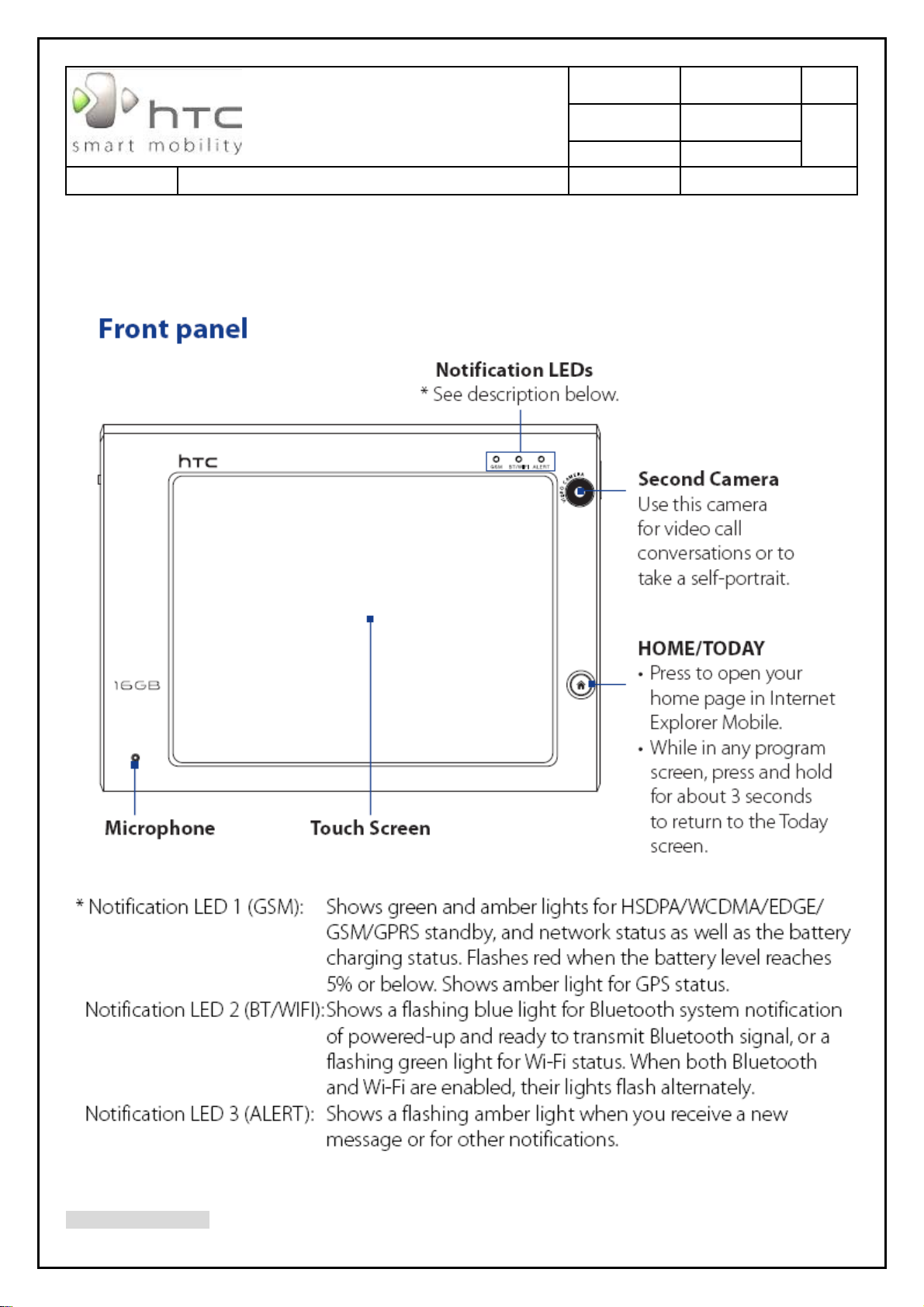

Notification
¾1
st lens - one-color (amber) LED for new message and notification
¾2
nd lens - bi-color (green and blue) LED for WiFi and bluetooth notification
¾3
rd lens –bi-color (green and red) LED for 3G & 2G network status & GPS indicator
¾4
th lens – bi-color (green and red) LED for charging status & low power indicator
¾Notification by Sound, and Message on the display
Audio
¾Built-in Microphone
¾Dual speakers with 3D surround sound
¾Loud speaker for Hands-Free supported
¾Audio sampling rate
¾16-bits with 8KHz, 11KHz, 22KHz, 44.1KHz
¾AMR/AAC/WAV/WMA/MP3 codec
Connectivity & Interface
¾Bluetooth
¾Compliant with v2.0 without EDR
¾Class 2 transmit power
¾Supported profiles:
¾GAP (generic access profile)
¾SPP (serial port profile)
¾OPP (object push profile)
¾DUN (dial-up networking profile)
¾GOEP (generic object exchange profile)
¾ActiveSync (legacy application via SPP)
¾HSP (headset profile)
¾HFP (handsfree profile)
¾A2DP (Advanced Audio Distribution profile)
¾AVRCP (Audio/Video Remote control Profile)
¾Service Discovery Application Profile
¾SIM Access Profile
¾HID (Human interface device profile)
¾FTP
¾Co-exist with WiFi

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 8 of 110
HTC CONFIDENTIAL
¾WiFi (manufacture option)
¾IEEE 802.11b/g compliant
¾Internal WLAN antenna
¾Data rate auto fallback for extended range
¾ELP mode
¾Security 802.11i and AES
¾WPA authentication – WEP, WPA, PSK, EAPTLS, PEAP, LEAP,
¾Signaling interfaces between the terminal device and the servers: mutually authenticated and encrypted
utilizing TLS (RFC 2246) with RC4 encryption with SGA1 used as the message integrity check
¾QoS
¾802.11 WME QoS
¾802.11e
¾HTC ExtUSB (11-pin mini-USB / audio jack in one)
¾USB 2.0 client
¾USB charging
¾miniSD card slot with hotswap feature
¾External Antenna (UMTS/GSM/CDMA) Connector
¾External GPS Antenna Connector
¾1.8 / 3 V USIM/SIM card slot
¾HTC Proprietary 16 Pin Port
¾USB 1.1 host (Support USB low power)
¾Thumb Memory
¾Card Reader
¾Keyboard
¾Mouse
¾VGA Out – VGA
¾TV Out – Composite & S-Video (4 pin)
¾3.5 Ø stereo audio jack with mic
Power
¾Battery
¾Removable and chargeable Lithium ion polymer battery, 2100mAh
¾Charging time: less than 4 hours
¾RTC: 5 min (min.) supported by golden capacitor
¾Battery life

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 9 of 110
HTC CONFIDENTIAL
¾Playing WMV: 8 hours
¾Playing WMA: 12 hours
¾Talk time: 330~360 minutes for GSM
¾Talk time: 180~300 minutes for UMTS
¾Video Talk time: >120 min
¾Standby time: 300+ hours for GSM
¾Standby time: 300 hours for UMTS
¾Talk time with GPS tracking mode (Backlight is in Max. level): 2.6 hour with 10dBm transmit power at WCDMA
band
¾WLAN time: 2.8 hours (Backlight level is 3)
¾AC adaptor
¾AC input: 100~240Vac, 50/60Hz
¾AC input current: 0.2Aac (max)
¾Output voltage: 5Vdc (typical)
¾Output current: 1A (typical)
Stylus
¾Lock Type in the main unit
Accessories
¾Travel Charger w/ mini-USB power plug
¾Attachable Keyboard and Screen Cover Carrying Case
¾Mini USB Cable (mini-USB/USB)
¾Battery (rechargeable and replaceable)
¾Stereo wired headset with microphone (button for voice command) for 3.5 Ø
¾User manual, Quick start guide, & Sync. software CD
¾HTC Proprietary 16 pin cable (one to many ports) [ optional ]
¾USB Standard A female port
¾VGA (15pin) port
¾Composite Video Out
¾S-Video (4 pin) Out
¾Cradle [optional]
¾VGA (15pin) port
¾Video Out port
¾Cradle [optional]
¾S-Video (4 pin) port

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 10 of 110
HTC CONFIDENTIAL
¾3.5 Ø Audio jack (for External Speakers & Headset)
¾One miniUSB port for power charging
¾One miniUSB port for synchronization
¾2 x USB Standard A female port (USB Host)
¾2
nd Battery charging slot
¾3 LEDs Indicators – 2nd Battery, Power & Sync
¾Mono Bluetooth headset with microphone [optional]
¾Stereo bluetooth headset with microphone [optional]
¾Car Charger [optional]
¾Car Holder [optional]
¾Car Kit with car stereo mute function [optional]
¾TTY adaptor for USA market [optional]
¾External GPS antenna Cable [optional]
¾Keyboard (KB connector) [optional]
¾16pin to D-Sub/VGA cable [ optional ]
¾Bluetooth Keyboard [optional]
¾Traveling bag [optional]
¾Travel charger holder
¾Device with pouch holder
¾Bluetooth headset holder
¾Sync cable holder
¾4 port video cable holder
¾Business card holder
¾SD card holder
¾Stylus
¾Pen
Microsoft Windows Mobile 6.1 Professional Applications
¾Microsoft Outlook Mobile
¾Calendar, Contacts, Messaging (SMS/E-mail),Tasks, & Voice Notes, Email Set Up Wizard
¾Push Mail
¾Microsoft Internet Explorer Mobile
¾Microsoft Media Player Mobile
¾Microsoft ActiveSync
¾Microsoft Windows Mobile Update

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 11 of 110
HTC CONFIDENTIAL
¾Microsoft Windows Mobile Marketplace
¾Internet Sharing
¾Picture & Video
¾Games
¾File Explorer
¾Device Management
¾Security Enhancement
¾Storage Card Encryption, Device Lock
¾Microsoft Office Mobile
¾Word, Excel & PowerPoint Mobile
¾Microsoft Windows Live!
¾Windows Live Messenger
¾Windows Live Mail (Push Mail)
¾Windows Live Contacts
¾Windows Live Search
¾Windows Live Spaces
¾Windows Smart Dialing
¾Microsoft Remote Desktop Mobile [optional]
Value Added Applications
¾Camera / Camcorder
¾Camera Mode
¾Encoding format: JPEG
¾Resolution: QXGA 2048x1536, UXGA 1600x1200, SXGA 1280x960, VGA 640x480, QVGA 320x240, QQVGA
160x120
¾Night Mode
¾Digital Zooming: max. 8X
¾Camcorder Mode
¾15 fps encoding for CIF resolution
¾Encoding format
¾H.263 + AMR-NB/WB
¾MPEG4 + AMR-NB/WB
¾Ringtone
¾MIDI
¾40 polyphonic & Standard MIDI format 0 and 1 (SMF) / SP MIDI

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 12 of 110
HTC CONFIDENTIAL
¾MP3, AAC, AAC+, WMA, WAV and AMR-NB/WB
¾DirectShow Filters for WMP - Audio
¾Audio Playback format: AAC, AAC+, MP3, WMA, WAV, AMR-NB/WB
¾DirectShow Filters for WMP - Video
¾Video Playback format: H.263, MPEG4, & WMV
¾5~8 fps @ VGA decoding for H.263 & MPEG4
¾Min. 30 fps @ QVGA decoding for H.263 & MPEG4
¾Combined Bit Rate: 64Kbps (playback)
¾Video scaling up to full VGA display
¾Picture Enhancement for Pictures & Videos
¾Graphics: JPEG, GIF87a, GIF89a, PNG, WBMP
¾Video Thumbnail Preview: H.263, MPEG4, & Motion JPEG (AVI)
¾3G-324M Video Telephony
¾ZIP
¾Smart Dialing
¾Support of QWERTY Keyboard Input
¾Sub-display UI when keyboard is attached to LCD
¾VGA / TV Out Setting
¾MMS Client
¾Partial Compliant to MMS 1.2
¾Java virtual machine
¾JSR 75 File Access
¾JSR 118 MIDP 2.0
¾JSR 135 Mobile Media API 1.1
¾JSR 139 CLDC 1.1
¾JSR 185 JTWI 1.0
¾Voice Dial & Command
¾Speaker Dependent or Independent
¾Support on both wired and bluetooth headset
¾Document Viewer - PDF
¾DRM Engine: For all types of files (Pictures, audio, application etc.), and also all types of delivery method
(MMS, email etc.)
¾OMA 1.0 / 2.0 when available
¾Multi-DRM support : Microsoft DRM & OMA DRM

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 13 of 110
HTC CONFIDENTIAL
¾SIM Manager
¾Comm. Manager
¾STK
¾TTY for US Market
¾GPS Navigation SW
¾Quick GPS
¾Backup Tool
¾Symbol Pad
¾Voice Recorder
¾Task Manager
¾Audio Manager
¾Opera Browser
¾Support HTC VueFLO
¾HTC Home (5 tabs)
¾HTC Touch without Cube
¾Random Access
¾Auto screen rotation
¾Photo album
¾YouTube client
¾Google Map
Customer Specific Applications
¾Streaming Media Player
¾3GPP (T-Mobile, CHT, Vodafone)
¾Combined Bit Rate: 384Kbps (streaming)
¾Streaming Media Player
¾Push E-mail
¾RIM Blackberry Push E-mail Client
¾Visto (Vodafone)
¾SEVEN (Cingular)
¾Antivirus (TMO)
¾Document Printing (TMO/HTC)
¾PowerPoint Editor (HTC)
¾RSS Reader & Podcast (HTC)
¾TMO HomeZone (TMO)

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 14 of 110
HTC CONFIDENTIAL
¾GPRS Monitor
¾VoIP SDK
Regulatory
¾GCF certification [Operator dependent]
¾R&TTE: EMC / EMI, Safety SAR
¾WiFi Certification
¾FCC [Operator dependent]
¾PDCRB [Operator dependent]
¾BQB (Bluetooth Qualification Body) certification
¾Windows Mobile Logo (NTSL)
¾USB certification

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 15 of 110

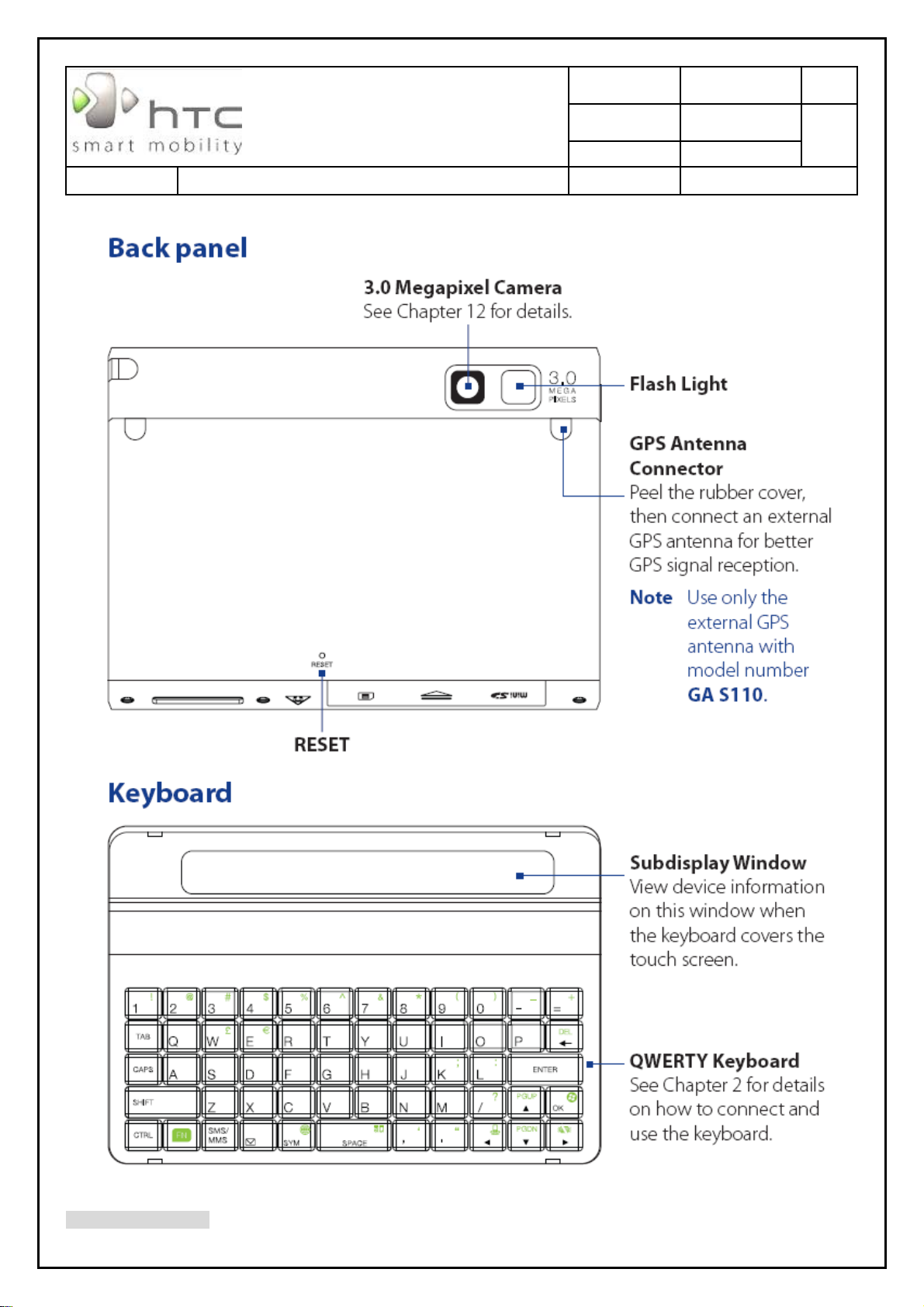

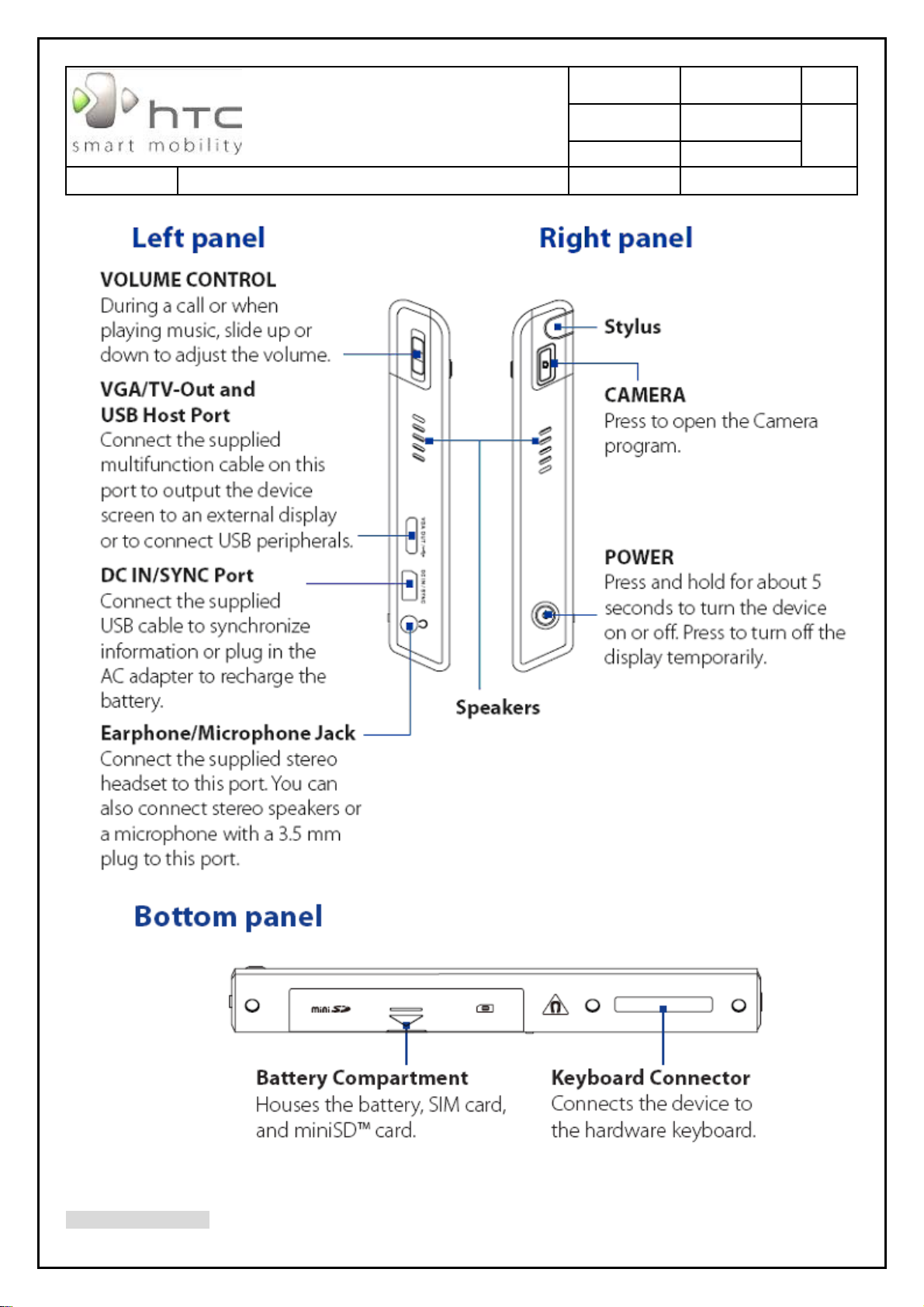

1.2 Product overview
HTC CONFIDENTIAL

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 16 of 110
HTC CONFIDENTIAL

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 17 of 110
HTC CONFIDENTIAL

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 18 of 110
HTC CONFIDENTIAL

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 19 of 110
HTC CONFIDENTIAL

Doc. No. DOC-00040948 REV.
Issued Date 2008/8/28
HTC Corporation Revised Date 2008/8/28 A03
Doc. Title Athena 1.5 Service Manual Page 20 of 110
HTC CONFIDENTIAL
