Huananzhi H510-D4 User manual

H510-D4

01丨目录 安全信息丨02
目录
安全信息
包装说明
简介
主板图解
安装与设置
驱动程序的安装
BIOS设置
安全信息
此包装中包含的组件有可能静电放电（ESD）损坏。请遵守
以下注意事项，以确保成功组装计算机
确保所有组件连接牢固。若连接不紧可能会导致计算机
无法识别组件或无法开启
拿取主板时为防止静电损坏其配置，请在拿取主板前通
过接触其它金属物体释放自身的静电
拿起主板时请手持主板边缘，避免触及主板的敏感组件
在不安装主板时,请将主板放在静电屏蔽容器或防静电垫上
在打开计算机前,确保计算机机箱内的主板或任何位置上
没有松动的螺丝或金属组件
在安装完成之前不要启动计算机。否则可能会导致组件
永久性损坏以及伤害使用者
在任何安装步骤中,如果您需要帮助,请咨询专业的售后客
服人员
安装或拆卸计算机任何组件之前,请先关闭电源,并将电源
线由插座上拔除
保留本用户指南以供将来参考
后置I/O面板
................................................................
................................................................
........................................................................
................................................................
..........................................................
..........................................................
............................................................
.................................................
2
3
4
5
6
7
11
13
本主板须远离潮湿的环境

在电源供应器连接到电源插座之前,请确保您的插座提供
了电源供应器上额定相同的指示电压
有液体渗透至计算机内
主板暴露于水气当中
主板不工作,或您依照使用指南后仍无法让本主板工作
主板曾掉落且损坏
主板有明显的破损痕迹
包装说明
请确认您所购买的主板包装是否完整，如果有包装损坏或是
任何配件损坏、短缺的情况，请尽快联系我们
2.SATA数据线1根
3.用户手册一本
4.保修卡一张
简介
特点介绍
发生下列任一状况时,请将本主板交由维修人员检查：
将电源线摆放在不会被人踩到的地方，不要在电源线上放
置任何物品
03丨包装说明 简介丨04
1.华南金牌H510-D4主板一片
RAM： 2*DIMM 最大支持64GB DDR4
2933/2666/2400MHZ 非ECC内存（视CPU而定/支持XMP）
双通道存储器体系结构
实际内存数据速率取决于CPU类型和DRAM模块
I/O特效： 4 x SATA3.0(最大传输速度高达6GB/s)
4 x USB2.0接口
2 x USB3.0接口
1 x PS/2 键鼠端口
1 x RJ45 网卡接口
1 x VGA显示接口
1 x 兼容HDMI接口输出
1 x DP接口
： Realtek 音讯转码器
Realtek 高保真音频
音频
音源输出： 前置输出/前置喇叭输出
音源输入： 麦克风输入，音频输入
： 1 x Realtek 1000MB/S 以太网以太网
扩展插槽：
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
1 x M.2 NVME PCIe 3.0X4 (key M)2242/2260/2280
CPU： 英特尔® 第10/11代 LGA1200平台处理器 I9/I7/I5/I3 英特尔® 酷睿™

DDR4*2
8Pin CPU电源接口
VGA接口（上）
兼容 HDIM输出(下）
主板图解
状态 描述
关 网络未连接
黄色 网络已连接
闪烁 网络数据在使用中
速度灯号
状态 描述
关 传输速率 10 Mbps
绿色 传输速率 100 Mbps
橙色 传输速率 1 Gbps
后置I/O面板
连线/工作灯号

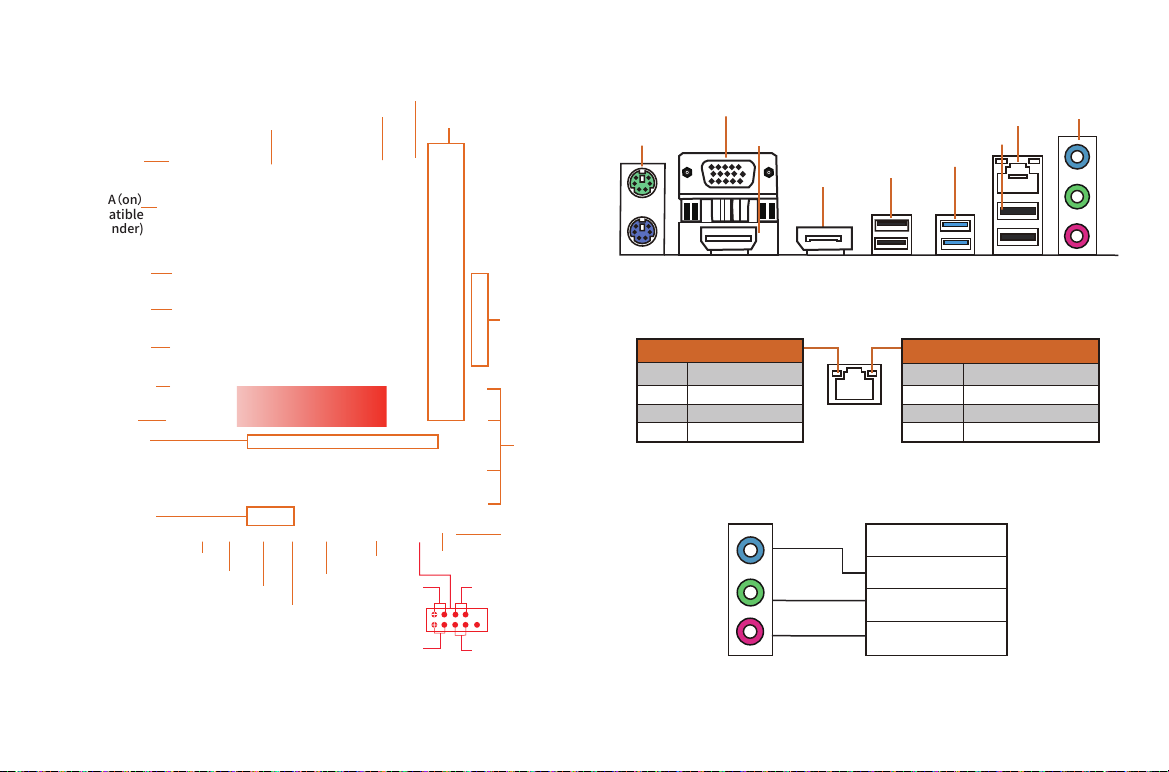

图1-1 H510-D4主板图解
图1-2 整体后置I/O面板展示
图1-3 LAN端口状态表
图1-4 音频端口配置
05丨主板图解 后置I/O面板丨06
PS/2鼠键接口
USB3.0*2
千兆网卡（上）
USB2.0*2（下）
USB2.0*2
音频接口
PCI-E 3.0X1
音频接口
SAT3.0*4
24Pin电源接口
3针风扇接口
PCI-E 3.0X16
前置USB2.0
DP
PS/2
LAN 音频端口
DP
USB 3.0
VGA接口
USB 2.0
兼容HDMI接口输出 USB 2.0
POWER SW
开关机
RESET SW
重启键
HDD LED
硬盘指示灯
POWER LED
开机指示灯
3针风扇接口
4针风扇接口
COM接口
DEBUG接口
开机键
重启键
前置USB3.0
M.2 NVME

安装与设置
请仔细查看主板，凡有表明“1”或是白色粗线标记的接
脚均为1脚位置。
1
3
5
7
9
2
4
6
8
10 N.C 空
硬盘指示灯-电源负极
硬盘指示灯-电源正极
重新启动接口-重启开关
重新启动接口-重启开关
电源指示灯-电源正极
电源指示灯-电源负极
电源开关-电源开关
电源开关-电源开关
N.C 空
10
9
1
2
PCIEx16
PCIEx1

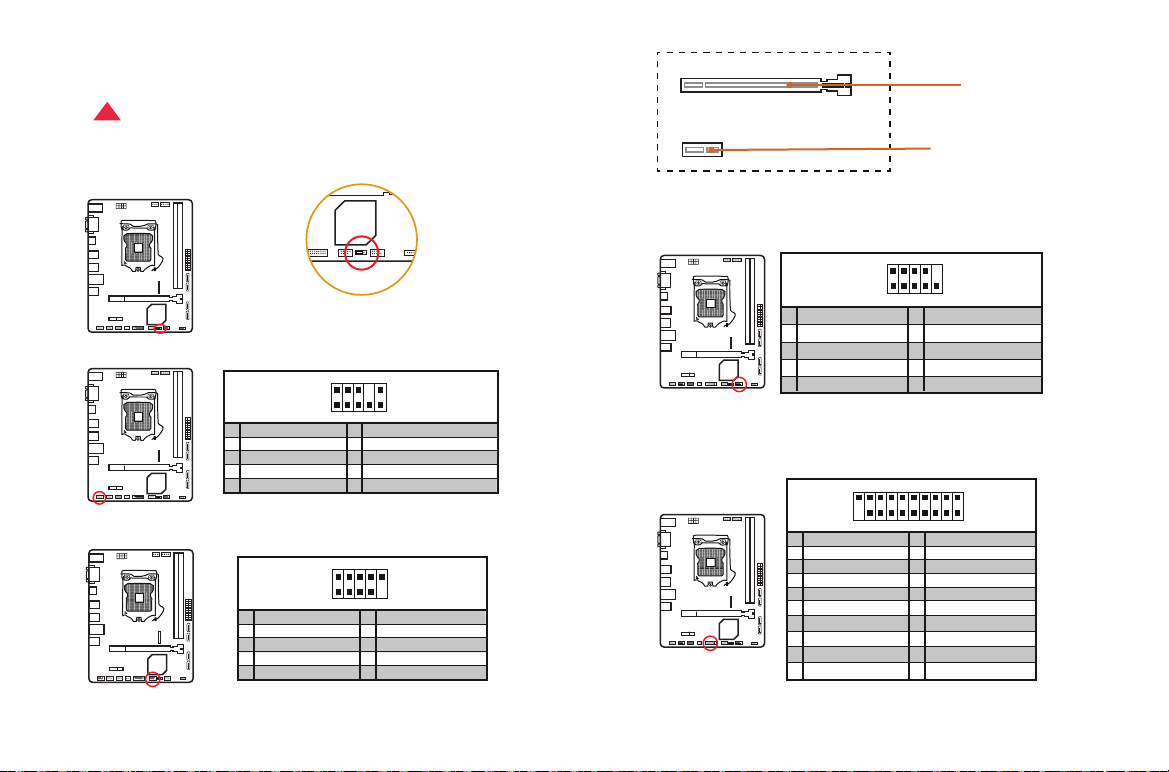

图2-1 清除CMOS 跳线
图2-2 前置音频输出
图2-4 PCI扩展插槽
图2-5 F_PANEL1开机接口
！注意
07丨安装与设置 安装与设置丨08
1
3
5
7
9
2
4
6
8
10
MIC+ 麦克风插口
Key 空脚
L_R_Out 右声道输出
N.C 不连接
L_L_Out 左声道输出
Ground 接地
AuD_Vcc(AVCC) 声卡电源
R_Out Back 右声道输出返回
L_Out Back 左声道输出返回
10
9
2
1
Vbias麦克风电压
1
3
5
7
9
2
4
6
8
10
VCC 电源正极
D- 数据负信号
D+ 数据正信号
GND 接地
KEY 空脚
VCC 电源负极
D- 数据负信号
D+ 数据正信号
GND 接地
N.C 空
1
2
9
10
图2-3 USB扩充接口
1
3
5
7
9
2
4
6
8
10
Power
Power
USB3_RX_DN
USB3_RX_DN
USB3_RX_DP
USB3_RX_DP
Ground
Ground
Ground
Ground USB2.0-
USB2.0-
USB2.0+
USB2.0+
19 1
220
USB3_TX_C_DP
USB3_TX_C_DP
USB3_TX_C_DN
USB3_TX_C_DN
GND
11 12
13 14
15
16
17 18
19 20
N.C 空
图2-6 USB3.0扩充接口

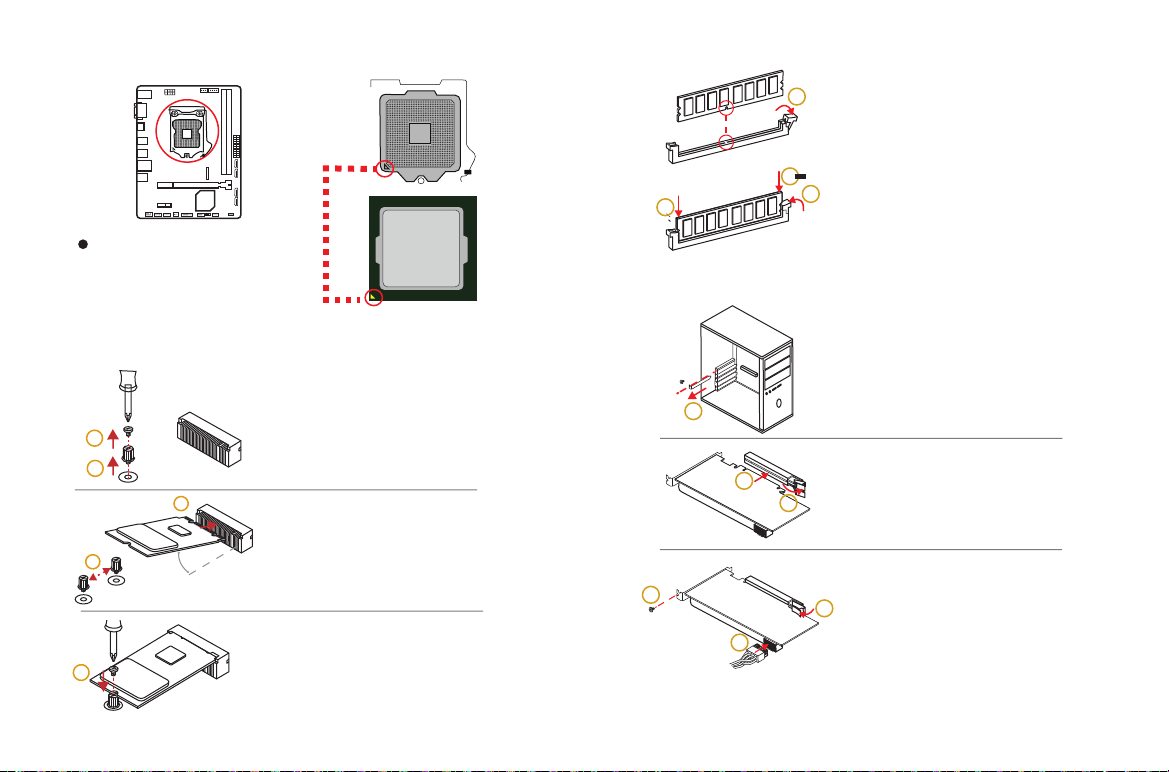

图2-8 内存安装
1. 将内存插槽两端的卡扣往外扳开，
内存条与插槽的凸出位置做对应，确
定安装的方向
2. 将内存条对准插槽，按下去
3. 让插槽两端的卡扣自动弹起来
1
2
3
2
图2 -9 显卡安装
1.用螺丝刀拆除主机箱上的挡板和螺丝
2.安装显卡时需掰一下卡槽的卡头
3.把显卡插到显卡的卡槽中
1
3
2
54.安装到位以后，卡头会自动归位
5.用螺丝把显卡固定在机箱上
6.装好电源线即可
4
6
为了正确的将 CPU 放置在主板
中，LGA1200 CPU 的表面有两个
对起点和一个金色三角指示。金
色三角指示为 Pin1
图2-6 CPU安装
图2 -7 M.2接口安装
3.
4.
5.
1. 从螺丝底座上移除螺丝
2.
移除螺丝底座
拧紧旋入长度M.2模块到M.2
接口距离孔的螺丝底座
将您的M.2模块以30度角插
入到M.2接口
将螺丝放在您M.2模块的
后缘缺口上并拧紧到螺丝
底座
5
330
°
4
1
2
09丨安装与设置 安装与设置丨10

2.Intel 芯片信息安装
3.声卡驱动程序安装
在进行此部分驱动程序安装之前，请您先找到您主板上
的声卡芯片（可参考本手册主位标有声卡芯片位置）看看
是何种型号，然后根据芯片型号选择对应的驱动程序进
行安装
3.1 安装声卡驱动程序（以 HD Audio系列安装为列）
运行" driver installer ": audio _ realtek _ 6 . 0 .9191.1_ x64
/ Set up . exe ，然后单击"下一步"继续，然后"完成"系统将
自动重启以完成安装
3.2 卸载声卡驱动程序（以HD Audio为例）
启动到 WINDOWS 桌面，选择“设置”/“控制，再选择“添
加 / 删除程序”；在“添加 / 删除程序”菜单中选择
“Realte
High Definition Audio Driver”点击“添加 / 删
除”，驱动程序将自动移出。
图2 -10 SATA接口
SATA 3.0*4
驱动程序的安装
1.驱动程序目录一览：
驱动程序目录 驱动程序说明 适用操作系统
H510-D4 Chipset Driver Intel 芯片信息安装 win7/win10/win11
H510-D4 Suond
Card Driver Realtek系列声卡驱动安装 win7/win10/win11
H510-D4 LAN Driver 瑞昱千兆网卡安装 win7/win10/win11
运行"驱动程序安装程序": Intel _ Chipset _ Driver _
V10_1_18838_8284_WIN10_Win11_64_bit.exe
选择“下一步”继续
选择“完成”，重新启动计算机，系统将
自动找到设备。安装完成。
运行“控制面板—系统—硬件—设备管理器”
点击鼠标右键更改驱动程序的硬件
设备，然后继续下面的安装：
选项: Property l - Update driver l -不连接到 Internet -
手动安装
找到相应的目录
选择“下一步”
11丨驱动程序的安装 驱动程序的安装丨12

5.网卡驱动程序的安装
运行"驱动程序安装程序": Realtek _ Install _ Win 10_
10051_09282021.exe 点击“下一步”⸺“安装”—“完
成”并重新启动计算机，将系统将自动搜索设备来完成
安装中
BIOS设置
以便电脑正常工作或执行特定的功能。CMOS SETUP会
将各项数据储存在主板上内见的CMOS SRAM中。当电源关闭
时，由主板上的电池继续为CMOS SRAM供电。电源开启后，当
BIOS开始进行POST(Power On Self Test开机自检)时，按下
“Delete”键便可--AMI BIOS的CMOS SETUP主画面中。主板热
启动键“F7”。
菜单说明：请注意设置菜单中各项内容，如果菜单项左
边有一个三角形的指示符号，表示选择了该项子菜单，将会
有一个子菜单弹出来。
13丨BIOS设置 BIOS设置丨14
1.主菜单功能
点击“是”，继续
4.外置显卡驱动程序安装
运行外置显卡《驱动程序》：目录下的 Setup.exe
点击“下一步”，继续
点击“下一步”，继续
点击“下一步”，继续
点击“完成”，系统将会自动查找设备完成安装
OverClocking

DIRECTORY SAFETY PRECAUTIONS
01丨DIRECTORY
Before turning on the computer, make sure all parts inside the
case are firmly connected without any loose screws or metal
components.
Do not start the computer before installation finished,
otherwise it might result in permanent damage to the
computer parts or even injury to the user.
If you need any assistance in the process of installation, please
contact our after-sales customer service or contact us on
Huananzhi official mail:[email protected] or Huananzhi
official Wechat:nick515 for professional technical support.
Prior to installation or disassembly, please switch off the
power and pull the power cable from the socket.
Products could probably be damaged due to electrostatic
discharge(ESD). Please follow these steps below for a success-
ful computer assembly.
Make sure all parts are firmly connected; otherwise, it might
lead to the failure of recognizing components or starting the
computer.
In order to prevent products from being damaged by ESD,
please make sure to discharge your body static by touching
other metal objects before taking the motherboard out of box.
Hold the border of motherboard when taking it out. Do not
touch the sensitive parts of motherboard.
Please put the motherboard in an anti-static container or on
anti-static pad if not needed.
SAFETY PRECAUTIONS丨02
Packing
Brief Introduction
Motherboard Diagram
Installation and Settings
Drivers Installation
BIOS Settings
Rear I/O panel
........................................................
........................................................................
..........................................................
................................................
...............................................................
..............................................
................................................................
...................................................
2
3
4
5
6
7
11
13
Safety Precautions

03丨Packing Brief Introduction丨04
Before plugging the power supply, please make sure the socket
provides the corresponding voltage.
Liquid penetrated into the computer.
Motherboard is exposed to moisture.
Motherboard does not work even if you follow the instructions
on user manual.
Motherboard fell off to the ground and got damaged.
Motherboard has clear signs of damage.
PACKING
Please confirm that the motherboard is properly packaged
upon purchase of the product. If there is any damage to
packaging or lack of accessories, contact us as soon as
possible.
In the event of any of the following conditions, have the
board checked by a service technician:
In any of the following situations, please keep the motherboard
and power cable in a safe place. Do not put anything onto the
power cable.
Keep the motherboard away from moisture.
Keep the user manual for future reference.
1.1*HUANANZHI H510-D4 motherboard
2.1*SATA data cable
3.1*User manual
4.1* Warranty card
Features
BRIEF INTRODUCTION
CPU：Intel ® 10TH11THLGA1200 Processor I9/I7/I5/I3 Intel ® Croe™
RAM： 2*DIMM supports up to 64GB DDR4
2933/2666/2400MHZ Non-ECCmemory(Depends on CPU / supports XMP)
Dual channel storage architecture
Actual memory data rate depends on CPU type and DRAM module
I/O effects： 4 x SATA3.0 (maximum transfer speed up to 6GB/s)
4 x USB2.0 interface
2 x USB3.0 ports
1 x PS/2 Mouse and Keyboard port
1 x RJ45 Network card interface
1 x VGA
1 x HDMI-Compatible
1 x DP
Audio: Realtek Audio Transcoder
Realtek High Definition Audio
Audio output:Front Out/Front Speaker Out
Audio input:Microphone input，Audio input
Ethernet: 1 x Realtek PCle Gigabit LAN
Expansion slot： 1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
1 x M.2 NVME PCIe 3.0X4 (key M)2242/2260/2280

Network Not Connected
Status Description
Turn Off
Yellow Network Connected
Flicker Network In Use
Speed Signal
Status Description
Turn Off Transmission rate 10 Mbps
Green Transmission rate 100 Mbps
Orange Transmission rate 1 Gbps
Rear I/O Panel
Connection/Work Light
1-2 Overall Rear I/O Panel Display
1-3 LAN Port Status Table
1-4 Audio Port Configuration
05丨Motherboard Diagram Rear I/O Panel 丨06
Audio Port
Audio Input
Audio output/
Front speaker output
Microphone input
THE MOTHERBOARD DIAGRAM
1-1 H510-D4 Motherboard Illustration
DDR4*2 Slot
8Pin CPU Power SuppIy
VGA（on）
HDMI-Compatible
（Under)
PS/2
USB3.0*2
Gigabit Ethernet(On)
USB2.0(Under)
USB2.0*2
Audio Port
PCI-E 3.0X1
JAUDI
SAT3.0*4
24Pin Power
Interface
3PIN SYS FAN
PCI-E 3.0X16
JUSB2.0
DP
POWER SW
开关机
RESET SW
重启键
HDD LED
硬盘指示灯
POWER LED
开机指示灯
3PIN SYS FAN
4PIN CPU FAN
COM
DEBUG
Power button
Reset button
JUSB3.0
M.2 NVME
PS/2
LAN Audio Port
DP
USB 3.0
VGA
USB 2.0
HDMI-Compatible USB 2.0

Installation And Settings
please check the motherboard where all pins marked with
number “1” or white bold line are position “1”.
！NOTICE
07丨Installation And Setup Installation And Setup丨08
2-1 Clear CMOS Jumper CLR-CMOS
2-2 Front Audio Output Ports
2-4 PCI-E Expansion Slot
2-5 F_PANEL1 Ports
1
3
5
7
9
2
4
6
8
10
MIC+
Key
L_R_Out
N.C
L_L_Out
Ground
AuD_Vcc(AVCC)
R_Out Back
L_Out Back
10
9
2
1
Vbias
1
3
5
7
9
2
4
6
8
10
VCC
D-
D+
GND
KEY
VCC
D-
D+
GND
N.C
1
2
9
10
2-3 USB Expansion Ports
1
3
5
7
9
2
4
6
8
10
N.C
RESET_SW
RESET_SW
HDD LED+
POWER_SW
PWR LED+
PWR LED-
POWER_SW
N.C
HDD LED-
10
9
1
2
PCIEx16
PCIEx1
1
3
5
7
9
2
4
6
8
10
Power
Power
USB3_RX_DN
USB3_RX_DN
USB3_RX_DP
USB3_RX_DP
Ground
Ground
Ground
Ground USB2.0-
USB2.0-
USB2.0+
USB2.0+
19 1
220
USB3_TX_C_DP
USB3_TX_C_DP
USB3_TX_C_DN
USB3_TX_C_DN
GND
11 12
13 14
15
16
17 18
19 20 N.C
2-6 USB 3.0 Interface

09丨Installation And Setup
To place the CPU properly on the
motherboard, the SURFACE of the
LGA1200 CPU has two pairs of
starting points and a golden trian-
gle. The golden triangle indicates
Pin1
Figure 2-6 CPU installation
2-8 Memory Installation
1. Pull the clips at both ends of the
memory slot outwards, and the
memory strip corresponds to the
protruding position of the slot to
determine the direction of installa-
tion
2. Align the memory strip to the
slot and press down
3. Make the clips on both ends of
the slot spring up automatically
1
2
3
2
123 4 5 6 7 8
DIPON
2-9 Graphics Card Installation
1.Use a screwdriver to remove the
bezel and screws on the main unit
2.Need to pick up the card slot of
the card slot when installing the
graphics card
3.Insert the graphics card into the
card slot of the graphics card
4.After the installation is in
place, the chuck will automati-
cally return to its position.
5.Secure the graphics card to
the chassis with screws
6.Install the power cord
1
3
2
5
4
6
Installation And Setup丨10
3.
4.
5.
1. Remove the screw from the screw base
2.
Remove the screw base
Tighten the screw base screwed into the
length M.2 module to the M.2 interface
distance hole
Insert your M.2 module into the M.2
interface at a 30 degree angle
Place the screw on the trailing edge
notch of your M.2 module and tighten to
the screw base
5
330
°
4
2-7 M.2 Interface Installation
1
2

Drivers Installation
Intel chip
information installation win7/win10/win11
H510-D4 Suond Card Driver Realtek series sound card
driver installation win7/win10/win11
Realtek network card
driver installation win7/win10/win11
Driver Directory Driver Description Operating System
2-10 SATA Interface
3.Audio driver installation
Before this installation, please check the model of the
audio chip on the motherboard first(you may refer to
this manual), Select the proper driver accordingly for
installation.
3.1 Audio driver installation (take HD Audio series for example)
3.2 Driver installation of external video card
Getting into Windows desktop, choose "setting"/ "con-
trol",and then "add/remove programs". Later, choose "Re-
altek High Definition Audio Driver" in the menu and click
on "add/remove"so that the driver will be automatically
removed.
Run "driver installer":audio_realtek_6.0.9191.1_x64/Setup.exe,
take Click on "next"to continue,and then "finished"The system
will automatically restart itself to finish theinstallation
2.Intel Chip Information Installation
Run "driver installer" :Intel_Chipset_Driv-
er_V10_1_18838_8284_WIN10_Win11_64_bit.exe
Select "Next" to continue
Select "Finish" and restart the computer. The system will
automatically find the devices.Installation finished.
Run “Control Panel - System - Hardware - Device Manager”
Click the right mouse button to change the driver's hardware
device and proceed with the installation below：
Option: Propertyl - Update driverl - Not connect to Internet -
Manually installation
Find the corresponding directory
Select "Next step
11丨Drivers Installation Drivers Installation丨12
H510-D4 Chipset Driver
H510-D4 LAN Driver
SATA 3.0*4
1.Drivers listing:

BIOS Settings
13丨BIOS Settings BIOS Settings丨14
In order to enable the computer to work well or execute specific
functions, CMOS SETUP normally stores all kinds of data in CMOS
SRAM of the motherboard. When the computer is shut down,
motherboard’s battery will supply power to CMOS SRAM. When
the computer is turned on and starts POST(Power On Self Test),
press “Delete/Del” key to enter into AMI BIOS CMOS SETUP main
page. Motherboard warm boot key is “F7”
Menu: please pay attention to every option in the settings menu.
When there is a triangle shaped symbol on the left side of menu,
it means that you choose this sub-menu,so a pop-up sub-menu
will be available.
1.Main Menu Function
5.Driver installation of network
Run "driver installer": Realtek_In-
stall_Win10_10051_09282021.exe click on "next"-"installa-
tion"-"finished" and restart the computer，the
system will automatically search for devices to complete the
installation.
-"next"
4.Driver installation of external video card
Run "driver installer", take Setup.exe,
click on "next"- "yes”
-"next"and"finished"
The system will automatically search for devices
to complete the installation
OverClocking
