Huananzhi X99-F8D User manual

User Manual

DIRECTORY
Packing
Brief Introduction
Motherboard Diagram
Installation and Settings
Installation of Drivers
BIOS Settings
Rear I/O panel
........................................................
........................................................................
..........................................................
................................................
...............................................................
..............................................
................................................................
...................................................
2
3
4
5
6
7
11
13
Safety Precautions
SAFETY PRECAUTIONS
Products could probably be damaged due to electrostatic
discharge(ESD). Please follow these steps below for a success-
ful computer assembly.
Make sure all parts are firmly connected; otherwise, it might
lead to the failure of recognizing components or starting the
computer.
In order to prevent products from being damaged by ESD,
please make sure to discharge your body static by touching
other metal objects before taking the motherboard out of box.
Hold the border of motherboard when taking it out. Do not
touch the sensitive parts of motherboard.
Please put the motherboard in an anti-static container or on
anti-static pad if not needed.
Before turning on the computer, make sure all parts inside the
case are firmly connected without any loose screws or metal
components.
Do not start the computer before installation finished,
otherwise it might result in permanent damage to the
computer parts or even injury to the user.
If you need any assistance in the process of installation, please
contact our after-sales customer service or reach us on
HUANANZHI official Facebook for professional technical
support.
Prior to installation or disassembly, please switch off the
power and unplug the computer.
SAFETY PRECAUTIONS 02
01 DIRECTORY

Liquid penetrated into the computer.
Motherboard is exposed to moisture.
Keep the motherboard away from moisture.
Keep the user manual for future reference.
Before plugging the power supply, please make sure the socket
provides the corresponding voltage.
In any of the following situations, please keep the
motherboard and power cable in a safe place. Do not put
anything onto the power cable.
In the event of any of the following conditions, have the
board checked by a service technician:
03 Packing
BRIEF INTRODUCTION
Features
CPUs supported: Standard LGA2011-3 socket
RAM supported: Supporting four channels of DDR4 1866/2133/
2400MHz, with standard and ECC memory
I/O attributes： 10*SATA3.0(Max data transmission rate of 6GB/s)
4*USB2.0 ports
(Extensible 1xUSB2.0 interface in front)
4*USB3.0 ports
(Extensible 1xUSB3.0 interface in front)
1*M.2 NVME Interface
1*M.2 NGFF Interface
1*RJ45 Gigabit Ethernet ports
1*Audio interface
HD AUDIO sound effect：
Supporting 7.1 soundtrack HI-FI audio input/output（ALC887）
Providing audio input/microphone/front speaker/rear speaker and
side speaker output port
Audio output: this is the front speaker output port that stereo
speakers or earphones can be plugged into
Onboard NIC: Motherboard has internal RTL8111H network
interface card
Expansion slots：3*PCI Express x16 Accelerated Graphics Port
Brief Introduction 04
Motherboard does not work even if you follow the instructions
on user manual.
Motherboard fell off to the ground and got damaged.
Motherboard has clear signs of damage.
PACKING
Please confirm that the motherboard is properly packaged
upon purchase of the product. If there is any damage to
packaging or lack of accessories, contact us as soon as
possible.
1. 1*HUANANZHI X99 F8D DUAL motherboard
2. 2*SATA data cable
3. 1* User manual
4. 1*Warranty Card

Rear I/O Panel
USB2.0
USB3.0
USB2.0
MOTHER BOARD IMAGE
SATA3.0*6
M.2 NGFF
SATA3.0*4
3pin fan interface
Gigabit nics(Under)
PCIEX16 interface
M.2 NVME interface
AUDIO POWER SW
RESET SW
HDD LED
POWER LED
PCIEX16 interface
PCIEX16 interface
CPU2 CPU1
There will be a fixed copper column in the
chassis at this position by default. When
installing the motherboard, it is necessary
to remove the copper column of the chassis
before installing the motherboard.
4
Note that the chassis does not have the corresponding
copper column position 1234 position default standard
with four motherboard mat
1
2
3
DDR4*8Interface 8PIN CPU Power Supply 24PIN Power Supply
8PIN CPU Power Supply
USB3.0 Interface
USB2.0Interface（on）
Audio Port
4pin fan interface
3pin fan interface
JUSB2.0
3pin fan interface
Power button
Reset button JUSB3.0
Dial the code
3pin fan interface
4pin fan interface
1-1 X99-F8D motherboard illustration
05 Motherboard Diagram
LAN LAN Audio Port
1-2 Overall Rear I/O Panel Display
Status Description
Turn Off Network Not Connected
Yellow Network Connected
Flicker Network In Use
Speed Signal
Status Description
Turn Off Transmission rate
Transmission rate
Transmission rate
10 Mbps
Green 100 Mbps
Orange 1 Gbps
Connection/Work Light
1-3 LAN Port Status Table
1-4 Audio Port Configuration
Rear I/O Panel 06
Audio Port
Audio Input
Audio output/Front speaker
output
Rear speaker output
Center/subwoofer output
Side speaker output
Microphone input
Aisle
2 4 6 8

PCIEx16
PCIEx16
PCIEx16
1
3
5
7
9
2
4
6
8
10
Power
Power
USB3_RX_DN
USB3_RX_DN
USB3_RX_DP
USB3_RX_DP
Ground
Ground
Ground
Ground USB2.0-
USB2.0-
USB2.0+
USB2.0+
19 1
220
USB3_TX_C_DP
USB3_TX_C_DP
USB3_TX_C_DN
USB3_TX_C_DN
GND
11 12
13 14
15
16
17 18
19 20
N.C
！
X
XX
X
X
XX
X
󾋸󾋹 󾋺 󾋻 󾋼 󾋽 󾋾 󾋿
DIPON
X
XX
X
X
XX
X
󾋸󾋹 󾋺 󾋻 󾋼 󾋽 󾋾 󾋿
DIPON
X
XX
X
X
XX
X
󾋸󾋹 󾋺 󾋻 󾋼 󾋽 󾋾 󾋿
DIPON
X
XX
X
X
XX
X
󾋸󾋹 󾋺 󾋻 󾋼 󾋽 󾋾 󾋿
DIPON
X
XX
X
X
XX
X
󾋸󾋹 󾋺 󾋻 󾋼 󾋽 󾋾 󾋿
DIPON

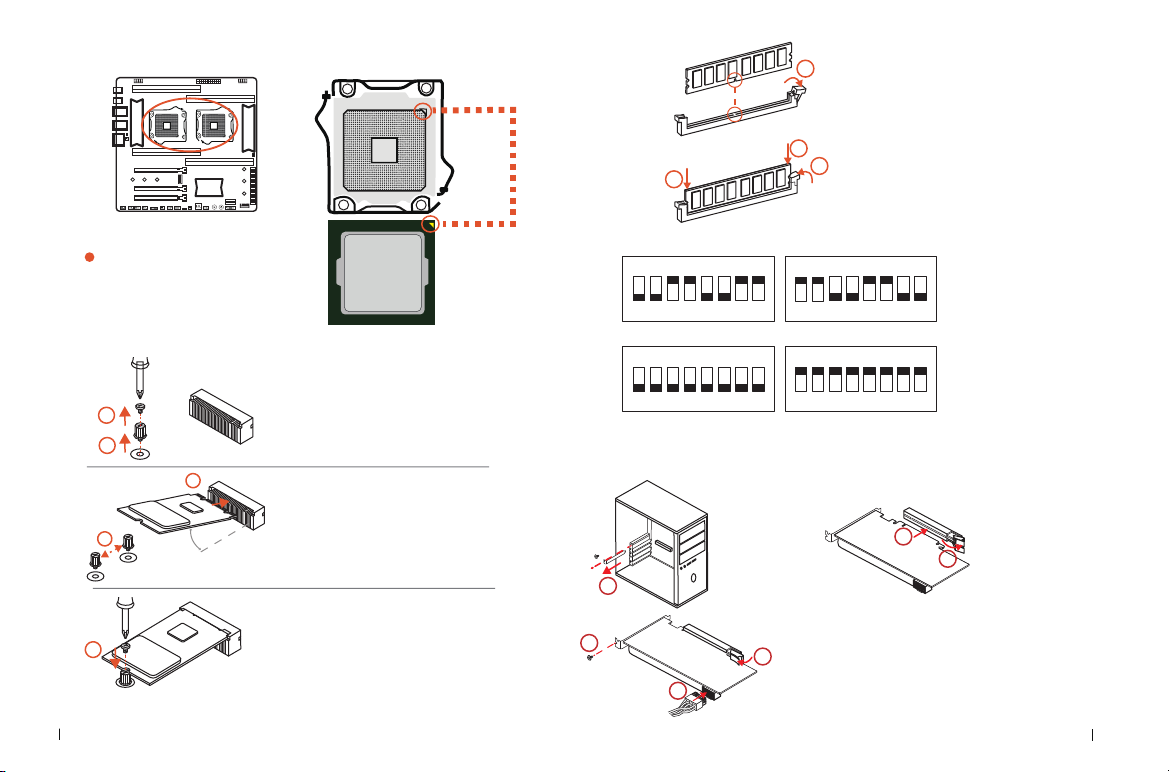

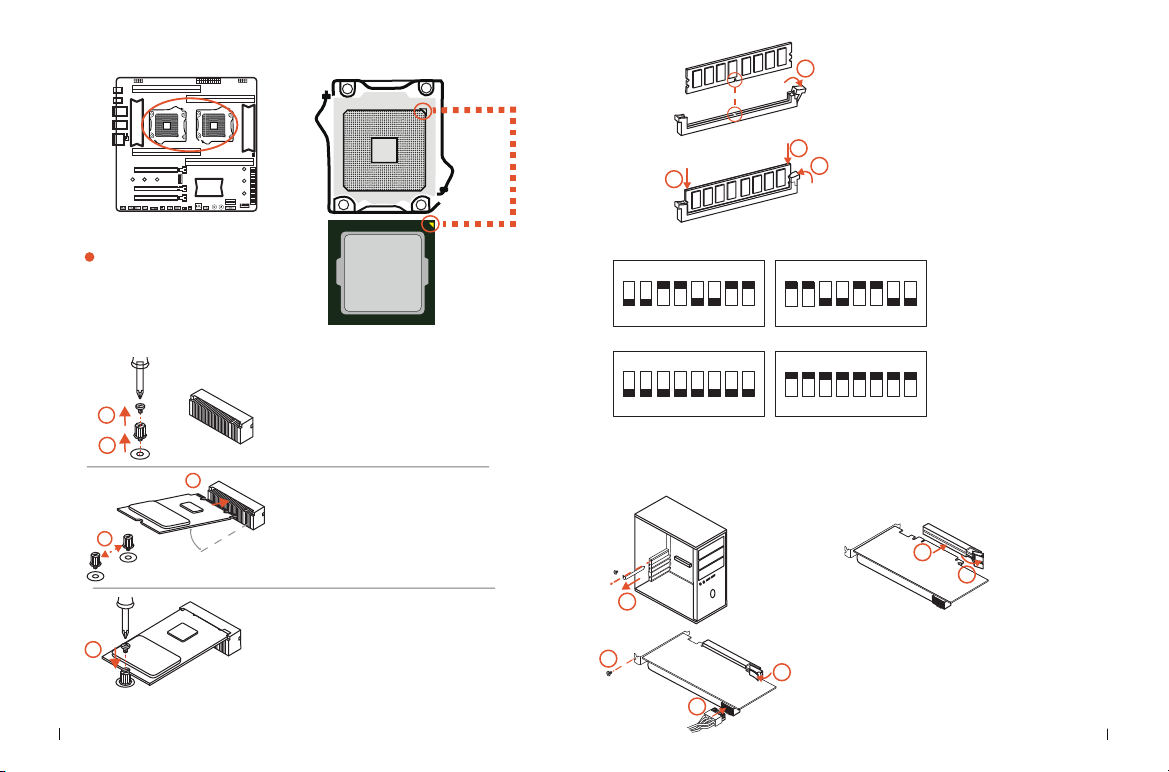

Installation And Settings
please check the motherboard where all pins marked with
number “1” or white bold line are position “1”.
NOTICE
1
3
5
7
9
2
4
6
8
10
VCC
D-
D+
GND
KEY
VCC
D-
D+
GND
N.C
N.C
10
9
2
1

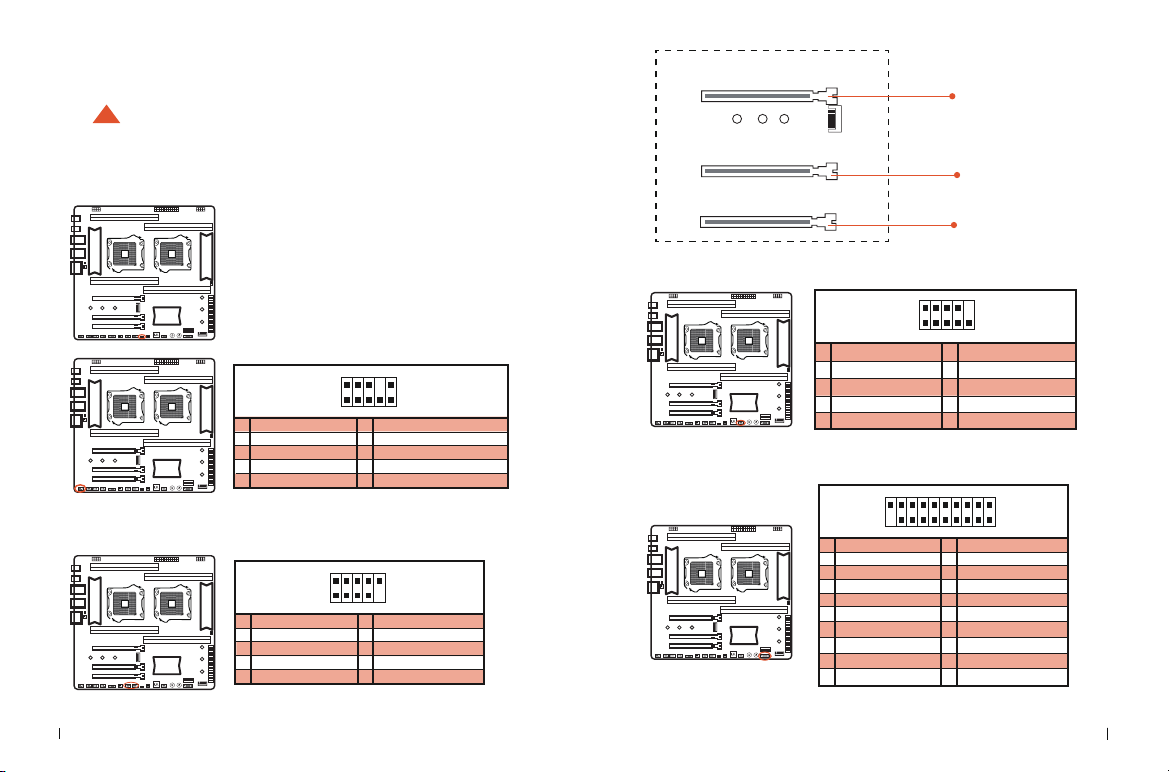

2-1 Clear CMOS Jumper CLR-CMOS
2-2 Front Audio Output Ports
2-5 USB Extension Interface
2-4 PCI Expansion Slot
07 Installation and Settings
1
3
5
7
9
2
4
6
8
10
MIC+
KEY
L_R_Out
L_L_Out
Ground
AuD_Vcc(AVCC)
R_Out Back
L_Out Back
1
2
9
10
Vbias
2
4
6
8
10 HDD_LED-VCC
PWR_LED-VCC
RESET
RESET
PWR_LED-VCC
PWR_LED-VCC
PWR_SW
PWR_SW
N.C
2
1
9
10
2-5 F_PANEL1 Boot Interface
KEY
2-6 USB3.0 Interface
Installation and Settings 08
