Huawei FusionCol8000-E400 User manual

1
1Overview
Item FusionCol8000-E400
Power 380–415 V AC, 3 Ph, 50 Hz/60 Hz
Net weight (kg) 10,000
Dimensions (H x W x D) 3600 mm x 3500 mm x 6058 mm
Issue: 01
Date: 2020-07-15
FusionCol8000-E400 Modular Indirect
Evaporative Cooling System
Quick Guide
(1) Outdoor air outlet port (5) No. 2nd maintenance
door (9) Condensate drainpipe
(2) Electric control box (6) No. 3rd maintenance door(10) No. 4th maintenance door
(3) ELV control box (7) Spray water refill pipe (11) No. 5th maintenance door
(4) No. 1st maintenance door (8) Spray drainpipe (12) Indoor air return port

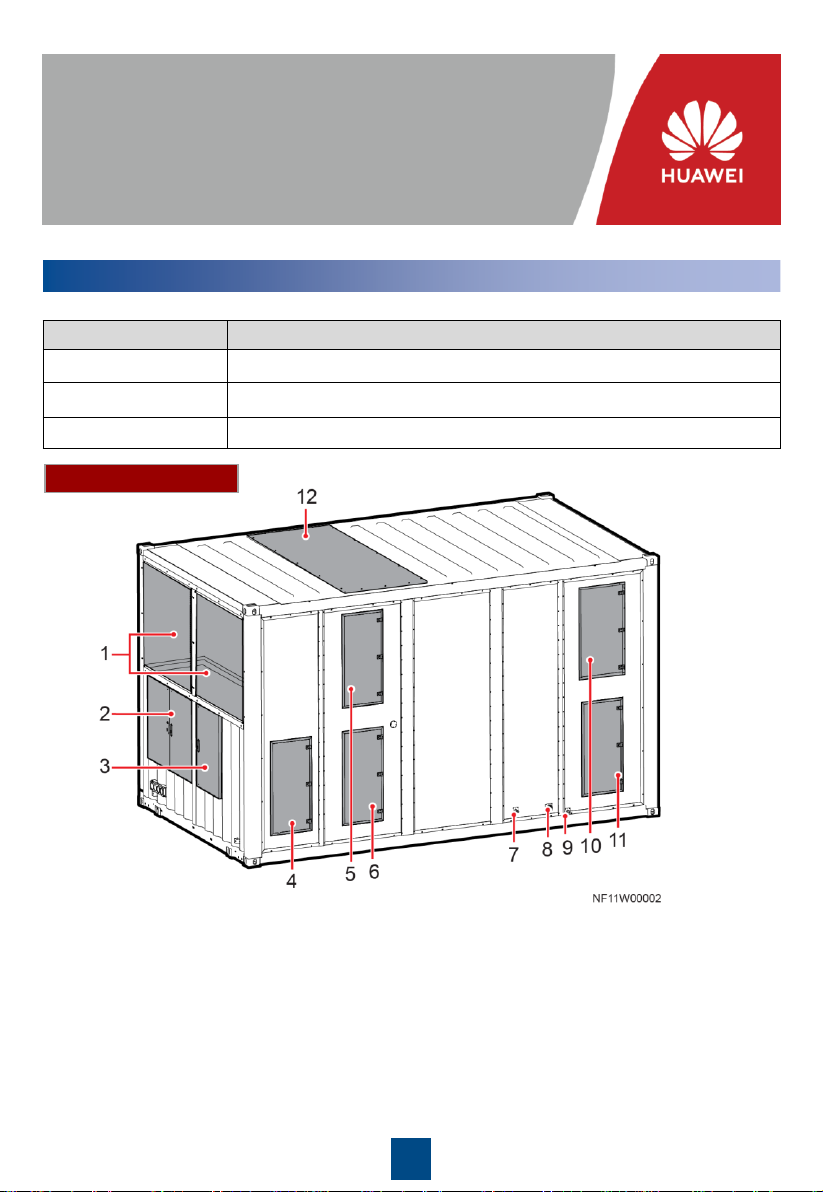

External Components
Copyright © Huawei Technologies Co., Ltd. 2020 All rights reserved.

2
Internal Components
(1) Outdoor air outlet port (8) Evaporator (15) Outdoor air intake port
(2) Electric control box (9) Pump (16) Spray system
(3) ELV control box (10) Condensate water pan (17) Heat exchanger core
(4) Outdoor air outlet fan (11) Indoor air fan (18) Air return filter
(5) Compressor (12) Indoor air supply port (19) Air outlet fan driver
(6) Spray water tank (13) air supply fan driver (20) Compressor driver
(7) Condenser (14) Differential pressure switch
2Preparations
Materials delivered with
equipment Combined hexagon head bolts M12 x 30, cable tie, cord end terminal of the power cable, OT ground terminal of the power cable, condensate drainage
water seal (DN25), drainage blowdown water seal (DN40), angle steel and
fixing screws, expansion bolt M16 x 150, sealing mud, self-tapping nail,
color swatch
Optional components Motorized damper (air exhaust/air supply), rainproof canopy, and electric
heater components
Engineering
purchase Water pipe •Spray water refill pipe: G 3/4 inch inner screw thread (DN20) •Spray drainpipe: G 1-1/2 inch inner screw thread (DN40)
•Condensate drainpipe: G 1 inch inner screw thread (DN25)
Cable •Power cable: 3 x 95 mm²(L1/L2/L3) + 50 mm²(PE), active and standby
power cables
•OT ground terminal: 50 mm², M12, 3 PCS
•OT terminal: 95 mm², M12, 7 PCS
•Ground cable: 95 mm², 2 PCS
Special Tools
2.2
Indoor installation scenario: Crane (lifting capacity ≥ 15 tons), ground tank, electric forklift (with
long arm)
Outdoor installation scenario: Crane (lifting capacity ≥ 15 tons)
Preparing Materials
2.1

3
Requirements for Maintenance Space
2.3
Unit: mm (1)Wall
(2)Electric control box
Concrete Platform Scenario
3.1
1. According to the site space and device dimensions to decide the location of concrete platforms.
And mark the four reference points of concrete platforms using an ink fountain and measuring
tape.
•When marking the mounting positions for concrete platforms, ensure that the four lines form a rectangle.
•When the equipment is installed indoors, it is recommended that shock pads be installed
between the air duct and the floor.
(1)FusionCol8000-E
(2)Concrete platform
Unit: mm
3Securing the FusionCol8000-E
1. Read the related user manual before installing the device.
2. Ensure that the concrete platform levelness meets the requirements before installation.
3. The device must be installed strictly according to the heating ventilation air conditioning (HVAC)
equipment construction regulations.

4

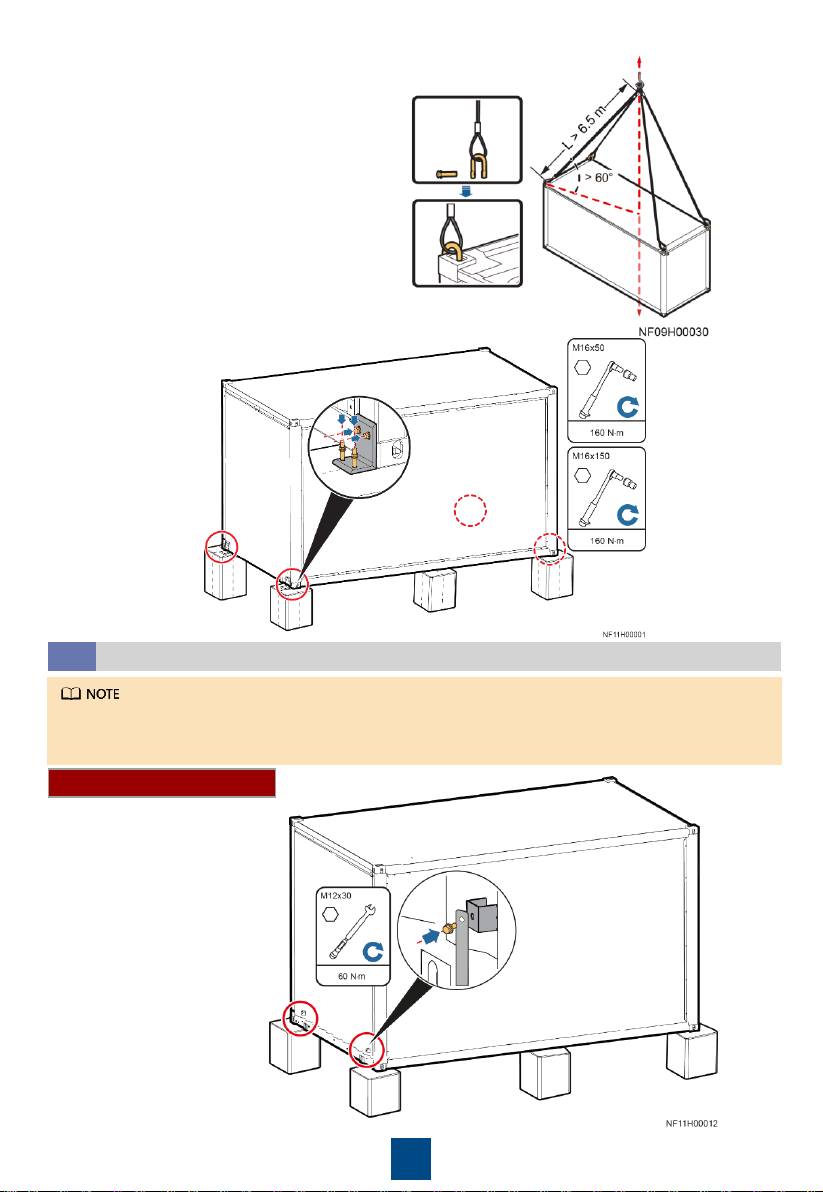

2. Connect the steel hoisting ropes, and hoist
the device onto the concrete platforms.
3. Secure the equipment to the concrete platform using right angle brackets.

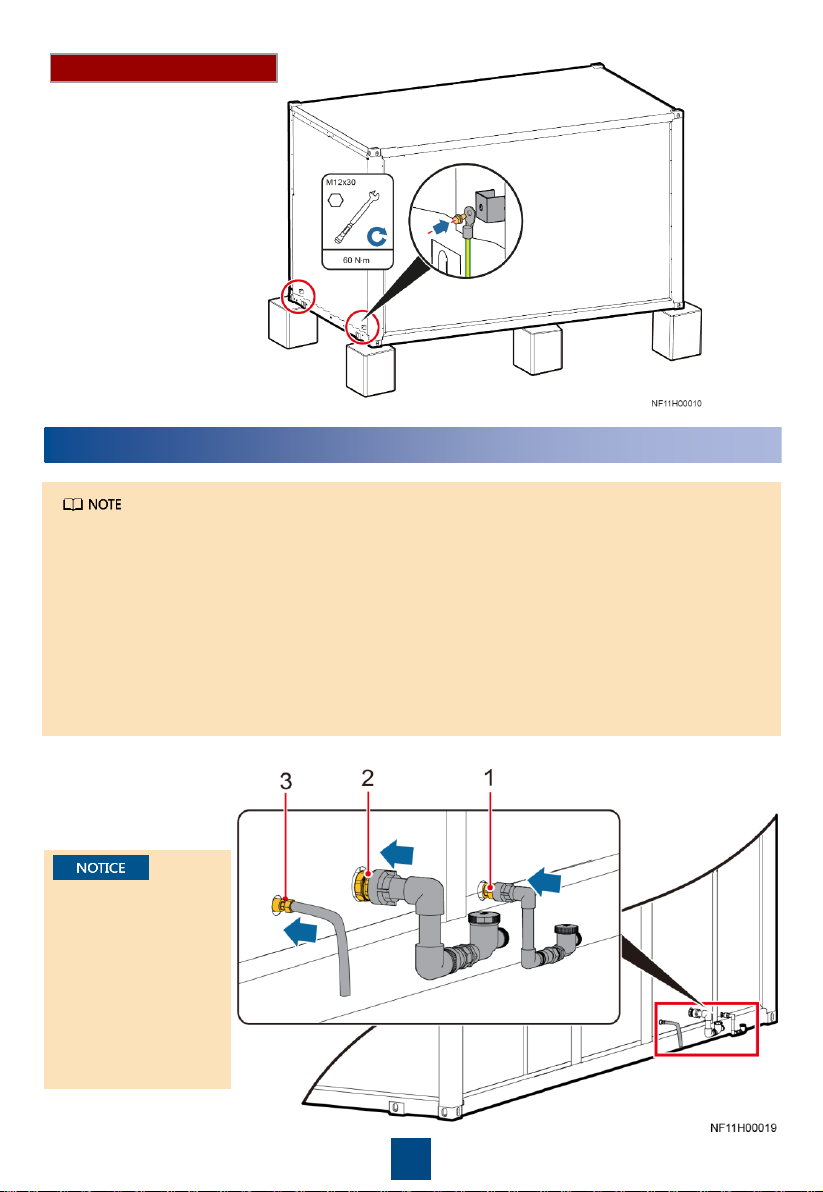

Grounding the FusionCol8000-E
3.3
•Ground lugs mode: Before the installation, remove the tinfoil from the ground lugs.
•Ground cables mode: Ground cables can be routed through plastic-coated metal hoses for
protection based on site requirements.
Installing a ground lug

5
Installing a ground cable
4Connecting Water Pipes
1. Connect the water pipes using thread connectors. The thread joints need to be sealed with raw
materials or thread adhesive.
2. Clean the external water pipes before connecting them to the water inlet and outlet pipes of the
coil pipes of the FusionCol8000.
3. Connect the water inlet and outlet pipes of the FusionCol8000 using thread connectors. When
connecting the water pipe, do not exert excessive force to prevent damage to the coil pipe.
(When connecting the pipes provided with the FusionCol8000, use two pipe wrenches or chain
pliers.)
4. Heat preservation measures must be taken at low temperatures to prevent water from freezing in
the water pipe.
5. The drainpipe must be wrapped with thermal insulation foam (including the buried parts).
(1) Condensate drainpipe (DN25)
(2) Spray drainpipe (DN40)
(3) Spray water refill pipe (DN20)
1. Installing Water Pipes
•The maximum
allowable installation
inclination of the
water seal is 15
degrees.
•Install the water seal
in strict accordance
with the preceding
figure to avoid
reverse connection.

6
Sealing putty
Paper protective film
2. Remove the paper protective film from the sealing putty.
3. Seal the gap between the water pipe and the equipment
using sealing putty after the pipe is correctly connected.
4. Condensate drainpipes and water refill pipes may freeze and thereby be blocked or crack in
low-temperature areas. Anti-freezing measures must be taken for the pipes.
(1) Water seal
(2) Electric heating belt
(3) Water refill pipe
(4) Drainpipe (The end needs to be
connected to the utility drainpipes.)
(5) Soil
5. Wrap the electric heating belt before wrapping the thermal insulation foam. The thermal
insulation foam must be able to withstand a temperature higher than 200°C.

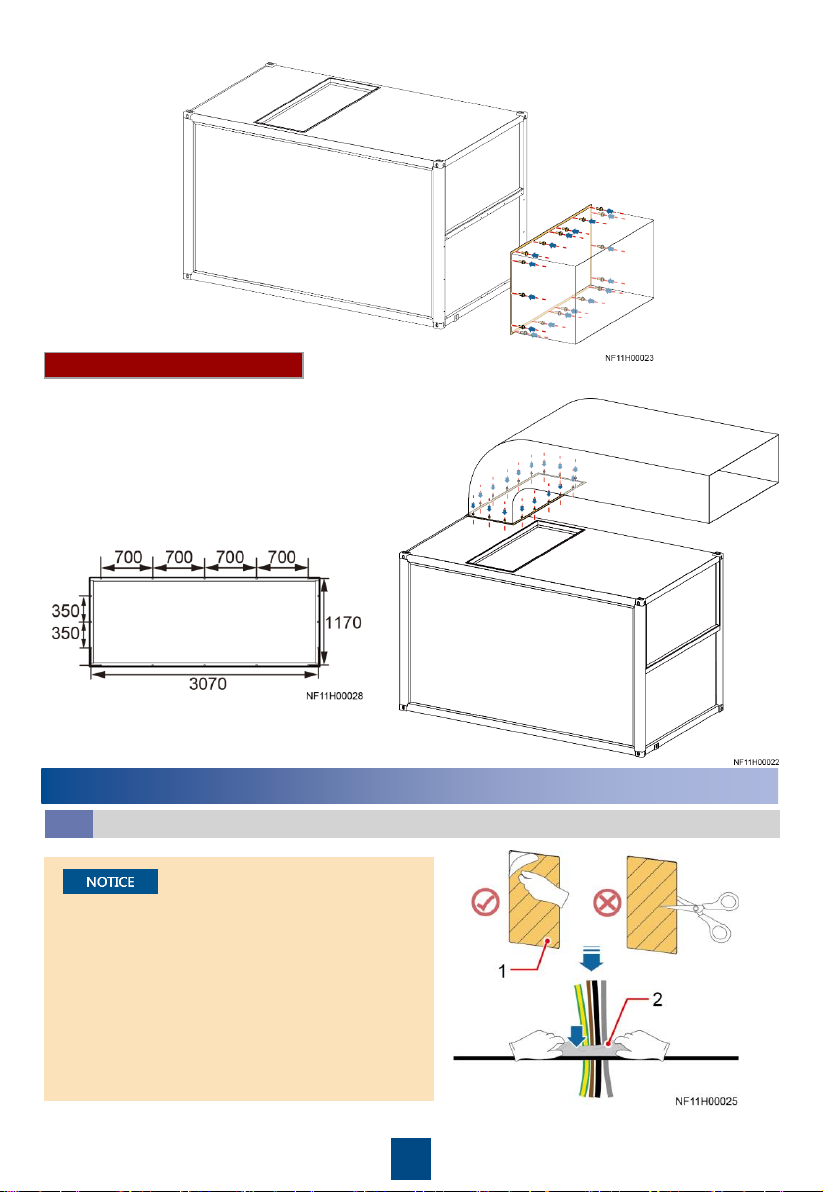

5Installing Air Duct
Installing a Supply Air Duct
Dimensions of reserved holes for device
•The supply air duct needs to
be prepared onsite.
•Use six screws (M10 x 25) to
secure the horizontal board
and use three screws (M10 x
25) to secure the vertical
board.
Unit: mm

7
Connecting Power Cables and Signal Cables
6.1
6Connecting Cables
1. All power cables and ground cables must
comply with local national standards.
2. For details about electrical ports, see the
FusionCol8000-E400 Modular Indirect
Evaporative Cooling System User Manual.
3. After connecting power cables and checking
cable connections, use sealing putty to fill in
the gap between the cables and the cabinet
(as shown in the right figure), and the sealing
putty can be obtained from the fitting bag.
•The return air duct needs to be prepared onsite.
•Use five screws (M6 x 12) to secure the
horizontal board and use three screws (M6 x 12)
to secure the vertical board.
Installing a Return Air Duct
Dimensions of reserved holes for device
Unit: mm
(1) Paper protective film (2) Sealing putty

8
No. X501 X502 X504
1Smoke sensor power supply
(12 V DC)+ Water leakage detection (water leakage in the floor) Outdoor exhaust air damper 24 V DC
2 Smoke sensor feedback–Water leakage detection (water
leakage in the floor) Outdoor exhaust air damper GND
3Port for remote startup and
shutdown+ Fresh air damper 24 V DC Outdoor exhaust air damper U (feedback)
4Port for remote startup and
shutdown–Fresh air damper GND Outdoor exhaust air damper Y (control)
5Port 1+ for reporting common
alarms Fresh air damper U (feedback) Indoor side supply air damper 24 V DC
6Port 1–for reporting common
alarms Fresh air damper Y (control) Indoor side supply air damper GND
7Port 2+ for reporting common
alarms N/A Indoor side supply air damper U (feedback)
8Port 2–for reporting common
alarms N/A Indoor side supply air damper Y (control)
(Side cabling) (Bottom cabling)

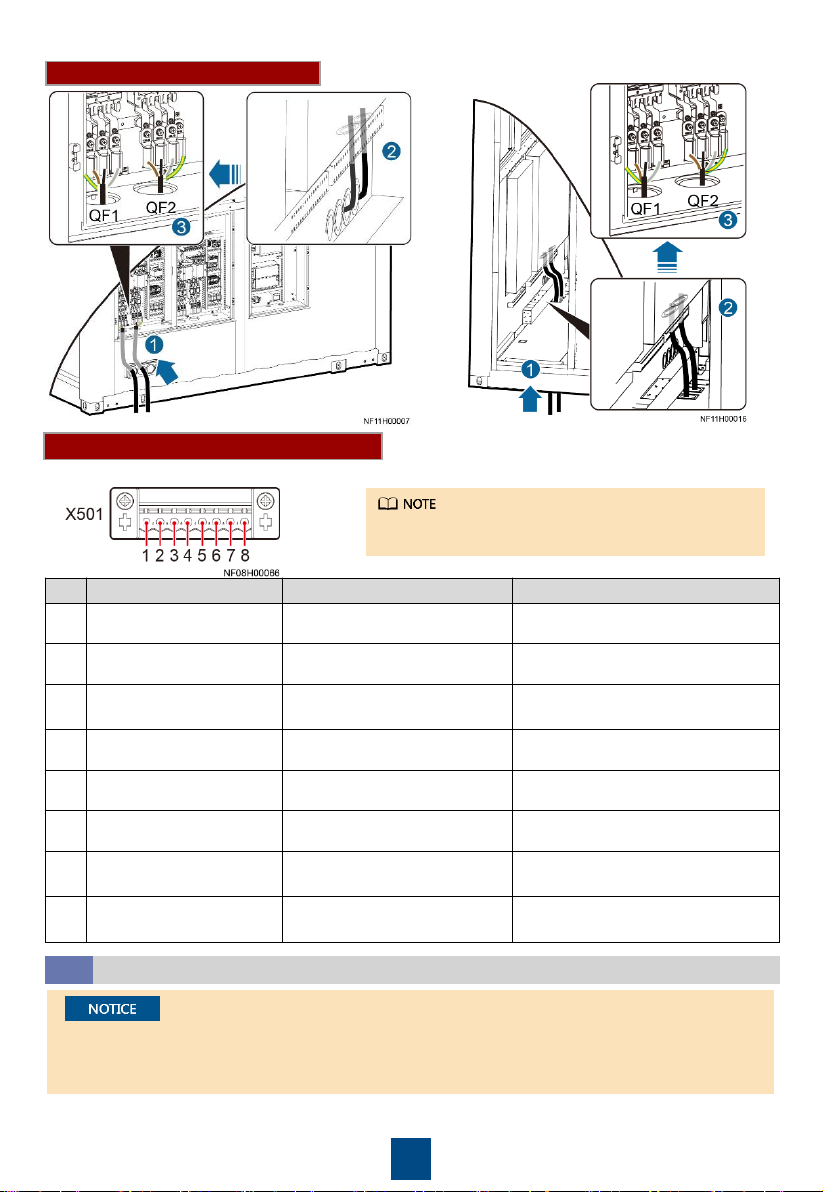

(Optional) Connecting Signal Cables
Signal cable terminal (using X501 as an example)
The left figure shows the arrangement of signal
cable terminals X502 and X504.
Connecting Power Cables
The following figure shows the position of the return air temperature and humidity sensor in the
smart cooling product. The cable passes through the cable hole to remote T/H sensor. Set the
sensor positions based on their location and the following table.
(Optional) Connecting T/H Sensors Outside Cabinets
6.2
1. Connect the IN port on the first T/H sensor outside the cabinet to the RS485/12V port on the
main control board.

9
After the addresses are set, power on the device. On the display's home screen, choose
Settings > System Settings > T/H Sensor, and set the sensors in the aisles corresponding to
the addresses to Enable. Otherwise, the sensors will not work.
Name Address DIP Switch ID
1 2 3 4 5 6
Air return 2 T/H sensor 1ON OFF OFF OFF OFF OFF
Outdoor intake air 1
temp/humid 31 ON ON ON ON ON OFF
Cold aisle 1 temp/humid 11 ON ON OFF ON OFF OFF
Cold aisle 2 temp/humid 12 OFF OFF ON ON OFF OFF
Cold aisle 3 temp/humid 13 ON OFF ON ON OFF OFF
Cold aisle 4 temp/humid 14 OFF ON ON ON OFF OFF
Cold aisle 5 temp/humid 15 ON ON ON ON OFF OFF
Hot aisle 1 temp/humid 21 ON OFF ON OFF ON OFF
Hot aisle 2 temp/humid 22 OFF ON ON OFF ON OFF
Hot aisle 3 temp/humid 23 ON ON ON OFF ON OFF
Hot aisle 4 temp/humid 24 OFF OFF OFF ON ON OFF
Hot aisle 5 temp/humid 25 ON OFF OFF ON ON OFF
3. Set the DIP switches on the T/H sensors.
2. Connect the OUT port on the T/H sensor outside the cabinet to the IN port on the next T/H
sensor outside the cabinet in series.

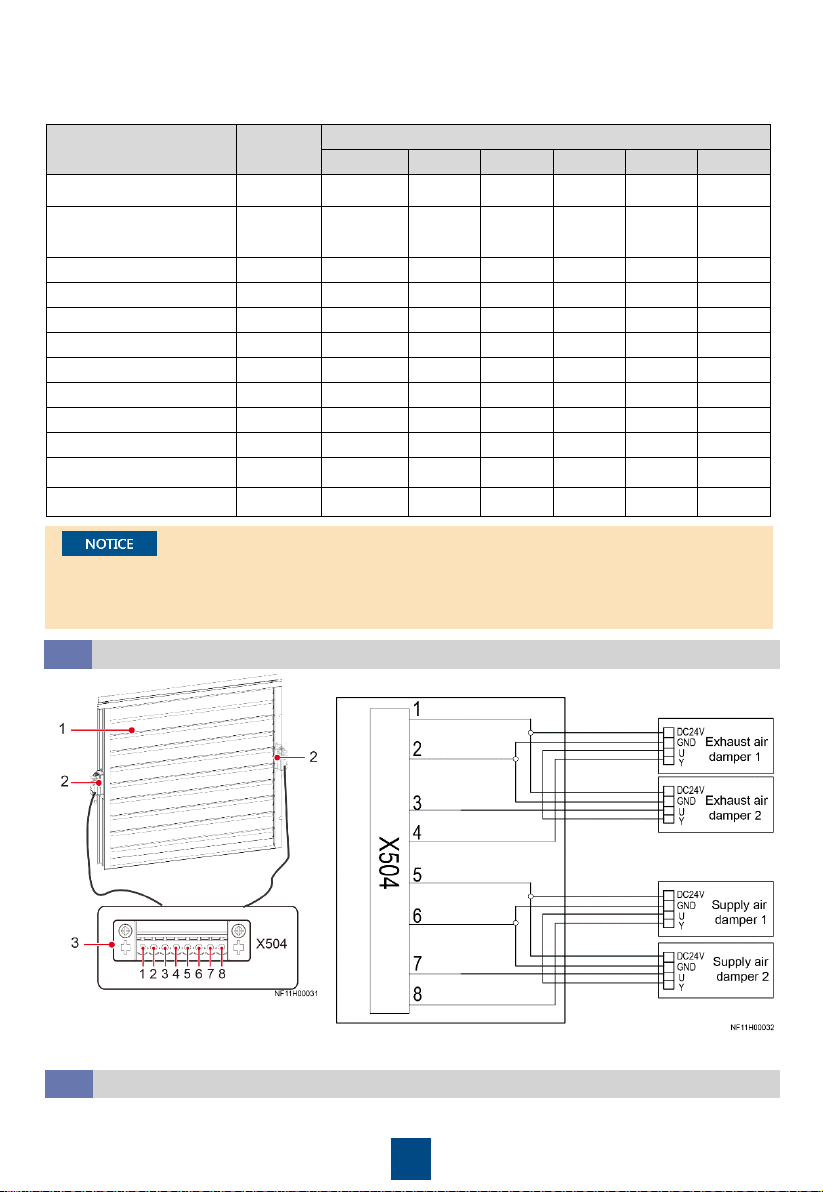

(Optional) Connecting a Motorized Damper
6.3
(1) Air damper
(2) Air damper actuator
(3) Signal terminal
Connecting cable terminals
(Optional) Installing a Rainproof Canopy
6.4
Use M10 x 25 screws to secure the rainproof canopy to the outdoor air intake vent.

10

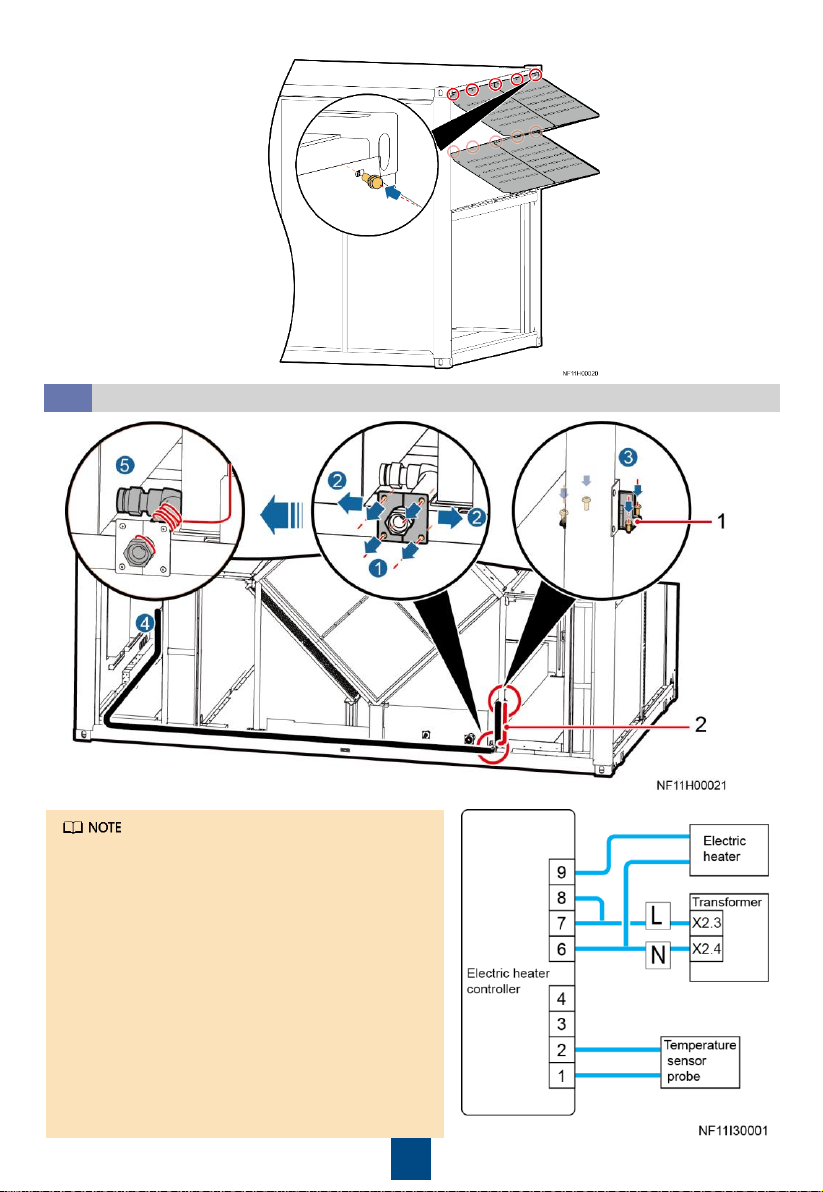

(Optional) Installing Electric Heater Components
6.5
(1) Electric heater controller (2) Electric heating belt
•Route the electric heating belt and temperature
sensor probe through the condensate
drainpipe hole, wrap the electric heating belt
around the condensate drainpipe, and ensure
that the temperature sensor probe is closely
attached to the drainpipe.
•Connect one end of the cable (cross-sectional
area: 3 x 1.52, length: about 11 m) to the
transformer terminal on the electric control box
and the other end to the input terminal of the
electric heater controller. The right figure
shows cable terminal connections.

11

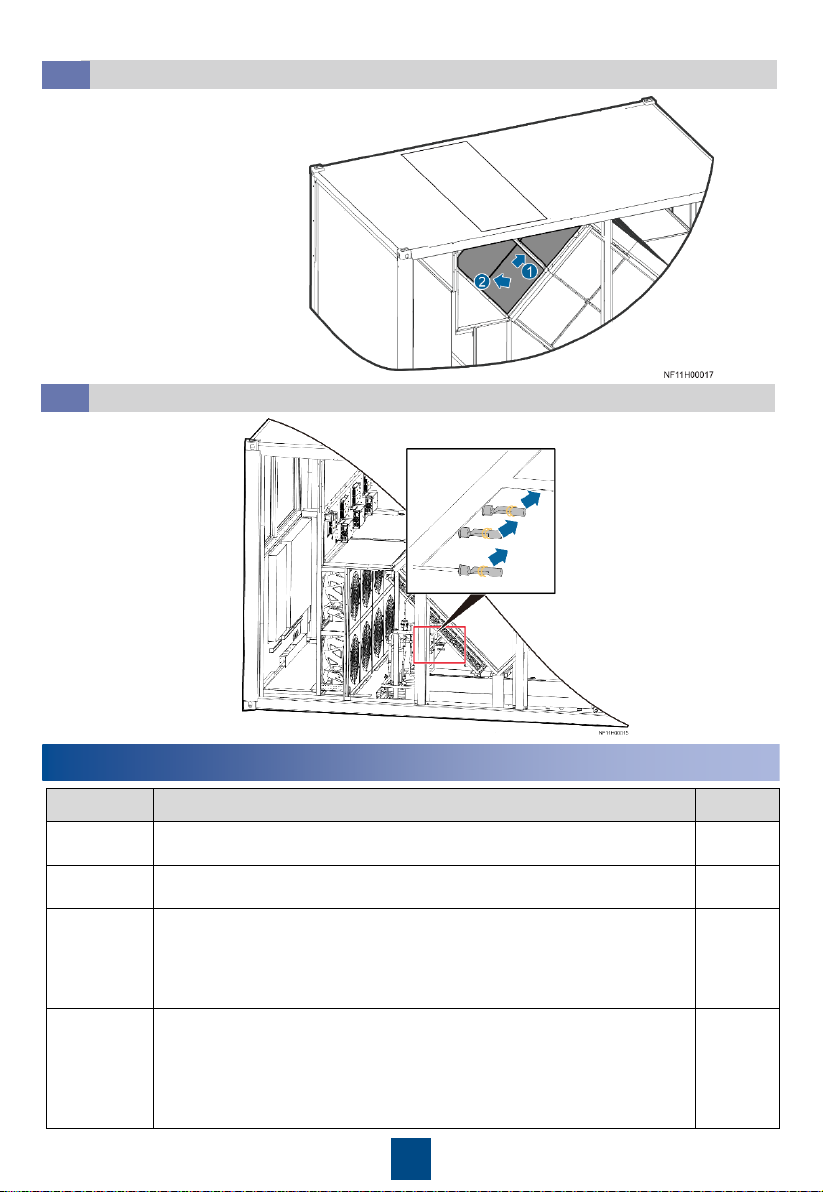

8Post-Installation Check
(1) FE_1 (input and output port on the FE ring network)
(2) CAN_IN (input port of the teamwork CAN/northbound
RS485 port)
(3) RS485/12 V (T/H module port)
(4) USB (USB port)
(5) DP (connected to the display port)
(6) COM/FE (northbound RS485 port)
(7) CAN_OUT (output port of the teamwork CAN/northbound
RS485 port)
(8) FE_2 (input and output port on the FE ring network)
(9) SW (for restoring factory settings)
(10) Alarm indicator
(11) Run indicator
(Optional) Connecting Teamwork Network Cable and Monitoring Cable
6.6
Teamwork CAN networking (CAN Protocol)
In CAN networking, a maximum of 32 smart cooling products can be teamworked. If CAN
networking is required onsite, set Networking mode on the Teamwork Settings screen of all smart
cooling products to CAN network, and set Teamwork CAN resistor enable on the Teamwork
Settings screen of the first and last smart cooling products to Yes.
Teamwork FE networking (MAC_CAN Protocol)
In CAN networking, a maximum of 16 smart cooling products can be teamworked. If FE networking
is required onsite, set Networking mode on the Teamwork Settings screen of all smart cooling
products to MAC_CAN network.
Connect one end of the monitoring network cable (standard network cable) to the COM/FE port on
the main control module, and connect the other end to the monitoring device.
NetEco Monitoring (Modbus-TCP Protocol/ Modbus-RTU Protocol)
•Connecting network cables for NetEco FE monitoring (Modbus-TCP protocol)

12
Third-Party NMS Monitoring (SNMP/Modbus-RTU Protocol)
When the host monitors the smart cooling product through a third-party NMS, connect the
monitoring network cable based on whether the smart cooling product is cascaded.
•In the case of non-cascading, connect the COM port on each smart cooling product to the
customer's monitoring system. After powering on the device, set RS485 monitoring grouping of
each smart cooling product to Enable. Setting path: Settings > Comm Settings > Modbus
Settings.
•Connecting network cables for NetEco COM monitoring (Modbus-RTU protocol)
•In the case of cascading, connect the COM/FE port on the last smart cooling product in each
monitoring group to the monitoring device. After powering on the device, set RS485 monitoring
grouping of the last smart cooling product in each monitoring group to Enable. Setting path:
Settings > Comm Settings > Modbus Settings.

13

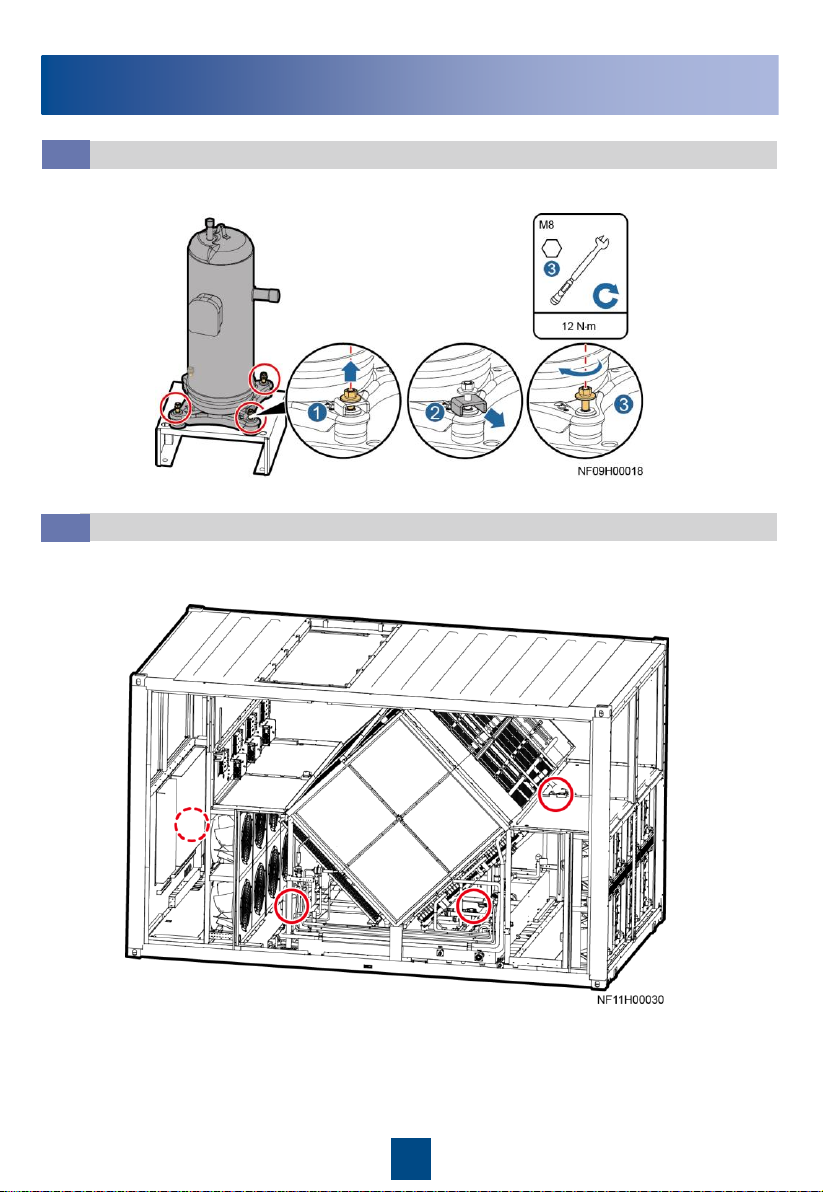

Removing Compressor Fasteners
7.1
7Removing Compressor Fasteners, Air Filter Protective
Cover, Desiccant Bags and Elastic Cords
Removing the Desiccant Bags
7.2

14
Removing the Air Filter Protective Cover
7.3
Push the air filter on the air
return side upward obliquely,
remove the air filter from the
slot, and remove the protective
cover from the air filter. Secure
the air filter.
Removing Elastic Cords on the Floats
7.4
8Post-Installation Check
Item Content Result
Cabinet The cabinet is installed properly, without any tilt. The cabinet should be secured. The
foreign matter inside the cabinet such as cable ties and cable cuts is cleaned up.
□Passed
□Failed
Fan The fan is secured. The fan has no foreign matter inside. The fan blades rotate
properly.
□Passed
□Failed
Water system The water pump is secured reliably and steadily. The water filter is secured reliably
and steadily. The float is secured. The sheet metal fasteners are secured reliably. The
high and low liquid level detector moves smoothly, and elastic cords are removed
from the high and low floats. The water inlet pipe and drainpipe are connected
securely without leakage.
□Passed
□Failed
Electrical
features Cables are intact and free from sharp bends. No open or short circuit, or incorrect
connection occurs in electrical loops. The power cables, signal cable, teamwork
control cable, and the T/H sensor cable for the smart cooling product are connected
as required. The rated specifications of the upstream general switch meet the
maximum current requirement. All cables, connectors, and screws are secured.
Devices are properly grounded.
□Passed
□Failed

15
Item Content Result
Water pan The foreign matter inside the water pan is cleaned up, and water pan filter is not
blocked.
□Passed
□Failed
Compressor The transport fasteners of the compressor are removed. The bolts on the compressor
are tightened.
□Passed
□Failed
Refrigerant pipe All pipes are wrapped with thermal insulation foam, and the insulation foam is intact.
The needle valve plug is secured (torque of 0.45±0.05 N·m), and valve bonnet is
tightened.
□Passed
□Failed
Air filter The air filter is correctly installed according to the air flow direction on the frame. The
protective cover of the air filters is removed.
□Passed
□Failed
9Power-On
Power-On
9.1
•Users are classified into admin and operator. The preset password is 000001 for both types of
users.
•After powering on, the smart cooling product is in shutdown mode.
•After powering on, the compressor starts preheating, and the system generates an alarm
indicating that the compressor is preheating (for 12 hours). Do not start the smart cooling product
before the preheating ends. Choose Running > Device Details > Compressor to query the
remaining preheating time.
No.
Item
Teamwor
k group
No.
Air
condition
er
address
Enable
teamwor
k CAN
resistor
Teamwo
rk
function
Networking
mode
Number of
air
conditioners
in this group
Number of
running air
conditioners
in this group
Rotation
function
1 1 1 Yes Enable CAN
network 8 6 (2 standby) Enable
2 1 2 No Enable CAN
network / / /
3 1 3 No Enable CAN
network / / /
... ... ... ... ... ... ... ... ...
7 1 7 No Enable CAN
network / / /
8 1 8 Yes Enable CAN
network / / /
The table uses 8 devices in CAN teamwork as an example.
1. Switch on the switch in the upstream power distribution cabinet (PDC).
2. Turn on all switches on the device.
3. After the device is powered on for the first time, the LCD displays the Quick Settings screen. Set
parameters as instructed, such as language, date format, date, time, time zone, teamwork
settings, system settings, system optional components, T/H sensor, and comm settings. If the
device is not powered on for the first time, the home screen is displayed.
4. (Optional) Setting teamwork control parameters.

16
c. Networking mode: The networking mode set on the screen must be consistent with the
actual networking mode.
d. Enable teamwork CAN resistor: Set the parameter if CAN teamwork is used. Set the
parameter to ON for the first and eight devices.
e. Number of air conditioners in this group: Indicates the number of devices in a group. The
value is an integer ranging from 1 to 32.
f. Number of running air conditioners in this group: Specifies the number of running
FusionCol8000-Es in a group. The value ranges from 1 to the number of FusionCol8000-Es
in the group.
g. Rotation function: Enable the active and standby devices to work alternately. This function
is recommended when the heat load is even.
a. On the home screen, choose Settings > Comm Settings > Modbus Settings. The value
should be consistent with that set on the EMS.
b. Set the communication address. The communication addresses of two smart cooling
products connecting to the same EMS must be unique.
c. Set the RS485 monitoring grouping.
•For CAN networking and no grouping scenario, set RS485 monitoring grouping of the
last smart cooling product to Enable.
•For CAN networking and grouping scenario, set RS485 monitoring grouping of the
last smart cooling product in each teamwork control group to Enable.
RS485 Monitoring Network Cable (Modbus-RTU Protocol)
a. (LAN settings) On the home screen, choose Settings > Comm Settings > LAN IP Settings.
The LAN IP address assignment mode is set to Manual. Set LAN IP address, LAN
subnet mask, LAN gateway according to the actual plan.
b. (WAN settings) On the home screen, choose Settings > Comm Settings > WAN IP
Settings. Set IP address, Subnet mask, Gateway according to the actual plan.
c. On the home screen, choose Settings > Comm Settings > Modbus Settings. Set Link
mode to Server and client or Client, and set Client encryption to Enable.
d. Enter the actual IP address of the EMS.
e. When Client encryption is set to Enable, set NMS port number to 32907, when Client
encryption is set to Disable, set NMS port number to 32906.
FE Monitoring Network Cable (Modbus-TCP Protocol)
5. (Optional) Setting communications parameters.
a. Teamwork group No.: A maximum of four groups, with the same teamwork control number, can
be assigned (1–4) for one teamwork networking.
b. Air conditioner address: In a teamwork control group, each address (1–32) must be unique,
and the device with minimum address is the master one.
•If the DHCP server is configured on the NMS, select DHCP auto. If no, set this parameter to
Manual.
•The encryption mode must be the same as it on the NMS.
•After the encryption operation CBC is set, the system automatically restarts. Therefore, exercise
caution when performing this operation.

17
•Ensure that the crankcase heat tape has been preheated for over 12 hours before starting the
compressor.
•Download the Service Expert app from Huawei app store and runs on Android. Apply for
permission after downloading the app.
•Ensure that no combustion-supporting materials (air or additives) enter the air conditioning
system during commissioning. Huawei shall not be liable for any risks and losses thus incurred.
Wizard Startup
9.2
Success
Open the Service Expert app.
Tap StartUp > Offline Activation on APP
After tapping Yes, the barcode and the
verification code are shown on the screen.
Start
Tap Start on the home screen.
Enter Bar code and Verification code,
and tap Generate PWD.
Enter the generated startup password on
the screen of smart cooling product.
Go to step 2
1. First startup flowchart 2. Wizard startup flowchart
Tap Enter. The screen turns to Wizard
Startup.
Success
Success
Success
Spray system commissioning
Exhaust fan commissioning
Cooling system
commissioning
Indoor fan commissioning
Start
End
Precautions
Yes
No
No
Fail
Fail
Fail
Yes Fail
Select commissioning items Commissionin
g interrupted
(Handle the
fault by
referring to the
tips displayed
on the home
screen.
Perform wizard
startup after
the handling.)
1. On the home page, tap Shutdown.
2. Turn off the main switch of indoor unit and outdoor unit.
3. (Optional) If the smart cooling product needs to be maintained in power-off mode or long-term
power-off, switch off the smart cooling product circuit breaker on PDC.
10 Power-off

18
Check Item Result
No oil stain exists on the copper pipe thermal insulation foam or bottom plate. □Passed □Failed
The needle valve plug is secured (torque of 0.45±0.05 N·m), and valve bonnet
is tightened. □Passed □Failed
The foreign matter inside the water pan and bottom plate is cleaned up. □Passed □Failed
The air filter is correctly installed according to the air flow direction marked on the
frame. □Passed □Failed
No water stain exists on the water pan in the No. 2 door. □Passed □Failed
All doors are closed. □Passed □Failed
11 Checking After Commissioning
Huawei Technologies Co., Ltd.
Huawei Industrial Base, Bantian, Longgang
Shenzhen 518129 People's Republic of China
www.huawei.com
