About This Document
Purpose
This document describes the FusionPower6000 (PowerPOD for short) in terms of
its positioning, features, application scenarios, composition, technical
specications, and system solutions.
Intended Audience
This document is intended for:
● Sales engineers
● Technical support engineers
● System engineers
Symbol Conventions
The symbols that may be found in this document are dened as follows.
Symbol Description
Indicates a hazard with a high level of risk which, if not
avoided, will result in death or serious injury.
Indicates a hazard with a medium level of risk which, if not
avoided, could result in death or serious injury.
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to personal
injury.
FusionPower6000
Product Description About This Document
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. ii

Symbol Description
Supplements the important information in the main text.
NOTE is used to address information not related to
personal injury, equipment damage, and environment
deterioration.
Change History
Changes between document issues are cumulative. The latest document issue
contains all updates made in previous issues.
Issue 02 (2021-06-30)
Updated section "Features".
Issue 01 (2021-04-20)
This issue is the rst release.
FusionPower6000
Product Description About This Document
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. iii

Contents
About This Document................................................................................................................ ii
1 Positioning................................................................................................................................ 1
2 Features..................................................................................................................................... 2
3 Typical Application Scenarios and Congurations.......................................................... 4
3.1 Typical Application Scenarios.............................................................................................................................................. 4
3.2 Typical Congurations........................................................................................................................................................... 5
4 Product Overview.................................................................................................................... 9
4.1 Power Supply and Distribution System........................................................................................................................... 9
4.1.1 System Description.............................................................................................................................................................. 9
4.1.2 Transformer......................................................................................................................................................................... 10
4.1.3 Low-Voltage Cabinet........................................................................................................................................................ 11
4.1.4 Feeder Cabinet....................................................................................................................................................................12
4.1.5 UPS5000-H.......................................................................................................................................................................... 15
4.1.5.1 Appearance...................................................................................................................................................................... 15
4.1.5.2 Structure with the Door Open...................................................................................................................................16
4.1.5.3 Technical Specications............................................................................................................................................... 17
4.2 Management System...........................................................................................................................................................25
4.2.1 System Description........................................................................................................................................................... 25
4.2.2 App View (PAD)................................................................................................................................................................. 27
4.2.3 Hardware Description...................................................................................................................................................... 36
4.2.3.1 ECC800-Pro.......................................................................................................................................................................36
4.2.3.1.1 Product Conguration...............................................................................................................................................37
4.2.3.1.2 Main Control Module................................................................................................................................................ 39
4.2.3.1.3 Power Module..............................................................................................................................................................47
4.2.3.2 Centralized Monitoring Module................................................................................................................................ 48
4.2.3.3 Smart ETH Gateway...................................................................................................................................................... 50
4.2.3.4 WiFi Module.....................................................................................................................................................................52
4.2.3.5 PAD..................................................................................................................................................................................... 53
4.3 Platform Base......................................................................................................................................................................... 54
4.4 Surge Protection and Grounding System..................................................................................................................... 54
4.5 Integrated Cabling................................................................................................................................................................ 55
FusionPower6000
Product Description Contents
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. iv

A Acronyms and Abbreviations............................................................................................. 56
FusionPower6000
Product Description Contents
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. v

1 Positioning
The FusionPower6000 (PowerPOD for short) is a prefabricated power supply and
distribution solution for large-sized data centers. It applies to central data centers
of telecommunications, nance, governments, energy, electricity, transportation,
Internet service providers (ISPs), and large enterprises.
FusionPower6000
Product Description 1 Positioning
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 1

2 Features
The FusionPower6000 features high integration, outstanding safety and reliability,
space and energy saving, quick installation, optimal compatibility, rapid and
exible deployment, and centralized monitoring. It is a next-generation
prefabricated power supply and distribution solution.
High Integration
The product integrates the transformer, low-voltage power distribution frame
(PDF), reactive power compensation cabinet, UPS, and feeder cabinet to provide a
complete power supply and distribution solution.
High Safety and Reliability
● Good grounding prevents electromagnetic interference.
● Dual power inputs are supported.
● Modular UPSs improve system reliability.
● The product is able to work within the ambient temperature range of 0°C to
40°C.
Rapid Deployment
● Streamlined manufacturing, professional division of labor, and good work
conditions ensure that modules and products of the FusionPower6000 are
produced eciently with strict quality control.
● If facilities such as racks and copper bars are factory-installed, commissioning
can be performed only after network and power cables are provided onsite. If
they cannot be factory-installed due to limited site space, devices such as the
transformer, low-voltage cabinets, UPS, top copper bars, and extra-low
voltage (ELV) monitoring cables can be quickly installed after components are
delivered to the site.
Space and Energy Saving
● The product can be transported and installed with its base thanks to
integrated design.
● The product can be installed on a concrete oor in a building, which simplies
auxiliary engineering.
FusionPower6000
Product Description 2 Features
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 2

● The product can be delivered within a few days and quickly installed onsite,
eectively reducing costs.
Cost-Eectiveness and High Energy Eciency
● One pre-fab. module integrates the power distribution and monitoring
systems that are pre-installed and pre-commissioned before delivery. The pre-
fab. module goes through pre-commissioning and trial run before delivery.
Customers are welcome to check and try the product in the factory.
● Mature delivery mode, modular structure, and low-cost transportation of the
pre-fab. module ensure fast deployment, and simple and convenient
expansion and upgrade.
Intelligent Management
● Equipment is monitored in real time for ecient management.
● The NetEco can be connected for unied management.
FusionPower6000
Product Description 2 Features
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 3

3 Typical Application Scenarios and
Congurations
3.1 Typical Application Scenarios
The FusionPower6000 contains the transformer, low-voltage PDF, reactive power
compensation cabinet, UPS, feeder cabinet, inter-cabinet copper bars, and
monitoring system. The low-voltage power distribution system is installed on a
steel platform base to form an indoor prefabricated low-voltage PowerPOD. The
system is prefabricated and can be tested in the factory in advance to ensure high
product quality. The system can be transported as a whole to the site, which
shortens the delivery period.
Figure 3-1 2.4 MW/2.0 MV indoor PowerPOD
(1) Transformer (2) Input and bus tie cabinet (3) Reactive power
compensation cabinet (SVG)
(4) Maintenance bypass
cabinet
(5) UPS input and bypass
cabinets
(6) UPS5000-H-1200 kVA/
UPS5000-H-1000 kVA
(7) Output cabinet (8) PAD (9) Feeder cabinets
(10) Platform base - -
FusionPower6000
Product Description 3 Typical Application Scenarios and Congurations
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 4

Figure 3-2 1.6 MW indoor PowerPOD
(1) Transformer (2) Input and bus tie cabinet (3) Reactive power
compensation cabinet (SVG)
(4) UPS input and bypass
cabinet
(5) UPS5000-H-1600 kVA (6) UPS output and
maintenance bypass cabinet
(7) PAD (8) Feeder cabinets (9) Platform base
Figure 3-3 1.2 MV indoor PowerPOD
(1) Transformer (2) Input and bus tie cabinet (3) Reactive power
compensation cabinet (SVG)
(4) UPS input and bypass
cabinet
(5) UPS5000-H-1200 kVA (6) UPS output and
maintenance bypass cabinet
(7) PAD (8) Feeder cabinets (9) Platform base
NO TE
Only 1.6 MW and 1.2 MW PowerPODs can be transported by sea.
3.2 Typical Congurations
The internal layouts of all PowerPOD assume that the transformer is on the left
side.
FusionPower6000
Product Description 3 Typical Application Scenarios and Congurations
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 5

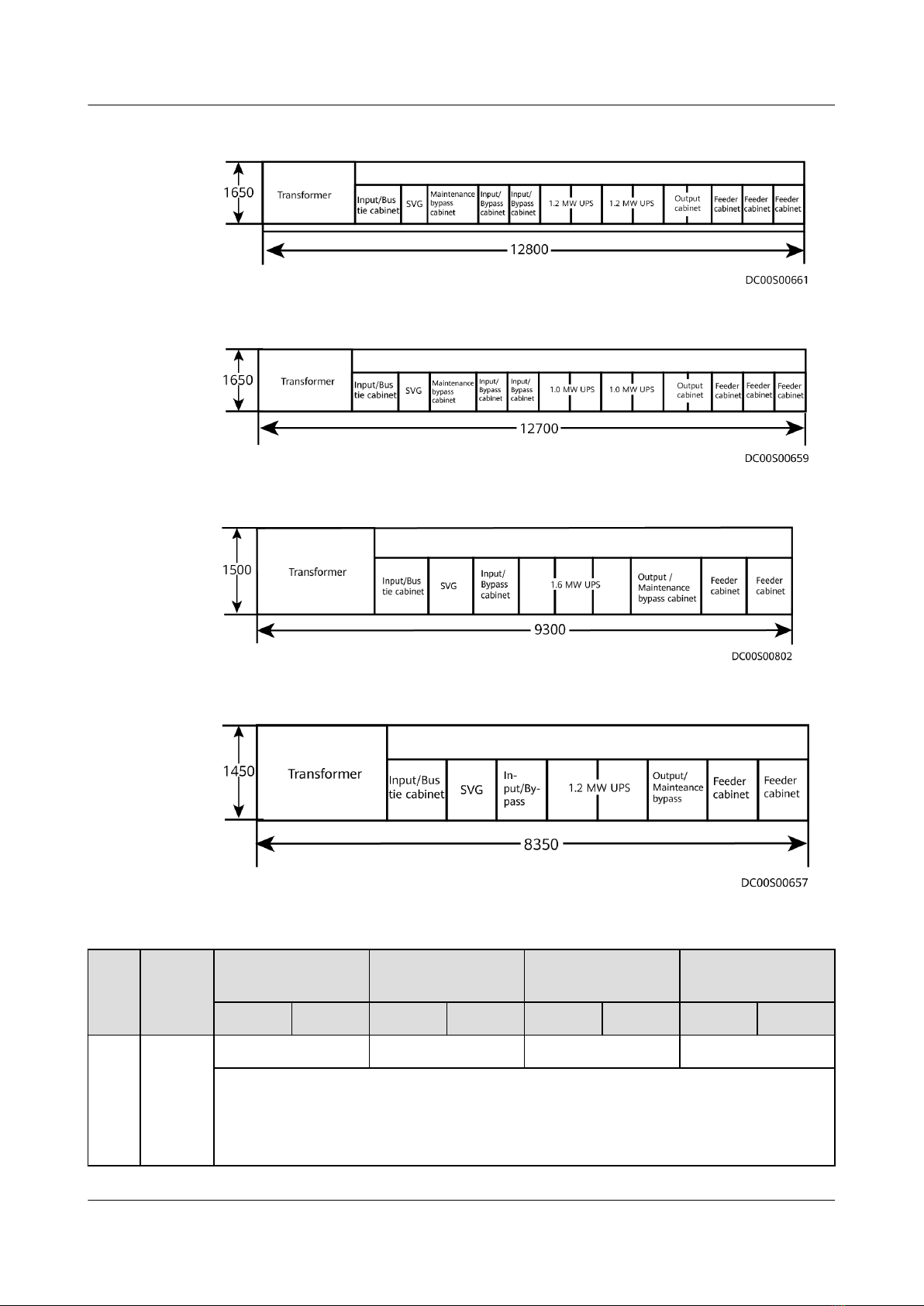

Figure 3-4 Internal layout of a 2.4 MW indoor PowerPOD (unit: mm)
Figure 3-5 Internal layout of a 2.0 MW indoor PowerPOD (unit: mm)
Figure 3-6 Internal layout of a 1.6 MW indoor PowerPOD (unit: mm)
Figure 3-7 Internal layout of a 1.2 MW indoor PowerPOD (unit: mm)
Table 3-1 Key technical specications
Cate
gory
Item 2.4 MW Indoor
PowerPOD
2.0 MW Indoor
PowerPOD
1.6 MW Indoor
PowerPOD
1.2 MW Indoor
PowerPOD
2N N+R 2N N+R 2N N+R 2N N+R
Pow
er
supp
ly
and
distr
Transfo
rmer
2500 kVA 2000 kVA 1600 kVA 1250 kVA
Input voltage range: three-phase voltage 9–11.5 kV (run with loads for a long
time at 40°C)
FusionPower6000
Product Description 3 Typical Application Scenarios and Congurations
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 6

Cate
gory
Item 2.4 MW Indoor
PowerPOD
2.0 MW Indoor
PowerPOD
1.6 MW Indoor
PowerPOD
1.2 MW Indoor
PowerPOD
2N N+R 2N N+R 2N N+R 2N N+R
ibuti
on
Input
switch/
Bus tie
switch
5000
A/3P,
3200
A/4P
5000
A/3P,
5000
A/4P
4000
A/3P,
2500
A/4P
4000
A/3P,
4000
A/4P
3200
A/3P,
2000
A/4P
3200
A/3P,
3200
A/4P
2500
A/3P,
1600
A/4P
2500
A/3P,
2500
A/4P
Reactiv
e
power
compe
nsation
500 kVar 400 kVar 300 kVar 300kVar
UPS
input/
bypass
2500 A/3P, 2000
A/3P (parameters
for a single input/
bypass cabinet,
two cabinets
required)
2000 A/3P, 2000
A/3P (parameters
for a single input/
bypass cabinet,
two cabinets
required)
3200 A/3P, 3200
A/3P
2500 A/3P, 2000
A/3P
UPS UPS5000-H-1200
kVA x 2 PCS
UPS5000-H-1000
kVA x 2 PCS
UPS5000-H-1600
kVA x 1 PCS
UPS5000-H-1200
kVA x 1 PCS
UPS
output
2000 A/3P x 2 PCS 3200 A/3P 2000 A/3P
UPS
mainte
nance
bypass
4000 A/3P 3200 A/3P 2000 A/3P
Feeder
cabinet
Options: 160 A/250 A x 18 PCS, 400 A/630 A x 7 PCS
Mon
itori
ng
Power
and
environ
ment
monito
ring
system
ECC for centralized management
Stru
ctur
e
Externa
l
dimens
ions (H
x W x
D)
(exclud
ing the
base)
3002 mm x 12,800
mm x 1650 mm
3002 mm x 12,700
mm x 1650 mm
2475 mm x 9300
mm x 1500 mm
2475 mm x 8350
mm x 1450 mm
FusionPower6000
Product Description 3 Typical Application Scenarios and Congurations
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 7

Cate
gory
Item 2.4 MW Indoor
PowerPOD
2.0 MW Indoor
PowerPOD
1.6 MW Indoor
PowerPOD
1.2 MW Indoor
PowerPOD
2N N+R 2N N+R 2N N+R 2N N+R
Installa
tion
mode
● Directly installed on the ground
● Assembled and installed onsite
Envi
ron
men
t
Applica
tion
environ
ment
Class A environment
Operati
ng
temper
ature
0–40°C
Storage
temper
ature
–40°C to +70°C
NOTE
● Transformer: –25°C to +70°C
● PAD: –20°C to +45°C
Ambien
t
humidi
ty
≤ 95% RH (non-condensing)
Altitud
e
0–4000 m. When the altitude is greater than 1000 m, the power is derated
according to the industry standard.
NO TE
● Two UPS5000-H-1200 kVAs are congured for a 2.4 MW PowerPOD. The UPS5000-
H-1200 kVA contains 12 power modules in full conguration. Two UPS5000-H-1000
kVAs are congured for the 2.0 MW PowerPOD. In this case, two power modules need
to be removed from each 1200 kVA UPS.
● N+R (R=1) is a backup redundancy architecture, which reduces the number of
redundant power supply and distribution branches. The capacity of the bus tie switch of
the N+R (R=1) architecture is dierent from that of the 2N architecture.
FusionPower6000
Product Description 3 Typical Application Scenarios and Congurations
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 8

4 Product Overview
4.1 Power Supply and Distribution System
4.1.1 System Description
Figure 4-1 2.4 MV/2.0 MW power distribution system architecture
Figure 4-2 1.6 MV/1.2 MW power distribution system architecture
FusionPower6000
Product Description 4 Product Overview
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 9

4.1.2 Transformer

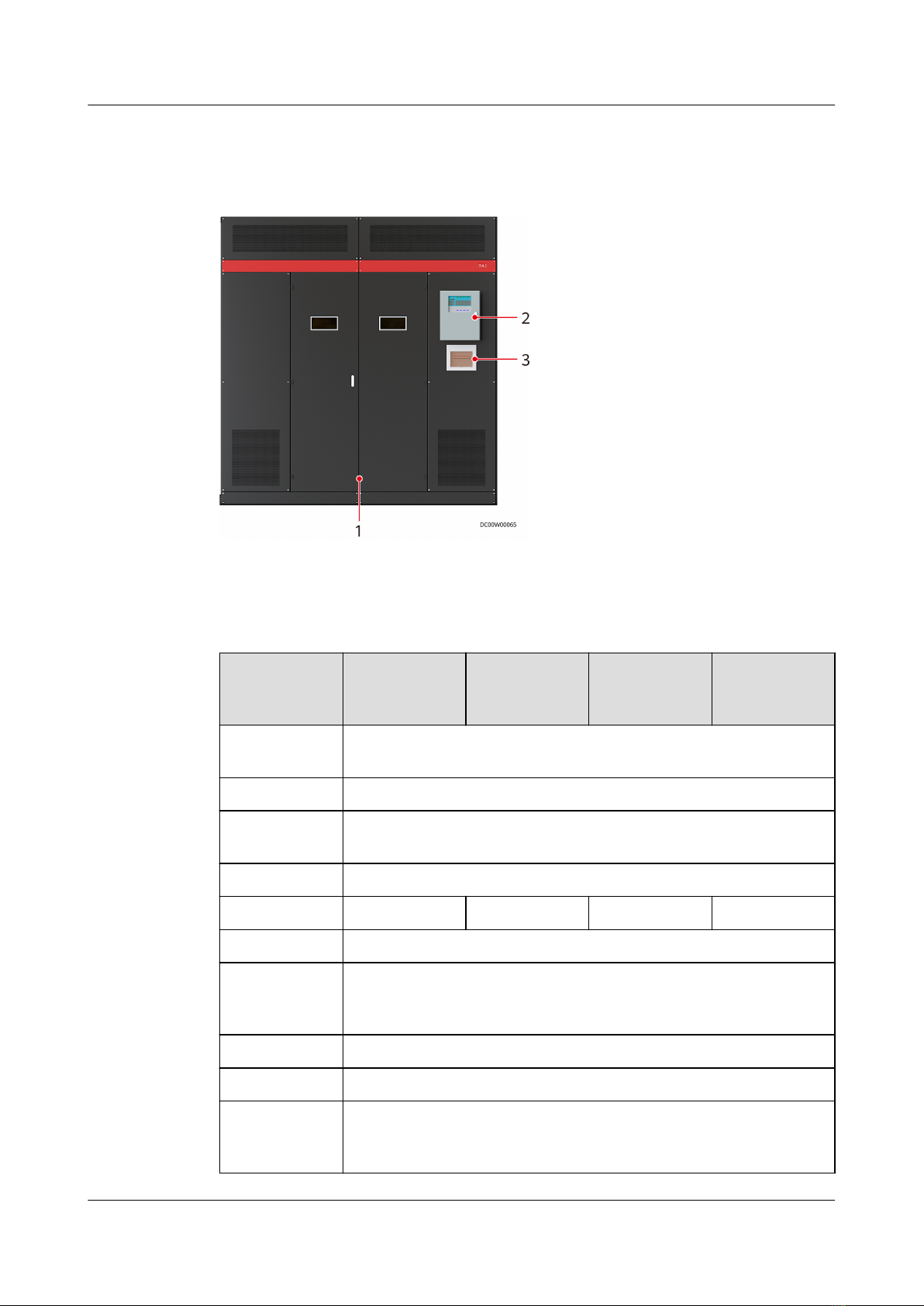

Figure 4-3 Transformer
(1) Transformer (2) Temperature controller (3) Secondary power
distribution box
Table 4-1 Technical specications
Item 2.4 MW
Indoor
PowerPOD
2.0 MW
Indoor
PowerPOD
1.6 MW
Indoor
PowerPOD
1.2 MW
Indoor
PowerPOD
Application
environment
Class A environment
Altitude 0–1000 m
Operating
temperature
–25°C to +40°C
Humidity ≤ 95% RH (non-condensing)
Capacity 2500 kVA 2000 kVA 1600 kVA 1250 kVA
Rated voltage 10 kV
Maximum
operating
voltage
11.5 kV
Voltage ratio 10 kV/0.4 kV
Cabling mode Routed out from the top
Input and
output
frequency
50/60 Hz
FusionPower6000
Product Description 4 Product Overview
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 10

Item 2.4 MW
Indoor
PowerPOD
2.0 MW
Indoor
PowerPOD
1.6 MW
Indoor
PowerPOD
1.2 MW
Indoor
PowerPOD
Voltage
regulation
O-circuit taps are installed on the high-voltage side. The
voltage regulation range is ±2 x 2.5%.
Thermal
insulation
class
F
4.1.3 Low-Voltage Cabinet
The input and bus tie cabinet, UPS input and bypass cabinet, UPS output cabinet,
and maintenance bypass cabinet are low-voltage cabinets.
Table 4-2 Technical specications
Item Specications
Operating environment Indoor class B environment
Altitude 0–4000 m
When the altitude is greater than 1000 m, the power
is derated according to the industry standard. The
maximum altitude is 4000 m.
Operating temperature 0–40°C
Humidity ≤ 95% RH (non-condensing)
System capacity 2000 A/2500 A/3200 A/4000 A/5000 A switchgear
Cabinet dimensions (H
x W x D)
Single/Dual 3-pole 3200 A or lower switch: 2200 mm
x 800 mm x 1000 mm
Single/Dual 4-pole 3200 A or lower switch: 2200 mm
x 1000 mm x 1000 mm
Single/Dual 4-pole 5000 A or lower switch: 2200 mm
x 1200 mm x 1000 mm
Cabling mode Routed in and out from the top
Input voltage 342–457 V AC
Input frequency 50/60 Hz
FusionPower6000
Product Description 4 Product Overview
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 11

4.1.4 Feeder Cabinet

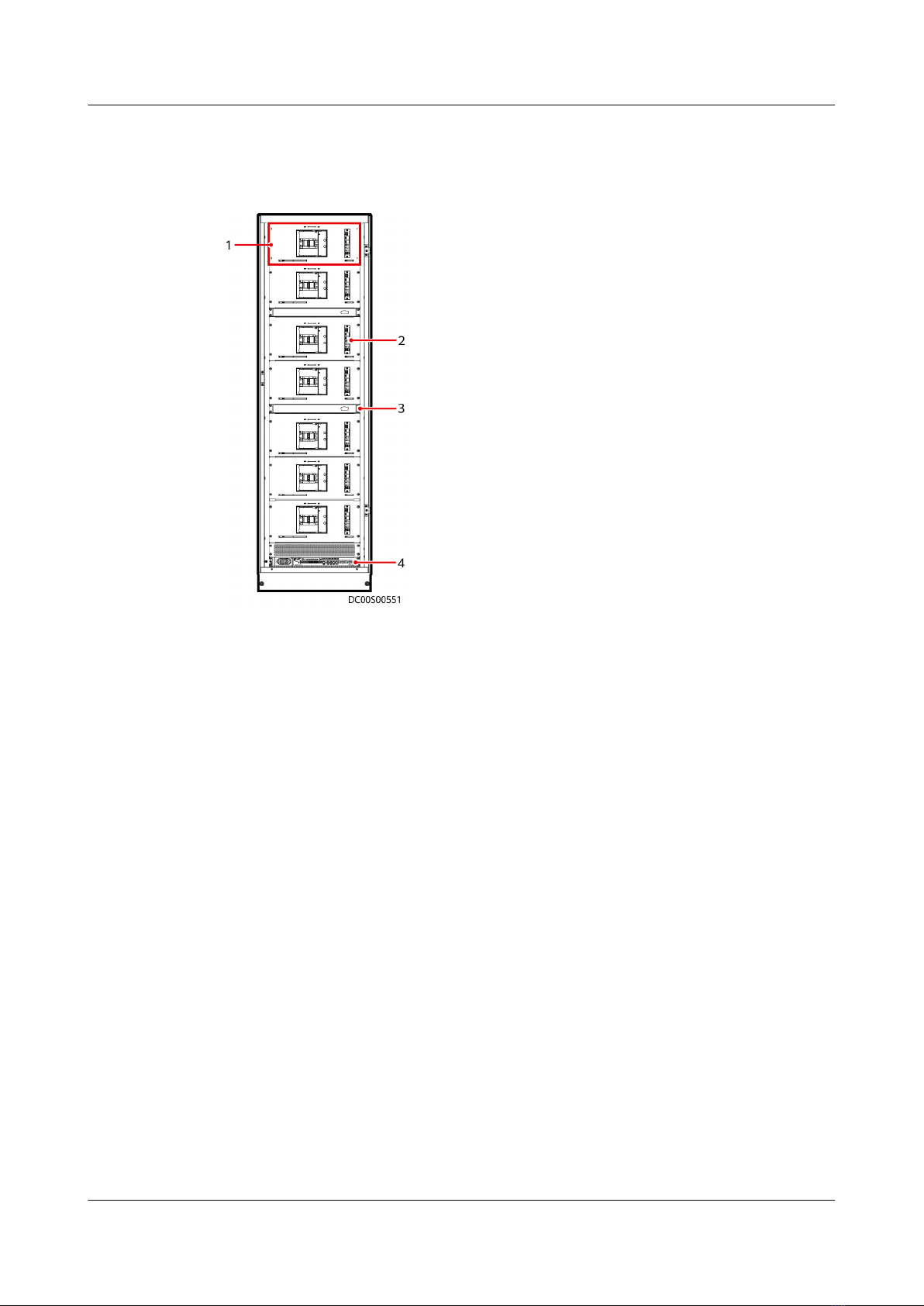

Figure 4-4 Feeder cabinet (seven output modules)
(1) MCCB output
modules
(2) Branch monitoring
module
(3) Fans (4) Centralized
monitoring module
FusionPower6000
Product Description 4 Product Overview
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 12

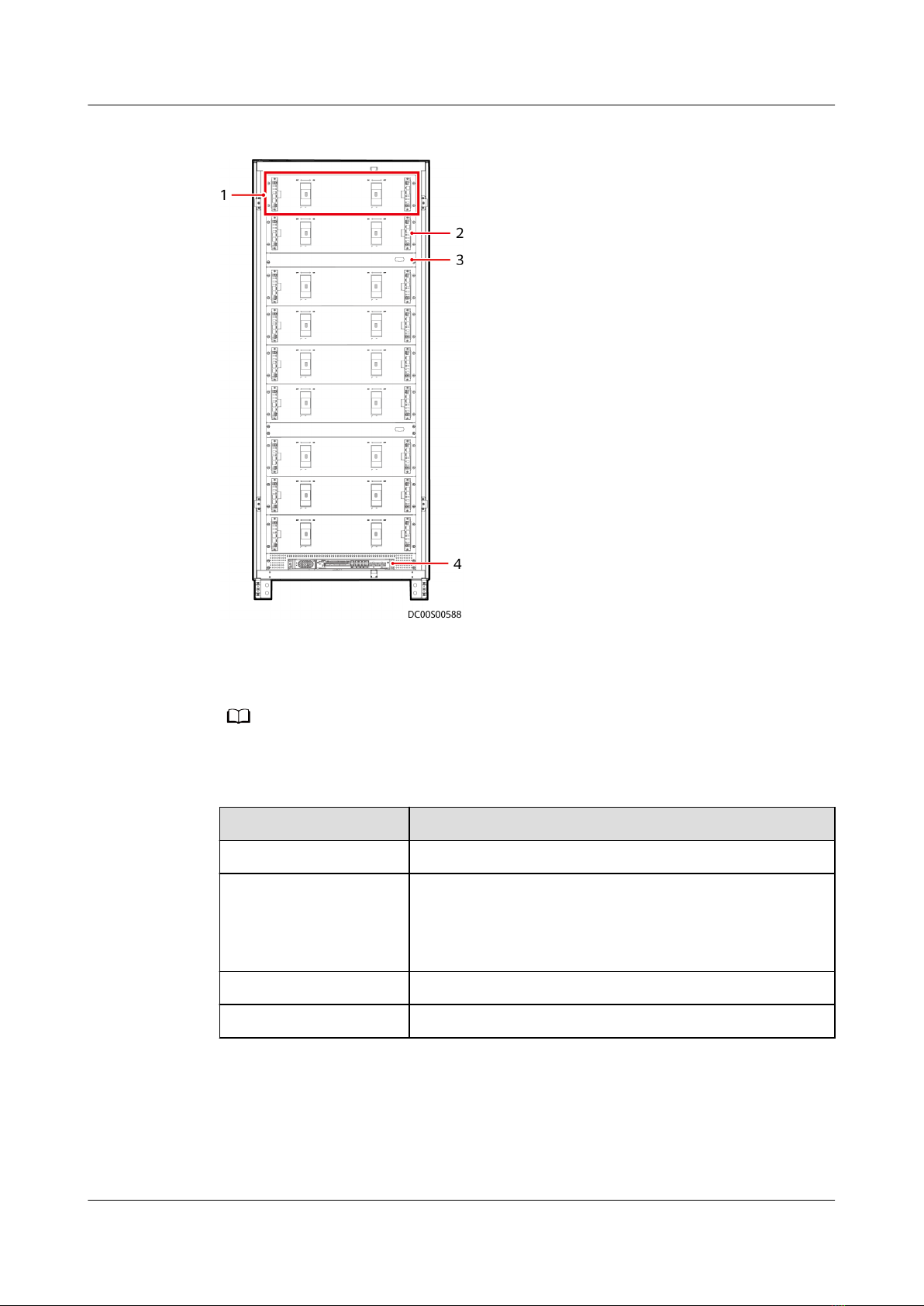

Figure 4-5 Feeder cabinet (18 output modules)
(1) MCCB output
modules
(2) Branch monitoring
module
(3) Fans (4) Centralized
monitoring module
NO TE
The MCCB output module and branch monitoring module are hot-swappable.
Table 4-3 Technical specications
Item Specications
Operating condition Indoor class A environment
Altitude 0–1000 m
When the altitude is greater than 1000 m, the power
is derated according to the industry standard. The
maximum altitude is 4000 m.
Operating temperature 0–40°C
Humidity ≤ 95% RH (non-condensing)
FusionPower6000
Product Description 4 Product Overview
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 13

Item Specications
Number of branch
switches
Options:
● 18 PCS/cabinet @ 160 A/3P MCCB
● 18 PCS/cabinet @ 250 A/3P MCCB
● 7 PCS/cabinet @ 400 A/3P MCCB
● 7 PCS/cabinet @ 630 A/3P MCCB
NOTE
The maximum current of a vertical copper bar for a standard
UPS is 2000 A.
Dimensions (H x W x
D)
● 2200 mm x 800 mm x 1000 mm @ 160/250 A x 18
PCS
● 2200 mm x 600 mm x 1000 mm @ 400/630 A x 7
PCS
Cabling mode Routed in and out from the top
Input voltage 342–457 V, three-phase four-wire
Input frequency 50/60 Hz
The branch monitoring module is used to collect the input and output voltage,
current, and electric energy of the circuit breakers in the feeder cabinet of the
PowerPOD, and detect copper bar contact temperatures and circuit breaker status.
The branch monitoring module and the centralized monitoring module form the
monitoring system of the feeder cabinet.
Figure 4-6 Branch monitoring module
(1) DI/DO ports
(reserved)
(2) Cascading RS485
ports
(3) Indicators (4) 24 V DC re
control input port
Table 4-4 Indicator description
Silk
Screen
Color Denition Status Description
R: ALARM Green Running status
indicator
Blinking at 0.5
Hz
The program is
running properly.
Blinking at 4 Hz Failed to
communicate
with the host.
FusionPower6000
Product Description 4 Product Overview
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 14
