1 Overview
1.1 Brief Introduction
HUAWEI E5377Bs-605 Mobile WiFi (hereinafter referred to as the E5377Bs-605) is a
high-speed packet access mobile hotspot. It is a multi-mode wireless terminal for
SOHO (Small Office and Home Office) and business professionals.
The E5377Bs-605 supports the following standards:
Long Term Evolution (LTE) Frequency Division Duplex (FDD)
LTE Time Division Duplex (TDD)
Dual Carrier High Speed Packet Access Plus (DC-HSPA+)
High Speed Packet Access Plus (HSPA+)
High Speed Uplink Packet Access (HSUPA)
High Speed Downlink Packet Access (HSDPA)
Universal Mobile Telecommunications System (UMTS)
Enhanced Data rates for Global Evolution (EDGE)
General Packet Radio Service (GPRS)
Global System for Mobile communications (GSM)
The E5377Bs-605 provides the following services:
LTE FDD/LTE TDD packet data service
DC-HSPA+ packet data service
HSPA+/HSPA/UMTS packet data service
EDGE/GPRS packet data service
Short Message Service (SMS)
You can connect the E5377Bs-605 with the USB interface of a computer, or connect
the E5377Bs-605 with the Wi-Fi. In the service area of the LTE FDD/LTE
TDD/DC-HSPA+/HSPA+/HSPA/UMTS or EDGE/GPRS/GSM network, you can surf
the Internet and send/receive messages/emails cordlessly. The E5377Bs-605 is fast,
reliable, and easy to operate. Thus, mobile users can experience many new features
and services with the E5377Bs-605. These features and services will enable a large
number of users to use the E5377Bs-605 and the average revenue per user (ARPU)
of operators will increase substantially.

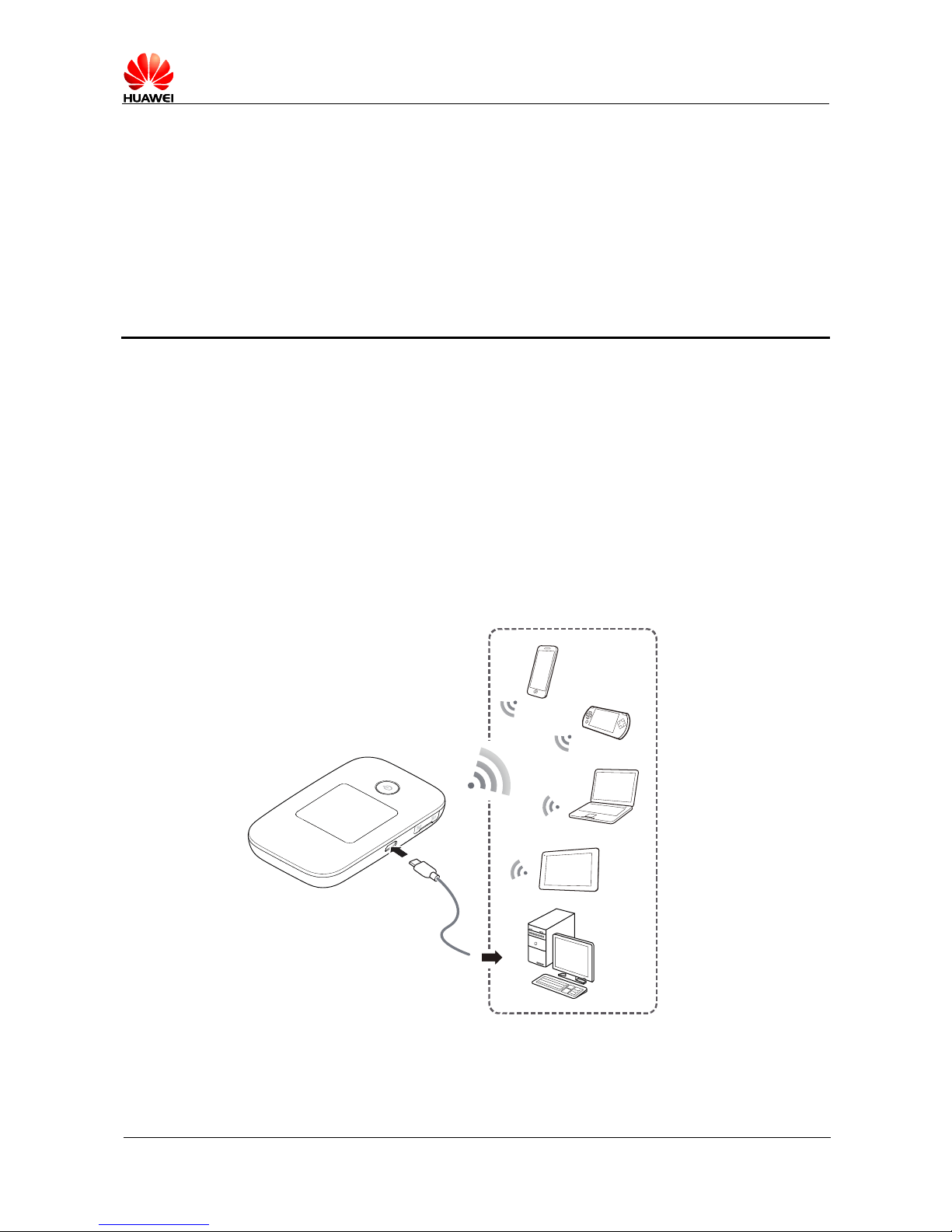

Figure 1-1 shows the profile of the E5377Bs-605.

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 7 of 20
Figure 1-1 E5377Bs-605 profile
1.2 Optional Features
Optional features refer to features that are not supported by the standard version or
are disabled by default. These features can be customized according to operator or
customer requirements. The E5377Bs-605's optional feature is as follows:
IPv6/IPv4 dual stack (optional)
SIM lock (optional)
Dual SSID (optional)

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 8 of 20
2 Features
2.1 Main Features
The E5377Bs-605 mainly supports the following features:
LTE FDD (DL) data service of up to 150 Mbit/s
LTE FDD (UL) data service of up to 50 Mbit/s
LTE TDD (DL) data service of up to 112 Mbit/s
LTE TDD (UL) data service of up to 20 Mbit/s
DC-HSPA+ (DL) data service of up to 43.2 Mbit/s
HSPA+ (DL) data service of up to 21.6 Mbit/s
HSDPA (DL) data service of up to 14.4 Mbit/s
HSUPA (UL) data service of up to 5.76 Mbit/s
UMTS data service of up to 384 kbit/s
EDGE data service of up to 236.8 kbit/s
GPRS data service of up to 85.6 kbit/s
PS domain data service based on LTE/UMTS/GSM
SMS based on LTE/UMTS/GSM
Built-in LTE/UMTS/GSM and WLAN high gain antenna
Support Micro Secure Digital Memory (microSD) cards of up to 32 GB
Wi-Fi 2.4 GHz and 5 GHz bands
Dynamic frequency selection (DFS) for 5 GHz Wi-Fi
WPS
Menu-style LCD UI with support for multiple languages
Display the battery use in percentage
Five-second fast boot
LTE/3G/Wi-Fi auto offload
Support for HUAWEI Mobile WiFi App
Press and Play
IPv6/IPv4 dual stack (optional)
Built-in DHCP Server, DNS RELAY and NAT
Online software upgrade

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 9 of 20
Traffic statistic
Standard Micro USB interface
TFT-LCD screen
2D Barcode easy connection
Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8, Windows 8.1
(does not support Windows RT), MAC OS X 10.7, 10.8 and 10.9 with latest
upgrades
2.2 Technical Specifications
2.2.1 Hardware
Table 2-1 lists the hardware specifications.
Table 2-1 Hardware specifications
Item Specifications
Technical
standard
WAN: LTE FDD/LTE
TDD/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM
WLAN: IEEE 802.11a/b/g/n
Operating
frequency
LTE:
FDD 2600/1800/700 MHz
TDD 2300 MHz
DC-HSPA+/HSPA+/HSPA/UMTS: 2100/900 MHz
EDGE/GPRS/GSM: 1900/1800/900/850 MHz
WLAN: 2.4 GHz, 5 GHz
Internal memory 128 MB Flash, 128 MB DDR SDRAM
Maximum
transmitter
power
LTE: Conform to Power Class 3 Definition
UMTS: Conform to Power Class 3 Definition
WLAN 802.11a: 8 dBm
802.11b: 12 dBm
802.11g: 11 dBm
802.11n: 10 dBm (2.4 GHz); 8 dBm (5 GHz)
Receiver
sensitivity
LTE: Confirm to 3GPP Requirements
UMTS: Confirm to 3GPP Requirements
WLAN 802.11a: -65 dBm@54 Mbit/s
802.11b: -76 dBm@11 Mbit/s
802.11g: -65 dBm@54 Mbit/s

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 10 of 20
Item Specifications
802.11n: -64 dBm@65 Mbit/s
WLAN speed 802.11a: Up to 54 Mbit/s
802.11b: Up to 11 Mbit/s
802.11g: Up to 54 Mbit/s
802.11n HT20: Support MCS0–MCS7; Up to 72.2 Mbit/s.
Support MCS8–MCS15; Up to 144.4 Mbit/s.
HT40: Support MCS0–MCS7; Up to 150 Mbit/s.
Support MCS8–MCS15; Up to 300 Mbit/s.
Maximum power
consumption
3.5 W
Power supply AC: 100–240 V
DC: 5 V, 1 A
Battery Type: Li (rechargeable)
Capacity: 3.7 V, 1500 mAh
Maximum working time: 6 hours (depending on the network)
Maximum standby time: 300 hours (depending on the network)
External
interfaces
Micro USB interface
Standard microSD card interface
Standard 6-pin SIM card interface
Screen TFT-LCD
Key-press Power switch, MENU switch, RESET switch
Antenna Built-in LTE/UMTS/GSM main antenna
Built-in LTE/UMTS diversity antenna
Built-in WLAN antenna
Dimensions
(W × D × H)
98.0 mm×57.1 mm×14.4 mm
Weight about 82 g (including the battery)
Temperature Operating: 0℃to +35℃
Storage: -20℃to +60℃
Humidity 5% to 95% (non-condensing)

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 11 of 20
2.2.2 Software
Table 2-2 lists the software specifications.
Table 2-2 software specifications
Item Description
SMS Writing/Sending/Receiving
Sending/Receiving extra-long messages
Storage: Up to 500 messages can be saved in the
internal memory of the E5377Bs-605.
New message prompt
Network connection
setup
APN management: create, delete and edit.
Set up network connection
WLAN setup SSID broadcasting and hiding
Open system and shared key authentication
ASCII and HEX keys
64/128-bit WEP encryption
256-bit WPA-PSK and WPA2-PSK encryption
AES encryption algorithm
TKIP and AES integrated encryption algorithm
Automatic adjustment of ratios
Display STA status
Turn off Wi-Fi automatically
WLAN MAC filter
Firewall setup Firewall Switch
LAN IP Filter
Virtual Server
ACL Service
DMZ Service
UPnP Service
NAT setup CONE NAT
Symmetric NAT
ALG
VPN passthrough
DHCP setup DHCP server enabling and disabling
Address pool of the DHCP server setup
DHCP lease time setup
Software installation Automatic installation

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 12 of 20
Item Description
LTE/3G/Wi-Fi auto
offload
Accessing to WAN via LTE/3G or Wi-Fi
Automatic offload between LTE/3G and Wi-Fi
IPv6/IPv4 dual stack
(optional)
DHCPv6/v4 server and client
DNSv6/v4 server and client
Display IPv6/v4 WAN address
Other Network connection settings:
Automatic network selection and registration
Manual network selection and registration
Network status display: signal, operator name, system
mode, and so on.
Selection of network connection types, for example:
LTE Only
3G Only
Auto
PIN management: activate/deactivate PIN, PIN lock,
changing PIN, unblocking by using the PUK.
System requirement Windows XP SP3, Windows Vista SP1/SP2, Windows
7, Windows 8, Windows 8.1 (does not support
Windows RT)
Mac OS X 10.7, 10.8 and 10.9 with latest upgrades
Your computer’s hardware system should meet or
exceed the recommended system requirements for the
installed version of OS

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 13 of 20
3 Services and Applications
3.1 Data Service
3.1.1 Wireless Modem
The E5377Bs-605 can be used as a wireless modem when the Wi-Fi is enabled. You
can directly use the default settings (or configure APN on the E5377Bs-605 Web page)
and set up a wireless network connection. Then you can access the Internet.
A maximum of ten wireless users can access the E5377Bs-605 at the same time. You
can set up the WLAN with the access point (AP) function.
Figure 3-1 Multi-device access via Wi-Fi and USB at the same time

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 14 of 20
3.1.2 USB Modem
After you connect the E5377Bs-605 and PC with a USB data cable, the Web page is
displayed on the PC desktops automatically. You can directly use the default settings
(or configure APN on the E5377Bs-605 Web page) and set up a network connection.
Then you can send or receive E-mail, access the network through wireless connection,
and download files through wireless data channels.
Figure 3-2 One-device access via USB
3.1.3 LTE/3G/Wi-Fi Auto Offload
The E5377Bs-605 allows you to access the Internet via 3G or Wi-Fi. When you are
using the E5377Bs-605 in areas with a Wi-Fi hotspot, for example, an airport, a cafe,
a hotel, or your home, the E5377Bs-605 switches to Wi-Fi connection automatically,
saving your 3G network traffic fees.
After the function is enabled, a maximum of nine wireless users can access the
E5377Bs-605 at the same time.
Figure 3-3 3G/Wi-Fi auto offload
3.2 SMS
The E5377Bs-605 supports message writing/sending/receiving. You can manage
messages through the Web page, such as an inbox, an outbox and a draft.

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 15 of 20
3.3 Sharing Data Stored on the microSD card
After the microSD card is inserted, you can store data on the card or use the Web
management page to share data stored on the card.
3.4 Menu-Style LCD UI
The E5377Bs-605 provides a menu-style LCD UI with support for multiple languages.
Press the menu button to display the menus, and then use the menu and power
buttons to select or confirm an option. You can browse the information on the LCD or
configure settings. For example, you can:
Scan a 2D barcode on the E5377Bs-605's LCD to connect your device to the
Internet or another 2D barcode to download the HUAWEI Mobile WiFi app.
Turn on or off the automatic switchover between LTE/3G and Wi-Fi Internet
access modes.
Turn on or off the WPS function.
View the three latest text messages.
Figure 3-4 shows the menu-style LCD UI. This figure is for your reference only. The
actual UI may vary.
Figure 3-4 Menu-style LCD UI
Back
Device Info
2D Barcode
Messages
Next OK
Menu
3.4.1 Scanning a 2D Barcode to Download the HUAWEI Mobile
WiFi App
You can scan a 2D barcode on the E5377Bs-605's LCD to download the HUAWEI
Mobile WiFi App to your Android devices.
3.4.2 Scanning a 2D Barcode to Connect to the Internet
If you are using an Android device and has the HUAWEI Mobile WiFi App installed,
you can quickly connect your device to the E5377Bs-605 to access the Internet by
scanning a 2D barcode on the E5377Bs-605's LCD.

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 16 of 20
4 System Architecture
4.1 System Architecture
Figure 4-1 shows the system architecture.
Figure 4-1 System architecture
Protocol stack
Bottom layer drivers
(include USB, Wi-Fi
and user interface)
Application
systerm
Web page
Web server
User
interface USB
Wi-Fi
Baseband signal
processing
Radio frequency
module
Power module
Software module
Mobile WiFi
PC
Mobile
phone/Tablet
USB/Wi-Fi
Wi-Fi
Hardware module

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 17 of 20
4.2 Functional Modules
1. Radio frequency module: It sends/receives radio signals and
modulates/demodulates the radio frequency (RF) signals and baseband signals
2. Baseband signal processing: It processes
LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM baseband digital signals,
including:
Modulating/Demodulating
LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM baseband signals
Encoding/Decoding LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM
channel
3. Bottom layer driver: It drives peripherals, including a USB device, Wi-Fi devices,
a screen, buttons, a micro SIM card and a microSD card.
4. Protocol stack system: It processes protocols of
LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM and TCP/IP.
5. Application system: It provides management system, including SMS, PS
domain service, Wi-Fi configuration, network service, Web service and Web page.
The user can set management parameters by Web page.
6. User interface: It provides human-computer interaction, including a screen and
buttons.

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 18 of 20
5 Packing List
This chapter describes the items contained in the package of the E5377Bs-605.
Table 5-1 lists the items contained in the package of the E5377Bs-605.
Table 5-1 Packing list of the E5377Bs-605
Item Quantity Remarks
Mobile WiFi 1 Standard
Rechargeable Battery (1500 mAh) 1 Standard
USB Cable 1 Standard
Quick Start 1 Standard
Safety Information 1 Standard
Charger 1 Optional
Warranty Card 1 Optional

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 19 of 20
A Acronyms and Abbreviations
3G The Third Generation
ACL access control list
AES Advanced Encryption Standard
ALG application level gateway
APN access point name
ARPU average revenue per user
ASCII American Standard Code for Information Interchange
DFS dynamic frequency selection
DHCP Dynamic Host Configuration Protocol
DMZ demilitarized zone
DNS Domain Name Server
EDGE Enhanced Data Rates for GSM Evolution
FDD frequency division duplex
GPRS General Packet Radio Service
GSM Global System for Mobile Communications
HSPA+ High Speed Packet Access Plus
HSUPA High Speed Uplink Packet Access
HSDPA High Speed Downlink Packet Access
IEEE Institute of Electrical and Electronics Engineers
IP Internet Protocol
LCD Liquid Crystal Display
LTE Long Term Evolution
MAC Medium Access Control

HUAWEI E5377Bs-605 Mobile WiFi V200R001
Product Description
Issue 01 (2014-03-06) Commercial in Confidence Page 20 of 20
Modem Modulator Demodulator
NAT Network Address Translation
OS Operating System
PC personal computer
PIN personal identification number
PnP Plug and Play
PS packet switched
PUK PIN unblocking key
SIM subscriber identity module
SMS short messaging service
SOHO small office home office
SSID Service Set Identifier
TDD Time Division Duplex
TFT Thin Film Transistor
TKIP Temporal Key Integrity Protocol
UMTS Universal Mobile Telecommunications System
UPnP Universal Plug and Play
USB Universal Serial Bus
WAN wireless area network
WEP wired equivalent privacy
Wi-Fi Wireless Fidelity
WLAN wireless local area network
WPA Wi-Fi Protected Access
