Huawei Prime E5878s-32 Technical specifications

Product Description
HUAWEI E5878s-32 Mobile WiFi
V200R001
Issue 01
Date 2014-04-15
HUAWEI TECHNOLOGIES CO., LTD.
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 2 of 20
Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service.
Please feel free to contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://consumer.huawei.com/en/
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 3 of 20
About This Document
Summary
This document provides information about the major functions, supported services
and system architecture.
The following table lists the contents of this document.
Chapter Details
1 Overview The supported network modes, basic services and functions,
and the appearance of the product.
2 Features The supported features and technical specifications of the
product.
3 Services and
Applications
The services and applications of the product.
4 System
Architecture
The architecture of the product.
5 Packing List The items contained in the package of the product.
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 4 of 20
History
Issue Details Date
01 First release. 2014-04-15
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 5 of 20
Contents
1 Overview..........................................................................................................................6
1.1 Brief Introduction .............................................................................................................................. 6
1.2 Optional Features............................................................................................................................. 7
2 Features...........................................................................................................................8
2.1 Main Features .................................................................................................................................. 8
2.2 Technical Specifications ................................................................................................................... 9
2.2.1 Hardware ................................................................................................................................. 9
2.2.2 Software..................................................................................................................................11
3 Services and Applications ...........................................................................................13
3.1 Data Service................................................................................................................................... 13
3.1.1 Accessing the Internet Using an LTE, 3G, or 2G Network..................................................... 13
3.1.2 Accessing the Internet Using Ethernet .................................................................................. 14
3.1.3 LTE/3G/Wi-Fi Auto Offload .................................................................................................... 14
3.2 SMS................................................................................................................................................ 15
3.3 Connecting an Android Device to the E5878s-32 Using a 2D Barcode......................................... 15
4 System Architecture .....................................................................................................16
4.1 System Architecture ....................................................................................................................... 16
4.2 Functional Modules ........................................................................................................................ 17
5 Packing List...................................................................................................................18
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 6 of 20
1 Overview
1.1 Brief Introduction
HUAWEI E5878s-32 Mobile WiFi (hereinafter referred to as the E5878s-32) is a
high-speed packet access mobile hotspot. It is a multi-mode wireless terminal for
SOHO (Small Office and Home Office) and business professionals.
The E5878s-32 supports the following standards:
Long Term Evolution (LTE) Frequency Division Duplex (FDD)
Dual Carrier High Speed Packet Access Plus (DC-HSPA+)
High Speed Packet Access Plus (HSPA+)
High Speed Uplink Packet Access (HSUPA)
High Speed Downlink Packet Access (HSDPA)
Universal Mobile Telecommunications System (UMTS)
Enhanced Data rates for Global Evolution (EDGE)
General Packet Radio Service (GPRS)
Global System for Mobile communications (GSM)
The E5878s-32 provides the following services:
LTE FDD packet data service
DC-HSPA+ packet data service
HSPA+/HSPA/UMTS packet data service
EDGE/GPRS packet data service
Short Message Service (SMS)
You can connect the E5878s-32 with the USB interface of a computer, or connect the
E5878s-32 with the Wi-Fi. In the service area of the LTE
FDD/DC-HSPA+/HSPA+/HSPA/UMTS or EDGE/GPRS/GSM network, you can surf
the Internet and send/receive messages/emails cordlessly. The E5878s-32 is fast,
reliable, and easy to operate. Thus, mobile users can experience many new features
and services with the E5878s-32. These features and services will enable a large
number of users to use the E5878s-32 and the average revenue per user (ARPU) of
operators will increase substantially.
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 7 of 20
Figure 1-1 shows the profile of the E5878s-32.
Figure 1-1 E5878s-32 profile
1.2 Optional Features
Optional features refer to features that are not supported by the standard version or
are disabled by default. These features can be customized according to operator or
customer requirements. The E5878s-32's optional feature is as follows:
SIM lock (optional)
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 8 of 20
2 Features
2.1 Main Features
The E5878s-32 mainly supports the following features:
LTE FDD (DL) data service of up to 150 Mbit/s
LTE FDD (UL) data service of up to 50 Mbit/s
DC-HSPA+ (DL) data service of up to 43.2 Mbit/s
HSPA+ (DL) data service of up to 21.6 Mbit/s
HSDPA (DL) data service of up to 14.4 Mbit/s
HSUPA (UL) data service of up to 5.76 Mbit/s
UMTS data service of up to 384 kbit/s
EDGE data service of up to 236.8 kbit/s
GPRS data service of up to 85.6 kbit/s
PS domain data service based on LTE/UMTS/GSM
SMS based on LTE/UMTS/GSM
Built-in LTE/UMTS/GSM and WLAN high gain antenna
Slim metal body
Support for USB-to-Ethernet conversion with the AF18 conversion cable
Five-second fast boot
LTE/3G/Wi-Fi auto offload
Support for HUAWEI Mobile WiFi App
Press and Play
IPv6/IPv4 dual stack
Built-in DHCP Server, DNS RELAY and NAT
Online software upgrade
Traffic statistic
Standard Micro USB interface
OLED screen
2D Barcode easy connection
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 9 of 20
Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8, Windows 8.1
(does not support Windows RT), MAC OS X 10.7, 10.8 and 10.9 with latest
upgrades
2.2 Technical Specifications
2.2.1 Hardware
Table 2-1 lists the hardware specifications.
Table 2-1 Hardware specifications
Item Specifications
Technical
standard
WAN:
LTE FDD/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM
WLAN: IEEE 802.11b/g/n
Operating
frequency
LTE FDD: 2600/2100/1800/900/800/850 MHz
DC-HSPA+/HSPA+/HSPA/UMTS: 2100/1900/900/850 MHz
EDGE/GPRS/GSM: 1900/1800/900/850 MHz
WLAN: 2.4 GHz
Internal memory 128 MB Flash, 128 MB DDR SDRAM
Maximum
transmitter
power
LTE: Conform to Power Class 3 Definition
UMTS: Conform to Power Class 3 Definition
WLAN 802.11b: 13 dBm
802.11g: 11 dBm
802.11n: 10 dBm
Receiver
sensitivity
LTE: Confirm to 3GPP Requirements
UMTS: Confirm to 3GPP Requirements
WLAN 802.11b: -76 dBm@11 Mbit/s
802.11g: -65 dBm@54 Mbit/s
802.11n: -64 dBm@65 Mbit/s
WLAN speed 802.11b: Up to 11 Mbit/s
802.11g: Up to 54 Mbit/s
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 10 of 20
Item Specifications
802.11n HT20: Support MCS0–MCS7; Up to 72.2 Mbit/s.
Support MCS8–MCS15; Up to 144.4 Mbit/s.
HT40: Support MCS0–MCS7; Up to 150 Mbit/s.
Support MCS8–MCS15; Up to 300 Mbit/s.
Maximum power
consumption
3.5 W
Power supply AC: 100–240 V
DC: 5 V, 1 A
Battery Type: Li (rechargeable, irremovable)
Capacity: 3.7 V, 1900 mAh
Maximum working time: 6 hours (depending on the network)
Maximum standby time: 380 hours (depending on the network)
External
interfaces
Micro USB interface
Standard Micro 6-pin SIM card interface
Screen OLED
Key-press Power switch, RESET switch
Antenna Built-in LTE/UMTS/GSM main antenna
Built-in LTE/UMTS diversity antenna
Built-in WLAN antenna
Dimensions
(W × D × H)
109.5 mm×58.0 mm×7.5 mm
Weight about 80 g (including the battery)
Temperature Operating: 0℃to +35℃
Storage: -20℃to +60℃
Humidity 5% to 95% (non-condensing)
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 11 of 20
2.2.2 Software
Table 2-2 lists the software specifications.
Table 2-2 software specifications
Item Description
SMS Writing/Sending/Receiving
Sending/Receiving extra-long messages
Storage: Up to 500 messages can be saved in the
internal memory of the E5878s-32.
New message prompt
Network connection
setup
APN management: create, delete and edit.
Set up network connection
WLAN setup SSID broadcasting and hiding
Open system and shared key authentication
ASCII and HEX keys
64/128-bit WEP encryption
256-bit WPA-PSK and WPA2-PSK encryption
AES encryption algorithm
TKIP and AES integrated encryption algorithm
Automatic adjustment of ratios
Display STA status
Turn off Wi-Fi automatically
WLAN MAC filter
Firewall setup Firewall Switch
LAN IP Filter
Virtual Server
ACL Service
DMZ Service
UPnP Service
NAT setup CONE NAT
Symmetric NAT
ALG
DHCP setup DHCP server enabling and disabling
Address pool of the DHCP server setup
DHCP lease time setup
Software installation Automatic installation
LTE/3G/Wi-Fi auto
offload
Accessing to WAN via LTE/3G or Wi-Fi
Automatic offload between LTE/3G and Wi-Fi
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 12 of 20
Item Description
IPv6/IPv4 dual stack DHCPv6/v4 server and client
DNSv6/v4 server and client
Display IPv6/v4 WAN address
Other Network connection settings:
Automatic network selection and registration
Manual network selection and registration
Network status display: signal, operator name, system
mode, and so on.
Selection of network connection types, for example:
LTE Only
3G Only
Auto
PIN management: activate/deactivate PIN, PIN lock,
changing PIN, unblocking by using the PUK.
System requirement Windows XP SP3, Windows Vista SP1/SP2, Windows
7, Windows 8, Windows 8.1 (does not support
Windows RT), MAC OS X 10.7, 10.8 and 10.9 with
latest upgrades
Your computer’s hardware system should meet or
exceed the recommended system requirements for the
installed version of OS
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 13 of 20
3 Services and Applications
3.1 Data Service
3.1.1 Accessing the Internet Using an LTE, 3G, or 2G Network
Functioning as a Wireless Modem
The E5878s-32 can be used as a wireless modem when the Wi-Fi is enabled. You can
directly use the default settings (or configure APN on the E5878s-32 Web page) and
set up a wireless network connection. Then you can access the Internet.
A maximum of ten wireless users can access the E5878s-32 at the same time. You
can set up the WLAN with the access point (AP) function.
Functioning as a USB Modem
After you connect the E5878s-32 and PC with a USB data cable or AF18, you can
directly use the default settings (or configure APN on the E5878s-32 Web page) and
set up a network connection. Then you can send or receive E-mail, access the
network through wireless connection, and download files through wireless data
channels.

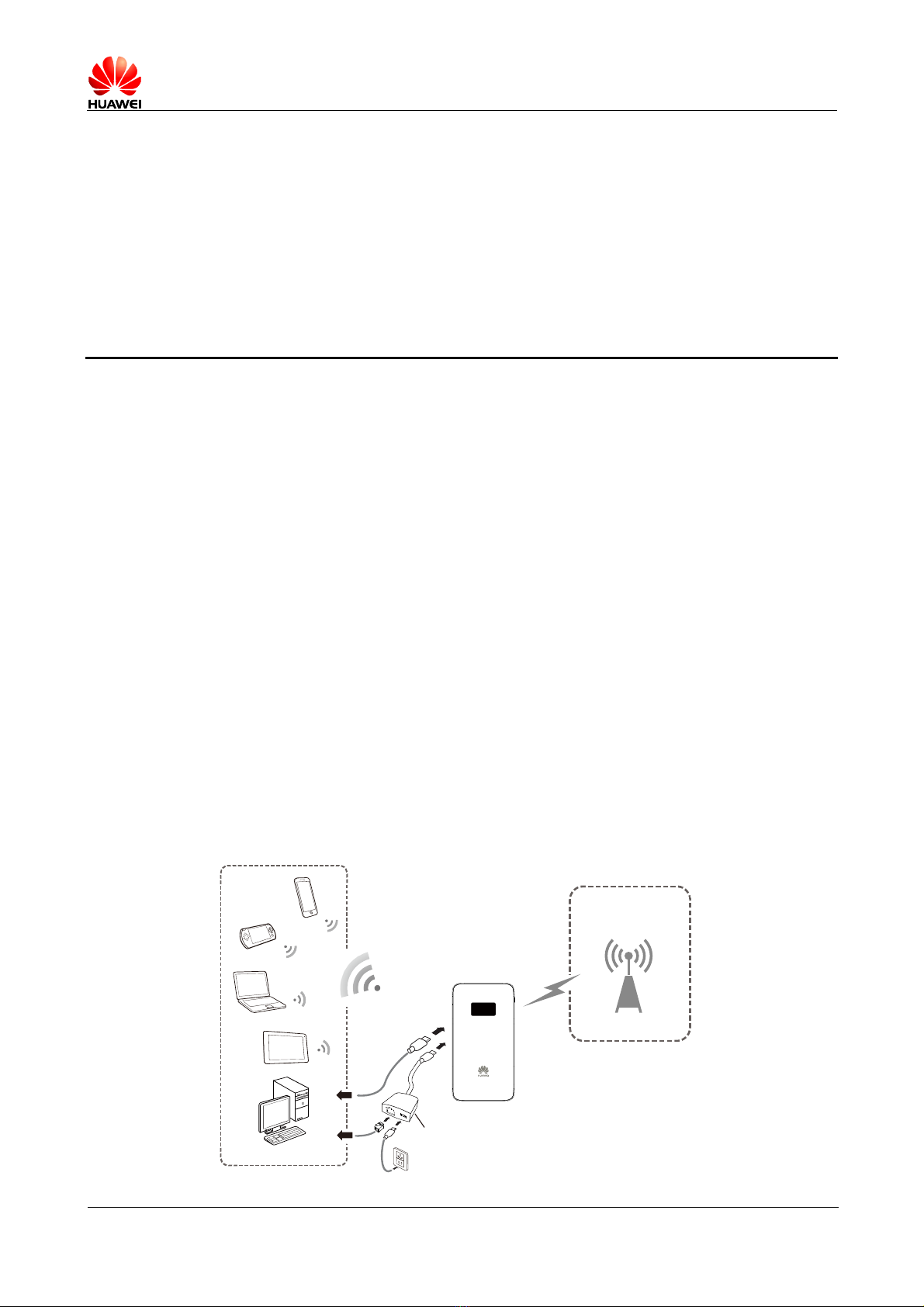

Figure 3-1 Multi-device access via Wi-Fi and USB/AF18 at the same time
LTE/3G/2G
AF18
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 14 of 20
3.1.2 Accessing the Internet Using Ethernet
Connect the Mobile Wi-Fi to AF18, and then connect the AF18's network port to the
Ethernet port using a network cable. E5878s-32 supports automatic identification of
the WAN/LAN port in access mode, and automatic selection of accessing manners of
ADSL domestic wideband, DHCP hotel wideband or static IP wideband. You can
easily access the Internet using the Ethernet to save your LTE/3G/2G network flow
and fee.
Figure 3-2 E5878s-32 access via AF18
Ethernet
AF18
3.1.3 LTE/3G/Wi-Fi Auto Offload
The E5878s-32 allows you to access the Internet via LTE/3G or Wi-Fi. When you are
using the E5878s-32 in areas with a Wi-Fi hotspot, for example, an airport, a cafe, a
hotel, or your home, the E5878s-32 switches to Wi-Fi connection automatically,
saving your LTE/3G network traffic fees.
After the function is enabled, a maximum of nine wireless users can access the
E5878s-32 at the same time.
Figure 3-3 LTE/3G/Wi-Fi auto offload
LTE/3G/2G
Wi-Fi Hotspot
AF18
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 15 of 20
3.2 SMS
The E5878s-32 supports message writing/sending/receiving. You can manage
messages through the Web page, such as an inbox, an outbox and a draft.
3.3 Connecting an Android Device to the E5878s-32
Using a 2D Barcode
If you are using an Android device and has the HUAWEI Mobile WiFi App installed,
you can quickly connect your device to the E5878s-32 to access the Internet by
scanning a 2D Barcode on the E5878s-32 label.
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 16 of 20
4 System Architecture
4.1 System Architecture
Figure 4-1 shows the system architecture.
Figure 4-1 System architecture
Protocol stack
Bottom layer drivers
(include USB, Wi-Fi
and user interface)
Application
systerm
Web page
Web server
User
interface USB
Wi-Fi
Baseband signal
processing
Radio frequency
module
Power module
Software module
Mobile WiFi
PC
Mobile
phone/Tablet
USB/Wi-Fi
Wi-Fi
Hardware module
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 17 of 20
4.2 Functional Modules
1. Radio frequency module: It sends/receives radio signals and
modulates/demodulates the radio frequency (RF) signals and baseband signals
2. Baseband signal processing: It processes
LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM baseband digital signals,
including:
Modulating/Demodulating
LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM baseband signals
Encoding/Decoding LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM
channel
3. Bottom layer driver: It drives peripherals, including a USB device, Wi-Fi devices,
a screen, a buttons and a SIM card.
4. Protocol stack system: It processes protocols of
LTE/DC-HSPA+/HSPA+/UMTS/EDGE/GPRS/GSM and TCP/IP.
5. Application system: It provides management system, including SMS, PS
domain service, Wi-Fi configuration, network service, Web service and Web page.
The user can set management parameters by Web page.
6. User interface: It provides human-computer interaction, including a screen and
buttons.
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 18 of 20
5 Packing List
This chapter describes the items contained in the package of the E5878s-32.
Table 5-1 lists the items contained in the package of the E5878s-32.
Table 5-1 Packing list of the E5878s-32
Item Quantity Remarks
Mobile WiFi 1 Standard
USB Cable 1 Standard
Quick Start 1 Standard
Safety Information 1 Standard
SIM eject tool 1 Standard
Charger 1 Standard
AF18 1 Optional
Warranty Card 1 Optional
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 19 of 20
A Acronyms and Abbreviations
3G The Third Generation
ACL access control list
AES Advanced Encryption Standard
ALG application level gateway
APN access point name
ARPU average revenue per user
ASCII American Standard Code for Information Interchange
DFS dynamic frequency selection
DHCP Dynamic Host Configuration Protocol
DMZ demilitarized zone
DNS Domain Name Server
EDGE Enhanced Data Rates for GSM Evolution
FDD frequency division duplex
GPRS General Packet Radio Service
GSM Global System for Mobile Communications
HSPA+ High Speed Packet Access Plus
HSUPA High Speed Uplink Packet Access
HSDPA High Speed Downlink Packet Access
IEEE Institute of Electrical and Electronics Engineers
IP Internet Protocol
LCD Liquid Crystal Display
LTE Long Term Evolution
MAC Medium Access Control
This manual downloaded from http://www.manualowl.com

HUAWEI E5878s-32 Mobile WiFi V200R001
Product Description
Issue 01 (2014-04-15) Commercial in Confidence Page 20 of 20
Modem Modulator Demodulator
NAT Network Address Translation
OS Operating System
PC personal computer
PIN personal identification number
PnP Plug and Play
PS packet switched
PUK PIN unblocking key
SIM subscriber identity module
SMS short messaging service
SOHO small office home office
SSID Service Set Identifier
TFT Thin Film Transistor
TKIP Temporal Key Integrity Protocol
UMTS Universal Mobile Telecommunications System
UPnP Universal Plug and Play
USB Universal Serial Bus
WAN wireless area network
WEP wired equivalent privacy
Wi-Fi Wireless Fidelity
WLAN wireless local area network
WPA Wi-Fi Protected Access
This manual downloaded from http://www.manualowl.com
