Huawei OptiXstar W826E User manual

OptiXstar W826E
Quick Start
Issue 01
Date 2021-09-07
HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2022. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: https://www.huawei.com
Email: [email protected]
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. i

Contents
1 Product Appearance................................................................................................................1
2 Installing the Device............................................................................................................... 3
3 Connecting Cables................................................................................................................... 8
4 Description of Indicator......................................................................................................... 9
5 Technical Specications....................................................................................................... 10
6 FAQs..........................................................................................................................................11
OptiXstar W826E
Quick Start Contents
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. ii

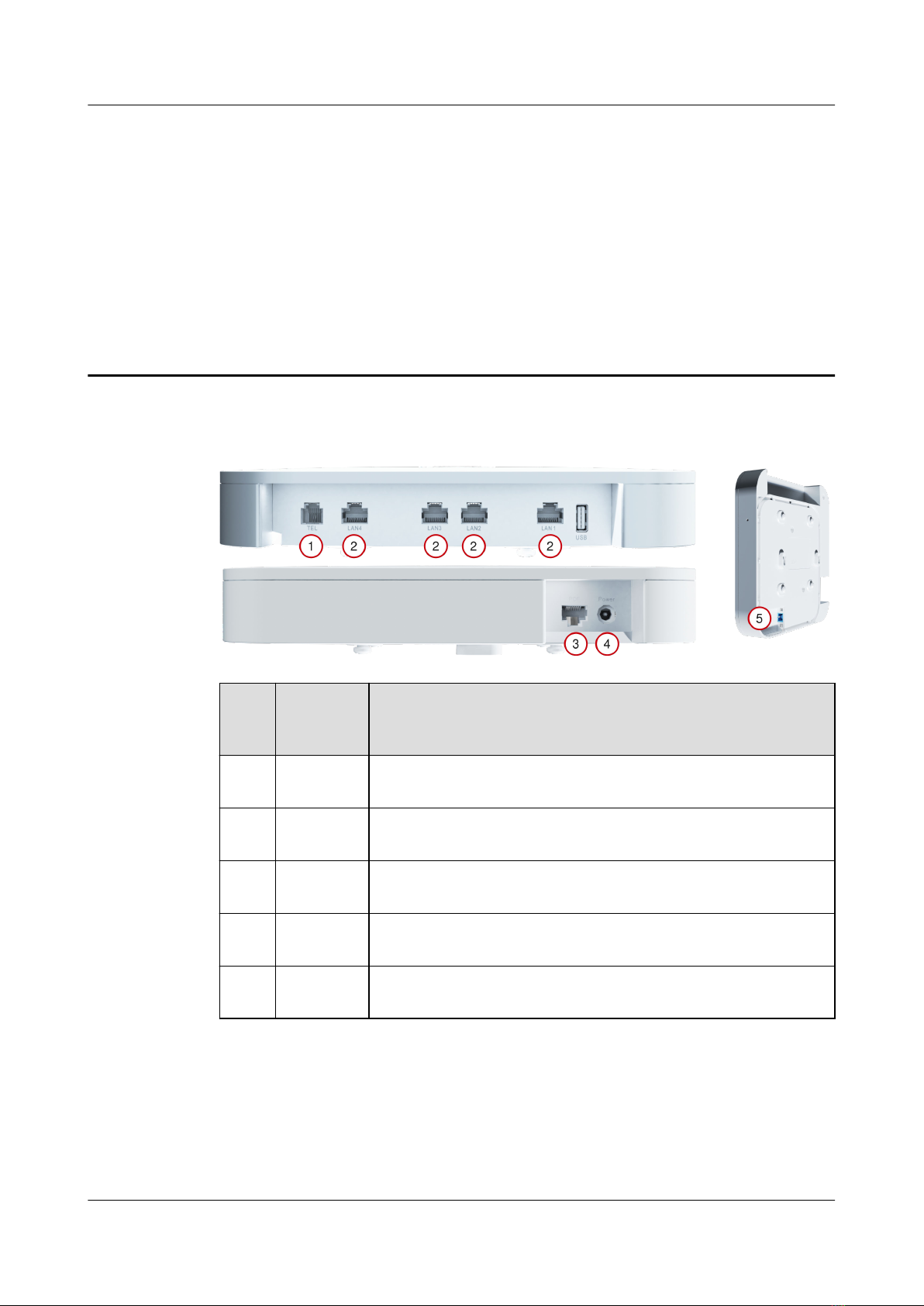

1 Product Appearance
The schematic diagram in this document may dier from the actual product.
Interfaces
/Buttons
Description
Power Connecting the power adapter
POF PoF (optical/electrical composite cable) power input
LAN 10/100/1000 Mbit/s for wired Ethernet connection
TEL Used for phone connections
USB Reserved
Optical
port
Supports XGS-PON upstream access.
OptiXstar W826E
Quick Start 1 Product Appearance
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 1

Interfaces
/Buttons
Description
Reset key Button for restarting the device. Press briey to restart the device.
Press and hold the button for more than 10 seconds to restore
factory settings and restart the device.
NOTE
Exercise caution when using the reset button. After the device is reset, the
device may fail to access the Internet. If you cannot access the Internet
after the reset, contact your service provider.
NO TE
● The device supports PoF power supply and DC power supply.
● Use a power adapter that meets the safety requirements or has obtained the CCC
certication. Otherwise, the device may be damaged.
OptiXstar W826E
Quick Start 1 Product Appearance
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 2

2 Installing the Device
Determine the installation position.
Generally, a device is installed on a wall or ceiling using sheet metal mounting
kits. Therefore, the specic installation position of the device is determined by the
site survey. At least 200 mm of space must be reserved between the cable outlet
and the wall. Figure 2 - 1 shows the installation clearance requirements.
Figure 2-1 Installation reference drawing
The principles for determining the installation position are as follows:
● Minimize the number of obstacles (such as walls) between devices and user
terminals.
● Keep the device away from electronic devices (such as microwave ovens, APs,
and antennas) that may cause RF interference. For details, see.Table 2 - 1).
● The installation position should be concealed as far as possible, so as not to
interfere with daily work and life.
● Do not install the device in an environment where water is accumulated,
seepage, dripping, or condensation. Do not allow water droplets to ow into
the device along cables due to condensation or seepage of cables.
● Do not install the equipment in an environment with high temperature, dust,
harmful gases, ammable, explosive, electromagnetic interference (large
OptiXstar W826E
Quick Start 2 Installing the Device
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 3

radar stations, transmitting stations, and substations), unstable voltage, high
vibration, or strong noise.
● Do not place the device horizontally.
Table 2-1 General Requirements for Anti-Interference Distance of Antennas
Scenario Deployment distance requirements
Indoor
Installation
Scenario
● The distance between antennas is greater than 7 m.
● 5 m or more from the operator's 4G antenna
● Keep away from other electronic devices (such as
microwave ovens) that may cause antenna interference.
For devices with built-in antennas, the distance required for deploying antennas is
the distance required for deploying devices.
Wall-mounted installation
The requirements for wall-mounted installation are as follows:
NO TE
● The wall must be able to withstand four times the total weight of the equipment and
sheet metal mounting kits without being damaged. When the total weight of the device
and sheet metal mounting kits is less than 1.25 kg, the wall must bear at least 50 N.
● When the tightening torque of the screws reaches 3.5 N·m, the screws will not fail to
rotate and the wall will not be cracked or damaged.
The installation on a wall requires mounting kits and expansion bolts. The
installation procedure is as follows:
When securing the sheet metal mounting bracket, ensure that the label The
arrow in is up.
1. Place the sheet metal mounting kit against the wall, adjust the installation
position, and use a marker to mark anchor points, as shown in the following
gure.
2. Drill holes at the anchor points with a depth of 35 mm to 40 mm using a 6
mm electric drill bit, and install expansion coils to ensure that the expansion
coils are ush with the wall.
OptiXstar W826E
Quick Start 2 Installing the Device
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 4

3. Place the sheet metal mounting kit against the wall, and then use a Phillips
screwdriver to tighten the three expansion screws into the expansion tube to
secure the sheet metal mounting kit to the wall.
4. Connect and arrange cables. For details, see 3.
5. Align the mounting pegs at the rear of the device with the mounting holes on
the sheet metal mounting bracket, push the device vertically into the
mounting bracket, and press the device downwards. If you hear a click, the
device is secured to the sheet metal mounting bracket.
Ensure that the device is properly installed on the mounting bracket to prevent it
from falling o. Ensure that the installation space meets the preceding
requirements for future maintenance.
Indoor T-shaped keel installation mode
The T-shaped keel must be able to withstand four times the total weight of the
equipment and sheet metal mounting kits without being damaged. When the
total weight of the equipment and sheet metal mounting kits is less than 1.25 kg,
the bearing capacity of the keel must be at least 50 N.
1. Determine the type of the T-shaped keel. The following gure shows the
specications of the T-shaped keel supported by the mounting kit. This
installation method uses a 24 mm at T-shaped keel as an example.
OptiXstar W826E
Quick Start 2 Installing the Device
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 5

Mounting kits must be installed on the main keel.

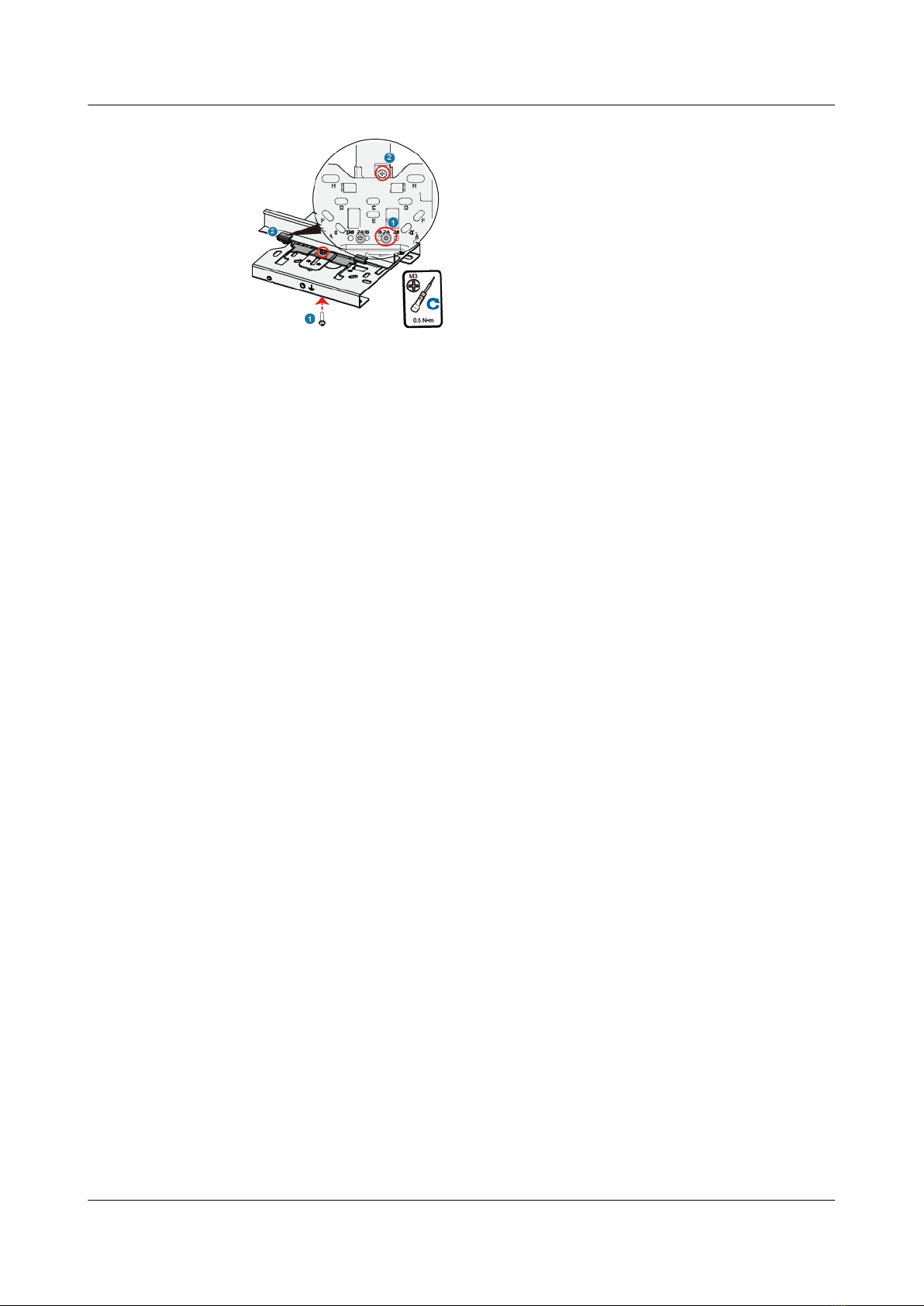

1. Partially tighten the M3X6.2 retaining screws into the T-shaped keel mounting
kit.
2. Install at-edge T-keel mounting kits a and b along the sliding slots on the
mounting kit body in the sequence shown in the gure.
1. Flat-edge T-shaped keel
mounting kit a
2. Flat-edge T-shaped keel mounting kit b
1. Route the M3X8 screws through the holes marked "24" in the gure, and
tighten the keel mounting kit a. If the T-shaped keel is 15 mm or 38 mm, it
corresponds to the "15" and "38" holes on the mounting bracket.
2. Clip the keel mount a into the T-keel and slide b inward along the slot until
the T-keel is clamped.
3. Route the M3X8 screws through the holes marked "24" in the gure, and
tighten the keel mounting kit b. Tighten the keel mounting stop screw
M3x6.2.
OptiXstar W826E
Quick Start 2 Installing the Device
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 6

After the stop screws are tightened, the mounting kit may be deformed. This is
normal and does not aect the use of the mounting kit.
1. Device cable. For details, see.3.
2. Align the mounting pegs at the rear of the device with the mounting holes on
the sheet metal mounting bracket, push the device vertically into the
mounting bracket, and press the device downwards. If you hear a click, the
device is secured to the sheet metal mounting bracket.
Ensure that the device is properly installed on the mounting bracket to prevent it
from falling o. Ensure that the installation space meets the preceding
requirements for future maintenance.
OptiXstar W826E
Quick Start 2 Installing the Device
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 7

3 Connecting Cables
Figure 3-1 Cable Connections
No. Connect
cables or
devices.
Description
1 telephone
line
Connect a phone using a phone line.
2 Network
cable
Connect the computer using a network cable.
3 Network
cable
Use an optical/electrical composite cable to connect to a
network cable and obtain power through a PoF.
4 DC power
adapter
If the DC power supply is used, use the delivered power
adapter. Otherwise, the device may be damaged.
5 Optical
port
Optical/electrical composite cables are used to connect
optical bers and support XGS-PON upstream transmission.
OptiXstar W826E
Quick Start 3 Connecting Cables
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 8

4 Description of Indicator
Indi
cat
ors
Status Description
Indi
cato
rs
on
the
pan
el
Steady white The PON upstream network is connected and the device
is running properly.
The red
indicator is
steady on.
The PON upstream network is not connected or the
system is starting.
The red
indicator
blinks slowly
(once/1s)
Equipment failure.
extinguished The device is not running.
OptiXstar W826E
Quick Start 4 Description of Indicator
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 9

5 Technical Specications
Project Specications
Dimensions (W x D
x H)
230 mm × 230 mm × 35 mm
Operating Ambient
Temperature
-10°C - 50°C
Operating ambient
humidity
5% RH to 95% RH, non-condensing
OptiXstar W826E
Quick Start 5 Technical Specications
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 10

6 FAQs
How Do I Log In to the WebUI?
1. Wireless login mode
a. Connect your phone, tablet, or computer to the Wi-Fi network of the
device.
b. Enter the IP address in the address box of the browser and press Enter. In
the displayed login window, enter the user name and password. For details
about the IP address, login account, and password, see the product
nameplate.
2. Wired login mode
a. Use a network cable to connect the network port of the device to the PC.
b. Set the IP address of the computer to be in the same network segment as
the IP address of the device.
For example, the IP address of the device is 192.168. *. * (For the IP address of
the device, see the product nameplate.)
The IP address of the computer is 192.168. *. *.
c. Log in to the web conguration page.
Enter the IP address in the address box of the browser and press Enter. In the
displayed login window, enter the user name and password.
For details about the IP address, login account, and password, see the product
nameplate.
How do I restart the device?
Press the reset button with a needle to restart the device.
How do I restore the factory settings?
When the device is powered on, use a needle to press and hold the reset button
for more than 10 seconds. After all indicators are o, release the button to restore
factory settings.
After the device is restored to factory settings, the device conguration parameters
are cleared and you need to set the Internet connection again.
OptiXstar W826E
Quick Start 6 FAQs
Issue 01 (2021-09-07) Copyright © Huawei Technologies Co., Ltd. 11
