General Information
The ring detect relay kit activates a peripheral device, such as a beacon or sounder, when ring voltage is
present at the telephone. The kit includes a PCBA, mounting hardware and a USOC RJ11C modular
connector cord.
Use the Model 12565-009 Kit with the Model 354-001 NEMA 4X Industrial Telephone or Model 276-
001 Flush-Mount Handset Telephone with Keypad. Use the Model 12565-010 Kit with the Model 246-
001 Indoor Industrial Telephone or Model 256-001 Outdoor Industrial Telephone.
The ring relay PCBA connects to the industrial telephone PCBA via the USOC RJ11C modular connector
cord. This connects the telephone input wiring directly to the ring detect relay PCBA. Install the ring
detect relay PCBA on the back of the front panel in all applicable models (see the Model 354-001, Model
276-001, or Models 246-001 and 256-001 installation section).
The kits include the following components:
Table 1. Model 12565-009 Components
Qty
Description
1
ringer relay PCBA
2
standoffs, #6-32 ×1.00-inches, F/F
2
standoffs, #6-32 × 1.25-inches, F/F
2
Phillips head machine screws, #6-32
× 5/16-inch
1
modular connector cord, USOC
RJ11C
Table 2. Model 12565-010 Components:
Qty
Description
1
ringer relay PCBA
2
standoffs, 4-40 1.18 inches, M/F
2
standoffs, 4-40 1.25 inches, M/F
4
Phillips head machine screws, 4-40 ×
5/16-inch
1
PCBA mounting plate
1
modular connector cord, USOC RJ11C
2
Phillips head machine screws, 6-32 ×
5/16-inch

Pub. 42003-274B
Ring Detect Relay Kit Page 2 of 6
P:\Standard IOMs - Current Release\42003 Kit Manuals\42003-274B.docx
10/20
Installation
Model 354-001
Use the parts in the Model 12565-009 Ring Detect Relay Kit:
1. Remove the four 10-32 security screws from the front cover of the telephone. Pull the cover away
from the back box/enclosure. Retain the screws.
2. Disconnect the incoming telephone line; red (ring) and green (tip) from terminal block TB1, of the
industrial telephone PCBA.
3. Install two (provided) 6-32 × 1.0-inch F/F standoffs onto the weld studs on the back of the front panel
(see Figure 1).
4. Align the ring relay PCBA with the two standoffs.
Note the orientation of the ring relay PCBA (see Figure 1).
5. Secure using two #6-32 screws provided.
6. Connect the incoming telephone line to terminal block TB1, on the ring relay PCBA (see Figure 2).
7. Connect the external sounder or beacon to terminal block TB2, on the ring relay PCBA (see Figure 2
and Figure 3).
8. Connect the
(provided) USOC
RJ11C modular
connector cord from
the industrial
telephone PCBA (see
Figure 4) to the ring
relay PCBA (see
Figure 2).
9. Place the front cover
onto the back
box/enclosure. Secure
the front cover to the
back box/enclosure
using the four 10-32
security screws,
retained in step one.

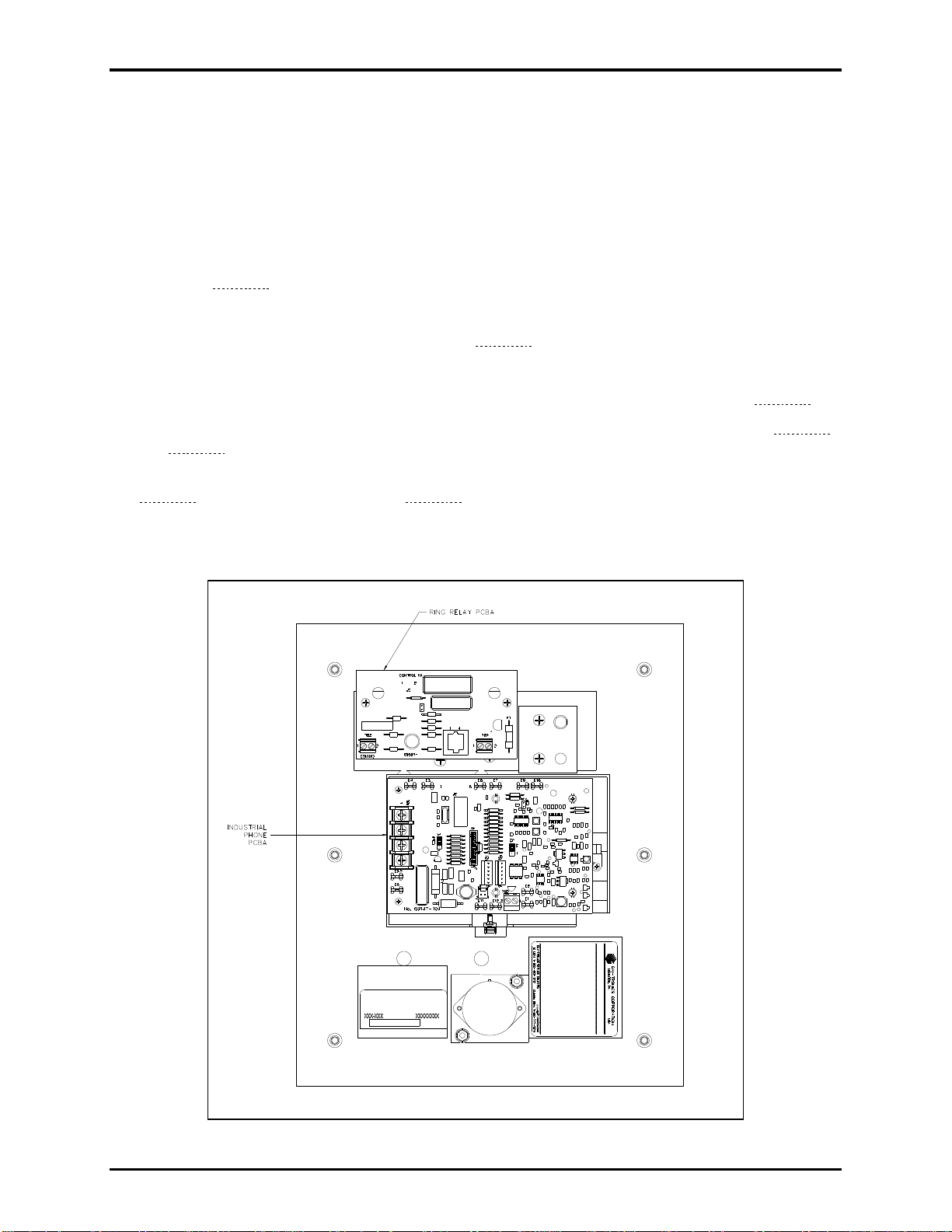

Figure 1. Model 354-001 Front Panel Interior

Pub. 42003-274B
Ring Detect Relay Kit Page 3 of 6
P:\Standard IOMs - Current Release\42003 Kit Manuals\42003-274B.docx
10/20
Figure 2. Ring Relay PCBA Wiring
Figure 3. Device Interconnection
Figure 4. Terminal Block TB1 on the Industrial Telephone PCBA

Pub. 42003-274B
Ring Detect Relay Kit Page 4 of 6
P:\Standard IOMs - Current Release\42003 Kit Manuals\42003-274B.docx
10/20
Model 276-001
Use the parts in the Model 12565-009 Kit:
1. Remove the six #10-32 security screws from front cover of telephone. Pull the cover away from the
back box/enclosure. Retain the screws.
2. Disconnect the incoming telephone line; red (ring) and green (tip) from terminal block TB1, on the
industrial telephone PCBA.
3. Screw two (provided) 6-32 × 1.25-inch F/F standoffs onto the two weld studs, on the back of the front
panel (see Figure 5).
4. Align the ring relay PCBA with the two standoffs.
Note the orientation of the ring relay PCBA (see Figure 5).
5. Secure the ring relay PCBA, to the back of the front cover, using two (provided) #6-32 screws.
6. Connect the incoming telephone line to terminal block TB1, on the ring relay PCBA (see Figure 2).
7. Connect the external sounder or beacon to terminal block TB2, on the ring relay PCBA (see Figure 2
and Figure 3).
8. Connect the (provided) USOC RJ11C modular connector cord, from the industrial phone PCBA (see
Figure 4), to the ring relay PCBA (see Figure 2).
9. Place the front cover onto the back box/enclosure. Secure the front cover to the back box/enclosure
using four 10-32 security screws, retained in step one.

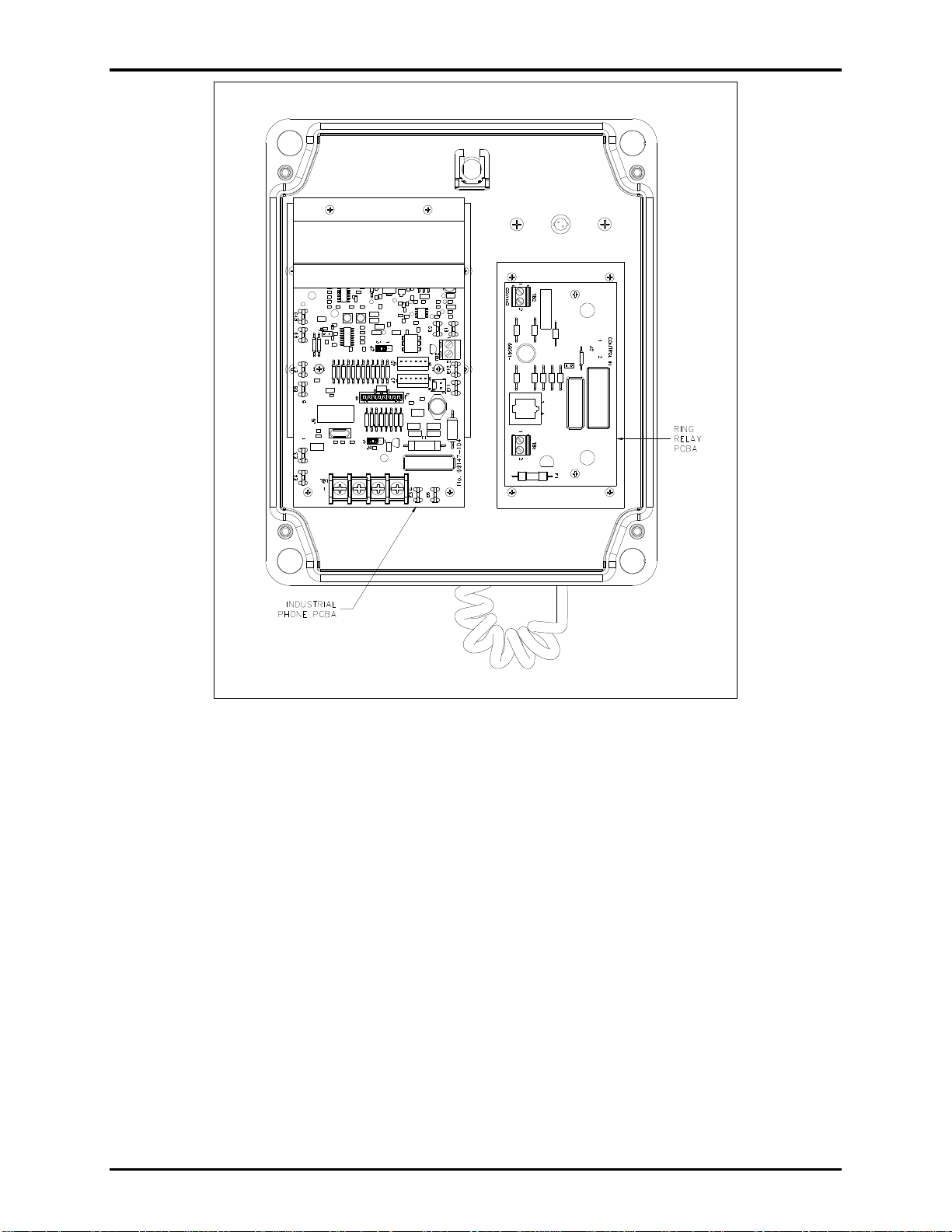

Figure 5. Model 276-001 Front Panel Interior

Pub. 42003-274B
Ring Detect Relay Kit Page 5 of 6
P:\Standard IOMs - Current Release\42003 Kit Manuals\42003-274B.docx
10/20
Models 246-001 and 256-001
Use the parts in the Model 12565-010 Kit:
1. Remove the four #10-32 screws from front cover of telephone. Pull cover away from the back
box/enclosure. Retain the screws.
2. Disconnect the incoming telephone line; red (ring) and green (tip), from terminal block TB1, on the
industrial telephone PCBA.
3. Remove the two #4-40 screws installed above ringer. Replace with two (provided) #4-40 × 1.18-inch
M/F standoffs (see Figure 6).
4. Install two (provided) #4-40 × 1.25-inch M/F standoffs into the front cover inserts, located below
ringer.
5. Align the (provided) ring detect relay PCBA mounting plate to the four standoffs.
Note the orientation of mounting plate (see Figure 6).
6. Secure with four (provided) #4-40 screws.
7. Align the ring relay PCBA with the two standoffs, on the ringer relay mounting plate.
Note the orientation of the ring relay PCBA (see Figure 7).
8. Secure the ring relay PCBA to the mounting plate using two (provided) #6-32 screws.
9. Connect the incoming
telephone line to terminal
block TB1, on the ring
relay PCBA (see Figure
2).
10. Connect the external
sounder or beacon to
terminal block TB2, on
the ring relay PCBA (see
Figure 2 and Figure 3).
11. Connect the (provided)
USOC RJ11C modular
connector cord from the
industrial phone PCBA
(see Figure 4) to the ring
relay PCBA (see Figure
2).
12. Place the front cover onto
the back box/enclosure.
Secure the front cover to
the back box/enclosure
using four 10-32 screws,
retained in step one.
Figure 6. Model 246-001 and 256-001 Exploded View

Pub. 42003-274B
Ring Detect Relay Kit Page 6 of 6
P:\Standard IOMs - Current Release\42003 Kit Manuals\42003-274B.docx
10/20

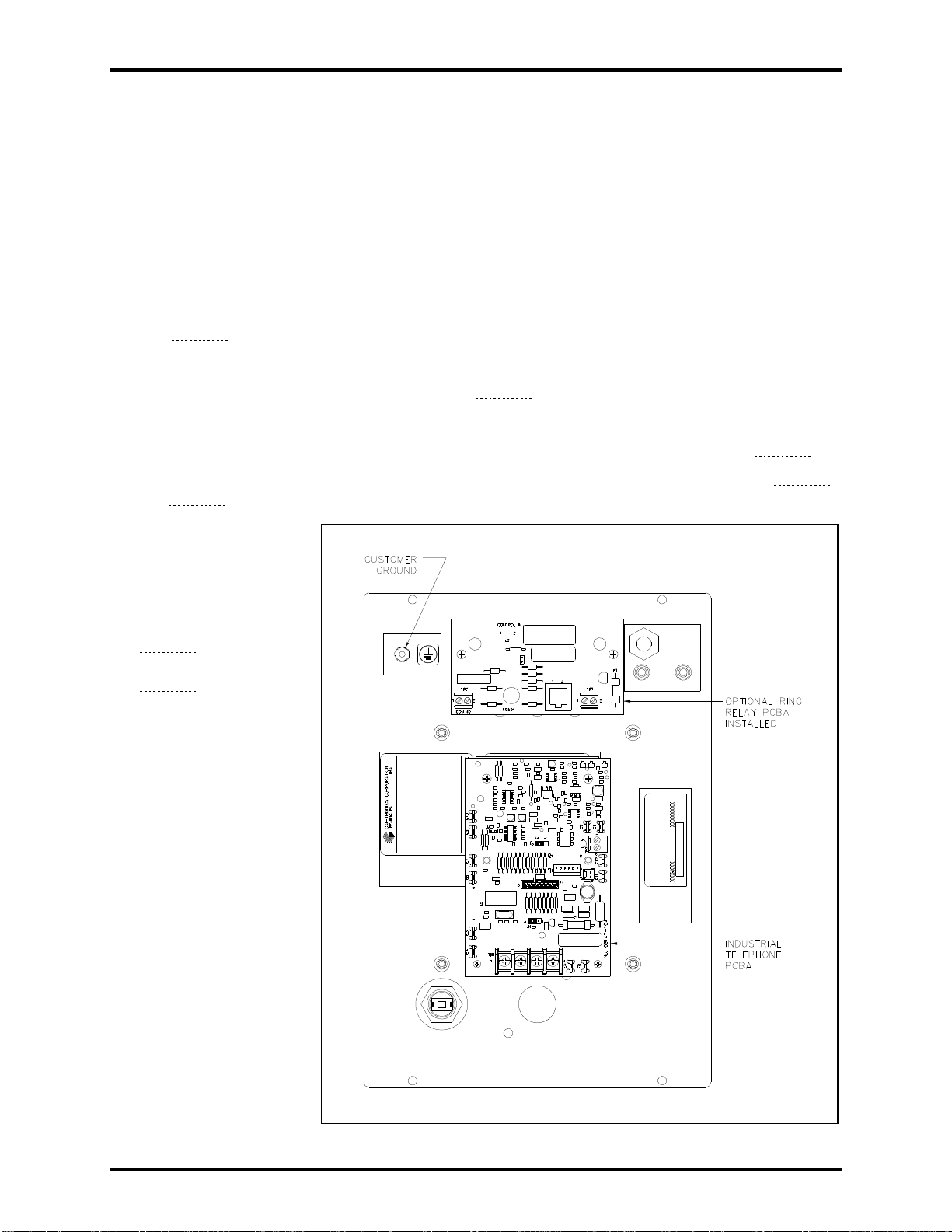

Figure 7 Model 246-001 and 256-001 Front Panel Interior
