Hubsan X4 Star User manual

®
ITEM NO.: H502C
ARM/DISARM MOTORS, SEE PAGE 06
RTH FUNCTION, SEE PAGE 09
COMPASS CALIBRATION, SEE PAGE 12
TRANSMITTER CALIBRATION, SEE PAGE 13
Ages 14+
READ THE INSTRUCTION MANUAL CAREFULLY
PLEASE VISIT WWW.HUBSAN TO UPGRADE
HUBSAN X4 STAR

02 ©2016 Hubsan
哈博森科技 版权所有
IMPORTANT SAFETY NOTES
OPERATION:
Flight:
Take responsiblity for the safety of yourself and others when flying the X4!
Do not fly the X4 in crowded places.
Do not fly in bad weather.
Never try to catch the X4 while it is in flight.
This model is intended for experienced pilots age 14+.
Power off the X4 after flight, to prevent the propellers from causing injuries.
Always remove the battery after you stop flying to avoid injuries from accidentally
powering on the motors.
Always take great caution to protect yourself when near the propellers.
The flight system will start after powering on regardless of the transmitter signal. The high
speed propellers are very dangerous.
Power off the X4 after every flight or the propellers may still rotate and cause injury.
Hubsan X4 Star
2016.04
Please read the instruction manual carefully!
V1.0
Be extremely careful and responsible when using the drone. Small electronic components can
be damaged by crashing or by dropping the X4 into water. To avoid further damages, please
replace broken parts immediately.

03 ©2016 Hubsan
哈博森科技 版权所有
INTRODUCTION

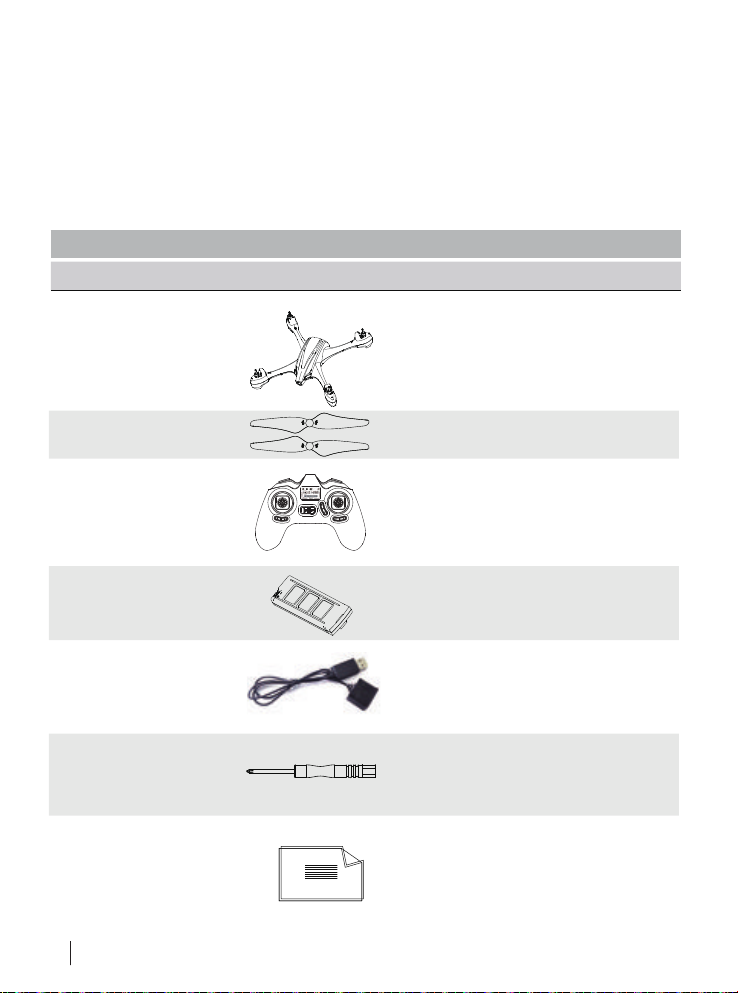

1. ITEMS INCLUDED IN THE BOX
Check all the items in the box before using.
S/N Part Name Photos Q'ty Remarks
1 Quad copter 1PC Equipped with smart flight
controller,GPS and compass
Propeller A 4pcs, Propeller
B 4pcs
2 Propellers 8PCS
6 Screw-driver 1PC For removing propellers
47.4V Li-Po battery 1PC For quad copter
Transmitter (powered by
4 X AAA battery-Not included)
3 Transmitter 1PC
Thank you for buying the HUBSAN product. It is designed as an
easy-to-use,multi-functional RC model, capable of hovering and acrobatic flight
maneuvers. Please read the manual carefully and follow all the instructions. Be
sure to keep the manual for future reference.
7 2PCS Disclaimer
Hubsan X4 Instruction Manual
User Manual
5 1PCUSB Charger For Li-Po battery charging
Quadcopter Weight: 147g(including battery)

04 ©2016 Hubsan
哈博森科技 版权所有
Please fully charge the batteries to avoid loss of control due to low voltage.
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the local regulations.
2. QUAD COPTER MOTOR LED INDICATOR
3. QUAD COPTER BATTERY
3.1 INTRODUCTION
The quad copter battery is a rechargeable Li-Po battery with 450mAh capacity and 7.4V voltage.
The battery should only be charged with the HUBSAN charger to avoid overcharge.

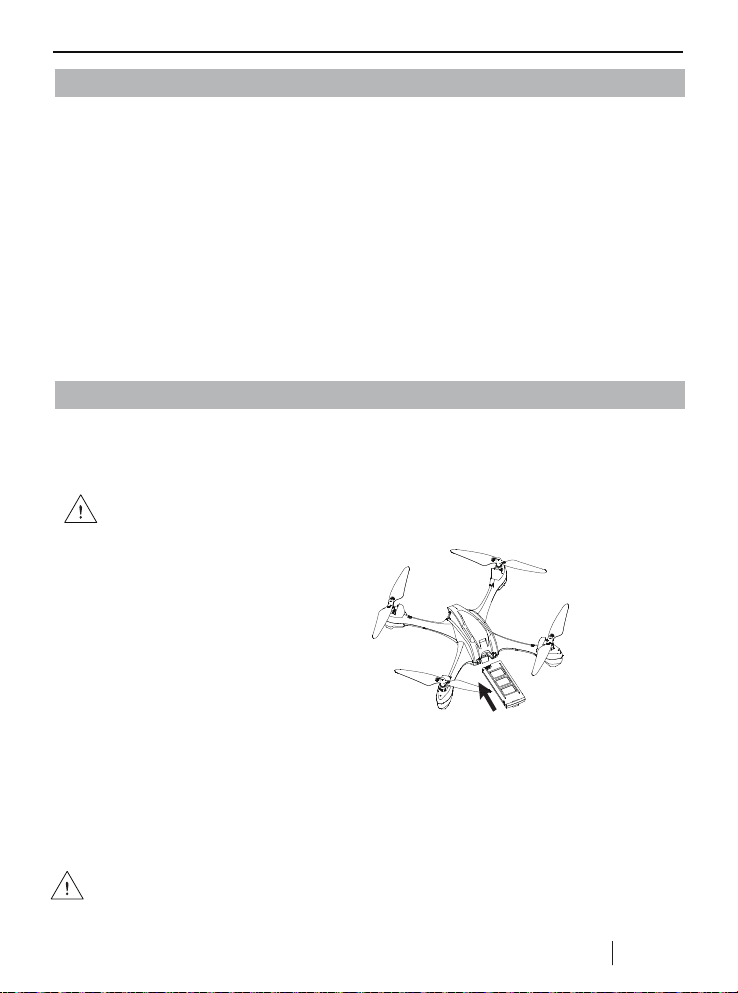

3.2 INSTALL THE BATTERY
Push the battery into the battery compartment
correctly.
Please make sure the battery is fully charged before first time use.
Indicator Status:
Front LED: is blue; Back LED: is red.
1. Power on: 4 LED indicators blink simultaneously every 1.5 seconds.
2. Compass Calibration:
1). Horizontal calibration: 4 LED indicators blink circularly.
2). Vertical calibration: 4 LED indicators blink alternately.
3. GPS Flight: 4 LED indicators remain lighted.
4. GPS Return : 2 front LED remain lighted, and 2 back LED blink twice every second.
5. Photo: 2 front LED remain lighted, 2 back LED blink once.
6. Video: 2 front LED remain lighted, 2 back LED blink alternately.
7. LED indicators can be turned off when taking pictures and videos.
3.3 CHARGING
Connect the battery to the USB charger, then connect the USB charger to USB devices,
such as a computer or mobile power charger.
It takes around 110 minutes to fully charge the battery with 460~495mA current. The USB
LED indicator blink slowly in red when charging and will remain lighted when the battery
is fully charged. Please unplug the charger and battery when the charging is completed.

05 ©2016 Hubsan
哈博森科技 版权所有
4. PROPELLER
Match the “I” mark on propellers to the “D” gap on
motor shafts when assembling, as figure 1 shows.
Attach the propellers to the corresponding motors that
are marked A and B,tighten the propellers and keep the
motors deadlocked with the screw-driver.
● Hazardous moving parts keep fingers and other body part away.
● Make sure that the A and B propellers are installed correctly. The X4 will not fly if
propellers are improperly installed.
“I” Mark
“D”Gap
<Figure 1>

06 ©2016 Hubsan
哈博森科技 版权所有

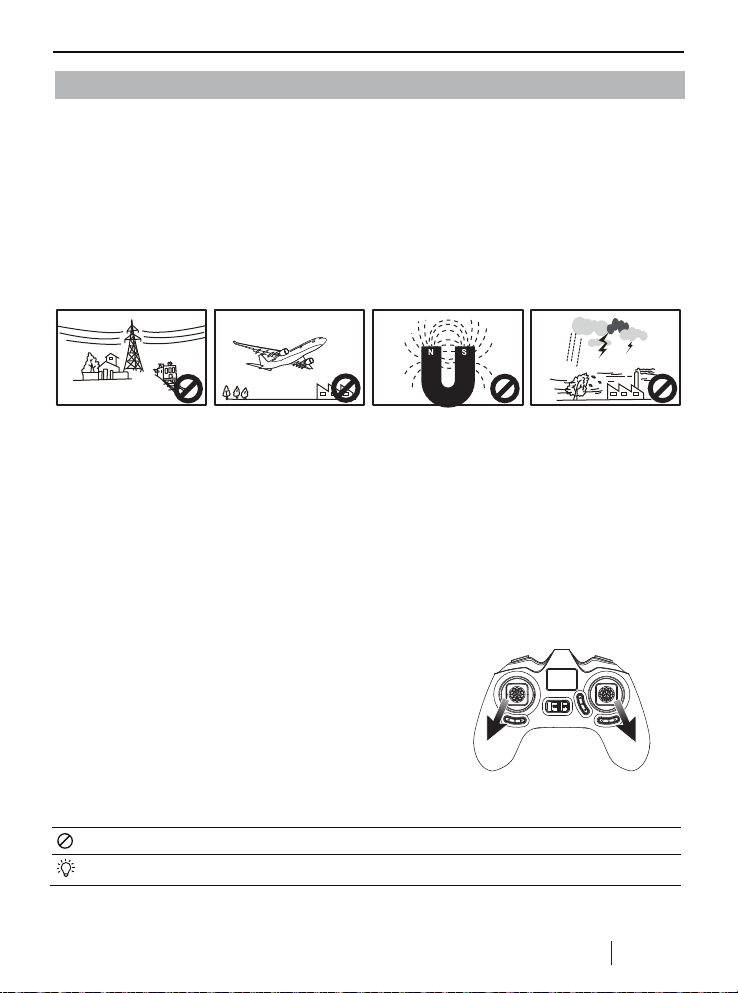

5.1 FLIGHT ENVIRONMENT
(1) The flying area should be open and without tall buildings or other obstacles; the steel
structure within buildings interferes the compass and the GPS signal.
(2) DO NOT fly in bad weather such as strong wind, heavy snow, rain or fog.
(3) Keep away from barriers, people, power cables, trees, and other obstructions.
(4) Do NOT fly near radio towers or airports.
(5) The X4 control system will not work properly at the South or North Pole
(6) DO NOT fly in restricted areas and obey your country's laws and regulations.
5. START TO FLY
5.3 ARM/ DISARM THE MOTORS
Arm the motors
Method : Pull the left stick to the left lowest corner and the right
stick to the right lowest corner as the picture shows. Release
both sticks after the motors are armed.
Disarm the motors
Method : Pull the left stick to the left lowest corner and the right
stick to the right lowest corner again, and release both sticks after the motors are disarmed.
Do not stop the motors during the flight to avoid crashing.
Push the sticks lightly. Release the sticks after the motors are armed or disarmed.
High Tension Line RainInterferenceAirport

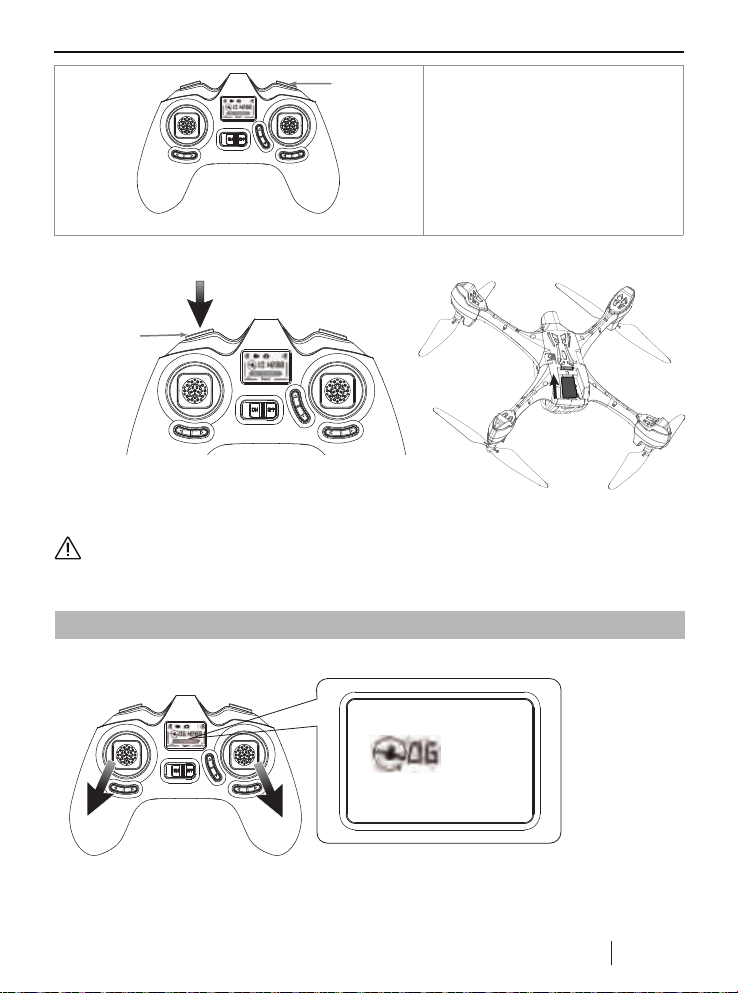

5.2 BINDING
The binding is completed in factory.
For re-binding, press Photo/Video button and power on the transmitter until “H” displayed, then
power on the drone, and place it very close to the transmitter, the binding will be completed after
one “ beep” heard.
Should the binding failed, please power off the drone and repeat above steps.

5.4 BASIC FLIGHT
Transmitter (Model 2) X4 Remarks
The operation mode for the transmitter including Mode 1 or Mode 2. The manual will use Mode 2 as
an example to illustrate the transmitter’s operation.
The throttle stick controls the ascent and
descent .
Push up the stick and the X4 will ascend.
Pull down the stick and the X4 will descend.
When the stick is in the center, the X4 will hover
and hold its alititude automatically .
Move the throttle stick above the center position
to take off. (Move the stick slowly to prevent the
X4 from ascending too quickly.)
UP
Down
07
©2016 Hubsan
哈博森科技 版权所有
The Rudder stick controls the rotate direction .
Push the stick left and the X4 will rotate
counter-clockwise.
Push the stick right and the X4 will rotate
clockwise.
When the stick is in the center,the X4 will keep
the current direction and not rotate.
Pushing harder will cause the X4 to rotate
faster in the corresponding directions.
Right rotation
Left rotation
Forward
Backward
Right
Left
The Elevator stick controls the X4 forward and
backward.
Push the stick up and the X4 will fly forward.
Pull the stick down and the X4 will fly
backward.
When the stick is in the center, the X4 will hold
its position.
The angle of stick movement corresponds to
the angle of tilt and flight speed.
The Aileron stick controls the left and right flight.
Push the stick left and the X4 will fly to the left.
Push the stick right and the X4 will fly to the
right.
The X4 should be horizontal and keep the
current status when the stick is in the center.
The angle of stick movement corresponds to
the angle of tilt and flight speed.

08
©2016 Hubsan
哈博森科技 版权所有
Insert the SD card into quadcopter before using Photo/Video function.
Press the Photo/Video button for 0.5 second to take photos.
Press the Photo/Video button for 1.5 seconds to take videos and press again to save the videos.
5.5 PHOTO / VIDEO
Stop recording before the SD card is removed.
PHOTO / VIDEO
6.1 GPS POSITIONING/ HOME POINT SETTING
1.) GPS Positioning works ONLY when the GPS signal has no less than 6 satellites.
2.) Home Point is recorded when armed the motors with no less than 6 GPS satellites.
3.) You should be in an open place to search for the GPS satellites, it’ll take 3 mins to finish
the searching, and the GPS signal strength depends on the flying environment.
6. ADVANCED PERFORMANCE SETUP
Set
Set
RTH only available when there are no less
than 6 GPS satellites displayed on transmitter.
Press the RTH for 1.5 seconds to activate the
function, press again to stop the RTH.
GPS and RTH function only available outdoors.
RTH
SD

09
©2016 Hubsan
哈博森科技 版权所有
6.3 FAILSAFE MODE
The drone will enter into Failsafe Mode when the connection is lost from the transmitter. The
flight control system will control the quad copter to return to the home point and land
automatically. The Failsafe Mode helps to avoid further injuries or damages.
CONDITIONS WHICH ACTIVATE THE FAILSAFE MODE
(1) Transmitter is powered off.
(2) The flight distance is beyond the range of the transmitter’s signal transmission.
(3) The transmitter’s signal was interrupted by some other strong electronic interference.
To ensure that the X4 can return safely to its home point when GPS signal is lost, fly
the X4 in safe flight area.
If the quantity of GPS satellites drops below six for more than 20 seconds while the
X4 is returning home, the X4 will descend automatically.
The X4 will not avoid obstacles automatically while in failsafe mode.
!The RTH MODE only works when the GPS with no less than 6 satellites.
6.2 RTH MODE
ENTER/ EXIT RTH MODE
Press the RTH button for 1.5 secondS, and the drone will enter into RTH mode. The flight control
system will control the drone to fly back to the home point and land automatically. Press the
button again for 1.5 seconds to exit RTH mode.
(RETURN TO HOME)

10
©2016 Hubsan
哈博森科技 版权所有

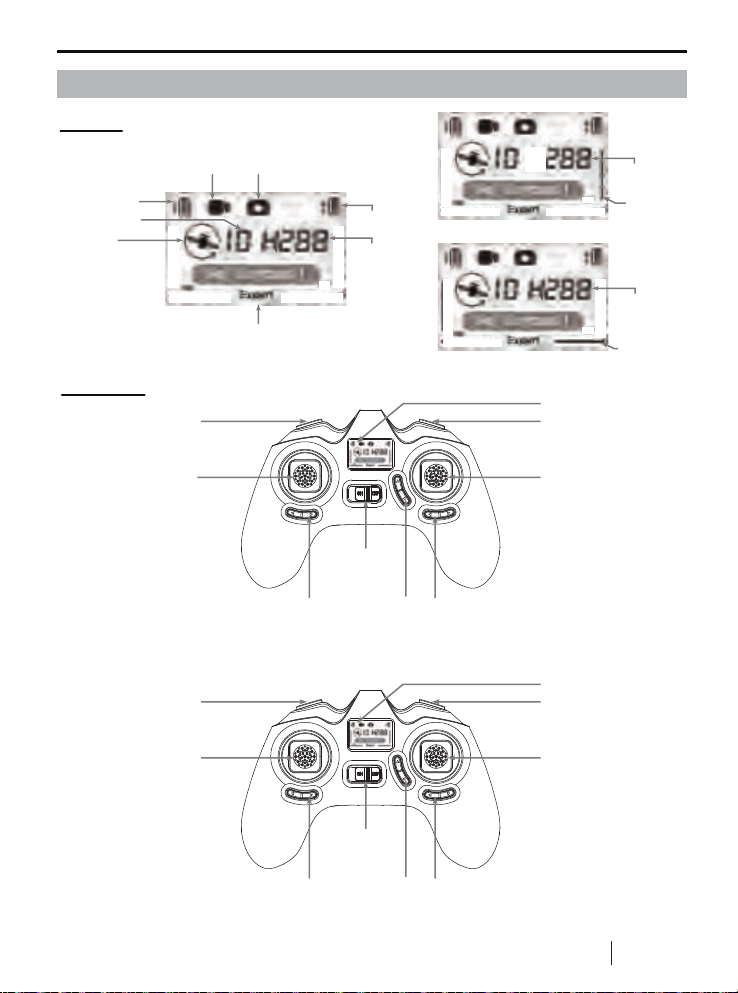

7. TRANSMITTER(FCC ID: 2AEXY10 0 0 TX)
Transmitter
[4] Power Switch
[5] Elevator Trim [6] Aileron Trim
[3] Rudder Trim
Motor LED Switch
[1] Photo/Video
[7] LCD
[8] RTH
9 Elevator/Aileron Stick2Throttle/Rudder Stick
MODE 1
MODE 2
[1] Photo/Video
[4] Power Switch
[5] Elevator Trim [6] Aileron Trim
[3] Rudder Trim
Motor LED Switch
[2] Elevator/Rudder Stick
[9] Throttle/Aileron Stick
[7] LCD
[8] RTH
Interface
Tansmitter battery
voltage display
GPS satellites
GPS Mark
Quad copter
battery voltage display
Head orientation
Video Photo
Expert/Normal Distance Mark
Distance
Height Mark
Height

11 ©2016 Hubsan
哈博森科技 版权所有
MODE 2 MODE 1

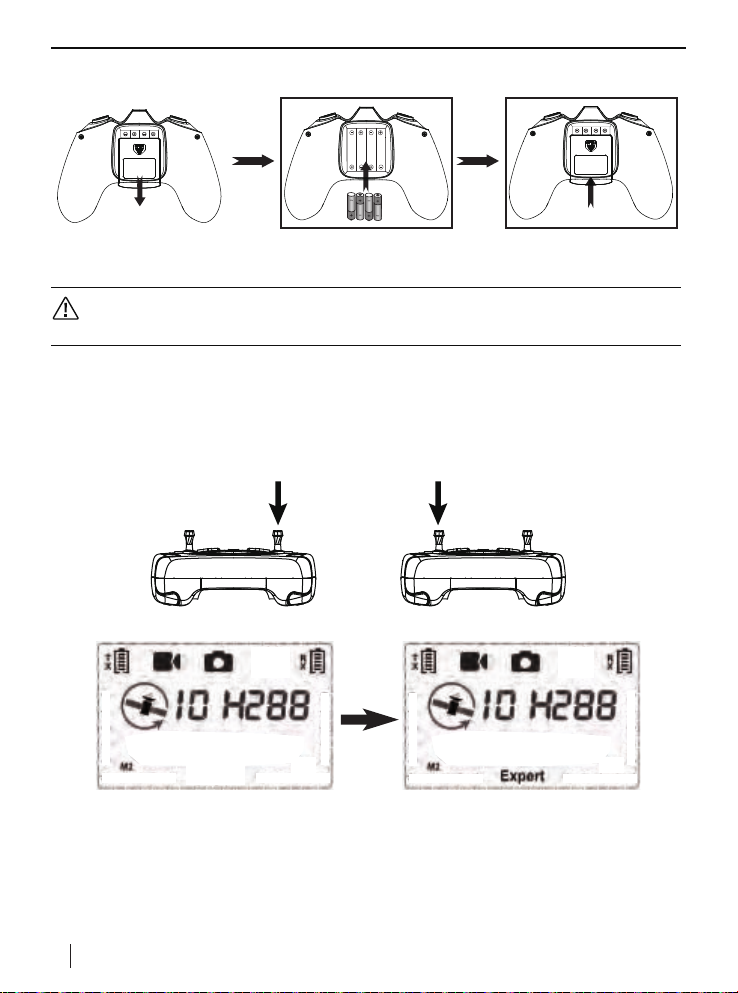

7.2 NORMAL AND EXPERT FLIGHT MODES
The default setting for X4 is Normal Mode, and the Expert Mode can be activated to have a better
sensitivity on the performance of the X4.
Press the Elevator stick 0.5 second to shift between Normal Mode and Expert Mode, indicated by one
“beep”. When it enters into Expert Mode, “Expert” will be displayed on LCD.
Normal Mode Expert Mode
● Do not mix old and new batteries ● Do not mix different types of batteries
● Do not charge non-rechargeable battery.
7.1 INSTALL THE TX BATTERY
Close the cover
Remove the cover Install 4 x AAA batteries
according to the correct polarities
PUSH PUSH

12 ©2016 Hubsan
哈博森科技 版权所有
Flying in the area nearby magnetic field would interfere the compass which need
re-calibration as above instructed.

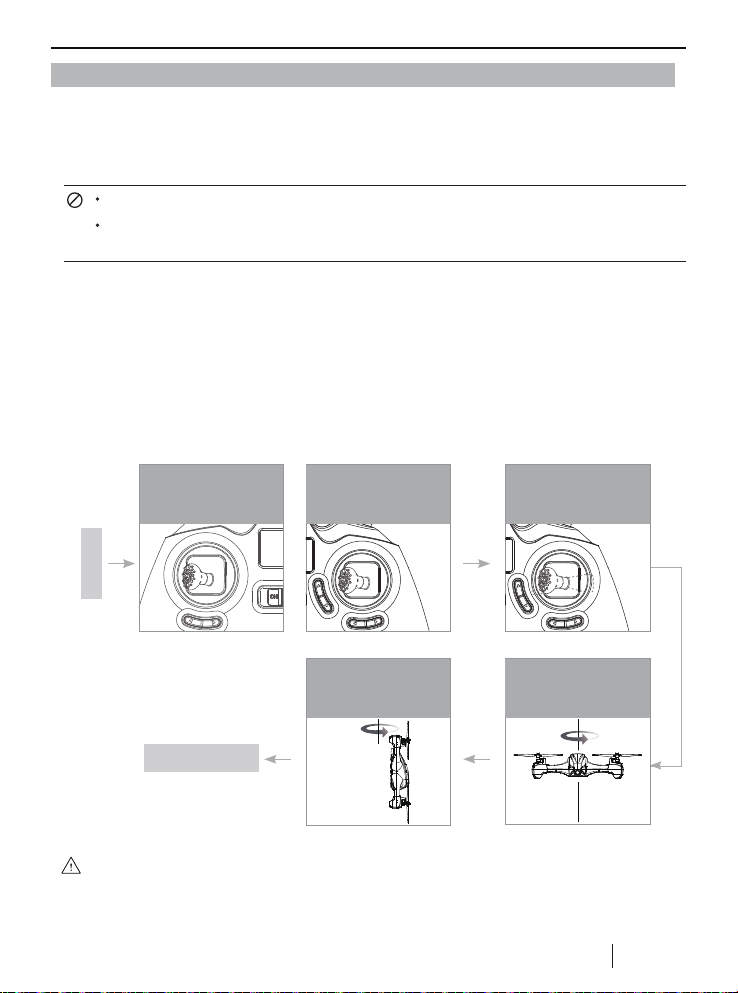

8. COMPASS CALIBRATION
COMPASS CALIBRATION PROCEDURES
Please follow the calibrating procedures before the first flight.
1.) Hold the Throttle Stick to the left corner, and move the Aileron Stick left to right quickly until
the transmitter displays " Set Compass 1" (Mode 2);
Hold the Throttle Stick to the left corner, and move the Aileron Stick left to right quickly until
the transmitter displays " Set Compass 1" (Mode 1)
2.) Rotate the X4 horizontally clock-wise until the LCD screen displays " Set Compass 2"
3.) Put the X4 nose down and rotate it vertically counter clock-wise until the " Set Compass 2"
on screen disappears
4.) Calibration done.
Do not calibrate the compass in a strong magnetic field.
Do not carry ferromagnetic materials with you while calibrating the compass,
such as keys, cell phones, etc.
Compass calibration is required before the first time flight, otherwise the system may not work
properly. The compass is very sensitive to electromagnetic interference which can cause
abnormal compass data and lead to poor flight performance or even flight failure. Regular
calibration enables the compass is in optimum performance
.
Rotate the quadcopter
vertically until
“Set Compass 2”
disappear
Rotate the quadcopter
horizontally until
“Set Compass 2”
display
Put the Aileron stick to the
middle, move it left to right
quickly until “Set Compass 1”
displayed on LCD
START
Calibration done
Put the throttle
to the left corner
Put the throttle
to the left corner
Mode 2 Mode 1

13 ©2016 Hubsan
哈博森科技 版权所有
9. TRANSMITTER CALIBRATION
The transmitter mode can be shifted according to the above operation.
!
Mode 2: Push both sticks to the upper left corner and power on the transmitter simultaneously.
The LCD will display “OH”, rotate both sticks in circles three times, release the sticks and press
any trim for 1.5 seconds until one “Beep” heard which indicates a successful calibration.
Mode 1: Push the left stick to the upper left corner and right stick to the upper right corner and
power on the transmitter simultaneously, The LCD will display “OH”, rotate both sticks in circles
three times, release the sticks and press any trim for 1.5 seconds until one “Beep” heard which
indicates a successful calibration.

14 ©2016 Hubsan
哈博森科技 版权所有

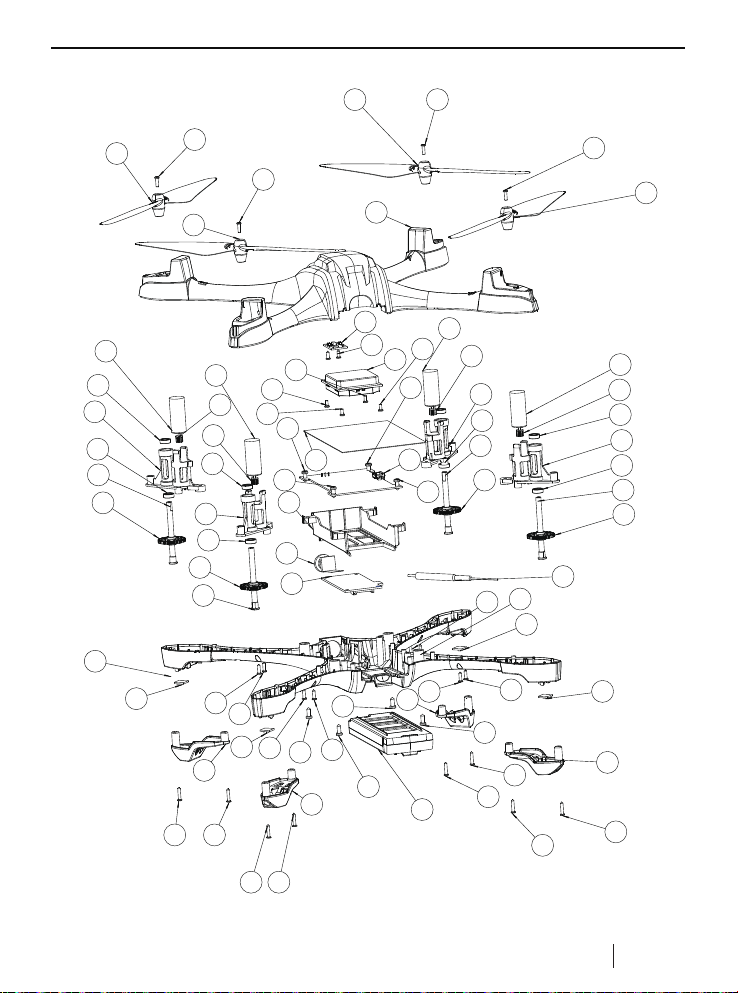

EXPLODED VIEW
17
29
29
29
29
17
16
5
16
6
20 26
26
26 26
26 26
26
26
20
21
28
28
28
28
27
27
27
27
21
27 27
27 27
8
8
8
8
9
19
14
12
12
11
15
13
22
25
30
18
3
3
3
3
4
114
13
12
11
15
28
28
28
28
7
10
2
23
19
18
14
14
12
12
15
13
12
12
11
11
15
13

15 ©2016 Hubsan
哈博森科技 版权所有
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
NO. PART NAME QTY
18
19
20
21
22
23
24
25
26
27
28
29
30
NO. PART NAME QTY
GPS Module
Video Storage Module
Screw
Signal Isolation Membrane
Upper Body Shell
Lower Body Shell
Battery Cover
Motor LED Lampshade
Li-Po Battery
Camera Module
Transmission Shaft
Bearing
Motor Holder
Motor Gear
Rotary Gear
Propeller A
Propeller B
1
1
4
1
1
1
1
4
1
1
4
8
4
4
4
2
2
Motor A
Motor B
Blue LED PCBA
Red LED PCBA
Compass PCBA
Main Control Board
Protection Cover
Screw
Screw
Screw
Screw
Screw
2.4G Attenna
2
2
2
2
1
1
4
2
12
8
8
4
1

ＦＣＣ ＩＮＦＯＲＭＡＴＩＯＮ
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the local dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
ＥＮＶＩＲＯＮＭＥＮＴＡＬＬＹ ＦＲＩＥＮＤＬＹ ＤＩＳＰＯＳＡＬ
Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of
separately. The disposal at the communal collecting point via private persons is for free.
The owner of old appliances is responsible to bring the appliances to thise collecting
points or to similar collection points. With this little personal effort, you contribute to recycle
valuable raw materials and the treatment of toxic substances.
16 ©2016 Hubsan
哈博森科技 版权所有

17 ©2016 Hubsan
哈博森科技 版权所有

User manual is subject to change without prior notice due to
unforseen product upgrades.
Download the latest user manual from
WWW.HUBSAN.COM
VERSION 1.0 EN
