dji PHANTOM 3 4K User manual

V1.0
2016.01
User Manual
PHANTOM 3

2
©2016 DJI. All Rights Reserved.
Using this manual
Legends
Warning Important Hints and Tips Reference
Read Before the First Flight
Read the following documents before using the Phantom 3 4K:
1. In the Box
2. Phantom 3 4K User Manual
3. Phantom 3 4K Quick Start Guide
4. Phantom 3 Safety Guidelines and Disclaimer
5. Phantom 3 Intelligent Flight Battery Safety Guidelines
We recommend that you read the Disclaimer before you y. Prepare for your rst ight by reviewing the
Phantom 3 4K Quick Start Guide and refer to the User Manual for more detailed information.
Download the DJI GO app
Download and install the DJI GO app before using the aircraft. Scan the QR code to the right
to download the latest version.
The Android version of the DJI GO app is compatible with Android 4.1.2 or later.
The iOS version of the DJI GO app is compatible with iOS 8.0 or later.
Searching for Keywords
Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe Acrobat
Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.
Navigating to a Topic
View a complete list of topics in the table of contents. Click on a topic to navigate to that section.

©2016 DJI. All Rights Reserved.
3
Contents
Using this manual
Legends 2
Read Before the First Flight 2
Video Tutorials 2
Download the DJI GO app 2
Product Prole
Introduction 6
Feature Highlights 6
Preparing the Aircraft 6
Aircraft Diagram 8
Remote Controller Diagram 8
Aircraft
Flight Controller 11
Flight Mode 11
Flight Status Indicator 11
Return-to-Home (RTH) 12
Smart RTH 12
Low Battery RTH 13
Failsafe RTH 14
Vision Positioning System 15
Flight Recorder 16
Attaching and Detaching the Propellers 17
DJI Intelligent Flight Battery 18
Remote Controller
Remote Controller Prole 23
Using the Remote Controller 23
Remote Controller Status LED 28
Linking the Remote Controller 29
Remote Controller Compliance Version 30

4
©2016 DJI. All Rights Reserved.
Camera and Gimbal
Camera Prole 32
Gimbal 33
DJI GO app
Camera 36
Director 39
Store 39
Discovery 39
Flight
Flight Environment Requirements 41
Flight Limits and No-Fly Zones 41
Preight Checklist 45
Calibrating the Compass 45
Auto Takeoff and Auto Landing 46
Starting/Stopping the Motors 47
Flight Test 47
Troubleshooting (FAQ)
Appendix
Specications 55
Firmwares Update 57
Intelligent Flight Mode 57
After-Sales Information 57
FCC Compliance 58

©2016 DJI. All Rights Reserved.
5
Product Prole
This section introduces the Phantom 3 4K
and lists the components of the aircraft
and remote controller.

Product Profile
6
©2016 DJI. All Rights Reserved.
Product Prole
Introduction
The Phantom 3 4K represents the next generation of DJI quadcopters. It is capable of capturing 4K
video and transmitting an HD video signal out of the box. The built-in camera has an integrated gimbal to
maximize stability while minimizing both weight and size. Even when no GPS signal is available, the Vision
Positioning System allows the aircraft to hover accurately in place.
Feature Highlights
Camera and Gimbal: With the Phantom 3 4K, you’re shooting 4K video at up to 30 frames per second and
capturing 12 megapixel photos that look crisper and cleaner than ever. An enhanced sensor gives you
greater clarity, lower noise, and better pictures than any previous ying camera.
Wi-Fi Video Downlink: Live HD video is streamed from the camera to the DJI GO app over Wi-Fi as you
y. A Wi-Fi range extender is built into the remote controller.
DJI Intelligent Flight Battery: The 4480 mAh DJI Intelligent Flight Battery features upgraded battery cells
and an advanced power management system.
Flight Controller: The next-generation ight controller has been updated to provide a safer, more reliable
ight experience. A newly implemented ight recorder stores critical data from each ight and the Vision
Positioning System enhances hovering precision when ying indoors or in environments where GPS is
unavailable.
Preparing the Aircraft
Removing Gimbal Clamp
Remove the gimbal clamp by sliding it to the right (when facing the nose of the aircraft), as shown below.

Product Profile
Phantom 3 4K User Manual
©2016 DJI. All Rights Reserved.
7
Attaching the Propellers:
Mount the propellers with black dots on to motors with black axes and spin counter-clockwise to secure.
Mount the propellers with sliver dots on to motors with sliver axes and spin clockwise to secure. Be sure
all propellers are securely in place.
Preparing the Remote Controller:
The mobile device holder is designed for securing tablet or mobile device. Tilt the mobile device holder to
the desired position, then adjust the antennas so they are facing outward.
1. Press the button on the top right side of the mobile device holder to release the clamp, then adjust the
clamp to t the size of your mobile device.
2. Secure your mobile device in the clamp by pressing down.
Place all propellers onto the correct motors and tighten by hand to lock them in position.
Battery Installation
Slide battery into the battery compartment according to the arrow’s direction shown below. Make
sure that you hear a click sound indicates the battery is rmly installed. Failure to do so may affect
the ight safety of your aircraft.
1
2

Product Profile
Phantom 3 4K User Manual
8
©2016 DJI. All Rights Reserved.
Aircraft Diagram
Remote Controller Diagram
[1] Antennas
Relays aircraft control and
video signal.
[2] Mobile Device Holder
Securely mounts your mobile
device to the remote controller.
[3] Control Stick
Controls the orientation and
movement of the aircraft.
[4] Return Home (RTH) Button
Press and hold the button to
initiate Return to Home (RTH).
[1]
[2]
[4]
[5]
[6]
[7]
[8]
[3]
[1] GPS
[2] Propeller
[3] Motor
[4] Front LED Indicator
[5] Landing gear
[6] Gimbal and Camera
[7] Camera Status Indicator
[8] Aircraft Micro-USB Port
[9] Aircraft Status Indicator
[10] Intelligent Flight Battery
[11] Vision Positioning Sensors
[12] Antennas
[13] Camera Micro-SD Card Slot
[14] Camera Micro-USB Port
[15] Link Button
[1]
[2]
[3]
[4]
[5]
[9]
[12]
[10]
[11]
HD
[13]
[14]
[6]
[8]
[7]
[15]

Product Profile
Phantom 3 4K User Manual
©2016 DJI. All Rights Reserved.
9
[5] Battery Level LEDs
Displays the battery level of the remote
controller.
[6] Status LED
Displays the remote controller's system status.
[16]
[18]
[17]
[9] Camera Settings Dial
Turn the dial to adjust camera settings.
(Only functions when the remote controller is
connected to a mobile device running the DJI
GO app. )
[10] Playback Button
Playback the captured images or videos.
(Only functions when the remote controller is
connected to a mobile device running the DJI
GO app.)
[11] Shutter Button
Press to take a photo. If burst mode is
selected, the set number of photos will be
taken with one press.
[12] Flight Mode Switch
Switch between P-mode, A-mode, and
F-mode.
[13] Video Recording Button
Press to start recording video. Press again to
stop recording.
[14] Gimbal Dial
Use this dial to control the tilt of the gimbal.
[15] Mircro-USB Port
Reserved port.
[16] C1 Button
Customizable through the DJI GO app.
[17] C2 Button
Customizable through the DJI GO app.
[18] Power Port
Connect to the DJI Phantom 3 Charger to
charge the battery of the remote controller.
[10]
[11]
[15]
[9]
[12]
[13]
[14]
[7] Power Button
Used to turn the remote controller on and off.
[8] RTH LED
Circular LED around the RTH button displays
RTH status.

10
©2016 DJI. All Rights Reserved.

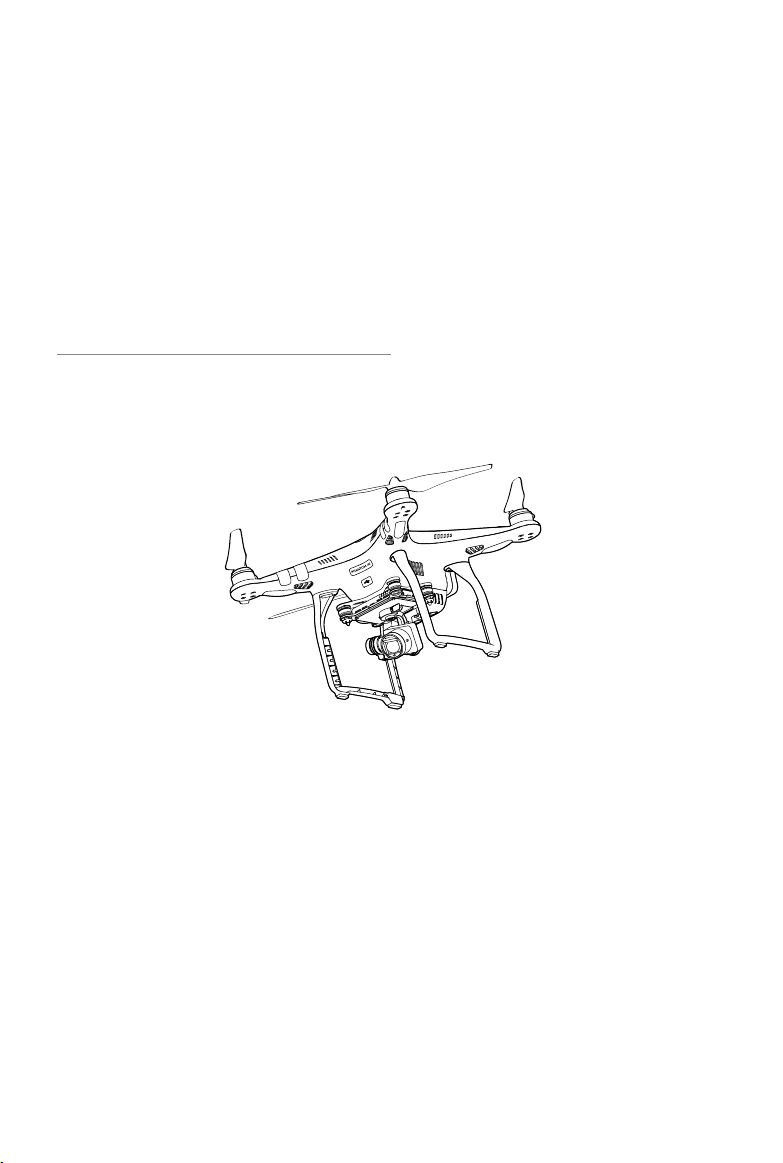

Aircraft
This section introduces the features of
the Flight Controller, Vision Positioning
System, and the Intelligent Flight Battery
