Humandata USB-029H2-RP User manual

HuMANDATA LTD.
USB 2.0 Isolator with Repeater IC
USB-029H2-RP
User’s Manual
Ver. 1.0

USB-029H2-RP (Ver.1.0)
Table of Contents
Precautions ..................................................................................................... 1
Revision History.............................................................................................. 2
Introduction .................................................................................................... 2
1. Overview............................................................................................................ 3
2. Feature .............................................................................................................. 4
3. Connection ......................................................................................................... 5
4. Power Supply ..................................................................................................... 5
5. SG/FG Separation switch ................................................................................... 5
5.1. SW1 .......................................................................................................................5
5.2. SW2 .......................................................................................................................5
6. FG, FG2 Terminal .............................................................................................. 6
7. Specifications ..................................................................................................... 7
7.1. Product Specification ...........................................................................................7
7.2. AC adapter (Japan's specifications)....................................................................8
7.3. Optional Accessories ............................................................................................8
8. Additional Documentation and User Support ..................................................... 9
9. Attachment Documentations.............................................................................. 9
10. Warranty and Compensation............................................................................ 9

1
USB-029H2-RP (Ver.1.0)
Precautions
1
This product uses ordinary off-the-shelf electronic components, and
is therefore inappropriate for use in applications that require special
quality or reliability and are expected to protect human lives or
prevent accidents, such as safety mechanisms in fields including
space, aeronautics, medicine, and nuclear power.
2
Do not be used underwater or in high-humidity environments.
3
Do not be used in the presence of corrosive gases, combustible gases,
or other flammable gases.
4
Do not turn on power when circuit board surface is in contact with
other metal.
5
Do not apply voltage higher than rated voltage.
6
This manual may be revised in the future without notice owing to
improvements.
7
All efforts have been made to produce the best manual possible, but
if users notice an error or other problem, we ask that they notify us.
8
Item 7 notwithstanding, HuMANDATA cannot be held liable for the
consequences arising from use of this product.
9
HuMANDATA cannot be held liable for consequences arising from
using this product in a way different from the uses described herein,
or from uses not shown herein.
10
This manual, circuit diagrams, sample circuits, and other content
may not be copied, reproduced, or distributed without permission.
11
If the product emits smoke, catches fire, or becomes unusually hot,
cut the power immediately.
12
Do not install the control cables or communication cables together
with the main circuit lines or power cables. In such an environment,
it may result in malfunction due to noise.
13
Be careful of static electricity.
Do Not
Attention

2
USB-029H2-RP (Ver.1.0)
Revision History
Date
Revision
Description
Oct. 11, 2017
v1.0
Initial release
Introduction
Thank you very much for purchasing our product.
USB-029H2-RP is a USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low
Speed (1.5Mbps) compliant isolator that isolates between a USB host and a USB
peripheral device.

3
USB-029H2-RP (Ver.1.0)
1. Overview
USB Host side
USB Target side
Power Input
(Positive Tip)
Power LED
USB Connector
(Host)
Power LED
(Target)
USB Connector
(Target)
FG Terminal
GND/FG Separation Switch
FG/FG2 Separation Switch
GND2/FG2 Separation
Switch
FG2 Terminal

4
USB-029H2-RP (Ver.1.0)
TOP side (Block diagram)
2. Feature
USB-029H2-RP is a USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low
Speed (1.5Mbps) compliant isolator that between a USB host and a USB peripheral
device are isolated.
With USB-029H2-RP, it can be expected to eliminate ground loops that can cause
measurement errors and equipment from surges, common-mode voltage, static
discharge, magnetic fields, and radio frequency interference.
There is no need to install any drivers. It works with every operating system of
Windows, Linux, Mac OS X, and others.
USB-029H2-RP consists with additional built-in USB signal repeaters and a FG
separation switch to USB-029H2. The USB signal repeater ICs are installed in both
host and target side respectively that regenerates USB signal expecting stable USB
communication.

5
USB-029H2-RP (Ver.1.0)
Factory Setting
Factory Setting
3. Connection
You can use an included USB cable to the host side connector to the host (such as a
personal computer), and connect a USB peripheral device to the target side
connector.
4. Power Supply
USB-029H2-RP is powered through a USB port (Bus-powered) or an AC adapter
(Self-powered). An AC adapter has higher priority when both supplies are applied.
5. SG/FG Separation switch
5.1. SW1
You can separate between GND (signal ground) and FG (frame ground) by the
dip-switch each USB host and USB target.
* Host and target is same function.
5.2. SW2
When the all the switches are turned to ON, signal GND of host side and target
side are connected. In that case, your system is not isolated.
When only SW1-2 is tuned to ON, shield of USB cable of host side is extended to
the target device. As a result, an improvement of noise tolerance can be expected, but
in some cases the common connection makes loops that would be noise routes. You
need to find the best way of the GND connection in your system that depends on your
target device’s specification and wiring conditions.
SW1[1] Pos.
GND - FG
OFF
Open
ON
Connection
SW1[2] Pos.
FG - FG2
OFF
Open
ON
Connected
Position
GND - FG
OFF
Open
ON
Connection

6
USB-029H2-RP (Ver.1.0)
6. FG, FG2 Terminal
You can connect a ground wire to this terminal when needed.
Noise tolerance may be improved by connecting terminals of FG and FG2 to
the grounds.
1.25 mm2or thicker wires are good to connect between the solderless FG
terminal and housing of the host computer or power strips.
Suitable solderless terminal: R1.25-3.5 (1.25-M3)

7
USB-029H2-RP (Ver.1.0)
7. Specifications
7.1. Product Specification
Item
Description
Remarks
Model
USB-029H2-RP
Input Power
5VDC
Supplied through a USB port
(Bus-powered) or AC adapter
(Self-powered)
Recommend the use of an
AC adapter for stably supply
An AC adapter supply to the
host side.
Current
Consumption
Less than 100 mA (Bus-powered)
Less than 400 mA (AC adapter)
HOST interface
USB 2.0 Compliant
Supports High (480 Mbps), Full
(12 Mbps) and Low (1.5 Mbps)
Speed
USB 1.1 compatible
ESD protection
Isolation Method
Bus isolation
Isolation Protection
3000VDC Designed value
Support OS
OS-Independent
(No drivers required)
LED
PWR: Power LED
TG PWR: Target Power LED
Operating Ambient
Temperature
-10 to 60 [°C] (14 to 140 [°F])
No condensation permitted
Operating Ambient
Humidity
30 to 85%RH
Storage Ambient
Temperature
-20 to 60 [°C] (-4 to 140 [°F])
Storage Ambient
Humidity
30 to 85%RH
Weight
Approx. 90 [g]
Only main body
Dimensions
67 x 67 x 28 [mm]
(2.638" x 2.638" x 1.102") Without projections

8
USB-029H2-RP (Ver.1.0)

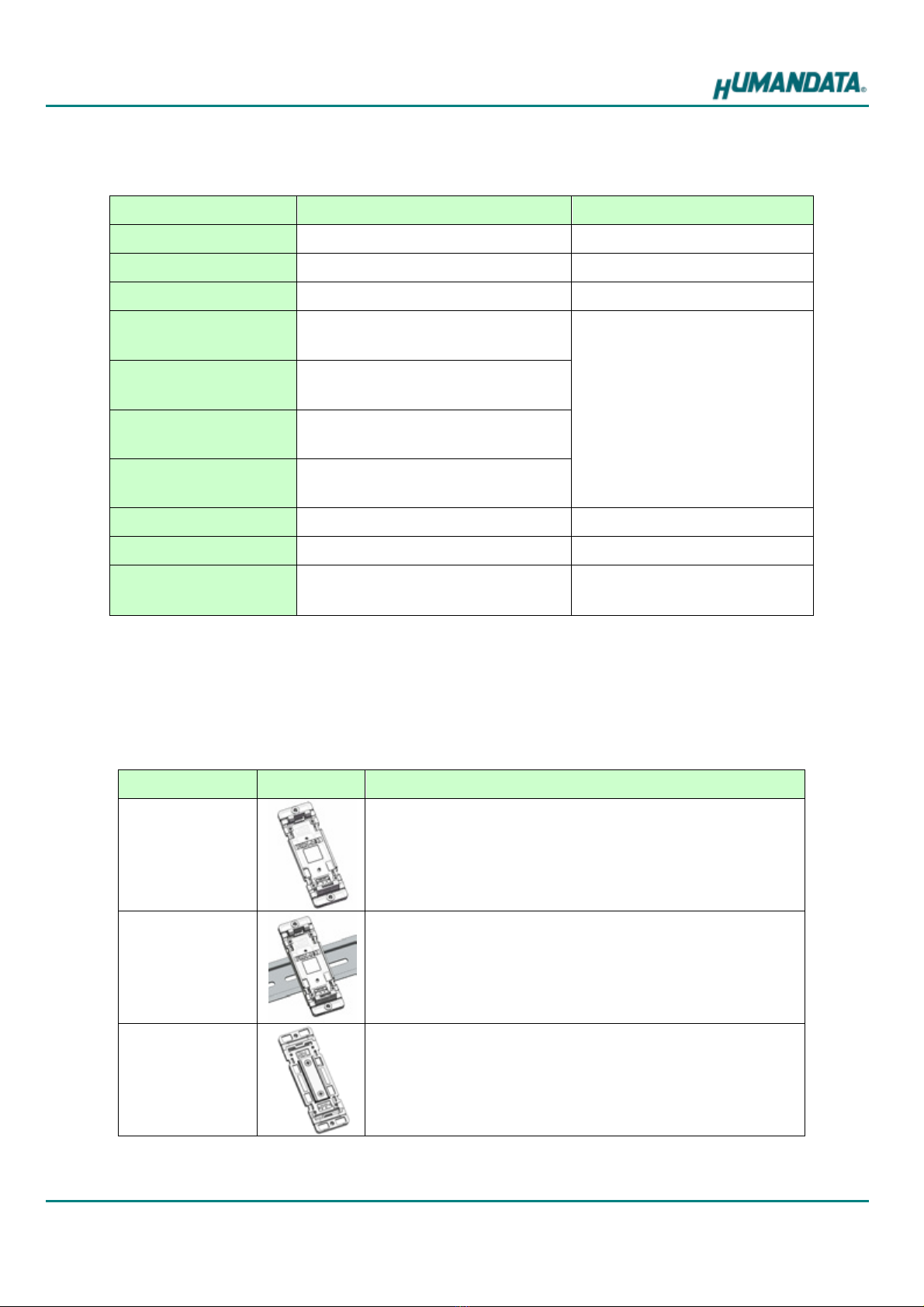

7.2. AC adapter (Japan's specifications)
Item
Description
Remarks
Output
5VDC 2.0A
Plug
2.1mm inner diameter Positive Tip
Compatible DC Jack
2.1mm inner diameter
Operating Ambient
Temperature
0 to 40 [°C] (32 to 104 [°F])
No condensation permitted
Operating Ambient
Humidity
30 to 85 % RH
Storage Ambient
Temperature
-20 to 80 [°C] (-4 to 176 [°F])
Storage Ambient
Humidity
10 to 95 % RH
Wire Length
1.6m
Weight
approx. 70 [g]
Dimensions
46 x 34 x 25 [mm]
1.811" x 1.339" x 0.984"
Without projections
* This AC adapter is attached for use mainly in Japan. If you use in the other countries,
please check the specifications above and plug shape.
* There may be cases that this part and specifications are changed.
7.3. Optional Accessories
Model
Description
PEN-003
USB series Attachment with clamping screw
JAN：4937920800709
PEN-003-DIN
USB series Attachment for 35mm DIN rail
JAN：4937920800716
PEN-003-MG
USB series Attachment with neodymium magnet
JAN：4937920801201

9
USB-029H2-RP (Ver.1.0)
8. Additional Documentation and User Support
The following documents and other supports are available at
http://www.hdl.co.jp/en/faspc/USB/usb-029h2-rp
User’s Manual
… and more.
9. Attachment Documentations
Outline drawing of the USB-029H2-RP
Outline drawing of the AC Adapter
10. Warranty and Compensation
Please refer to the following URL for the warranty.
http://www.fa.hdl.co.jp/en/fa-warranty.html
