Humminbird MEGA Live Imaging User manual

Operations Guide
532771-1EN_B
MEGA L I

2
T Y
Thank you for choosing Humminbird®, the #1 name in marine electronics. Humminbird has built its reputation by designing and
manufacturing top quality, thoroughly reliable marine equipment. Your Humminbird is designed for trouble-free use in even the
harshest marine environment. In the unlikely event that your Humminbird does require repairs, we offer an exclusive Service Policy.
For complete details, see the separate warranty card included with your unit. We encourage you to read this operations manual
carefully in order to get the full benefit from all the features and applications of your Humminbird product.
Contact Humminbird Technical Support at humminbird.com or call 1-800-633-1468.
WARNING! This device should not be used as a navigational aid to
prevent collision, grounding, boat damage, or personal injury.
When the boat is moving, water depth may change too quickly to
allow time for you to react. Always operate the boat at very slow
speeds if you suspect shallow water or submerged objects.
WARNING! The electronic chart in your Humminbird unit is an aid to
navigation designed to facilitate the use of authorized government
charts, not to replace them. Only official government charts and
notices to mariners contain all of the current information needed
for the safety of navigation, and the captain is responsible for their
prudent use.
WARNING! Humminbird is not responsible for the loss of data files
(waypoints, routes, tracks, groups, recordings, etc.) that may occur
due to direct or indirect damage to the unit’s hardware or software.
It is important to back up your control head’s data files periodically.
Data files should also be saved to your computer before restoring
the control head defaults or updating the software. Visit our Web
site at humminbird.com and download your control head operations
manual for details.
WARNING! Disassembly and repair of this electronic unit should
only be performed by authorized service personnel. Any
modification of the serial number or attempt to repair the original
equipment or accessories by unauthorized individuals will void the
warranty.
NOTE: Some features discussed in this manual require a separate
purchase. Every effort has been made to clearly identify those
features. Please read the manual carefully in order to understand
the full capabilities of your model.
NOTE: The illustrations in this manual may not look the same as
your product, but your unit will function in a similar way.
NOTE: To purchase accessories for your control head, visit our Web
site at humminbird.com or contact Humminbird Technical
Support at 1-800-633-1468.
NOTE: The procedures and features described in this manual are
subject to change without notice. This manual was written in
English and may have been translated to another language.
Humminbird is not responsible for incorrect translations or
discrepancies between documents.
NOTE: Product specifications and features are subject to change
without notice.
NOTE: Humminbird verifies maximum stated depth in saltwater
conditions, however actual depth performance may vary due to
transducer installation, water type, thermal layers, bottom
composition, and slope.
NOTE: For MEGA Live Imaging troubleshooting and maintenance
information, please see your MEGA Live Imaging Installation
Guide. The guide can also be downloaded from our Web site at
humminbird.com.

3
ENVIRONMENTAL COMPLIANCE STATEMENT: It is the intention of Johnson Outdoors Marine Electronics, Inc. to be a responsible corporate citizen,
operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our
products.
WEEE DIRECTIVE: EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers, and
manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer electronics to take responsibility
for the management of waste from their products to achieve environmentally responsible disposal during the product life cycle.
WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required for EEE designed and intended as
fixed or temporary installation in transportation vehicles such as automobiles, aircraft, and boats. In some European Union member states, these vehicles
are considered outside of the scope of the Directive, and EEE for those applications can be considered excluded from the WEEE Directive requirement.
This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other household refuse. It must be disposed of and
collected for recycling and recovery of waste EEE. Johnson Outdoors Marine Electronics, Inc. will mark all EEE products in accordance with the
WEEE Directive. It is our goal to comply in the collection, treatment, recovery, and environmentally sound disposal of those products; however,
these requirements do vary within European Union member states. For more information about where you should dispose of your waste equipment
for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product
was purchased.
ROHS STATEMENT: Product designed and intended as a fixed installation or part of a system in a vessel may be considered beyond the scope of
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances
in electrical and electronic equipment.
APEX™, MEGA Live™, Down Imaging®, Fortrex™, HELIX®, Humminbird®, Minn Kota®, Side Imaging®, SOLIX®, Ultrex™ are trademarked by or registered trademarks of
Johnson Outdoors Marine Electronics, Inc.
Adobe, Acrobat, Adobe PDF, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
© 2021 Johnson Outdoors Marine Electronics, Inc. All rights reserved.

4
T  C
Introduction 5
Important Information ............................................... 5
Humminbird Control Head........................................... 5
MEGA LIVE Imaging Sonar 6
Power On and Confirm Connections 8
1. Power On the MEGA Live Imaging Transducer
and the Control Head.............................................. 8
2. Confirm MEGA Live Connection on the Humminbird
Control Head ........................................................ 8
3. Confirm GPS Reception ......................................... 10
Update Software 13
Register Products ................................................... 13
Export Settings and Navigation Data ........................... 13
Check the Current Software Version ............................ 14
Update Control Head Software with an SD Card ............. 15
Update Accessory Software with an SD Card ................. 15
Update Software with FishSmart ................................ 16
Set Up MEGA Live Imaging on the Network 17
APEX/SOLIX Series Networking .................................. 17
HELIX Series Networking........................................... 18
Set Deployment Depth and Installation Type 21
Start/Stop MEGA Live Imaging Operation 22
Start Pinging ......................................................... 22
Stop Pinging .......................................................... 24
Wet Switch ............................................................ 25
What’s on the MEGA Live Imaging Display 26
MEGA Live Imaging Views 27
APEX/SOLIX Series Views.......................................... 27
HELIX Series Views .................................................. 29
MEGA Live View....................................................... 30
MEGA Live/2D Sonar Combo View ............................... 31
MEGA Live/2D Zoom Combo View................................ 32
MEGA Live/Down Imaging Combo View......................... 33
MEGA Live/2D Sonar/Down Imaging Combo View ........... 34
MEGA Live/Chart Combo View .................................... 35
Change the MEGA Live Mode 36
Understanding the MEGA Live Modes........................... 36
Change the MEGA Live Modes .................................... 36
Set the Display Mode ............................................... 38
Change the MEGA Live View Display Settings 39
Change the View Color.............................................. 39
Adjust Sensitivity, Contrast and Range......................... 40
Turn On/Off Persistence............................................ 42
Turn On/Off Interference Rejection.............................. 43
Turn On/Off Overlays ................................................ 43
Zoom In/Out 45
Activate the Cursor.................................................. 45
Zoom In/Out .......................................................... 45
Mark and Display Waypoints 46
Start and Stop Recording 47
Start Recording ...................................................... 47
Stop Recording....................................................... 47
Play a Recording..................................................... 47
Stop Playback ........................................................ 48
Delete a Recording .................................................. 48
Power Off 49
Contact Humminbird 50

5 Introduction
I
Thank you for purchasing the Humminbird® MEGA Live™ Imaging transducer. We encourage you to read this manual carefully in
order to understand MEGA Live Imaging and how to use this Humminbird advanced accessory on the water. Some of the equipment
requirements and menu options depend on your control head. Whether you have an APEX™, SOLIX® or HELIX® fish finder, every
effort has been made to clearly identify those features throughout this manual.
Important Information
Before you use the MEGA Live Imaging transducer on the water, it is important to understand the following:
Speed The MEGA Live Imaging transducer is intended for use at trolling speeds. The transducer
should NOT be in the water during high speed travel.
Obstructions Be aware of obstructions in the water that could damage the transducer.
Powering Off When the boat is at dock or in storage, the MEGA Live Imaging transducer should be
turned off at the switch to prevent wear and tear. See Power Off for more information.
Setting Up
the Control Head
The control head must be set up correctly to add the MEGA Live Imaging features to the
Menu System and View Rotation. See Set Up MEGA Live on the Network and MEGA Live
Imaging Views.
Humminbird Control Head
This accessory manual describes the functionality that is added to your APEX, SOLIX or HELIX control head when it is connected
to the MEGA Live Imaging transducer. For additional information about the Humminbird control head operations, see your control
head operations manual. To download the manual from our Web site, go to humminbird.com.
Compatibility
MEGA Live Imaging is compatible with all APEX models, SOLIX models, HELIX G3N and G4N models with MEGA Imaging+, and HELIX
7 G4N models with MEGA Down Imaging or MEGA Side Imaging.

6MEGA Live Imaging Sonar
MEGA L I S
The MEGA Live Imaging transducer deploys into the water with the your Minn Kota® Ultrex™ or Fortrex® trolling motor. See the
MEGA Live Imaging Installation Guide for more information.

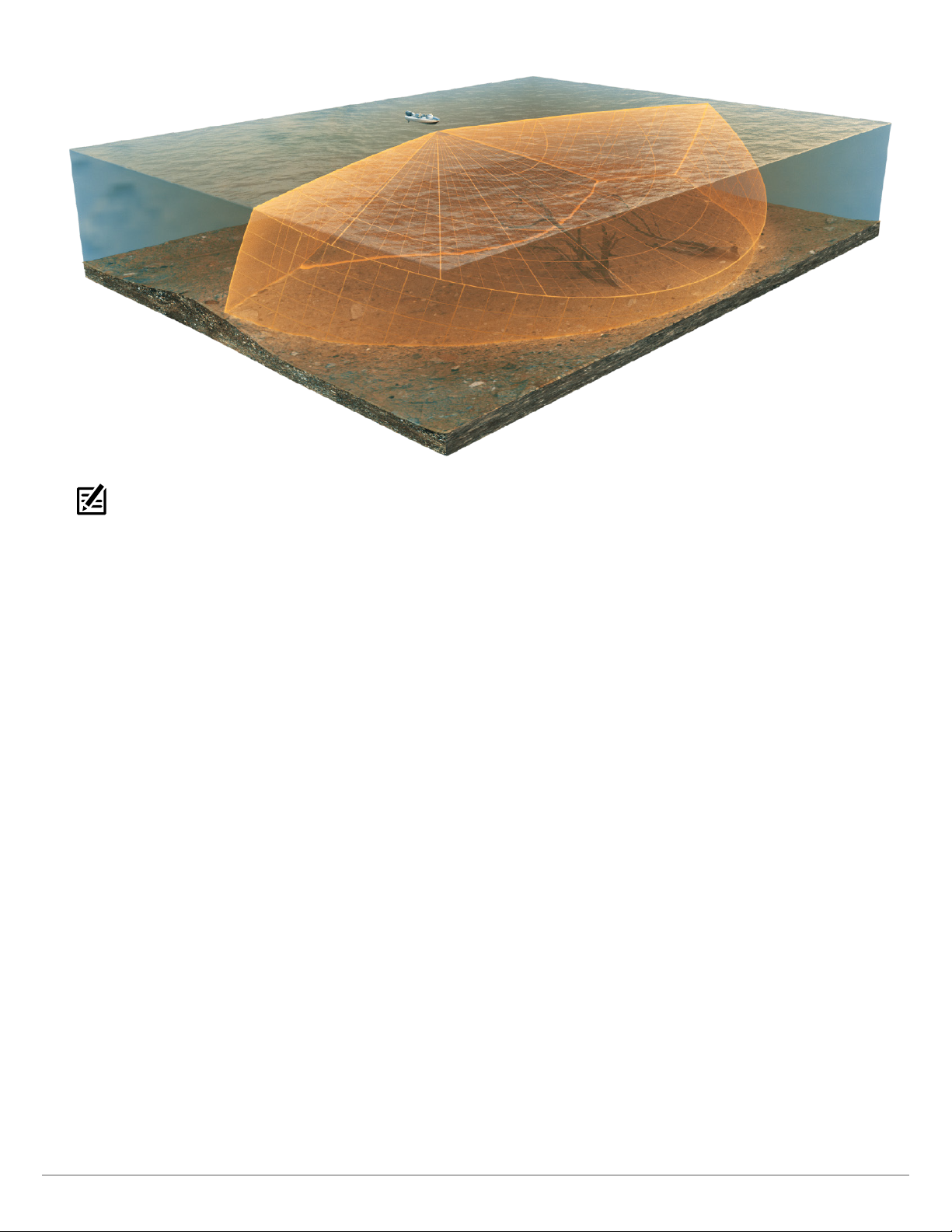

Multiple viewing options provided by the included trolling motor shaft mount allow for a view of the area in front of, around, and
below your boat. Watch fish and structure in real-time with a range of up to 150 feet and without gaps in sonar coverage.
Forward View
Down View

7 MEGA Live Imaging Sonar
Landscape Mode
NOTE: The transducer’s performance is affected by such factors as boat speed, wave action, bottom hardness, water conditions, and
installation.

8Power On and Confirm Connections
P O  C C
All equipment should be connected and powered before you turn on the control head. See the MEGA Live Imaging Installation Guide
for more information.
When the control head detects the MEGA Live Imaging transducer, it will subscribe to it automatically as a sonar source. The related
views and menus will be added to the system. Use the following instructions to power on the control head and confirm the MEGA
Live Imaging transducer and the optional GPS receiver/compass (heading sensor) are detected by the unit.
CAUTION! It is important to finish all installation connections before powering on the control head.
1|Power On the MEGA Live Imaging Transducer and the Control Head
APEX/SOLIX Series
1. Turn on the power source from the main switch.
2. On the control head, press and hold the POWER key.
3. Select Normal mode.
HELIX Series
1. Turn on the power source from the main switch.
2. On the control head, press the POWER key.
3. When the Title screen is displayed, press the MENU key to open the Start-Up Options Menu.
4. Use the Cursor Control key to choose Normal, and press the RIGHT Cursor key to select it.
2|Confirm MEGA Live Connection on the Humminbird Control Head
APEX/SOLIX Series
You can confirm the MEGA Live connection by checking the system status bar. Each accessory connected to the Humminbird
control head is represented by a status icon in the system status bar.
APEX/SOLIX Status Bar (top of screen)
system status bar
MEGA Live
status icon
compass
status
icon
GPS
status
icon
1. Press the HOME key.
2. Review the top, right corner of the status bar.
Confirm MEGA Live is shown as Connected and In Water. It may take up to one minute for the MEGA Live to be detected.
Unconnected: If the MEGA Live icon is not shown in the status bar, check the cable and power connections to confirm they are
secure and powered on. Review the installation guide that was included with your MEGA Live Imaging transducer to confirm
it is installed correctly.

9 Power On and Confirm Connections
MEGA Live Status Icon Icon Description
Connected/In Water/Pinging: The MEGA Live is connected, in the water, and pinging.
Connected/In Water/Not Pinging: The MEGA Live is connected and in the water, but it is
not pinging.
Connected/Out of Water: The MEGA Live is connected, but the wet indicator is out of the
water.
Connection Lost: The connection to the MEGA Live was lost.
NOTE: For additional system status, select Home > Settings > Network > Network Info.
HELIX Series
You can confirm the MEGA Live connection by checking the Accessory Test view.
1. Press and hold the VIEW key.
2. Select System > Accessory Test.
Confirm MEGA Live is shown as Connected. It may take up to two minutes for the MEGA Live to be detected.
Unconnected: If the MEGA Live icon is listed as Unconnected, check the cable and power connections to confirm they are
secure and powered on. Review the installation guide that was included with your MEGA Live Imaging Transducer to confirm
it is installed correctly.
HELIX Accessory Test
MEGA Live
Imaging listed
as connected
GPS + Heading
Sensor listed
as connected

10Power On and Confirm Connections
3|Confirm GPS Reception
Use the instructions in this section to confirm the control head has GPS reception. GPS and a compass (heading sensor) are
required to enable the boat icon on the control head with the MEGA Live Imaging transducer.
APEX/SOLIX Series
1. From the Home screen, review the top, right corner of the status bar, and confirm the GPS receiver is detected and active.
GPS Status Icon Icon Description
GPS
GPS
Detected and Active: The GPS receiver is detected and a GPS fix has been obtained.
GPS
GPS
Connected but not Detected or Active: The GPS receiver is connected, but not detected
on the network or no GPS fix has been obtained.
GPS
GPS
Connected but not Transmitting/Receiving: The GPS receiver is detected, but it doesn’t
have a GPS fix.
2. If the Detected and Active icon is visible, GPS fix has been obtained.
3. From the HOME screen, review the top, right corner of the status bar, and confirm the compass (heading sensor) is on and
data is being received.
Compass Status Icon Icon Description
Detected and Active: The compass (heading sensor) is on and heading data is being
received.
Connected but not Detected or Active: The compass is not detected on the network and
not transmitting data.
Check GPS Reception and Satellite Strength
The GPS tool provides two ways to view the satellites communicating with the GPS receiver. Yellow indicates that the satellite is
being used to determine your current position. Teal indicates that the satellite is being monitored but not used. The following data
is also displayed:
ΔPosition (latitude and longitude)
ΔGPS Fix Type: reported as No Fix, 2D Fix, 3D Fix, or Enhanced. An Enhanced fix has been augmented using information from
WAAS, EGNOS, or MSAS. A 3D or Enhanced Fix is required for navigation.
ΔHDOP (the Horizontal Dilution of Precision): a GPS system parameter which depends on the current satellite configuration.
HDOP is used to calculate the Estimated Position Error.
1. Press the HOME key.
2. Select the GPS tool.
3. Depending on your network configuration, select GPS (1) > Satellites or GPS (2) > Satellites.
NOTE: You can manually change which GPS receiver is the selected source for GPS (1) or GPS (2). For more information about GPS
and selecting GPS sources, see your control head operations manual.

11 Power On and Confirm Connections
GPS (1) Satellite Sky Chart
satellites
communicating
to GPS (1)
selected GPS source fix type
GPS status icon
(detected and active)
status bar
used
satellite
(yellow)
monitored
satellite
(teal)
digital
readouts
4. Under GPS (1) or GPS (2), select Signal Strength.
Signal Strength (GPS 1/GPS 2): displays vertical bar graphs indicating the satellite
signal strengths with the respecting CNO (Carrier-to-Noise) value (0 to 60).
Signal Strength (bar graph)
satellites signal
strength GPS (1)
selected GPS source fix type
GPS status icon
(detected and active)
status bar
monitored
satellite
(teal) and
strength
level
used satellite
(yellow) and
strength level
digital
readouts
boat
position
(latitude/
longitude)

12Power On and Confirm Connections
HELIX Series
1. Press and hold the VIEW key.
2. Select System > GPS Diagnostic View.
Confirm that GPS + Heading Sensor (optional) are listed as Connected. See the illustration HELIX Accessory Test.
3. Press and hold the VIEW key.
4. Select System > GPS Diagnostic View.
Confirm GPS Fix Type is shown as Enhanced or 3D.
Confirm that the latitude/longitude position readout is displayed.
NOTE: If the GPS Diagnostic View or Accessory Test is not displayed in the View Rotation, press the MENU key twice to open the Main Menu.
Select the Views tab > GPS Diagnostic View or Accessory Test. Change the setting for each view to Visible.
Fix type
should be 3D
or Enhanced
External GPS
detected
Reviewing GPS Reception
active satellite signal strength (yellow)
monitored
satellite signal
strength (gray)
longitude position
latitude position
GPS Reception: The sky chart displays the satellite number and signal strength bar.
GPS Fix Type: reported as No Fix, 2D Fix, 3D Fix, or Enhanced. An Enhanced Fix has been augmented using information from WAAS,
EGNOS, or MSAS.
HDOP (the Horizontal Dilution of Precision): a GPS system parameter which depends on the current satellite configuration. HDOP
is used to calculate the Estimated Position Error.
NOTE: To manually change your GPS source, change the output frequency, or turn on GLONASS, see your control head operations manual.

13 Update Software
U S
Your control head model may need a software update to work with the MEGA Live Imaging transducer. We recommend that you read
the following section completely before starting any software updates.
Control Head Required Software: The following control head software version is required to operate the MEGA Live Imaging transducer:
ΔAPEX and SOLIX Series: 4.020 or higher
ΔHELIX Series: 2.660 or higher
MEGA Live Software: The MEGA Live has separate software updates from the control head. After the software is updated on the
control head, you must download any accessory software updates. See your control head operations manual for more details.
Preparation: We recommend that you read the following section completely before starting any software updates. The Humminbird
control head will take approximately 10 minutes to update, and each Humminbird control head on the network must be updated
individually. Accessories take approximately 5 minutes to update.
Supplies: In addition to your Humminbird equipment, you will need a computer with Internet access and a blank SD or microSD card
(depending on your control head).
Technical Support: If you have any questions about the software update process, contact Technical Support by visiting our Web site
at humminbird.com or by calling 1-800-633-1468.
Register Products
Register your Humminbird equipment so that you will receive the latest Humminbird news, including accessory compatibility and
software update information.
1. Go to our Web site at humminbird.com. Select Support > Register Your Product.
2. Follow the on-screen prompts to register your products.
Export Settings and Navigation Data
Before the control head software is updated or restored to system defaults, it is important to
back up your control head data files (including navigation data and screen snapshots) and
menu settings to an SD or microSD card.
WARNING! Humminbird is not responsible for the loss of data files (waypoints, routes, tracks,
groups, snapshots, recordings, etc.) that may occur due to direct or indirect damage to the
unit’s hardware or software. It is important to back up your control head’s data files periodically.
Data files should also be saved to your computer before restoring the unit’s defaults or updating
the software.
WARNING! Do NOT leave the control head SD or microSD card slot cover open. The slot cover
should always be closed to prevent water damage to the unit.
NOTE: See your control head operations manual for more information about exporting settings
and navigation data.
Inserting an SD Card
Vertical Slot:
Insert the SD card with the label facing left.
Horizontal Slot:
Insert the SD card with the label facing up.

14Update Software
APEX/SOLIX Series
Export Data and Menu Settings
Use the instructions in this section before you restore the control head defaults or update software.
1. Install the SD or microSD card into the control head card slot.
2. Press the HOME key.
3. Select the Files tool.
4. Under Export, select Nav Data.
5. Follow the on-screen prompts.
6. Select a Save Location: Save to the SD Card.
7. Repeat steps 4 and 5 to export Menu Settings and Radar Installation settings (if applicable to your installation).
8. Networked Units: Repeat the steps in this section on each control head.
Copy Internal Images
If you have screen snapshots saved to the control head, use the following instructions to copy them to an SD or microSD card.
1. Confirm the SD or microSD card is installed in the control head card slot.
2. Press the HOME key.
3. Select the Images tool. Tap the icon, or press the ENTER key, to open.
4. Under Source, select Internal.
5. Press and hold one of the screen snapshots.
OR
Use the Joystick to select a screen snapshot. Press the MENU key.
6. Select Copy All.
7. Select a Save Location: Save to the SD Card (left slot = SD Card 1, right slot = SD Card 2)
8. Repeat the steps in this section on each control head.
HELIX Series
Export Navigation Data
1. Install the SD card or microSD card according to the instructions in your control head operations manual.
2. Power on the control head.
3. Main Menu: Press the MENU key twice. Select the Nav tab.
4. Select Waypoints, Routes, Tracks. Press the RIGHT Cursor key.
5. Select Options > Select All and ... > Export.
6. Follow the on-screen prompts to confirm or cancel the export.
Check the Current Software Version
It is helpful to review the software version number that is currently installed on the control head and each accessory.
APEX/SOLIX Series HELIX Series
1. Press the HOME key.
2. Select Settings > Network > Network Info.
3. The Network Info dialog box shows a section for each
device connected to the network. Scroll to each section
to note the software version number listed.
1. Press and hold the VIEW key.
2. Select System > System Status.
3. Confirm the Software Version listed.

15 Update Software
Update Control Head Software with an SD Card
WARNING! Before the control head software is updated or restored to system defaults, export your menu settings, radar settings, and
navigation data. Copy your screen snapshots to an SD card. See Export Settings and Navigation Data for details.
NOTE: If you have more than one control head on the network, go to each control head to install the latest software update. Control head
software updates cannot be updated through another networked unit.
NOTE: When you install the SD card with the software file into your control head, the control head will detect the update and provide an
automatic prompt to install the software. You can follow the prompts or choose to install the software at a later time. See your control head
operations manual for more information.
1. Install a formatted SD or microSD card into the computer card slot.
2. Go to humminbird.com, and click Support > Software Updates.
3. Click on your control head model. The available software updates are listed as downloads under each product. Confirm the
file name is for your control head model.
ΔRead the notices and instructions, and select Download.
ΔFollow the on-screen prompts to save the software file to the SD or microSD card.
4. Repeat step 3 to download the software updates posted to each product.
5. Insert the SD or microSD card (with the software file) into the control head card slot.
6. Power on your Humminbird control head. Start Normal mode.
7. Follow the on-screen prompts to update the control head software.
8. When the software update is complete, remove the SD or microSD card from the control head card slot.
9. Restart: If you don’t have any other software updates to install, power off the control head, and restart it.
Update Accessory Software with an SD Card
1. Install a formatted SD or microSD card into the computer card slot.
2. Go to humminbird.com, and click Support > Software Updates.
3. Scroll down to Accessories and Mapping. The available software updates are listed as downloads under each accessory
product. Confirm your control head model is listed in the software description.
ΔRead the notices and instructions, and select Download.
ΔFollow the on-screen prompts to save the software file to the SD or microSD card.
4. Insert the SD or microSD card (with the software file) into the control head card slot.
5. Power on your Humminbird control head. Start Normal mode.
6. APEX/SOLIX: Select the Files tool. From the Software Update tab, scroll to MEGA Live on the Accessories list. Confirm that
the most current software version is selected from the list, and select Install Now.
HELIX: The software will be automatically detected. It may take up to two minutes for the software to be detected on the
network, and the control head will display a dialog box to indicate that the update is in progress.
7. When the software update is complete, remove the SD or microSD card from the control head card slot.
8. Restart: If you don’t have any other software updates to install, power off the control head, and restart it.

16Update Software
Update Software with FishSmart
You can use the FishSmart App to download and push software updates directly to your Humminbird control head or accessory.
NOTE: Your control head must already be running software release 1.610 or higher for HELIX Series or 3.110 or higher for APEX and SOLIX
Series to support this feature.
NOTE: You must first download the FishSmart App and pair your mobile device to your control head. See the FishSmart User Manual for
more information.
1. Open the FishSmart App on your mobile device.
2. Apple iOS: Tap the System menu icon.
Google Android: Tap the FishSmart main menu. Select system.
3. Tap Update next to the selected unit. The download progress is displayed on the screen.
4. Tap Transfer next to the selected unit once the download is complete.
5. Confirm the estimated transfer time.
6. Tap the checkbox to select where to upload the software update (internal storage, card slot 1, or card slot 2).
NOTE: For APEX and SOLIX Series control heads, you cannot download software updates to an SD or microSD card with LakeMaster
charts saved to it.
7. Tap Transfer. The upload progress is displayed on the System menu in FishSmart and in the System Status view on the
control head.
8. Follow the on-screen prompts on the control head to complete the software installation.

17 Set Up the Network
S U MEGA L I   N
Use the instructions in this section if you have more than one Humminbird control head connected to the network. Configuring the
network synchronizes the control head settings.
NOTE: If you have selected the MEGA Live Imaging transducer on the network during the installation, the other settings in this section
are optional. The depth source, temperature source, and alarms will be selected automatically based on the other connected
equipment. Use this section to confirm installation settings or to change the sources to your preference. The settings will be saved
after you power off the control head.
Before you start, make sure all of your control heads and sources (GPS, transducers, temp/speed accessories, etc.) for your fishing
system have been installed. See the equipment installation guides for details. You may need to purchase an Ethernet switch,
Ethernet connection cables, or y-cables, depending on your setup.
When the Humminbird network is installed, each control head automatically selects a primary source (transducer, temperature,
and GPS). The control head selects the equipment connected to it as its primary source, but you can choose any compatible source
on the network. Make sure to review the MEGA Live Imaging Installation Guide to ensure MEGA Live Imaging is set up as the sonar
source.
APEX/SOLIX Series Networking
Your APEX or SOLIX control head will automatically detect and subscribe to MEGA Live Imaging, and the related views and menus
will be added to the control head. Use the following instructions to review the selected sonar source.
Open the Sonar Source Menu
1. Press the HOME key.
2. Select Settings.
3. Select CHIRP Sonar.
4. Select Sonar Source.
Select Sonar Sources
Use the instructions in this section to assign sonar sources to each control head. The sonar sources can be shared between control
heads or you can use different sonar sources on each control head.
1. From the Sonar Source menu, select the tab for the sonar source you want to assign.
The MEGA Live Imaging transducer will be displayed on the MEGA Live tab.
2. Select the transducer connection location. The connection locations are displayed as follows:
Selected Control Head (Local): the control head you are actively using
Remote Control Head: additional control heads connected to the network
Black Box Sonar
MEGA Live Imaging
3. Repeat steps 1 and 2 for each tab. You can select one sonar source on each tab.
When you turn on/off pinging or change the transducer settings, all control heads sharing the transducer are affected.

18Set Up the Network
selected source turn on/o
pinging
transducer
setup menu
turn on/o
transducer
If you change settings here, it will
change the settings across the network.
HELIX Series Networking
Open the Network Source Setup Dialog Box
1. Main Menu: Press the MENU key twice.
NOTE: If a System View is displayed on the screen, you will only need to press the MENU key once to open the Main Menu.
2. Select the Network tab.
3. Select Network Source Setup. Press the RIGHT Cursor key.
Opening the Network Source Setup Dialog Box
Status Tab: Review the status tab to see all detected sources in the network. If a source is grayed out, the source is detected,
but the connection is lost or unavailable.
Select a Source: Review each source section to select a data source for each control head.

19 Set Up the Network
Network Source Setup Dialog Box
status tab
sonar
sources
temperature
sources
source name
Select a Sonar Source
In addition to the MEGA Live Imaging transducer, you may have another Humminbird transducer connected directly to the control
head and/or available in a Humminbird multiple-control head Ethernet network.
The sonar source may be auto-populated in the Network Source Setup dialog box, but it is important to confirm that the source
selection matches your transducer and frequency preferences. You can use the Network Source dialog box to change the sonar
source.
1. Network Source Setup Dialog Box: Select the Network tab > Network Source Setup. Press the RIGHT Cursor key.
2. Use the Cursor Control key to select a tab and choose a source. Press the CHECK/INFO key to select the source as follows:
2D Traditional Sonar Select the 2D tab and select a 2D sonar source for the traditional sonar views.
Down Imaging® Select the DI tab and select a Down Imaging sonar source.
Side Imaging® Select the SI tab and select a Side Imaging sonar source.
MEGA Live Imaging Select the Live tab and select the MEGA Live Imaging source.
MEGA 360 Imaging Select the 360 tab and select the MEGA 360 Imaging source.
Temperature Data Select a Temperature tab and select a temperature source or use the default temperature
source.
GPS Receiver/Heading
Sensor
Select the GPS tab and select the sensor that is attached to the control head. The type
will be listed as Ext (externally connected).
A checkmark will display in the box to show it is selected.

20Set Up the Network
Selecting the MEGA Live Imaging Transducer
Use the Cursor Control
key to choose the
transducer, and press
the RIGHT Cursor key
or the CHECK/INFO
key to select it.
Press the RIGHT or
LEFT Cursor keys
to select a tab.
NOTE: If the control head is not capable of displaying a certain frequency from a transducer on the network, NONE will be displayed
in the beam frequency column in the Network Source Setup dialog box.
NOTE: The availability of beams is determined by the type of transducer that is connected to the control head and your Humminbird
model. If a connected transducer is not displayed in the Network Source Setup dialog box, select the Main Menu > Sonar tab >
Transducer Select or Connected Transducer, and set the transducer type.
NOTE: If you have questions about which transducers are compatible with your control head, visit our Web site at humminbird.com
or contact Humminbird Technical Support at 1-800-633-1468.
3. Close: Press the EXIT key until the dialog box is closed.
