Thank You!
Thank you for choosing Humminbird®, the #1 name in marine electronics.
Humminbird has built its reputation by designing and manufacturing
top-quality, thoroughly reliable marine equipment. Your Humminbird is
designed for trouble-free use in even the harshest marine environment. In the
unlikely event that your Humminbird does require repairs, we offer an
exclusive Service Policy. or complete details, see the separate warranty card
included with your unit. We encourage you to read this operations manual
carefully in order to get the full benefit from all the features and applications
of your Humminbird product.
Contact Humminbird Customer Service at 1-800-633-1468 or visit our
Web site at humminbird.com.
WA NING! This device should not be used as a navigational aid to prevent collision,
grounding, boat damage, or personal injury. When the boat is moving, water depth may
change too quickly to allow time for you to react. Always operate the boat at very slow
speeds if you suspect shallow water or submerged objects.
WA NING! Disassembly and repair of this electronic unit should only be performed by
authorized service personnel. Any modification of the serial number or attempt to repair
the original equipment or accessories by unauthorized individuals will void the warranty.
WA NING! Do not travel at high speed with the unit cover installed. Remove the unit
cover before traveling at speeds above 20 mph.
WA NING! This product contains chemicals known to the State of California to cause
cancer and/or reproductive harm.
NOTE: Some features discussed in this manual require a separate purchase, and some
features are only available on international models. Every effort has been made to clearly
identify those features. Please read the manual carefully in order to understand the full
capabilities of your model.
NOTE: The illustrations in this manual may not look the same as your product, but your
unit will function in a similar way.
NOTE: The procedures and features described in this manual are subject to change
without notice. This manual was written in English and may have been translated to
another language. umminbird is not responsible for incorrect translations or
discrepancies between documents.
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page i

OHS STATEMENT: Product designed and intended as a fixed installation or part of a
system in a vessel may be considered beyond the scope of Directive 2002/95/EC of the
European Parliament and of the Council of 27 January 2003 on the restriction of the use
of certain hazardous substances in electrical and electronic equipment.
Down Imaging®, ish ID+™, Humminbird®, PiranhaMAX™, Structure ID™, WhiteLine™, and
X-Press™ Menu are trademarked by or registered trademarks of Johnson Outdoors Marine
Electronics, Inc.
Baekmuk Batang, Baekmuk Dotum, Baekmuk Gulim, and Baekmuk Headline are registered
trademarks owned by Kim Jeong-Hwan.
© 2014 Johnson Outdoors Marine Electronics, Inc. All rights reserved.
ATTENTION INTE NATIONAL CUSTOME S: Products sold in the U.S. are not
intended for use in the international market. umminbird international units provide
international features and are designed to meet country and regional regulations.
Languages, maps, time zones, units of measurement, and warranty are examples of
features that are customized for umminbird international units purchased through
our authorized international distributors.
To obtain a list of authorized international distributors, please visit our Web site at
humminbird.com or contact umminbird Customer Service at [phone].
ii
nics.
ring
d is
the
an
card
nual
ons
our
y
y
r
y
l
r
r
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page ii

Tab
Mov
Pira
D
D
Pow
The
P
U
C
Usin
Sett
C
P
B
R
La
U
U
Sett
Cha
S
D
S
Ope
V
D
S
Z
Table of Contents
iii
Installation Overview 1
Fixed Control Head Installation 2
Determine Where to Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connect the Power Cable to the Boat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assemble the Control Head Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Route the Control Head Cables Under the Deck . . . . . . . . . . . . . . . . . . . . . . . . . 5
Attach the Control Head to the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Attach the Cables to the Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Transom Transducer Installation Overview 8
Transom Transducer Installation 9
Locate the Transducer Mounting Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Prepare the Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Assemble and Mount the Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
RoutetheCable..................................................17
Test and inish the Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Portable Case Assembly 21
AssembletheControlHeadBase....................................22
AssembletheBaseandHandle.....................................23
Attach the Control Head to the Base and Handle . . . . . . . . . . . . . . . . . . . . . . . 24
RoutetheCables.................................................25
AssemblethePortableCase........................................28
ChargeandInstalltheBattery......................................28
Assemble the Transducer Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Stow the Portable Transducer and Battery Charger into the Portable Case. . . 31
Installing the Portable Case on the Boat 32
Connect the Transducer and Power Cables to the Portable Case. . . . . . . . . . . 32
Attach the Portable Case to the Boat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Mounting the Portable Transducer 34
Test the Transducer Prior to Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mount the Portable Transducer on the Boat . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page iii

Table of Contents
iv
Moving the Portable Fishfinder 36
PiranhaMAX Sonar Technology 37
DualBeamSonar.................................................38
DownImagingSonar..............................................39
Power O and OFF 40
The PiranhaMAX Control Head 41
POWER/MENUKey...............................................42
UP and DOWN Arrow Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CHECK/ENTERKey................................................43
Using the Menu System 44
Setting up the Control Head (Setup Menu) 46
Contrast (DownImagingViewonly)............................................47
Palette (DownImagingViewonly)..............................................47
ish ID+ (Sonar View only) ...........................................47
Bottom View (Sonar View only)........................................48
Reset ..........................................................49
Language (International Models only)....................................49
Units - Temp (International Models only, Units submenu) ......................49
Units - Depth (International Models only, Units submenu) .....................49
Setting Alarms 50
Changing the On-Screen View 52
StatusView.....................................................53
DownImagingView ..............................................54
SonarView......................................................55
Opening the X-Press Menu 56
View...........................................................57
DepthRange....................................................57
Sensitivity.......................................................57
Zoom ..........................................................58
1
2
. . 2
. . 2
. . 4
. . 5
. . 6
. . 7
8
9
. . 9
. 10
. 12
. 17
. 19
21
. 22
. 23
. 24
. 25
. 28
. 28
. 30
. 31
32
. 32
. 33
34
. 34
. 34
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page iv

Table of Contents Ins
Befo
care
Ther
Pira
•
•
•
Sup
need
tools
strin
and
ChartSpeed.....................................................58
ilter (Sonar View only) ..............................................59
Light...........................................................59
Beam Select (Sonar View only) .......................................59
Maintenance 60
Troubleshooting 62
PiranhaMAX 197c Specifications 64
PiranhaMAX 197c DI Specifications 65
Contacting Humminbird 68
v
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page v

Installation Overview
Before you start installation, we encourage you to read these instructions
carefully in order to get the full benefit from your PiranhaMAX.
There are three basic installation tasks that you must perform for the
PiranhaMAX:
• Installing the Control Head (fixed mount or portable mount)
• Installing the Transducer
• Testing the complete installation and locking the transducer position.
Supplies: In addition to the hardware supplied with your transducer, you will
need a 1 amp fuse, a powered hand drill and various drill bits, various hand
tools, including a ruler or straightedge, a level, a 12" plumb line (weighted
string or monofilament line), marker or pencil, safety glasses and dust mask,
and marine-grade silicone sealant.
NOTE: If you have purchased a PiranhaMAX Portable unit, proceed to Portable
Case Assembly for installation instructions. If you are planning a fixed installation,
proceed to Fixed Control Head Installation.
1Ins alla ion Overview
. 58
. 59
. 59
. 59
60
62
64
65
68
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page 1

N
c
o
N
a
Figure
Figure
Fixe Control Hea Installation
1. Determine here to Mount
It is important to review the following points when determining where to
mount the control head:
•Cables: Test run the cables for the power and
transducer. See Transom Transducer Installation
to plan the location of the transducer and cable
route.
•Mounting Surface: The mounting surface
should be stable enough to protect the control
head from excessive wave shock and vibration.
The control head should be easy to see during
operation.

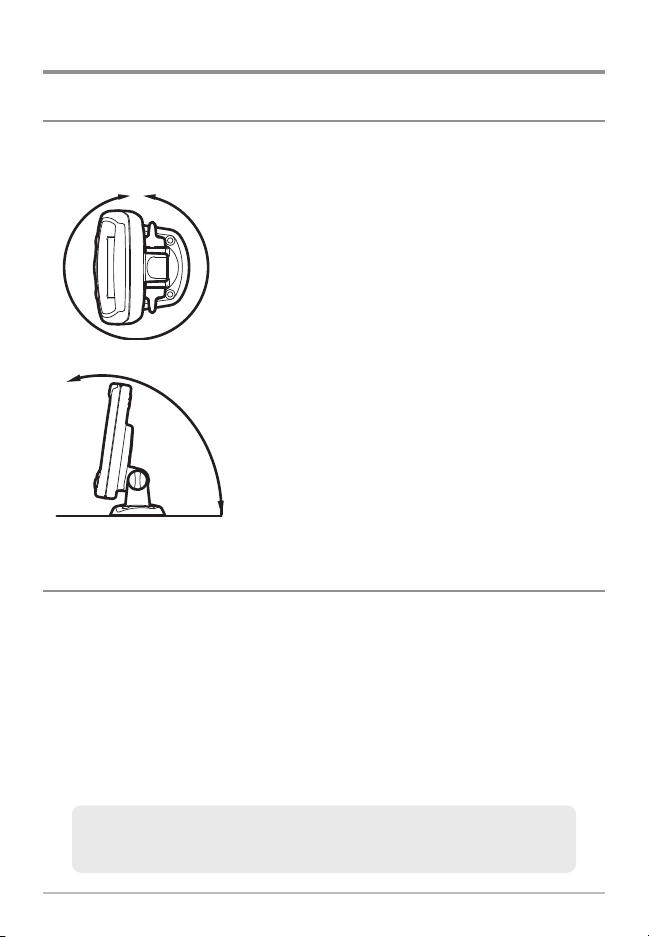

•Clearance: The mounting area should allow
sufficient room for the unit to tilt and swivel
freely, and for easy removal and installation
( igures 1 and 2).
2. Connect the Power Cable to the Boat
A 6 ft (2 m) long power cable is included to supply power to the control head. You
may shorten or lengthen the cable using 18 gauge multi-stranded copper wire.
CAUTION! Some boats have 24 or 36 Volt electric systems, but the control head MUST
be connected to a 12 VDC power supply.
The control head power cable can be connected to the electrical system of the
boat at two places: a fuse panel usually located near the console, or directly to
the battery.
NOTE: Make sure that the power cable is not connected to the control head at the
beginning of this procedure.
Figure 1
Figure 2
2
Fixed Con rol Head Ins alla ion
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page 2

NOTE: umminbird is not responsible for over-voltage or over-current failures. The
control head must have adequate protection through the proper selection and installation
of a 1 amp fuse.
NOTE: In order to minimize the potential for interference with other marine electronics,
a separate power source (such as a second battery) may be necessary.
GROUNDGROUND
POSITIVEPOSITIVE
Figure 3
Figure 4
1a. If a fuse terminal is available, use crimp-on
type electrical connectors (not included)
that match the terminal on the fuse panel.
Attach the black wire to ground (-), and the
red wire to positive (+) 12 VDC power
( igure 3). Install a 1 amp fuse (not
included) for protection of the unit.
Humminbird is not responsible for over-
voltage or over-current failures.
or...
1b. If you need to wire the control head
directly to a battery, obtain and install an
inline fuse holder and a 1 amp fuse (not
included) for the protection of the unit
( igure 4). Humminbird is not responsible
for over-voltage or over-current failures.
e to
and
tion
able
face
ntrol
tion.
ring
llow
wivel
tion
You
ire.
T
f the
ly to
3Fixed Con rol Head Ins alla ion
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page 3

4. R
Use
N
c
Figure
T
3. Assemble the Control Head Base
Your control head base will have a tilt and swivel mount. See the instructions
below to assemble and mount the control head base.
Assemble the Tilt and Swivel Mount
1. Insert the mount arms into the
base. Then, hold the mount arms in
place as you turn the base upside
down.
2. Insert the swivel ring into the base,
with the countersink holes for the
arm screws facing out.
3. Secure the mount arms with the
four #6 screws provided ( igure 5).
Hand tighten only!
4. Set the assembled control head
base in place on the selected
mounting surface. Mark the four
mounting screw locations with a
pencil or punch.
5. Set the base aside, and drill the
four mounting screw holes using a
9/64" (3.6 mm) bit.
6. Proceed to oute the Control Head
Cables Under the Deck.
Tilt and Swivel Mount
Control Head Base Assembly
Mount Arms
Base
Arm Screws,
(4) #6 x 7/16"
Figure 5
Countersink
Side Out
Swivel
Ring
4
Fixed Con rol Head Ins alla ion
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page 4

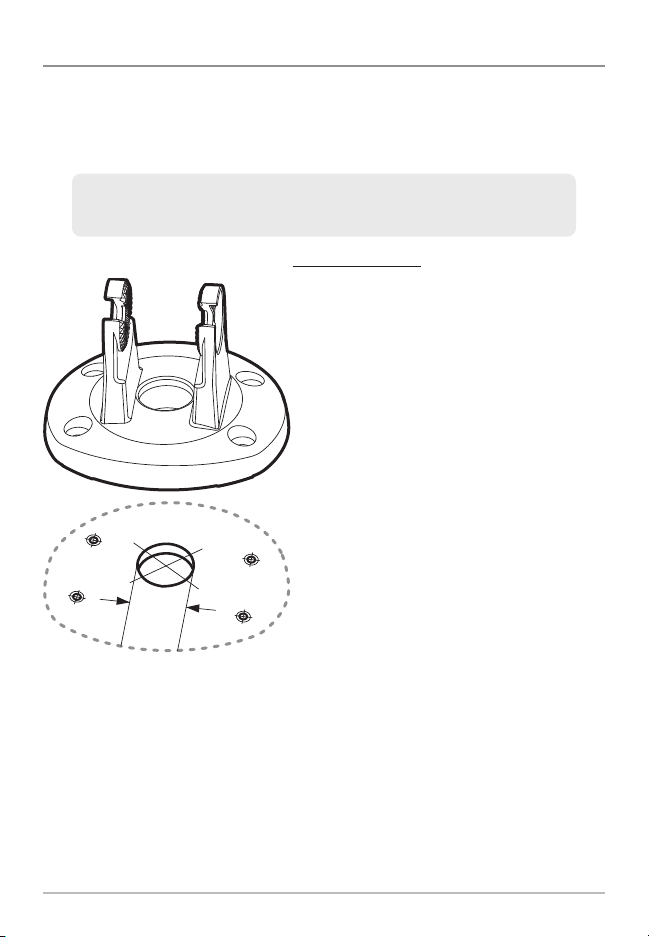

4. Route the Control Head Cables Under the Deck
Use the following steps to route the control head cables under the deck.
NOTE: Under the deck cable routing is not always possible. If this is not an option, the
cables should be routed and secured above deck.
Route the Cables
1a. Mark and drill a 3/4" (19 mm) hole
as shown in igure 6. Route the
cables through the hole. The cables
will exit through the center hole on
the control head base.
or...
1b. If the cables cannot be routed
directly beneath the control head
base, mark and drill a 3/4" (19 mm)
hole that will allow you to run the
cables close to the control head
base.
Figure 6
3
/
4
”
19mm
Tilt and Swivel Mount Control Head Base
NOTE: See Transom Transducer Installation to plan the location of the transducer
and cable route.
ions
he
n
de
e,
he
he
5).
ad
d
ur
a
he
a
ad
5Fixed Con rol Head Ins alla ion
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page 5

5.
6.
7.
6. A
ollo
head
Figure
Po
5. Attach the Control Head to the Base
ollow these steps to attach the control head to the already-assembled base:
NOTE: The transducer cable and power cable should be routed prior to securing the
mounting bracket to the deck.
1. Apply marine-grade silicone sealant to the drilled holes for the
mounting bracket.
2. Place the mounting bracket on the mounting surface, aligning it with
the drilled holes.
3. Insert the four #8 Phillips countersink wood screws into the mounting
holes. Hand tighten only!
4. Insert the thumbknob bolt through the pivot knuckle on the control
head ( igure 7).
Pivot Knuckle
Gimbal Knob Thumbknob Bolt
Figure 7
Mounting oles
6
Fixed Con rol Head Ins alla ion
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page 6

5. Align the pivot knuckle with the mount base arms and slide it into
place, twisting slightly if necessary, until the unit is firmly seated.
6. Rotate the control head to the preferred angle and hand tighten the
thumbknob bolt.
7. Thread the gimbal knob onto the pivot bolt and tighten.
6. Attach the Cables to the Control Head
ollow these steps to attach the power and transducer cables to the control
head:
1. Matching the cable plugs to the shape and
orientation of the sockets, insert the
transducer and power cables into the correct
ports on the control head ( igure 8).
NOTE: The serial port is for authorized service personnel
use only. Do not connect a cable to this port. The serial
port does not require a port cover.
2. With the control head in place, tilt and/or
swivel the unit through its full range to make
sure there is enough cable slack for the unit to
move freely. Hand tighten the thumbknob bolt
to secure the control head angle.
You are now ready to install the transducer. Proceed
to Transom Transducer Installation Overview.
Figure 8
Power Serial Transducer
ase:
e
he
th
ng
ol
7Fixed Con rol Head Ins alla ion
PMAX 197c-197c_DI_Manual_532274-1EN_A. xp:30895_Eng_531478 6/5/14 6:24 PM Page 7

Tra
1. L
Turb
insta
that
Con
turb
Rive
Figur
Figur
Transom Trans ucer Installation Overview
The transom mount installation provides the least loss of signal since the
transducer is mounted outside the hull. This installation also allows adjustment
of both running angle and depth after the transducer is mounted, which
enables you to tune the installation for best results.
NOTE: When drilling holes in fiberglass hulls, it is best to start with a smaller bit and use
progressively larger drill bits to reduce the chance of chipping or flaking the outer coating.
NOTE: If you cannot find a transom mount location that will work for your boat hull, a
different mounting technique or transducer type should be considered. See the FAQ
(Frequently Asked Questions) section of our Web site at humminbird.com or call
umminbird Customer Service at 1-800-633-1468.
NOTE: Due to the wide variety of hulls, only general instructions are presented in
this installation guide. Each boat hull represents a unique set of requirements that
should be evaluated prior to installation. It is important to read the instructions
completely and understand the mounting guidelines before beginning installation.
8
Transom Transducer Ins alla ion Overview
