Platinum™ Cartography
Accessory Manual
Platinum™ Cartography
Accessory Manual 531598-1_A
Platinum™Cartography
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 1

Thank You!
Thank you for choosing Humminbird®, America's #1 name in fishfinders. Humminbird® has built its reputation by designing and manufacturing top-quality,
thoroughly reliable marine equipment. Your Humminbird® accessory is designed for trouble-free use in even the harshest marine environment. In the unlikely
event that your Humminbird® accessory does require repairs, we offer an exclusive Service Policy - free of charge during the first year after purchase, and
available at a reasonable rate after the one-year period. For complete details, see the separate warranty card included with your accessory. We encourage you
to read this operations manual carefully in order to get full benefit from all the features and applications of your Humminbird® product.
Contact our Customer Resource Center at either
1-800-633-1468 or visit our website at www.humminbird.com .
WARNING! This device should not be used as a navigational aid to prevent collision, grounding, boat damage, or personal injury. When the boat is moving, water depth may
change too quickly to allow time for you to react. Always operate the boat at very slow speeds if you suspect shallow water or submerged objects.
CAUTION: Platinum™ Cartography is designed to supplement the use of authorized government charts, not be used instead of them. You should use official government
charts for the most up to date information to ensure safe navigation.
Platinum™ Cartography is a registered trademark of Navionics®. Humminbird®, HumminbirdPC™, X-Press™ Menu, Structure ID®, SmartCast® and WeatherSense™ are trademarked by or registered
trademarks of Techsonic Industries, Inc.
© 2007 Humminbird®, Eufaula AL, USA. All rights reserved.
i
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page i

Table of Contents
ii
How Platinum™ Cartography Works 1
Multi-Media Card (MMC)/SD Slot 2
Software Updates .................................................................................................... 2
Additional Platinum™ Cartography Key Functions 3
VIEW Key .................................................................................................................. 3
MENU Key ................................................................................................................ 3
4-WAY Cursor Control Key ...................................................................................... 4
EXIT Key .................................................................................................................... 4
INFO Key .................................................................................................................. 5
GOTO Key .................................................................................................................. 5
ZOOM [+/-] Keys ...................................................................................................... 6
Views 6

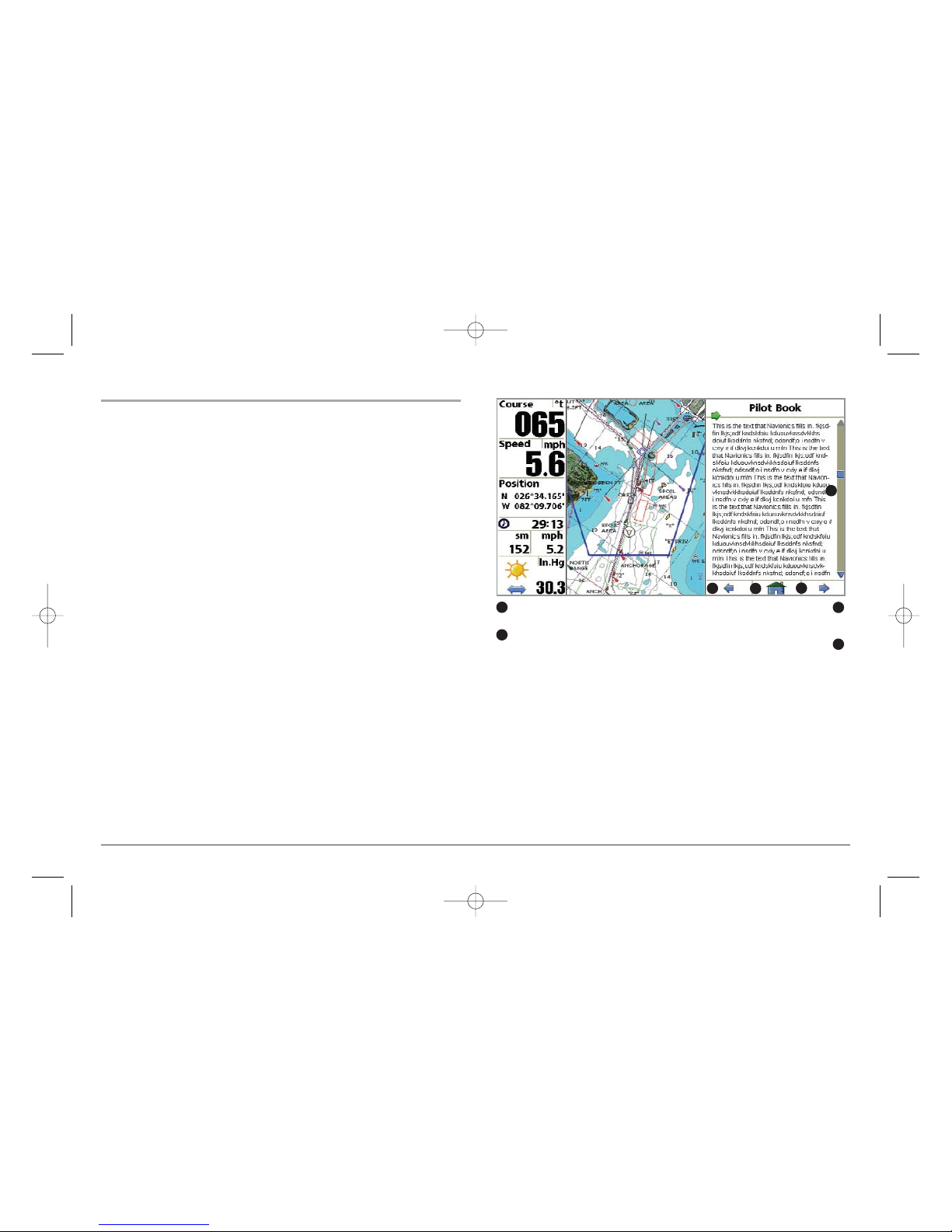

Chart/Pilot Book Combo View ................................................................................ 7
How to Use the Pilot Book ...................................................................................... 8
Moving Through the Pilot Book .............................................................................. 9
Bird’s Eye View........................................................................................................ 11
Chart View .............................................................................................................. 13
Nearest Port and Chart Information...................................................................... 14
How Platinum™ Cartography Affects The Menu System 15
Navigation X-Press™ Menu Platinum™ Cartography Addition
(Navigation Views only) 16
Overlay Transparency
(only in Navigation Views when Chart Aerial Overlay is visible) ...... 16
Chart Menu Tab Platinum™ Cartography Additions 17
Chart Detail Level .................................................................................................. 17
Map Borders............................................................................................................ 18
Platinum™ Menu Tab (only with Platinum™ Cartography MMC/SD card) 19
Chart Aerial Overlay .............................................................................................. 19
3D Aerial Overlay .................................................................................................... 19
Troubleshooting 20
Fishing System Doesn’t Power Up ........................................................................ 20
Fishing System Defaults to Simulator with a Transducer Attached .................. 20
Display Problems .................................................................................................... 21
Finding the Cause of Noise .................................................................................. 22
Humminbird® Accessories 23
Glossary 24
Contact Humminbird® 28
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page ii

How Platinum™Cartography Works
Platinum™Cartography is only available in the 955c, 957c, 967c and 997c
models if you have an optional-purchase Navionics®Platinum™Cartography
MMC/SD card installed. Platinum™Cartography provides:
• a photographic overlay on certain views,
• additional icons for ports and other landmarks,
• pilot books that provide commentary from captains for certain ports,
• panoramic photos of some ports (such as marinas), and
• 3D Platinum™Cartography.
3D Platinum™Cartography displays a 3 dimensional rendered view of both
the water where you are navigating and the ports and land masses in the
area surrounding the boat's position. Land is shown in varying shades of
yellow, with the color changes indicating the relative height above sea level.
Water and submerged objects are shown in varying shades of blue, with the
color changes indicating the relative depth.
NOTE: If you cannot see any Platinum™information, the MMC/SD card installed
in your control head may not have any Platinum™data for the area you are
viewing. In this case, zoom out far enough to see the dotted gridlines on the chart
which indicate areas where 3D data is available, then drive your boat into one of
those gridlines and zoom in again.
NOTE: It may take a moment for the Platinum™information to load.
The user interface will change to show the following Platinum™Cartography
features when you install a Navionics®Platinum™Cartography MMC/SD card:
• A new Platinum™main menu tab will appear that contains the Chart
Aerial Overlay and 3D Aerial Overlay menu choices;
• The Chart/Pilot Book View is added to the Views menu, and to the
views rotation after the Chart View (The Chart/Pilot Book View is
hidden by default);
• The Bird’s Eye View changes to show charts loaded with 3D
representations for a new 3D Bird’s Eye View that has the following
added functionality:
- The zoom level will affect how much space is taken up in the view
and how much white space is shown.
- Platinum™Navaids (navigational aids) are displayed as long as the
Chart Detail Level is set to Navigation or higher.
- An aerial photo overlay is shown on the 3D representation of the
Bird's Eye View.
NOTE: You must be zoomed in enough, but not too close, to be able to see the
3D overlay.
• Chart views will display Navionics®Platinum™items, depending on the
Chart Detail level set; when All is selected, all of the Platinum™icons
that are available on a particular part of the map will be displayed.
- When Chart Aerial Overlay is set to visible on the Platinum™Main
Menu, you'll see a photo on top of your chart, and the Overlay
Transparency X-Press™menu that allows you to adjust the
transparency via a slider will be added to the Chart views.
1
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 1

• INFO key functionality:
- Port Info has new functionality. The following three selections come
up as a submenu:
Port Information
Pilot Book (see Platinum™Pilot Book Functionality for more
information)
Panoramic Photo: (see Nearest Port and Chart Information for
more information)
NOTE: Each selection is displayed only if it is actually available for the port, and
if only one selection is available, it is displayed without any submenu selection.
NOTE: Choosing any of these options cursors to the item of interest.
Multi-Media Card (MMC)/SD Slot
Your Humminbird®Fishing System also has a
multi-media card (MMC)/SD slot that is used
to insert optional-purchase cards containing
additional detailed maps. If you insert an
MMC/SD that contains a more detailed
chart for a particular location, your
Humminbird®Fishing System will retrieve
that chart and display it automatically. Use
the illustration to locate the position of the
MMC/SD slot cover, remove the MMC/SD
slot cover, then insert the MMC/SD into the
slot. The label on the MMC/SD should face toward the left side of the unit.
Press down on the card until it clicks into place and replace the slot cover.
Then, replace and tighten snugly - do NOT overtighten, as this will not
improve water resistance, and may damage the cover.
Software Updates
Use the MMC/SD slot to update the software version of your control head.
To update the software in your control head, plug in the appropriate
MMC/SD card that contains a software update file; the unit will recognize it,
will tell you what software version your control head is currently running,
and will ask you if you want to update the software in the unit to match that
on the MMC/SD card. You can obtain software updates from the
www.humminbird.com website.
Inserting an MMC/SD
into the Card Slot
2
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 2

Additional Platinum™Cartography Key Functions
Your user interface consists of a set of easy-to-use keys that work with
various on-screen views and menus to give you flexibility and control over
your fishing experience. Your control head operations manual contains full
descriptions of the functions of these keys, but the following keys have
additional Platinum™Cartography functionality when a Platinum™
Cartography MMC/SD card is installed:
• VIEW key
• MENU key
• 4-WAY Cursor Control key
• EXIT key
• INFO key
• GOTO key
• ZOOM [+/-] keys.
VIEW Key
The VIEW key is used to cycle through all available views.
Press the VIEW key to advance to the next view. Repeatedly
pressing VIEW cycles through all views available. Views can be hidden to
optimize the system to your fishing requirements (see
View Menu Tab ).
• When you have the Platinum™MMD/SD card installed, the view
rotation will include the Chart/Pilot Book View.
MENU Key
The MENU key is used to access the menu system.
X-Press™Menu - Press the MENU key once for the X-Press™Menu. The
X-Press™Menu displays the new Overlay Transparency Platinum™X-Press™
menu choice in any of the Chart navigation views when Chart Aerial Overlay
is set to visible. See Navigation X-Press™Platinum™Cartography Additions:
Overlay Transparency (only in Navigation Views when Chart Aerial Overlay
is visible)
for more information.
Main Menu - Press the MENU key twice for the tabbed Main Menu System.
The Main Menu System is organized under tabbed headings to help you find a
specific menu item quickly: Alarms, Sonar, Navigation, Chart, Setup, Views,
Accessories, and Platinum™tabs are part of your tabbed Main Menu System.
3
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 3

4-WAY Cursor Control Key
The 4-WAY Cursor Control Key has multiple Platinum™
Cartography functions, depending on the situation:

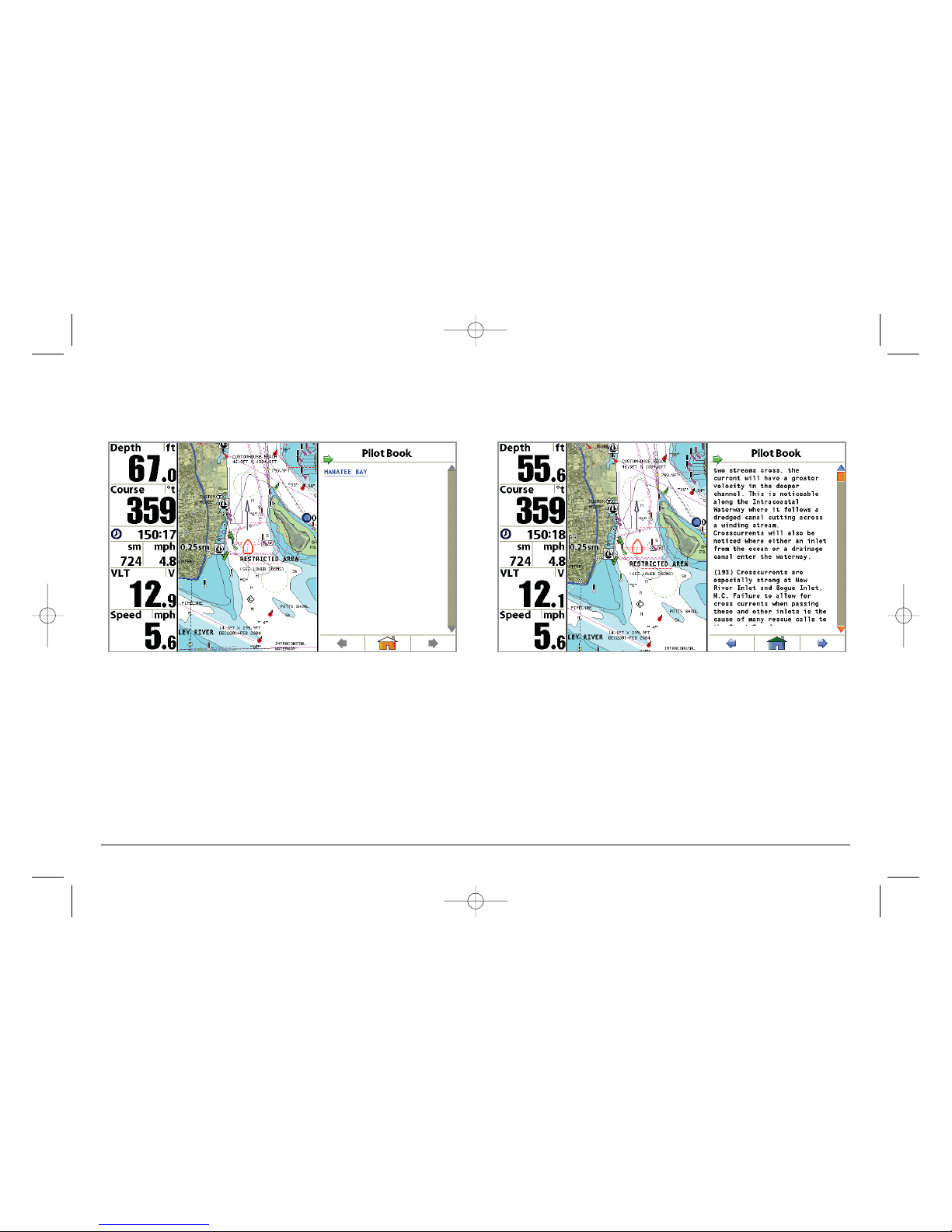

Pilot Book Selection - Use the 4-WAY Cursor Control keys to select a
port icon (shown as a sailboat within a white square), then press the
INFO key to display the Port Info menu. When a pilot book is
available, you can use the 4-WAY Cursor Control keys to select a pilot book,
then use the 4-WAY Cursor Control keys to navigate through the pilot book,
in combination with the GOTO key. See
How to Use the Pilot Book for more
information.
NOTE: You can also view the pilot book by pressing the VIEW key until the
Chart/Pilot Book View appears.
Change 3D Perspective - Use any arrow key to change the perspective in the
3D Bird's Eye View. Subsequent presses of arrow keys rotate and tilt the 3D
representation.
EXIT Key
The EXIT key has one function specific to Platinum™
Cartography:
• If you are viewing a panoramic photo in a Bird's Eye or Chart view,
pressing EXIT wll exit the panoramic photo and return you to the
normal view with the cursor active.
4
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 4

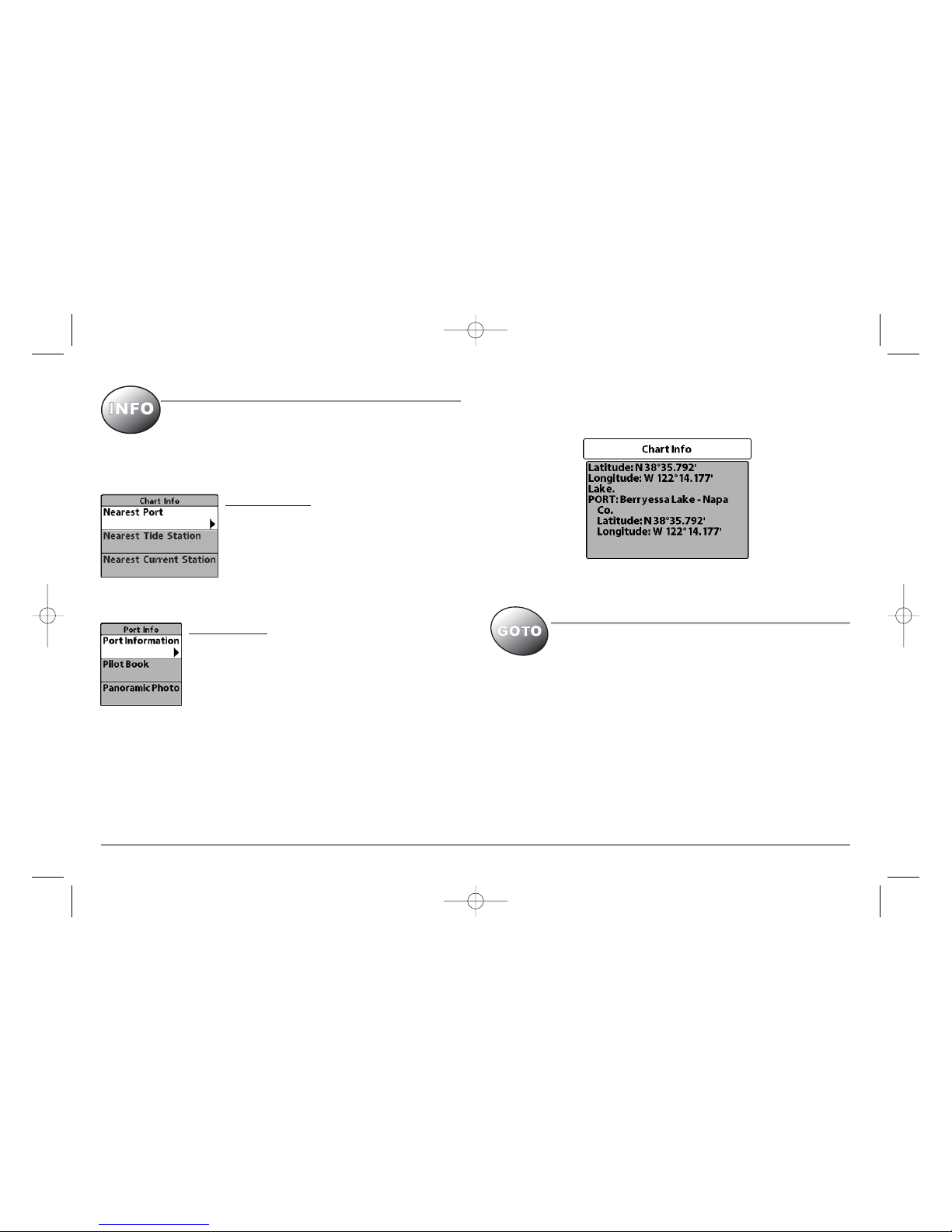

INFO Key
Press the INFO key while in any navigation view to display
information about objects that are nearest to an active cursor.
NOTE: You can use the INFO key to obtain extra information about specific
Navionics®icons.
Chart Info menu:
If the cursor is not active, pressing the INFO key
will highlight the Chart Info menu. Use the 4-WAY
Cursor Control key to highlight Nearest Port,
Nearest Tide Station or Nearest Current Station,
then use the RIGHT Cursor key to display the
requested information.
Port Info menu:
If the cursor is active, pressing the INFO key will display the
Port Info menu. From the Chart Info menu, if you choose
Nearest Port using the 4-WAY Cursor Control keys, the Port
Info menu will also be displayed. Use the 4-WAY Cursor
Control key to highlight Port Information, Pilot Book or Panoramic Photo (some of
these may not be present, depending on what is actually available for the map at
this location), then use the RIGHT Cursor key to display the requested information.
NOTE: Not all menu choices will be displayed, as they are dependent on what
information is available from your MMC/SD card at that point in the map.
NOTE: The built-in UniMap™does not contain Port, Tide or Current information.
This information is only available from optional purchase MMC/SD cards.
NOTE: If a Chart Information text box appears instead of one of the Info menus,
this means that there is no additional pilot book or panoramic photo information
available near your cursor's location.
GOTO Key
The GOTO Key has additional Platinum™Cartography
functionality in the pilot book, where it is used to move from
screen to screen in the pilot book hierarchy. See the
Chart/Pilot Book View section for more information.
5
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 5

ZOOM (+/-) Keys
Press the - or + ZOOM keys while in any of the Navigation
Views or the Sonar Zoom View to change the scale of the view
to appear closer or farther away.
NOTE: Platinum™information, such as a 3D or photographic
overlay, will not be displayed if you are zoomed out too far, or
zoomed in too far. Use the ZOOM keys to adjust your perspective
until you can see the Platinum™information.
Views
Chart/Pilot Book Combo View will be added to the
View Rotation when a Platinum™Cartography
Multi-Media Card (MMC)/SD Card is installed in
the Fishing System. In addition, the following views
will have additional Platinum™Cartography features
added to them:
New Platinum™ Cartography View:
• Chart/Pilot Book Combo View.
Navigation Views Affected by Platinum™ Cartography:
• Bird's Eye View
• Chart Views.
Sonar
Views
Track
View
Combo
View
Bird's
Eye
View
6
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 6

Chart/Pilot Book Combo View
The pilot book is a collection of captain's log entries, displayed in book form,
that is associated with certain ports. Chart/Pilot Book Combo View shows
both the Chart and Pilot Book views in a combination split screen. You can
perform any of the functions for either of these views, but only when the
view you want to control is selected as the active side.
NOTE: The Chart/Pilot Book Combo View defaults to Hidden; you must make it
Visible using the Chart/Pilot Book View menu on the Views Main Menu tab.
However, if you select Pilot Book from the Port Info menu, you will be taken to
the Chart/Pilot Book Combo View automatically, regardless of how the view is
set to display.(see View Main Menu and Nearest Port and Chart Information
for more information).
NOTE: See Chart View for more information about the Chart side of this view.
When you select Pilot Book from the Nearest Port sub-menu, or from the
selected port if your cursor is active, the pilot book will open to the selected
port on the Chart/Pilot Book Combo View. If you then change to a different
view on the view rotation (using the VIEW key), then re-display the
Chart/Pilot Book Combo View, the pilot book will remain open to the last
page displayed until you power down the unit. If you have not yet selected
a port when you go to the Chart/Pilot Book Combo View in the view rotation,
the pilot book will open to the pilot book index. See
Moving Through the
Pilot Book for more information.
Chart/Pilot Book Combo View
Use the UP and DOWN 4-WAY Cursor Control
Keys to scroll up and down in the display
Highlighting the Home icon and then pressing
the GOTO Key takes you back a level - this icon
is inactive if you are in the Pilot Book Index.
13
Highlighting the left arrow icon and pressing
the GOTO Key takes you to the previous page. Highlighting the right arrow icon and pressing
the GOTO Key takes you to the next page.
24
1
24
3
7
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 7

How to Use the Pilot Book
There are three ways to access the pilot book:
The first way is to press the INFO key with the
cursor inactive anywhere on the Bird's Eye or
Chart View in order to display the Chart Info
menu, then select Nearest Port to view the Port
Info Sub-menu and choose Pilot Book.
NOTE: The Chart Info menu is available when the
cursor is inactive or in Bird's Eye View.
The second way to access the pilot book is to use the
4-WAY Cursor Control keys to move directly over the
desired port (which will have a port icon indicating port
information) and press the INFO key to view the Port sub-
menu, then choose Pilot Book.
NOTE: The Port Info Sub-menu is available when the
cursor is active and over a port icon on a chart view.
When you select Pilot Book from either of these sub-menus, the view
changes to the Chart/Pilot Book Combo View. If this view is hidden in the
view rotation, it will automatically be made visible when you select Pilot
Book from either of the sub-menus, and will remain visible until you remove
the Platinum™Cartography MMC/SD card or hide the Chart/Pilot Book
Combo View using the View main menu tab (see your Fishing System
Operations Manual for more information).
The third way is to make sure that Chart/Pilot Book View is turned to visible
using the View Main Menu, then rotate to it using the VIEW key.
NOTE: Unless you are in the Chart/Pilot Book Combo View, you must have your
cursor positioned inside one of the Platinum™map borders, and directly over a
port that has a pilot book associated with it, to view a pilot book.
Moving Through the Pilot Book
Use the UP and DOWN arrows on the 4-WAY Cursor Control keys to scroll up
and down in the pilot book index. The scroll bar will indicate your position.
Use the LEFT or RIGHT arrows on the 4-WAY Cursor Control keys to move the
highlight to different items. To activate a highlighted selection, press the
GOTO key.
As you scroll up or down, the first item to appear on the new page of the
pilot book will be automatically highlighted.
Highlight the previous or next arrows at the bottom of the screen and press
the GOTO key to move to another page in the pilot book.
When you highlight the Home icon and press the GOTO key, the page that is
the next level up in the hierarchy will be displayed (this may be the Index
page).
If you try to move past the available choices, an error beep will sound.
Port Info Sub-menu
Chart Info Menu
8
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 8

The pilot book is divided into the following categories:
Index: Displays the various pilot books available for this map.
1. When you are viewing a pilot book, and are at the top level (the
index), you can scroll through the index using the UP and DOWN
4-WAY Cursor Control keys.
2. Use the LEFT or RIGHT 4-WAY Cursor keys to highlight items in the
list of books available, then press the GOTO Key to move into the
Table of Contents for the selected pilot book.
Chapter Table of Contents: Displays the chapters available in the selected
pilot book.
1. Use the 4-WAY Cursor Control keys to move through this Table of
Contents, and to select a particular chapter for viewing.
2. If you continue to press the LEFT or RIGHT 4-WAY Cursor Control
keys, and highlight the Home icon at the bottom of the screen, you
may press the GOTO key to move back to the pilot book index.
Pilot Book Chapter Table of Contents
Pilot Book Index
9
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 9

Heading Table of Contents : Displays the headings available in the selected
chapter.
1. Use the 4-WAY Cursor Control keys to move through this Table of
Contents, and to select a particular heading for viewing.
2. If you continue to press the LEFT or RIGHT 4-WAY Cursor Control
keys, and highlight the Home icon at the bottom of the screen, you
may press the GOTO key to move back a level to the Chapter Table
of Contents.
Page View: Displays the actual pages of the selected heading in the chapter
of the pilot book.
1. Use the UP and DOWN 4-WAY Cursor Control keys to scroll up and
down within the first page, or use the LEFT or RIGHT 4-WAY Cursor
Control keys to highlight the previous or next arrows at the bottom
of the page, then press the GOTO key to advance to another page.
2. If you continue to press the LEFT or RIGHT 4-WAY Cursor Control
keys, and highlight the Home icon at the bottom of the screen, you
may press the GOTO key to move back to the Heading Table of
Contents.
Pilot Book Page ViewPilot Book Heading Table of Contents
10
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:26 AM Page 10

Bird’s Eye View
Bird's Eye View - This view shows a 3D, perspective view of the track from
a point above and behind the boat (the eye point). As the boat turns, the eye
point moves to follow the boat.
When you press the 4-WAY Cursor key in the Bird’s Eye View, the position of
the eye point will shift. This allows you to move and turn the eye point so
that you can look off to the sides, or even behind the boat. Pressing the
RIGHT or LEFT arrow keys on the 4-WAY Cursor key turns the eye point right
or left, while pressing the UP arrow key moves the eye point forward, and
pressing the DOWN arrow key moves the eye point backward.
Pressing the EXIT key moves the eye point back to its original position behind
and above the boat.
You can use the INFO key to get information on the objects near the boat.
See
Nearest Port and Chart Information for more information.
3D View: Once Platinum™Cartography is added to your Fishing System, the
Bird's Eye View changes to a 3D View when you zoom in using the ZOOM +
key, even though it appears as the normal Bird's Eye View when you are
zoomed out.
Photographic Overlay: Once Platinum™Cartography is added to your Fishing
System, and 3D Aerial Overlay is set to Visible using the Platinum™
Main Menu, the Bird's Eye View changes to show a photographic overlay
(when photographic data exists in the map) when you zoom in using the
ZOOM + key, even though it appears as the normal Bird's Eye View when you
are zoomed out.
NOTE: Platinum™information, such as a 3D overlay or photographic data, will not
be displayed if you are zoomed out too far, or zoomed in too far. Use the ZOOM
keys to adjust your perspective until you can see the Platinum™information.
See Platinum™Menu Tab: 3D Aerial Overlay for more information.
Platinum™gridlines will only be displayed appropriately on the Bird's Eye
View if Map Borders is set to MMC/SD Only or All Visible. See Chart Menu
Tab; Platinum™Cartography Additions: Map Borders
for more information.
NOTE: The entire view may not be completely filled up with information,
depending on the zoom level.
Bird’s Eye View, Showing 3D and Photographic Data and Navaids
Depth Speed of Boat
14
Course: Direction that boat is travelling
relative to North Reference
Land Contours
25
Boat Icon
1
2
4
5
6
3
6
Latitude and Longitude Position of Boat
3
11
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:27 AM Page 11

Bird's Eye View Zoomed In Too Far - No 3D or Photographic Data Visible
Depth Speed of Boat
14
Course: Direction that boat is travelling
relative to North Reference
Boat Icon
25
1
2
4
5
3
Latitude and Longitude Position of Boat
3
Bird's Eye View Zoomed Out Too Far - No 3D or Photographic Data Visible
Depth Speed of Boat
14
Course: Direction that boat is travelling
relative to North Reference
Land Contours
25
Boat Icon
1
2
4
5
6
3
6
3D Data Gridlines
7
Latitude and Longitude Position of Boat
3
7
12
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:27 AM Page 12

Chart View
Chart View shows cartography from the built-in UniMap™or an optional
MMC/SD map for the area surrounding your current position. The current
track (also known as the position history or breadcrumb trail) showing where
the boat has been, along with saved tracks, waypoints, and the current
route (when navigating), are overlaid on the chart.
You can use the 4-WAY Cursor Control key to shift/pan the chart to another area.
You can use the ZOOM (+/-) keys to zoom in and out.
You can use the INFO key to get information on the chart objects near the cursor.
Photographic Overlay: Once Platinum™Cartography is added to your Fishing
System, and Chart Aerial Overlay is set to Visible using the Platinum™Main
Menu, the Chart View changes to show a photographic overlay (when
photographic data exists in the map) when you zoom in using the ZOOM + key,
even though it appears as the normal Chart View when you are zoomed out.
See
Platinum™Menu Tab: Chart Aerial Overlay and Navigation X-Press™
Menu; Platinum™Cartography Addition: Overlay Transparency for more
information.
In addition, the Chart View will display Platinum™Cartography data and
icons if Chart Detail Level is set to All.
Map borders will only be displayed appropriately on the Chart View for
Platinum™Cartography if Map Borders is set to MMC/SD Only or All Visible.
See
Chart Menu Tab; Platinum™Cartography Additions: Map Borders for
more information. See Chart Menu Tab; Platinum™Cartography Additions:
Chart Detail Level
and Nearest Port and Chart Information for more
information.
Chart View
Depth Cartography
14
Course: Direction that boat is travelling
relative to North Reference. Boat Icon
25
Map Scale
3
1
2
3
4
5
13
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:27 AM Page 13

Nearest Port and Chart Information
Platinum™Cartography provides additional information when you press the
INFO key on a part of the Bird's Eye or Chart Views that contains Platinum™
information. Whether the cursor is active or inactive will determine exactly
what you see, as well as whether there are pilot books or panoramic photos
available for your specific location.
Pressing the INFO key when the cursor is not active
displays the Chart Info menu, which in turn allows
you to select Nearest Port; Nearest Port has
additional Platinum™Cartography functionality (Port
Information, Pilot Book, and Panoramic Photo,)
when that information is available for the port:
• If you select Pilot Book from this sub-menu, the Chart
View changes to a new view, the Chart/Pilot Book
Combo View. See
Chart/Pilot Book Combo View for
more information.
• If you select Panoramic Photo, a new window will be
displayed that is similar to the Tide Station Box, that covers
the width of the screen, but not the readouts. Pressing
EXIT removes the panoramic photo image from the screen
and returns you to the Chart View with the cursor active.
When you press the INFO key when the cursor is active, you will see the
same choices, but without the Nearest Port sub-menu.
NOTE: If no pilot book or panoramic photos exist for your location, only the Chart
Info data window will be displayed.
Chart Info Data Window
Panoramic Photo
Nearest Port Sub-menu:
Panoramic Photo
Nearest Port Sub-menu
Chart Info Menu
14
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:27 AM Page 14

How Platinum™Cartography Affects The Menu System
The menu system is divided into easy-to-use menu modules. The components
of the menu system that are affected by Platinum™Cartography are:
X-Press Menu - When a Platinum™Cartography
MMC/SD card is installed, the X-Press™menu will
change to include the following menu item
(depending on the view you are in): Overlay
Transparency. See the
Navigation X-Press™Menu;
Platinum™Cartography Addition (Navigation
Views only)
for more information.
Main Menu Tabs - When a Platinum™
Cartography MMC/SD card is installed, the
following tab headings will appear: Alarms,
Sonar, Navigation, Chart, Setup, Accessories, and
Platinum™.
NOTE: See your Fishing System Operations Manual
for information on the full menu choices.
Main Menu System
Normal User Mode
X-Press™Menu
15
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:27 AM Page 15

Navigation X-Press™Menu
Platinum™Cartography Addition
(Navigation Views only)
The Navigation X-Press™menu provides access to
the settings most frequently used. Press the
MENU key once while in the Bird's Eye View, the
Chart or the Chart/Pilot Book Combo View to
access the Navigation X-Press™menu.
NOTE: Menu choices will vary depending on system
settings, such as whether you are currently
navigating.
The Navigation X-Press™menu will be added to
the menu system when a GPS is connected to the
Fishing System, and will contain the following
Platinum™-specific choice when a Platinum™
Cartography MMC/SD card is installed:
• Overlay Transparency (only in Navigation
Views when Chart Aerial Photo is visible).
Overlay Transparency
(only in Navigation Views when
Chart Aerial Overlay is visible)
Overlay Transparency allows you to change the transparency of the chart
aerial photo overlay when it is visible. When the Overlay Transparency is set
to 0%, the overlay will be completely opaque. When the Overlay
Transparency is set to 100%, the overlay will be completely invisible. (See
Platinum™Main Menu Tab: Chart Aerial Overlay for more information).
To change the transparency of the chart aerial overlay:
1. Highlight Overlay Transparency on the Navigation X-Press™ menu.
2. Use the RIGHT 4-Way Cursor Control key to change the transparency
of the overlay. (0% - 100%, Default = 30%)
Navigation X-Press™
Menu Affected By Platinum™
Cartography
16
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:27 AM Page 16

Chart Menu Tab
Platinum™Cartography Additions
Press the MENU key twice to access the Main
Menu System, then press the RIGHT cursor key to
select the Chart tab.
NOTE: Menu choices will vary depending on system
settings.
The Navigation Menu Tab will be added to the
menu system when a GPS Receiver is connected
to your Fishing System; the following Chart menu
choice will have additional functionality when a
Platinum™Cartography MMC/SD card is
installed:
• Chart Detail Level
• Map Borders.
Chart Detail Level
Chart Detail Level allows you to select how
much chart detail you want displayed on the
Navigation Views. Basic shows
land areas, ports, obstructions and restricted areas. Navigation shows
navaids, landmarks, ferryways and navigation routes in addition to the Basic
information. Underwater shows depth contours, fishing areas, underwater
wrecks, tides and currents in addition to the
Basic and Navigation
information. All shows roads, buildings, railways, and other notations in
addition to the Basic , Navigation and Underwater information.
To change the Chart Detail Level setting:
1. Highlight Chart Detail Level on the Chart main menu.
2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the
Chart Detail Level setting. (Basic, Navigation, Underwater, All,
Default = All)
NOTE: Some chart details are only available with optional-purchase MMC/SD
cards. If you have a Platinum™Cartography MMC/SD card installed, selecting All
will add all of the new business, wreck, road and other Platinum™icons to the
Chart views.
Chart Menu Tab
Affected by Platinum™
Cartography
17
531598-1_A - PlatCart_Man.qxp 4/11/2007 8:27 AM Page 17
