USER MANUAL

AKRON 8462
1
Contents
1. Introduction 2
Warnings, Cautions 2
General Warnings 2
2. Installation 3
3. Operation 4
5
6
4. Accessories –Operating Instructions 7
Cyriax Horns 7
Hole & Horn 7
Lean Back Frame 7
Fixation Rails7
5. Cleaning and Decontamination 8
6. Troubleshooting 8
7. Maintenance 9
8. Warranty and Service 10
11
9. Revision Status 11
10. Technical Specification 12
"The mark on this product demonstrates conformity
with the EC Directive 93/42/EEC."

AKRON 8462
2
1. Introduction
Always keep this Operating Manual available for reference.
Warnings & Cautions
General Warnings
WARNINGS
Warnings identify possible hazards in procedures or conditions which, if not correctly followed,
could result in death, injury or other serious adverse reactions.
CAUTIONS
Cautions identify conditions or procedures which, if not correctly followed, could result in equipment
failure or damage.
WARNINGS
Use only accessories that have been designed or approved for use with this couch.
Do not use electric couches in the presence of flammable gasses such as an
anaesthetic agent.
Maximum Load 180 (396 lbs) distributed evenly.
Do not concentrate weight on either side of the couch.
Plug acts as a disconnect device.
Do not allow children to play with the couch at any time.
Adequately supervise children in the proximity of the couch.

AKRON 8462
3

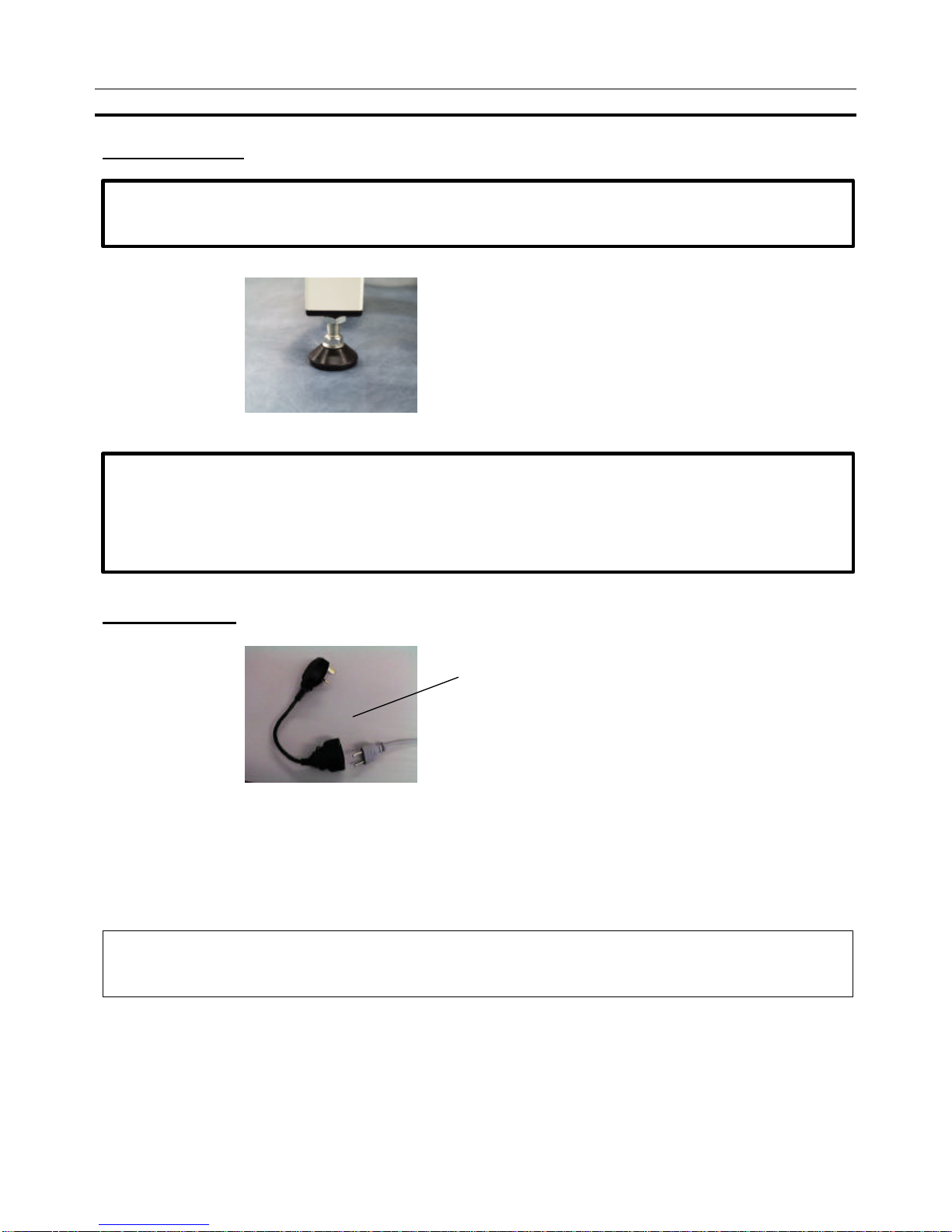

2. Installation
Adjustable Foot
Electric Models
Ensure mains supply cable is not stretched when connected.
Ensure, during couch use, no obstacles are in its path.
Ensure hand / foot switch tubes or leads are not trapped by moving parts of the couch.
WARNING
Lock castors before adjusting.
A) Lock castors first.
B) Adjust foot.
C) Lock foot by tightening half nut.
WARNING
Do not insert the 2-pin mains connector directly into a 3-pin 13A mains outlet.
Always use the adapter provided.
Plug acts as a disconnect device.
Use adapter if 3 pin 13A plug is required.
(Order reference 5S0409Z)
CAUTION
When not in use, switch couch off.

AKRON 8462
4
3. Operation

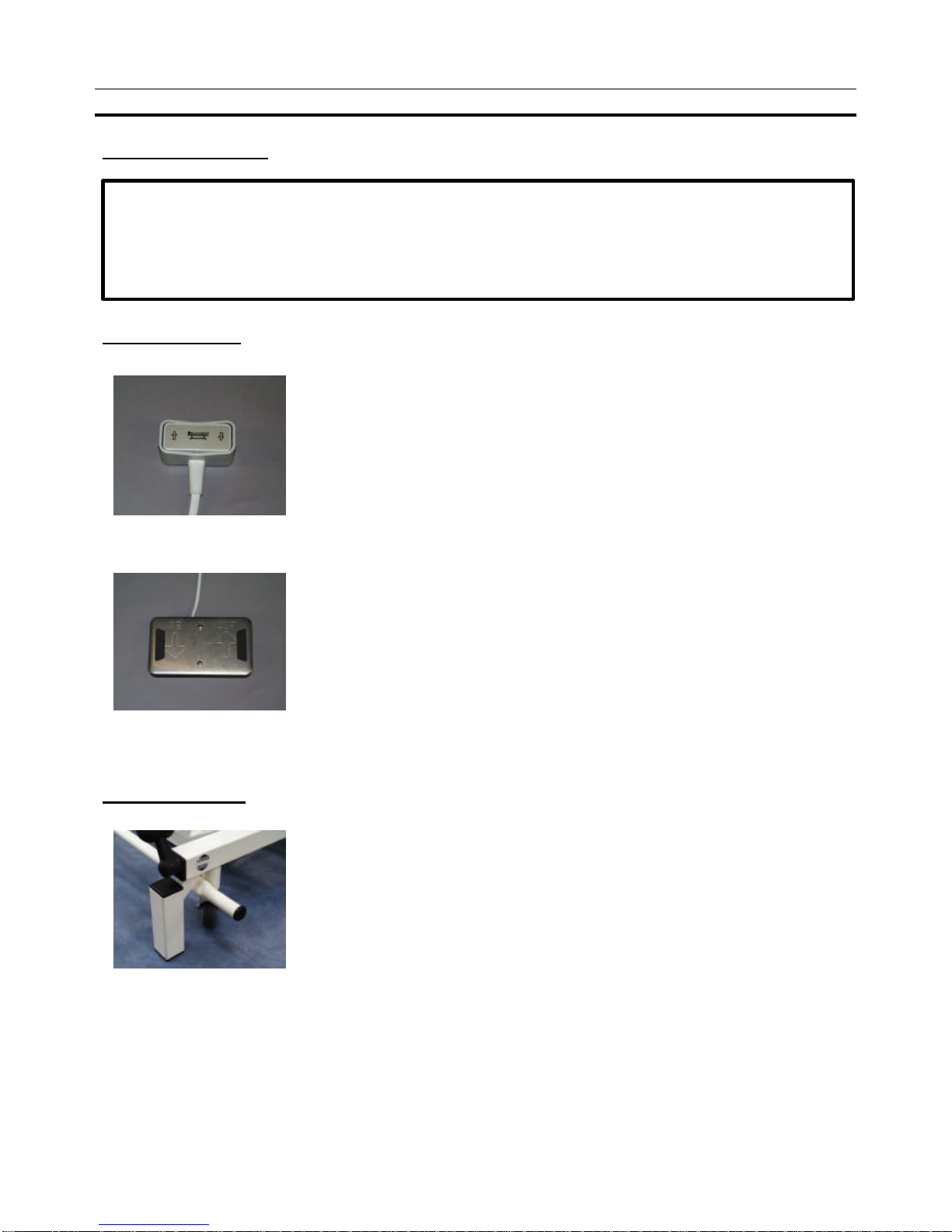

Elevation Controls
Electric Models
Handswitch
Footswitch
Foot Bar Switch
WARNING
Safely position patient before elevating couch.
Position all electrical cables away from the moving parts.
Position Hand/Foot switch where accidental operation is not possible.
Press éto raise couch
.
Press êto lower couch.
AUF
Press éto raise couch
AB
Press êto lower couch.
Press tube done to raise couch
Lift tube up to lower couch

AKRON 8462
5
3. Operation

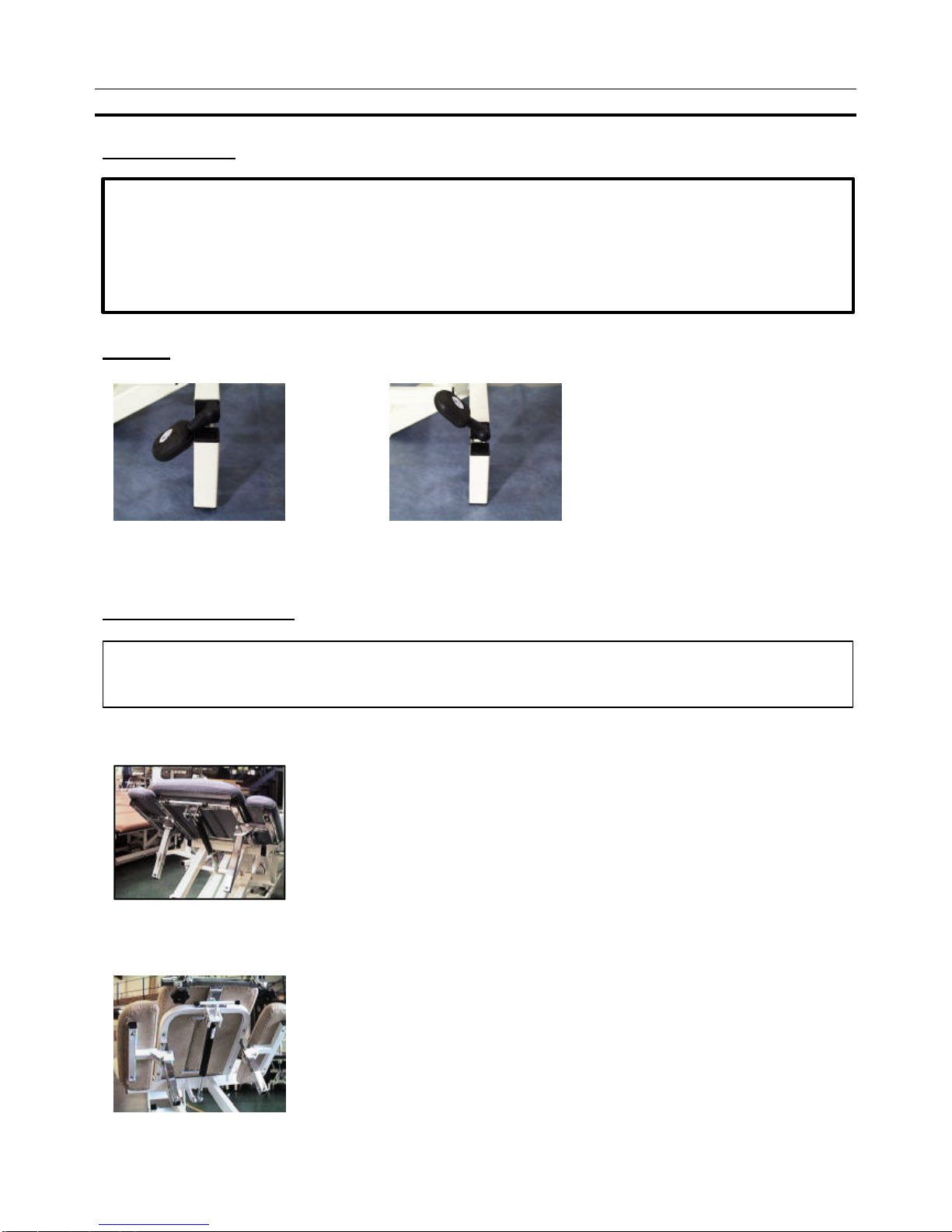

Wheel Locking
Castors
Castors Unlocked Castors Locked
Head & Foot Sections
Head Section Operating Lever
Head Section Arm Rests
WARNING
Lock couch wheels/castors prior to patient transfer or treatment.
The retractable castors are not designed for transportation of patients.
Disconnect and coil electrical cord away from moving parts prior to
repositioning couch.
CAUTION
Support upholstery section while manually altering the angle.
A) Press lever UP to alter section angle.
B) Support section when altering angle.
C) Release lever to lock section in position.
A) Tilt armrest towards head section.
B) Move armrest into position.
C) Release armrest to lock into position.

AKRON 8462
6

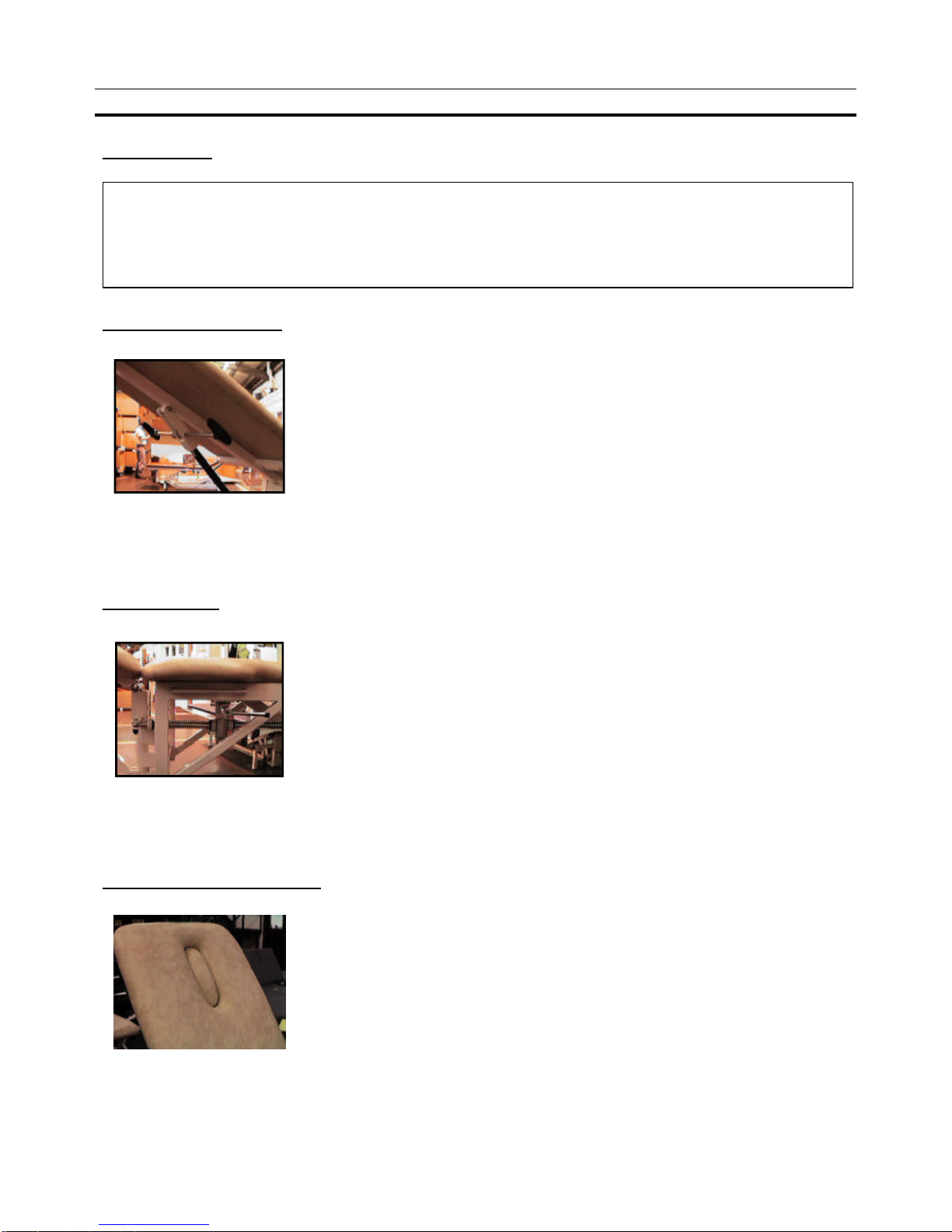

3. Operation
Foot Section
Flexion & Extension
Foot Section Operating Lever
Side Bending
Side Bending Release Lever
Breathing Hole and Plug
Remove plug for patient prone position.
Press out from underneath.
To adjust the foot section for flexion & extension :-
A) Rotate the lever positioned under the foot section, clockwise or
anti-clockwise.
B) Raise or lower section to desired angle.
C) To secure foot section at correct angle, continue to rotate the lever.
Foot Section Angles = +26º -25º
To release the foot section to enable side bending :-
A) Rotate the lever under the mid section upholstery anti-clockwise.
B) Rotate the foot section to desired position.
C) Rotate the lever clockwise to secure foot section in desired position.
Angles = 30-35º along the horizontal axis.
CAUTION
The foot section is able to move in two independent modes.
It is recommended that Operators familiarise themselves with the functions of each mode, prior to
using the couch with a patient.

AKRON 8462
7
4. Accessories –Operating Instructions
Cyriax Horns
Hole & Horn
Lean Back Frame
Fixation Rails
Adjust Cyriax Horns to suit patient by :-
A) Unlocking the locking knobs.
B) Adjust position of horns.
C) Tighten locking knobs.
To fit Horn into Hole :-
A) Simply locate horn into hole.
B) Ensure horn is fully inserted prior to use.
To adjust Lean Back Frame :-
A) Remove locating pins from frame.
B) Slide frame to required position.
C) Replace pins into holes at the end of the frame.
Ensure straps are correctly located through fixation rails before use.

AKRON 8462
8
5. Cleaning and Decontamination
Frequency of routine couch cleaning will depend on exact application.
CLEANING / DECONTAMINATION
Wear suitable protective clothing
Disconnect mains supply
Locate couch in a suitable cleaning area with castors disengaged or wheels locked.
A) Using a clean damp cloth, warm water and soap carefully wipe couch from top to bottom, taking
care around electrical components.
B) Wipe couch carefully from top to bottom using a damp cloth and clean water.
C) Wipe couch carefully dry with clean paper towels from top to bottom.
If DECONTAMINATING then repeat steps a) to c) using a dilute Hypochlorite / warm water mixture
(10,000ppm) instead of warm water and soap.
Safely discard cleaning / decontaminating materials.
Wash hands thoroughly.
Put couch back into service.
6. Troubleshooting –Electric Actuator
Symptom Possible cause Action
Actuator will not work Power disconnected
Fuse blown
Hand/footswitch
disconnected
Ensure mains supply is connected
Replace fuse in socket
Check that the hand/foot switch is fully
inserted into the actuator
Actuator runs when Bar
is not pressed
(Foot Bar Switch)
Out of balance system Vent air tube by disconnecting from
actuator, then reconnect
If the problem persists consult your local Akron Supplier.
WARNING
Do not use Alkalis or other organic solvents for routine cleaning.
Replace torn or damaged vinyl immediately.
Always cover vinyl with fresh paper or sheet between patients.
If contamination is known or suspected always decontaminate couch before use.

AKRON 8462
9
7. Maintenance
Check couch visually before use.
Carry out routine servicing every six months or more frequently if in heavy use.
Routine servicing or repair must only be performed by suitably qualified person.
Examine the couch for any signs of damage. Make sure that all nuts, bolts and other fasteners are tight.
Do not over tighten as this may cause binding.
Upholstery fasteners should be checked, tightened or replaced if necessary.
Check section hinge pins to ensure that no pin protrudes.
Check gas strut controls, throughout the full range of movement for locking and assistance.
Check hydraulic couches for smooth operation and signs of leakage.
Examine the flexible cables for cuts, abrasions, kinking or other deterioration and replace if necessary.
Ensure that the power supply connector plug is securely attached.
Check mains plug connections are tight and fuse is correctly rated (5A).
WARNING
Before commencing any maintenance activity, disconnect the couch from the
electrical supply.
Plug acts as disconnect device.
WARNING
All electrical checks should be performed by a suitably qualified and licensed
electrician.
Neither BLUE or BROWN wires are to be connected to the earth terminal of a
three pin plug.

AKRON 8462
10
8. Warranty and Service (UK only)
Huntleigh Akron’s standard terms and conditions apply to this couch. A copy is available upon request.
These contain full details of warranty terms and do not limit the statutory rights of the consumer.
For service or maintenance please contact:
Service Department
Huntleigh Healthcare
310-312 Dallow Road
Luton
Beds Telephone: [phone]
LU1 1TD Fax: [phone]
For information on this product, or any other Huntleigh Akron product, please contact:
Huntleigh Akron
1 Farthing Road
Ipswich Telephone: [phone]
IP1 5AP Fax: [phone]
Huntleigh Akron T/A a Division of Huntleigh Nesbit Evans Limited
A Member of the Huntleigh Technology PLC Group of Companies
© Huntleigh Technology PLC 2001.
If for any reason your couch is being returned, please inform Huntleigh Akron prior to sending, and:
1. Clean the product, as described in the cleaning section.
2. Pack it in suitable packing.
3. Attach the decontamination certificate (or other written statement declaring that the product has
been cleaned) to the outside of the package.
4. Mark the package “Service Department”.
Manufactured in the UK by Huntleigh Akron. As part of the ongoing development programme this
company reserves the right to modify specifications and materials of this couch without notice.

AKRON 8462
11
8. Warranty and Service (UK only)
Huntleigh Akron’s standard terms and conditions apply to this couch. A copy is available upon request.
These contain full details of warranty terms and do not limit the statutory rights of the consumer.
For service, maintenance and any questions regarding this, or any other Huntleigh Akron Product, please
contact:
Huntleigh Akron
1 Farthing Road
Ipswich
Suffolk
IP1 5AP.
England
Telephone: [phone]
Fax: [phone]
Huntleigh Akron T/A a Division of Huntleigh Nesbit Evans Limited
A Member of the Huntleigh Technology PLC Group of Companies
© Huntleigh Technology PLC 2001.
If for any reason your couch is being returned, please inform Huntleigh Akron prior to sending and:
1. Clean the product, as described in the cleaning section.
2. Pack it in suitable packing.
3. Attach the decontamination certificate (or other written statement declaring that the product has been
cleaned) to the outside of the package.
4. Mark the package “Service Department”.
Manufactured in the UK by Huntleigh Akron. As part of the ongoing development programme this
company reserves the right to modify specifications and materials of this couch without notice.
9. Revision Status
8462
PAGES ISSUE WRITTEN DATE
ALL PAGES UM -01 S.Rees 08/06/98
ALL PAGES UM -02 S.Rees 02/12/98
PAGES 10 & 11 UM -03 J. Austin 18/11/99
PAGE 2 UM -04 (DCN958) J. Barker 30/10/00

AKRON 8462
12
10. Technical Specification
Akron M6M
8462
Head length (cm) 48±1.5
Mid Length (cm) 47±1.5
Foot Length (cm) 104±1.5
Width (cm) 60±1.5
Overall Length (cm) 203±3
Height Range (cm)
62±1.5 109±1.5
Max. Load Weight 180 Kg
Elevation Control Electric
Electrical Data 230v
Actuator 220-240v
Internal Fuse Rt T1.6A x 1
Current 1.6A
Power 480W
Mains Plug Fuse Rt (UK) 5.0A x 1
Electrical Data 115v
Actuator 115v
Internal Fuse Rt F4.0A x 1
Current 3.3A
Power 380W
IEC 601-1 Classification
Check serial number label for classification
230v 115v 115v
Double Insulated Double Insulated Class 1
Type B equipment Type B equipment Type B equipment
Attention consult this manual Attention consult this manual Attention consult this manual

Huntleigh Akron, 1 Farthing Road, Ipswich, Suffolk, IP1 5AP, England
Tel: [phone] Fax: [phone]
