Husqvarna AUTOMOWER 105 User manual

EN, English
(2-28)
KO, 한국어
(29-54)
JA, 日本語
(55-81)
Operator's manual
사용자 설명서
取扱説明書
HUSQVARNA AUTOMOWER®
105/310/315/315X/420/430X/440/450X
Read the operator's manual carefully and make sure that
you understand the instructions before you use the
product.
장비를 사용하기 전에 사용자 설명서를 주의 깊게 읽고, 지시사
항을 반드시 이해하십시오.
本製品をご使用になる前に、この取扱説明書をよくお読みいた
だき、内容をしっかりと把握してください。

Contents
1 Introduction.......................................................2
2 Safety............................................................... 8
3 Installation...................................................... 11
4 Operation........................................................15
5 Maintenance...................................................18
6 Troubleshooting..............................................19
7 Transportation, storage and disposal............. 20
8 Technical data................................................ 21
9 Warranty.........................................................26
10 EC Declaration of Conformity.......................27
11 Applicable to JP market................................28
1 Introduction
1.1 Introduction
Serial number:
PIN code:
The serial number is on the product rating plate and on the product carton.
• Use the serial number to register your product on www.husqvarna.com.
1.2 Support
For support about the Husqvarna product, speak
to your servicing dealer.
1.2.1 Complete Operator’s Manual
A complete operator's manual is available on
Husqvarna’s website www.husqvarna.com. It is
more in detail about e.g. instructions about
installation, maintenance, troubleshooting and
menu structure.
1.2.2 Product description
Note: Husqvarna regularly updates the
appearance and function of the products. Refer
to Support on page 2 .
The product is a robotic lawn mower. The product
has a battery power source and cuts the grass
automatically. Collection of grass is not
necessary.
The operator selects the operation settings with
the keys on the keypad.
The display shows the selected and possible
operation settings, and the operation mode of the
product.
The boundary wire and the guide wire controls
the movement of the product within the work
area.
1.2.2.1 Automower® Connect
Automower® Connect is a mobile application that
makes it possible to select the operation settings
remotely. Refer to
Connectivity on page 16 .
1.3 Capacity
How big an area the product can keep cut
depends primarily on the condition of the blades
and the type, growth and moisture of the grass.
The shape of the yard is also significant. If the
yard mainly consists of open lawn areas, the
product can mow more per hour than if the yard
consists of several small lawns separated by
trees, flower beds and passages. For working
capacity, refer to
Technical data on page 21 .
It is recommended to allow the product to mainly
mow in dry weather to obtain the best possible
result. The product can also mow in rain,
however wet grass easily sticks on the product
and there is a greater risk of slipping in steep
slopes. The blades must be in good condition to
obtain the best mowing result. In order to keep
the blades sharp for as long as possible it is
important to keep the lawn free from branches,
small stones and other objects. Replace the
2 - Introduction 903 - 002 - 19.10.2018

blades regularly. For information on replacing the
blades, see the complete Operator’s Manual on
brand’s website (www.husqvarna.com).

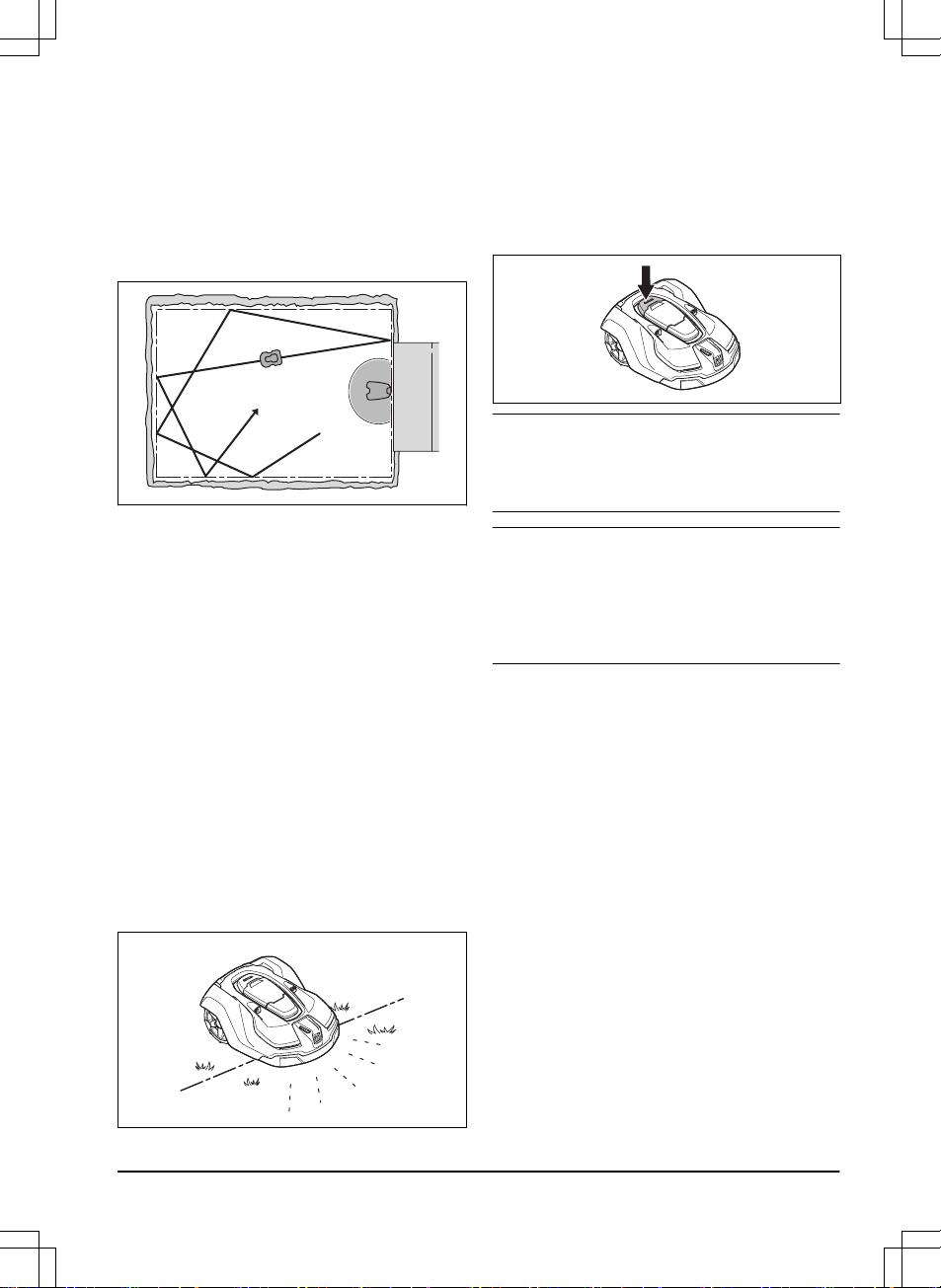

1.4 Movement pattern
The movement pattern of the product is random.
This means that the lawn is mown evenly without
any mowing lines.
1.5 Working method
The charging time can vary depending on,
among other factors, the ambient temperature.
Automower® 315X/430X/450X use GPS-assisted
navigation to start mowing in a place in the yard
where it has not been lately. For the other models
you might have to set manual exit settings to
make sure that the lawn is cut evenly, refer to the
complete Operator’s Manual on Husqvarna’s
website.
When the product body hits an obstacle or
approaches the boundary wire the product
reverses and selects a new direction. Sensors at
the front and back will sense when the product is
approaching the boundary wire. The front always
passes the boundary wire by a specific distance
before the product turns around. The distance
can be changed to adapt to the installation if
required.
The STOP button on the top of the product is
mainly used to stop the product when it’s running.
When the STOP button is pressed a hatch
opens, behind which there is a control panel. The
STOP button remains pressed in until the hatch
is closed again. This together with the START
button acts as a start inhibitor.
Note: Always press the START button before
closing the hatch to start the product. If the
START button is not pressed, a message beep is
heard and the product will not start.
Note: When the main switch is set to
1 for the
first time, a start-up sequence begins which
includes a number of important basic settings,
refer to
First start-up and calibration in the
complete Operator’s Manual on Husqvarna’s
website.
1.6 Finding the charging station
The Automower® 310/315/315X/420/430X/
440/450X can be set to search for the charging
station in up to 3 different ways. The product
automatically combines these 3 search methods
to locate the charging station as fast as possible,
but also to avoid as much tracks forming as
possible. Automower® 105 always follows the
guide wire to the charging station.
903 - 002 - 19.10.2018 Introduction - 3

1.7 Product overview Automower® 105
1
32
17
26
6
5
4
13
14
12
21
25 19
24
20
23
18
8
10
11
7
22
28
15
29
16
9
27
The numbers in the figure represent:
1. Body
2. Hatch to display, keypad and cutting height
adjustment
3. Stop button
4. Contact strips
5. LED for operation check of the charging
station, boundary wire and guide wire
6. Charging station
7. Handle
8. Battery cover
9. Blade disc
10. Skid plate
11. Chassis box with electronics, battery and
motors
12. Main switch
13. Rear wheel
14. Charging strip
15. Keypad
16. Display
17. Loop wire for boundary loop and guide wire
18. Connectors for the loop wire
19. Stakes
20. Couplers for the loop wire
21. Screws for securing the charging station
22. Blades
23. Operator’s Manual and Quick Guide
4 - Introduction 903 - 002 - 19.10.2018

24. Measurement gauge when installing the
boundary wire (the measurement gauge is
broken loose from the box)
25. Power supply (the appearance of the power
supply may differ depending on market)
26. Low voltage cable
27. Alarm decal
28. Cable markers
29. Rating plate

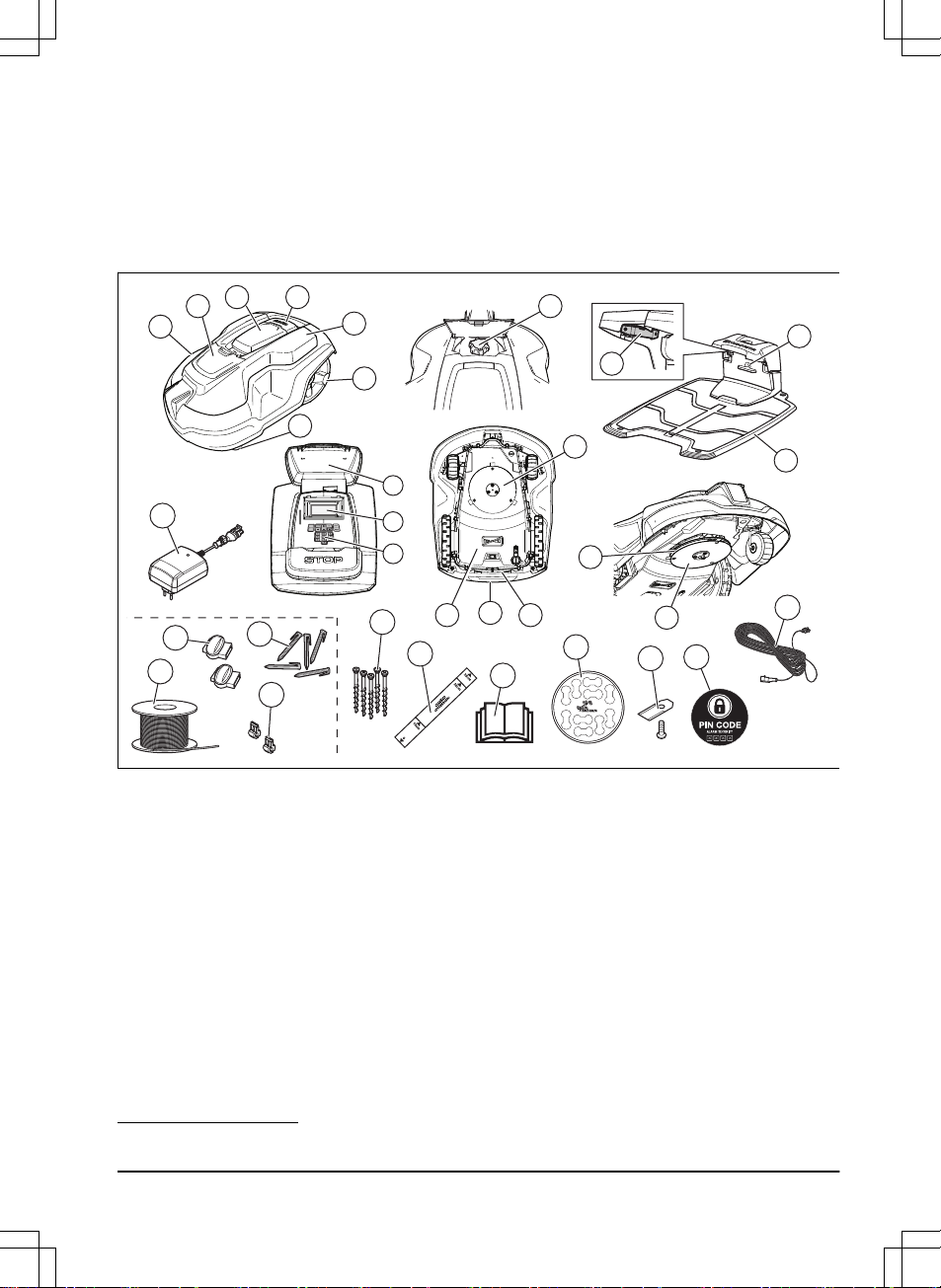

1.8 Product overview Automower® 310/315/315X
1
12
13
14
234
5
6
9
8
11
15
10
1816 17
22
20
19
21
25
26
27
23
28
29 30
31
32
7
24
The numbers in the figure represent:
1. Body
2. Hatch to cutting height adjustment
3. Hatch to display and keypad
4. Stop button
5. Replaceable cover
6. Rear wheels
7. Front wheels
8. Cutting height adjustment
9. Contact strips
10. LED for operation check of the charging
station and boundary wire
11. Charging station
12. Rating plate
13. Display
14. Keypad
15. Cutting system
16. Chassis box with electronics, battery and
motors
17. Handle
18. Main switch
19. Blade disc
20. Skid plate
21. Power supply (the appearance of the power
supply may differ depending on market)
22. Loop wire for boundary loop and guide wire
1
1Is a part of the Installation kit which is purchased separately.
903 - 002 - 19.10.2018 Introduction - 5

23. Couplers for the loop wire 2
24. Stakes 3
25. Connectors for the loop wire 4
26. Screws for securing the charging station
27. Measurement gauge when installing the
boundary wire (the measurement gauge is
broken loose from the box)
28. Operator’s Manual and Quick Guide
29. Cable markers
30. Extra blades
31. Low voltage cable
32. Alarm decal

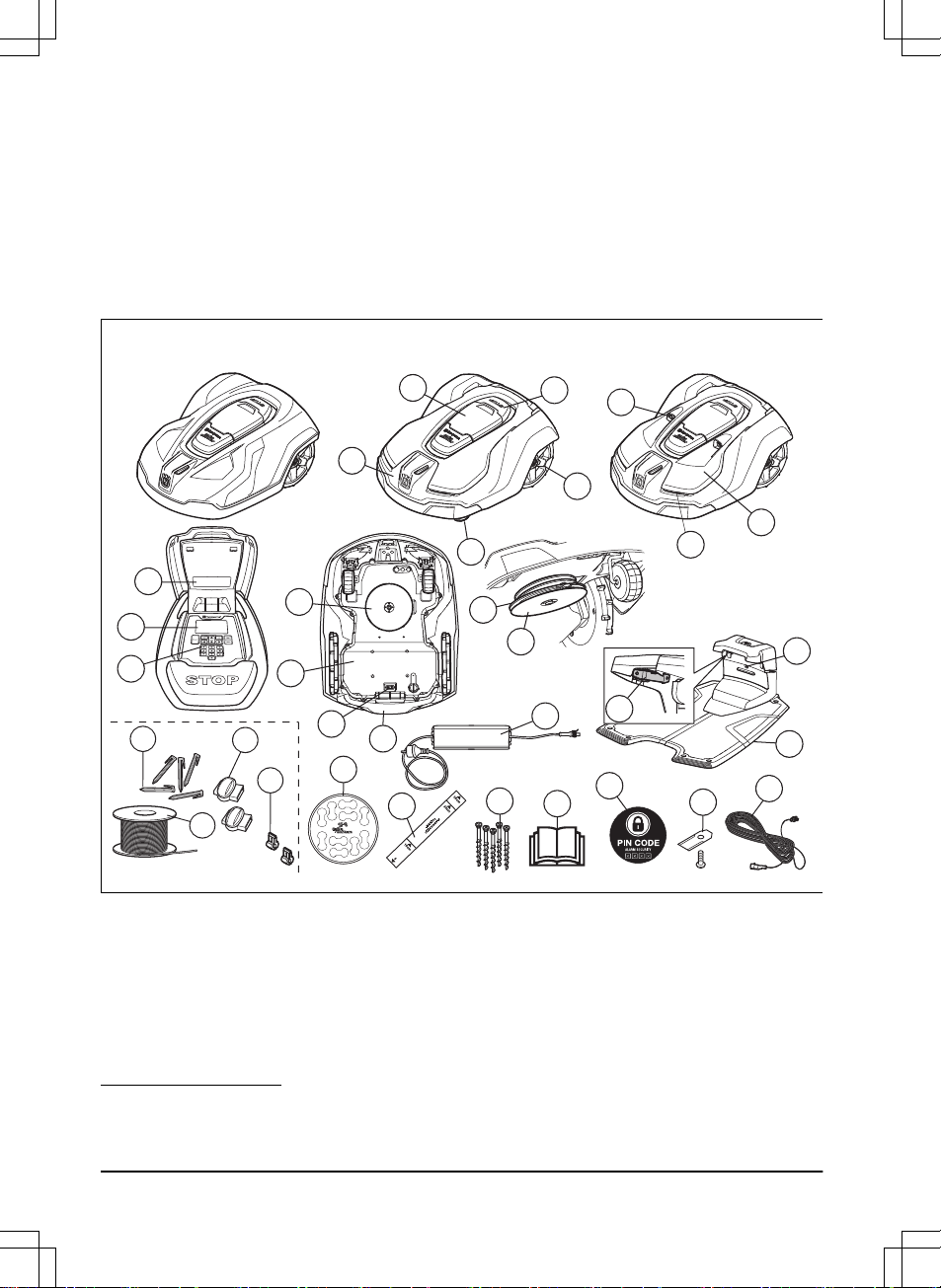

1.9 Product overview Automower® 420/430X/440/450X
Automower 420/440 Automower 430X Automower 450X
23
22
28
24 25 27
26
21
31
32
30
29
4
5
23
1
19
20
9
11
10
12
13
14
15
16
17
6
7
8
18
The numbers in the figure represent:
1. Body
2. Hatch to display and keypad
3. Stop button
4. Front wheels
5. Rear wheels
6. Ultrasonic sensors
7. Headlights
8. Replaceable cover
9. Rating plate
10. Display
11. Keypad
2See note 1
3See note 1
4See note 1
6 - Introduction 903 - 002 - 19.10.2018

12. Cutting system
13. Chassis box with electronics, battery and
motors
14. Main switch
15. Handle
16. Blade disc
17. Skid plate
18. Contact strips
19. LED for operation check of the charging
station and boundary wire
20. Charging station
21. Power supply
22. Cable markers
23. Measurement gauge when installing the
boundary wire (the measurement gauge is
broken loose from the box)
24. Screws for securing the charging station
25. Operator’s Manual and Quick Guide
26. Alarm decal
27. Extra blades
28. Low voltage cable
29. Couplers for the loop wire 5
30. Loop wire for boundary loop and guide wire
6
31. Stakes 7
32. Connectors for the loop wire 8

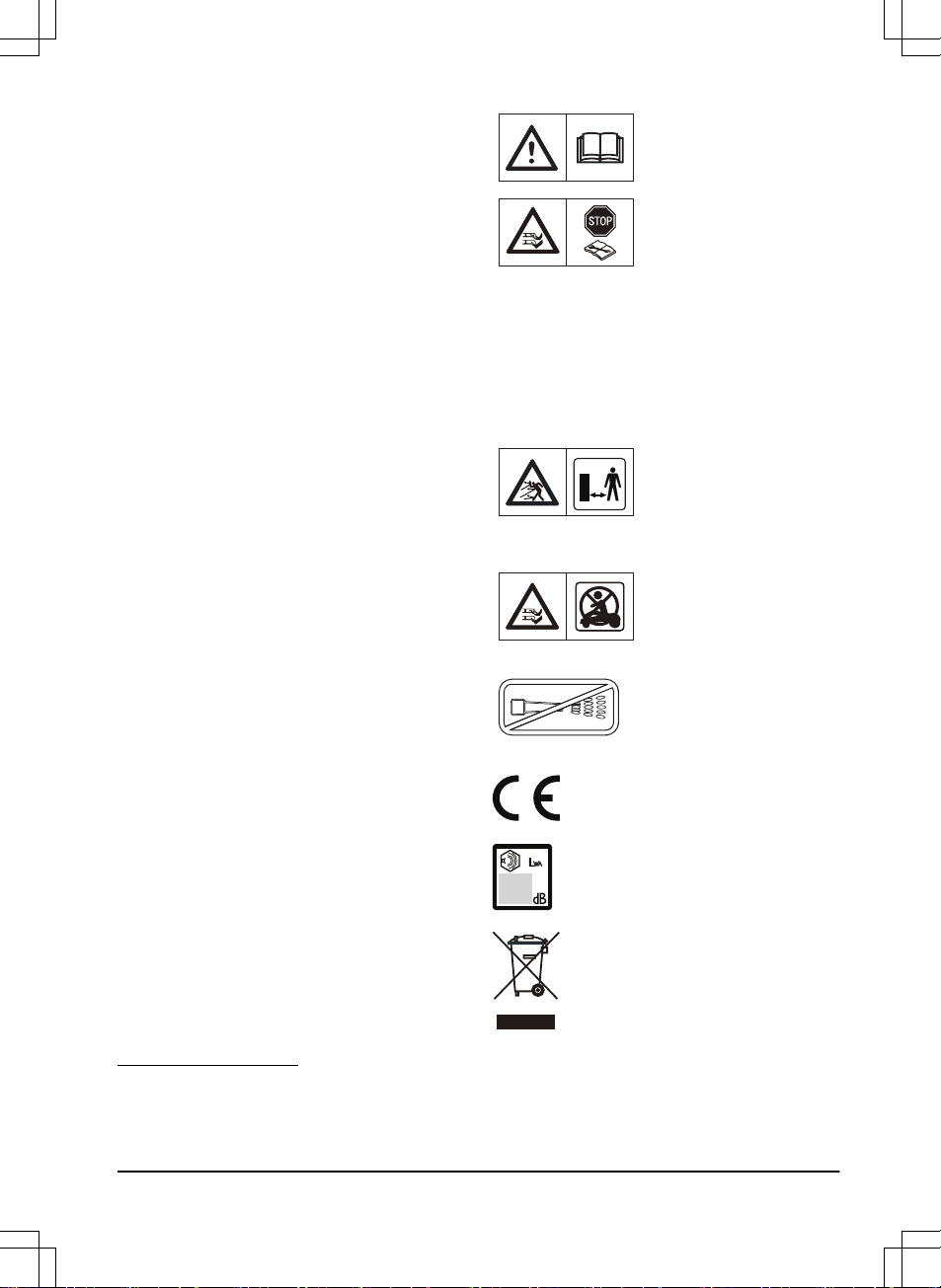

1.10 Symbols on the product
These symbols can be found on the product.
Study them carefully.
WARNING: Read the
user instructions before
operating the product.
WARNING: Operate the
disabling device before
working on or lifting the
machine.
The product can only start
when the main switch is
set to 1 and the correct
PIN code has been en-
tered. Turn the main
switch to
0 before carry-
ing out any inspections
and/or maintenance.
WARNING: Keep a safe
distance from the ma-
chine when operating.
Keep your hands and feet
away from the rotating
blades.
WARNING: Do not ride
on the machine. Never
put your hands or feet
close to or under the ma-
chine.
Never use a high-pres-
sure washer or even run-
ning water to clean the
product.
This product conforms to the
applicable EC Directives.
Noise emission to surroundings. The
product’s emissions are set out in #
and on the rating plate.
It is not permitted to dispose this
product as normal household waste.
Ensure that the product is recycled in
5Is a part of the Installation kit which is purchased separately.
6See note 1
7See note 1
8See note 1
903 - 002 - 19.10.2018 Introduction - 7

accordance with local legal
requirements.

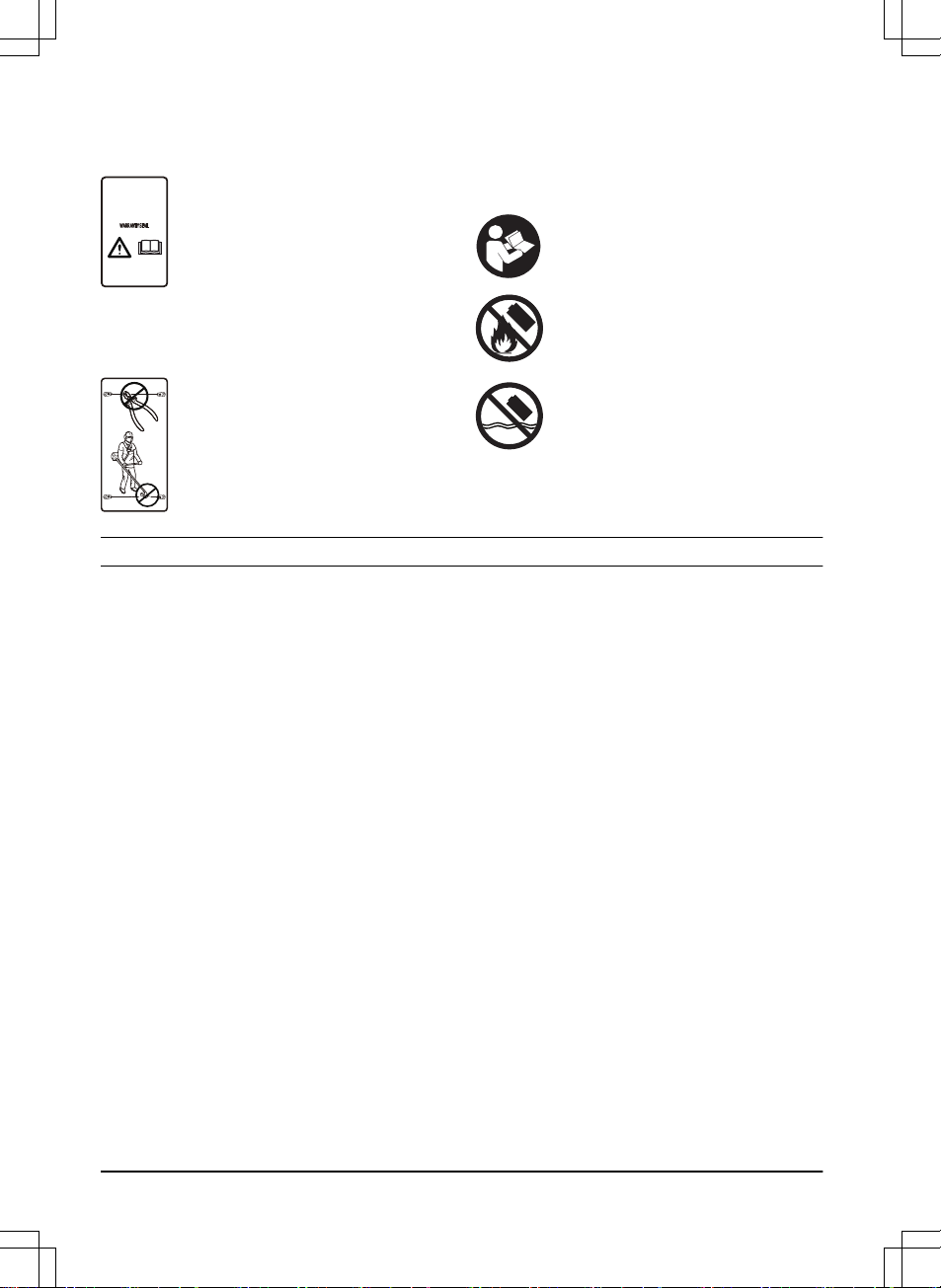

The chassis contains components
which are sensitive to electrostatic
discharge (ESD). The chassis must
also be resealed in a professional
manner. For these reasons the chassis
shall only be opened by authorized
service technicians. A broken seal can
result in the entire or parts of the
guarantee no longer being valid.
The low voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low
voltage cable. Be careful when
trimming edges where the cables are
placed.
Operate the disabling device before
you use or lift the product.
1.11 Battery symbols
Read the user instructions.
Do not discard the battery into fire and
do not expose the battery to a heat
source.
Do not immerse the battery into water.
2 Safety
2.1 General safety instructions
The following system is used in the Operator’s
Manual to make it easier to use:
• Text written in italics is a text that is shown
on the display of the product or is a
reference to another section in the
Operator’s Manual.
• Text written in bold is one of the buttons on
the keypad of the product.
• Text written in UPPERCASE and italics refer
to the different operating modes available in
the product.
8 - Safety 903 - 002 - 19.10.2018

2.1.1 IMPORTANT. READ CAREFULLY BEFORE USE. KEEP FOR FUTURE
REFERENCE
The operator is responsible for accidents or hazards occurring to
other people or property.
This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities (that
could affect a safe handling of the product), or lack of experience
and knowledge, unless they have been given supervision or instruc-
tion concerning use of the appliance by a person responsible for
their safety.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Local regulations may
restrict the age of the operator. Cleaning and maintenance shall not
be made by children without supervision.
Never connect the power supply to an outlet if the plug or cord is
damaged. Worn or damaged cord increase the risk of electric
shock.
Only charge the battery in the included charging station. Incorrect
use may result in electric shock, overheating or leaking of corrosive
liquid from the battery. In the event of leakage of electrolyte, flush
with water/neutralizing agent. Seek medical help if it comes in con-
tact with the eyes.
Use only original batteries recommended by the manufacturer.
Product safety cannot be guaranteed with other than original batter-
ies. Do not use non-rechargeable batteries.
The appliance must be disconnected from the supply mains when
removing the battery.
WARNING: The product can be
dangerous if used incorrectly.
903 - 002 - 19.10.2018 Safety - 9

WARNING: Do not use the product
when persons, especially children or
animals, are in the work area.
WARNING: Keep your hands and feet
away from the rotating blades. Never
put your hands or feet close to or
under the product when the motor is
running.
2.2 Use
• The product may only be used with the
equipment recommended by the
manufacturer. All other types of use are
incorrect. The manufacturer’s instructions
with regard to operation/maintenance and
repair must be followed precisely.

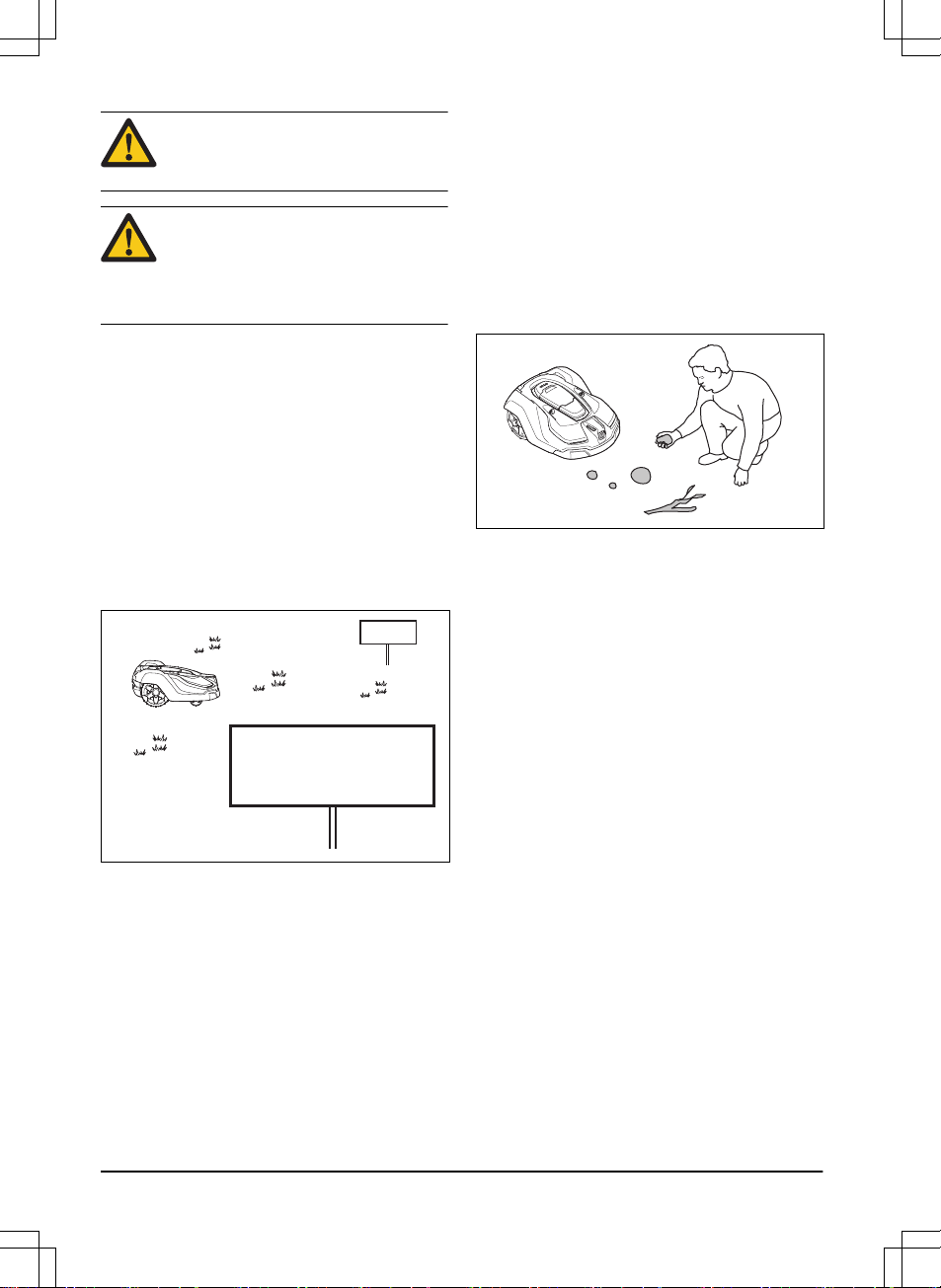

• Warning signs shall be placed around the
work area if the product is used in public
areas. The signs shall have the following
text: Warning! Automatic lawnmower!
Keep away from the machine! Supervise
children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
• Use the PARK function or switch off the
main switch when persons, especially
children or pets, are in the work area. It is
possible to program the product for use
during hours when the area is free from
activity, e.g. at night.
• The product may only be operated,
maintained and repaired by persons that are
fully conversant with its special
characteristics and safety regulations.
Please read the Operator’s Manual carefully
and make sure you understand the
instructions before using the product.
• It is not permitted to modify the original
design of the product. All modifications are
made at your own risk.
• Check that there are no stones, branches,
tools, toys or other objects on the lawn that
can damage the blades. Objects on the lawn
can also lead to the product getting stuck
and help may be required to remove the
object before the product can continue
mowing. Always set the main switch in
position
0 before clearing a blockage.
• Start the product according to the
instructions. When the main switch is set to
1; make sure to keep your hands and feet
away from the rotating blades. Never put
your hands and feet under the product.
• Never touch moving hazardous parts, such
as the blade disc, before it has come to a
complete stop.
• Never lift up the product or carry it around
when the main switch is in position 1.
• The product must never be allowed to
collide with persons or other living creatures.
If a person or other living creature comes in
the product’s way it shall be stopped
immediately.
• Do not put anything on top of the product or
its charging station.
• Do not allow the product to be used with a
defective guard, blade disc or body. Neither
should it be used with defective blades,
screws, nuts or cables. Never connect a
damaged cable, or touch a damaged cable
before it is disconnected from the supply.
• Do not use the product if the main switch
does not work.
• Always switch off the product using the main
switch when the product is not in use. The
product can only start when the main switch
is set to 1 and the correct PIN code has
been entered.
10 - Safety 903 - 002 - 19.10.2018

• The product must never be used at the
same time as a sprinkler. Use the timer
function so the product and sprinkler never
run simultaneously.
• Husqvarna does not guarantee full
compatibility between the product and other
types of wireless systems such as remote
controls, radio transmitters, hearing loops,
underground electric animal fencing or
similar.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Metal objects in the ground (for example
reinforced concrete or anti-mole nets) can
result in a stoppage. The metal objects can
cause interference with the loop signal
which then can lead to a stoppage.
• Operation and storage temperature is 0-50
°C / 32-122 °F. Temperature range for
charging is 0-45 °C / 32-113 °F. Too high
temperatures might cause damage to the
product.
2.3 Battery safety
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited, exposed to water, fire,
or high temperatures. Handle carefully,
do not dismantle, open the battery or
use any type of electrical/mechanical
abuse. Avoid storage in direct sunlight.
For more information about the battery, refer to
Battery on page 18
3 Installation

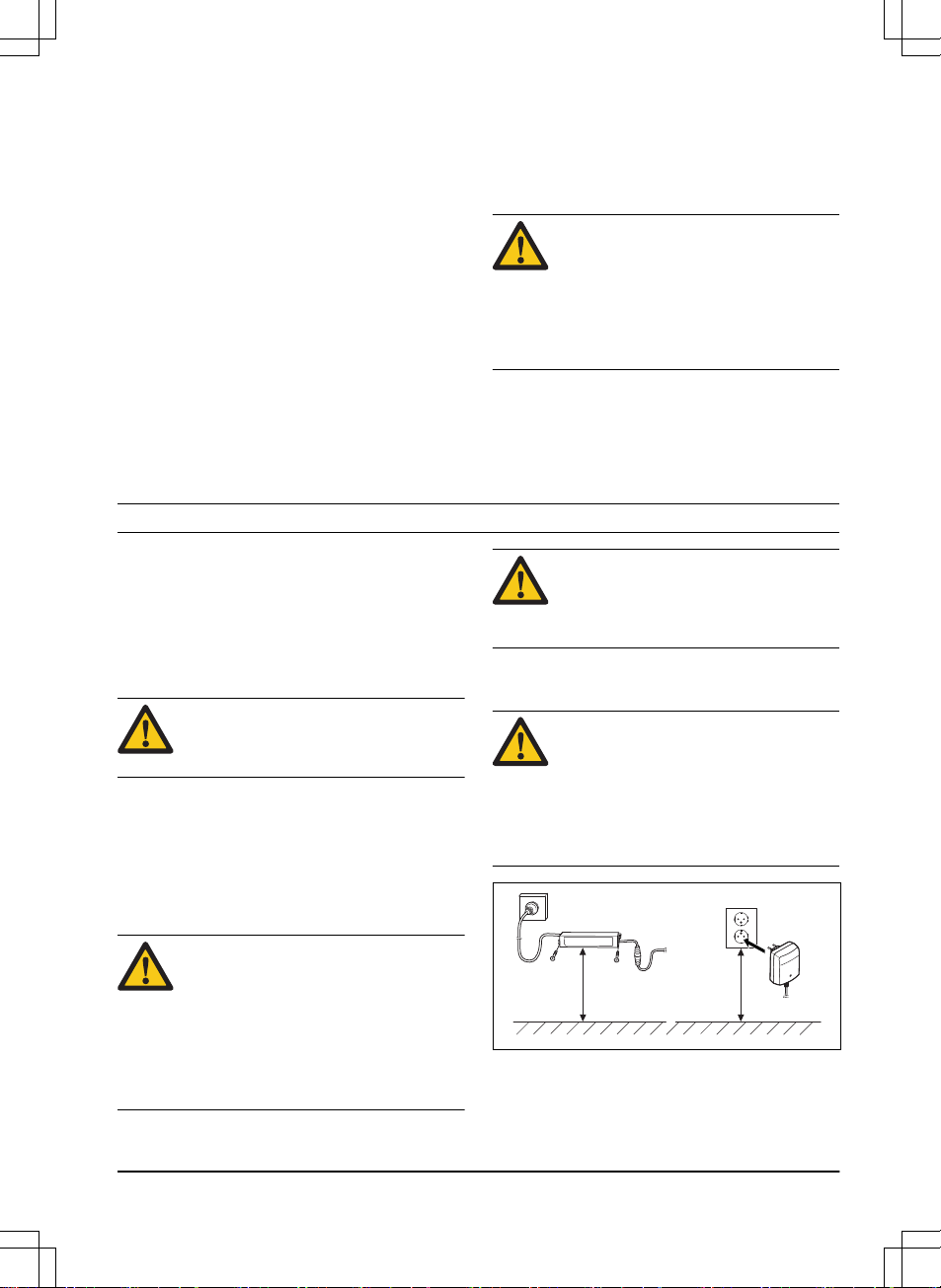

3.1 Connecting the power supply
Take the following into consideration when
planning where to place the power supply:
• Close to the charging station
• Protection from rain
• Protection from direct sunlight
WARNING: The product is only to be
used with a power supply unit supplied
by Husqvarna.
The power supply must be placed where it is well
ventilated and must be placed under a roof. If the
power supply is connected to an electrical socket
outdoors, this must be approved for outdoor use.
It is recommended to use an earth fault-breaker
(RCD) when connecting the power supply to the
wall socket.
WARNING: Applicable to USA/
Canada. If power supply is installed
outdoors: Risk of Electric Shock. Install
only to a covered Class A GFCI
receptacle (RCD) that has an
enclosure that is weatherproof with the
attachment plug cap inserted or
removed.
WARNING: No parts of the power
supply must be changed or tampered
with. The low voltage cable must not
be shortened or extended.
Low voltage cables with 3 m / 10 ft or 20 m / 66 ft
length are available as optional accessories.
WARNING: Do not under any
circumstances mount the power supply
at a height where there is a risk it can
be submerged in water (at minimum 30
cm / 12" from the ground). It is not
permitted to place the power supply on
the ground.
min 30 cm / 12”
903 - 002 - 19.10.2018 Installation - 11

WARNING: Use the plug to disconnect
the charging station, for instance
before cleaning the charging station or
repairing the loop wire.
WARNING: Place the low voltage
cable and adjust the cutting height so
that the blades on the blade disc can
never come in contact with the cable.
WARNING: To reduce the risk of
damage to electrical components,
disconnect all connections to the
charging station (power supply,
boundary wire and guide wires) if there
is a risk of a thunderstorm.
For more instructions on how to do a proper
installation, see chapter Installation in the
complete Operator's manual on Husqvarna's
website www.husqvarna.com.
3.2 Control panel
All commands and settings for the product are
made via the control panel. All functions are
accessed via a number of menus.
The control panel consists of a display and a
keypad. All information is shown on the display
and all input is done using the buttons.
Note: The display texts are shown in English in
the manual, but you will see the texts on the
product display in the chosen language.

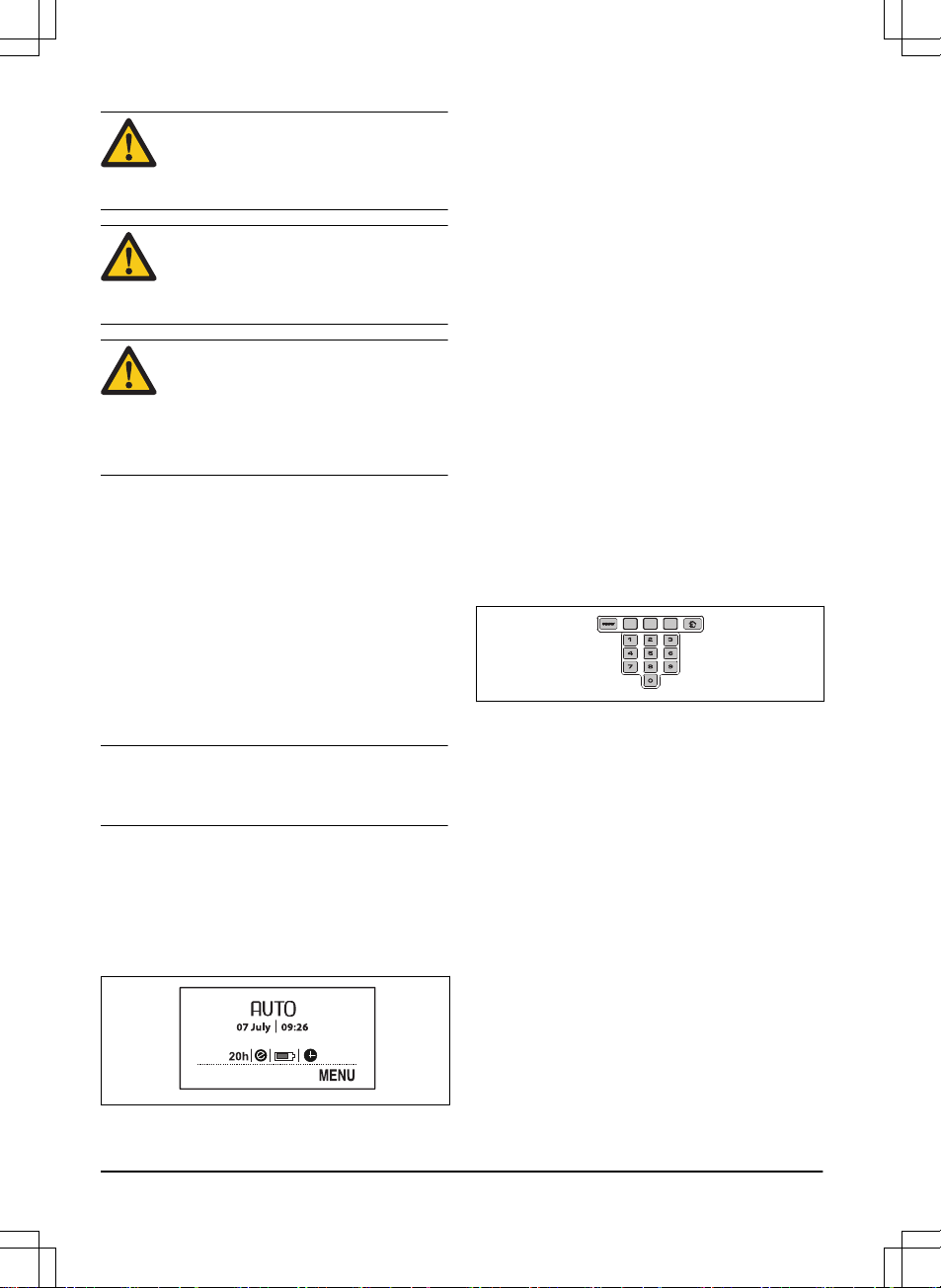

3.3 Display Automower® 105
When the STOP button has been pressed and
the hatch is opened, the operation window
appears showing the time, selected operating
mode, number of mowing hours, battery status
and timer setting.
• The clock shows the current time.
• Date shows the current day.
• The number of operating hours indicates the
number of hours since the day of
manufacture that the product has been in
operation. The time that the product has
spent mowing or searching for the charging
station is counted as operating time.
•
AUTO , MAN or HOME show which mode of
operation is selected.
• The battery status shows the remaining
battery charge.
• The ECO symbol is displayed if the product
is set in
ECO mode .
• The clock symbol indicates when the timer
settings are set. The clock symbol is black
when the product is not allowed to mow due
to a timer setting.
• The
MENU text illustrates that the main
menu can be reached by pressing the multi-
choice button that is located under the text.
3.4 Keypad Automower® 105
The keypad consists of 4 groups of buttons:
• The START button is used to activate the
product. This is normally the last button to
be pressed before closing the hatch.
• The 3 multi-choice buttons offer various
functions, depending on where in the menu
structure you are.
• The number keys are used for instance to
enter the PIN code or time settings.
• The operation selection button is
symbolised by a house. When the button
has been pressed, the selected operation
mode is shown in the display.
3.5 Display Automower®
310/315/315X/420/430X/440/450X
When the STOP button has been pressed and
the hatch is opened, the following information is
displayed:
12 - Installation 903 - 002 - 19.10.2018

• Operating information, e.g. READY ,
MOWING , PARKED or TIMER . READY is
displayed if the product is not in any specific
operating mode, e.g. if the main switch has
just been turned on. If the STOP button is
pressed the product displays what it did prior
to the stop, e.g.
MOWING or SEARCHING .
• Date and clock show the current time.
• For Automower® 315X/430X/450X: The
satellite symbol is shown when the GPS-
supported navigation is activated. Symbol
(A) is shown when the symbol has made
contact with a sufficient number of GPS
satellites. Symbol (B) shows when the
product has not made contact with a
sufficient number of GPS satellites. Symbol
(A) blinks during the first days the product is
working, as it is collecting GPS information
about the installation.
A B
• The ECO symbol is displayed if the product
is set in
ECO mode .
• The black clock symbol (A) is shown when
the product is not allowed to mow due to a
timer setting. If the product is not allowed to
mow due to
Weather timer , symbol (B) is
shown. If the operation mode
Override timer
is chosen, symbol (C) is shown.
A B C
• The battery status shows the remaining
battery charge. If the product is loading, a
flash is also shown over the battery symbol
(A). If the product is placed in the charging
station without charging, (B) is shown.
A B
• The height adjustment setting is displayed
as a scale/numerical value.
• For Automower Connect@Home (refer to
Automower® Connect@Home on page 16 ):
An icon for Bluetooth® wireless
communication will appear in the product
display when connection with your
smartphone has been established.
3.6 Keypad Automower®
310/315/315X/420/430X/440/450X
The keypad consists of 6 groups of buttons:
• The START button is used to activate the
product. This is normally the last button to
be pressed before closing the hatch.
• The BACK and OK buttons are used to
navigate in the menu. The OK button is also
used to confirm settings.
• The arrow keys are used to navigate in the
menu but also to make selections in certain
setting options.
• The MENU button is used to go to the main
menu.
• The PARK button is used to send the
product to the charging station.
• The number keys are used to enter
settings, for example PIN code, time or exit
direction.
3.7 Menu structure
The main menu for Automower® 105 offers 4
options. Automower® 310 has 6 options and
Automower® 315/315X has 7 options. The main
menu for Automower® 420/430X/440/450X offers
8 options.
903 - 002 - 19.10.2018 Installation - 13

3.8 Submenus
There are a number of submenus under each
option. You can access all the functions to set the
product settings via the submenus.
Certain submenus contain options that are ticked
off to the left. This means that these options are
selected. Check or uncheck the box by pressing
the OK button.
3.9 Browse between menus
Browse through the main menu and submenus
with the help of the multichoice buttons
(Automower® 105) or the arrow keys
(Automower® 310/315/315X/420/430X/
440/450X). Enter values and times using the
number keys and confirm each selection with the
multi-choice button marked OK. Press BACK to
go up a step in the menu or keep the HOME
(Automower® 105) alternatively MENU
(Automower® 310/315/315X/420/430X/440/450X)
button pressed in for 2 seconds to go directly to
the main menu.
3.10 Main menu
Timer
The lawn should not be cut too often to
obtain the best mowing result.
Consequently, it is important to limit
the operating time using the timer
function if the work area is less than
the product’s work capacity. The timer
function is also an ideal tool to control
which periods the product should not
mow, for example when children are
playing on the lawn.
Cutting height
Applicable for Automower® 420/430X/
440/450X
The cutting height can be varied from
MIN (1) to MAX (9). During the first
week after a new installation, the
cutting height must be set to MAX to
avoid damaging the loop wire. After
this, the cutting height can be lowered
one step every week until the desired
cutting height has been reached.
Security
In this menu, settings relating to
security and the connection between
the product and the charging station
can be made. There are 3 security
levels to choose from:
Low , Medium ,
High .
Messages
Applicable for Automower®
310/315/315X/420/430X/440/450X
Historical fault and information
messages can be read in this menu.
For some of the most common fault
messages, there are tips and advice to
help you rectify the fault.
Weather timer
Applicable for Automower® 315/315X/
420/430X/440/450X
This function allows the product to
automatically adjust its mowing times
based on how much the lawn grows.
When the weather is good for grass
growth, the product mows more often
and when grass growth is low the
product automatically spends less time
on the lawn.
Installation
This menu function is used to
customize the installation. For many
work areas there is no need to alter the
factory settings, but depending on the
lawn complexity the mowing result can
be improved by making manual
settings.
Settings
This selection allows you to make
changes to the general product
settings such as date and time. You
can also turn on/off
ECO mode and
Spiral cutting , or save your settings in
different Profiles (Automower®
315/315X/420/430X/440/450X only).
14 - Installation 903 - 002 - 19.10.2018

Husqvarna recommends to let ECO
mode be turned on to save energy and
avoid interference with other
equipment.
Accessories
Applicable for Automower®
310/315/315X/420/430X/440/450X
This menu handles the settings for the
product accessories, for examples
Automower Connect or Automower
Connect@Home. Contact your local
Husqvarna representative for
information on what accessories are
available for your product.
4 Operation
4.1 Operation selection Automower®
105
By consecutively pressing the Operation
selection button many times, one can choose
between three different operation modes.
• HOME . Sends the product to the charging
station. It remains here until another
operation mode is selected. When the
battery is fully charged, the product will not
leave the charging station and begin mowing
until the operation selection is altered to
AUTO .
•
AUTO . The standard, automatic operation
mode where the product mows and charges
automatically.
•
MAN . When mowing secondary areas the
MAN setting must be used. If MAN is
selected and the product is started when it is
out on the lawn, it mows until the battery
runs out. It then stops and the ’Needs
manual charging’ message appears. The
product must then be moved manually to the
charging station and then started manually
after charging. If the product charges in the
MAN mode, it will fully charge, move about
20 cm / 8". out of the charging station and
then stop. This indicates that it is charged
and ready to start mowing.

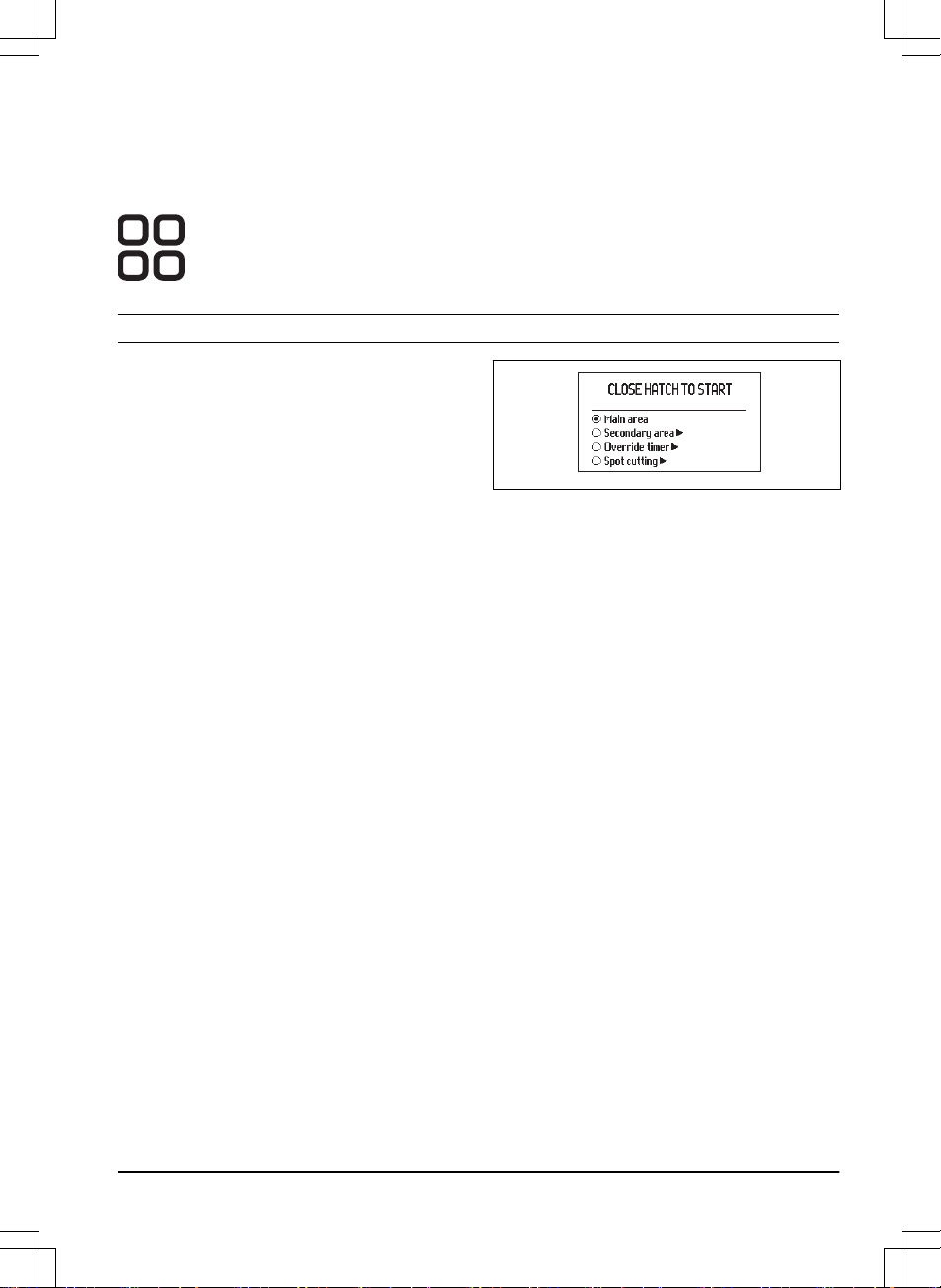

4.2 Operation selection START
Automower® 310/315/315X/420/430X/
440/450X
When the START button has been pressed the
following operation selections can be selected:
•
MAIN AREA . The standard operating mode
where the product mows and charges
automatically.
• SECONDARY AREA . When mowing
secondary areas this setting must be
chosen.
If the product charges in the Secondary area
mode, it will fully charge, drive out about 50
cm / 20" and then stop. This indicates that it
is charged and ready to start mowing. If the
main work area has to be cut after charging,
it is appropriate to switch the operation
selection to
Main area before placing the
product in the charging station.
•
OVERRIDE TIMER . Any timer settings
made can be temporarily overridden by
selecting Override timer. It is possible to
override the timer for 24 h or 3 days.
• SPOT CUTTING (Not available for
Automower® 310). The product works in a
spiral pattern to cut the grass where it has
been mown less than in other parts of the
lawn.
The
Spot Cutting function is activated with
the START button. You can select how the
product should continue to work once
mowing is finished by pressing right arrow
and then specifying
Main Area or Secondary
Area .
903 - 002 - 19.10.2018 Operation - 15

4.3 Operation selection PARK
Automower® 310/315/315X/420/430X/
440/450X
When the PARK button is pressed the following
operation selections can be chosen.
• PARK UNTIL FURTHER NOTICE . The
product stays in the charging station until
another operating mode is selected by
pressing the START button.
•
START AGAIN IN 3 HOURS . The product
stays in the charging station for three hours
and then automatically returns to normal
operation. This operation selection is
suitable when there is a need to pause
operation, e.g. for temporary irrigation or for
games on the lawn.
•
START WITH NEXT TIMER . The product
stays in the charging station until the next
Timer setting permits operation. This
operation selection is suitable if one wishes
to cancel an ongoing mowing cycle and
allow the product to stay in the charging
station until the next day. This option is not
displayed if there are no Timer settings.
4.4 Connectivity
You can communicate with your product through
the mobile application Automower® Connect.
Automower® Connect is available for your
smartphone and tablet (Apple or Android). With
Automower® Connect activated, new icons will
be displayed on the product’s display. For more
detailed information, refer to complete Operator's
manual.
4.4.1 Automower® Connect
Automower® Connect is included in Automower®
315X/430X/450X and available as accessory for
Automower® 310/315/420/440.
Automower® Connect brings the menu system to
your smartphone, making it easy to read and
change the product settings remotely. Through
this application, you can receive the product's
current status and send commands to the
product from anywhere in the world. In case of
theft, you get an alarm and are be able to track
your product's position. Some countries do not
support Automower® Connect due to region
specific cellular systems. Please, contact your
local Husqvarna representative for more
information.
4.4.2 Automower® Connect@Home
Included in Automower® 310/315/315X/
420/430X/440/450X.
Automower® Connect@Home uses a short-
range Bluetooth® wireless technology. This
means that you can communicate between the
smartphone and the product as long as you are
within communication range. An icon for
Bluetooth communication will appear in the
product display when connection with your
smartphone has been established.
Note: Automower® Connect@Home has similar
but not as extensive functionality as Automower®
Connect, and uses the same app.
4.4.3 Getting started
Download the Automower® Connect app (also
applicable for Automower® Connect@Home)
from AppStore or GooglePlay. Once you have
downloaded the app, you can specify an e-mail
address and a password to create an account.
You will receive a validation e-mail to the e-mail
address you specified. Follow the instructions in
the e-mail within 24 hours to validate your
account. If not validated within 24 hours, you will
have to create your account again. When the
account has been created in the app you can pair
the product and your smartphone.
4.4.4 Pair with Automower® Connect
Select the function
Accessories > Automower
Connect
> Pairing > New pairing . When the app
prompts you to do so, enter the 6-digit code
shown on the product display. Also enter your
chosen name of the product into the app.
Automower® Connect is always connected to
your product as long as the smartphone have
contact with the mobile network and the product
is charged and the main switch is set to
1 .
16 - Operation 903 - 002 - 19.10.2018

4.4.5 Pair with Automower®
Connect@Home
Activate Bluetooth® wireless communication on
your smartphone. Select the function Accessories
> Connect@Home > New pairing and follow the
instructions in the app. After pairing your product
and smartphone they will automatically connect
each time you get into range. If you want to
connect to the product without having an account
you can still use Automower® Connect@Home
by selecting Automower® Direct in the start-up
screen in the app.
4.5 Adjusting the cutting height
If the grass is long, let the product start mowing
at the MAX cutting height. Once the grass is
shorter, you can gradually lower the cutting
height.
CAUTION: During the first week after
a new installation, the cutting height
must be set to MAX to avoid damaging
the loop wire. After this, the cutting
height can be lowered one step every
week until the desired cutting height
has been reached.
4.5.1 Automower® 105
The cutting height can be varied from MIN (2 cm /
0.8") to MAX (5 cm / 2.0"). To adjust the cutting
height:
1. Press the STOP button to stop the product.
Then open the hatch.
2. Turn the height adjustment knob to the
required position. The selected position is
indicated by the orange column on the
height adjustment indicator.
1 2 3 4 5
4.5.2 Automower® 310/315/315X
The cutting height can be varied from MIN (2 cm /
0.8") to MAX (6 cm / 2.4") in 9 steps.
1. Press the STOP button to stop the product
and open the cutting height adjustment
hatch.
2. Turn the knob to the required position. Turn
clockwise to increase and counter-clockwise
to decrease the cutting height. The arrow
aligns with the selected position marked on
the body.
4.5.3 Automower® 420/430X/440/450X
The cutting height can be varied from MIN to
MAX in 9 steps.
1. Press the STOP button to stop the product
and open the hatch.
2. Press the MENU button to access the main
menu.
3. Move the cursor using the arrow keys up/
down to select menu
Cutting height .
4. Press OK.
5. Increase/Decrease the cutting height with
the arrow keys.
903 - 002 - 19.10.2018 Operation - 17

5 Maintenance
5.1 Cleaning
It is important to keep the product clean. A
product with a lot of grass stuck to it will find it
harder to travel up slopes, will perform worse and
is exposed to greater wear and tear. For better
operating reliability and longer service life: check
and clean the product regularly and replace worn
parts if necessary. It is recommended to clean
using a soft brush.
WARNING: When the product is
turned upside down the main switch
must always be in the 0 position.
The main switch should be set in the
0
position during all work on the mower’s
chassis, such as cleaning or replacing
the blades.
CAUTION: Press STOP and pull the
product out of the charging station
before lifting it. Do not lift the product
when it is parked in the charging
station. This can damage the charging
station and/or the product.
CAUTION: Never use a high-pressure
washer or even running water to clean
the product. Never use solvents for
cleaning.
5.2 Battery
The battery is maintenance-free, but has a limited
life span of 2 to 4 years.
WARNING: Only charge the product
using a charging station which is
intended for it. Incorrect use may result
in electric shock, overheating or
leakage of corrosive liquid from the
battery. In the event of leakage of
electrolyte flush with water and seek
medical help if it comes in contact with
the eyes etc.
WARNING: Use only original batteries
recommended by the manufacturer.
Product safety cannot be guaranteed
with other batteries. Do not use non-
rechargeable batteries.
CAUTION: The battery must be
charged fully before winter storage. If
the battery is not fully charged it can
be damaged and in certain cases be
rendered useless.
Below indicates that the battery is getting old and
eventually needs replacing:
• The operating time for the product is shorter
than normal between charges. This leads to
more charging cycles than normal, which
increases the risk of tracks forming near the
charging station.
• The product is found standing out on the
lawn with
Empty battery message. This
indicates that the product does not have
battery capacity enough to find the charging
station.
The battery is fine as long as the product
maintains a well-cut lawn.
Note: Battery life is dependent on the length of
the season and how many hours a day the
product is operating. A long season or many
hours of use a day means that the battery must
be replaced more regularly.
Contact your local Husqvarna representative to
replace the battery.
18 - Maintenance 903 - 002 - 19.10.2018

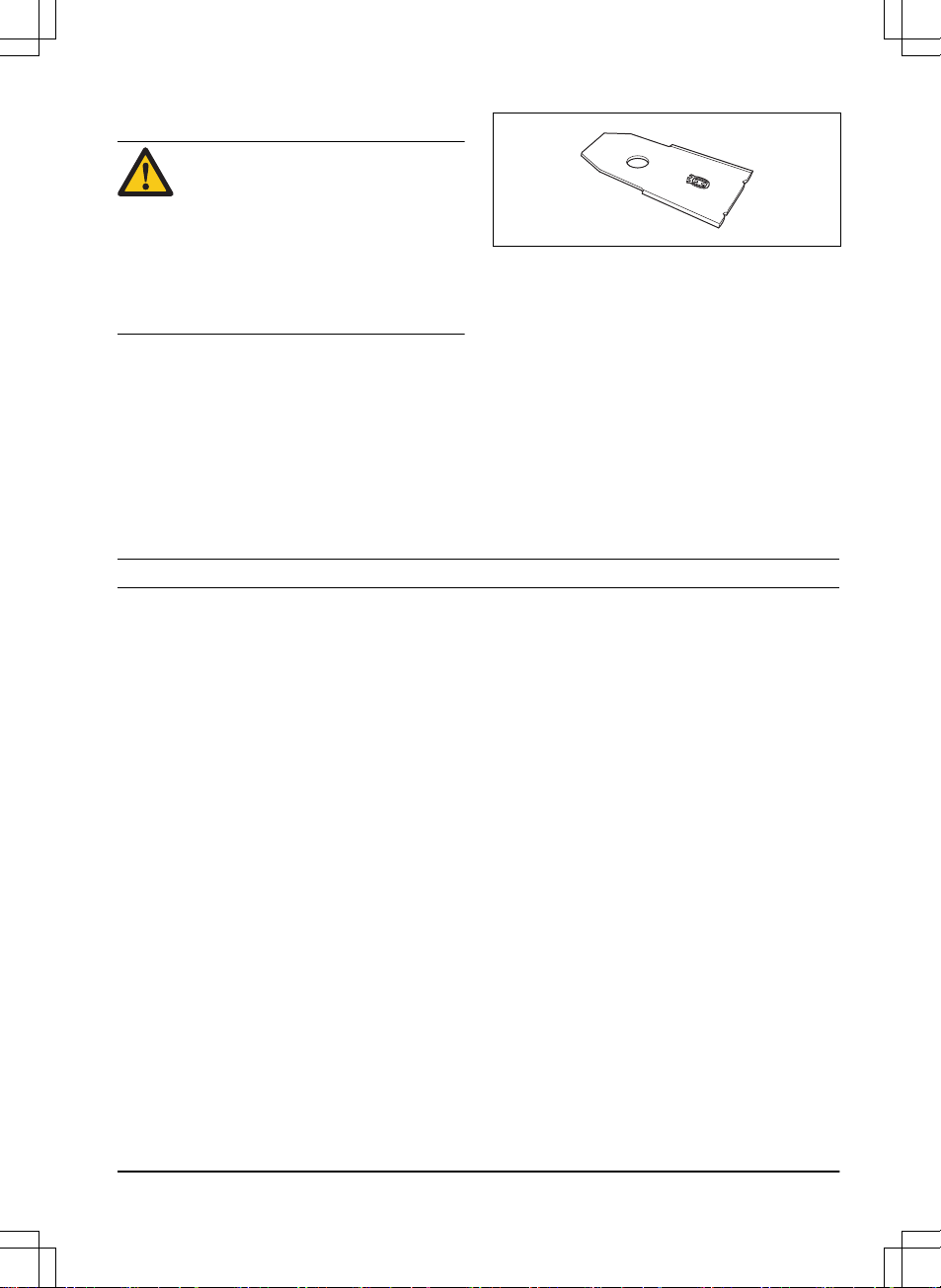

5.3 Replace the blades
WARNING: Always use blades and
screws of the right type. Husqvarna
can only guarantee safety when using
original blades. Only replacing the
blades and reusing the screw can
result in a screw wearing during
mowing and shearing. The blades can
then be propelled from under the body
and cause serious injury.
Replace worn or damaged parts for safety
reasons. Even if the blades are intact, they
should be replaced on a regular basis for the best
mowing result and low energy usage.
All 3 blades and screws must be replaced at the
same time to obtain a balanced cutting system.
Use Husqvarna original blades embossed with
the crowned H-mark logotype, refer to
Guarantee
terms on page 26 .
5.3.1 To replace the blades
1. Set the main switch to position 0 .
2. Turn the product upside down. Place the
product on a soft and clean surface to avoid
scratching the body and the hatch.
3. Rotate the skid plate so that its holes align
with the screws for the blade.
4. Remove the 3 screws. Use a straight slot or
cross-tip screwdriver.
5. Remove each blade and screw.
6. Fasten new blades and screws.
7. Check that the blades can pivot freely.
6 Troubleshooting
6.1 Troubleshooting
In case of malfunction, a message will appear on the display. For more detailed information on
messages, refer to the complete Operator’s manual on Husqvarna’s website (www.husqvarna.com. If
the same message appears often or if you still cannot find the reason for the fault, contact your dealer.
Breaks in the loop wire are usually the result of unintentional physical damage to the wire such as
when gardening with a shovel. Breaks can also be due to the wire being stretched excessively during
installation. A wire break can be located by gradually halving the distance of the loop where the break
may have occurred, until there is only a very short section of the wire left. Refer to the complete
Operator’s manual on Husqvarna’s website (
www.husqvarna.com ).
903 - 002 - 19.10.2018 Troubleshooting - 19

6.1.1 Indicator lamp in the charging
station
For a fully functional installation, the indicator lamp in the charging station must emit a solid or flashing
green light. If something else appears, follow the troubleshooting guide below.
There is more help on www.husqvarna.com. If you still need help, please contact your local Husqvarna
representative.
Light Cause Action
Solid green light Good signals No action required
Green flashing
light
The signals are good and ECO mode is
activated.
No action required. For more informa-
tion on ECO mode , refer to complete
Operator's manual.
Blue flashing light The boundary loop is not connected to
the charging station.
Check that the boundary wire connec-
tors are fitted properly to the charging
station. Refer to complete Operator's
manual.
Break in the boundary loop. Find out where the break is. Replace
the damaged section of the loop with a
new loop wire, and splice using an orig-
inal coupler.
Red flashing light Interruption in the charging station’s an-
tenna.
Contact your local Husqvarna repre-
sentative.
Solid red light Fault in the circuit board or incorrect
power supply in the charging station.
The fault should be rectified by an au-
thorized service technician.
Contact your local Husqvarna repre-
sentative.
7 Transportation, storage and disposal
7.1 Transportation
The supplied Li-ion batteries obey the Dangerous
Goods Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package
and labels for commercial transportations,
including by third parties and forwarding
agents.
• For how to remove the battery, refer to the
complete Operator's manual on
www.husqvarna.com.
7.1.1 How to lift and move the product
To safely move from or within the work area:
1. Press the STOP button to stop the product.
If security is set to the medium or high level
the PIN code has to be entered. The PIN
code contains four digits and is selected
when you start the product for the first time.
Refer to complete Operator's manual.
2. Set the main switch in position
0 .
105
310/315/315X
420/430X/440/450X
3. Carry the product by the handle under the
product with the blade disc away from the
body.
20 - Transportation, storage and
disposal
903 - 002 - 19.10.2018
