Husqvarna LTH152 Setup guide

ILLUSTRATED PARTS LIST
MODEL NO. 96041003010
CUSTOMER CATALOG NO. LTH152
PRODUCT NO. 960 41 00-30
47
47
586 05 22-26

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire Rear 18 x 9.5-8 Turf Saver
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
11
9
1 581 57 81-01 Decal, Operators
2 581 62 73-01 Emblem, Hood
3 581 57 97-01 Decal, Warning Eng. Symbols
4 532 43 79-18 Decal, Hood Panel
5 581 57 96-01 Decal, Chassis Hot Muffler
6 581 72 41-01 Decal, Fender 100 DB/CE
7 581 57 91-01 Decal, Cutfinger CE
8 532 43 35-12 Decal, Rpl
9 532 14 50-05 Decal, Battery Dnge/Poi
10 581 57 80-01 Decal, Saddle Brake Parking
11 581 57 92-01 Decal, Warning
12 581 58 00-01 Decal, Mower V-Belt Schematic
13 581 72 40-01 Decal, Brake/Clutch Symbol
- - 581 72 48-01 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 99-66 Pad, Footrest, RH
- - 581 72 46-01 Decal, Drawbar Load Limit
- - 585 97 60-40 Manual Oper. Euro
- - 585 97 60-50 Manual Oper. Scand
- - 585 97 60-20 Manual Oper. E-Bloc
- - 585 97 60-30 Manual Oper. Baltic
12
2
41
8
5
6
10
13
3
5
7
2
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
DECALS
27
27

3
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH10
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
03107
ATTACHMENT CLUTCH
(CLUTCH OFF)
REGULATOR STATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16 AMP DC @ 3600 RPM
RED
BLACK
BLACK /WHITE
ORANGE
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
D
E
R
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
SCHEMATIC
38
38

4
30
33
26
40
71
16
TR01S
90
28
55
With Service Minder Option
4646
2
94
92
93
43
27
99
25
87
106
22
79 21
29
34
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
ELECTRICAL
32
32

5
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 581 49 80-01 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 42 16-86 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-35 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 581 02 31-01 Harness Ign. Dash
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 581 02 30-01 Harness Ign. Chassis
79 532 17 52-42 Socket Asm
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 43 53-95 Cover Terminal
92 532 19 66-15 Harness Pigtail Reverse Switch
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
106 532 17 48-14 Palnut 1/4 Lugs
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
ELECTRICAL
32
32

6
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
CHASSIS AND ENCLOSURES
39
39
68
68
68
68
183
183
236
236 34
235
235
137
177
175
130
151
234
214
234
205 202 25
203
206
14 191
297
204
15 130
130
18
176
176
182
130
150
176
176
5
137
3
238
239
52
217
189
189
152
68
68
213
218
228
228
194
180
58
189
189
chassis-tex_TEX LT HUSQ_55_r1
159
159
37
194
194
162
282
282
282
36
36
285
286
283
199
284
287
306
125
146
181
181

7
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
CHASSIS AND ENCLOSURES
39
39
3 581 05 63-01 Logo
5 532 43 89-64 Dash
14 532 44 12-67 Hood
15 532 44 14-28 Lens LH
18 532 44 13-68 Grille
25 532 44 14-27 Lens RH
34 580 91 08-01 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 12-66 Fender
52 873 68 05-00 Nut Crown Lock 5/16
58 532 41 22-80 Drawbar, Upper
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
125 581 68 48-01 Clip Fuel Line
130 532 41 63-58 Screw 10 x .750 BOS Thread
137 532 40 75-90 Bumper Dash
146 581 85 79-01 Bolt
150 532 40 75-37 Air Duct
151 532 40 78-07 Bracket Pivot
152 532 19 95-35 Shield Browning
159 817 00 06-12 Screw 3/8-7/16 x 3/4
162 532 14 24-32 Screw
175 532 19 94-72 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-28 Bushing Steering
180 532 41 50-63 Chassis
181 532 43 97-46 Bushing Fender
182 532 40 71-76 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 41 65-01 Insert Reflective RH
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
199 532 41 34-85 Plate Deck Lift
202 532 44 13-42 Vent Side Hood RH
203 532 44 13-43 Vent Side Hood LH
204 532 44 13-75 Vent Top Hood
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
205 532 44 13-44 Skirt Side RH
206 532 44 13-45 Skirt Side LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 UNC
238 532 44 13-74 Trim
239 532 40 48-83 Clip Tinnerman
282 532 41 41-10 Clip Retainer Console
283 532 44 20-39 Console Deck Lift
284 532 44 41-64 Console Shift
285 532 41 63-15 Console Insert R.H.
286 532 41 63-17 Console Insert L.H.
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
297 532 40 66-65 Insert Reflective LH
306 873 90 06-00 Nut
- - - 532 43 99-76 Plug Dash SRVMNDR

8
56
51
231
170
64
161
184
42
216
143
125
226
227
125
80 125
221
211
17
175
279 176
178
174
22
23
166
276
153
233
166
159
15
35
167
160
188
186
189
49
29
187
50
51
52
51
185
159
116
116
drive-tex_K46_fender_22_r2
225
125
2
2
73
73
33
205
1
33
230
230
183
183
205
99
185
190
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
DRIVE
40
40

9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Transaxle, TuffTorq K46BA
(448348)(Order parts from trans-
axle manufacturer.)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 12 12-74 Knob
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 40 10-31 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 13 09-69 V-Belt, Drive
64 532 19 62-00 Shaft Asm. Pedal Brake Control
73 874 49 05-40 Bolt 5/16-18 x 1/2 Gr. 5
80 532 44 06-19 Strap Torque
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16 - 18 x 3/4
143 817 49 05-08 Screw 5/16 - 18 x 1/2
153 532 12 47-88 Retainer Spring 1"
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
166 532 42 91-64 Nut Push
167 532 40 52-57 Latch Brake Parking
170 532 41 34-30 Keeper Belt Centerspan
174 532 19 72-89 Nut Push
175 532 40 85-39 Shaft Asm Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
183 532 13 70-57 Spacer Split
184 532 44 14-07 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
211 532 19 62-12 Bushing Brake Shaft
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
225 532 40 33-19 Keeper Belt Trans.
227 817 49 05-12 Screw 5/16-18 x 3/4
226 532 40 15-64 Bracket Mount Torque
230 532 18 89-67 Washer Hardened
231 532 40 72-87 Idler V-Groove 1.688" Offset
233 532 40 52-96 Washer Serrated
276 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5
279 532 41 31-50 Link Shift
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
DRIVE
40
40

10







30!2+ª!22%34%2ª+)4







 



ENGINETEX?KOHL?




122
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
ENGINE
24
24

11
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Engine Kohler Model No. SV471-3210 (585507301)
(Order parts from engine manufacturer.)
2 580 53 23-01 Muffler
9 584 90 80-01 Keeper Belt Engine
12 532 40 54-71 Pulley Engine
15 581 28 99-01 Tank Fuel 1.5
18 532 43 02-20 Cap Asm
20 532 18 38-97 Control Throttle
21 532 41 63-58 Screw #10 x 0.750
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Bolt 5/16-18 unc x 3/4 w/Sems
43 532 17 39-37 Bolt Hex 7/16-20 x 4 Gr. 5
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 18 59-09 Gasket
79 532 19 23-34 Screw 5/16 - 18 x .75
83 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
92 817 12 06-16 Screw 3/8-16 x 1
94 583 95 53-01 Tube Exhaust
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
122 532 42 19-22 Extension Drain Oil
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
ENGINE
24
24

12
62
35
19
60
59
70
68
69
15
14
61
steering-tex_HUSQSR_32
16
28
28
13
22
64
71
21
45
33
72
4
15
14
1
26
58
5
13
13
53
8
67
67
66
6
74
6
2
9
87
74
74
74
9
87
20
63
57
57
63
122
122

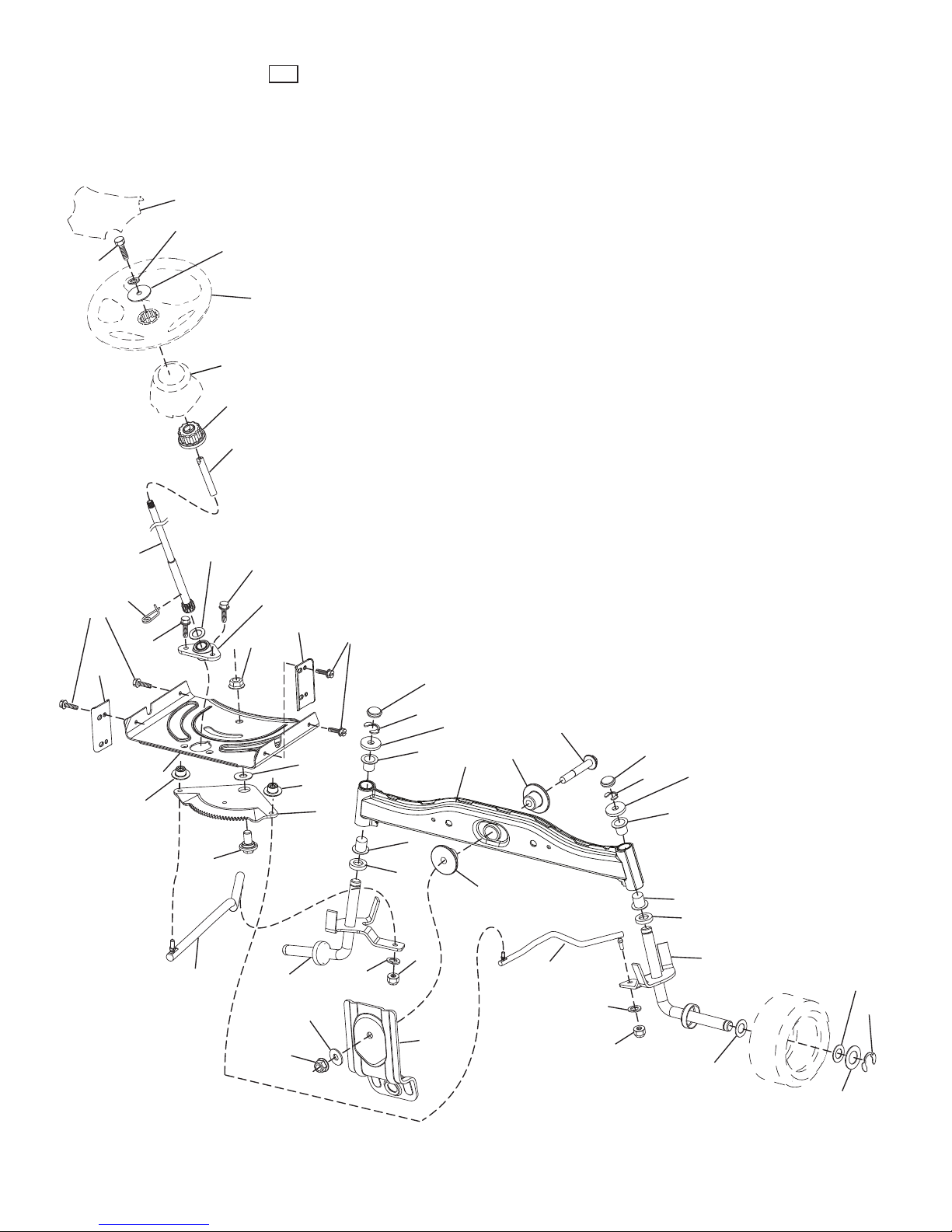

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
STEERING ASSEMBLY
41
41

13
KEY PART
NO. NO. DESCRIPTION
1 532 43 97-40 Wheel, Steering Husq SR
2 532 41 81-68 Axle Asm.
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 42 93-73 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 44 14-25 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Strg. Supt. Lower
26 532 43 97-43 Insert, Wheel Steering Husq SR
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 3/8 x 12 Ga.
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
71 532 19 07-52 Shaft Extension Steering
72 532 42 89-82 Bolt Fin Hex 5/16-18 x 4 w/Patch
74 532 12 49-37 Bearing
122 532 44 49-62 Cap Gear
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
STEERING ASSEMBLY
41
41

14
30
43
42
60
38
63
46
147
55
64
47
192
30
30
32
38
31
33
34
56
56 57
59
62
188
189
1
69
40
145
42_D_man-tex_LT_35_r1
15
14
13
11
8
21
24
25
26
27
29
23
189
188
144
36
113
113
40
57
19
19
6
6
242
241
21
21
69 69
20
117
116
40
119
40
117 119
116
195
195
122
123
68
70
7
7
37
67
152

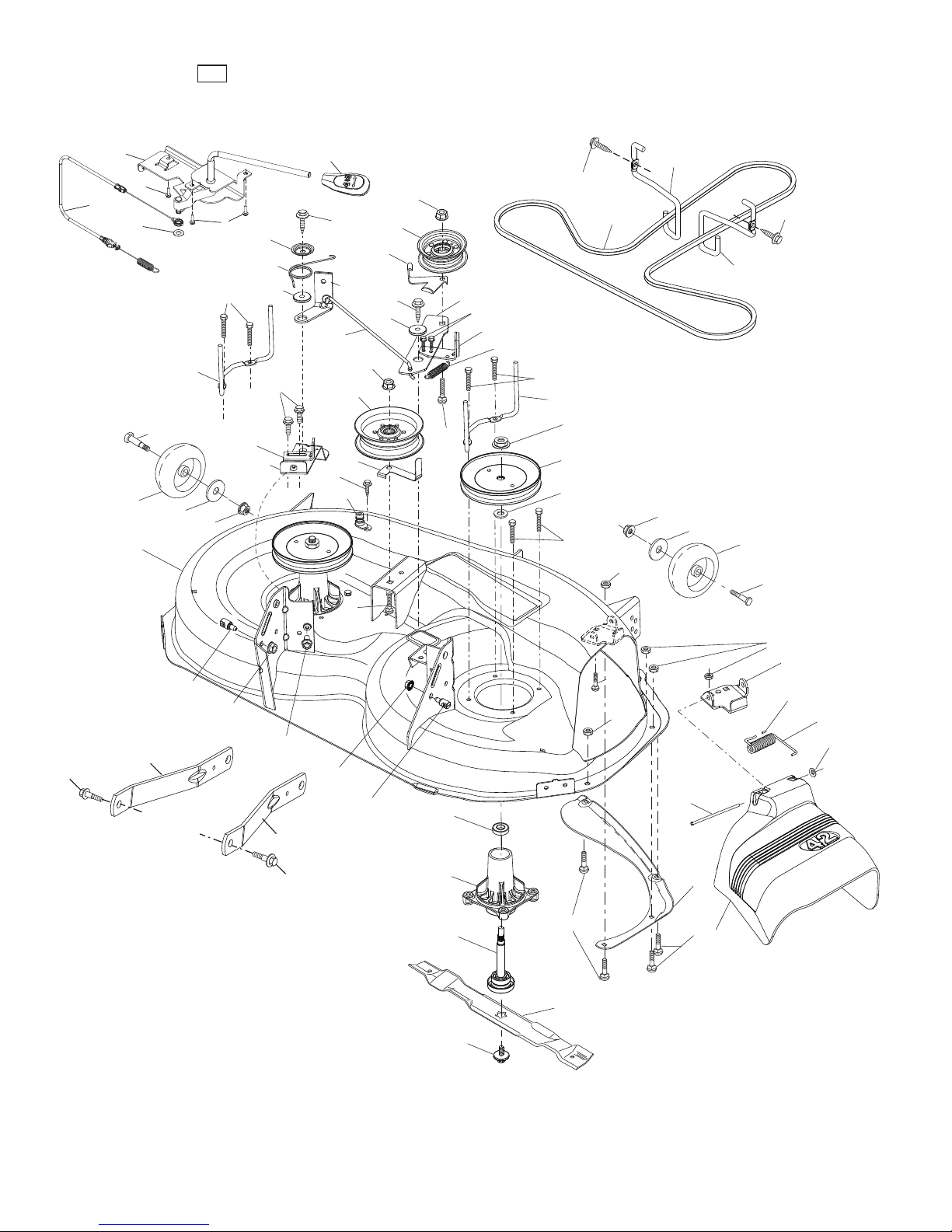

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
MOWER DECK
44
44

15
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 43 98-17 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x 0.750
8 532 19 30-03 Bolt/Washer asm 7/16-20 unf
11 532 13 89-71 Blade Mower 42" Hi Lift Premium
(For better wear when mulching)
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
20 532 15 97-70 Baffle Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 30-04 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler, Flat
37 819 13 13-16 Washer
38 532 43 25-20 Keeper Belt Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw 1/4-20 x 5/8
47 532 19 72-50 Bracket Clutch Cable
55 532 43 71-10 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler
60 532 19 72-61 Arm Brake Mower
62 872 11 06-16 Bolt 3/8-16 unc x 2
63 532 19 94-77 Arm Brake Mower
64 532 19 99-18 Link Brake
67 532 40 30-12 Handle Clutch Cable
68 532 42 96-36 V-Belt
69 872 14 05-05 Bolt
70 532 40 12-46 Clutch Asm Manual
113 817 00 05-10 Screw 5/16-18
116 532 12 48-42 Bolt Shoulder
117 532 18 86-06 Wheel Gauge
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley Idler
147 532 40 19-71 Spring Return
152 584 24 35-01 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
192 532 19 72-60 Bracket Brake Stand LH
195 817 00 06-12 Screw 3/8-16 x 3/4
241 532 15 29-27 Screw TT#10-32 5. 3/8 Flange
242 532 41 55-98 Port Washout
- - 532 19 28-70 Mandrel Assembly (Includes
housing (Key #14), shaft assembly
(Key# 13) , and bearing only
(key#15) - pulley/nut/washer and
blade bolt/washers not included)
- - 532 43 29-37 Replacement Mower, Complete
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
MOWER DECK
44
44

16
7
3
87
10
88
2
89
90 98
97
97
lift-tex_29
91
101
89 87
100
89
87
*Key 91 may be substituted for Key 101
*
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16x.75 SmgmlTap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16
101 532 40 70-03 Link Asm. Lift FXD
KEY PART
NO. NO. DESCRIPTION
TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
MOWER LIFT
45
45

17
1 532 43 98-19 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slde
41 532 19 82-00 Spring Latch
43 874 76 06-12 Bolt 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
seat-tex_7A-vgt
44
43
8
8
6

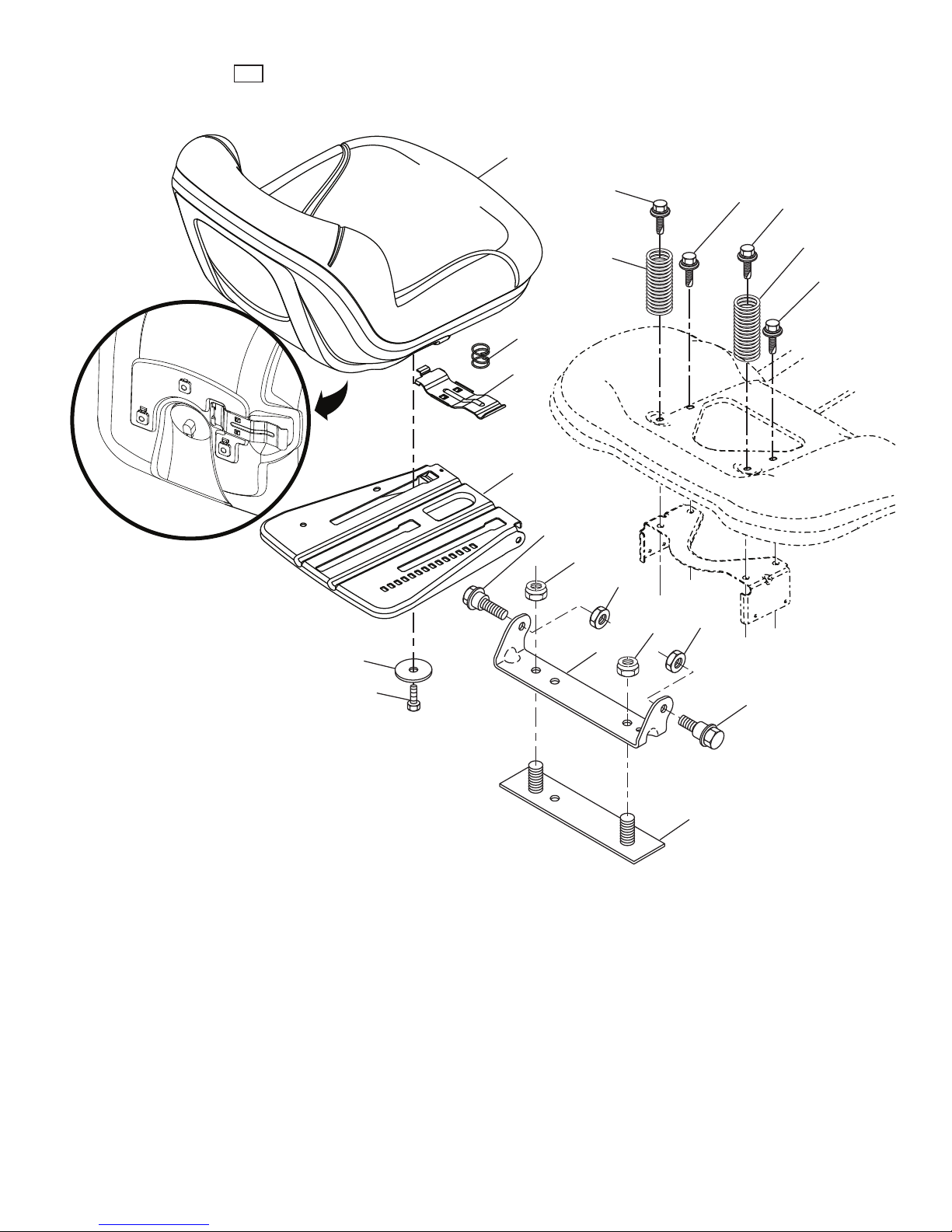

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30
SEAT ASSEMBLY
42
42

09.24.13 CL
