Husqvarna RZ4222F / 966659401 User manual

RZ4222F BF / 967036501
Parts Manual
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
Gasoline containing up to 10% ethanol (E10) is
acceptable for use in this machine.The use of any
gasoline exceeding 10% ethanol (E10) will void
the product warranty.
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

When you need spare parts or support in service
questions, warranty issues, etc., please consult
the following professional:
Manufacturing Number
The machine’s manufacturing number can be found on
the printed plate affixed to the engine compartment.
Stated on the plate, from the top are:
• The machine’s type designation (I.D.).
• The manufacturer’s type number (Model).
• The machine’s serial number (Serial no.)
Please have the type designation and serial number
available when ordering spare parts.
The engine’s manufacturing number is stamped on
one of the valve covers.
The plate states:
• The engine’s model.
• The engine’s type.
• Code
Please have these available when ordering spare
parts.
The wheel motors and hydrostatic pumps have a
barcode decal affixed at the rear.
©2011 All rights reserved.
Orangeburg, SC Printed in U.S.A.
This Parts Manual belongs to the machine with the
manufacturing number:
Engine Transmission
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

CONTENTS
NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
FRAME ...................................................................................4
ENGINE PLATE ......................................................................6
STEERING .............................................................................8
IGNITION .............................................................................10
BRAKE / LIFT .......................................................................12
HYDRAULIC PUMP / MOTOR ............................................14
WHEELS AND TIRES ...........................................................16
MOWER DECK / CUTTING DECK .......................................18
SEAT ....................................................................................20
DECALS ...............................................................................22
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

1
26
6
31
22
20
7
17
15
2
3
13
9
12
8
4
16
27
31
31
24
23
31
14
33
12
20
17
9
10
17
34
27
27
28
32
19
21
FRAME
25
27
11
5
18
24
30
29
29
30
31
4
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

FRAME
1.. 510 261802 .... 1 .... PLATE, OUTER BRAKE BLK
2.. 510 206703 .... 1 .... PLATE, BRAKE LATCH BLK
3.. 510 245604 .... 1 .... PLATE, LIFT OUTER BLK
4.. 510 240502 .... 1 .... PLATE, LIFT INNER BLK
5.. 522 842902 .... 1 .... FOOT PLATE w/DECALS
6.. 522 719504 .... 1 .... FOOT REST ORG
7.. 522 443302 .... 1 .... MOUNT, STRUT RT BLK
8.. 522 443304 .... 1 .... MOUNT, STRUT LT BLK
9.. 510 225902 .... 2 .... SUPPORT, FENDER BLK
10.. 510 177503 .... 1 .... FRAME, FRONT RT ORG
11.. 510 177403 .... 1 .... FRAME, FRONT LT ORG
12.. 539 976989 .... 3 .... HAIRPIN
13.. 539 104411 .... 1 .... KNOB w/ STUD
14.. 539 114789 .... 2 .... SWIVEL
15.. 521 938101 .... 1 .... LINK, FRONT SUSPENSION
16.. 515 988101 .... 6 .... SPACER ½ OD x 1½
17.. 539 102587 .... 6 .... GROMMET, BUMPER
18.. 539 102526 .... 1 .... LIFT PIN
19.. 539 101341 .... 8 .... HCS 3/8-16 x 3
20.. 539 101721 .... 3 .... HCS 5/16-18 x 2¾
21.. 539 102335 .... 4 .... HCS 5/16-18 x 4
22.. 539 976938 .... 6 .... HCS 5/16-18 x 2¼
23.. 539 977761 .... 2 .... HCS ¼-20 x 1
24.. 539 990645 .... 4 .... RHSNB 3/8-16 x 1
25.. 539 111976 .... 6 .... BOLT 3/8-16 x 25/8 THD FRM
26.. 539 109554 .... 2 .... WASHER ½ FLT
27.. 539 990188 . . 13 .... WASHER 5/16 SAE FLT
28.. 539 990055 .... 2 .... WASHER ¼ FLT
29.. 539 990517 .... 6 .... WASHER 3/8 STD FLT
30.. 539 200282 .... 6 .... NUT 3/8-16 HEX JAM NYLOC
31.. 539 112899 . . 15 .... NUT 5/16-18 HEX FLG NYLOC
32.. 521 996501 .... 8 .... NUT 3/8-16 HEX FLG NYLOC
33.. 539 119124 .... 2 .... NUT 7/16-14 HEX NYLOC
34.. 539 976978 .... 2 .... NUT ¼-20 HEX NYLOC
5
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

ENGINE PLATE
1
19
22
23
21
5
3
13
12
9
7
15
2
4
6
28
26
27
8
20
11
10
24
25
14
16
18
29
30
17
33
34
31
32
27
25
6
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

ENGINE PLATE
1.. 575 327002 .... 1 .... PLATE, ENGINE BLK
2.. 532 179334 .... 1 .... CLUTCH
3.. 532 424765 .... 1 .... TUBE, EXHAUST RT
4.. 532 424766 .... 1 .... TUBE, EXHAUST LT
5.. 510 260402 .... 1 .... BRACKET, MUFFLER BLK
6.. 539 112092 .... 1 .... ARM, IDLER
7.. 539 101231 .... 1 .... SPINDLE, IDLER
8.. 539 110311 .... 1 .... PULLEY, IDLER
9.. 539 114530 .... 1 .... PULLEY, ENGINE
10.. 577 094601 .... 1 .... SPACER
11.. 539 101362 .... 1 .... HOSE, DRAIN
12.. 539 101364 .... 1 .... PLUG, OIL
13.. 522 599001 .... 1 .... ADAPTER, OIL DRAIN
14.. 539 101363 .... 1 .... CLAMP
15.. 522 442506 .... 1 .... STOP, CLUTCH BLK
16.. 510 260502 .... 1 .... GUARD, MUFFLER BLK
17.. 539 131604 .... 1 .... MUFFLER ASSY TWIN
18.. 532 196105 .... 1 .... SPRING, DECK DRIVE
19.. 576 968001 .... 1 .... HCS 7/16-20 x 2½ GR 8
20.. 539 103433 .... 1 .... HCS ½-13 x 3¼
21.. 539 109389 .... 1 .... HCS 3/8-16 x 3½
22.. 539 976949 .... 4 .... HCS 3/8-16 x 1¾
23.. 539 107475 .... 4 .... BOLT 5/16-18 x ¾ THD FRM
24.. 539 990362 .... 1 .... SCREW ¼-20 x 5/8 THD FRM
25.. 539 990208 .... 2 .... RHSNB 5/16-18 x 1
26.. 539 990316 .... 1 .... RHSNB 5/16-18 x ¾
27.. 539 976979 .... 2 .... NUT 3/8-16 HEX NYLOC
28.. 539 101331 .... 1 .... NUT ½-13 HEX NYLOC
29.. 539 112899 .... 5 .... NUT 5/16-18 HEX FLG NYLOC
30.. 539 110064 .... 1 .... WASHER, CLUTCH
31.. 539 109554 .... 2 .... WASHER ½ FLT
32.. 539 990692 .... 2 .... WASHER 5/16 STD FLT
33.. 539 112670 .... 1 .... WASHER, HEAVY
34.. 539 990118 .... 4 .... WASHER 3/8 SPLT LCK
NOT SHOWN
532 198316 ... 1 .... ADAPTER, HARNESS
7
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

STEERING
14
7
5
4
2
1
3
8
13
13
15
21
19
6
14
20
17
22
9
22
24
18
21
23
23
8
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

STEERING
1.. 579 036901 .... 2 .... LEVER w/ GRIP
2.. 525 392901 .... 2 .... GRIP, FOAM
3.. 577 251701 .... 2 .... BRACKET, CONTROL
4.. 539 131518 .... 4 .... BEARING, FLANGE
5.. 576 140301 .... 2 .... LEVER, CONTROL
6.. 577 420001 .... 2 .... LEVER, HANDLE
7.. 577 252401 .... 2 .... SPACER, PIVOT CONTROL
8.. 539 102720 .... 2 .... DAMPENER
9.. 577 251801 ... 2 .... BLOCK, TRACKING
10.. 539 102845 .... 1 .... SPRING
11.. 576 850301 .... 1 .... SPRING
12.. 539 131799 .... 1 .... KNOB
13.. 539 101332 .... 2 .... HCS ½-13 x 2¾
14.. 539 990209 .... 2 .... HCS 5/16-18 x 1
15.. 539 976935 .... 2 .... HCS 5/16-18 x 1½
16.. 539 101469 .... 2 .... HCS 5/16-18 x 1¼
17.. 578 296401 .... 4 .... SCREW 5/16-18 X 1 BTN HD
18.. 576 850402 .... 2 .... SCREW 5/16-18 X 1¾ BTN HD
19.. 525 464701 .... 8 .... HHFS 5/16-18 X ¾
20.. 539 108010 .... 2 .... NUT ½-13 HEX JAM NYL GR2
21.. 539 112899 . . 10 .... NUT 5/16-18 HEX FLG NYLOC
22.. 539 990717 .... 6 .... NUT 5/16-18 HEX NYLOC
23.. 539 990585 .... 4 .... NUT 5/16-18 HEX WHIZLK
24.. 539 990188 .... 4 .... WASHER 5/16 SAE FLT
9
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

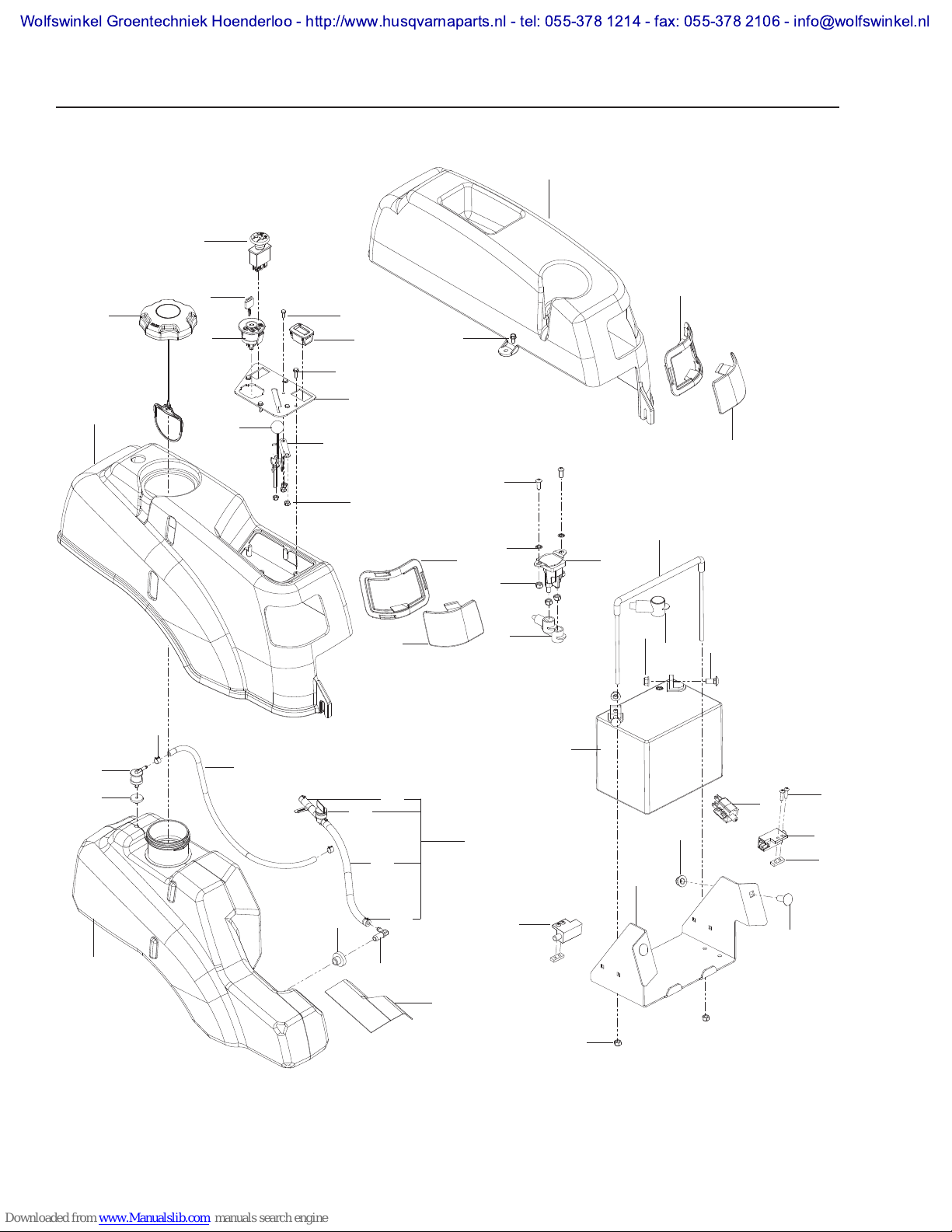

IGNITION
1
2
3
4
6
7
8
5
9
10
13
11
15
17
19
24
21
23
25
22
26
27
28
29
12
32
41
14
34
39
44
38
33
40
47
48
46
46
45
43
16
47
18
30
20
31
35
10
36
37
10
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

IGNITION
1.. 578 178901 .... 1 .... FENDER, RT GRY
2.. 539 130374 .... 1 .... FENDER, LT GRY
3.. 578 178601 .... 1 .... TANK, FUEL
4.. 575 018101 .... 1 .... CAP, FUEL w/ TETHER
5.. 522 730101 .... 1 .... CABLE, THROTTLE
6.. 539 107544 .... 1 .... KEY, IGNITION
7.. 539 107541 .... 1 .... SWITCH, IGNITION
8.. 539 174652 .... 1 .... SWITCH, CLUTCH
9.. 539 113792 .... 1 .... SWITCH, BRAKE
10.. 539 109553 .... 2 .... SWITCH, NC
11.. 539 110304 .... 1 .... PANEL, CONTROL
12.. 539 102436 .... 1 .... BATTERY
13.. 539 131209 .... 1 .... TIE DOWN, BATTERY
14.. 510 231302 .... 1 .... BOX, BATTERY BLK
15.. 539 116400 .... 3 .... TERMINAL COVER
16.. 539 102759 .... 1 .... INSULATOR
17.. 576 618101 .... 1 .... VALVE, FUEL CHECK
18.. 539 916325 .... 1 .... VALVE, FUEL
19.. 539 101714 .... 1 .... SOLENOID
20.. 539 912222 .... 4 .... CLAMP, HOSE
21.. 575 436501 .... 2 .... CLAMP, HOSE
22.. 539 105245 .... 1 .... GROMMET, RUBBER
23.. 576 618201 .... 1 .... GROMMET, CHECK VALVE
24.. 539 110432 .... 1 .... ELBOW
25.. 576 371101 .... 1 .... PANEL, LT
26.. 576 370901 .... 1 .... RING, LT BLK
27.. 576 371201 .... 1 .... PANEL, RT
28.. 576 371001 .... 1 .... RING, RT BLK
29.. 576 179401 .... 1 .... HOUR METER
30.. 539 932956 .... 1 .... FUEL LINE 10"
31.. 505 215101 .... 1 .... FUEL LINE 2½"
32.. 574 521302 .... 1 .... HOSE, 17"
33.. 522 559101 .... 1 .... SHIELD, HEAT
34.. 539 990053 .... 2 .... WASHER ¼ ITLW
35.. 576 660701 .... 1 .... FUEL LINE ASSY
36.. 539 102678 .... 2 .... PLATE, TAPPED
37.. 539 133049 .... 1 .... KNOB
38.. 539 990411 .... 2 .... SCREW 10-24 x ½ HEX HD
39.. 574 822701 .... 4 .... SCREW 10-24 x ¾ SKT HD
40.. 539 111229 .... 2 .... SCREW ¼-20 x 5/8 BTN SKT
41.. 539 110673 .... 2 .... SCREW 10-24 x ¾ WSH HD
42.. 539 991034 .... 2 .... SCREW 10-24 x 5/8 WSH HD
43.. 539 990645 .... 2 .... RHSNB 3/8-16 x 1
44.. 539 990316 .... 2 .... RHSNB 5/16-18 x ¾
45.. 539 108461 .... 2 .... BOLT ¼-20 x ½
46.. 539 976978 .... 6 .... NUT ¼-20 HEX NYLOC
47.. 539 976977 .... 2 .... NUT 10-24 HEX NYLOC
48.. 539 112899 .... 2 .... NUT 5/16-18 HEX FLG NYLOC
NOT SHOWN
539 103306 ... 2 .... POSITIVE CABLE, LONG
539 110068 ... 1 .... BATTERY CABLE NEGATIVE
515 980501 ... 1 .... HARNESS, WIRING
505 280001 ... 4 .... TIE, WIRE
11
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

4
5
3
17
16
2
7
1
15
20
9
11
12
13
14
6
819
18
21
10

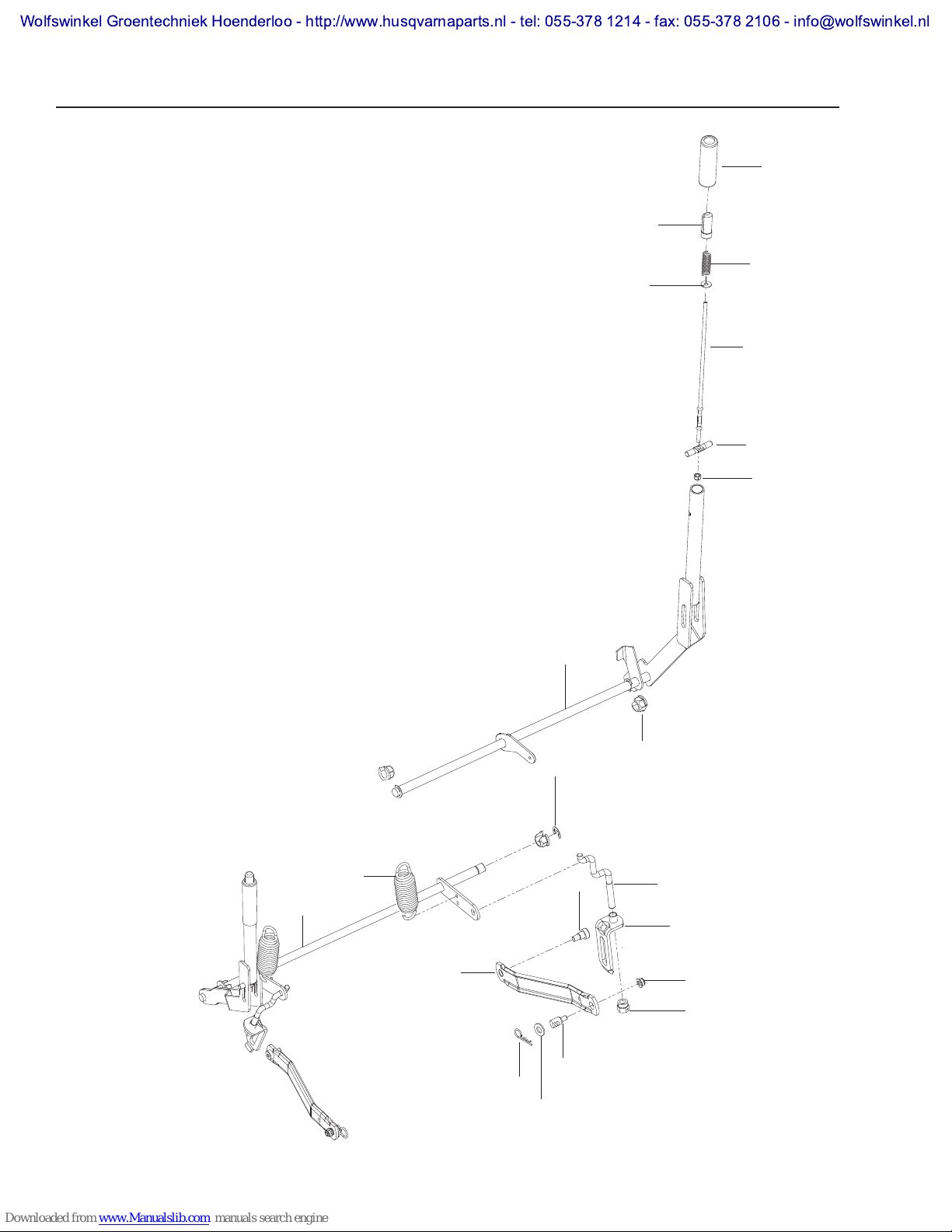

BRAKE / LIFT
12
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

BRAKE / LIFT
1.. 574 216604 .... 2 .... ARM, LIFTING
2.. 522 710804 .... 1 .... SHAFT, BRAKE BLK
3.. 510 030701 .... 2 .... SPRING, COMPRESSION
4.. 539 118762 .... 2 .... SPRING
5.. 510 207201 .... 2 .... GRIP, HANDLE BLK
6.. 510 422901 .... 2 .... ROD, HANDLE RELEASE
7.. 516 008801 .... 2 .... ROD, LATCH RELEASE
8.. 532 195185 .... 2 .... ARM, SUSPENSION RR
9.. 525 847201 .... 2 .... LINK, REAR SUSPENSION
10.. 510 207301 .... 2 .... BUTTON, PUSH BLK
11.. 522 858601 .... 2 .... BRACKET, LIFT
12.. 532 195161 .... 2 .... STUD w/ ANTI-ROTATE
13.. 539 105069 .... 3 .... E-RING
14.. 539 976989 .... 2 .... HAIRPIN
15.. 539 113621 .... 2 .... BOLT 3/8-16 x 3/8 SKT HD
16.. 532 175994 .... 2 .... NUT, LIFT LINK
17.. 539 976978 .... 2 .... NUT ¼-20 HEX NYLOC
18.. 510 184901 .... 4 .... NUT, PLASTIC
19.. 539 112899 .... 2 .... NUT 5/16-18 HEX FLG NYLOC
20.. 539 976982 .... 2 .... WASHER 5/8 SAE FLT
21.. 539 990598 .... 4 .... WASHER ¼ FLT
13
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

21
20
29
3
35
5
4
2
12
6
25
1
10
13
24
26
27
7
11
17
14
18
15
16
9
22
23
28
8
19
30
33
31
32
34
HYDRAULIC PUMP / MOTOR
35
15
33
34
33
27
14
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

HYDRAULIC PUMP / MOTOR
1.. 510 375601 .... 1 .... EZT, LT
2.. 510 375602 .... 1 .... EZT, RT
3.. 574 030501 .... 1 .... ROD, EZT BRAKE LT
4.. 574 030502 .... 1 .... ROD, EZT BRAKE RT
5.. 539 110411 .... 1 .... BELT, EZT
6.. 522 945001 .... 2 .... ROD, MOTION CONTROL
7.. 539 115729 .... 2 .... ROD END RT
8.. 539 116690 .... 2 .... ROD END MALE LT
9.. 539 116689 .... 2 .... COUPLER, ROD END
10.. 539 110342 .... 2 .... SPRING, BRAKE ROD
11.. 539 976988 .... 2 .... HAIRPIN, COTTER
12.. 539 120080 .... 2 .... COG, BRAKE DISC
13.. 539 120079 .... 2 .... BRAKE ARM KIT
14.. 575 507001 .... 2 .... HUB KIT
15.. 522 941101 .... 2 .... LINK ARM, BYPASS
16.. 539 120785 .... 2 .... BLADE, FAN
17.. 510 184101 .... 2 .... SPACER TUBE
18.. 522 460702 .... 2 .... SUPPORT, EZT FRT
19.. 510 185102 .... 2 .... MOUNT, EZT RR BLK
20.. 539 990637 .... 4 .... HCS 3/8-16 x 2½
21.. 539 101721 .... 4 .... HCS 5/16-18 x 2¾
22.. 539 990209 .... 2 .... HCS 5/16-18 x 1
23.. 539 976934 .... 2 .... HCS 5/16-18 x ¾
24.. 539 976938 .... 2 .... HCS 5/16-18 x 2¼
25.. 539 108535 .... 1 .... SCREW 10-24 x ¾ SLTD RD
26.. 539 990717 . . 10 .... NUT 5/16-18 HEX NYLOC
27.. 539 115617 .... 2 .... NUT 5/16-18 NYLOC INSERT
28.. 539 990223 .... 4 .... NUT 5/16-24 HEX
29.. 539 991073 .... 1 .... NUT 5/16-24 HEX JAM LH
30.. 539 976977 .... 1 .... NUT 10-24 HEX NYLOC
31.. 539 976978 .... 2 .... NUT ¼-20 HEX NYLOC
32.. 539 990055 .... 4 .... WASHER ¼ SAE FLT
33.. 539 990188 . . 18 .... WASHER 5/16 SAE FLT
34.. 539 990118 .... 4 .... WASHER 3/8 SPLT LCK
35.. 539 990122 .... 8 .... WASHER 3/8 SAE FLT
15
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

4
2
6
1
3
7
13
12
11
10
8
14
15
9
21
5
WHEELS AND TIRES
1716
19
18 20
20
22
23
16
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

WHEELS AND TIRES
1.. 516 001901 .... 2 .... CASTER TIRE ASSY
2.. 539 115638 .... 2 .... ZERK 3/16 DRIVE
3.. 539 115747 .... 2 .... SPRING, CASTER
4.. 539 117901 .... 2 .... BUSHING, CASTER
5.. 539 115675 .... 2 .... WASHER
6.. 539 102535 .... 2 .... GREASE CAP
7.. 539 115749 .... 2 .... PLUG, CASTER
8.. 539 115566 .... 2 .... BOLT, HEX 5/16-18 x 1 NYLOC
9.. 539 112660 .... 2 .... BEARING, FLANGED
10.. 539 105543 .... 2 .... SPACER
11.. 539 121159 .... 2 .... RHSNB ½-13 x 6½
12.. 539 200100 .... 2 .... NUT ½-13 HEX CNTRLK
13.. 539 109554 .... 2 .... WASHER ½ FLT
14.. 510 186502 .... 2 .... YOKE ORG
15.. 539 114805 .... 4 .... SPACER 5/16
16.. 539 106994 .... 2 .... RIM
17.. 539 114697 .... 2 .... CASTER TIRE, 410-5 4 PLY
18.. 576 617801 .... 4 .... BEARING, FLANGED
19.. 539 103300 .... 2 .... ZERK
20.. 539 912234 .... 4 .... VALVE STEM
21.. 539 112212 .... 2 .... WHEEL ASSY, REAR 18 x 8.5
22.. 539 112214 .... 2 .... RIM
23.. 539 101173 .... 8 .... NUT ½ LUG
17
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

MOWER DECK / CUTTING DECK
1
2
3
4
5
7
8
9
10
11
12
13 14
15
16
20
21
22
23
24
25
26
6
28
29
30
31
32
33
34
35
36 37
38
39
40
41
42
43
44
27
17
45
19
41
41
40
18
22
18
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

MOWER DECK / CUTTING DECK
1.. 574 761802 .... 1 .... DECK w/SAFETY DECALS
2.. 539 117245 .... 1 .... BELT, DECK
3.. 539 112238 .... 1 .... BELT SHIELD, RH
4.. 539 112240 .... 1 .... BELT SHIELD, LH
5.. 539 110731 .... 1 .... DISCHARGE CHUTE
6.. 539 110735 .... 1 .... SPRING, TORSION
7.. 539 112413 .... 1 .... CONFINEMENT PLATE
8.. 539 112078 .... 3 .... BLADE, 14 5/8
9.. 539 112198 .... 1 .... ARM, IDLER
10.. 525 348501 .... 3 .... PULLEY, MANDREL
11.. 539 132728 .... 3 .... PULLEY, IDLER
12.. 539 112169 .... 2 .... BUSHING, IDLER
13.. 532 176066 .... 1 .... ROLLER, NOSE
14.. 532 179127 .... 1 .... ROD, ROLLER, NOSE
15.. 539 103427 .... 1 .... BUSHING, PIVOT
16.. 539 112170 .... 3 .... HOUSING
17.. 539 103256 .... 1 .... SPRING
18.. 539 112056 .... 1 .... SHAFT, MANDREL
19.. 539 112050 .... 1 .... BEARING
20.. 539 110736 .... 1 .... PIN, CLEVIS 5/16 x 5
21.. 539 104763 .... 8 .... RETAINER, U TYPE
22.. 539 990365 .... 2 .... PIN, COTTER 1/8 x ¾
23.. 539 976998 .... 1 .... ZERK
24.. 539 976989 .... 2 .... HAIRPIN #4
25.. 532 195161 .... 2 .... STUD w/ ANTI-ROTATE
26.. 539 990582 .... 1 .... HCS 3/8-16 x 1
27.. 539 103433 .... 1 .... HCS ½-13 x 3¼
28.. 539 101341 .... 2 .... HCS 3/8-16 x 3
29.. 539 990209 .... 8 .... HCS 5/16-18 x 1
30.. 539 990799 .... 2 .... RHSNB 5/16-18 x 5/8
31.. 539 107630 . . 12 .... SCREW 5/16-18 x WSHER HD
32.. 539 107522 .... 3 .... BOLT WASHER ASSY
33.. 539 990717 .... 2 .... NUT 5/16-18 HEX NYLOC
34.. 539 101331 .... 1 .... NUT ½-13 HEX NYLOC
35.. 539 112899 .... 2 .... NUT 5/16-18 HEX FLG NYLOC
36.. 539 107590 .... 3 .... NUT 9/16 TOP CNTRLK
37.. 539 976979 .... 2 .... NUT 3/8-16 HEX NYLOC
38.. 539 107520 .... 3 .... WASHER, SPACER
39.. 539 106504 .... 2 .... WASHER, HEAVY
40.. 539 990517 .... 3 .... WASHER 3/8 STD FLT
41.. 539 990692 . . 10 .... WASHER 5/16 STD FLT
42.. 539 990187 .... 8 .... WASHER 5/16 SLW
43.. 539 976982 .... 2 .... WASHER 5/8 SAE FLT
44.. 539 102243 .... 1 .... WASHER, SUPPORT
45.. 539 990550 .... 1 .... WASHER ½
19
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]

SEAT
1
9
75
4
12
10
3
11
8
6
13
2
15
16
15
19
14
17
17
18
20
10
20
Wolfswinkel Groentechniek Hoenderloo - http://www.husqvarnaparts.nl - tel: [phone] - fax: [phone] - [email protected]
