Husqvarna LZ5227, LZ6130 User manual

English
Parts Manual
LZ5227 / 968999674 LZ6130 / 968999675
LZ7230 / 968999676 LZ6127 / 968999709
LZ30 / 968999677 LZ30C / 968999751
LZ6130C / 968999752 LZ7230C / 968999753
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.

©2008 HTC. All rights reserved.
Beatrice, NE. Printed in U.S.A.

NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
SECTION PAGE SECTION PAGE
CONTENTS
CHASSIS / FRAME....................................................4
ENGINE PLATE..........................................................8
STEERING...............................................................10
PARKING BRAKE ....................................................12
HYDRAULIC PUMP - MOTOR.................................14
MOWER LIFT / DECK LIFT......................................16
52" DECK.................................................................18
61" DECK.................................................................20
72" DECK.................................................................22
DEBRIS SHIELD......................................................24
FUEL SYSTEM.........................................................26
SEAT ........................................................................28
CASTER...................................................................30
ELECTRICAL ...........................................................32
DECALS...................................................................36
SCHEMATIC.............................................................38
PROTECTION FRAME ............................................39
ACCESSORIES........................................................40

4
CHASSIS / FRAME
















 







 







5
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
CHASSIS / FRAME
539 9777781.. ....3 ....FLOOR PAN PAD
539 1109762.. ....1 ....XP GUARD, BLACK
539 1069613.. ....4 ....STRAP, BLACK
539 1047214.. ....1 ....FOOT PLATE
539 1025875.. ..10 ....BUMPER
539 1027326.. ....1 ....THROTTLE CABLE
539 9903167.. ..10 ....RHSNB 5/16-18 x ¾ ZD
539 1108148.. ....1 ....TANK MOUNT
539 1108139.. ....4 .... “U” TYPE RETAINER ¼C
539 11095310.. ....1 ....CONSOLE
539 11081511.. ....1 ....CLIP, PUSH MOUNT WIRE
539 10476312.. ....6 ....“U” CLIP 5/16C
539 97693413.. ....4 ....HCS, 5/16 -18 X ¾
539 99071714.. ..37 ....NUT 5/16-18 HEX NYLOC
539 99036215.. ....4 ....TFS ¼C x 5/8
539 99069216.. ..32 ....WASHER, 5/16 STD FLT
539 99058017.. ....8 ....HCS, ¼ - 20 x ¾
539 99005218.. ..10 ....LOCKWASHER ¼
539 99059819.. ....8 ....WASHER ¼ FLAT
539 99041120.. ....2 ....HCS 10-24 x ½
539 97697721.. ....4 ....NUT 10-24 NYLOC
539 99018722.. ....4 ....WASHER 5/16 LOCK
539 10571623.. ....1 ....IDLER COVER PAINTED
539 99018424.. ..14 ....NUT 5/16-18 CENTERLOCK
539 99020925.. ..16 ....HCS 5/16-18 x 1
539 10441126.. ....1 ....KNOB W/STUD
539 13020727.. ....1 ....CHOKE CONTROL
539 10147428.. ....2 ....ZERK
539 13227829.. ....1 ....FRAME, 52"/61"
for Serial No. 074439861
and after
539 132229....1 FRAME, 52"/61"
for units produced before
Serial No. 074439861
539 132279....1 FRAME, 72"
for Serial No. 074439861
and after
539 132232....1 FRAME, 72"
for units produced before
Serial No. 074439861

6













 
















CHASSIS / FRAME













7
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
539 1011761.. ....2 ....PULLEY
539 1011772.. ....2 ....KEY
539 1043343.. ....1 ....PUMP BELT
539 1032564.. ....1 ....SPRING
539 1045215.. ....2 ....STRUT SPACER
539 1043906.. ....2 ....STRUT WELDMENT, REAR
52"/61"
539 110746....2 ....STRUT WELDMENT, REAR
72"
539 1323027.. ....1 ....CROSS SHAFT
539 1126348.. ....2 ....SKID PLATE
539 9906559.. ....1 ....HCS 3/8-16 x 1½
539 97697910.. ....1 ....NUT 3/8-16 HEX NYLOC
539 99061311.. ....1 ....NUT 3/8-16 HEX WHIZLK
539 11900712.. ....2 ....BOLT
539 99024713.. ....2 ....LOCKWASHER 7/16
539 99069214.. ....2 ....WASHER, 5/16 STD FLT
539 99051715.. ....4 ....WASHER 3/8FLAT
539 10343316.. ....4 ....HCS ½-13 x 3¼
539 99056317.. ....2 ....HCS, 3/8-16 x 1
539 10133118.. ....1 ....NUT ½ -13, NYLOC
539 10271719.. ....2 ....SCREW, SET
539 13020520.. ....1 ....PIVOT BEARING
539 97669521.. ....1 ....IDLER FLANGE BUSHING
539 99058822.. ....1 ....HCS, 3/8-16 x 2
539 97699823.. ....1 ....ZERK
539 99071724.. ....1 ....NUT 5/16-18 HEX NYLOC
539 97668825.. ....1 ....IDLER PULLEY
539 11189726.. ....1 ....WASHER,
3/8SPEC
539 99012227.. ....1 ....WASHER, 3/8SAE FLT
539 99020928.. ....1 ....HCS 5/16-18 x 1
539 13039229.. ....1 ....IDLER ARM
539 10134130.. ....1 ....HCS 3/8-16 x 3
539 10261931.. ....2 ....PIVOT PIN WELDMENT
52"/61"
...539 105480....2 ... PIVOT PIN WELDMENT 72"
539 11263632.. ....1 ....GUARD, REAR DEBRIS
MODELS 968999677,
968999751
539 10747633.. ....4 ....BOLT 5/16-18 x ¾ THRD FRM
MODELS 968999677,
968999751
539 11251634.. ....2 ....STRUT WELDMENT, REAR
MODELS 968999677,
968999751
CHASSIS / FRAME

8


















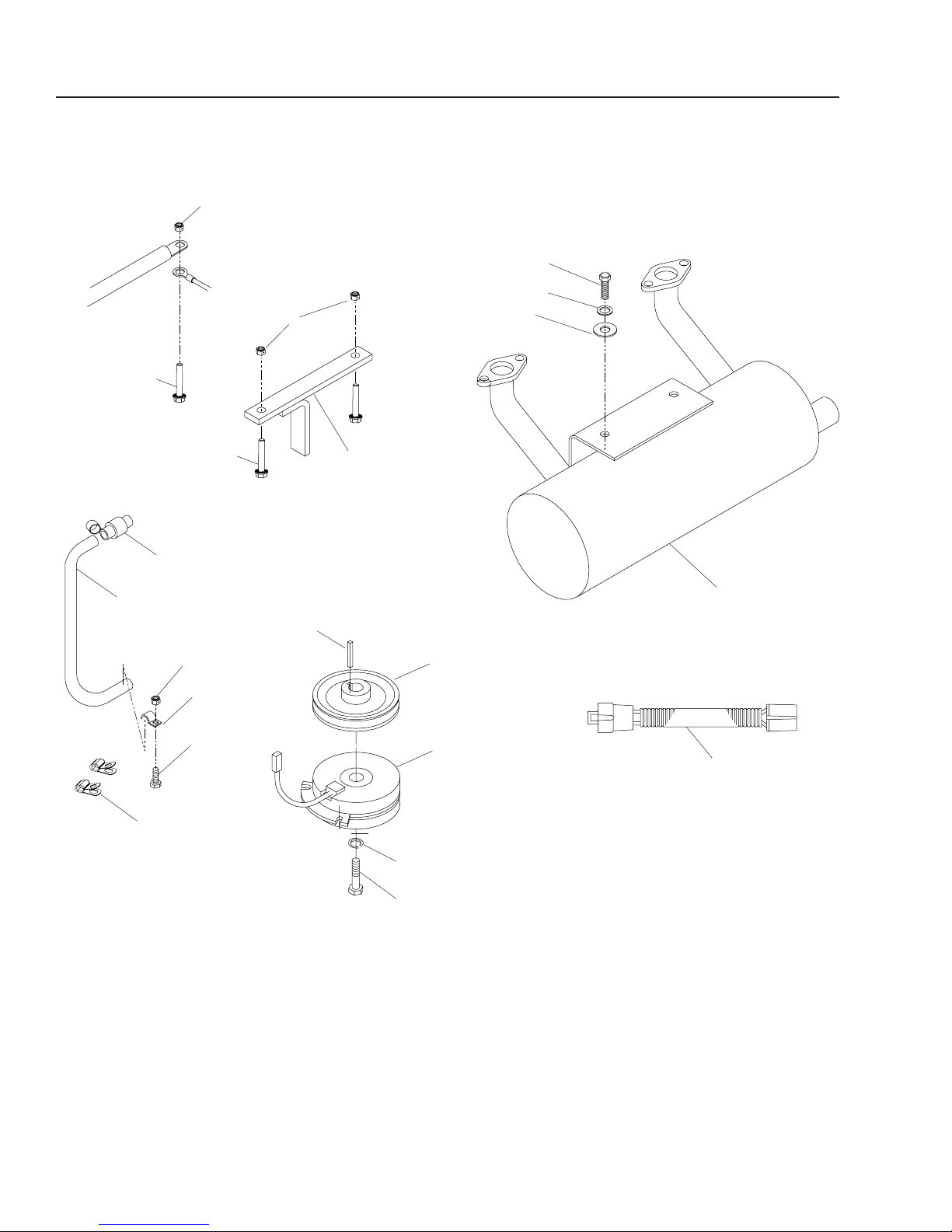

ENGINE PLATE





9
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1 539 990184... 6....NUT 5/16-18 CENTERLOCK
2 539 113781... 4....HCS 5/16 x 1¾ SERRATED
3 539 100152... 1....KEY ¼ SQ
4 539 106057... 1....PULLEY
5 539 105406... 1....CLUTCH
6 539 990247... 1....LOCKWASHER7/16
7 539 991120... 1....HCS 7/16 x 2.50
8 539 106819... 1....CLUTCH TIE DOWN
9 539 105896... 1....MUFFLER
10 539 990187... 2....WASHER 5/16 LOCK
11 539 990692... 2....WASHER, 5/16 STD FLT
12 539 109867... 2....CLAMP DOUBLE TUBE
13 539 976934... 2....HCS, 5/16 -18 X ¾
14 539 107937... 1....OIL DRAIN HOSE
15 539 110093... 1....OIL DRAIN FITTING
16 539 990761... 1....NUT ¼-20, CENTERLOCK
17 539 101363... 1....CLAMP
18 539 990580... 1....HCS, ¼ - 20 x ¾
19 539 104416... 1....KOHLER PIGTAIL
ENGINE PLATE

10














  





























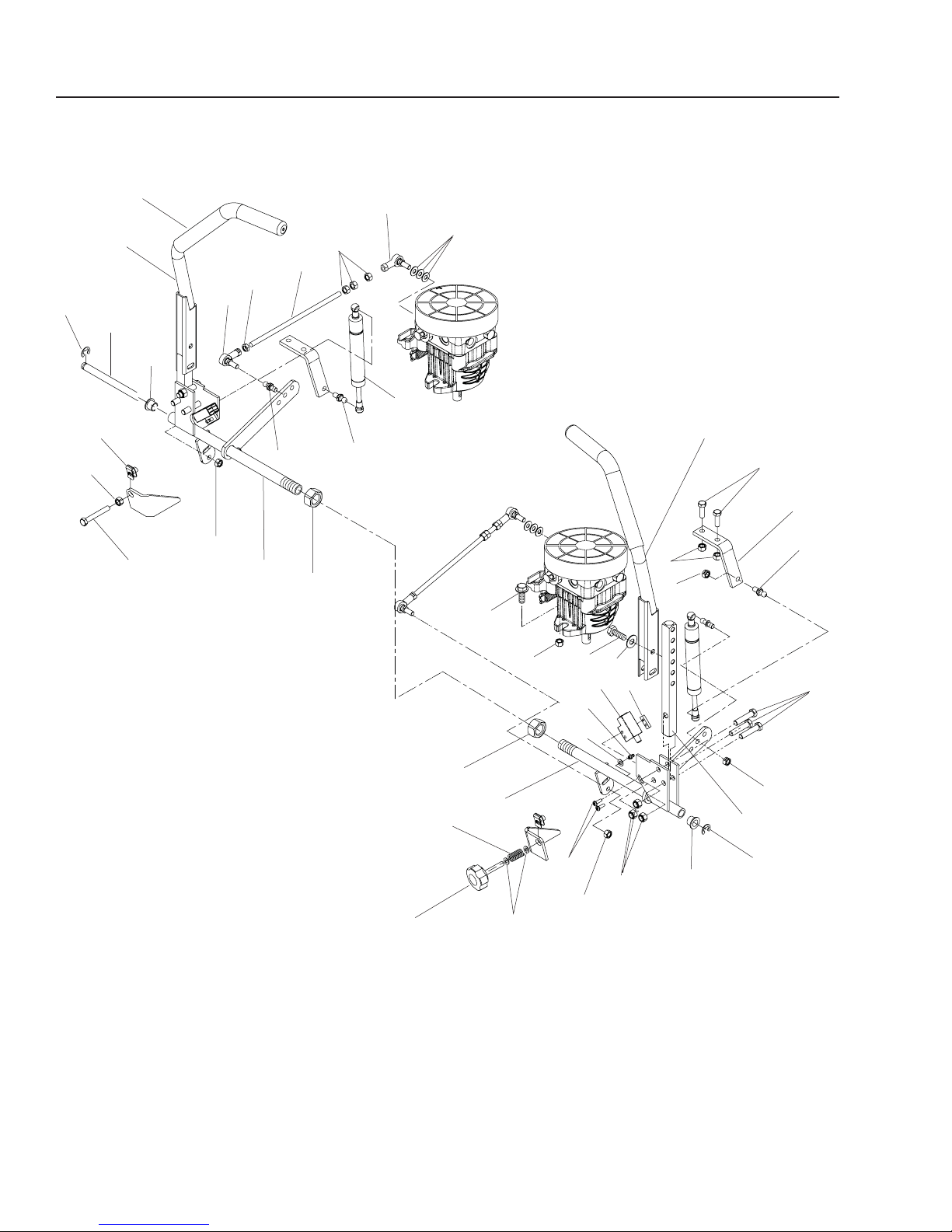

STEERING

11
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1...539 110607..4..BALL STUD
2...539 131623..1..DRIVE LEVER W/GRIP, RT
3...539 131622..1..DRIVE LEVER W/GRIP, LT
4...539 110606..2..DAMPENER
5...539 130894..2..GRIP
6...539 111074..2..DAMPENER BRACKET
7...539 102519..2..BUSHING
8...539 101080..2..INTERLOCK SWITCH
9...539 104763..2..“U” CLIP, 5/16C
10...539 990717..4..NUT 5/16-18 HEX NYLOC
11...539 990582..4..HCS 3/8-16 x 1 WHIZLK
12...539 990692..2..WASHER, 5/16 STD FLT
13...539 990563..4..HCS, 3/8-16 x 1
14...539 102593..4..SPRING WASHER, 3/8
15...539 990546..4..NUT 3/8-16, CENTERLOCK
16...539 110833..1..CONTROL SHAFT
17...539 108394..1..HCS, 5/16C x 1¾, TAPBOLT
18...539 990196..1..NUT 5/16C
19...539 103003..1..KNOB
20...539 111039..1..SPRING
21...539 101949..2..E-RING, ½"
22...539 110943..4..NUT 5/16F, NYLOC
23...539 990184..4..NUT 5/16-18 CENTERLOCK
24...539 990209..4..HCS 5/16-18 x 1
25...539 110603..1..ROD END, RT
26...539 110604..1..ROD END, LT
27...539 105279..1..TRACKING LINKAGE
28...539 991073..1..NUT 5/16F, LH, JAM
29...539 990223..3..NUT 5/16F
30...539 131332..1..CONTROL, RT
31...539 131333..1..CONTROL, LT
32...539 110638..1..ARM, CONTROL SHAFT
33...539 102678..1..SCREW PLATE
34...539 976979..3..NUT 3/8-16 HEX NYLOC
35...539 990730..2..HCS, 3/8-16 x 1¾
36...539 976952..2..SCREW, 10-24 x 5/8
37...539 976998..1..ZERK
38...539 103547..1..WASHER
39...539 990820..2..NUT ¾-16 CNTRLOCK
STEERING

12






































PARKING BRAKE

13
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1...539 108619..1..BUSHING
2...539 105036..1..GRIP
3...539 101151..1..RING, RETAINING, 7/8
4...539 923787..1..BUSHING, MACHINE
5...539 113479..2..BUSHING, POLYMER, ¾ x 2
6...539 113944..2..CALIPER
7...539 113947..1..LINKAGE, BRAKE
8...539 113948..2..PLATE, BRAKE
9...539 113946..2..BELLCRANK, BRAKE
10...539 113945..2..HUB
11...539 110631..2..PIN, ROLL, 5/16" DIA.
12...539 990037..4..PIN, COTTER, 3/32 x ¾
13...539 200282..6..NUT 3/8-16, JAM, NYLOC
14...539 990563..2..HCS, 3/8-16 x 1
15...539 113951..4..SB, 3/8-16 x 2½, SKT HD
16...539 99012212..WASHER, 3/8SAE FLT
17...539 912234..1..VALVE STEM
18...539 108616..1..BRAKE LEVER
19...539 110624..1..SHAFT, CROSS
20...539 113949..1..LINKAGE, REAR BRAKE
21...539 990289..1..NUT 3/8-24, CTR LK
22 ...539 113950..1 ..BRACKET, L
23...539 108732..2..NUT 3/8-24, JAM
24...539 990122..1..WASHER, 3/8, SAE
25...539 113952..1..SPRING
26...539 101173..8..NUT LUG, ½F
27...539 105486..2..TIRE, COMPLETE, 61" & 72"
...539 112592..2..TIRE, COMPLETE, 52"
28...539 105152..1..TIRE, 24 x 12.0-12
...539 112599..1..TIRE, 23 x 9.5-12
29...539 105487..1..RIM, 2½"
... 539 111149..1..RIM, OFFSET 1"
30...539 105278..2..KEY, WOODRUFF
31...539 101331..8..NUT ½ -13, NYLOC
32...539 132300..1..STANDOFF, WHEEL MOTOR
33...539 916561..1..BUSHING, MACHINE, 1"
34...539 101332..4..HCS, ½ -13 x 2¾
35...539 990254..4..LOCKWASHER, ½
36...539 990258..4..NUT ½ -13
37...539 104288..1..PIN, COTTER
38...539 110823..2..WHEEL MOTOR, TL15
NOT SHOWN
...539 990622..8 ..HFCS, ½ -13 X 1¼, WHIZLK
PARKING BRAKE

14

































HYDRAULIC PUMP - MOTOR



15
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1...539 105024..1..OIL TANK
2...539 102606..1..FILTER
3...539 101165..1..FILTER HEAD
4...539 101202..1..HYDRAULIC CAP
5...539 990580..4..HCS, ¼ - 20 x ¾
6...539 990052..2..LOCKWASHER, ¼
7...539 976978..2..NUT ¼-20 HEX NYLOC ZD
8...539 113782..4..HYDRAULIC FITTING
9...539 102396..4..STRAIGHT FITTING
10...539 132316..2..F6802-6-6-0
11...539 101238..4..F6801-6-6-0
12...539 106933..1..BRACKET, FILTER
13...539 132290..1..‘T’ASSEMBLY, RETURN
14...539 132288..1..HOSE
HYDRAULIC PUMP - MOTOR
15...539 132289..1..‘T’ASSEMBLY, SUPPLY
16...539 105168..1..CAP
17...539 132143..1..PUMP W/FANS, 10CC, RT
18...539 132142..1..PUMP W/FANS, 10CC, LT
19...539 103114..4..‘O’ RING
20...539 103119..8..‘O’ RING
21...539 103118..8..‘O’ RING
22...539 990546..5..NUT 3/8-16, CENTERLOCK
23...539 990582..4..HCS 3/8-16 x 1 WHIZLK
24...539 132284..1..HYDRAULIC LINE
25...539 132285..1..HYDRAULIC LINE
26...539 132286..1..HYDRAULIC LINE
27...539 132287..1..HYDRAULIC LINE

16

















































MOWER LIFT / DECK LIFT

17
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1...539 104761..1..ZERK, LONG
2...539 101232..2..BUSHING, FLANGE
3...539 104760..3..SPRING, DECK LIFT
4...539 105050..2..LINKAGE, LIFT
5...539 104310..2..LINK, CONNECTING
6...539 132170..1..SHAFT ASSM W/PEDAL, FT
7...539 108354..1..SHAFT, REAR LIFT
8...539 104323..1..PLATE, ADJUSTMENT
9...539 104321..1..PLATE, ADJUSTMENT
10...539 104530..4..SPACER, DECK LIFT
11...539 104808..8..BLOCKS, PILLOW
12...539 104807..4..PLATE, SUPPORT
13...539 976979..8..NUT 3/8-16 HEX NYLOC
14...539 990717..8..NUT 5/16-18 HEX NYLOC
15...539 101982..3..EYEBOLT, 5/16C
16...539 101802..1..E-RING, 7/8
17...539 923787..1..BUSHING, MACHINE
18...539 990637..3..HCS, 3/8C x 2½
19...539 101721..8..HCS, 5/16C x 2¾
20...539 976982..4..WASHER, 5/8, SAE
21...539 990654..4..PIN, COTTER
22...539 105060..2..PIN, CLEVIS 5/8
23...539 107476..4..BOLT, 3/8-16 x 1, THD FORM
24...539 105069..2..E-RING, 5/8
25...539 105059..1..LANYARD
26...539 102526..1..PIN, HITCH
27...539 976989..1..PIN, HAIR 4
28...539 102612..1..HCS, 3/8C x 2¾
29...539 108322..1..LEVER, LIFT
30...539 102515..1..CUSHION, HANDLE
31...539 101050..1..GRIP, VINYL
32...539 104523..1..PIN, LOCKING
33...539 106532..1..PIN, GROOVED
34...539 103534..1..PIN MOUNT, UPPER
35...539 101058..1..SPRING, COMPRESSION
36...539 990761..2..NUT ¼-20, CENTERLOCK
37...539 990580..2..HCS, ¼ - 20 x ¾
38...539 111075..2..DECK STOP
39...539 990585..3..NUT 5/16-18, WHIZ
MOWER LIFT / DECK LIFT

18











 





















 







 







52" DECK




19
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
539 1113771.. ....1 ....DECK W/DECALS
539 1148202.. ....3 ....SPINDLE
539 9906273.. ..12 ....HCS 5/16-18 x 1¼
539 9907174.. ..12 ....NUT 5/16-18 HEX NYLOC
539 1003415.. ....3 ....BLADE, 18"
539 9903336.. ....3 ....WASHER 5/8SLW
539 1032997.. ....3 ....HCS 5/8-18 x 1¼
539 1121248.. ....3 ....PULLEY
539 1032959.. ....2 ....IDLER BUSHING
539 10330310.. ....2 ....PAD, PAINTED
539 10134111.. ....2 ....HCS 3/8-16 x 3
539 10325712.. ....1 ....IDLER PULLEY
539 10325813.. ....1 ....IDLER PULLEY (TALL)
539 97697914.. ....3 ....NUT 3/8-16 HEX NYLOC
539 99083915.. ....4 ....NUT 7/16-14 HEX CTRLK GR A
539 10519216.. ....1 ....SPRING
539 10965217.. ....1 ....BELT SHIELD ASM RT
539 109653....1 ....BELT SHIELD ASM LT
539 11156118.. ....1 ....DECAL, TUNNELRAM
539 11440419.. ....4 ....SPACER
539 11922720.. ....4 ....EYEBOLT
539 11440521.. ....4 ....SWIVEL
539 11248422.. ....4 ....SPRING WASHER
539 10807323.. ....4 ....HCS 7/16-14 x 1¾
539 10133124.. ..10 ....NUT ½ -13, NYLOC
539 99055025.. ....4 ....WASHER, ½ STD FLT
539 10924626.. ....4 ....PIN COTTER 1/8x 1
539 11189727.. ....6 ....WASHER -
3/8SPECIAL
539 10845028.. ....4 ....TOP DUST CAP
539 10761029.. ....6 ....WHEEL, GAUGE
539 10836630.. ....6 ....HHB ½-13 x 4
539 99025831.. ....6 ....NUT ½-13 HEX
539 97694132.. ....1 ....HCS 3/8-16 x 1¼
539 99061333.. ....3 ....NUT 3/8-16 HEX WHIZLK
539 10875434.. ....2 ....SHAFT SEAL
539 10844935.. ....1 ....BOTTOM DUST CAP
539 97732636.. ....1 ....GREASE POPPET
539 10147437.. ....1 ....ZERK
539 13065338.. ....3 ....NUT FLANGE ¾-16
539 13039139.. ....1 ....ARM, IDLER - W/BEARINGS
539 13023540.. ....1 ....RHSNB 3/8-16 x 2¾
539 10704241.. ....1 ....HCS 3/8-16 x 1½ GR 8
539 10933242.. ....1 ....NUT 3/8-16 HEX JAM
539 99051743.. ....1 ....WASHER, 3/8FLAT STD
539 13024244.. ....1 ....BUSHING, IDLER
539 99012245.. ....1 ....WASHER, 3/8SAE FLT
539 10433446.. ....1 ....DECK BELT
539 11482347.. ....1 ....CAP, VINYL
539 13020548.. ....1 ....PIVOT BEARING
52" DECK

20










































 












61" DECK
