Husqvarna PZ5426 FX/966060901 User manual

English
Parts Manual
PZ5426 FX / 966060901 PZ6030CV / 966061101
PZ6029FX / 966061201 PZ7234FX / 966061401
PZ6029PFX / 966062201 PZ6034FX / 966516801
PZ6034FX ZT / 966061301 PZ29FX BF / 966553801
PZ34FX BF / 966553901
Please read the operator’s manual carefully and make sure
you understand the instructions before using the machine.

©2010 HTC. All rights reserved.
Beatrice, NE. Printed in U.S.A.
Accessories Available
Collection System ----------------------------- 966 406901
Mulch Kit 54" ------------------------------------ 966 050401
Mulch Kit 60" ------------------------------------ 966 444701
Mulch Kit 72" ------------------------------------ 966 051701
OCDC Kit 54", 60" ----------------------------- 966 488701
(Operator Controlled Discharge Chute)
Bearing Kit .............................................. 574 754201
When you need spare parts or support in service
questions, warranty issues, etc., please consult
the following professional:
Manufacturing Number
The machine’s manufacturing number can be found on
the printed plate affixed to the engine compartment.
Stated on the plate, from the top are:
The machine’s type designation (I.D.).•
The manufacturer’s type number (Model).•
The machine’s serial number (Serial no.)•
Please have the type designation and serial number
available when ordering spare parts.
This Parts Manual belongs to the machine with the
manufacturing number:
Engine Transmission
The engine’s manufacturing number is stamped on
one of the valve covers.
The plate states:
The engine’s model.•
The engine’s type.•
Code•
Please have these available when ordering spare
parts.
The wheel motors and hydrostatic pumps have a
barcode decal afxed at the rear.

CONTENTS
NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
FRAME ..................................................................... 4
ENGINE PLATE ........................................................ 6
966061101 ONLY ............................................... 8
966062201 ONLY ............................................. 10
STEERING ............................................................. 12
IGNITION SYSTEM ................................................ 14
966062201 ONLY ............................................. 16
PARKING BRAKE .................................................. 18
HYDRAULIC PUMP-MOTOR
966060901, 966061201, 96606140,
966062201, 966516801 ................................... 20
966061101 ....................................................... 22
966061301 - ZT5400 ....................................... 24
WHEELS AND TIRES ............................................ 28
MOWER LIFT / DECK LIFT .................................... 30
MOWING DECK / CUTTING DECK
54" DECK ......................................................... 32
60" DECK ......................................................... 34
72" DECK ......................................................... 36
SEAT ...................................................................... 38
DECALS ................................................................. 40
PROTECTION FRAME .......................................... 42

4
FRAME
7
2
1
4
3
9
6
10
12
5
11
11
13
17
18
16
15
14
6
12
8
19

5
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
FRAME
574 2156021.. ....1 ....FLOORPAN
522 6757022.. ....1 ....BUMPER, REAR
574 2286023.. ....1 ....PLATE, SKID
539 1110284.. ....2 ....NUTSERT 5/16-18
525 6128015.. ....4 ....SCREW 3/8-16 x 1 HEX FLG
521 9965016.. ....7 ....NUT 3/8-16 HEX FLG NYLOC
539 1128997.. ....2 ....NUT 5/16-18 HEX FLG NYLOC
574 2338018.. ....2 ....SCREW 5/16-18 x 2¼ HEX FLG
539 1001459.. ....2 ....BOLT 3/8-16 x 2 RD HD
539 13178010.. ....2 ....SCREW 5/16-18 x 3¾ HEX FLG
539 10960011.. ....8 ....WASHER 5/16 DISC SPRING
539 99085812.. ....6 ....SCREW 5/16-18 x ½ SLF TAP
574 21570213.. ....1 ....FOOTREST
510 08320114.. ....4 ....MOUNT, F/F INSERT
510 04030115.. ....2 ....BRACKET, REST MOUNT
539 11229416.. ....1 ....FLEX TRIM
574 22160217.. ....1 ....GUARD, REAR
525 54400118.. ....2 ....SCREW 5/16-18 x 1¼ TPBLT
574 48280119.. ....1 ....FRAME w/ SAFETY DECALS
574 482802 ....1 ....FRAME w/ SFTY DECALS 72"

6

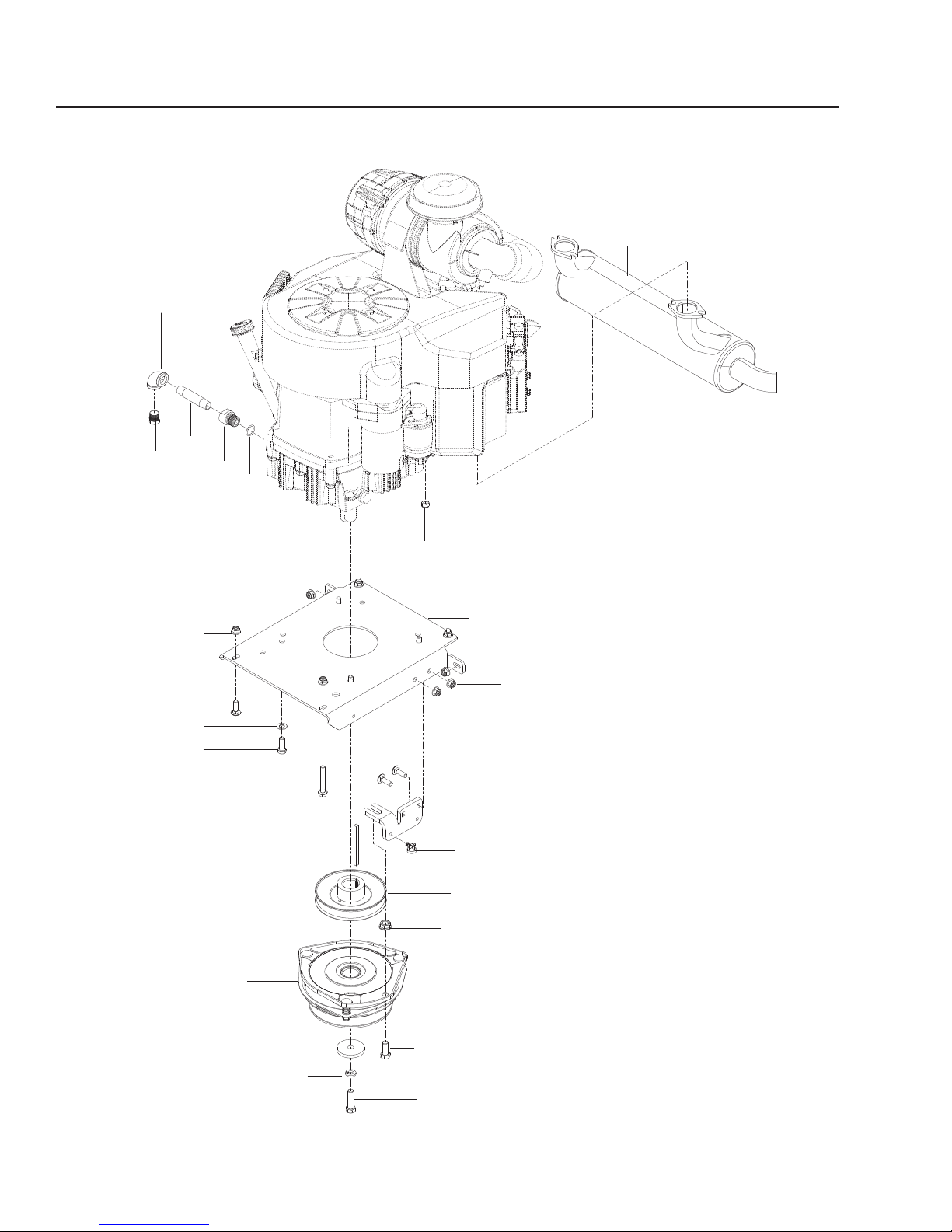

ENGINE PLATE
1
21
11
2
Torque to 50-60 Ft-Lbs
14
22
13
3
17
12
9
7
10
4
6
15
16
8
19
18
5
5
424
23
20
25
966061401, 966516801, 966061301, 966553901,
966061201, 966553801, 966060901

7
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
ENGINE PLATE
510 0198011.. ....1 ....PULLEY, ENGINE
539 1001412.. ....1 ....BOLT 7/16-20 x 1½ HEX NYL
539 9902473.. ....1 ....WASHER 7/16 SLW
539 9902084.. ....3 ....BOLT 5/16-18 x 1 RD HD
539 1128995.. ....2 ....NUT 5/16-18 HEX FLG NYLOC
539 1256266.. ....1 ....WASHER, BLADE
525 7495017.. ....1 ....CLUTCH, GT 3.5
522 6767028.. ....1 ....STOP, CLUTCH
539 1001439.. ....1 ....BOLT 7/16-14 x 1 HEX NYLOC
539 10258210.. ....1 ....NUT 7/16-14 HEX WHIZ LK
525 74990111.. ....1 ....KEY ¼ SQ x 3½
505 28000112.. ....1 ....TIE WRAP w/ CLIP
539 11968013.. ....1 ....ADAPTOR, OIL DRAIN
539 10961814.. ....1 ....O-RING
539 11891115.. ....1 ....PIPE 3/8 NPT x 3"
539 10507216.. ....1 ....ELBOW 90O
522 83700117.. ....1 ....PLUG, DRAIN, 3/8 NPTF
539 99056318.. ....4 ....BOLT 3/8-16 x 1 HEX NYLOC
539 10259319.. ....4 ....WASHER 3/8 SPRING
539 10315320.. ....1 ....NUT M8X1.25 NYLOC
539 91222221.. ....2 ....CLAMP, HOSE
539 93295622.. ....1 ....FUEL LINE 10"
539 110425 ....1 ....FUEL LINE 5"
966060901 ONLY
525 75020123.. ....1 ....MUFFLER
966060901
525 750301 ....1 ....MUFFLER
966061201, 966553801
525 750401 ....1 ....MUFFLER
966061401, 966516801,
966061301, 966553901
574 23380124.. ....3 ....SCREW 5/16-18 x 2¼ HEX FLG
510 00460225.. ....1 ....PLATE, ENGINE
NOT SHOWN
525 554201 ....1 ....ENGINE HARNESS, KAW
574 825801 ....1 ....KIT, SPARK ARRESTOR

8
ENGINE PLATE
966061101 ONLY
1
19
14
11
2
Torque to 50-60 Ft-Lbs
15
22
17
5
3
16
12
9
7
10
4
6
2120
8
5
4
13
18
5

9
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
ENGINE PLATE
510 0198011.. ....1 ....PULLEY, ENGINE
539 1001412.. ....1 ....BOLT 7/16-20 x 1½ HEX NYL
539 9902473.. ....1 ....WASHER 7/16 SLW
539 9902084.. ....2 ....BOLT 5/16-18 x 1 RD HD
539 1128995.. ....7 ....NUT 5/16-18 HEX FLG NYLOC
539 1256266.. ....1 ....WASHER, BLADE
525 7495017.. ....1 ....CLUTCH, GT 3.5
522 6767028.. ....1 ....STOP, CLUTCH
539 1001439.. ....1 ....BOLT 7/16-14 x 1 HEX NYLOC
539 10258210.. ....1 ....NUT 7/16-14 HEX WHIZ LK
525 74990111.. ....1 ....KEY,¼ SQ x 3½
505 28000112.. ....1 ....TIE WRAP w/ CLIP
574 23380113.. ....3 ....SCREW 5/16-18 x 2¼ HEX FLG
525 46540114.. ....4 ....SCREW 5/16-18 x 1½ HEX FLG
539 11891115.. ....1 ....PIPE 3/8 NPT x 3"
539 10507216.. ....1 ....ELBOW 90O
522 83700117.. ....1 ....PLUG, DRAIN, 3/8 NPTF
510 00460218.. ....1 ....PLATE, ENGINE
525 46470119.. ....1 ....SCREW 5/16-18 x ¾ HEX FLG
539 91222220.. ....2 ....CLAMP, HOSE
539 11042521.. ....1 ....FUEL LINE 5"
525 75620122.. ....1 ....MUFFLER
NOT SHOWN
522 795601 ....1 ....ENGINE HARNESS, KOH
574 825801 ....1 ....KIT, SPARK ARRESTOR

10
ENGINE PLATE
966062201 ONLY
1
21
11
2
Torque to 50-60 Ft-Lbs
14
13
3
17
12
9
7
10
4
6
15
16
8
19
18
5
5
4
22
20
23

11
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
ENGINE PLATE
510 0198011.. ....1 ....PULLEY, ENGINE
539 1001412.. ....1 ....BOLT 7/16-20 x 1½ HEX NYL
539 9902473.. ....1 ....WASHER 7/16 SLW
539 9902084.. ....2 ....BOLT 5/16-18 x 1 RD HD
539 1128995.. ....2 ....NUT 5/16-18 HEX FLG NYLOC
539 1256266.. ....1 ....WASHER, BLADE
525 7495017.. ....1 ....CLUTCH, GT 3.5
522 6767028.. ....1 ....STOP, CLUTCH
539 1001439.. ....1 ....BOLT 7/16-14 x 1 HEX NYLOC
539 10258210.. ....1 ....NUT 7/16-14 HEX WHIZ LK
525 74990111.. ....1 ....KEY ¼ SQ x 3½
505 28000112.. ....1 ....TIE WRAP w/ CLIP
539 11968013.. ....1 ....ADAPTOR, OIL DRAIN
539 10961814.. ....1 ....O-RING
539 11891115.. ....1 ....PIPE 3/8 NPT x 3"
539 10507216.. ....1 ....ELBOW 90O
522 83700117.. ....1 ....PLUG, DRAIN, 3/8 NPTF
539 99056318.. ....4 ....BOLT 3/8-16 x 1 HEX NYLOC
539 10259319.. ....4 ....WASHER 3/8 SPRING
539 10315320.. ....1 ....NUT M8 x 1.25 NYLOC
525 75030121.. ....1 ....MUFFLER
574 23380122.. ....3 ....SCREW 5/16-18 x 2¼ HEX FLG
510 00460223.. ....1 ....PLATE, ENGINE
NOT SHOWN
525 554201 ....1 ....ENGINE HARNESS, KAW
574 825801 ....1 ....KIT, SPARK ARRESTOR

12
STEERING
1416
12
76
5
4
3 2
1
9
10
13 14
15
18
19
29
21
17
24
26
27
28
32
34
35
36
37
38
39
30
41
20
31
42
33
54
51
26
44
49
50
46 48
36
26
2325
8
11
22
56
55
52
53
26
26
40
45
43
47

13
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
STEERING
574 1896021.. ....1 ....FRAME MOUNT
539 1047632.. ....4 ....RETAINER, U TYPE
539 1137923.. ....1 ....SWITCH, BRAKE (3-POLE)
510 0299024.. ....1 ....BRACKET, BATTERY
539 1024365.. ....1 ....BATTERY
510 0300016.. ....1 ....BRACKET, BATTERY MOUNT
510 0640017.. ....2 ....J HOOK
574 2694018.. ....2 ....LEVER, MOTION
574 2627019.. ....1 ....LEVER, w/ GRIP, RT
574 26270210.. ....1 ....LEVER, w/ GRIP, LT
510 11320311.. ....2 ....LEVER, CONTROL
510 08210112.. ....4 ....MOUNT, ISO
539 13179913.. ....1 ....KNOB
539 10122414.. ....2 ....SPRING
539 99019615.. ....2 ....NUT 5/16-18 HEX
539 10839616.. ....1 ....BOLT 5/16-18 x 2½ HEX TPBLT
539 91384717.. ....2 ....RETAINER NUT 3/8
539 99018818.. ....4 ....WASHER 5/16 SAE FLAT
511 59490119.. ....1 ....BUSHING, ¼ FLANGE
511 59500120.. ....1 ....LINK, SWITCH
539 11060721.. ....2 ....BALL STUD 10MM
539 99103422.. ....2 ....SCREW 10-24 x 5/8 WSH HD
539 10914923.. ....1 ....TURNBUCKLE 3/8
525 99650124.. ....4 ....NUT 3/8-16 HEX FLG NYLOC
539 10873225.. ....1 ....NUT 3/8-24 HEX JAM
539 11289926.. ..25 ....NUT 5/16-18 HEX FLG NYLOC
539 13166527.. ....8 ....BOLT 5/16-18 x 3 ¾ RD HD
539 11189728.. ....4 ....WASHER 3/8 SPECIAL
525 86620129.. ....4 ....SCREW 3/8-16 x 2 HEX FLG
525 46470130.. ....8 ....SCREW 5/16-18 x ¾ HEX FLG
525 61280131.. ....4 ....SCREW 3/8-16 x 1 HEX FLG
539 99012232.. ....4 ....WASHER 3/8 SAE FLT
539 97698833.. ....4 ....HAIRPIN COTTER
539 10223434.. ....1 ....PUSH NUT, ¼"
539 99099735.. ....2 ....WINGNUT ¼-20 NYLOC
539 99031636.. ....4 ....BOLT 5/16-18 x ¾ RD HD
574 82270137.. ....2 ....BOLT 10-24 x ¾ SOCKET HD
539 97697738.. ....2 ....NUT 10-24 HEX NYLOC
539 13300739.. ....1 ....WASHER, WAVE
516 02030140.. ....1 ....DAMPENER ASSY
539 10597441.. ....1 ....RUBBER GROMMET
525 44790142.. ....1 ....SEAT STRUT ASSY
539 11229443.. ....1 ....FLEX TRIM
574 23530144.. ....1 ....LOOM, SPLIT, 5/8
539 13089445.. ....2 ....GRIP, LEVER
539 02003546.. ....1 ....SPRING
539 99007447.. ....1 ....BOLT ¼-20 x ¾ GR2 RD HD
539 10812048.. ....2 ....NUT ¼-20 HEX THIN NYLOC
522 71870149.. ....1 ....CABLE, POSITIVE
539 10275950.. ....2 ....INSULATOR
539 99018751.. ....2 ....WASHER 5/16 SLW
539 13151752.. ....2 ....BLOCK, UPPER
539 13151953.. ....2 ....BLOCK, LOWER
539 99066954.. ....2 ....BOLT 5/16-18 x 1¾ HEX NYL
539 13151855.. ....4 ....BEARING, FLANGE
539 10108056.. ....2 ....SWITCH N.C.
NOT SHOWN
510 093601 ....1 ....HARNESS, MAIN WIRING
522 710701 ....1 ....CABLE, NEGATIVE

14
IGNITION SYSTEM
6
7
8
5
9
35
20
19
16
15
17
14
13
12
22
18
21
11
1
2
3
10
20
21
37
24
25
26
31
32 30
27
36
28
29
33
34
23
35
27
4

15
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
IGNITION SYSTEM
539 1303931.. ....2 ....FUEL CAP
539 1052452.. ....2 ....RUBBER GROMMET
525 8654013.. ....2 ....FITTING, FUEL
574 5140014.. ....1 ....TIMER, SEAT
529 2796035.. ....1 ....TANK MOUNT, RT RR
529 2797036.. ....1 ....TANK MOUNT, LT RR
529 2799027.. ....1 ....TANK MOUNT, RT FRT
529 2800028.. ....1 ....TANK MOUNT, LT FRT
539 1326249.. ....1 ....KNOB
539 11434110.. ....3 ....SCREW 10-24 x 3/8 SCK HD
510 24660211.. ....1 ....DECAL, CONTROL, GAS
525 81100212.. ....1 ....TANK ASSY, RT
525 810902 ....1 ....TANK ASSY, LT
574 45540113.. ....1 ....SWITCH, IGNITION
574 45550114.. ....1 ....KEY
539 11007415.. ....1 ....HOUR METER
539 13162716.. ....1 ....SWITCH, PTO 10 AMP
529 28020217.. ....1 ....PANEL, CONTROL, GAS
539 10986718.. ....1 ....CLAMP, DOUBLE TUBE
539 11322619.. ....6 ....BOLT 5/16-18 x 1 THD FRM
539 11289920.. ..13 ....NUT 5/16-18 HEX FLG NYLOC
525 46470121.. ....5 ....SCREW 5/16-18 x ¾ HEX FLG
539 10250222.. ....4 ....STUD, FUEL TANK
539 10284523.. ....4 ....SPRING, TANK MOUNT
539 99018824.. ....4 ....WASHER 5/16 SAE FLAT
539 10960025.. ....2 ....WASHER 5/16 DISC SPRING
505 28000126.. ....2 ....TIE WRAP w/ CLIP
539 97697727.. ....4 ....NUT 10-24 HEX NYLOC
574 20660128.. ....1 ....TEE, FUEL LINE
574 20670129.. ....2 ....VALVE, CHECK
539 91222230.. ..10 ....CLAMP, FUEL LINE
539 91632531.. ....1 ....FUEL VALVE
539 92209132.. ....1 ....FUEL LINE
505 21510133.. ....3 ....FUEL LINE 2½"
539 10528034.. ....1 ....FUEL LINE 35"
574 82270135.. ....4 ....SCREW 10-24 x ¾ SKT HD
574 20690136.. ....1 ....CABLE, CHOKE
966060901, 966061201
966061401
574 206902 ....1 ....CABLE, CHOKE
966061101
574 20700237.. ....1 ....CABLE, THROTTLE
966061401
574 207001 ....1 ....CABLE, THROTTLE
966060901, 966061101
966061201

16
IGNITION SYSTEM
966062201 ONLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
23
25 26
27
28
29
30
31
32
33
34
35
36
37
9
11
12
20
22
38
39
40
36
35
24
8
9
41

17
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
IGNITION SYSTEM
574 2342021.. ....1 ....FENDER, LP RT
574 2343022.. ....1 ....FENDER, LP LT
510 0830023.. ....2 ....MOUNT, TANK RR
574 2915024.. ....1 ....SUPPORT, LP FENDER RT
574 291802 ....1 ....SUPPORT, LP FENDER LT
539 9905465.. ....2 ....NUT 3/8-16 HEX CNTRLK
539 1082716.. ....2 ....HCS 3/8-16 x 3½
539 9906137.. ....2 ....NUT 3/8-16 HEX WHIZLK
539 9906458.. ..10 ....BOLT 3/8-16 x 1 RD HD
521 9965019.. ..18 ....NUT 3/8-16 HEX FLG NYLOC
574 29140110.. ....4 ....BRACKET, LP TANK
539 11322611.. ..12 ....BOLT 5/16-18 x 1 THD FRM
539 11289912.. ..13 ....NUT 5/16-18 HEX FLG NYLOC
539 11043313.. ....1 ....GROMMET, FUEL LINE
539 10986714.. ....1 ....CLAMP, DOUBLE TUBE
525 46470115.. ....1 ....SCREW 5/16-18 x ¾ HEX FLG
574 30490116.. ....4 ....TOGGLE ASSY
574 26240317.. ....1 ....DASH, LP
574 23500218.. ....1 ....BRACKET, REGULATOR
539 97697819.. ....2 ....NUT ¼-20 HEX NYLOC
539 99059820.. ....4 ....WASHER ¼ FLAT
539 99054821.. ....2 ....BOLT ¼-20 x 1 HEX HD
539 10268522.. ....3 ....CLIP
539 10747523.. ....3 ....BOLT 5/16-18 x ¾ THD FRM
574 51400124.. ....1 ....TIMER, SEAT
574 23390325.. ....1 ....COVER, LP DASH
573 97890126.. ....1 ....DECAL, LP CONTROL
539 10476327.. ....4 ....RETAINER, U TYPE
539 11007428.. ....1 ....HOUR METER
574 45540129.. ....1 ....SWITCH, IGNITION
539 13162730.. ....1 ....SWITCH, PTO 10 AMP
539 10317831.. ....1 ....CAP, IGNITION SWITCH NUT
539 99020932.. ....4 ....BOLT 5/16-18 x 1 HEX HD
539 99018833.. ....4 ....WASHER 5/16 SAE FLAT
539 99018734.. ....4 ....WASHER 5/16 SLW
574 82270135.. ....4 ....SCREW 10-24 x ¾ SKT HD
539 97697736.. ....4 ....NUT 10-24 HEX NYLOC
539 13262437.. ....1 ....KNOB
574 20700138.. ....1 ....CABLE, THROTTLE
574 43960139.. ....4 ....NUT, TOGGLE
574 45550140.. ....1 ....KEY
525 61280141.. ....8 ....SCREW 3/8-16 x 1 HEX HD

18
PARKING BRAKE
8
7
5
4
32
1
14
13
12
11
9
26
19
15
16
25
18
21
23
22
32
31
20
6
24
10
29
17
28
30
10
13
15
27 33
3

19
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
PARKING BRAKE
525 8512011.. ....1 ....SHAFT, BRAKE
510 0259012.. ....1 ....ARM, RT BRAKE
510 0892013.. ....2 ....BUSHING, SLEEVE ¾ x 1
539 2002824.. ....6 ....NUT 3/8-16 HEX JAM NYLOC
539 1106315.. ....1 ....ROLL PIN 5/16" DIA.
539 1330476.. ....2 ....CALIPER
516 0355017.. ....4 ....BOLT ½ x 2¼, 3/8-16 SHLDR
515 9803018.. ....1 ....LINK, FOLLOWER
515 9800029.. ....1 ....LEVER, BRAKE
539 13216110.. ....6 ....BUSHING, BRAKE
525 49090111.. ....3 ....WASHER, FRICTION
539 91206312.. ....1 ....WASHER, CONE
539 13300713.. ....2 ....WASHER, WAVE
539 20028214.. ....3 ....NUT 3/8-16 HEX JAM NYLOC
539 10041315.. ....3 ....BOLT 3/8-16 x 1¼ RD HD
539 92346316.. ....1 ....BOLT 3/8-16 x 3¼ HEX NYLOC
539 97652617.. ....1 ....GRIP, LEVER
525 85140118.. ....1 ....SWIVEL, BRAKE
539 11395219.. ....1 ....SPRING
539 97746520.. ....1 ....YOKE
522 70590121.. ....1 ....PIN 3/8 CLEVIS SPRING
539 10498422.. ....1 ....BOLT 3/8-24 x 4½ HEX NYL
539 10873223.. ....3 ....NUT 3/8-24 HEX JAM
539 99012224.. ....1 ....WASHER 3/8 SAE FLT
539 11561725.. ....1 ....NUT 5/16-18 HEX NYLOC INS
521 99650126.. ....1 ....NUT 3/8-16 HEX FLG NYLOC
574 80520227.. ....1 ....MOTOR, RT
575 224601 ....1 ....MOTOR, RT
966061101
574 80520128.. ....1 ....MOTOR, LT
539 110823 ....1 ....MOTOR, LT
966061101
521 99110129.. ....8 ....NUT ½-13 HEX FLG NYLOC
525 84870130.. ....2 ....HUB, DISC BRAKE, w/ STUDS
539 10117331.. ....8 ....LUG NUT ½
539 10288932.. ....2 ....COTTER PIN 1/8 x 2
525 85160133.. ....1 ....PLATE, CALIPER

20
HYDRAULIC PUMP-MOTOR
16
15
7
10
24
25
26
3
14
5
13
19
8
11
9
2
12
6
20
1
23
18
21
4
28
31
32
29
27
28
36
35
34
33
30
44
43
42
41
40
39
38
37
38
42
42
55 59
53
17
22
58
49
48
47
46
45
50
57
56
52
51
54
21
61
60
966060901, 966061201, 96606140, 966062201, 966516801
