Husqvarna R112C5 User manual

R112C, R112C5, R115C
EN Operator's manual 2-31
ES Manual de usuario 32-63
IT Manuale dell'operatore 64-95
PT Manual do utilizador 96-127

Contents
Introduction..................................................................... 2
Safety..............................................................................6
Assembly...................................................................... 10
Operation...................................................................... 13
Maintenance................................................................. 17
Troubleshooting............................................................ 25
Transportation, storage and disposal........................... 27
Technical data.............................................................. 28
Service..........................................................................30
EC Declaration of Conformity....................................... 31
Introduction
Pre-delivery inspection and product
numbers
Note: A pre-delivery inspection has been done of this
product. Make sure that you receive a signed copy of
the pre-delivery inspection document from your dealer.
Service agent contact informa-
tion:
This operator’s manual belongs to product with product number / serial number:
/
Engine:
Transmission:
Product description
The product is a ride-on lawn mower. Forward and
reverse pedals let the operator adjust the speed
steplessly. The product is used with a 2-in-1 cutting deck
with mulch plug.
Intended use
The product is made to cut grass on open and level
ground in residential areas and gardens. Attach an
optional accessory to use the product for other tasks.
Speak to your Husqvarna dealer for more information
about which accessories that are available.
Insure your product
Make sure that you have insurance coverage for your
new product. Speak to your insurance company if you
are not sure. We recommend a fully comprehensive
insurance that includes third party, fire, damage, theft
and liability.
2516 - 001 - 26.01.2018

Product overview R112C, R115C
87 6 5 4 3 1 2
9 10 11 12 13 14
1. Type plate
2. Lever to engage or disengage the drive
3. Battery
4. Throttle control/choke control
5. Ignition lock
6. Lift lever for the cutting deck
7. Rearward pedal
8. Forward pedal
9. Cutting height lever
10. Parking brake pedal
11. Lock button for parking brake
12. Seat adjustment
13. Fuel tank cap
14. Cover lock
516 - 001 - 26.01.2018 3

Product overview R112C5
12345678
131211109
1. Type plate
2. Battery
3. Throttle control/choke control
4. Lever to shift gear
5. Ignition lock
6. Lift lever for the cutting deck
7. Lock button for parking brake
8. Parking brake pedal
9. Cutting height lever
10. Clutch pedal
11. Seat adjustment
12. Fuel tank cap
13. Cover lock
Seat safety switch
The seat safety switch starts the safety circuit when the
operator lifts from the seat. The engine and the drive to
the blades stop if the blades are engaged or the parking
brake is not applied. See also
Safety circuit on page
8
.
Control for throttle and choke
The throttle and choke control adjusts the engine speed
and engages the choke. Move the control forward to
increase the engine speed and rearward to decrease the
engine speed. Move the control to the top to engage the
choke. Use the choke to start the product when the
engine is cold. See
To start the engine on page 14 .
Cutting deck
The product is used with a 2-in-1 cutting deck with
mulch function. The mulch function cuts the grass into
fertilizer. The 2-in-1 cutting deck can also be used
without the mulch function, for rear discharge of the
grass.
Cutting height lever
The cutting height is adjusted in 5 (1–5) different
positions.
Note: Lift the cutting deck before you adjust the cutting
height.
4516 - 001 - 26.01.2018

Symbols on the product
WARNING: Careless or incorrect use can
result in serious injury or death to the
operator or others.
Read the operator's manual carefully and
make sure that you understand the
instructions before use.
Rotating blades. Keep body parts away from
the cover when the engine is on.
Warning: rotating parts. Keep body parts
away.
Look out for ejecting objects and ricochets.
Never use the product if persons, especially
children, or animals, are in the vicinity.
Look behind you before and while you move
the product in reverse.
Never cut grass across a slope. Do not cut
grass on ground that slopes more than 10°.
See To cut grass on slopes on page 9 .
Never carry passengers on the product or
equipment.
Move forward.
Neutral gear.
Move rearward.
Clutch (R112C5).
Choke.
Parking brake.
The product agrees with the applicable EC
directives.
Noise emission to the environment refer to
the European Community's Directive. The
emission of the product is specified in the
Technical data chapter and on the label.
Always use approved hearing protection.
Stop the engine.
Start the engine.
Engine speed – fast.
Engine speed – slow.
Fuel.
Max. ethanol 10%.
The blades are engaged.
The blades are disengaged.
Servicing position for the cutting deck.
Operation position for the cutting deck.
Oil level.
Note: Other symbols/decals on the product refer to
certification requirements for some commercial areas.
516 - 001 - 26.01.2018 5

Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not from
the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of injury or
death for the operator or bystanders if the
instructions in the manual are not obeyed.
CAUTION: Used if there is a risk of damage
to the product, other materials or the
adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary in
a given situation.
General safety instructions
WARNING: This product can cut off hands
and feet and throw objects. Serious injury or
death may occur if you do not obey the
safety instructions.
WARNING: Do not continue to use a product
with damaged cutting equipment. Damaged
cutting equipment can throw objects and
cause serious injury or death. Replace
damaged blades immediately.
WARNING: This product produces an
electromagnetic field during operation. This
field may under some circumstances
interfere with active or passive medical
implants. To reduce the risk of serious or
fatal injury we recommend persons with
medical implants to consult their physician
and the medical implant manufacturer
before operating this product.
WARNING: Read the warning instructions
that follow before you use the product.
• Always be careful and use your common sense.
Avoid all situations which you consider to be beyond
your capability. If you feel uncertainty about the
operating procedures after you read the operator's
manual, consult an expert before you continue.
• Read and understand the operator's manual and the
instructions on the product carefully before you start
the product.
• Learn how to use the product and its controls safely
and learn how to stop the product quickly.
• Learn to recognize the safety decals.
• Keep the product clean to make sure that you can
clearly read signs and stickers.
• Keep in mind that the operator will be held
responsible for accidents that involve other persons
or their property.

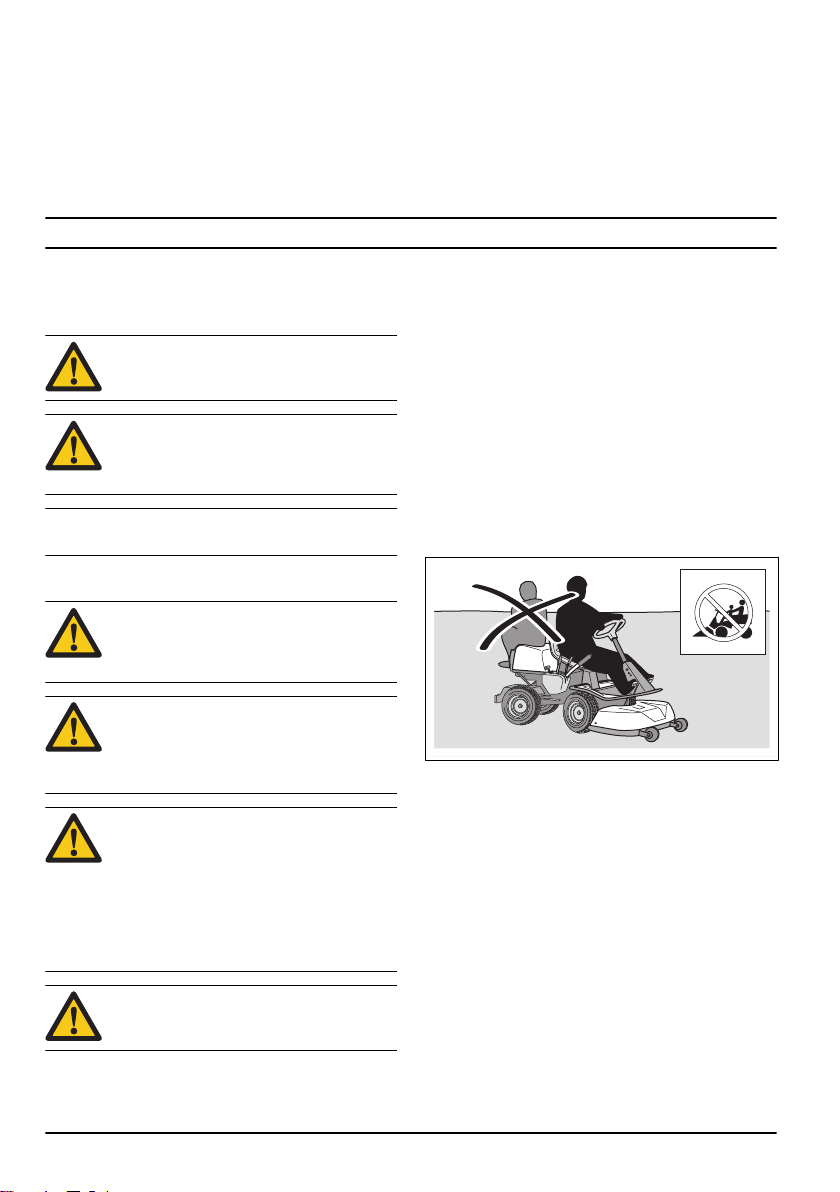

• Do not transport passengers. The product must only
be used by one person.
• Do not let the product stay unsupervised with the
engine on. Always stop the blades, apply the parking
brake, stop the engine and remove the ignition key
before you let the product stay unsupervised.
• Only use the product in daylight or in other well-lit
conditions. Keep the product at a safe distance from
holes or other irregularities in the ground. Look out
for other possible risks.
• Do not use the product in bad weather, for example
in fog, in rain, moist or in wet locations, strong winds,
intense cold, risk of lightning, etc.
• Find and mark stones and other fixed objects to
prevent collision.
• Clear the area of objects such as stones, toys, wires,
etc. that may become caught in the blades and be
thrown out.
6516 - 001 - 26.01.2018

• Do not let children or other persons not approved for
operation of the product to use or do servicing on it.
Local laws may regulate the age of the user.
• Make sure that nobody else is in the vicinity of the
product when you start the engine, engage the drive
or start to move the product.
• Keep an eye on the traffic when you mow near a
road or move across a road.
• Do not use the product if you are fatigued, while
under the influence of alcohol or drugs, medicine or
anything that can have a negative effect on your
vision, alertness, coordination or judgement.
• Always park the product on a level surface with the
engine stopped.
Safety instructions regarding children
WARNING: Read the warning instructions
that follow before you use the product.
• Serious accidents can occur if you are not on your
guard for children in the vicinity of the product.
Children can be attracted to the product and to
mowing. It is very possible that children do not stay
where you last saw them.
• Keep children away from the area to be mowed.
Make sure that an adult is responsible for the
children.
• Keep an eye out and stop the product if children
enter the work area. Be very careful near corners,
bushes, trees or other objects that prevents a clear
view.
• Before and while you move the product in reverse,
look behind you and look down to make sure there
are no small children in the vicinity of the product.
• Do not let children ride along. They can fall off and
get seriously injured or prevent safe maneuvering of
the product.
• Do not let children operate the product.
Safety instructions for operation
WARNING: Do not touch the engine or
exhaust system during or directly after
operation. The engine and the exhaust
system become very hot during operation.
Risk of burn injuries, fire and damage to
property or adjacent areas. When you
operate the product, keep away from bushes
and other objects.
WARNING: Read the warning instructions
that follow before you use the product.
• Always look down and behind you before and while
you move in reverse. Look out for large and small
obstacles.
• Decrease the speed before you turn around a
corner.
• Stop the blades when you move across areas that
you do not cut.
CAUTION: Read the caution instructions
that follow before you use the product.
• Before you operate the product, clear the cold air
intake of the engine from grass and dirt. If the cold
air intake is blocked, there is a risk of engine
damage.
• Move around stones and other larger objects
carefully and make sure that the blades do not hit
the objects.
• Do not operate the product across objects. Stop and
examine the product and cutting deck if you operate
the product across or into an object. If it is
necessary, make repairs before you restart.
Personal protective equipment
WARNING: Read the warning instructions
that follow before you use the product.
• Use approved personal protective equipment when
you use the product. Personal protective equipment
516 - 001 - 26.01.2018 7

cannot fully prevent injury but it decreases the
degree of injury if an accident does occur. Let your
dealer help you select the right equipment.
• Always wear approved hearing protection. Long term
exposure to noise can result in permanent hearing
impairment.
• Always wear protective shoes or protective boots.
Steel toes are recommended. Do not use the
product barefoot.
• Wear gloves when necessary, for example when you
attach, examine or clean the cutting equipment.
• Do not wear loose-fitting clothing, jewelry or other
items that can get caught in moving parts.
• Keep first aid equipment and fire extinguisher close
at hand.
Safety devices on the product
WARNING: Read the warning instructions
that follow before you use the product.
• Do not use a product with defective safety devices.
Do a check of the safety devices regularly. If the
safety devices are defective, speak to your
Husqvarna service agent.
• Do not make modifications on safety devices. Do not
use the product if protective plates, protective
covers, safety switches or other protective devices
are not attached or are defective.
To do a check of the ignition lock
• Start and stop the engine to do a check of the
ignition lock. See
To start the engine on page 14
and To stop the engine on page 16 .
• Make sure that the engine starts when you turn the
ignition key to START.
• Make sure that the engine stops immediately when
you turn the ignition key to STOP.
Safety circuit
The engine can only be started when the conditions are
met as follows:
• The cutting deck is lifted and the parking brake is
applied.
The engine must stop in the situations that follow:
• The cutting deck is lowered and the operator lifts
from the seat.
• The cutting deck is lifted, the parking brake is not
applied and the operator lifts from the seat.
To do a check of the safety circuit, try to start the engine
with one of the conditions above not met. Change the
conditions and try again. Do this check daily.
To do a check of the speed limiter, R112C, R115C
• Release the forward pedal (1). The speed
decreases.
• For more brake power, press the reverse pedal (2).
1
2
• Make sure that the forward and reverse pedals are
not blocked and can be operated freely.
• Make sure that the speed decreases when the
forward pedal is released.
To do a check of the brake pedal, R112C5
For R112C5 the parking brake pedal is also the service
brake.
• Make sure that the speed decreases when you press
the brake pedal.
• Make sure that the brake pedal is not blocked and
can be operated freely.
Muffler
The muffler keeps the noise levels to a minimum and
sends the exhaust fumes away from the operator.
Do not use the product if the muffler is missing or
defective. A defective muffler increases the noise level
and the risk of fire.
Examine the muffler regularly to make sure that it is
attached correctly and not damaged.
CAUTION: The muffler becomes very hot
during and after use and when the engine
operates at idle speed. Be careful near
8516 - 001 - 26.01.2018

flammable materials and/or fumes to prevent
fire.
Parking brake
WARNING: If the parking brake does not
work, the product can start to move and
cause injury or damage. Make sure that the
parking brake is regularly examined and
adjusted.
See To do a check of the parking brake on page 19 .
Protective covers
Missing or damaged protective covers increase the risk
of injury on moving parts and hot surfaces. Do a check
of the protective covers before you operate the product.
Make sure that the protective covers are correctly
attached and do not have cracks or other damages.
Replace damaged covers.
To cut grass on slopes
WARNING: Read the warning instructions
that follow before you use the product.
• To cut grass on slopes increases the risk that you
can not control the product and that it overturns. This
can cause injury or death. It is necessary to cut the
grass carefully on all slopes. If you cannot reverse
up a slope or if you do not feel safe, do not cut it.
• Remove stones, branches and other obstacles.
• Cut up and down the slope, not from side to side.
• Do not move down a slope with the cutting deck
lifted.
• Do not operate the product on ground that slopes
more than 10°.
• Do not start or stop on a slope.
• Move smoothly and slowly on slopes.
• Do not make sudden changes in speed or direction.
• Do not turn more than necessary. Turn slowly and
gradually when you move down a slope. Move at low
speed. Turn the wheel carefully.
• Look out for and do not move across furrows, holes
and bumps. There is a higher risk that the product
overturns on ground that is not flat. Long grass can
hide obstacles.
• Do not cut grass near edges, ditches or banks. The
product can suddenly overturn if a wheel moves
across the edge of a steep slope or a ditch, or if an
edge gives way. If the product falls into water, there
is a risk of drowning.
• Do not mow wet grass. It is slippery, and tires can
lose their grip so that the product skids.
• Do not put your foot on the ground to try to make the
product more stable.
• Move very carefully if an accessory or other object is
attached that can make the product less stable.
Fuel safety
WARNING: Be careful with fuel. It is very
flammable, and can cause injury and
damage to property.
WARNING: Read the warning instructions
that follow before you use the product.
• Do not fill the fuel tank indoors.
• Gasoline and gasoline fumes are poisonous and
very flammable. Be careful with gasoline to prevent
injury or fire.
• Do not remove the fuel tank cap or fill the fuel tank
when the engine is on.
• Let the engine become cool before you refuel.
• Do not smoke when you fill fuel.
• Do not fill fuel near sparks or naked flames.
• If there are leaks in the fuel system, do not start the
engine until the leaks are repaired.
• Do not fill above recommended fuel level. The heat
from the engine and the sun makes the fuel expand
and the fuel overflows if the tank is filled too much.
• Do not fill too much. If you spill fuel on the product,
clean up the spill and wait until it is dry before you
start the engine. If you spill on your clothing, change
it.
• Store fuel in approved containers only.
• Store the product and fuel in such a way that there is
no risk that fuel leaks or fumes can cause damage.
516 - 001 - 26.01.2018 9

• Drain off the fuel in an approved container outdoors
and away from naked flames.
Battery safety
WARNING: A damaged battery can cause
an explosion and cause injury. If the battery
has a deformation or is damaged, speak to
an approved Husqvarna service agent.
WARNING: Read the warning instructions
that follow before you use the product.
• Use protective glasses when you are near batteries.
• Do not wear watches, jewelry or other metal objects
near the battery.
• Keep the battery out of reach for children.
• Charge the battery in a space with good airflow.
• Keep flammable materials at a minimum clearance
of 1 m when you charge the battery.
• Discard replaced batteries. See
Disposal on page
27 .
• Explosive gases can come from the battery. Do not
smoke near the battery. Keep the battery away from
open flames and sparks.
Safety instructions for maintenance
WARNING: If the product is not parked
correctly and the engine and ignition is not
off, it can cause injury or damage to property
or the adjacent area. Do not do maintenance
on the engine or cutting deck unless the
conditions that follow are met:
• The engine is off.
• The product is parked on a level surface.
• The parking brake is applied.
• The ignition key is removed.
• The cutting deck is disengaged.
• The ignition cables are removed from the
plugs.
WARNING: The exhaust fumes from the
engine contain carbon monoxide, an
odourless, poisonous and very dangerous
gas. Do not run the product indoors or in
closed spaces.
WARNING: Read the warning instructions
that follow before you use the product.
• For best performance and safety, do maintenance
on the product regularly as given in the maintenance
schedule. See
Maintenance schedule on page 17 .
• Electrical shocks can cause injuries. Do not touch
cables when the engine is on. Do not do a function
test on the ignition system with your fingers.
• Do not start the engine if the protective covers are
removed. There is a high risk of injury caused by
moving or hot parts.
• Let the product become cool before you do
maintenance in the engine compartment.
• The blades are sharp and can cause cuts. Wind
protection around the blades or wear protective
gloves when you do work on them.
CAUTION: Read the caution instructions
that follow before you use the product.
• Do not turn over the engine if the spark plug or
ignition cable has been removed.
• Make sure that all nuts and bolts are tightened
correctly and that the equipment is in good condition.
• Do not change the adjustment of governors. If you
run too fast, you risk damage to the machine
components. See
Technical data on page 28 for
highest permitted engine speed.
• The product is approved only with the equipment
supplied or recommended by the manufacturer.
Assembly
Introduction
WARNING: The drive belt tension spring can
break and cause injury. Wear protective
glasses when you attach or remove the
cutting deck.
Read the assembly instructions in the owner's manual
carefully. A label on the inner side of the front cover on
the product, also shows how to attach and remove the
cutting deck.
To attach the cutting deck
1. Park the product on level ground.
2. Apply the parking brake.
10 516 - 001 - 26.01.2018

3. Push the cutting deck in and make sure that the
guide bolts are put into the grooves on the
equipment frame.
4. Align the pipes on the cutting deck with the pipes on
the equipment frame.
5. Hold the cutting deck with two hands and push it in.
6. Push until the pipes and the bolts touch the bottom.
7. Attach the drive belt as given in the illustration.
8. Attach the tension spring to apply tension to the
drive belt.
9. Attach the drive belt cover.
10. Set the cutting height lever in a position between 1–
5.
To remove the cutting deck
1. Park the product on level ground.
2. Apply the parking brake.
3. Set the cutting height lever in the servicing position
(S).
516 - 001 - 26.01.2018 11

4. Put the lift lever for the cutting deck in operation
position.
5. Release the clip and remove the drive belt cover.
6. Disengage the spring for the drive belt to loosen the
drive belt tension.
7. Remove the drive belt.
8. For R112C, R112C5: Hold the cutting deck with 2
hands and pull it out. Lift the cutting deck and put it
against the product or a wall.
9. For R115C: Hold the cutting deck with 2 hands and
pull it out until it stops.
10. Lift the equipment frame lock to vertical position.
WARNING: The lock mechanism can
cause injury to fingers if you do not
operate it carefully. Put the equipment
frame lock in full vertical position.
11. Remove the pin to disconnect the stay from the
cutting deck.
12. Hold the cutting deck with 2 hands and pull it out.
13. Lift the cutting deck and put it against the product or
a wall.
12 516 - 001 - 26.01.2018

Operation
Introduction
WARNING: Before you operate the product,
you must read and understand the safety
chapter.
To fill fuel
WARNING: Gasoline is very flammable. Be
careful and refuel outdoors (see Fuel safety
on page 9 ).
CAUTION: Incorrect type of fuel can result in
engine damage.
The engine runs on gasoline with a minimum octane
rating of 91 RON (87 AKI), not mixed with oil. We
recommend biodegradable alkylate gasoline. Do not use
gasoline that contains more than 10% ethanol.
• Do a check of the fuel level before each use and
refuel if necessary.
• Do not fully fill the fuel tank. Keep a space of a
minimum 2.5 cm.
To adjust the seat
• The seat can be tilted forward.
• To adjust the seat forward and rearward, loosen the
bolts below the seat. Move the seat to the required
position and tighten the bolts.
To engage and disengage the drive
system, R112C, R115C
To move the product with the engine off, the drive
system must be disengaged.
• Pull out the drive system lever fully to disengage the
drive on the axle.
• Push the drive system lever in fully to engage the
drive on the axle.
Note: Do not use middle positions.
To lift and lower the cutting deck
• To lift the cutting deck to transport position, pull the
lift lever rearward. If the engine is on, the blades stop
to rotate.
516 - 001 - 26.01.2018 13

• To lower the cutting deck to mow position, press the
lock button and move the lift lever forward. If the
engine is on, the blades start to rotate.
To start the engine
1. For R112C, R115C, make sure that the drive system
is engaged, see
To engage and disengage the drive
system, R112C, R115C on page 13 .
2. Lift up the cutting deck.
3. Apply the parking brake.
Note: For R112C, R115C, the parking brake is on
the left side. For R112C5, the parking brake is on the
right side.
4. For R112C5, put the gearshift lever in the neutral
position (N).
N
5. Put the throttle control in start position.
a) If the engine is cold, put the throttle control in
position (C), choke position.
ABC
b) If the engine is warm, put the throttle control
between positions (A) and (B).
AB
C
6. Turn the ignition key to the start position.
14 516 - 001 - 26.01.2018

7. When the engine starts, immediately release the
ignition key to neutral position.
Note: Do not run the starter for more than 5 seconds
at a time. If the engine does not start, wait 15
seconds before you try again. Then if the engine
does not start, wait 1 minute before you try again.
8. Let the engine run at half throttle (B) for 3-5 minutes
before you apply heavy load.
9. Set the engine speed with the throttle control.
Note: To engage the blades when the engine is at full
speed causes strain on the drive belts. Do not apply full
throttle until the cutting deck has been lowered to the
mow position.
To operate the product, R112C, R115C
1. Select cutting height (1–5) with the cutting height
lever.
2. Start the engine.
3. Press the parking brake pedal down and then
release it to disengage the parking brake.
4. Carefully press down one of the speed pedals. The
speed increases the more the pedal is pressed
down. Use pedal (1) to move forward, and pedal (2)
to reverse.
1
2
5. Release the speed pedal to engage the brakes.
6. Lower the cutting deck.
To operate the product, R112C5
CAUTION: To prevent damage to the
gearbox, always stop the product and
disengage the engine before you change
gears.
1. Select cutting height (1–5) with the cutting height
lever.
2. Start the engine.
3. Press the parking brake pedal down and then
release it to disengage the parking brake.
516 - 001 - 26.01.2018 15

4. Press the clutch pedal down and select a gear.
Select gear 1–4 when you cut grass with the product.
Select gear 4–5 for transport of the product.
CAUTION: If a gear does not engage
immediately, do not use force. Release
the clutch pedal, press it down again and
try to engage the gear again.
Note: You can start the product on all 5 gears.
5. Slowly release the clutch pedal.
6. Lower the cutting deck.
7. To brake, press the parking brake/speed brake
pedal.
To start on a slope, R112C5
1. Select cutting height (1–5) with the cutting height
lever.
2. Start the engine.
3. Press the parking brake pedal down.
4. Apply full throttle.
5. Press the clutch pedal down and select first gear.
6. Slowly release the parking brake pedal and the
clutch pedal.
To stop the engine
1. Pull the lift lever for the cutting deck rearward to lift
up the cutting deck. The blades stop to rotate.
2. Put the throttle control in position (A).
ABC
a) For R112C, R115C, let the engine idle for a
minimum of 30 seconds.
b) For R112C5, put the gearshift lever in the neutral
position (N).
N
3. Turn the ignition key to the STOP position.
4. When the product stops, apply the parking brake.
To apply and release the parking brake
R112C, R115C has the parking brake pedal and the lock
button for the parking brake on the left side. R112C5
has the parking brake pedal and the lock button for the
parking brake on the right side.
1. Press the parking brake pedal down (A).
16 516 - 001 - 26.01.2018

2. Press and hold the lock button (B).
A A
BB
3. Keep the button pressed and release the parking
brake pedal.
4. To release the parking brake, press the parking
brake pedal again.
To get a good result
• Do not cut a wet lawn. Wet grass can give a bad
result.
• Start with a high cutting height and decrease it
gradually.
• Cut with blades that rotate at high speed (highest
permitted engine speed, see
Technical data on page
28
). Move the product forward at low speed. If the
grass is not too high and thick, you can get a good
result also at a higher speed.
• To get the best result, cut the grass frequently and
use the mulch function.
Maintenance
Introduction
WARNING: Before you do any maintenance
work you must read and understand the
safety chapter.
Maintenance schedule
* = General maintenance done by the operator. The
instructions are not given in this operator's manual.
X = The instructions are given in this operator's manual.
O = The instructions are not given in this operator's
manual. Let an approved service agent do the
maintenance.
Note: If more than one time interval is identified in the
table, the shortest time interval is for the first
maintenance only.
Maintenance Daily maintenance
before operation
Maintenance interval
in hours
25 50 100 200
Make sure that nuts and screws are tightened *
Make sure that there are no fuel or oil leaks *
Clean as given in To clean the product on page 18 X
Clean the inner surface of the cutting deck, around the blades X
Clean around the muffler *
Make sure that the cold air intake of the engine is not blocked X
Make sure that the safety devices are not defective X
Examine and do a test of the brakes *
Do a check of the engine oil level X
Do a check of the battery *
Do a check of the steering wires X
Examine the blades in the cutting deck X
Clean the cutting deck, below the belt covers and below the cutting
deck X
Make sure that the tire pressure is correct X X
Do a check of the parking brake X
516 - 001 - 26.01.2018 17

Maintenance Daily maintenance
before operation
Maintenance interval
in hours
25 50 100 200
Replace the engine oil (the first time after 8 h use) X
Replace the air filter X
Replace the fuel filter X
Replace the spark plug X
Do a check of and adjust the throttle wire O
Do a check of the belts O O
Do a check of the fuel hose. Replace it if necessary O
To clean the product
CAUTION: Do not use a high pressure
washer or a steam cleaner. Water can go
into bearings and electrical connections and
cause corrosion which cause damage to the
product.
Clean the product directly after use.
• Do not clean hot surfaces such as the engine,
muffler and exhaust system. Wait until the surfaces
are cool, then remove the grass or dirt.
• Before you clean with water, clean with a brush.
Remove grass cuttings and dirt from on and around
the transmission, the transmission air intake, and the
engine.
• Use running water from a hose to clean the product.
Do not use a high pressure.
• Do not point the water at electrical components or
bearings. Detergent usually increases the damage.
• To clean the cutting deck, remove it and hose it
down with water.
• When the product is clean, start the cutting deck for
a short period to blow off remaining water.
To clean the cold air intake of the
engine, R112C, R112C5
WARNING: Stop the engine. The cold air
intake rotates and can cause injury to your
fingers.
• Make sure that the intake grille on the engine cover
is not blocked. Remove grass and dirt with a brush.
• Open the engine cover. Make sure that the cold air
intake is not blocked. Remove grass and dirt with a
brush.
To clean the cold air intake of the
engine, R115C
WARNING: Stop the engine. The cold air
intake rotates and can cause injury to your
fingers.
18 516 - 001 - 26.01.2018

• Make sure that the intake grille on the engine cover
is not blocked. Remove grass and dirt with a brush.
• Open the engine cover. Make sure that the cold air
intake is not blocked. Remove grass and dirt with a
brush.
To remove the covers
To remove the engine cover
1. Release the clips on the engine cover.
2. Fold the engine cover rearward.
To remove the belt cover
1. Release the clip on the belt cover.
2. Remove the belt cover.
To examine the steering wires
1. The steering wires are correctly tightened if you can
manually move them 5 mm up or down in the groove
on the steering collar.
2. If the wires are too loose, let an authorized service
agent adjust them.
To do a check of the parking brake
1. Park the product on a hard surface that slopes.
Note: Do not park the product on a grass slope when
you do a check of the parking brake.
2. Press the parking brake pedal down (A).
3. Press and hold the lock button (B) and release the
parking brake pedal while the button is pressed.
A A
BB
Note: For R112C, R115C, the parking brake is on
the left side. For R112C5, the parking brake is on the
right side.
4. For R112C5, put the gearshift lever in the neutral
position (N).
N
5. If the product starts to move, let an approved service
agent adjust the parking brake.
6. Press the parking brake pedal again to release the
parking brake.
516 - 001 - 26.01.2018 19

To replace the fuel filter
1. Open the engine cover.
2. To access the fuel filter, remove the 4 screws and
remove the protective cover.
3. Move the hose clips away from the fuel filter with a
pair of flat pliers.
4. Pull off the fuel filter from the hose ends.
5. Press the new fuel filter into the ends of the hoses.
Apply liquid detergent to the ends of the fuel filter to
make the connection easier.
6. Push the hose clips against the fuel filter.
7. Attach the protective cover with the 4 screws.
To replace the air filter, R112C,
R112C5
1. Open the engine cover.
2. Loosen the knobs that hold the air filter cover and
remove the cover.
3. Remove the air filter cartridge from the filter housing.
4. Put a new air filter cartridge on the air hose.
5. Push the air filter cartridge into correct position.
6. Attach the air filter cover and tighten the knobs.
To replace the air filter, R115C
1. Open the engine cover.
2. Loosen the knobs that hold the air filter cover and
remove the cover.
20 516 - 001 - 26.01.2018
