Husqvarna R112iC User manual

R112iC
EN Operator's manual 2-32
ES Manual de usuario 33-67
PT Manual do utilizador 68-100
IT Manuale dell'operatore 101-133

Contents
Introduction..................................................................... 2
Safety..............................................................................5
Assembly...................................................................... 15
Operation...................................................................... 17
Maintenance................................................................. 20
Troubleshooting............................................................ 24
Transportation, storage and disposal........................... 27
Technical data.............................................................. 29
Service..........................................................................31
EC Declaration of Conformity....................................... 32
Introduction
Pre-delivery inspection and product
numbers
Note: A pre-delivery inspection has been done of this
product. Make sure that you receive a signed copy of
the pre-delivery inspection document from your dealer.
Service agent contact informa-
tion:
This operator’s manual belongs to product with product number / serial number:
/
Motor:
Product description
The product is a ride-on lawn mower. Forward and
reverse pedals let the operator adjust the speed
steplessly. The product is used with a 2-in-1 cutting deck
with mulch plug.
Intended use
The product is made to cut grass on open and level
ground in residential areas and gardens. Attach an
optional accessory to use the product for other tasks.
Speak to your Husqvarna dealer for more information
about which accessories that are available.
Insure your product
Make sure that you have insurance coverage for your
new product. Speak to your insurance company if you
are not sure. We recommend a fully comprehensive
insurance that includes third party, fire, damage, theft
and liability.
21263 - 005 - 03.02.2022

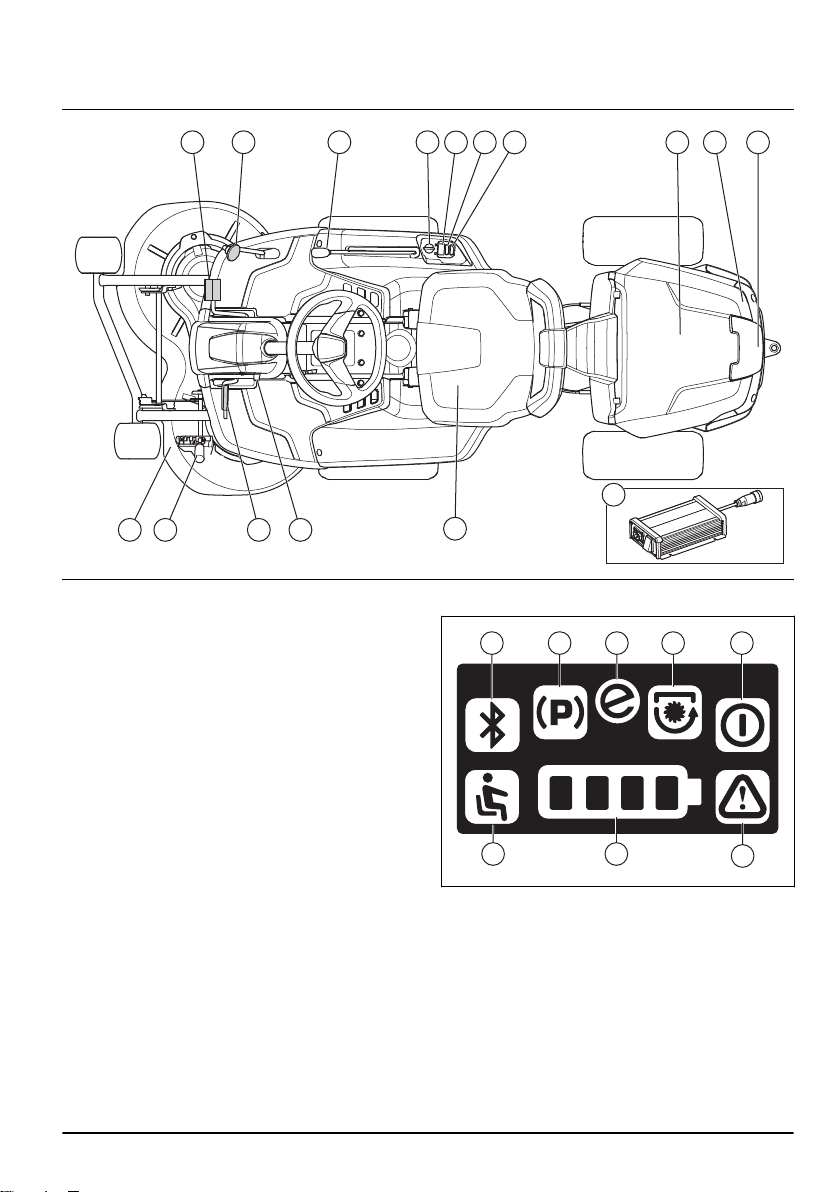

Product overview
1 2 3 4
12
8
15
13 14
5 76
11
109
16
1. Forward pedal
2. Rearward pedal
3. Lift lever for the cutting deck
4. Power switch
5. Display
6. Start button
7. SavE function
8. Battery cover
9. Type plate
10. Socket for the battery charger
11. Cutting deck
12. Cutting height lever
13. Parking brake pedal
14. Lock button for parking brake
15. Seat
16. Battery charger
Display overview
1 2 3 4 5
6 7 8
1. Not used in this product
2. Parking brake indicator
3. SavE indicator
4. Blades engaged indicator
5. Standby indicator
6. Operator presence control (OPC)
7. Battery level indicator
8. Warning indicator
1263 - 005 - 03.02.2022 3

Operator presence control (OPC)
The OPC sets the product in safe mode when the
operator lifts from the seat. The motor stop and the
blade motors stop if the blades are engaged. Refer to
To do a check of the operation conditions on page 13 .
Forward and rearward pedals
The speed is gradually adjusted with 2 pedals. The left
pedal (A) is used to move forward, and the right pedal
(B) is used to move rearward. The product stops when
the pedals are released.
A
B
Cutting height lever
The cutting height is adjusted in 5 (1–5) different
positions.
Note: Lift the cutting deck before you adjust the
cutting height.
Symbols on the product
WARNING: This product can be
dangerous and cause serious injury or
death to the operator or others. Be careful
and use the product correctly.
Read the operator's manual carefully
and make sure that you understand the
instructions before use.
Rotating blades. Keep body parts away
from the cover when the motor is on.
Warning: Keep body parts away from
rotating parts.
Look out for thrown objects and ricochets.
Do not use the product if persons,
especially children, or animals, are near
the product.
Look behind you before and while you
move the product in reverse.

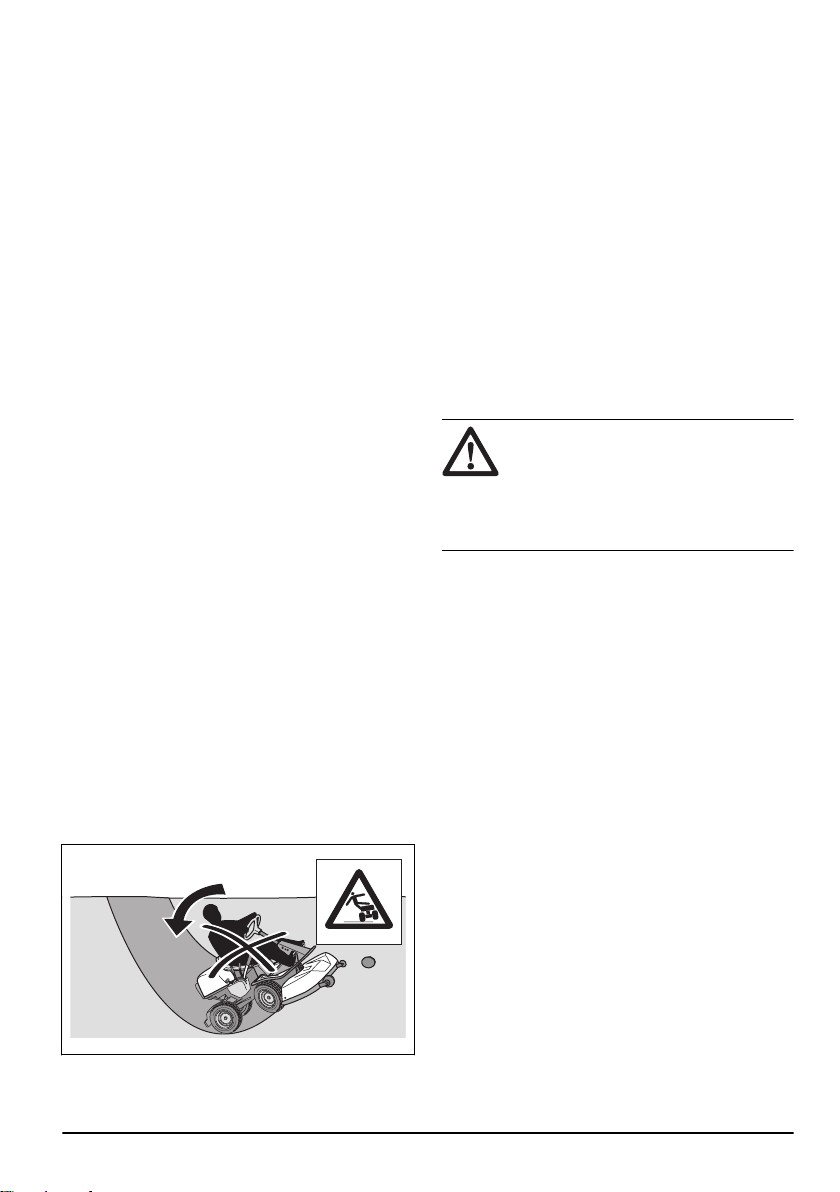

Do not cut grass across a slope. Do not
cut grass on ground with a slope larger
than 10°. Refer to To cut grass on slopes
on page 10
.

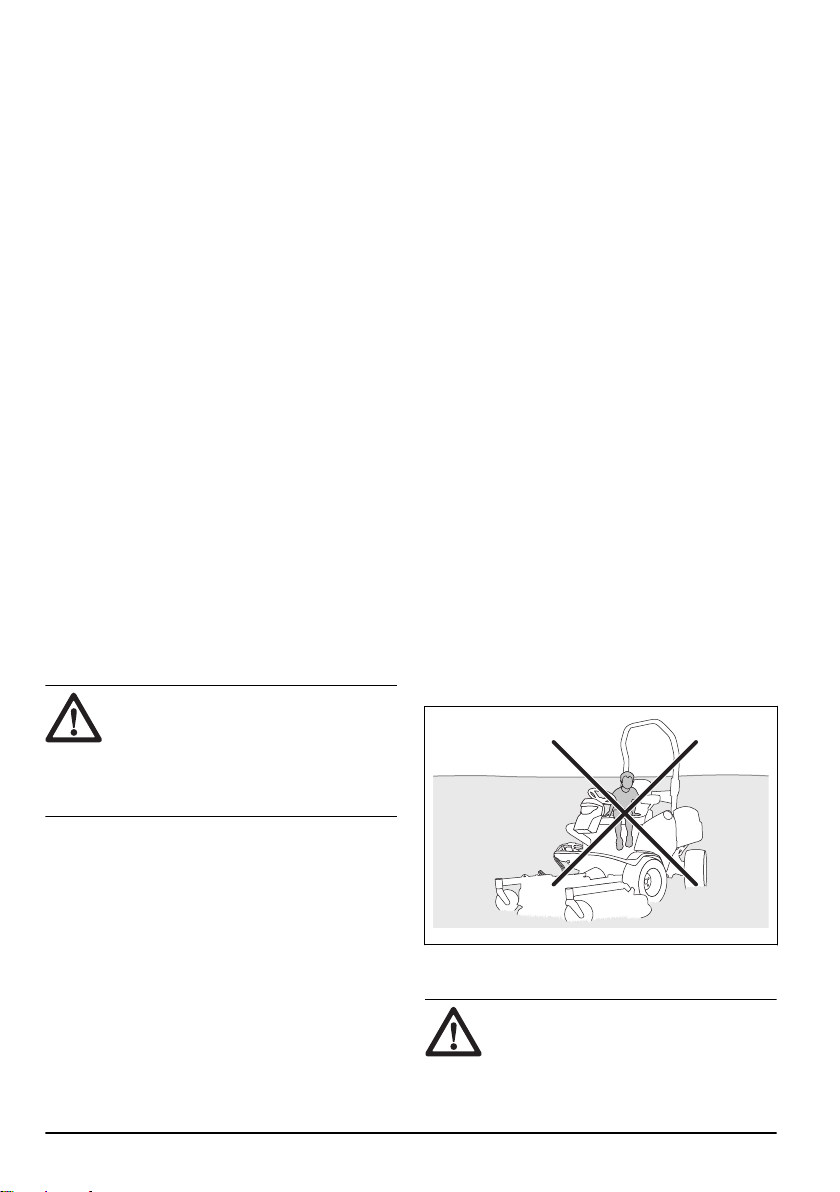

Do not let other persons than the operator
sit on the product. Do not let persons sit
on the equipment.
Operate the product very slowly if no
cutting deck is attached.
Move forward.
Neutral gear.
Move rearward.
41263 - 005 - 03.02.2022

Battery status.
Seat switch.
Standby mode indication.
Start the motor.
SavE function.
Parking brake.
The product agrees with the applicable
EC directives.
Noise emission to the environment
label as per EU and UK directives
and regulations, and New South Wales
legislation "Protection of the Environment
Operations (Noise Control) Regulation
2017". The guaranteed sound power level
of the product is specified in
Technical
data on page 29 and on the label.
Always use approved hearing protection.
The blades are engaged.
The blades are disengaged.
Servicing position for the cutting deck.
Operation position for the cutting deck.
Cutting height.
Environmental mark. The product or
package of the product is not domestic
waste. Recycle it at a recycling station for
electrical and electronic equipment.
Scannable code
yyyywwxxxx The rating plate shows se-
rial number. yyyy is the
production year and ww is
the production week.
Note: Other symbols/decals on the product refer to
certification requirements for some commercial areas.
Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not
from the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes
are used to point out specially
important parts of the manual.
WARNING: Used if
there is a risk of
injury or death for the
operator or bystanders
1263 - 005 - 03.02.2022 5

if the instructions in the
manual are not obeyed.
CAUTION: Used if there
is a risk of damage to the
product, other materials
or the adjacent area if
the instructions in the
manual are not obeyed.
Note: Used to give more
information that is necessary in
a given situation.
General safety instructions
WARNING: This product
can cut off hands and
feet and throw objects.
Serious injury or death
may occur if you do
not obey the safety
instructions.
WARNING: Do not
continue to use a product
with damaged cutting
equipment. Damaged
cutting equipment can
throw objects and
cause serious injury or
death. Replace damaged
blades immediately.
WARNING: This
product produces an
electromagnetic field
during operation. This
field may under some
circumstances interfere
with active or passive
medical implants. To
reduce the risk of
serious or fatal injury
we recommend persons
with medical implants to
consult their physician
and the medical implant
manufacturer before
operating this product.
WARNING: Read the
warning instructions that
follow before you use the
product.
• Always be careful and use
your common sense. Avoid all
situations which you consider
to be beyond your capability.
If you feel uncertainty about
the operating procedures
after you read the operator's
manual, consult an expert
before you continue.
• Read and understand the
operator's manual and the
instructions on the product
61263 - 005 - 03.02.2022

carefully before you start the
product.
• Learn how to use the product
and its controls safely and
learn how to stop the product
quickly.
• Learn to recognize the safety
decals.
• Keep the product clean
to make sure that you
can clearly read signs and
stickers.
• Keep in mind that the
operator will be held
responsible for accidents that
involve other persons or their
property.
• Do not transport passengers.
The product must only be
used by one person.
• Do not let the product stay
unsupervised with the power
on. Always stop the blades,
apply the parking brake, stop
the motor and remove the key
to the power switch before
you let the product stay
unsupervised.
• Only use the product in
daylight or in other well-lit
conditions. Keep the product
at a safe distance from holes
or other irregularities in the
ground. Look out for other
possible risks.
• Do not use the product in
bad weather, for example
in fog, in rain, moist or in
wet locations, strong winds,
intense cold, risk of lightning,
etc.
• Find and mark stones and
other fixed objects to prevent
collision.
• Clear the area of objects such
as stones, toys, wires, etc.
that may become caught in
the blades and be thrown out.
• Do not let children or other
persons not approved for
operation of the product to
use or do servicing on it.
Local laws may regulate the
age of the user.
1263 - 005 - 03.02.2022 7

• Make sure that nobody else is
in the vicinity of the product
when you start the motor,
engage the drive or start to
move the product.
• Keep an eye on the traffic
when you mow near a road or
move across a road.
• Do not use the product if you
are fatigued, while under the
influence of alcohol or drugs,
medicine or anything that
can have a negative effect
on your vision, alertness,
coordination or judgement.
• Always park the product on a
level surface with the power
off.
Safety instructions regarding
children
WARNING: Read the
warning instructions that
follow before you use the
product.
•Serious accidents can occur
if you are not on your guard
for children in the vicinity of
the product. Children may
come near the product when
you do not see them. It is
very possible that children do
not stay where you last saw
them.
•Keep children away from the
area to be mowed. Make sure
that an adult is responsible for
the children.
•Keep an eye out and stop
the product if children enter
the work area. Be very careful
near corners, bushes, trees or
other objects that prevents a
clear view.
•Before and while you move
the product in reverse, look
behind you and look down to
make sure there are no small
children in the vicinity of the
product.
•Do not let children ride along.
They can fall off and get
seriously injured or prevent
safe maneuvering of the
product.
•Do not let children operate
the product.
Battery safety
WARNING: Read the
warning instructions that
81263 - 005 - 03.02.2022

follow before you use the
product.
General:
•Read all safety warnings
and all instructions. Failure
to follow the warnings and
instructions may result in
electric shock and fire and/or
serious injury.
•Regular check that the
batteries are intact. Damaged
or modified batteries may
exhibit unpredictable behavior
resulting in fire, explosion or
risk of injury. Never repair or
open damaged batteries.
•A damaged battery can cause
an explosion and cause
injury. If the battery has a
deformation or is damaged,
do not use the product
and speak to an approved
Husqvarna service agent.
•Do not dismantle, open or
shred batteries.
•Do not subject batteries to
mechanical shock.
•Do not expose cells or
batteries to heat or fire. Avoid
storage in direct sunlight.
•Do not short circuit batteries.
Do not keep batteries in
storage where they can short
circuit each other or be
short circuited by other metal
objects.
•Do not allow battery content
to come in contact with
the skin or eyes. If contact
has been made, wash the
affected area with copious
amounts of water and seek
medical advice.
•Do not use any battery which
is not designed for use with
the equipment.
•Do not mix cells of different
manufacture, capacity, size or
type within a device.
•Keep cells or batteries out of
the reach of children.
•Keep the battery clean and
dry.
•Use only the battery in the
application for which it was
intended.
48 V batteries:
•The Husqvarna 48 V
batteries, are exclusively
used as power supply for
the Husqvarna battery Riders.
To avoid injury, the battery
must not be used as a power
source for other devices.
•Never use batteries or
appliances that is faulty,
modified or damaged.
•Never attempt to modify or
repair the appliances or the
batteries. Entrust all repairs
to your authorized servicing
dealer only.
1263 - 005 - 03.02.2022 9

Safety instructions for operation
WARNING: Read the
warning instructions that
follow before you use the
product.
•Always look down and behind
you before and while you
move in reverse. Look out for
large and small obstacles.
•Decrease the speed before
you turn around a corner.
•Stop the blades when you
move across areas that you
do not cut.
CAUTION: Read the
caution instructions that
follow before you use the
product.
•Move around stones and
other larger objects carefully
and make sure that the
blades do not hit the objects.
•Do not operate the product
across objects. Stop and
examine the product and
cutting deck if you operate
the product across or into
an object. If it is necessary,
make repairs before you
restart.
To cut grass on slopes
WARNING: Read the
warning instructions that
follow before you use the
product.
•To cut grass on slopes
increases the risk that you
can not control the product
and that it overturns. This can
cause injury or death. It is
necessary to cut the grass
carefully on all slopes. If you
cannot reverse up a slope or
if you do not feel safe, do not
cut it.
•Remove stones, branches
and other obstacles.
•Cut up and down the slope,
not from side to side.
•Do not move down a slope
with the cutting deck lifted.
•Do not operate the product on
ground that slopes more than
10°.
•Do not start or stop on a
slope.
10 1263 - 005 - 03.02.2022

•Do not use the forward pedal
and the rearward pedal to
stay in a slope. This will make
the system too hot.
•Move smoothly and slowly on
slopes.
•Do not make sudden changes
in speed or direction.
•Do not turn more than
necessary. Turn slowly and
gradually when you move
down a slope. Move at
low speed. Turn the wheel
carefully.
•Look out for and do not move
across furrows, holes and
bumps. There is a higher risk
that the product overturns on
ground that is not flat. Long
grass can hide obstacles.
•Do not cut grass near edges,
ditches or banks. The product
can suddenly overturn if a
wheel moves across the edge
of a steep slope or a ditch, or
if an edge gives way. If the
product falls into water, there
is a risk of drowning.
•Do not mow wet grass. It is
slippery, and tires can lose
their grip so that the product
skids.
•Do not put your foot on the
ground to try to make the
product more stable.
•Move very carefully if an
accessory or other object is
attached that can make the
product less stable.

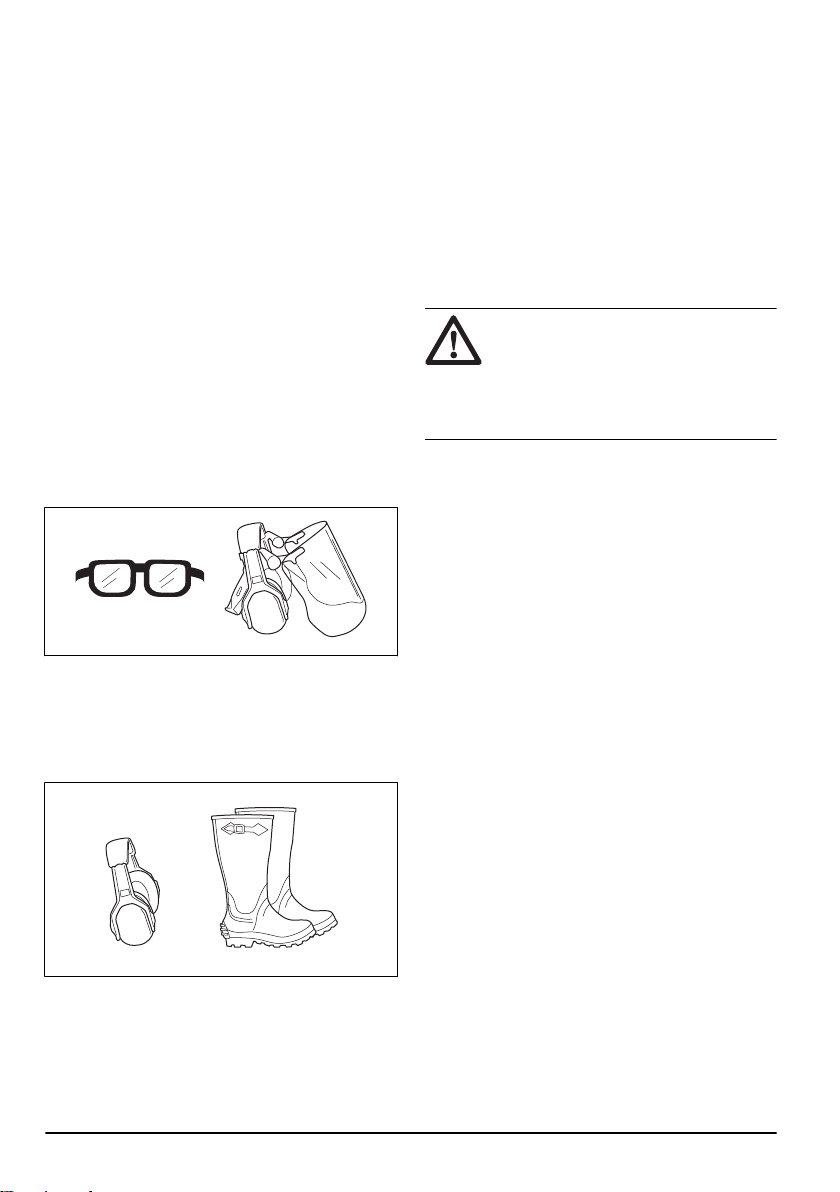

Personal protective equipment
WARNING: Read the
warning instructions that
follow before you use the
product.
•Use approved personal
protective equipment when
you use the product. Personal
protective equipment cannot
fully prevent injury but it
decreases the degree of
injury if an accident does
occur. Let your dealer
help you select the right
equipment.
•Use approved hearing
protection that provides
adequate noise reduction.
Long-term exposure to
noise can result
in permanent hearing
impairment. Husqvarna
recommends that operators
use hearing protectors when
1263 - 005 - 03.02.2022 11

using products for a longer
coherent time of a day.
Continual and regular users
should have their hearing
checked regularly. Note that
hearing protectors limit the
ability to hear sounds and
warning signals.
•Use approved eye protection.
If you use a visor, you must
also use approved protective
goggles. Approved protective
goggles must agree with
the ANSI Z87.1 standard in
the USA or EN 166 in EU
countries.
•Always wear protective shoes
or protective boots. Steel toes
are recommended. Do not
use the product barefoot.
•Wear gloves when necessary,
for example when you attach,
examine or clean the cutting
equipment.
•Do not wear loose-fitting
clothing, jewelry or other
items that can get caught in
moving parts.
•Keep first aid equipment
and fire extinguisher close at
hand.
Safety devices on the product
WARNING: Read the
warning instructions that
follow before you use the
product.
•Do not use a product with
defective safety devices.
•Do not remove or do
modifications to safety
devices.
•Do a check of the safety
devices regularly. If the safety
devices are defective, speak
to your Husqvarna service
agent.
To do a check of the power
switch
• Disconnect the battery charge
cable.
• Turn the power switch to "1".
Make sure that all the used
LED lights on the display
comes on.
• Apply the parking brake.
12 1263 - 005 - 03.02.2022

• Turn the power switch to "0".
Make sure that the product
stops immediately and the
LED lights on the display
goes off.
To do a check of the operation
conditions
Do a check of the operation
conditions daily.
1. Make sure that you cannot
operate the product when
the cutting deck is installed
and the cutting deck lever is
in the mow position.
2. Make sure that you cannot
operate the product when
the parking brake is
disengaged.
3. Make sure that the product
stops when the cutting deck
motors are engaged and you
lift from the seat.
To do a check of the forward
pedal and rearward pedal
1. Start the product. Refer to
To start the product on page
19 .
2. Make sure that the forward
pedal and rearward pedal
are not blocked and can be
operated freely.
3. Push the forward pedal
carefully to move forward.
4. Release the forward pedal
to brake. Make sure that
the brake engages when the
forward pedal is released.
Note: The product has
an automatic brake that
engages when you release
the pedals. For more brake
power when you decrease
the speed, push the other
pedal.
5. Do the same procedure for
the rearward pedal.
Parking brake
WARNING: If the parking
brake does not operate
correctly, the product
can start to move and
cause injury or damage.
Make sure that the
parking brake is regularly
examined and adjusted.
Refer to To do a check of the
parking brake on page 22 .
Warning indicator on the display
CAUTION: If the warning indicator on
the display comes on, stop the product and
refer to
Troubleshooting on page 24 .
1263 - 005 - 03.02.2022 13

Protective covers
Missing or damaged protective
covers increase the risk of
injury on moving parts and hot
surfaces. Do a check of the
protective covers before you
operate the product. Make sure
that the protective covers are
correctly attached and do not
have cracks or other damages.
Replace damaged protective
covers.
Safety instructions for
maintenance
WARNING: The product
is heavy and can
cause injury or damage
to property or the
adjacent area. Do not
do maintenance on the
product and cutting deck
without these conditions:
•The power switch is
off and the key to
the power switch is
removed.
•The product is parked
on a level surface.
•The parking brake is
applied.
•The cutting deck is
disengaged.
•The cable to the
battery charger is
disconnected.
WARNING: Read the
warning instructions that
follow before you use the
product.
•For best performance and
safety, do maintenance on
the product regularly as given
in the maintenance schedule.
Refer to Maintenance
schedule on page 20
.
•Electrical shocks can cause
injuries. Do not do
maintenance on the battery.
Do not touch the cables when
the motor is on. Do not do a
function test with your fingers.
•Do not start the product
if the protective covers are
removed. There is a high risk
of injury caused by moving or
hot parts.
•Let the product become cool
before you do maintenance
on it.
14 1263 - 005 - 03.02.2022

•The blades are sharp and can
cause cuts. Wind protection
around the blades or use
protective gloves when you
do work on the blades.
•Always put the cutting deck in
the servicing position to clean
it. Do not park the product
near the edge of a ditch or
slope to get access to the
cutting deck.
CAUTION: Read the
caution instructions that
follow before you use the
product.
•Make sure that all nuts and
bolts are tightened correctly
and that the equipment is in
good condition.
•Do not change the adjustment
of governors. If the motor
speed is too high, the product
components can become
damaged. Refer to
Technical
data on page 29 for highest
permitted motor speed.
•The product is approved only
with the equipment supplied
or recommended by the
manufacturer.
Assembly
Introduction
WARNING: The drive belt tension
spring can break and cause injury. Wear
protective glasses when you attach or
remove the cutting deck.
Read the assembly instructions in the owner's manual
carefully. A label on the inner side of the front cover on
the product, also shows how to attach and remove the
cutting deck.

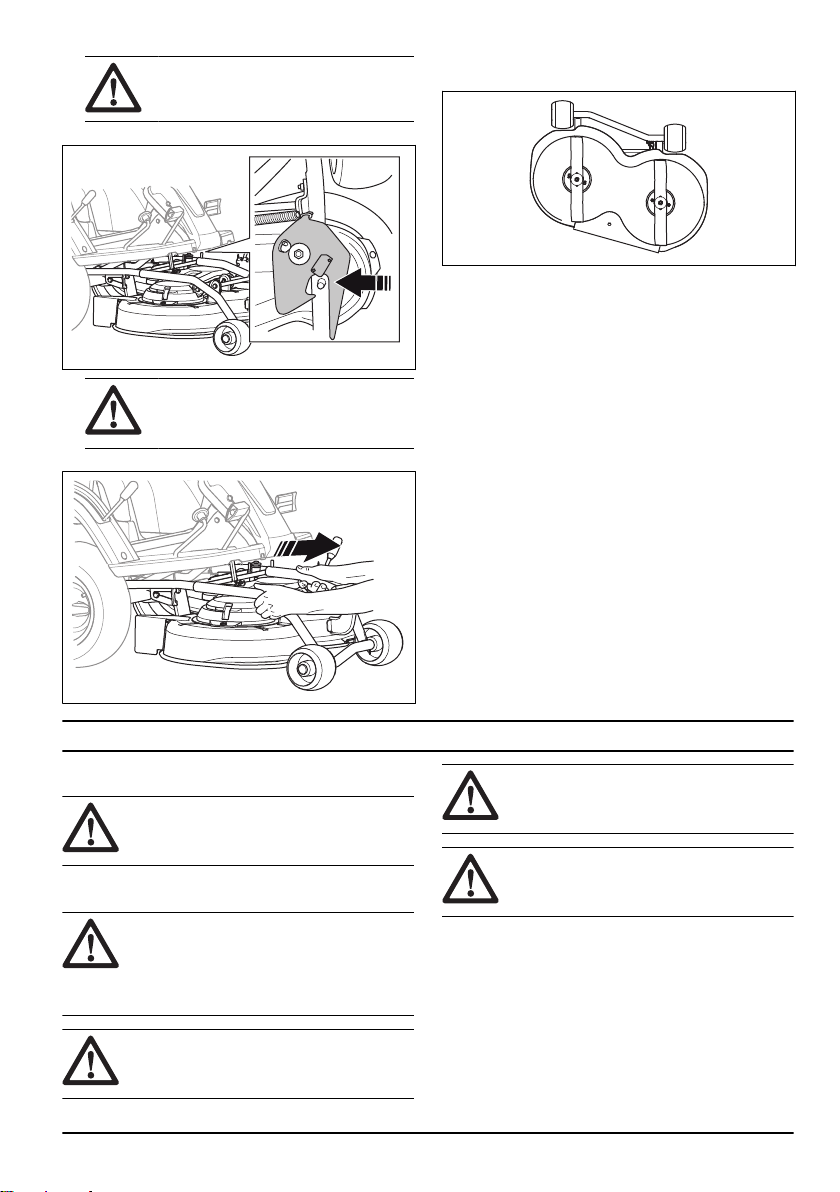

To attach the cutting deck
1. Park the product on level ground.
2. Apply the parking brake.
3. Push the cutting deck in and make sure that the
bolts are put into the grooves on the equipment
frame.
1263 - 005 - 03.02.2022 15

4. Align the pipes on the cutting deck with the pipes on
the equipment frame.
5. Hold the cutting deck with two hands and push it in.
6. Push until the pipes and the bolts touch the bottom.
Make sure that the lock is engaged.
7. Connect the 2 cables to the cutting deck.
8. Set the cutting height lever in a position between 1–
5.
To remove the cutting deck
1. Park the product on level ground.
2. Apply the parking brake.
3. Set the cutting height lever in the servicing position
(S).
4. Put the lift lever for the cutting deck in operation
position.
5. Disconnect the 2 cables to the cutting deck.
16 1263 - 005 - 03.02.2022

CAUTION: Hold the connectors. Do
not pull the cables.
6. Disengage the lock to the cutting deck.
WARNING: The lock mechanism
can cause injury to fingers if you do not
operate it carefully.
7. Hold the cutting deck with two hands and pull it out.
8. Lift the cutting deck and put it against the product or
a wall.
Operation
Introduction
WARNING: Before you operate the
product, you must read and understand the
safety chapter.
To charge the battery
WARNING: An incorrectly used, broken
or a defective battery charger can cause
an electrical shock, overheating or battery
leakage. Regularly examine the battery
charger and the battery for damages.
CAUTION: The battery must be
charged before you use it the first time. A
new battery is only 30% charged.
CAUTION: Charge the battery in
conditions where temperatures are between
0°C and 40°C.
CAUTION: Use the battery in conditions
where temperatures are between 0°C and
40°C.
1263 - 005 - 03.02.2022 17

• Connect the battery charger to a grounded mains
socket and to the product.
Note: The product must be started to show the
state of charge.
CAUTION: Do not keep the battery
charger connected when the battery is fully
charged.
CAUTION: If it is necessary to manually
push the product to the battery charger,
remove the freewheel fuse in the rear
carriage. The freewheel fuse must be
installed again before you charge the
battery.
Battery indication
The battery indicator on the display shows the state of
charge when the product is activated. When the charger
is connected and the product is activated the display
shows a charge animation. When battery is fully charged
and the charger is connected, all 4 battery LED lights
are solid.
1243
LED lights State of charge
All 4 LED lights are solid. The battery is 76%–100%
charged.
LED lights State of charge
LED light 1–3 are solid. The battery is 51%–76%
charged.
LED light 1–2 are solid. The battery is 26%–51%
charged.
LED light 1 is solid. The battery is 0%–25%
charged.
When the battery is low, the first LED light flashes and
the blades stop to save power. If the product has 0%
battery, the first LED light and the warning indicator flash
together.
Note: If the product is used in cold conditions the
operation time can be decreased.
To adjust the seat
• The seat can be tilted forward.
• To adjust the seat forward and rearward, loosen the
bolts below the seat. Move the seat to the required
position and tighten the bolts.
To lift and lower the cutting deck
• To lift the cutting deck to transport position, pull the
lift lever rearward. If the motor is on, the blades stop.
18 1263 - 005 - 03.02.2022

• To lower the cutting deck to mow position, push the
lock button and move the lift lever forward. If the
motor is on, the blades start to rotate.
To apply and release the parking brake
The parking brake pedal and the lock button for the
parking brake is on the left side of the steering column.
1. Push the parking brake pedal down (A).
2. Push and hold the lock button (B).
A
B
3. Keep the lock button pushed and release the parking
brake pedal.
4. To release the parking brake, push the parking brake
pedal again.
To start the product
1. Disconnect the cable to the battery charger.
2. Sit on the seat.
3. Engage the parking brake. Refer to
To apply and
release the parking brake on page 19 .
4. Lift the cutting deck to transport position. Refer to
To
lift and lower the cutting deck on page 18 .
5. Set the power switch to "1" (A). The standby
indicator (B) comes on.
6. Long press the start button (C). The standby
indicator light goes out.
A
C
B
To operate the product
1. Select cutting height (1–5) with the cutting height
lever.
2. Start the product.
3. Push the parking brake pedal down and then release
it to disengage the parking brake.
1263 - 005 - 03.02.2022 19

4. Carefully push down 1 pedal. Use pedal (A) to move
forward, and pedal (B) to move in reverse. The
speed increases the more the pedal is pushed down.
A
B
5. Release the pedal to engage the brakes.
6. Lower the cutting deck.
To start and stop the SavE function
The product has a battery save function (SavE)
that gives longer operation time. The SavE function
decreases the speed of the product and the speed of
the blades.
1. Long press the SavE button.
Note: The SavE indicator comes on with a
constant green light when the function is started.
2. Long press the SavE button again to stop the SavE
function.
To stop the product
1. Park the product on level ground.
2. Apply the parking brake.
3. Pull the lift lever for the cutting deck rearward to lift
the cutting deck to transport position.
4. Set the power switch to "0".
To get a good result
• Do not cut a wet lawn. Wet grass can give a bad
result.
• Start with a high cutting height and decrease it
gradually.
• Cut with blades that rotate at high speed (for highest
permitted motor speed, refer to
Technical data on
page 29
). Move the product forward at low speed.
If the grass is not too high and thick, you can get a
good result also at a higher speed.
• To get the best result, cut the grass frequently and
use the mulch function. Refer to
To remove the
mulch plug on page 23 .
Maintenance
Introduction
WARNING: Read and understand the
safety chapter before you do maintenance
on the product.
Maintenance schedule
* = General maintenance done by the operator. The
instructions are not given in this operator's manual.
X = The instructions are given in this operator's manual.
O = The instructions are not given in this operator's
manual. Let an approved service agent do the
maintenance.
Note: If more than one time interval is identified
in the table, the shortest time interval is for the first
maintenance only.
Maintenance
Daily mainte-
nance before
operation
Maintenance
interval
50 hours or
one time each
year
Make sure all fasteners are properly tensioned (screws, nuts etc). *
Clean as given in To clean the product on page 21 . X
Clean the inner surface of the cutting deck, around the blades. X
Make sure that the safety devices are not defective. X
20 1263 - 005 - 03.02.2022
