KEY T O SYMBOLS
2 – English
Symbols
W ARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or
fatal injury to the operator or others.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• A protective helmet where there is a
risk of falling objects
• Approved hearing protection
• Protective goggles or a visor
This product is in accordance with
applicable EC directives.
This machine is not electrically
insulated. If the machine
touches or comes close to high-
voltage power lines it could lead
to death or serious bodily injury.
Electricity can jump from one
point to another by arcing. The
higher the voltage, the greater
the distance electricity can
jump. Electricity can also travel
through branches and other
objects, especially if they are
wet. Always keep a distance of at least 10 m between the
machine and high-voltage power lines and/or any objects
that are touching them. If have to work within this safe
distance you should always contact the relevant power
company to make sure the power is switched off before
you start work.
Always wear approved protective
gloves.
Wear sturdy, non-slip boots.
Other symbols/decals on the mac hine refer to special
certification requirements for certain markets.
Switch off the engine by moving the
stop switch to the STOP position
before carrying out any checks or
maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be
worn.
Filling with chain oil and adjusting oil
flow

CONTENTS
English – 3
Contents Note the f ollowing before
starting:
Husqv arna AB has a policy of continuous product
development and therefore reserves the right to modify
the design and appearance of products without prior
notice.
Long-term exposure to noise can result in permanent
hearing impairment. So always use approved hearing
protection.
Please read the operator’s manual carefully and make
sure you understand the instructions before using the
machine.
These instructions supplement the instructions that were
included with the machine. For other procedures, please
refer to the operating instructions for the machine.
The machine is only designed for cutting branches and
twigs.
KEY TO SYMBOLS
Symbols ................................................................ 2
CONTENTS
Contents ............................................................... 3
Note the following before starting: ........................ 3
INTR ODUCTION
Dear Customer , .................................................... 4
WHA T IS WHAT?
What is what on the sa w attachment? .................. 5
SAFETY INSTR UCTIONS
Cutting equipment ................................................ 6
Specification of bar and saw chain ....................... 6
Sharpening your chain and adjusting raker
clearance .............................................................. 7
Tensioning the chain ............................................. 10
Lubricating cutting equipment .............................. 10
Checking wear on cutting equipment ................... 11
Safety instructions for using a pruning saw .......... 12
ASSEMBL Y
Fitting the cutting head ......................................... 16
Fitting the bar and chain ....................................... 16
Fitting the suspension ring ................................... 16
Adjusting the harness ........................................... 16
Filling with oil ........................................................ 17
Check before starting ........................................... 17
TECHNICAL D ATA
T echnical data ...................................................... 18
Guide bar and saw chain combinations ............... 18
EC Declaration of Conformity ............................... 19
!
W ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use original
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
!
W ARNING! This accessory may only be
used together with the intended brush
cutter/trimmer, see under heading
”Approved accessories” in chapter
Technical data in the machine’s
Operator’s Manual.

4 – English
INTR ODUCTION
Dear Customer ,
Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,
when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production
of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-
powered plant. During the more than 300 years in existence, the Husqvarna factory has produced a lot of different
products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first
motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working
today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our
highest priority. The business concept is to develop, manufacture and market motor-driven products for forestry and
gardening, as well as for the building and construction industry. Husqvarna
′ s aim is also to be at the front edge for
ergonomics, usability, security and environmental protection.That is the reason why we have developed many different
features to add to our products within these areas.
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very
long time to come. The purchase of one of our products gives you access to professional help with repairs and service
whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the
address of your nearest service workshop.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
′ s manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and
the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator
′ s manual
is passed on to the buyer.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.

English – 5
WHA T IS WHA T?
What is what on the sa w attachment? (Saw attachment with shaft PA 1100)
4
13
12
14
15
10
11
2
7
11
9
1
2
8
6
5
3
16
1 Bevel gear
2 Chain lubrication adjustment screw
3 Shaft (1100 mm)
4 Harness support hook
5 Protective guard for saw chain
6 Bar nut
7 Chain tensioning screw
8 Saw chain
9 Guide bar
10 Chain oil tank
11 Filling with chain oil
12 Operator ′ s manual
13 Transport guard
14 Combination spanner
15 Harness
16 Torx wrench

SAFETY INSTR UCTIONS
6 – English
Cutting equipment
This section descr ibes how you can achieve maximum
clearing capacity and extend the life of the cutting
attachment through correct maintenance and using the
right type of cutting attachment.
Onl y use cutting equipment recommended by us!
See the Technical data section.
K eep the chain’s cutting teeth properly sharpened!
Follow our instructions and use the recommended
file gauge.
A damaged or badly sharpened chain
increases the risk of accidents.
Maintain the correct raker c learance! Follow our
instructions and use the recommended raker gauge.
Too large a clearance increases the risk of kickback.
K eep the chain properly tensioned! If the chain is slack
it is more likely to jump off and lead to increased wear on
the bar, chain and drive sprocket.
K eep cutting equipment well lubricated and properly
maintained!
A poorly lubricated chain is more likely to
break and lead to increased wear on the bar, chain and
drive sprocket.
Specifi cation of bar and saw
chain
When the cutting attachment supplied with y our machine
has to be replaced, because it is worn out or damaged,
you must only fit the types of bar and saw chain
recommended by us.
Guide bar
• Length (inches/cm)
• Chain pitch (inches). The spacing between the drive
links of the chain must match the spacing of the teeth
on the bar tip sprocket and drive sprocket.
!
W ARNING! Never use a machine with
faulty safety equipment.The machine's
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
!
W ARNING! Always stop the engine
before doing any work on the cutting
attachment.This continues to rotate even
after the throttle has been released.
Ensure that the cutting attachment has
stopped completely and disconnect the
spark plug cap before you start to work
on it.

SAFETY INSTR UCTIONS
English – 7
• Number of drive links.The number of drive links is
determined by the length of the bar, the chain pitch
and the number of teeth on the bar tip sprocket.
• Bar groove width (inches/mm). The groove in the bar
must match the width of the chain drive links.
• Saw chain oil hole and hole for chain tensioner pin.
Sa w chain
• Saw chain pitch (inches). (The distance between
three drive links, divided by two.)
• Drive link width (mm/inches)
• Number of drive links.
Sharpening y our chain and
adjusting raker clearance
General inf ormation on sharpening
cutting teeth
• Never use a blunt chain. When the chain is blunt you
have to exert more pressure to force the bar through
the wood and the cuttings will be very small. If the
chain is very blunt it will not produce any cuttings at
all. Wood powder would be the only result.
• A sharp chain eats its way through the wood and
produces long, thick cuttings. The cutting part of the
chain is called the cutting link and this consists of a
cutting tooth (A) and the raker lip (B). The cutting
depth is determined by the difference in height
between the two.
• When you sharpen a cutting tooth there are five
important factors to remember.
1 Filing angle
!
W ARNING! The risk of kickback is
increased with a badly sharpened chain!

SAFETY INSTR UCTIONS
8 – English
2 Cutting angle
3 File position
4 Round file diameter
5 File depth
It is very difficult to sharpen a chain correctly without the
right equipment. We recommend that you use our file
gauge. This will help you obtain the maximum kickback
reduction and cutting performance from your chain.
Sharpening cutting teeth
• To sharpen cutting teeth you will need a round file and
a file gauge.
• Check that the chain is correctly tensioned. A slack
chain will move sideways, making it more difficult to
sharpen correctly.
• Always file cutting teeth from the inside face outwards.
Reduce the pressure on the return stroke. File all the
1
5
!
W ARNING! The following faults will
increase the risk of kickback
considerably: File angle too large
Cutting angle too small
File diameter too small

SAFETY INSTR UCTIONS
English – 9

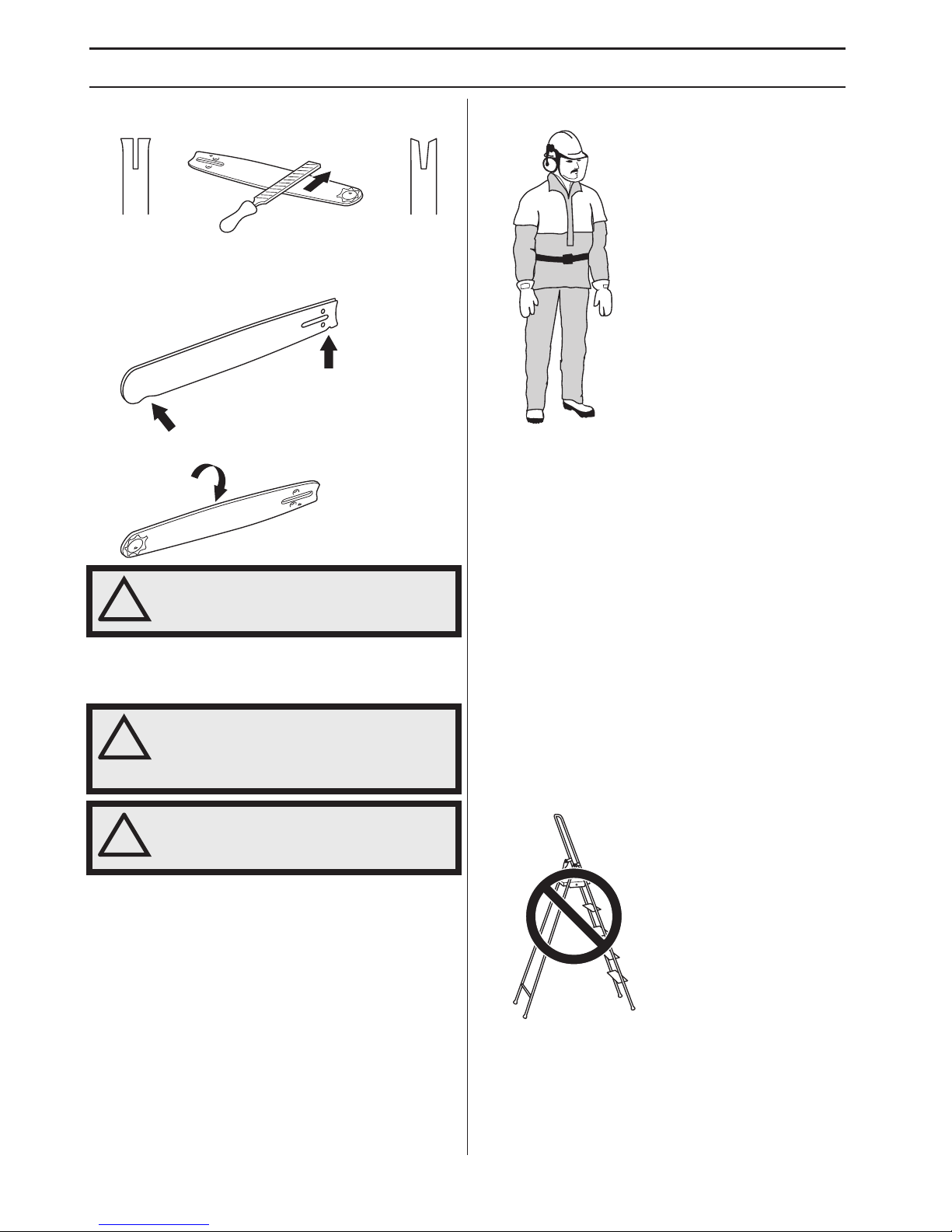

teeth on one side of the bar first. Then turn the saw
over and file the remaining teeth from the other side.
• File all the teeth to the same length. When the length
of the cutting teeth is reduced to 4 mm (5/32") the
chain is worn out and should be replaced.
General advice on setting raker clearance
• When you sharpen the cutting teeth you reduce the
raker clearance (=cutting depth). To maintain optimal
cutting performance you must file back the raker lip to
the recommended height.
• On a low-kickback cutting link the front edge of the
raker lip is rounded. It is very important that you
maintain this radius or bevel when you adjust the raker
clearance.
• We recommend that you use our raker gauge to
achieve the correct clearance and bevel on the raker
lip.
Setting the raker clearance
• Before setting the raker clearance the cutting teeth
should be newly sharpened. We recommend that you
adjust the raker clearance every third time you
sharpen the chain. NOTE! This recommendation
assumes that the length of the cutting teeth is not
reduced excessively.
• To adjust the raker clearance you will need a flat file
and a raker gauge.
• Place the gauge over the raker lip.
• Place the file over the part of the lip that protrudes
through the gauge and file off the excess. The
clearance is correct when you no longer feel any
resistance as you draw the file over the gauge.
!
WARNING! The risk of kickback is
increased if the raker clearance is too
large!

SAFETY INSTRUCTIONS
10 – English

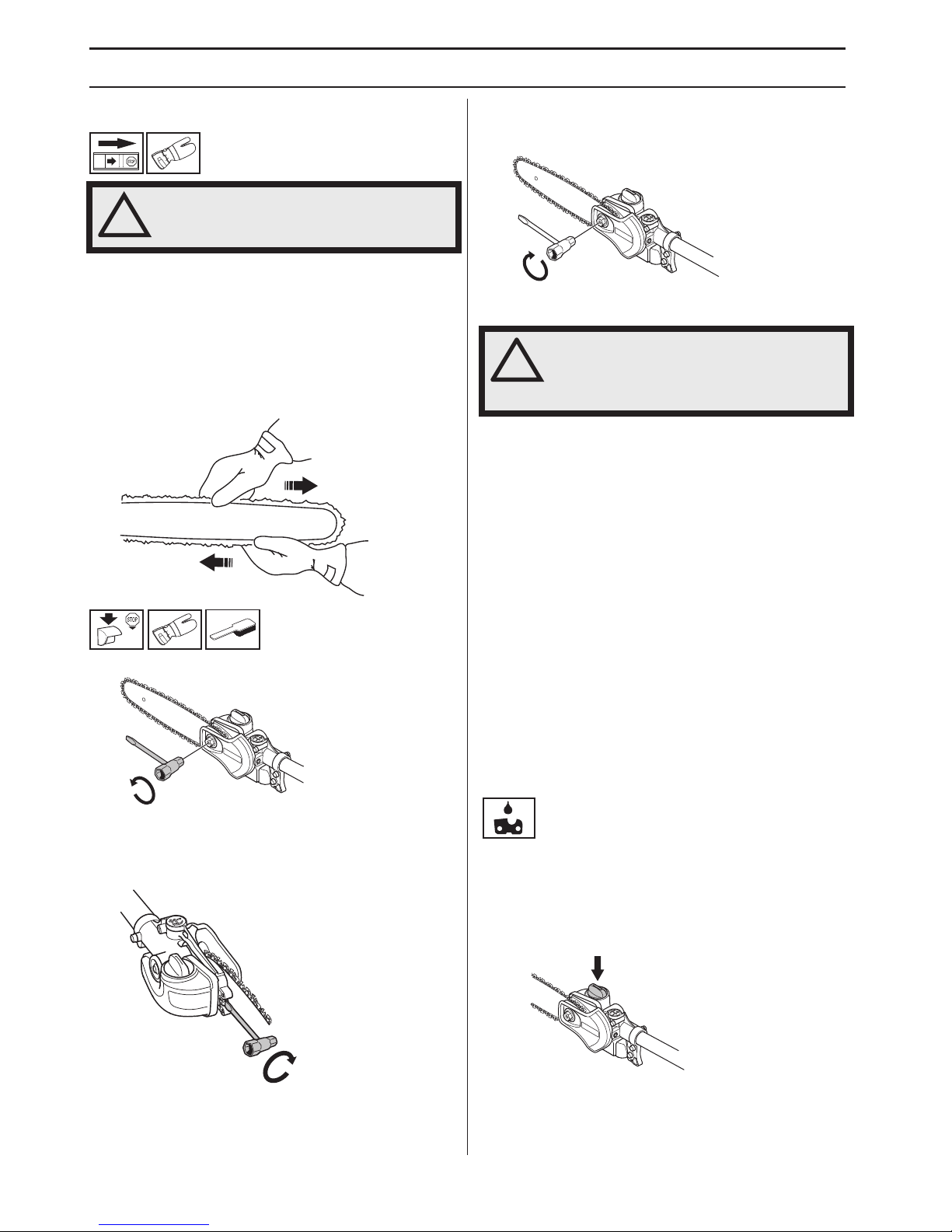

Tensioning the chain
•The more you use a chain the longer it becomes. It is
therefore important to adjust the chain regularly to
take up the slack.
• Check the chain tension every time you refuel. NOTE!
A new chain has a running-in period during which you
should check the tension more frequently.
• Tension the chain as tightly as possible, but not so
tight that you cannot pull it round freely by hand.
1 Undo the bar nut.
2 Raise the tip of the bar and stretch the chain by
tightening the chain tensioning screw using the
combination spanner. Tighten the chain until it does
not sag from the underside of the bar.
3 Use the combination spanner to tighten the blade nut
while holding up the tip of the bar. Check that you can
pull the saw chain round freely by hand.
Lubricating cutting equipment
Chain oil
• Chain oil must demonstrate good adhesion to the
chain and also maintain its flow characteristics
regardless of whether it is warm summer or cold
winter weather.
• As a chain saw manufacturer we have developed an
optimal chain oil which, with its vegetable oil base, is
also biodegradable. We recommend the use of our
own oil for both maximum chain life and to minimise
environmental damage.
• If our own chain oil is not available, standard chain oil
is recommended.
• In areas where oil specifically for lubrication of saw
chains is unavailable, ordinary EP 90 transmission oil
may be used.
•Never use waste oil! This is dangerous for yourself,
the machine and the environment.
Filling with chain oil
The oil pump is preset at the factory to meet most
lubrication requirements. A full oil tank will last about half
as long as a full tank of fuel.You should therefore check
the level of oil in the oil tank regularly to avoid damage to
the saw chain and bar that could occur due to lack of
lubrication.
Checking chain lubrication
Check the chain lubrication each time you refuel. Aim the
tip of the bar at a light coloured surface about 20 cm (8
!
WARNING! A slack chain may jump off
and cause serious or even fatal injury.
!
WARNING! Poor lubrication of cutting
equipment may cause the chain to snap,
which could lead to serious, even fatal
injuries.

SAFETY INSTRUCTIONS
English – 11
inches) away. After 1 minute running at 3/4 throttle you
should see a distinct line of oil on the light surface.
Adjusting chain lubrication
When cutting dry or hard species of wood it may be
necessary to increase lubrication.Turn the adjuster screw
anticlockwise to increase the oil flow. Remember that this
will increase oil consumption, check the level in the oil
tank regularly. Turn the adjuster screw clockwise to
decrease the oil flow.
What to do if lubrication does not work:
1Check that the oil channel in the bar is not obstructed.
Clean if necessary.
2 Check that the oil channel in the gear housing is
clean. Clean if necessary.
3 Check that the bar tip sprocket turns freely.If the chain
lubrication system is still not working after carrying out
the above checks you should contact your service
workshop.
Checking wear on cutting
equipment
Saw chain
Check the chain daily for:
• Visible cracks in rivets and links.
• Whether the chain is stiff.
• Whether rivets and links are badly worn.
We recommend you compare the existing chain with a
new chain to decide how badly the existing chain is worn.
When the length of the cutting teeth has worn down to
only 4 mm the chain must be replaced.
Chain drive sprocket
Regularly check the degree of wear on the drive sprocket.
Replace if wear is excessive.
Guide bar
Check regularly:
• Whether there are burrs on the edges of the bar.
Remove these with a file if necessary.

SAFETY INSTRUCTIONS
12 – English
• Whether the groove in the bar has become badly
worn. Replace the bar if necessary.
• Whether the tip of the bar is uneven or badly worn. If
a hollow forms on the underside of the bar tip this is
due to running with a slack chain.
To prolong the life of the bar you should turn it over daily.
Safety instructions for using a
pruning saw
CAUTION! Please read the operator’s manual carefully
and make sure you understand the instructions before
using the machine.
Personal protection
• Always wear boots and other equipment described
under the heading Personal protective equipment in
the machine’s Operator’s Manual.
• Always wear working clothes and heavy-duty long
trousers.
• Never wear loose clothing or jewellery.
• Make sure your hair does not hang below shoulder
level.
Safety instructions regarding the
surroundings
• Never allow children to use the machine.
• Ensure that no-one comes closer than 15 metres
while you are working.
• Never allow anyone else to use the machine without
first ensuring that they have read and understood the
contents of the operator’s manual.
• Never work from a ladder, stool or any other raised
position that is not fully secured.
!
WARNING! A faulty cutting attachment
may increase the risk of accidents.
!
WARNING! The machine can cause
serious personal injury. Read the safety
instructions carefully. Learn how to use
the machine.
!
WARNING! Cutting tool. Do not touch the
tool without first switching off the
engine.

SAFETY INSTRUCTIONS
English – 13
Safety instructions while working
• Always ensure you have a safe and stable working
position.
• Always use both hands to hold the machine. Hold the
machine at the side of your body.
• Use your right hand to control the throttle setting.
• Make sure that your hands and feet do not come near
the cutting attachment when the engine is running.
• When the engine is switched off, keep your hands and
feet away from the cutting attachment until it has
stopped completely.
• Watch out for stumps of branches that can be thrown
out during cutting.
• Always lay the machine on the ground when you are
not using it.
• Check the working area for foreign objects such as
electricity cables, insects and animals, etc, or other
objects that could damage the cutting attachment,
such as metal items.
• If any foreign object is hit or if vibrations occur stop the
machine immediately. Disconnect the HT lead from
the spark plug. Check that the machine is not
damaged. Repair any damage.
• If anything gets caught up in the cutting attachment
while you are working, switch off the engine and let it
stop completely before cleaning the cutting
attachment.
Safety instructions after completing work
• The transport guard should always be fitted to the
cutting attachment when the machine is not in use.
• Make sure the cutting attachment has stopped before
cleaning, carrying out repairs or an inspection.
Disconnect the HT lead from the spark plug.
• Always wear heavy-duty gloves when repairing the
cutting attachment. This is extremely sharp and can
easily cause cuts.
• Store the machine out of reach of children.
• Use only original spare parts for repairs.
Basic working techniques
•Hold the machine as close to your body as possible to
get the best balance.
• Make sure that the tip does not touch the ground.
• Do not rush the work, but work steadily until all the
branches have been cut back cleanly.
• Always slow the engine to idle speed after each
working operation. Long periods at full throttle without
any load on the engine can lead to serious engine
damage.
• Always work at full throttle.
Observe great care when working close to overhead
power lines. Falling branches can result in short-
circuiting.
!
WARNING! Never stand directly
underneath a branch that is being cut.
This could lead to serious or even fatal
personal injury.
!
WARNING! Observe the applicable safety
regulations for work in the vicinity of
overhead power lines.

SAFETY INSTRUCTIONS
14 – English

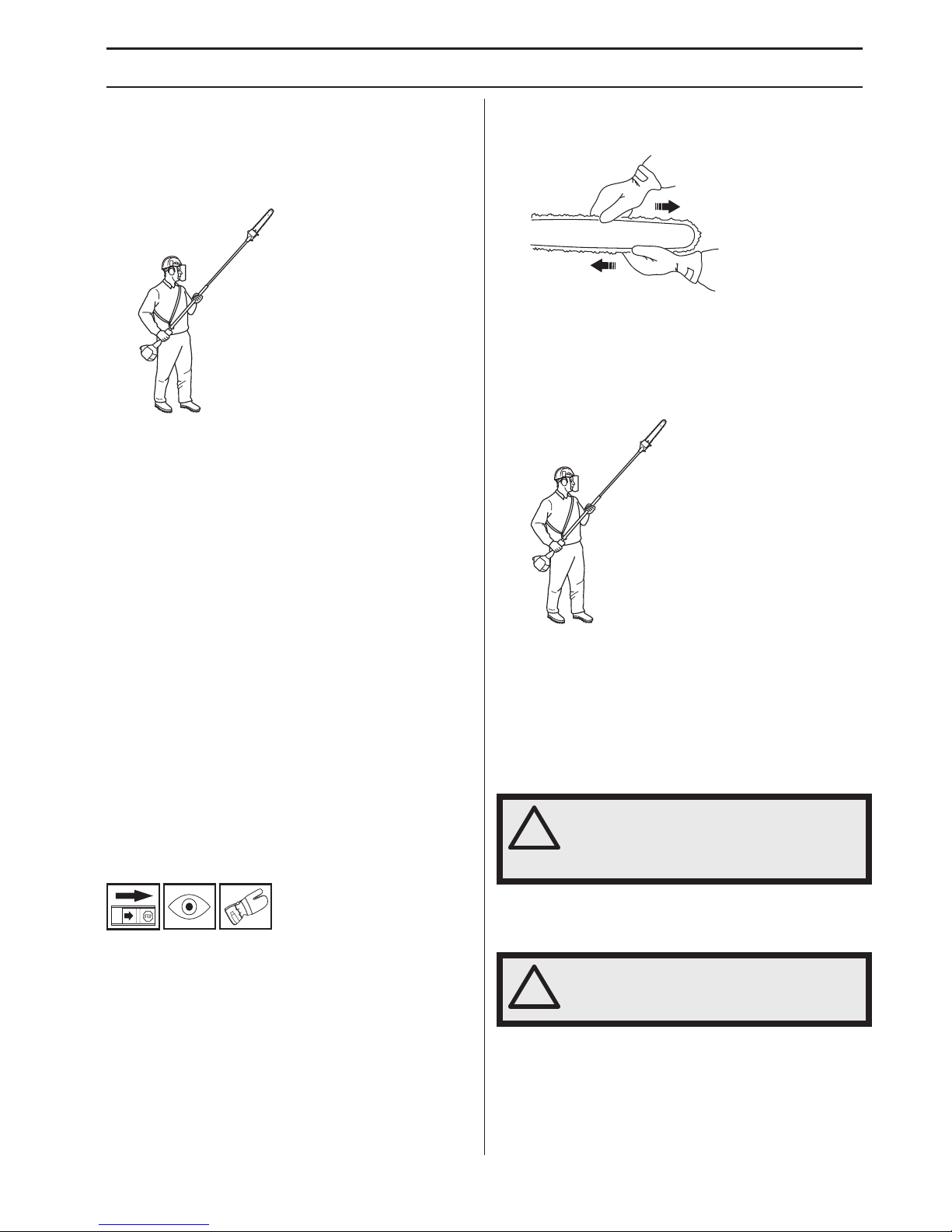

• Whenever possible position yourself so that you can
make the cut at right angles to the branch.
• Do not work with the shaft held straight out in front of
you (like a fishing rod) as this increases the apparent
weight of the cutting attachment.
• Cut large branches in sections so that you have better
control over where they fall.
• Never cut through the swelling at the root of the
branch as this will slow down healing and increase the
risk of fungal attack!
• Use the stop at the base of the cutting head to provide
support during cutting. This will help prevent the
cutting attachment from ”jumping” on the branch.
• Make an initial cut on the underside of the branch
before cutting through the branch. This will prevent
tearing of the bark, which could lead to slow healing
and cause permanent damage to the tree. The cut
should not be deeper than 1/3 of the branch thickness
to prevent jamming. Keep the chain running while you
withdraw the cutting attachment from the branch to
prevent it jamming.
• Use the harness to support the weight of the machine
and make it easier to handle.
!
WARNING! This machine is not
electrically insulated. If the machine
touches or comes close to high-voltage
power lines it could lead to death or
serious bodily injury. Electricity can
jump from one point to another by
arcing.The higher the voltage, the
greater the distance electricity can jump.
Electricity can also travel through
branches and other objects, especially if
they are wet. Always keep a distance of
at least 10 m between the machine and
high-voltage power lines and/or any
objects that are touching them. If have to
work within this safe distance you
should always contact the relevant
power company to make sure the power
is switched off before you start work.
!
WARNING! This machine has a long
reach. Make sure that no people or
animals come closer than 15 m when the
machine is running.
90°

SAFETY INSTRUCTIONS
English – 15
• Make sure you have a firm footing and that you can
work without being hampered by branches, stones
and trees.
!
WARNING! Never activate the throttle
without having the cutting attachment in
full view.

ASSEMBLY
16 – English
Fitting the cutting head
•Fit the cutting head on the shaft so that the screw (A)
is aligned with the hole in the shaft as shown.
• Tighten screw A.
• Tighten screw B.
CAUTION! Make sure that the drive shaft inside the shaft
engages with the cut-out in the cutting head.
Fitting the bar and chain
•Unscrew the bar nut and remove the protective cover.
• Fit the bar over the bar bolt. Place the bar in its
rearmost position. Place the chain over the drive
sprocket and in the groove on the bar. Begin on the
top side of the bar.
• Make sure that the edges of the cutting links are
facing forward on the top edge of the bar.
• Fit the cover and locate the chain adjuster pin (A) in
the hole in the bar. Check that the drive links of the
chain fit correctly on the drive sprocket (B) and that
the chain is in the groove in the bar (C). Tighten the
bar nut finger-tight.
• Tension the chain by turning the chain tensioning
screw clockwise using the combination spanner. The
chain should be tensioned until it does not sag from
the underside of the bar.
• The chain is correctly tensioned when it does not sag
from the underside of the bar, but can still be turned
easily by hand. Hold up the bar tip and tighten the bar
nuts with the combination spanner.
• When fitting a new chain, the chain tension has to be
checked frequently until the chain is run-in. Check the
chain tension regularly. A correctly tensioned chain
ensures good cutting performance and long life.
Fitting the suspension ring
Fit the suspension ring between the rear handle and the
loop handle.Position the hanging ring so that the machine
is balanced and comfortable to work with.
Adjusting the harness
You should always use the harness with the machine to
give maximum control over the machine and reduce the
risk of fatigue in your arms and back.
• Put on the harness.
• Hook the machine onto the harness support hook.
• Adjust the length of the harness so that the support
hook is roughly level with your right hip.
A
B
A
B

ASSEMBLY
English – 17
Filling with oil
• Open the cap on top of the bar head
• Fill with Husqvarna saw chain oil.
• Refit the cap.
Check before starting
• Inspect the working area. Remove any objects that
could be thrown out.
• Check the cutting attachment. Never use blunt,
cracked or damaged equipment.
• Check that the machine is in perfect working order.
Check that all nuts and screws are tight.
• Make sure the chain is adequately lubricated. See
instructions under the heading Lubricating the cutting
attachment.
• Check that the cutting attachment always stops when
the engine is idling.
• Only use the machine for the purpose it was intended
for.
• Make sure the handle and safety features are in order.
Never use a machine that has any parts missing or
has been modified in relation to the specification.

18 – English
TECHNICAL DATA
Technical data
Note 1 Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/
EC. Reported sound power level for the machine has been measured with the original cutting attachment that gives the
highest level.The difference between guaranteed and measured sound power is that the guaranteed sound power also
includes dispersion in the measurement result and the variations between different machines of the same model
according to Directive 2000/14/EC.
Note 2: Reported data for equivalent sound pressure level for the machine has a typical statistical dispersion (standard
deviation) of 1 dB (A).
Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s2.
Guide bar and saw chain combinations
The following combinations are CE approved.
Technical data Saw attachment with shaft PA
1100
Lubrication system
Oil tank capacity, litre 0,15
Weight
Weight without fuel, cutting attachment and guard, kg 1,4
Noise emissions
(see note 1)
Sound power level, measured dB (A) 110
Sound power level, guaranteed LWA dB (A) 111
Sound levels
(see note 2)
Equivalent sound pressure level at the operator’s ear, measured
according to EN ISO 11806 and ISO 22868, dB(A):
Equipped with approved accessory (original) 94
Vibration levels
(see note 3)
Vibration levels at handles, measured according to EN ISO 22867, m/s2
Equipped with approved accessory (original), left/right 3,5/4,6
Guide bar Saw chain
Length, inch Pitch, inch
10 1/4 Husqvarna H00
12 1/4

English – 19
TECHNICAL DATA
EC Declaration of Conformity (Applies to Europe only)
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel [phone], declare that this saw attachment from 2014’s
serial numbers and onwards (the year is clearly stated in plain text on the type plate, with subsequent serial number),
complies with the requirements of the COUNCIL’S DIRECTIVE:
of May 17, 2006 ”relating to machinery” 2006/42/EC.
The following standards have been applied: EN ISO 12100:2010, ISO 11680-1:2011
Notified body: 0404, SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has carried out EC
type examination in accordance with the machinery directive’s (2006/42/EC) article 12, point 3b.The certificates for EC
type examination in accordance with annex VI, have the numbers:
0404/14/2394
Huskvarna 13 March, 2014
Per Gustafsson, Development manager (Authorized representative for Husqvarna AB and responsible for technical
documentation.)
D
2
L
_
D
PITCH =

SIMBOLOGIA
20 – Italian
Simboli
AVVERTENZA! Se utilizzata in modo
improprio o non corretto, la macchina
può essere un attrezzo pericoloso in
grado di provocare gravi lesioni o morte
dell’operatore , o di altre persone.
Prima di usare la macchina,
leggere per intero le istruzioni per
l’uso e accertarsi di averne
compreso il contenuto.
Usare sempre:
• Casco di protezione laddove
sussiste il rischio di caduta di oggetti
• Protezioni acustiche omologate
• Occhiali o visiera di protezione
Il presente prodotto è conforme alle
vigenti direttive CEE.
Questa macchina non è isolata
elettricamente. Se la macchina
viene a trovarsi a contatto o
nelle vicinanze di cavi
conduttori di tensione si può
incorrere in lesioni gravi o
mortali. L’elettricità può essere
condotta da un punto all’altro
tramite un cosiddetto arco di
tensione. Più la tensione è alta,
maggiore è lo spazio attraverso
il quale è possibile condurre
l’elettricità. L’elettricità può anche essere condotta tramite
rami o altri oggetti, particolarmente se bagnati.
Mantenere sempre una distanza di almeno 10 m fra la
macchina e il cavo conduttore di tensione e/o l’oggetto
che si trova a contatto con esso. Se siete obbligati a
lavorare con una distanza di sicurezza inferiore,
contattare sempre l’azienda distributrice dell’energia per
assicurarvi che la tensione sia staccata al momento in cui
date inizio al lavoro.
Utilizzare sempre guanti protettivi
omologati.
Usare stivali robusti e antisdrucciolo.
I restanti simboli/decalcomanie riguardano
particolari requisiti necessari per ottenere la
certificazione in alcuni mercati.
Il controllo e/o la manutenzione
vanno eseguiti a motore spento, con
il pulsante di arresto in posizione
STOP.
Utilizzare sempre guanti protettivi
omologati.
E’ necessario pulire con regolarità.
Controllo visivo.
Usare sempre occhiali o visiera di
protezione.
Rifornimento e regolazione del flusso
dell’olio
