REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

21
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

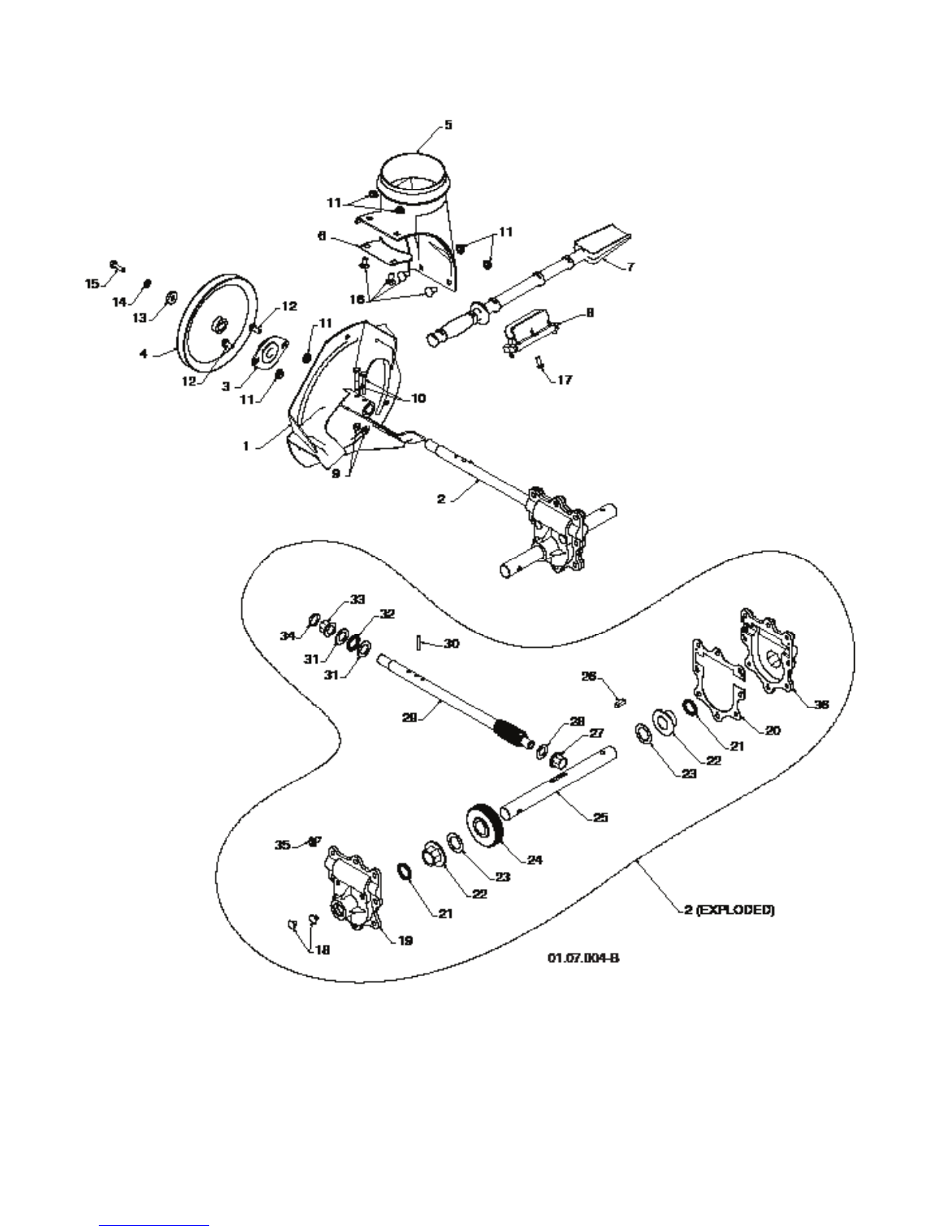

1 532 18 41-05 IMPELLER
2 532 19 67-10 GEARBOX ASSEMBLY
3 532 18 89-09 BEARING
4 532 19 10-79 IMPELLER PULLEY
5 532 17 53-22 DISCHARGE BASE
6 532 18 40-95 CORNER BRACKET
7 532 19 21-99 CLEAN OUT TOOL
8 532 40 54-00 TOOL CLIP
9 873 80 04-00 NUT 1/4−20
10 874 78 04-26 SCREW 1/4−20 X .625
11 532 15 53-77 NUT 5/16−18
12 532 16 31-83 SCREW 5/16−18 X .625
13 819 11 15-07 WASHER
14 810 04 05-00 LOCKWASHER 5/16
15 874 94 05-16 SCREW 5/16−18 X 1.00
16 532 18 03-55 CARRIAGE BOLT
17 532 19 41-89 SCREW 13−16 X .625
18 532 40 77-60 PLUG
19 532 40 77-61 GEARBOX COVER RH
20 532 40 77-66 GASKET
21 532 40 77-70 SEAL
22 532 40 77-62 BEARING
23 532 17 46-97 THRUST WASHER 1.00
24 532 40 77-63 WORM GEAR
25 532 40 77-64 AUGER SHAFT
26 532 18 92-82 SQUARE KEY
27 532 40 77-58 BEARING
28 532 17 46-83 THRUST WASHER
29 532 40 77-57 IMPELLER SHAFT
30 532 18 42-05 ROLL PIN
31 532 17 46-81 THRUST WASHER
32 532 17 46-84 THRUST BEARING
33 532 40 77-69 BEARING
34 532 40 77-68 O−RING
35 532 40 77-67 SCREW 5/16−18 X .750
36 532 40 77-65 GEARBOX COVER LH
KEY PART
NO. NO. DESCRIPTION

22
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

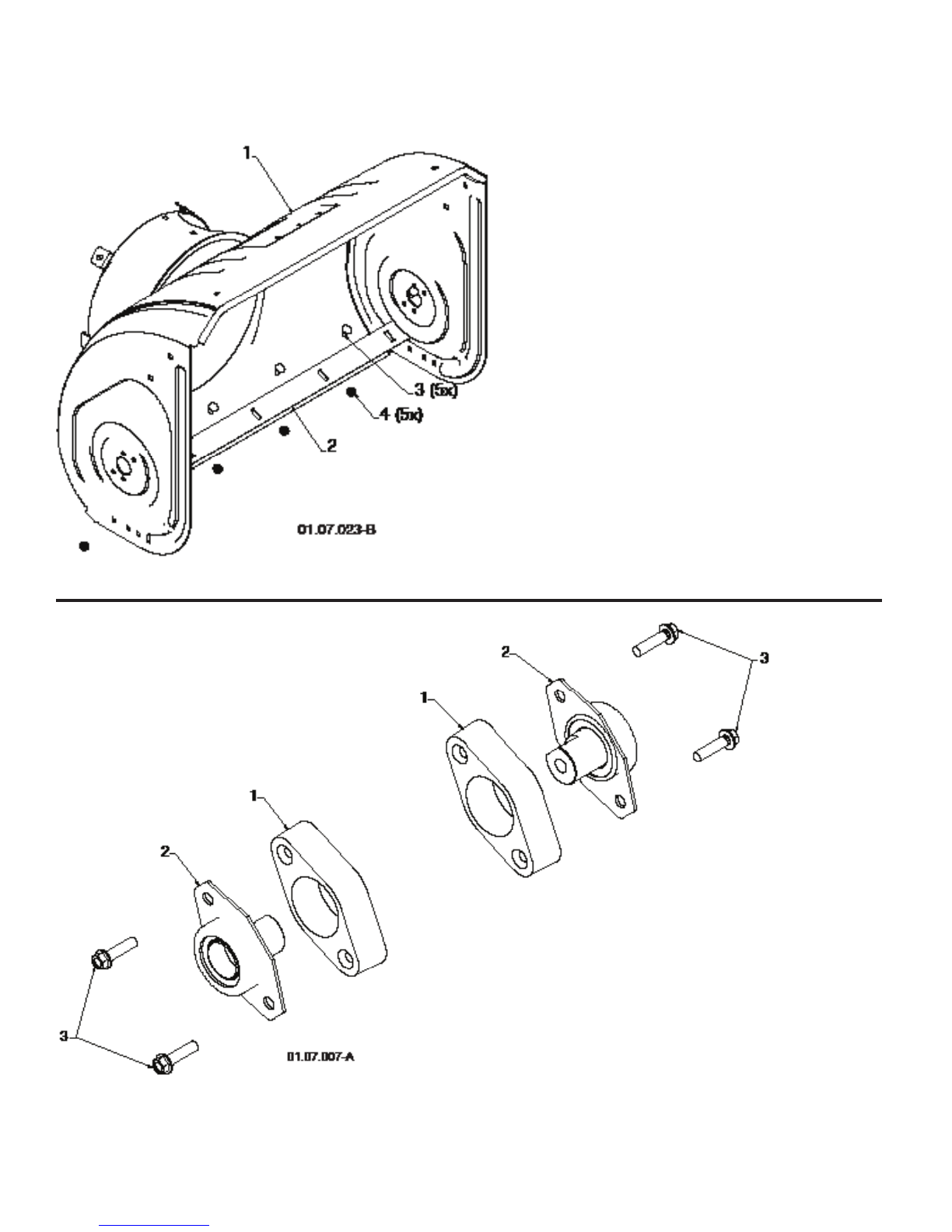

1 532 42 17-13 AUGER HOUSING
2 532 40 76-45 SCRAPPER BAR
3 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
4 532 15 53-77 NUT 5/16−18
1 532 18 81-70 PLASTIC RETAINER
2 532 41 18-33 AUGER BALL BEARING
3 532 17 95-82 SCREW 5/16−18 X 1.00

23
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
1
2
3
3
2
01.11.002-A

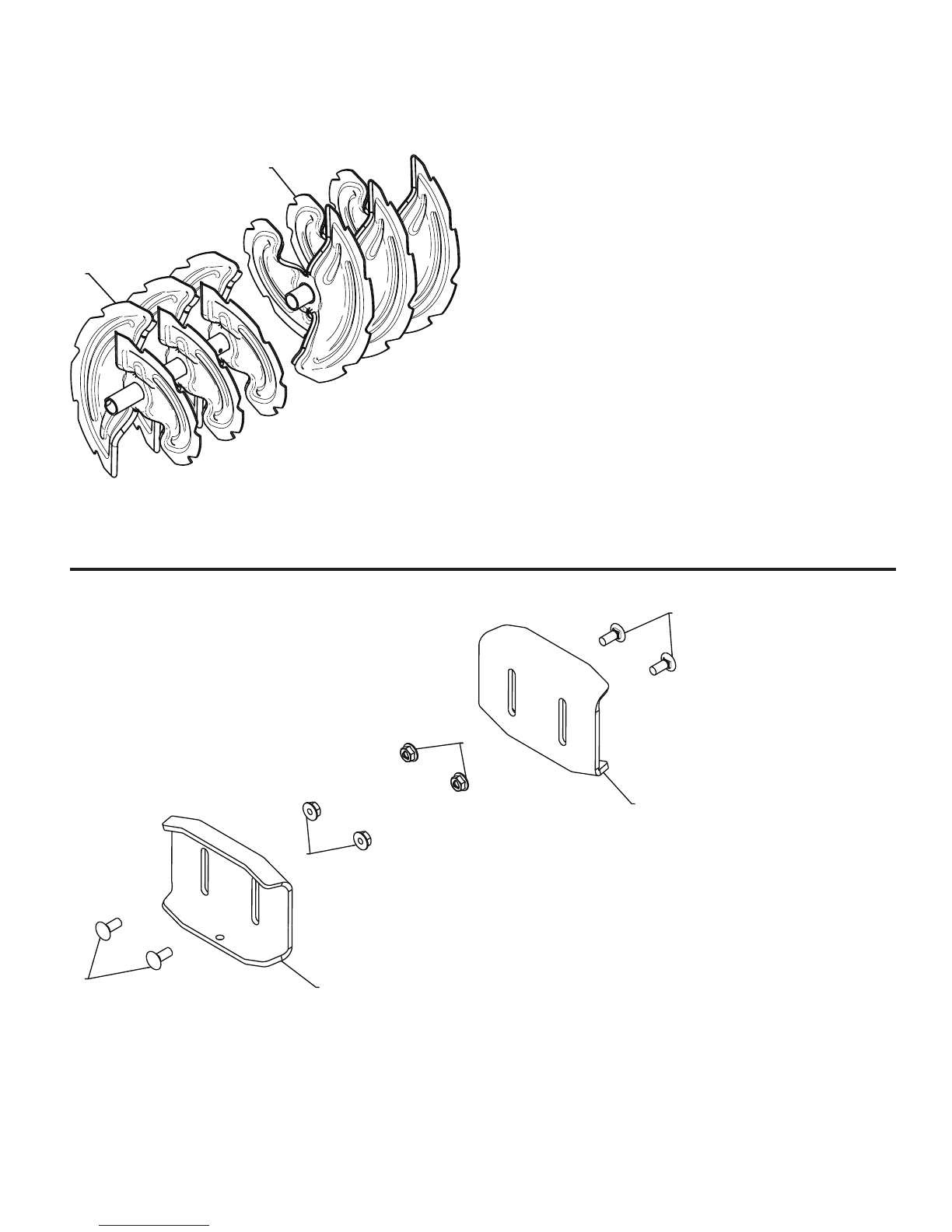

1 532 40 78-34 SKID PLATE
2 872 27 05-06 CARRIAGE BOLT 5/16−18 X .750
3 532 75 11-53 NUT 5/16−18
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
01.07.016-A
1 532 42 17-26 AUGER ASSEMBLY 30 LH
2 532 42 17-27 AUGER ASSEMBLY 30 RH

24
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
1
2
5
34
34
1
2
53
4
3
4
01.16.001-A

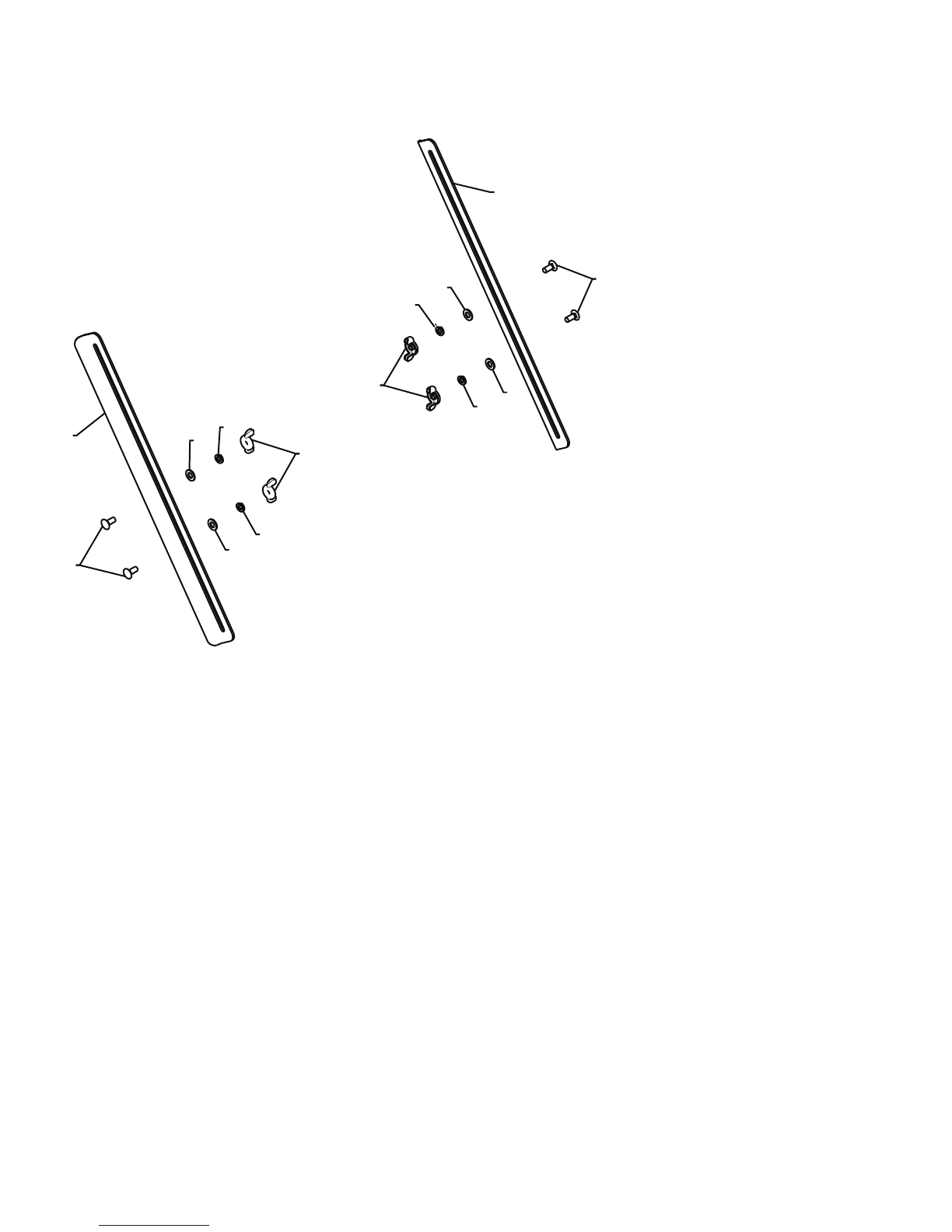

1 532 18 47-47 DRIFT CUTTER BAR
2 872 27 05-06 CARRIAGE BOLT 5/16−18 X .750
3 532 17 92-46 PLASTIC WASHER
4 810 04 05-00 LOCKWASHER 5/16
5 532 12 86-38 NUT 5/16−18

25
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
46
6
*13
*14
*10
*11
*15
6
8
9
*12
3
5
7
16
17
6
6
18 19
19
01.09.006-C

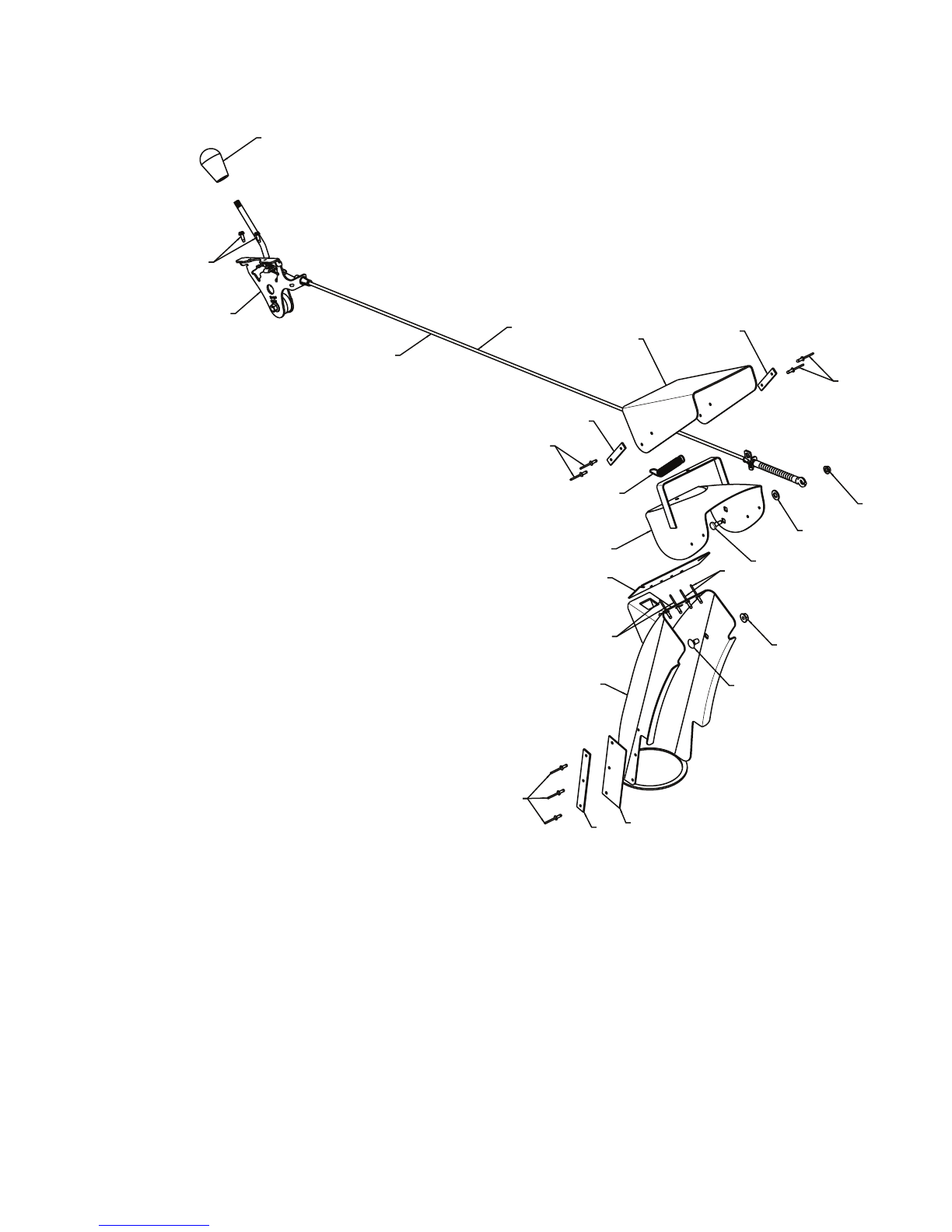

1 532 42 17-14 CHUTE WELDMENT
2 532 18 41-13 DEFLECTOR WELDMENT
3 532 42 11-63 DEFLECTOR CONTROL ASSEMBLY
4 532 42 03-25 DEFLECTOR SEAL
5 532 41 42-80 KNOB BLACK
6 532 12 84-15 POP RIVET
7 817 50 10-10 SCREW 10−24 X .625
8 532 41 98-21 CHUTE SNOW SHIELD
9 532 42 17-28 SHIELD RETAINER STRAP
*10 532 17 98-29 SHOULDER BOLT 1/4−20 X .375
*11 532 17 92-46 PLASTIC WASHER
*12 532 19 17-30 NUT 1/4−20
*13 872 25 05-05 CARRIAGE BOLT 3/8−16 X .625
*14 532 75 11-53 NUT 5/16−18
*15 532 18 45-05 DEFLECTOR SPRING
16 532 42 06-79 (SERVICE PART) DEFLECTOR CONTROL
17 532 42 11-64 (SERVICE PART) DEFLECTOR CABLE GRAY
18 532 42 11-38 DEFLECTOR SHIELD
19 532 42 32-47 DEFLECTOR SHIELD STRAP

26
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
2
*3 *6
*6
*4 *5
01.09.008-B

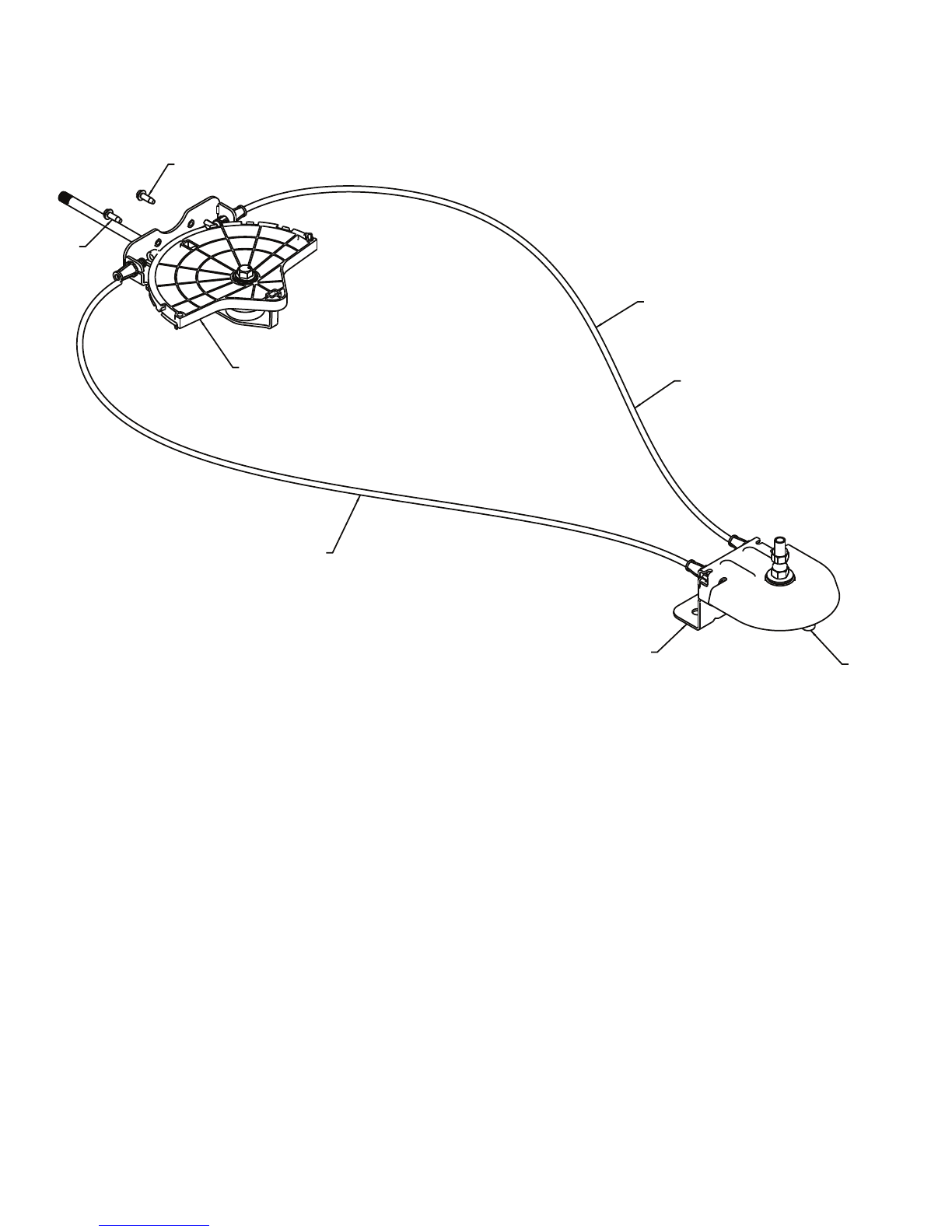

1 532 42 11-60 LEVER/CABLE ROTATOR ASSEMBLY GRAY
2 817 50 10-10 SCREW 10−24 X .625
*3 532 42 06-78 ROTATOR HEAD
*4 532 42 11-61 ROTATOR PIVOT BRACKET
*5 532 42 06-75 PULLEY PIVOT
*6 532 42 11-62 CABLE ASSEMBLY GRAY
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

27
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
4
5
6
7
7
8
10
11
14
14
12
13
13
12
2
3
9
9
8
01.08.012-A
1 532 41 55-39 CONTROL PANEL
2 532 42 17-06 CONTROL LEVER LH
3 532 42 17-07 CONTROL LEVER RH
4 532 41 55-46 TRACTION ROD ARM
5 532 42 14-92 IMPELLER ROD ARM
6 532 41 26-77 INTERLOCK ROD
7 532 41 26-80 SPACER
8 532 16 96-75 RETAINER
9 817 06 04-08 SCREW 1/4−20 X .50
10 532 41 42-80 KNOB BLACK
11 532 41 42-81 KNOB RED
12 532 17 88-99 HANDLE KNOB
13 819 13 13-16 WASHER 3/8
14 872 12 06-18 CARRIAGE BOLT 3/8−16 X 2.25

28
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
6
67
7
8
8
8
9
9
5
5
10
10
01.08.011-A
1 532 42 17-08 PLOW HANDLE LH
2 532 42 17-09 PLOW HANDLE RH
3 532 19 69-44 PANEL BRACKET LH
4 532 19 69-43 PANEL BRACKET RH
5 532 41 45-15 HEATED HANDLE GRIP
6 874 78 05-12 SCREW 5/16−18 X .750
7 874 78 05-24 SCREW 5/16−18 X 1.50
8 532 75 11-53 NUT 5/16−18
9 532 15 54-15 WASHER
10 532 17 87-75 POP RIVET 1/8

29
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

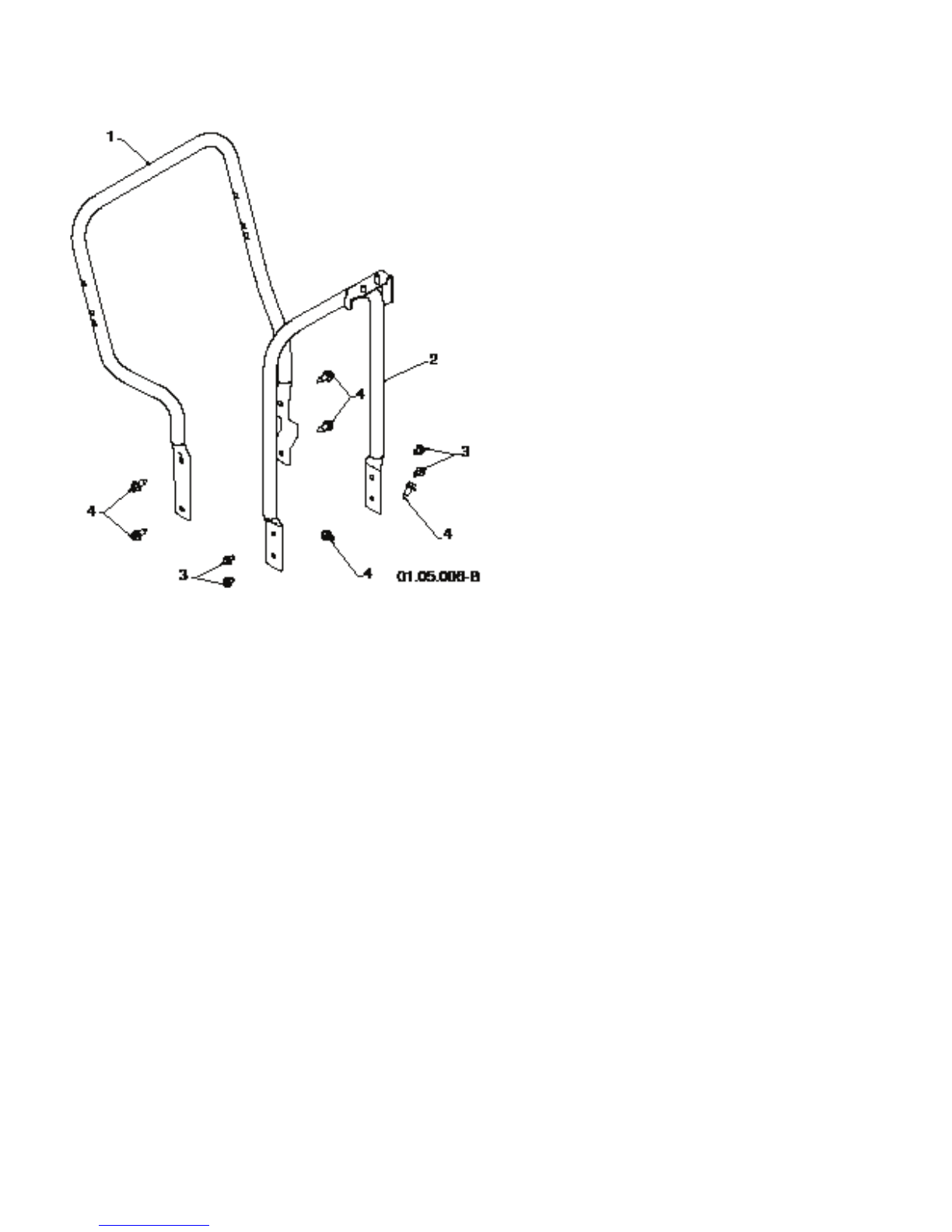

1 532 42 17-05 LOWER TUBE PNT
2 532 40 76-43 PIVOT SUPPORT
3 532 15 00-78 HEXHEAD SCREW .3125−18
X .75
4 817 00 06-16 HEXHD FLG CAPSCREW 3/8
X 1.0 TT

30
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
3
4
5
6
5
7
8
10
10
10
2
9
11
12
13
14
15
16
17
17
18
18
18
19
19
19
01.12.006-C
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
01.15.008-A
1 532 42 12-31 STEER CABLE
2 874 04 10-24 SCREW 10−24 X 1.50
1 532 18 04-80 IMPELLER ROD ASSEMBLY
2 532 40 57-40 TRACTION ROD ASSEMBLY
3 532 18 04-45 SHIFTER ROD TOP
4 532 18 77-16 SHIFTER ROD BOTTOM
5 532 18 04-47 SPRING SLEEVE
6 532 17 86-69 IMPELLER SPRING
7 532 18 09-26 TRACTION SPRING
8 872 27 05-06 CARRIAGE BOLT 5/16−18 X .750
9 532 15 53-77 NUT 5/16−18
10 532 16 96-75 RETAINER
11 532 40 33-00 CLUTCH ROD
12 532 40 32-15 REAR PLATE
13 532 40 30-96 SHIFTER PLATE BRACKET
14 532 41 67-17 CLUTCH PLATE BRACKET
15 532 40 28-56 CLUTCH PLATE
16 532 40 30-97 SHIFTER PLATE
17 532 15 00-78 BOLT 5/16−18 X .750
18 532 40 28-81 SHOULDER BOLT 1/4−20 X .500
19 532 19 17-30 NUT 1/4−20

31
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
601.08.007-B
1 532 41 62-88 INTERLOCK SPRING
2 532 41 45-72 INTERLOCK CAM
3 532 17 88-31 TORSION SPRING
4 532 16 96-75 RETAINER
5 817 06 04-10 SCREW 1/4−20 X .625
6 532 42 12-52 INTERLOCK STOP
1 532 42 13-51 CONSOLE PANEL GRAY
2 532 42 14-48 HEADLIGHT BEZEL GRAY
3 532 17 86-66 HALOGEN HEADLIGHT
4 532 18 44-71 SHOULDER SCREW 10−24 X .625
5 532 17 52-62 SCREW 10−24 X 1.25
6 532 41 77-60 GRIP SWITCH
7 532 40 56-99 WIRE HARNESS
8 532 40 16-20 BULB

32
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

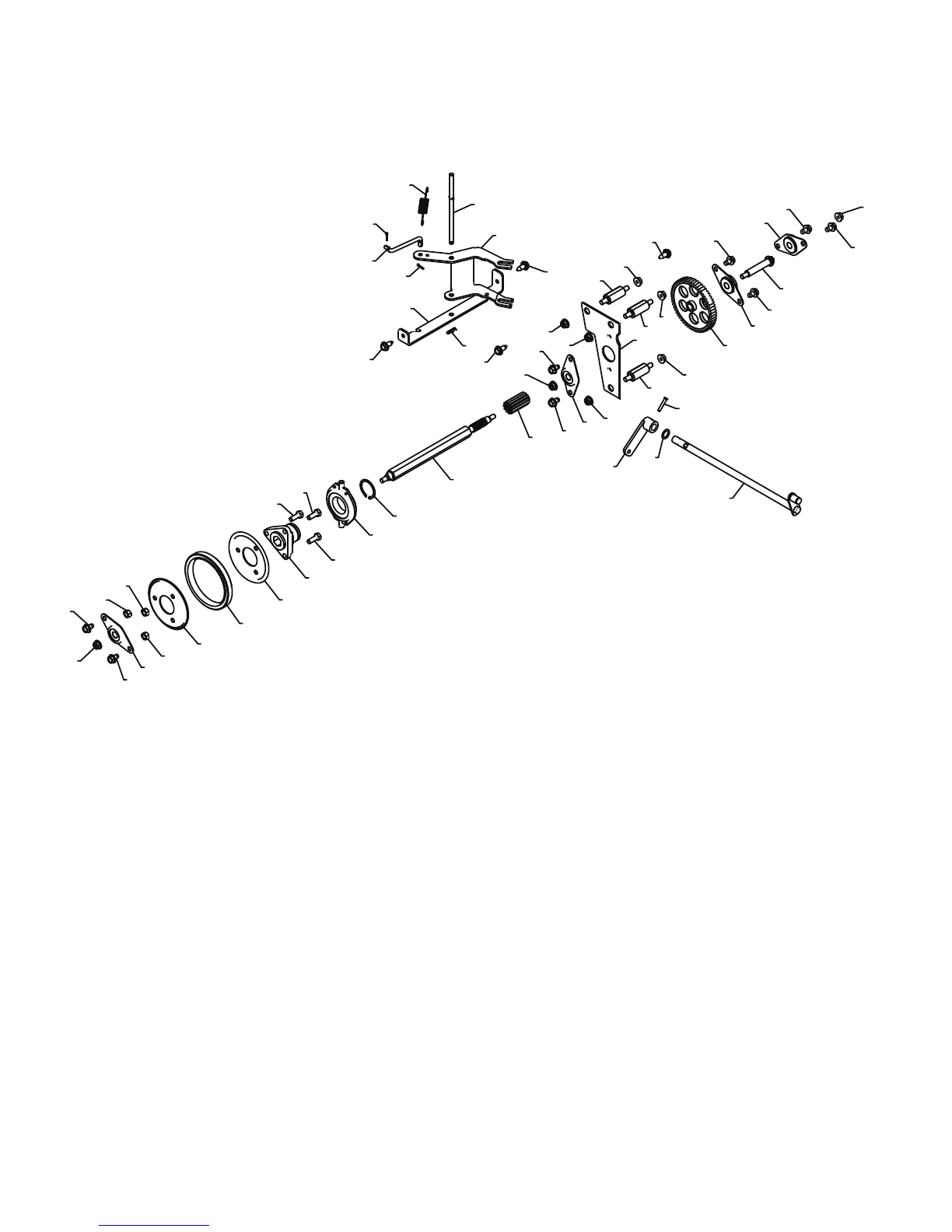

01.02.001-G_Sheet_2
1
2
2
3
4
5
67
7
8
7
9
10
11
12
13
14 15
15
16
17
8
17
18 19 20
21
26
23
27
22
13
45 24
25
28
33
32
30
31
29
14
15
15
34
35
36
37
38
39
41
20
32
40
43
41
20
32
42
44

33
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 532 19 84-74 SPEED SELECTOR HEAD ASSEMBLY
2 817 50 10-10 SCREW 10−24 X .625
3 532 19 77-63 DRIVE PLATE WELDMENT
4 532 19 77-64 HEX SHAFT
5 532 17 53-44 TRUNNION BEARING ASSEMBLY
6 812 00 00-12 RETAINER
7 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
8 532 18 89-09 FLANGE BEARING
9 532 18 25-04 SPACER
10 532 18 40-77 LEVER SHIFTER PLATE
11 532 18 40-76 SHIFTER SUPPORT BRACKET
12 532 17 86-95 PIN
13 532 08 51-79 RETAINER
14 817 49 04-08 SCREW 1/4−20 X .500
15 817 49 05-08 BOLT 5/16−18 X .500
16 532 18 40-75 DRIVE MOUNT PLATE
17 532 15 53-77 NUT 5/16−18
18 532 19 10-80 TRACTION PULLEY
19 819 11 15-07 WASHER
20 810 04 05-00 LOCKWASHER 5/16
21 874 95 05-12 SCREW 5/16−18 X .750
22 532 41 99-25 IDLER BRAKE ARM
23 532 18 05-23 IDLER PULLEY
24 532 18 40-74 IDLER PIVOT BRACKET
25 532 17 53-30 PIN
26 874 78 05-24 SCREW 5/16−18 X 1.50
27 532 16 67-85 NUT 5/16−18
28 532 18 10-44 TRACTION SPRING
29 532 17 93-54 IDLER TRACTION ARM
30 532 18 05-22 IDLER PULLEY
31 874 78 05-20 SCREW 5/16−18 X 1.25
32 532 05 92-89 WASHER
33 873 93 05-00 NUT 5/16−18
34 532 85 10-84 SCREW 3/8−24 X 1.38
35 532 85 02-63 LOCKWASHER 3/8
36 532 40 00-26 WASHER
37 532 18 04-78 ENGINE TRACTION PULLEY
38 532 40 94-75 SPACER
39 532 17 90-95 RETURN SPRING
40 532 15 54-52 BELT GUIDE
41 874 61 05-16 SCREW 5/16−18 X 1.00
42 532 17 53-31 BUSHING
43 811 05 05-00 LOCKWASHER 5/16
44 532 17 88-28 BRAKE SPRING
KEY PART
NO. NO. DESCRIPTION

34
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
01.02.001-G_Sheet_1
1
2
1
345
6
5
7
8
9
10
11
12 12
3
2
1
28
2
2
14
13
14
14
2
2
2
28
15
3
1
1
16
3
1
1
2
20
17 18
19
4
4
8
8
23
24
27
25
27
21
28
28
22
26
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 817 49 05-08 BOLT 5/16−18 X .500
2 532 75 11-53 NUT 5/16−18
3 532 18 00-17 FLANGE BEARING
4 873 93 05-00 NUT 5/16−18
5 532 19 81-76 RUBBER WHEEL PLATE
6 532 17 98-31 RUBBER WHEEL RING
7 532 17 86-13 RUBBER WHEEL HUB
8 874 76 05-14 BOLT 5/16−18 X .875
9 532 17 53-44 TRUNNION BEARING
ASSEMBLY
10 812 00 00-12 RETAINER
11 532 18 00-66 HEX SHAFT
12 532 18 00-65 PINION GEAR
13 532 19 26-16 AUXILIARY PLATE
14 532 17 92-70 SPACER PLATE
15 532 18 00-82 INTERMEDIATE GEAR
16 532 18 01-34 AUXILIARY SHAFT
17 532 40 54-85 CONTROL ARM
18 532 05 70-79 WASHER
19 532 40 61-09 CONTROL SHAFT ASSEMBLY
20 532 19 85-80 CLEVIS PIN
21 532 17 86-19 SHIFTER LEVER
22 532 18 69-51 PIVOT BRACKET
23 532 17 88-07 PIVOT PIN
24 532 18 01-35 SPRING
25 532 18 71-01 SHIFTER LINK
26 532 08 51-79 RETAINER
27 532 70 02-79 CLIP
28 532 15 00-78 BOLT 5/16−18 x .750

35
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1a
1b
1b
4
3
3
4
6
7
7
8
5
6
2
01.03.001-A
1 532 40 49-23 (assy of 1a,1b) AXLE ASSEMBLY
1a 532 40 43-07 AXLE SHAFT
1b 532 18 42-06 ROLL PIN 3/16
2 532 18 00-81 GEAR
3 532 17 46-97 THRUST WASHER
4 532 17 98-30 AXLE BEARING
5 532 14 63-15 SCREW 5/16−18 X .625
6 817 49 05-08 BOLT 5/16−18 X .500
7 532 15 54-43 CLIK PIN
8 532 18 92-82 SQUARE KEY

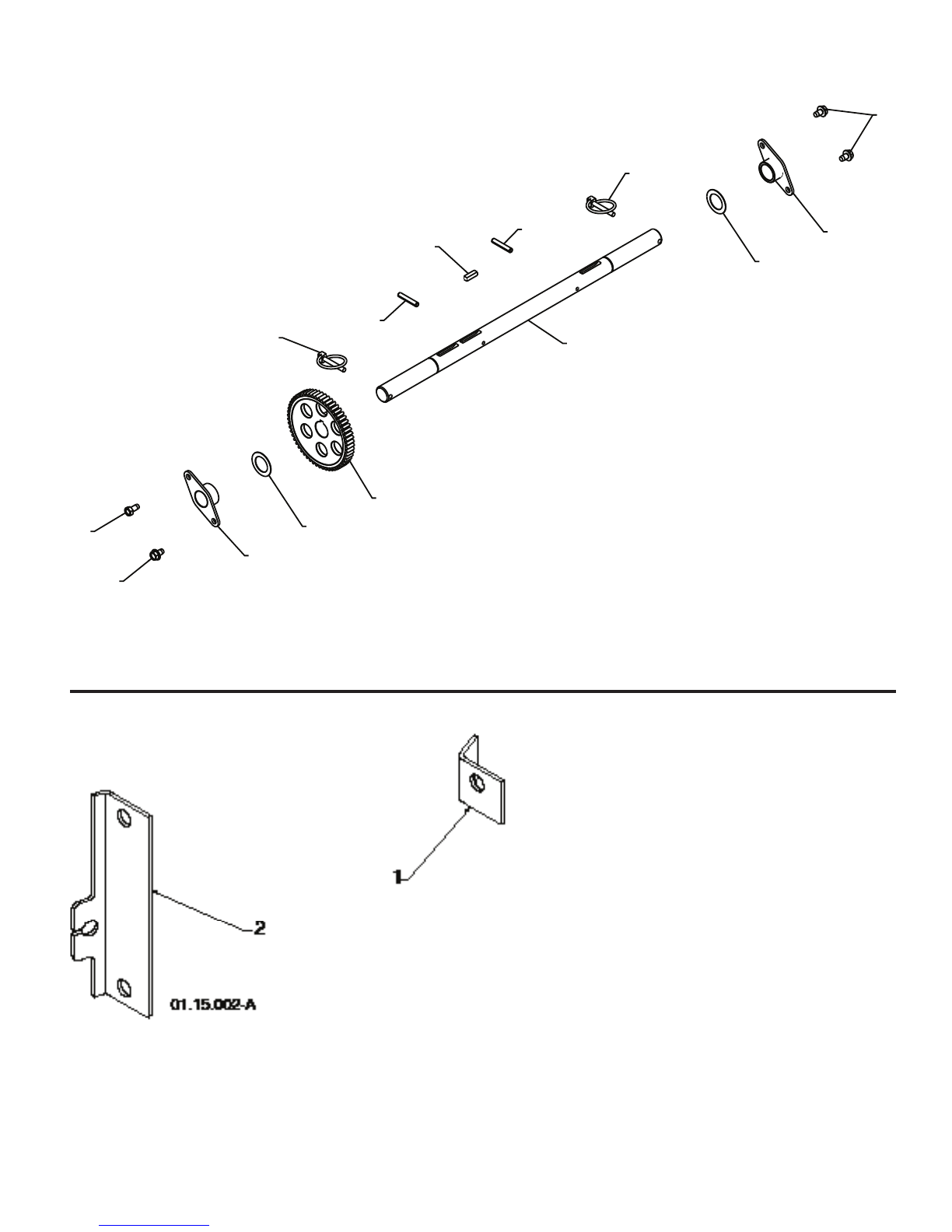

1 532 41 52-63 STEER CABLE BRACKET LH
2 532 18 78-59 STEER CABLE BRACKET RH

36
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29

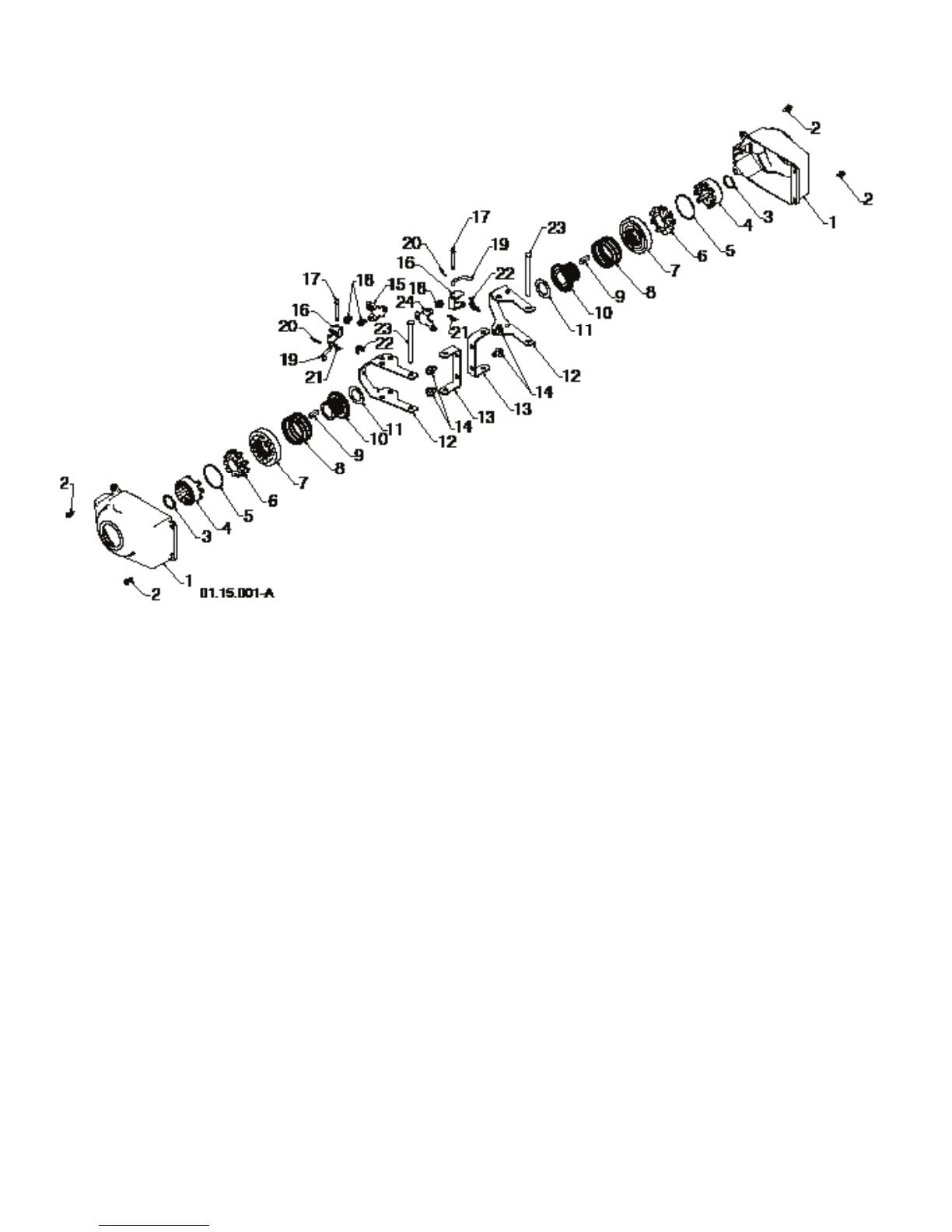

1 532 40 51-61 COVER
2 532 18 44-71 SHOULDER SCREW
3 812 00 00-45 RETAINER RING
4 532 19 21-26 WHEEL DRIVER
5 532 18 24-66 RETAINER RING
6 532 18 76-22 WHEEL LOBE
7 532 19 49-41 CLUTCH SLIDE
8 532 17 91-39 SPRING
9 532 18 92-82 SQUARE KEY
10 532 19 49-40 AXLE LOBE
11 532 17 46-97 THRUST WASHER
12 532 19 95-19 STEERING YOKE
13 532 18 41-97 STEERING BRACKET
14 817 49 05-08 SCREW 5/16−18 X .50
15 532 19 95-11 PIVOT BRACKET
16 532 19 95-18 BELLCRANK
17 532 18 18-47 BELLCRANK PIN
18 817 60 04-06 SCREW 1/4−20 X .375
19 532 40 50-77 STEERING LINK
20 532 70 02-79 RETAINER
21 532 08 51-79 RETAINER
22 532 19 38-85 SPRING
23 532 18 20-15 LEVER PIN
24 532 19 95-12 PIVOT BRACKET

37
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
- - - - - - - ENGINE TEC MODEL LH358SA-159648A

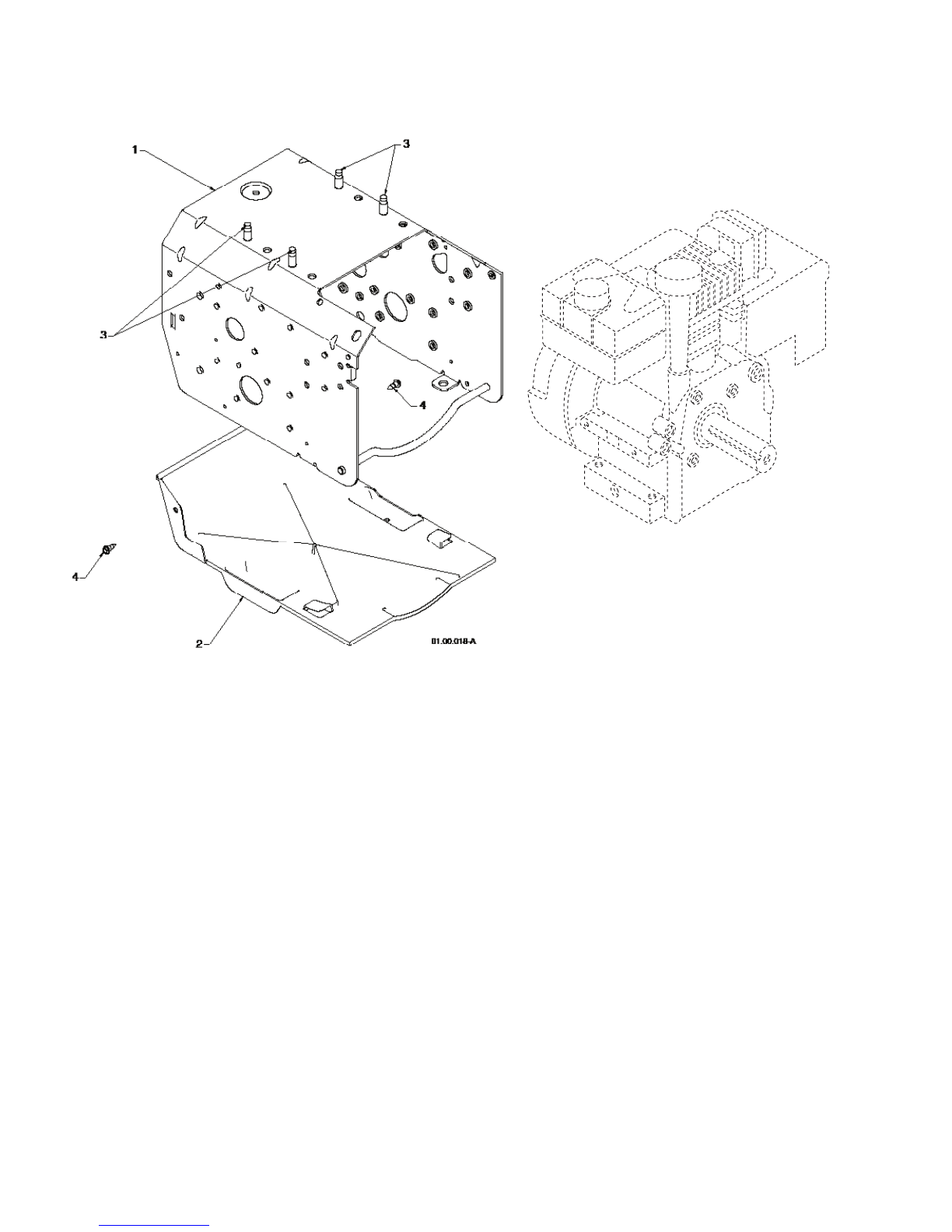

1 532 41 61-55 FRAME
2 532 41 08-77 BOTTOM PAN
3 532 15 04-06 BOLT 3/8−16
4 532 18 44-71 SCREW 10−24 X .625

38
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO.
1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

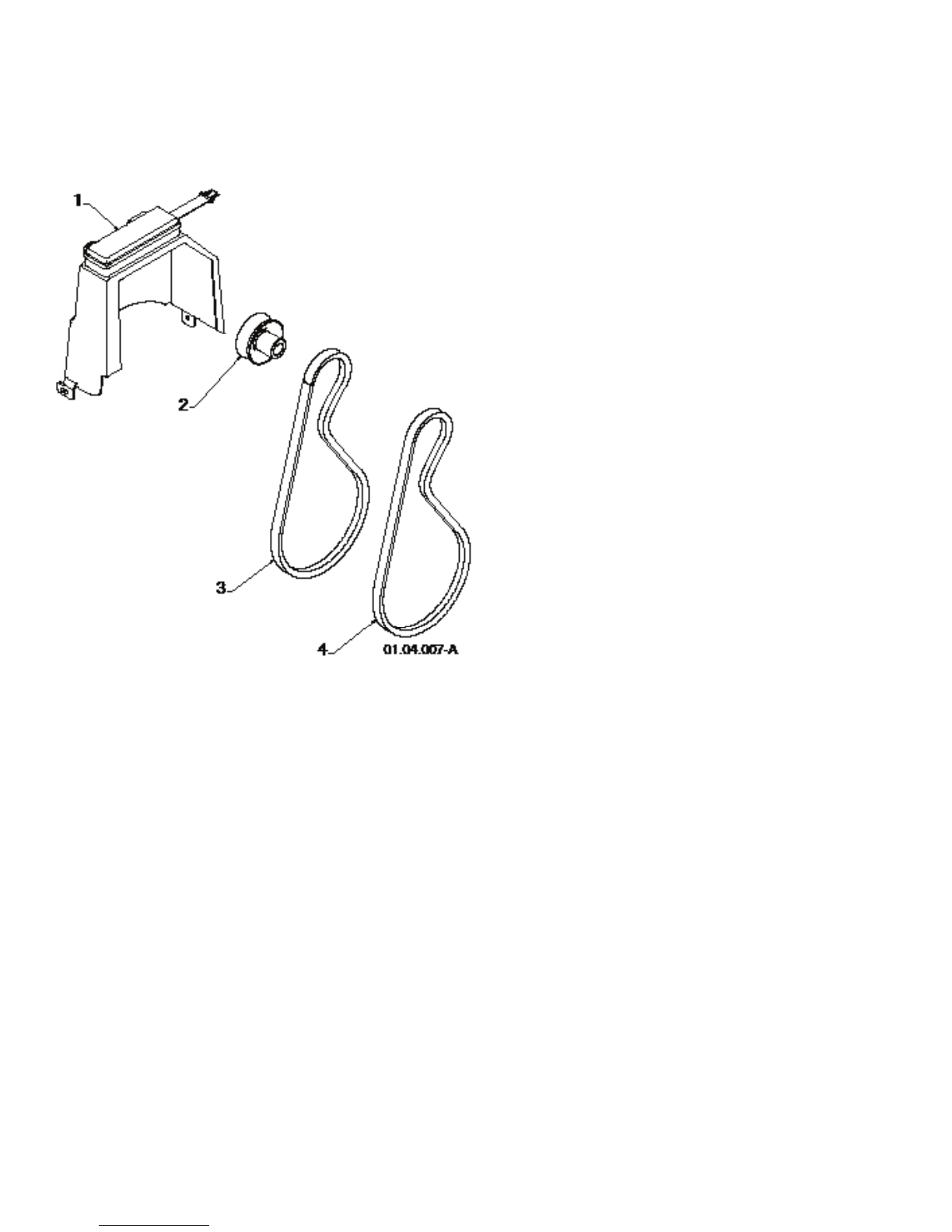

1 532 19 22-13 COVER ASSEMBLY
2 532 17 91-57 PULLEY
3 532 41 97-44 TRACTION BELT
4 532 40 80-10 IMPELLER BELT
