Repair Parts Manual
ST 224
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
Please read the owner's manual carefully and make sure you
understand the instructions before using the machine.

HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her snow
thrower when ordering repair parts. The illustrations may or may not represent the actual assemblies;
therefore, it is not recommended to use this manual as a guide to assemble or disassemble the snow
thrower. Some hardware and parts are drawn larger in order to more readily identify them.
Each snow thrower has its own model number.
The model and serial numbers will be found on a decal attached to the rear of the snow thrower housing.
When ordering parts, always give the following information:
• Product - “SNOW THROWER”
• MODEL NUMBER - “ST224" (96193009601)”
• Part Number
• Part Description
TABLE OF CONTENTS
AUGER HOUSING / IMPELLER ASSEMBLY ..........................................................3-6
CONTROL PANEL / DISCHARGE CHUTE............................................................7-12
HANDLES .................................................................................................................. 13
DRIVE....................................................................................................................14-16
CHASSIS / ENGINE / PULLEYS ..........................................................................17-19
WHEELS .................................................................................................................... 20
BAG OF PARTS......................................................................................................... 21
DECALS................................................................................................................22-23
ENGINE BREAKDOWN........................................................................................24-25
WARRANTY..........................................................................................................26-29

3
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
05.09.039-A
1
2
3
1 532 19 21-99 TOOL CLEANOUT
2 532 40 54-00 CLIP CLEANOUT TOOL
3 532 19 41-89 SCREW HEX WASHER 13-16
X 5/8
05.09.030-B
1
2
3
4
5X
5X

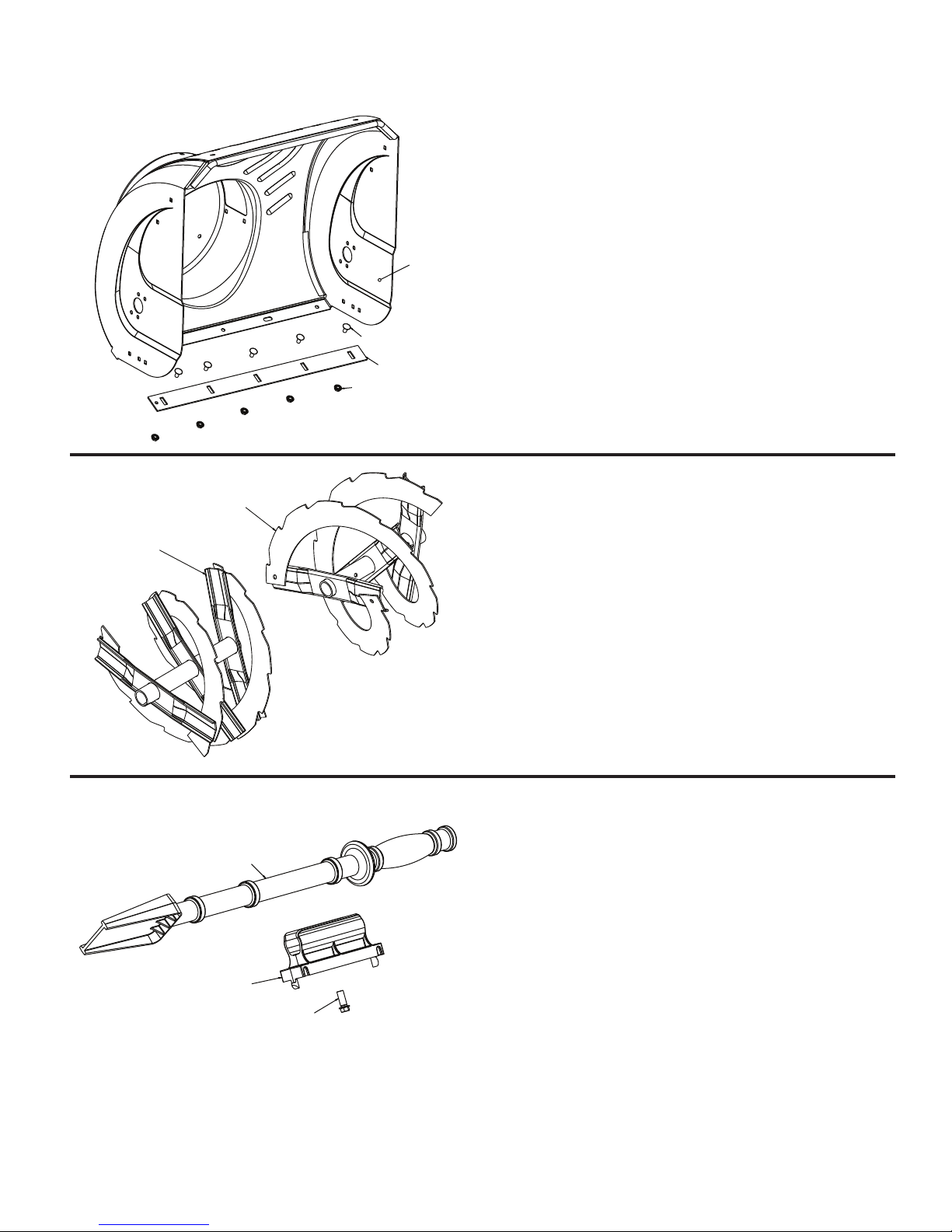

1 586 18 39-05 AUGER HOUSING
2 532 40 78-25 SCRAPER BAR
3 872 27 05-05 CARRIAGE BOLT 5/16-18 X
.625 GR5
4 532 15 53-77 NUT 5/16-18
1
2
05.09.005-C
1 532 42 10-72 AUGER WELD RIB LH 24
2 532 42 10-73 AUGER WELD RIB RH 24

4
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
11
1
2
3
4
5
6
6
6
7
7
7
9
9
8
8
12
13
13
13
13
14 14
14
14
05.09.009-D

5
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

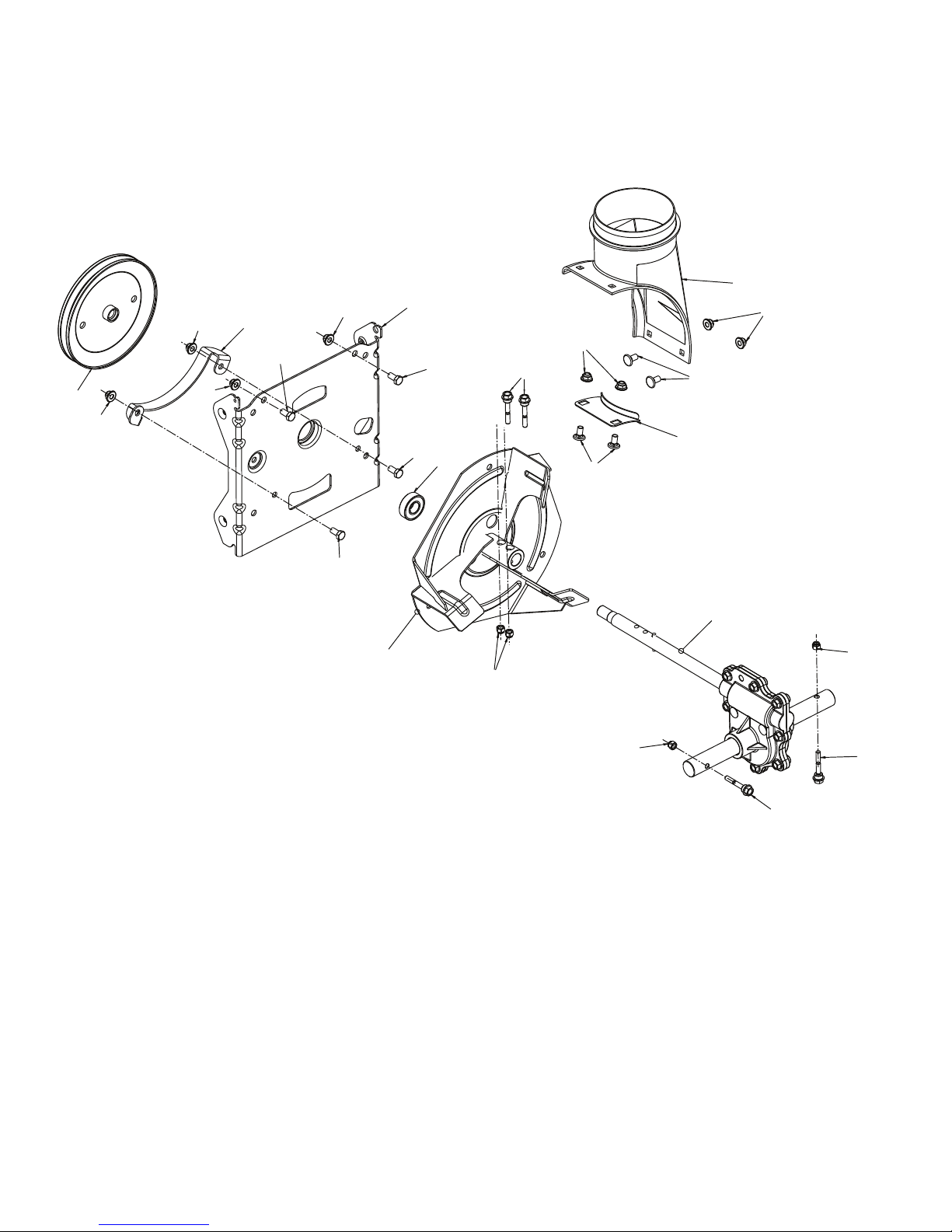

1 586 71 48-01 GEARBOX AUGER
2 586 60 72-02 IMPELLER STEEL
3 586 71 52-01 PULLEY IMPELLER SCREW ON
4 585 05 69-01 CHUTE DISCHARGE BASE
5 532 18 40-95 BRACKET CORNER DISCHARGE BASE
6 585 51 18-01 BOLT SHEAR 1/4-20
7 873 80 04-00 NUT NYLOCK 1/4-20
8 585 69 13-01 NUT FLANGE NYLOCK 5/16-18 - BLK
9 585 69 12-01 BOLT CARRIAGE WAFER HEAD 5/16-18 X 5/8 BLK
10 581 63 20-02 BRACKET BELT KEEPER LOWER
11 581 59 25-02 BRACKET INTERFACE
12 532 19 87-91 BEARING BALL
13 532 16 31-83 SCREW HEX HEAD 5/16-18 X 5/8
14 532 42 79-42 NUT FLANGE NYLOCK 5/16-18

6
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
05.09.013-B
1
2
2
3
3
4
5
4
5

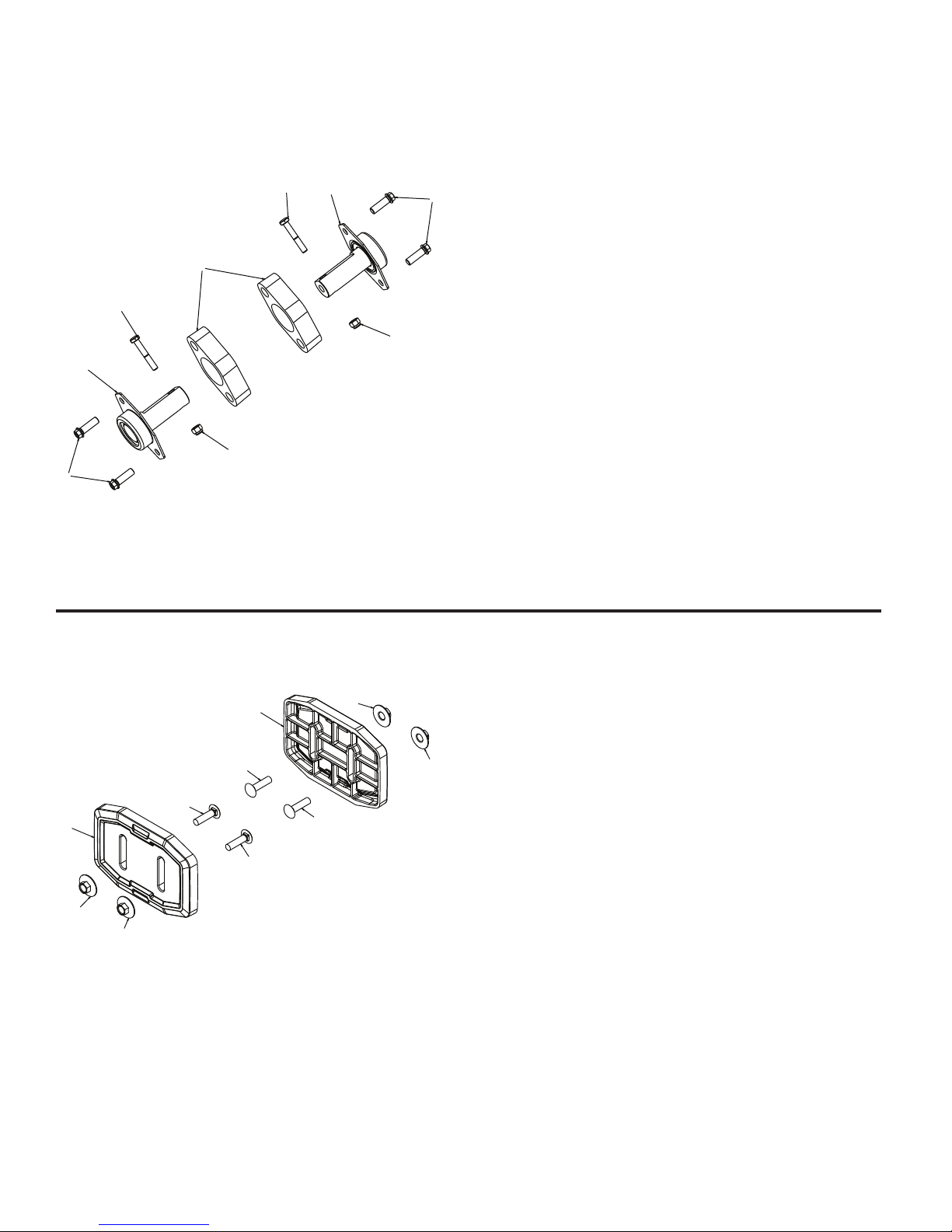

1 532 18 81-70 PLASTIC RETAINER
2 532 42 77-62 AUGER BALL BEARING
3 584 29 94-01 SCREW HI-LO 5/16-14 X 1.00 -
BLK
4 874 78 04-26 SCREW 1/4-20 X .625
5 873 80 04-00 NUT 1/4-20
1
1
2
2
2
2
3
3
3
305.12.004-D
1 583 83 88-01 SKID SHOW UHMW
2 585 80 29-01 BOLT CARR BLK 5/16-18 X 1.25
3 585 80 28-01 NUT HEX 5/16-18 LRG FLG

7
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
05.07.010-A
1
2
3
3
4
1 581 13 12-04 CONSOLE BASE MULTICONT
GRAY-MS498
2 585 80 50-01 SWITCH GRIP HEATED
BLACK
3 817 06 04-10 SCREW TA SEMI GIMLE
1/4-20 X .62
4 581 32 95-01 SCREW HEX WASHER HI-LO
13-16 X 1.50
1
2
2
2
2
33
4
5
6
7
05.07.005-B

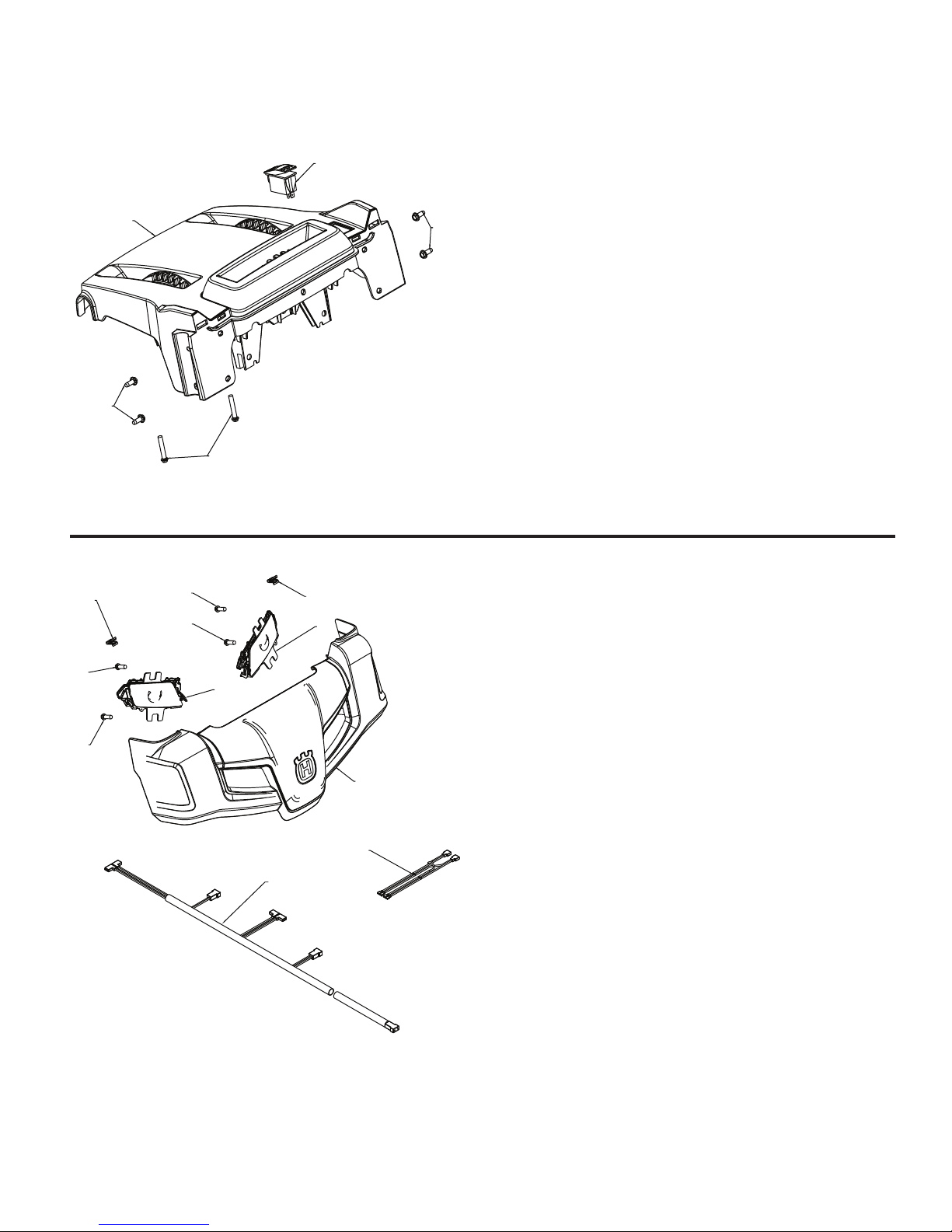

1 581 12 79-01 HUSQVARNA CONSOLE
COVER ASM
2 532 19 41-89 SCREW HI-LO 13-16 X 5/6
3 581 92 87-01 CLIP PANEL
4 586 72 35-01 LIGHT ASM LED HUSQ RH
5 586 72 36-01 LIGHT ASM LED HUSQ LH
6 584 29 02-01 WIRE HARNESS LIGHT & GRIP
7 585 86 83-01 WIRE HARNESS LIGHT
JUMPER

8
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
1
2
2
05.08.008-B
1 581 14 63-01 GRIP HANDLE HEATED
2 532 44 22-50 SCREW PAN HD TORX 1/4-20
X .75
1
1
2
2
3
3
4
4
5
5
05.08.006-A

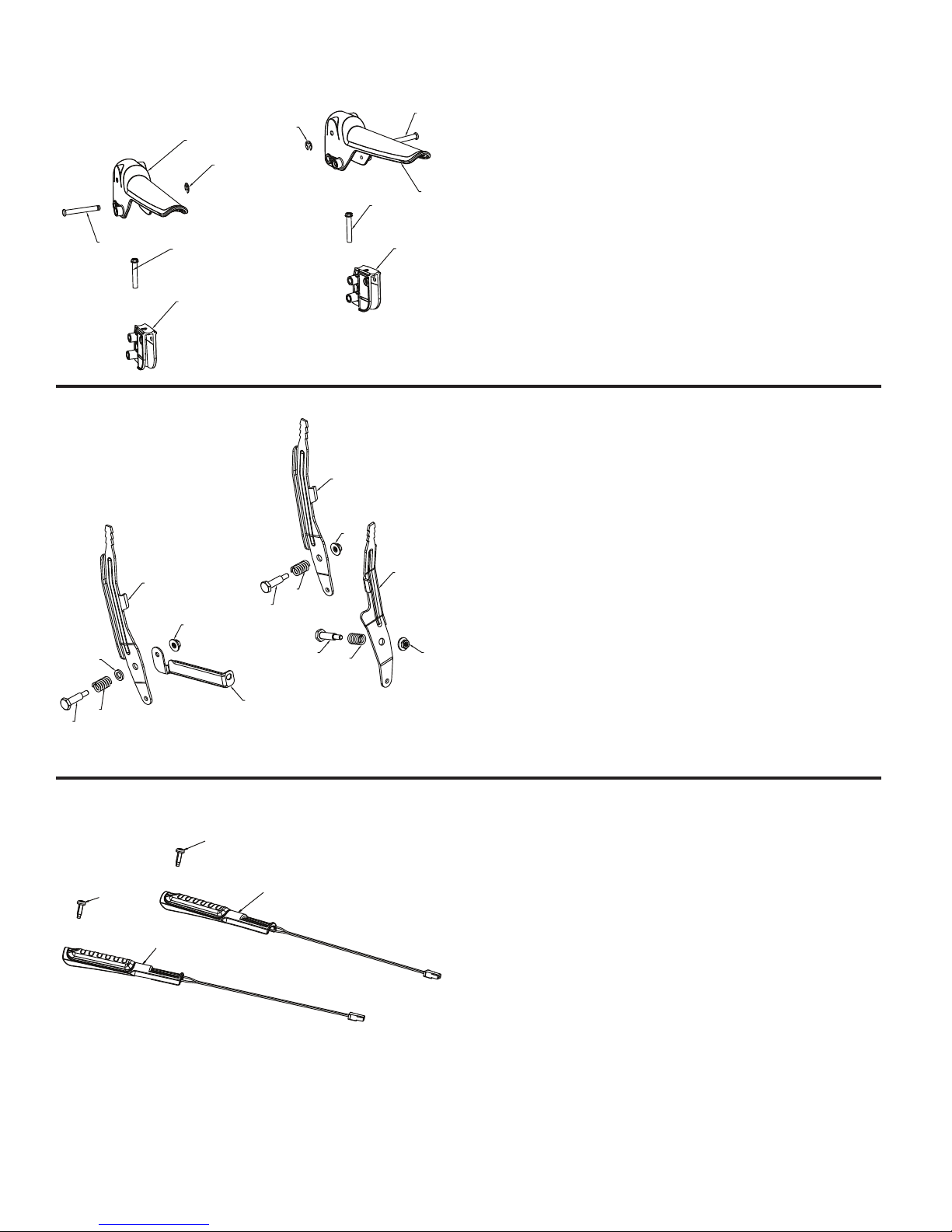

1 580 78 48-01 LEVER CONTROL DSST
2 581 20 81-01 LEVER PIVOT CONTROL ASM
3 585 69 07-01 SCREW HEX HD 10-24 X 1.50
4 532 43 17-62 PIN GROOVED
5 812 00 00-14 E-RING
1
12
3
3
3
4
4
4
5
5
5
6
7
05.08.005-C
1 581 12 39-02 LEVER CONTROL SPEED/DEFL
2 581 24 16-02 LEVER CONTROL CHUTE ROT
3 581 32 97-01 BOLT SHOULDER 1/4-20
4 581 32 96-01 SPRING COMPRESSION
5 586 66 89-01 NUT FL LOCK 1/4-20
6 584 46 84-02 BRACE SUPPORT SPEED
7 587 03 13-01 WASHER .625 X .375 X .094
NYLON 6/6

9
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
10
10
*11
1
2
3
4
4
4
5
6
7
7
9
8
*12
*13
*14
*15
05.11.006-C
4
4
1 532 44 40-41 CHUTE WELDMENT
2 532 18 41-13 DEFLECTOR WELDMENT
3 532 42 03-25 DEFLECTOR SEAL
4 532 12 84-15 POP RIVET
5 532 43 03-24 CHUTE SNOW SHIELD
6 532 42 17-28 SHIELD STRAP RETAINER
7 586 96 15-01 CABLE ASM DEFLECTOR -
BOWDEN
8 581 32 94-01 PIN CLEVIS 5/16 X .875
9 585 80 83-01 PIN CLEVIS 1/4 X .312
10 532 42 33-03 HAIRPIN RETAINER
*11 532 18 45-05 DEFLECTOR SPRING
*12 585 83 22-01 SHOULDER BOLT 1/4-20 X .375
*13 585 69 14-01 NUT 1/4-20
*14 585 83 20-01 CARRIAGE BOLT 3/8-16 X .625
*15 585 69 15-01 NUT 5/16-18
NOTE: ALL ITEMS MARKED WITH AN * ARE PROVIDED
IN THE BAG OF ITEMS SHIPPED LOOSE WITH THE
PRODUCT

10
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
12
2
3
3
4
505.08.001-B

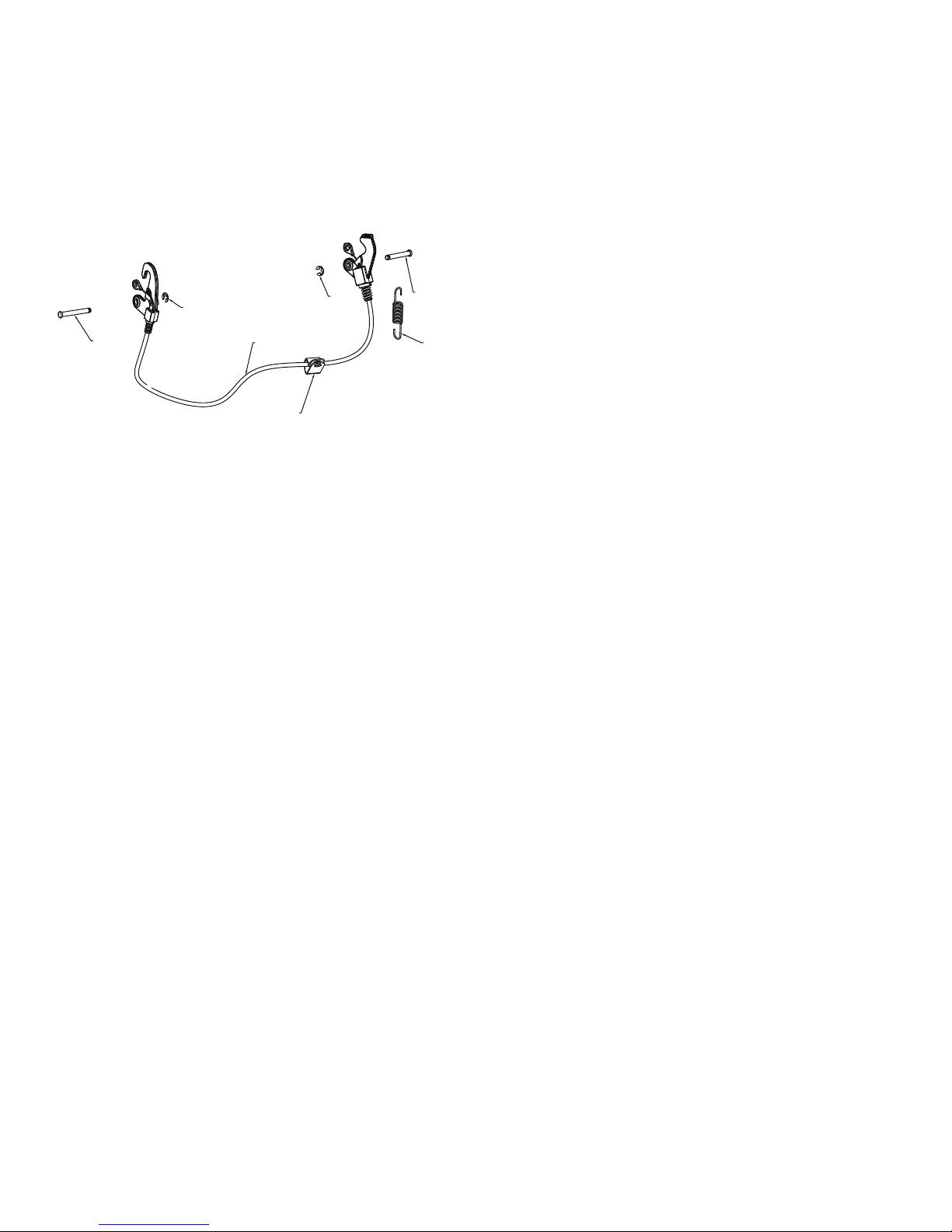

1 580 66 47-01 CABLE INTERLOCK
2 532 43 17-62 PIN GROOVED
3 812 00 00-14 E-RING
4 581 15 12-01 SPRING RETURN
5 532 19 79-91 CLIP CABLE BLACK

11
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
3
4
4
5
5
6
6
7
98
8
05.08.002-B

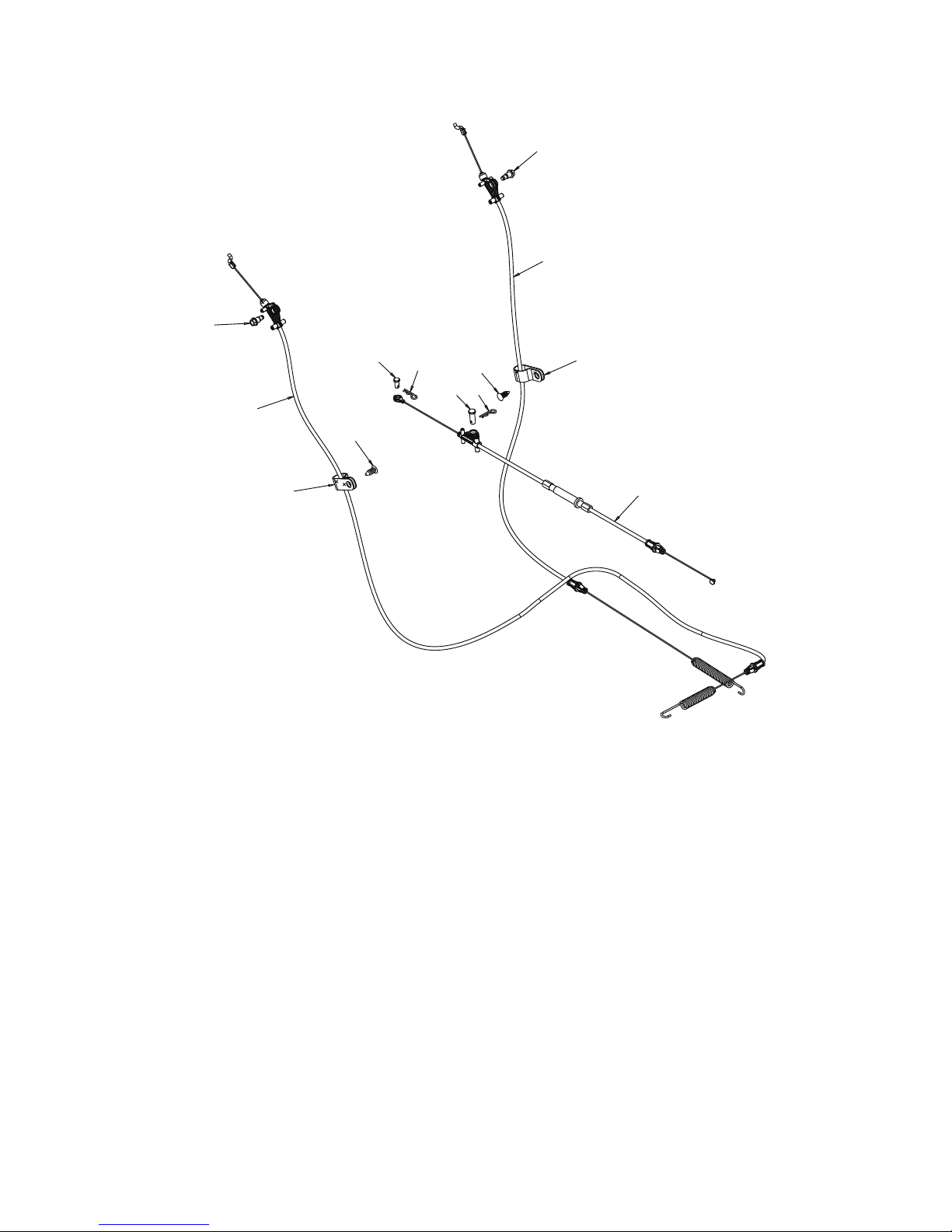

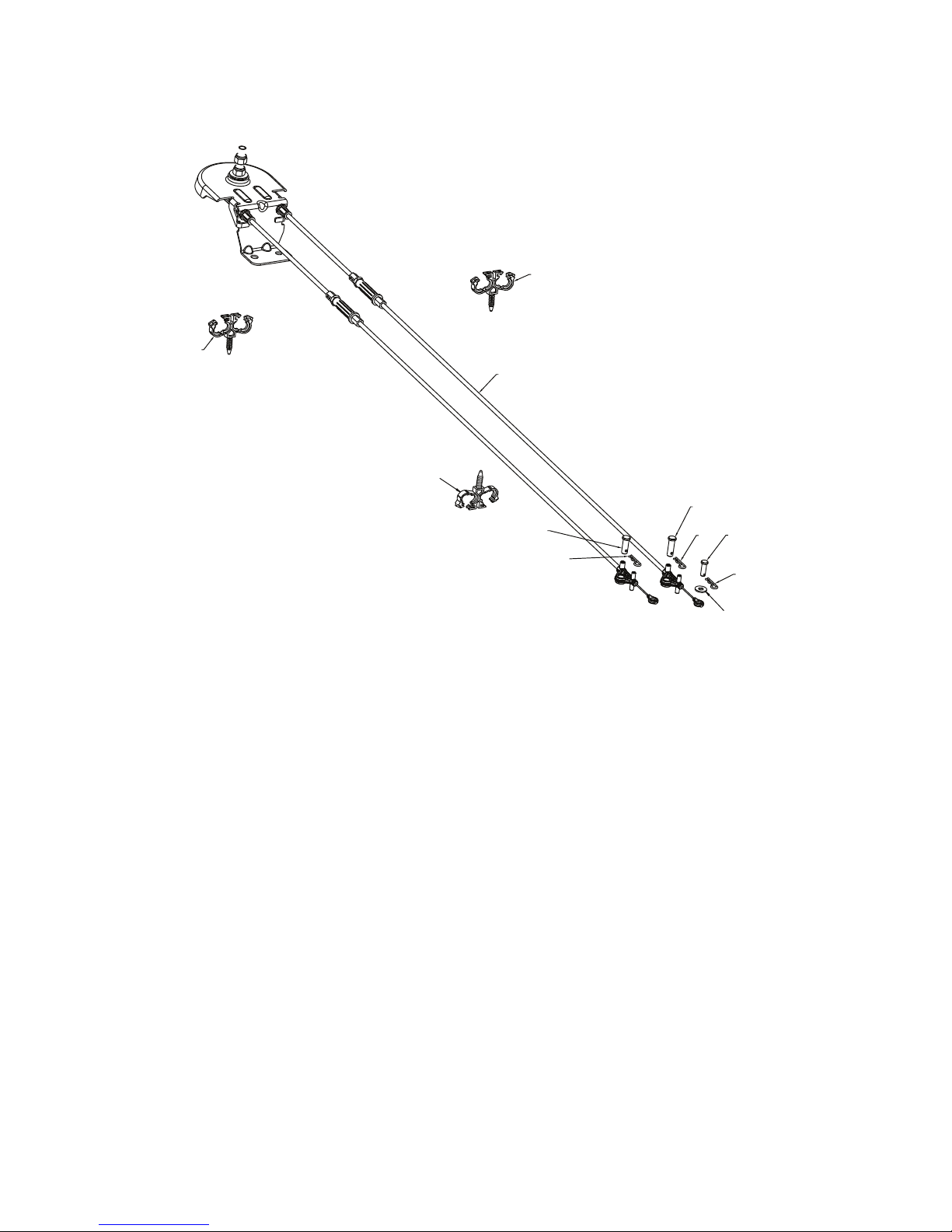

1 581 12 83-01 CABLE CONTROL DRIVE
2 581 12 82-01 CABLE CONTROL AUGER
3 581 12 42-01 CABLE CONTROL SPEED
4 581 72 61-01 BOLT SHOULDER 1/4
5 532 19 79-91 CLIP CABLE
6 532 42 81-24 FASTENER PUSH .250
7 581 32 94-01 PIN CLEVIS 5/16
8 532 42 33-03 HAIRPIN
9 585 80 83-01 PIN CLEVIS 1/4

12
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
23
4
4
4
5
5
5
6
7
05.08.003-D
1 581 68 03-01 CABLE ROTATOR ASM
2 581 32 94-01 PIN CLEVIS 5/16 X 7/8
3 877 10 08-12 PIN CLEVIS 1/4 X 3/4
4 532 42 33-03 HAIRPIN SOFT ZINC
5 584 65 22-01 CLIP CONDUIT DOUBLE
6 586 68 21-01 WASHER
7 587 13 08-01 PIN CLEVIS 5/16 X 1

13
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
2
3
4
4
05.05.001-C

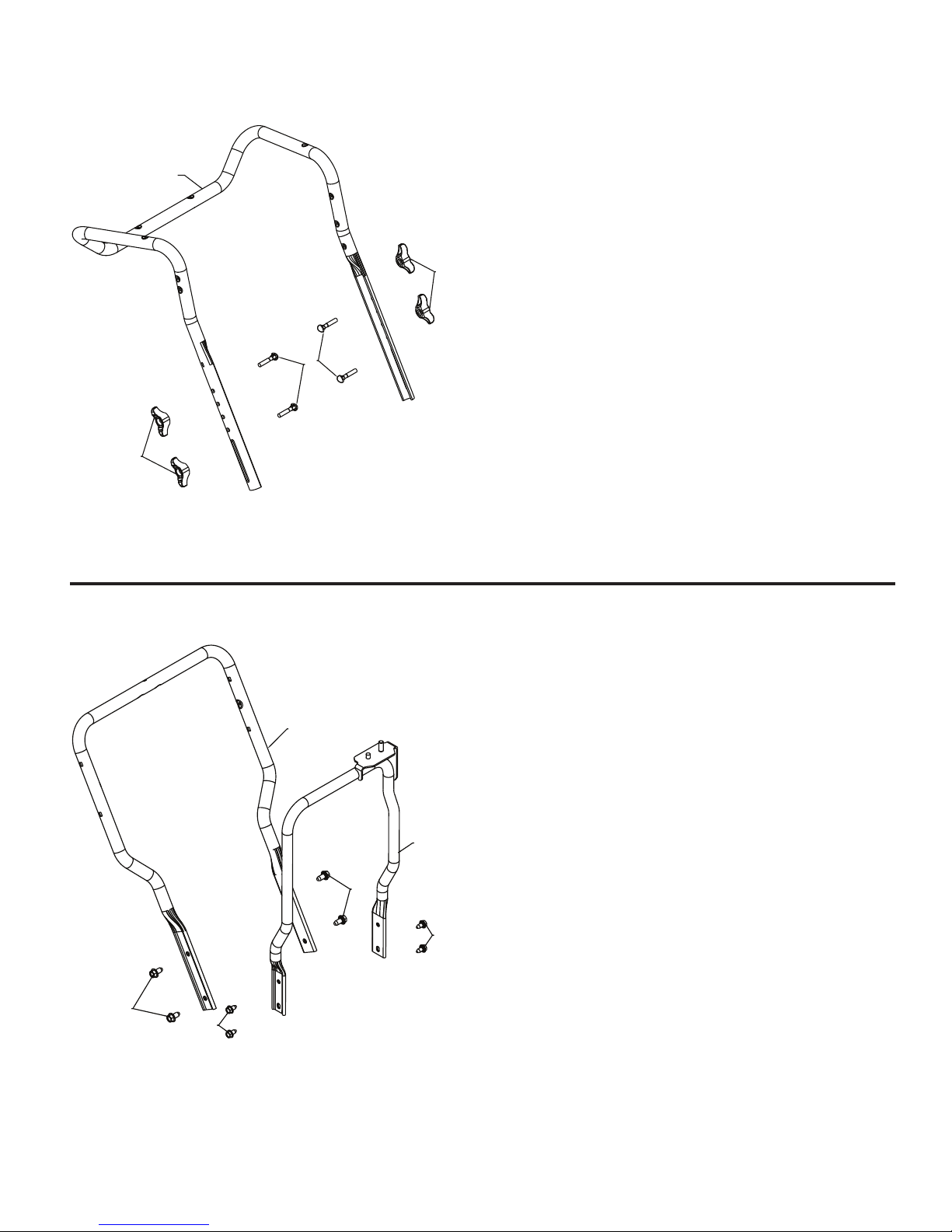

1 581 12 35-03 LOWER TUBE
2 817 00 06-12 SCREW HEX WASH HD
3/8-16 X .75
3 581 62 20-02 CHUTE ROTATOR SUPPORT
ASM
4 817 00 05-10 BOLT HEX 5/16-18
05.06.001-C
1
2
2
3
1 581 12 36-03 UPPER HANDLE
2 532 19 19-38 HANDLE KNOB STD BLACK
3 532 19 15-74 BOLT 5/16-18 X 1.75
CONCAVE HEAD

14

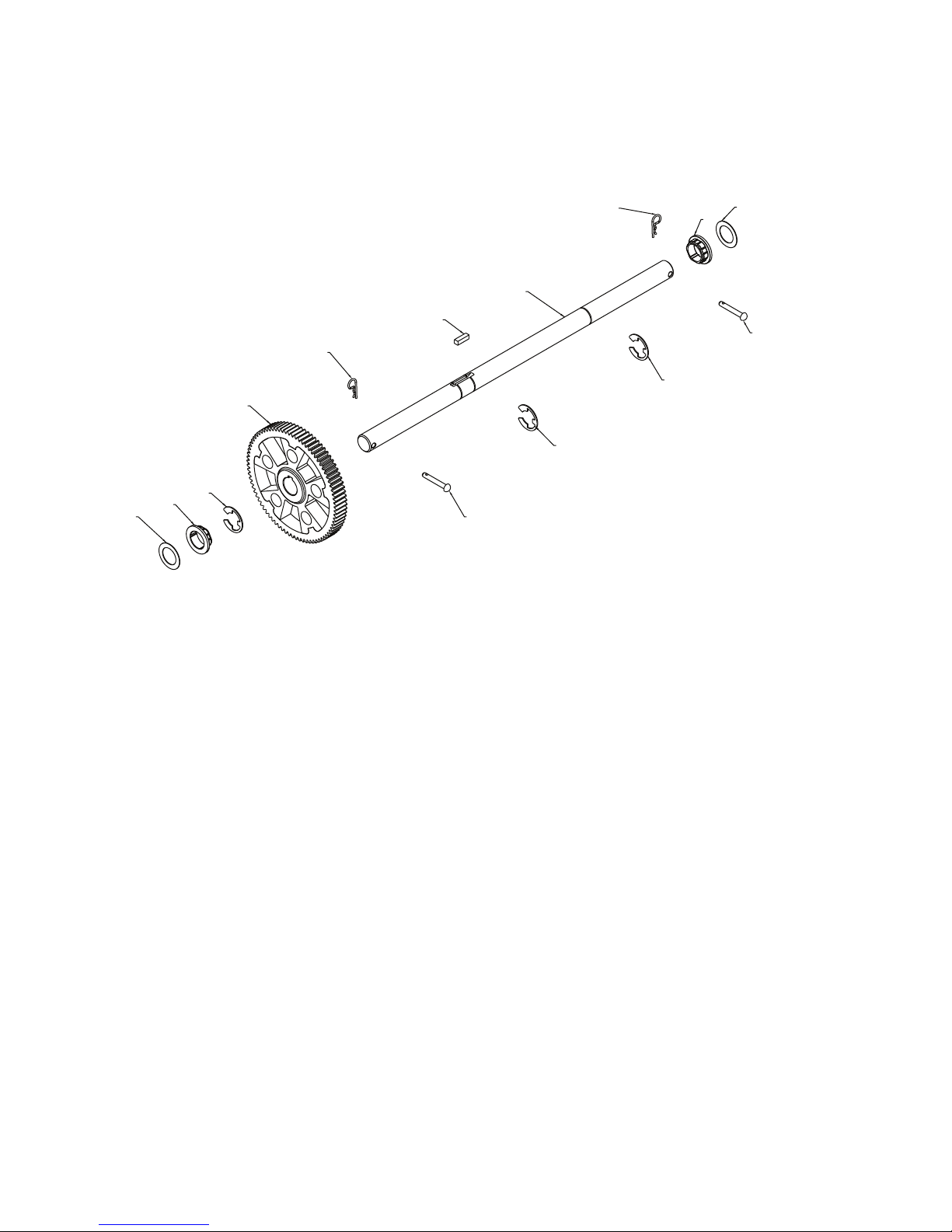

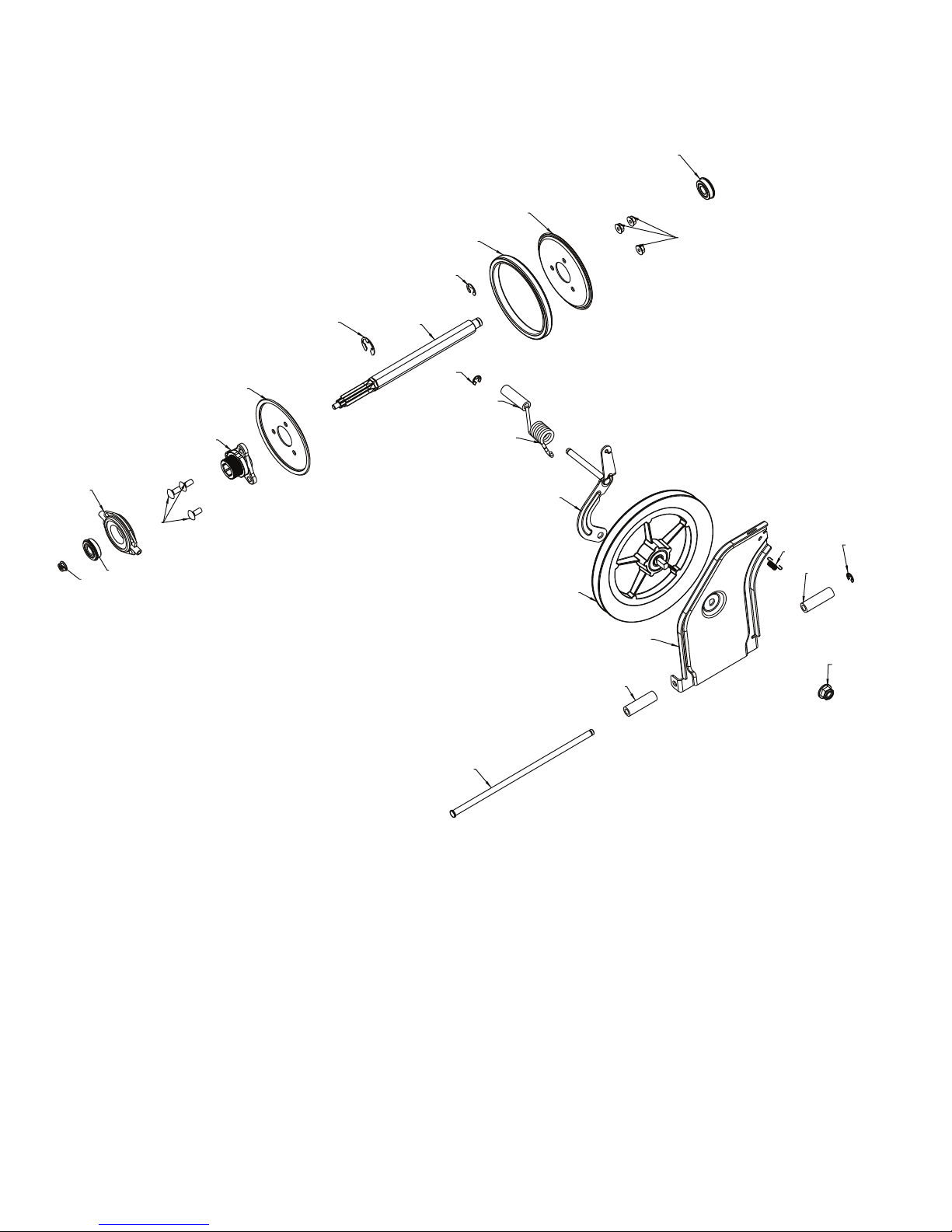

REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10 11
1
2
2
3
4
5
6
6
7
9
8
12
12
13
13
13
14
15
16
17
18
19
20
05.02.001-C

15
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 585 69 15-01 NUT HEX FLANGE LK 5/16-18
2 580 75 62-01 BEARING 9/16 I.D. 1622-2RSNR
3 532 17 53-44 TRUNNION BEARING ASM
4 872 11 05-06 BOLT CARRIAGE 5/16-18 X .75 GR5
5 581 09 09-01 HUB RUBBER WHEEL
6 581 09 10-02 RUBBER WHEEL PLATE
7 812 00 00-22 E-RING
8 581 12 19-01 SHAFT 7 TOOTH REDUCTION
9 580 75 61-01 RETAINING RING 1622-2RSNR
10 581 09 11-01 RUBBER WHEEL RING
11 532 75 11-53 NUT HEX FLANGE LK 5/16-18
12 812 00 00-07 E-RING RETAINER 375
13 581 73 27-01 DRIVE SPACER
14 581 31 53-01 DRIVE TORSION SPRING
15 581 45 42-03 YOKE BRACKET WELDMENT
16 581 32 84-01 FRICTION PULLEY DISC COMBO
17 581 12 30-01 ROD TIP PLATE
18 581 44 69-03 FRICTION SWING PLATE PULL
19 532 19 38-85 LATCH SPRING
20 521 99 11-01 NUT HEX FLANGE LK 1/2-13

16
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
1
2
2
3
3
3
4
5
5
6
6
7
8
05.03.001-A
1 532 44 49-49 WASHER 1.00
2 581 12 23-01 HEX BUSHING 1 SHAFT
3 812 00 00-53 RETAINER RING
4 581 12 22-02 GEAR 80T DRIVEN
5 532 17 12-71 RIVET RD HD DRILLED 1/4 DIA
6 532 12 47-88 RETAINER SPRING
7 532 18 92-82 SQUARE KEY 1/4 X .875
8 581 12 20-01 AXLE SHAFT

17

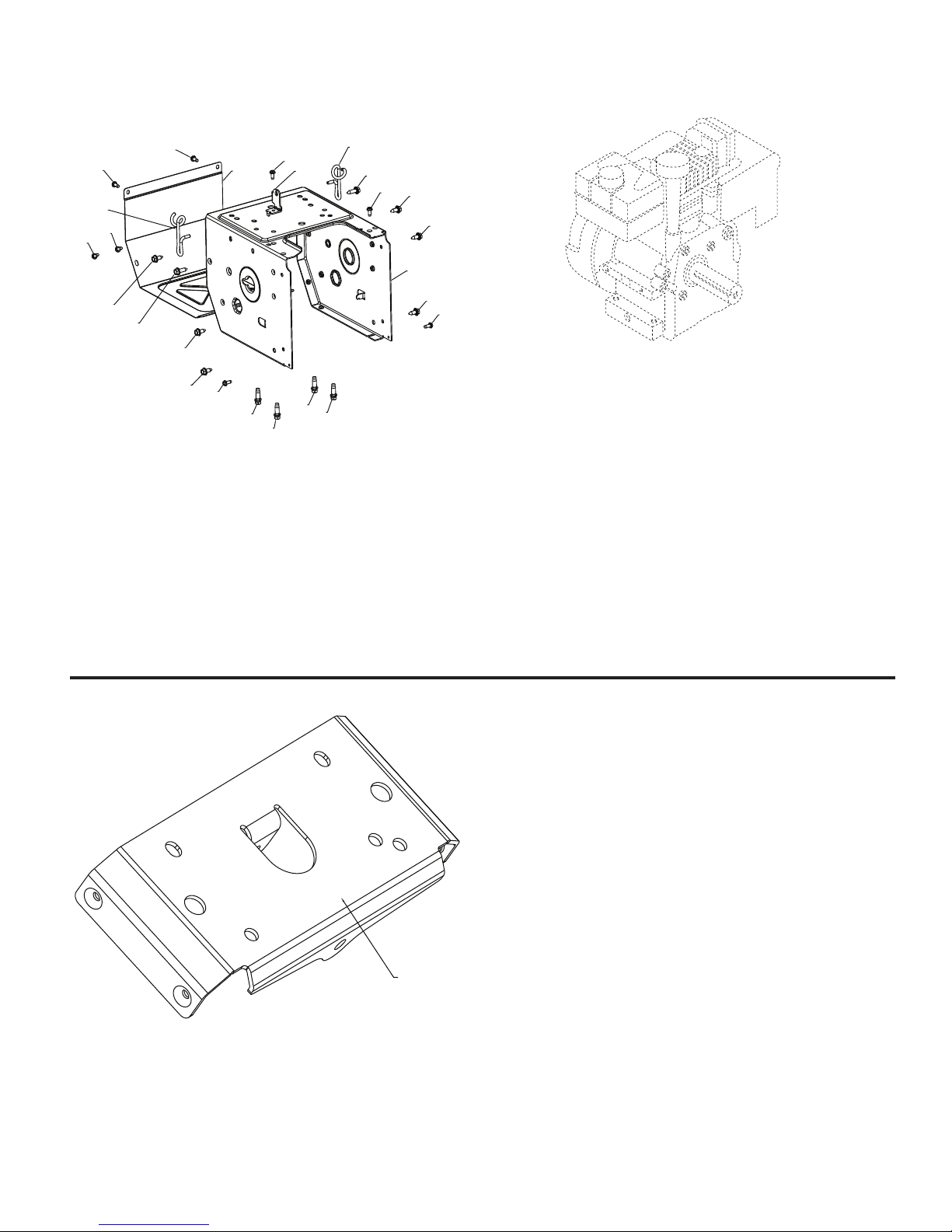

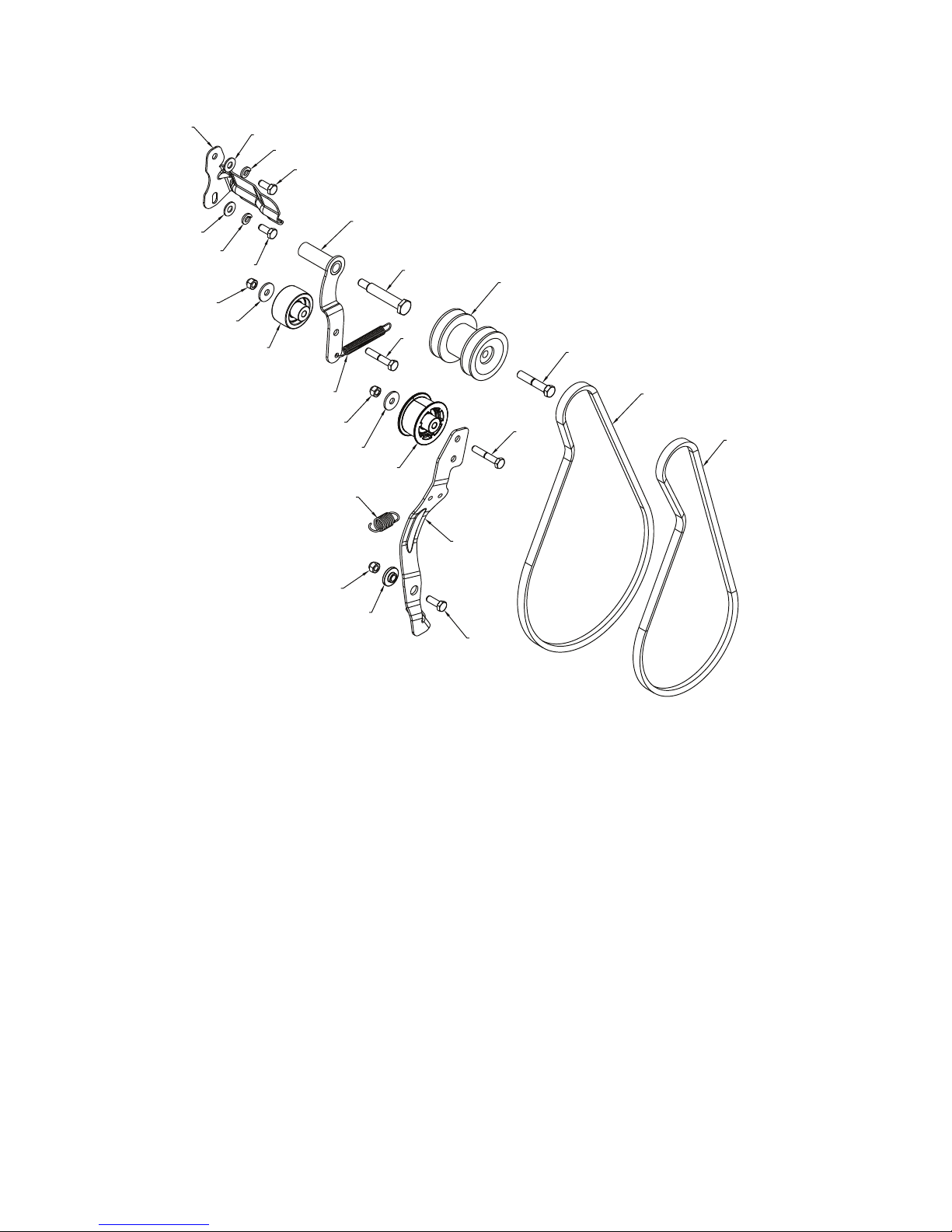

REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
2
2
2
34
5
5
5
5
5
5
5
56
67
7
7
7
7
7
8
8
05.01.001-C
- - 580 42 60-03 COMPLETE LCT ENGINE
1 580 83 94-05 FRAME
2 532 15 04-06 ENGINE BOLT 3/8-16 X 1.208
DOGPOINT
3 580 83 95-05 FRAME COVER
4 581 12 24-02 SHIFTER BRACKET
5 817 06 04-10 SCREW HEX WASHER
1/4-20 X 5/8
6 585 20 60-01 WIREFORM SUPPORT CABLE
7 532 42 88-67 BOLT HEXHD WASHER
5/16-18 X .75
8 585 21 75-01 BOLT HEXHD WASHER
5/16-18 X 1.00
1
05.01.002-A
1 583 94 05-02 SMALL MOUNTING PLATE

18
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
10
10
11
12
2
3
3
4
4
5
5
5
6
6
7
9
8
12
13
14
15
16
17
18
19
20
05.04.003-J
1 581 62 37-02 BELT KEEPER BRACKET
2 819 11 12-16 WASHER 11/32 X 3/4 X 16 GA
3 810 04 05-00 LOCKWASHER 5/16 SPLIT HVY
4 874 61 05-12 CAPSCREW HEXHD
5/16-24 X .75 GR5
5 581 33 82-02 IDLER ARM DRIVE WELDMENT
6 873 80 05-00 NUT NYLOCK 5/16-18
7 532 05 92-89 WASHER FLAT .328 X 1.00 X .097
8 581 14 14-01 IDLER PULLEY 2.0 W/SPACER
9 580 75 30-01 RETURN SPRING IDLER ARM
DRIVE
10 874 76 05-28 BOLT HEXHD 5/16-18 X 1.75
11 581 41 38-01 SHOULDER BOLT
5/16-24 X 2.15
12 581 12 15-01 PULLEY ASM IMPELLER DRIVE
13 532 17 96-17 BOLT HEXHD 3/8-24 X 2.00
14 580 83 11-02 ARM IDLER
15 587 03 12-01 RETURN SPRING IDLER ARM
16 532 17 53-31 BUSHING IDLER PIVOT
17 874 76 05-14 BOLT HEXHD 5/16-18 X .875
18 584 21 61-01 DRIVE BELT 4L X 38.2
19 581 83 24-01 IMPELLER BELT
20 586 88 02-01 IDLER PULLEY 2.0
FLANGELSS W/SPACER

19
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
2
3
4
405.04.002-B
1 581 04 99-01 BELT COVER BLACK
2 585 69 11-01 BOLT HEX WSH THDRL
1/4-20 X 1
3 532 14 50-06 CABLE GUIDE
4 532 42 30-62 PALNUT 1/4 IN

20
REPAIR PARTS WHEELS
SNOW THROWER - MODEL NO.
ST224
ST224 (96193009601), PRODUCT NO. 961 93 00-96
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
05.15.003-C
1 586 71 04-01 WHEEL 15X5.00 NPS LH
1.00 K478
2 586 71 03-01 WHEEL 15X5.00 NPS RH
1.00 K478
